INXPECT
Cable length | 5000 mm |
---|---|
Connection | M12 |
Core identification | Colour Coded |
IP class | IP65, IP67 |

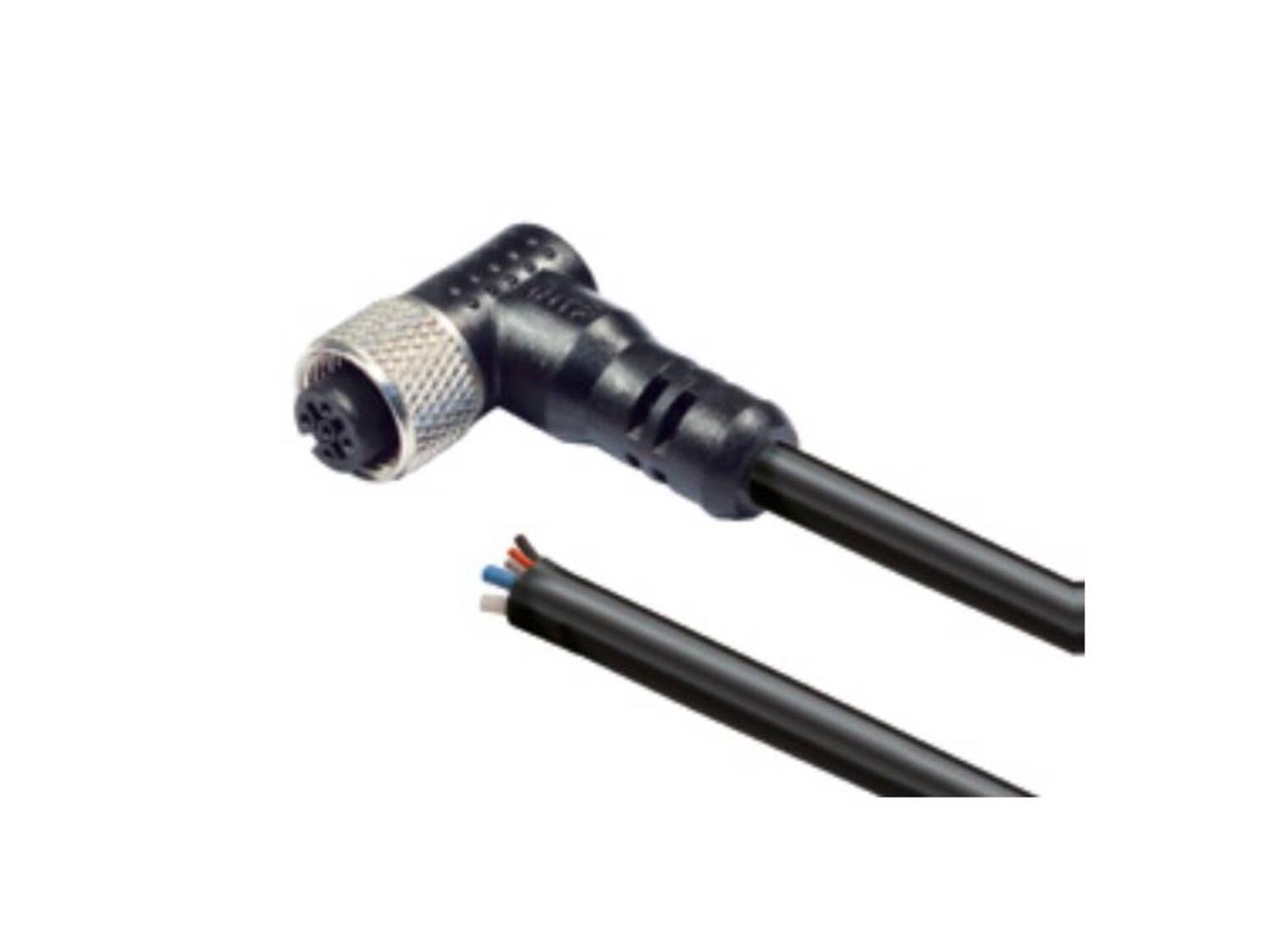

Inxpect offers a range of sensor-to-sensor and control unit-to-sensor cables designed to ensure reliable and secure connections within its safety radar systems. The cable that connects the control unit to the first sensor features an M12, 5-pole connector on one end (for the sensor) and open wire ends on the other, which are connected directly to the terminal block of the control unit. For connecting multiple sensors in series, dedicated sensor-to-sensor cables are used, equipped with M12, 5-pole connectors on both ends. It is important to place a termination resistor in the last sensor of the chain to ensure proper signal integrity.
There are two cable types available: a thinner, more basic version that is not twisted-pair, and a more robust, twisted-pair version designed for better resistance to electrical interference. When installing cables alongside other wiring harnesses that may emit electromagnetic noise, it is recommended to use the twisted-pair version to maintain optimal signal performance. To help ensure the correct cable type and length is selected for your setup, a detailed validation document is available for download on Inxpect's website under the accessories section.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.
LIDAR, Radar, and Laser scanners are all powerful technologies used to enhance safety in industrial and automated environments. But how do you choose the right one for your application?
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Cable length | Connection | Core identification | Data | IP class | Life span | MTTFd | Number of contacts | Temperature range fixed use from | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
08000110 Radar Sensor 200 SERIES - M12, female, 5 poles, A-coded, angled 90°
Art:
C805P02M05-SBV
Copied
|
5000 mm
|
M12
|
Colour Coded
|
|
IP65, IP67
|
|
|
|
|
| ||
![]()
08000111 Radar Sensor 200 SERIES - M12, female, 5 poles, A-coded, angled 90°
Art:
C805P02M10-SBV
Copied
|
10000 mm
|
|
|
|
|
|
|
|
|
| ||
![]()
08000112 Radar Sensor 200 SERIES - M12, female, 5 poles, A-coded, angled 90°
Art:
C805P02M15-SBV
Copied
|
15000 mm
|
|
|
|
|
|
|
|
|
| ||
![]()
08000113 Radar Sensor 200 SERIES - M12, female, 5 poles, A-coded, angled 90°
Art:
C805P02M20-SBV
Copied
|
20000 mm
|
|
|
|
|
|
|
|
|
| ||
![]()
08000120 Radar Sensor 200 SERIES - IN side: connector M12, female, 5 poles, A-coded, angled 90° OUT side: connector M12, male, 5 poles, A-coded, angled 90°
Art:
C885P02M03-SBV
Copied
|
3000 mm
|
|
|
|
|
|
|
|
|
| ||
![]()
08000121 Radar Sensor 200 SERIES - IN side: connector M12, female, 5 poles, A-coded, angled 90° OUT side: connector M12, male, 5 poles, A-coded, angled 90°
Art:
C885P02M05-SBV
Copied
|
5000 mm
|
2xM12 5-pin connector
|
|
CANbus
|
IP67
|
20 years
|
40 years
|
|
-30 °C
|
| ||
![]()
08000122 Radar Sensor 200 SERIES - IN side: connector M12, female, 5 poles, A-coded, angled 90° OUT side: connector M12, male, 5 poles, A-coded, angled 90°
Art:
C885P02M10-SBV
Copied
|
10000 mm
|
|
|
|
|
|
|
|
|
| ||
![]()
08000123 Radar Sensor 200 SERIES - IN side: connector M12, female, 5 poles, A-coded, angled 90° OUT side: connector M12, male, 5 poles, A-coded, angled 90°
Art:
C885P02M15-SBV
Copied
|
15000 mm
|
|
|
|
|
|
|
|
|
| ||
![]()
7000003 Bus terminator: M12, male, 5 poles, A-coded, straight 180°, resistance 120 Ω (C805TERM-LBK)
Art:
C805TERM-LBK
Copied
|
|
M12
|
|
|
|
|
|
5
|
|
|
Select a variant in the list
