Kuebler - Limes absolute magnitude sensor LA10 magnetic tape BA1
Linear transducers are used to measure an absolute linear position with high accuracy, such as woodworking machines, lathes, material handling, traverses, etc. The sensor is almost completely insensitive to dirt and moisture and can therefore be used in difficult environments, it is dense and has no moving parts. The sensor is mounted to read on a magnetic tape with self-adhesive underside.
- Resolution up to 1 μm
- CANopen / SSI
- Contactless measurement technology
- Max. 8 metres
Selected variant
Technical data
Downloads
Product description
Linear transducers are used to measure an absolute linear position with high accuracy, such as woodworking machines, lathes, material handling, traverses, etc. The sensor is almost completely insensitive to dirt and moisture and can therefore be used in difficult environments, it is dense and has no moving parts. The sensor is mounted to read on a magnetic tape with self-adhesive underside.
Ordering information

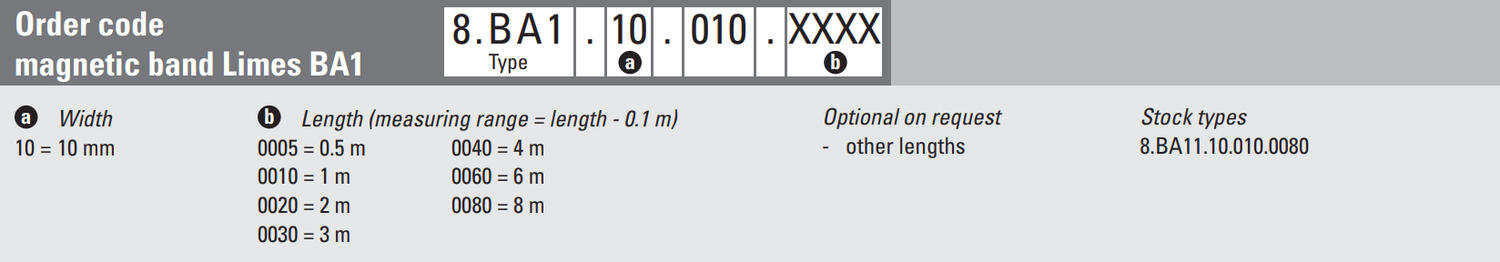

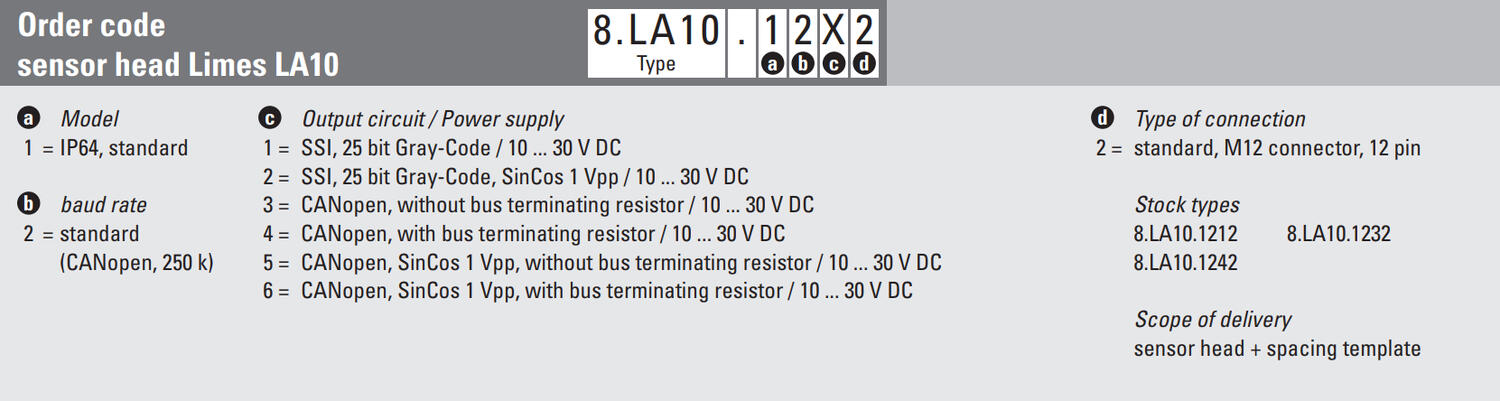

Please refer to the images below for ordering information.
