KÜBLER

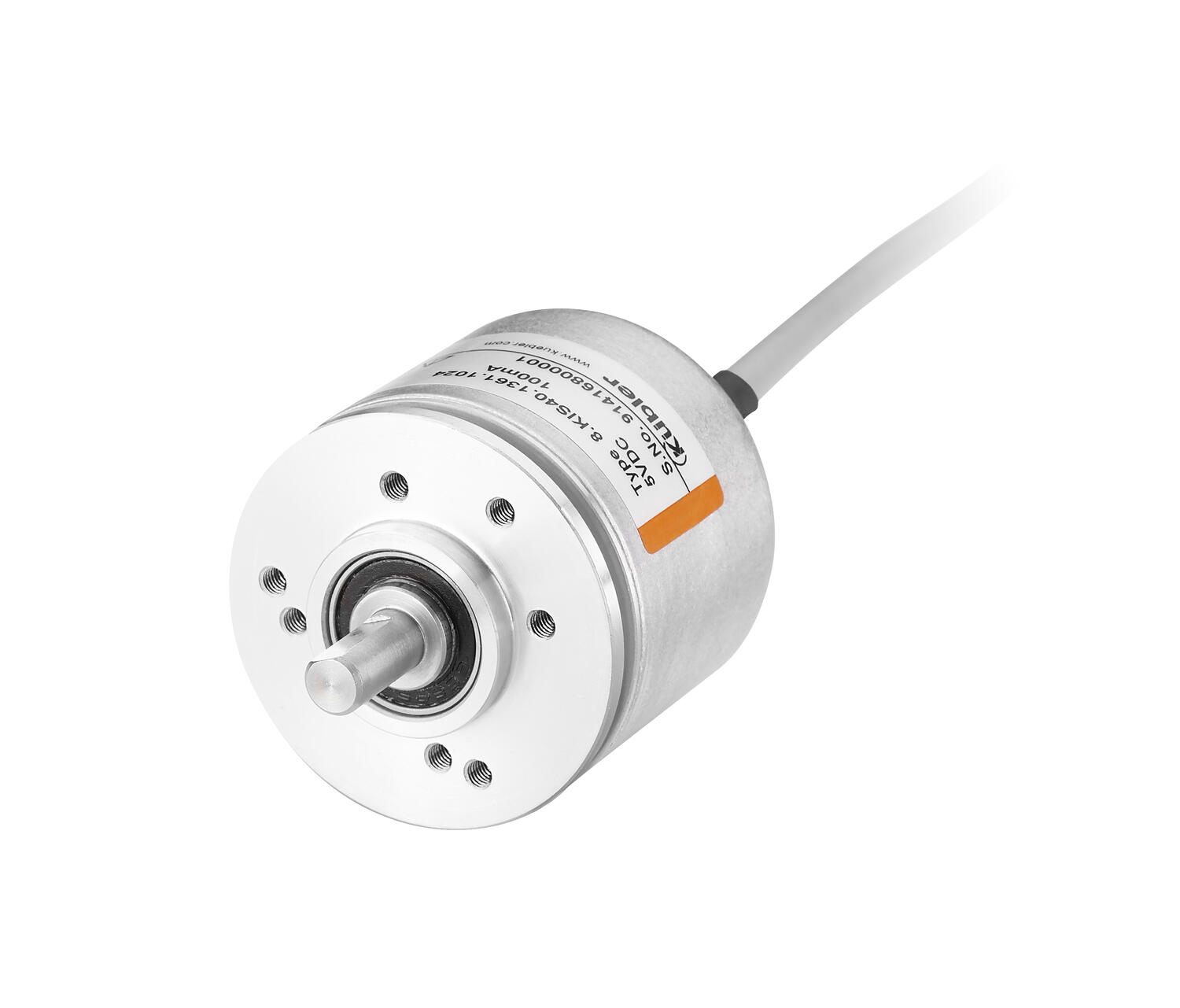

Kuebler - Incremental pulse transducer, Sendix Base KI40 Series
With up to 2 500 pulses per revolution, the sensor fits well in applications where high accuracy is important.
Thanks to the small aluminum housing with an outer diameter of 40 mm, it is well suited for tight spaces.
Metal disk for sensors up to 600 pulses makes the sensor durable and durable even in tougher environments.
This format fills up the product flora in the segment between miniature and standard encoder.
A cost-effective, high-quality incremental encoder
- Housing diameter Ø40 mm
- Reinforced Safety-Lock ™ design
- Max. 2 500 pulses per revolution
- Temperature range -20 to +70 ° C
Selected variant
Technical data

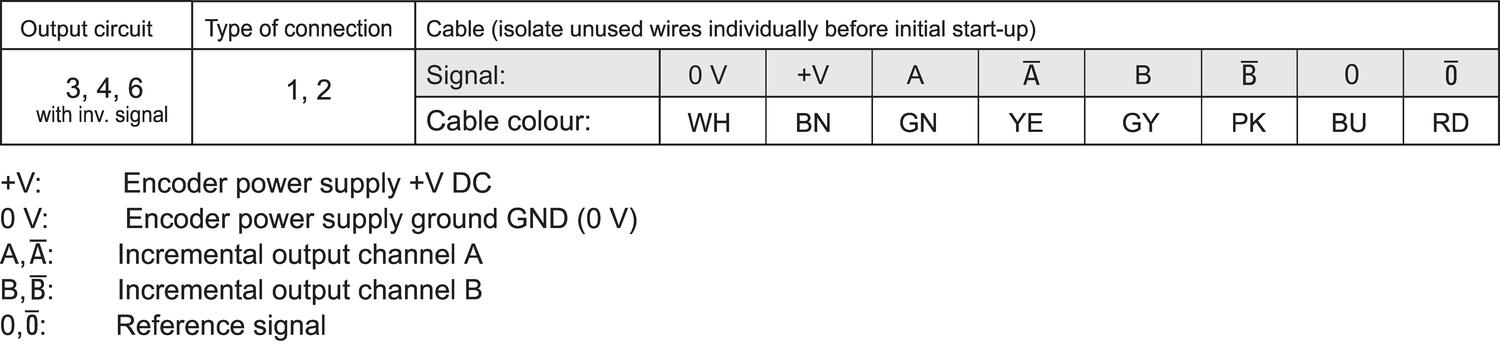

| Connection | Cable |
|---|---|

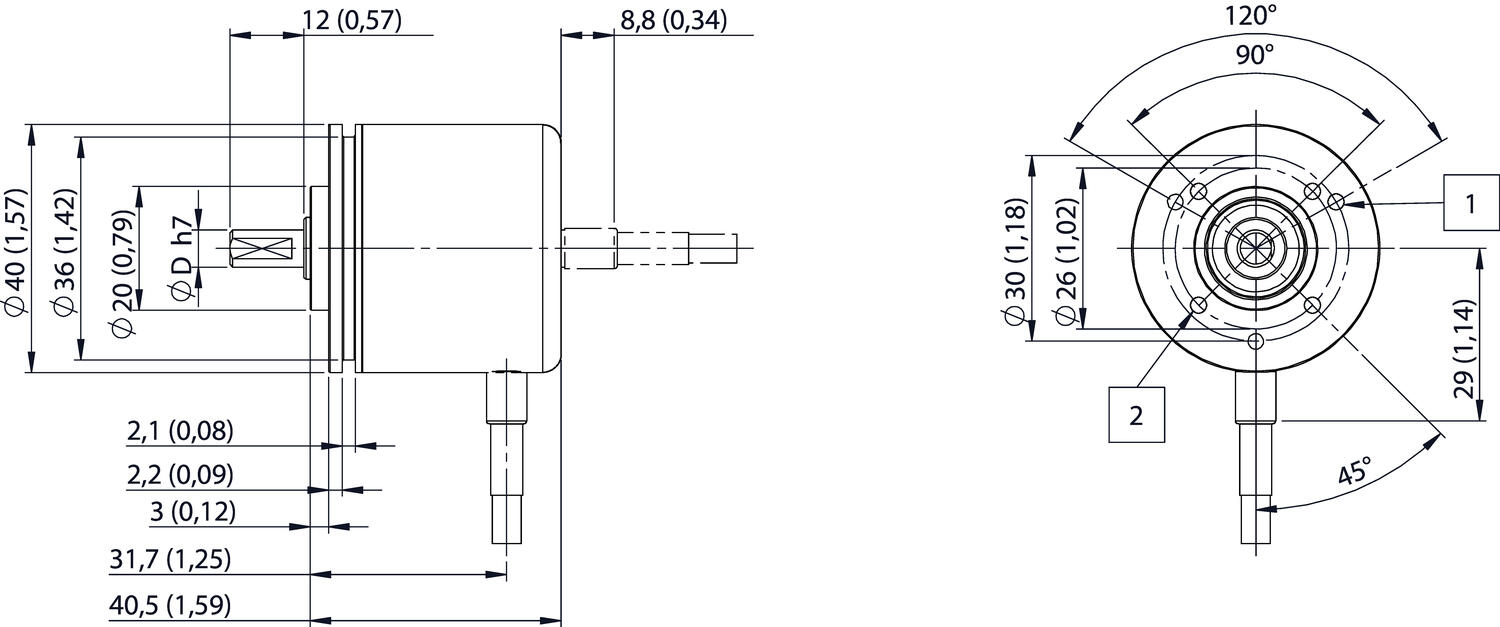

| Housing diameter | 40 mm |
| IP class | IP64 |
| Mounting | Shoulder |
| Output | Push/Pull, RS422 |
| Pulse max | 2500 |
| Sensor type | Incremental |
| Shaft diameter max | 8 mm |
|---|---|
| Shaft diameter min | 6 mm |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 5 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -20 °C |
Product description
With up to 2 500 pulses per revolution, the sensor fits well in applications where high accuracy is important.
Thanks to the small aluminum housing with an outer diameter of 40 mm, it is well suited for tight spaces.
Metal disk for sensors up to 600 pulses makes the sensor durable and durable even in tougher environments.
This format fills up the product flora in the segment between miniature and standard encoder.
A cost-effective, high-quality incremental encoder

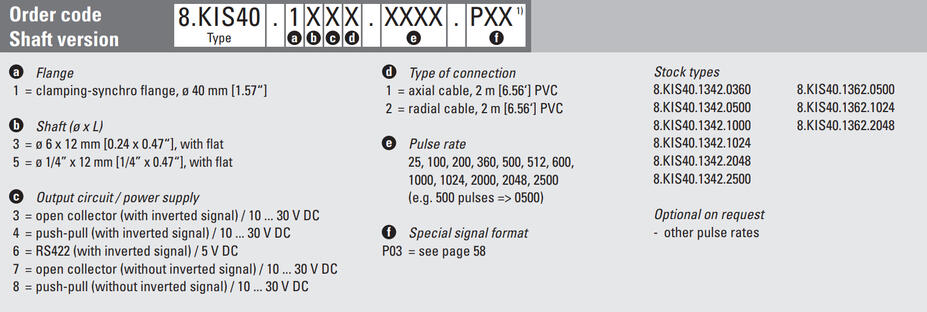

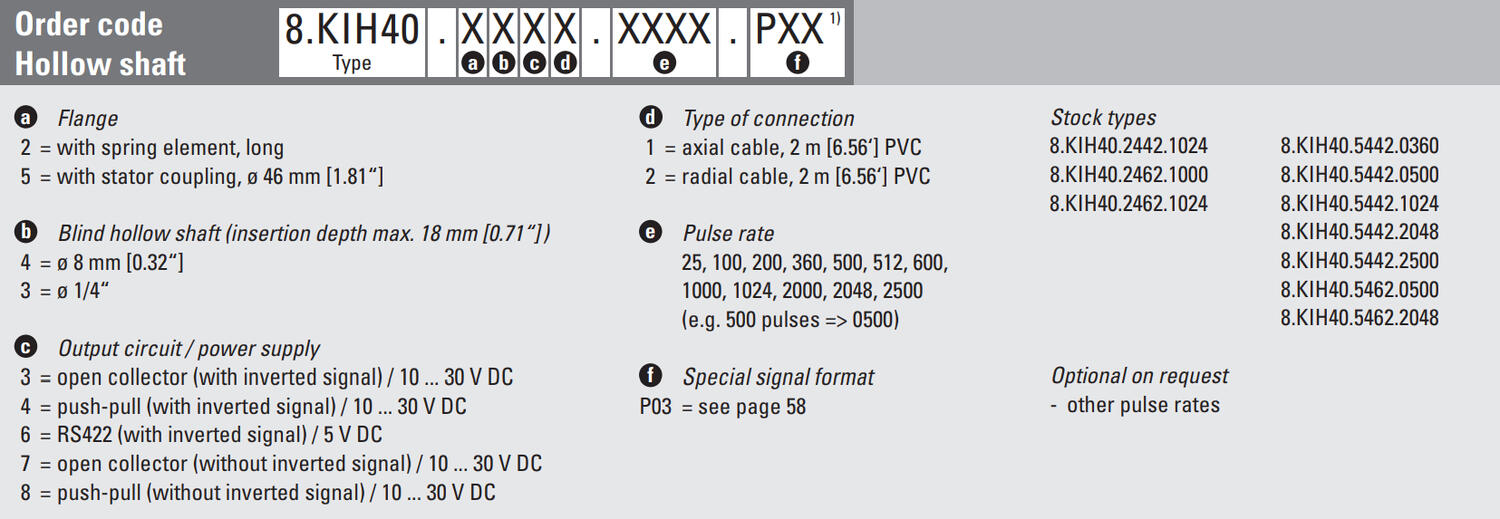

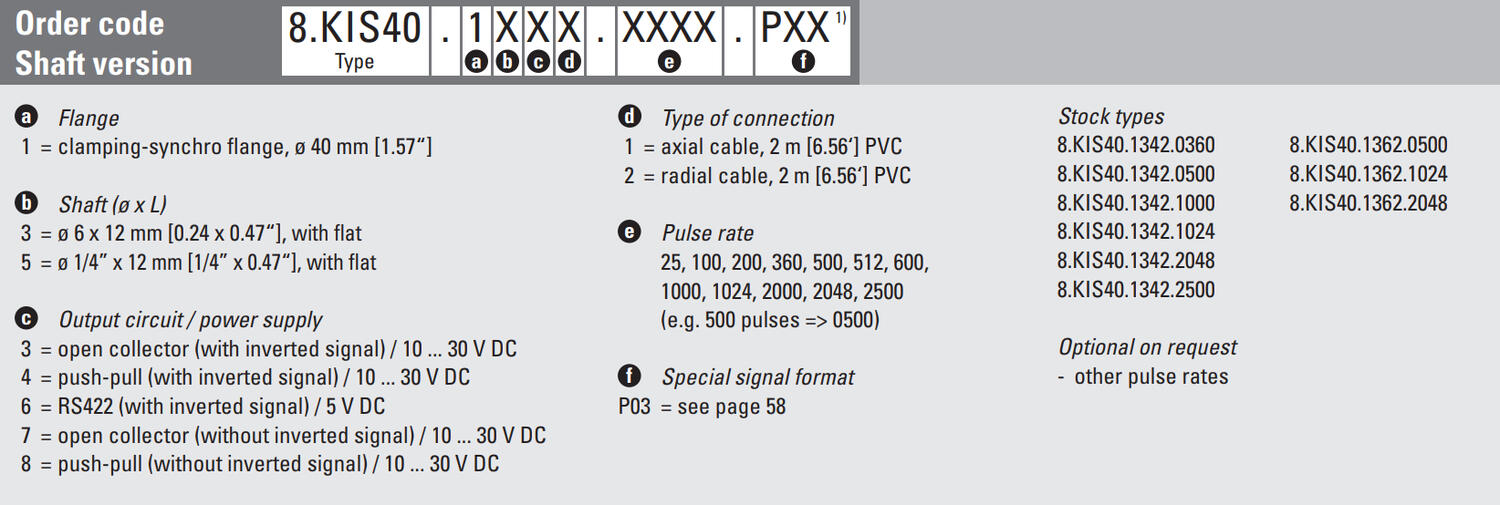

Ordering information
Please refer to the images below for ordering information.
