KÜBLER
Model 2400/2420 is a pulse generator series for industrial applications for confined spaces or where the sensor needs to be lightweight. The models 2400/2420 have a so-called Push-Pull output which means that it can be connected to an input that is either PNP or NPN. Output signals are A, B, 0. They also have inverted signals to be connected to inputs that are adapted for malfunction.
| Connection | Cable |
|---|---|
| Housing diameter | 24 mm |
| IP class | IP50 |
| Mounting | Shoulder |
| Output | Push/Pull |
| Pulse max | 5000 |
| Sensor type | Incremental |
| Shaft diameter | 4 mm |
|---|---|
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 5 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -20 °C |
| Version | Multiturn |
Model 2400/2420 is a pulse generator series for industrial applications for confined spaces or where the sensor needs to be lightweight. The models 2400/2420 have a so-called Push-Pull output which means that it can be connected to an input that is either PNP or NPN. Output signals are A, B, 0. They also have inverted signals to be connected to inputs that are adapted for malfunction.

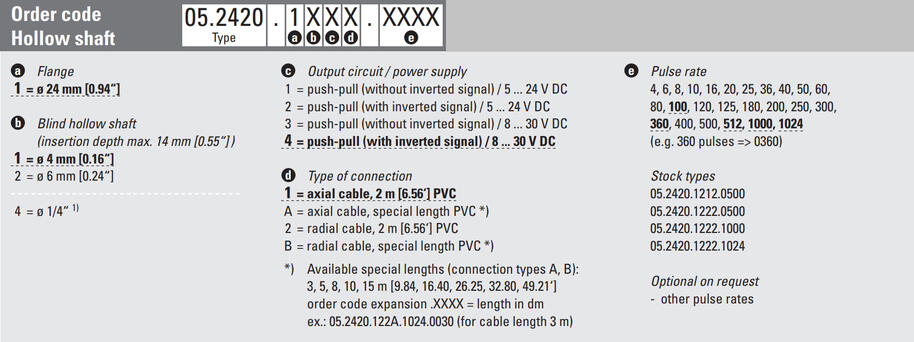

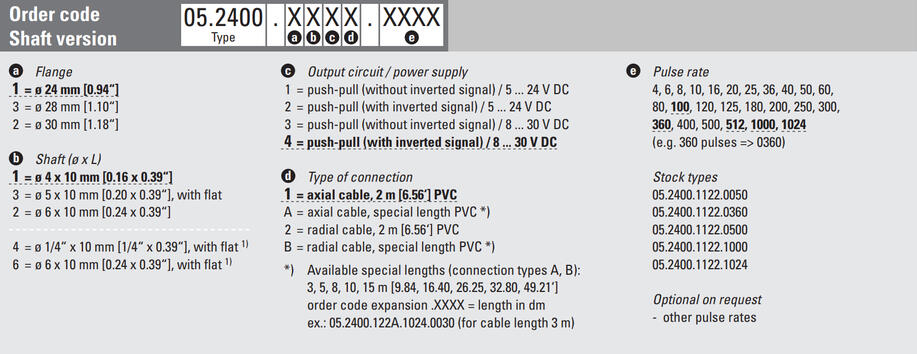

Please refer to the images below for ordering information.
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | IP class | Mounting | Pulse max | Shaft diameter | Shaft diameter max | Shaft diameter min | Price | ||
|---|---|---|---|---|---|---|---|---|---|
Encoder Inc. P/P, radial cable, 5-24VDC
Art:
2400.1122.0050
Copied
|
IP50
|
Shoulder
|
5000
|
4 mm
|
|
|
|
||
|
Encoder Inc. P/P, radial cable, 5-24VDC
Art:
2400.1122.0100
Copied
|
IP50
|
Shoulder
|
5000
|
4 mm
|
|
|
|
||
|
Encoder Inc. P/P, radial cable, 5-24VDC
Art:
2400.1122.0200
Copied
|
IP50
|
Shoulder
|
5000
|
4 mm
|
|
|
|
||
|
INC.ENC 360ppr 4mm SHFT RAD 2M
Art:
2400.1122.0360
Copied
|
IP50
|
Shoulder
|
5000
|
4 mm
|
|
|
|
||
|
INC.ENC 500ppr 4mm SHFT RAD 2M
Art:
2400.1122.0500
Copied
|
IP50
|
Shoulder
|
5000
|
4 mm
|
|
|
|
||
|
Encoder Inc. P/P, radial cable, 5-24VDC
Art:
2400.1122.1000
Copied
|
IP50
|
Shoulder
|
5000
|
4 mm
|
|
|
|
||
|
INC.ENC 1024ppr 4mm SHFT RAD
Art:
2400.1122.1024
Copied
|
IP50
|
Shoulder
|
5000
|
4 mm
|
|
|
|
||
Art:
2420.1222.0050
Copied
|
IP50
|
Hollow shaft
|
5000
|
6 mm
|
|
|
|
||
|
Encoder Inc. P/P, 6mm, Cable, 5-24VDC
Art:
2420.1222.0060
Copied
|
IP50
|
Hollow shaft
|
5000
|
6 mm
|
|
|
|
||
|
INC.ENC 100pp 6mm HSHFT RAD 2M
Art:
2420.1222.0100
Copied
|
IP50
|
Hollow shaft
|
5000
|
6 mm
|
|
|
|
||
|
Encoder Inc. P/P, 6mm, Cable, 5-24VDC
Art:
2420.1222.0200
Copied
|
IP50
|
Hollow shaft
|
5000
|
6 mm
|
|
|
|
||
|
Encoder Inc. P/P, 6mm, Cable, 5-24VDC
Art:
2420.1222.0360
Copied
|
IP50
|
Hollow shaft
|
5000
|
6 mm
|
|
|
|
||
|
INC.ENC 500pp 6mm HSHFT RAD 2M
Art:
2420.1222.0500
Copied
|
IP50
|
Hollow shaft
|
5000
|
6 mm
|
|
|
|
||
|
INC.ENC 1000PPR 6mm H/SHFT RAD
Art:
2420.1222.1000
Copied
|
IP50
|
Hollow shaft
|
5000
|
6 mm
|
|
|
|
||
|
INC.ENC 1024PPR 6mm H/SHFT RAD
Art:
2420.1222.1024
Copied
|
IP50
|
Hollow shaft
|
5000
|
6 mm
|
|
|
|
||
Art:
SERIE 2400
Copied
|
IP64
|
Shoulder
|
1024
|
|
6 mm
|
4 mm
|
|
||
|
Art:
SERIE 2420
Copied
|
IP64
|
Hollow shaft
|
1024
|
|
6 mm
|
4 mm
|
|
Select a variant in the list
