KÜBLER
Model Series 3610/3620 is small and robust with up to 2 500 pulses per revolution.
Available in Shoulder and Hole Axle Design, with Push-Pull or RS422.
Suitable for applications where space is limited.
Different options with radial, axial cable or M12 (8 pin).
| Connection | Cable, M12 |
|---|---|
| Housing diameter | 36 mm |
| IP class | IP50, IP64, IP65 |
| Mounting | Hollow shaft |
| Output | Push/Pull, RS422 |
| Pulse max | 2500 |
| Sensor type | Incremental |
| Shaft diameter max | 8 mm |
|---|---|
| Shaft diameter min | 6 mm |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 5 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -20 °C |
Model Series 3610/3620 is small and robust with up to 2 500 pulses per revolution.
Available in Shoulder and Hole Axle Design, with Push-Pull or RS422.
Suitable for applications where space is limited.
Different options with radial, axial cable or M12 (8 pin).

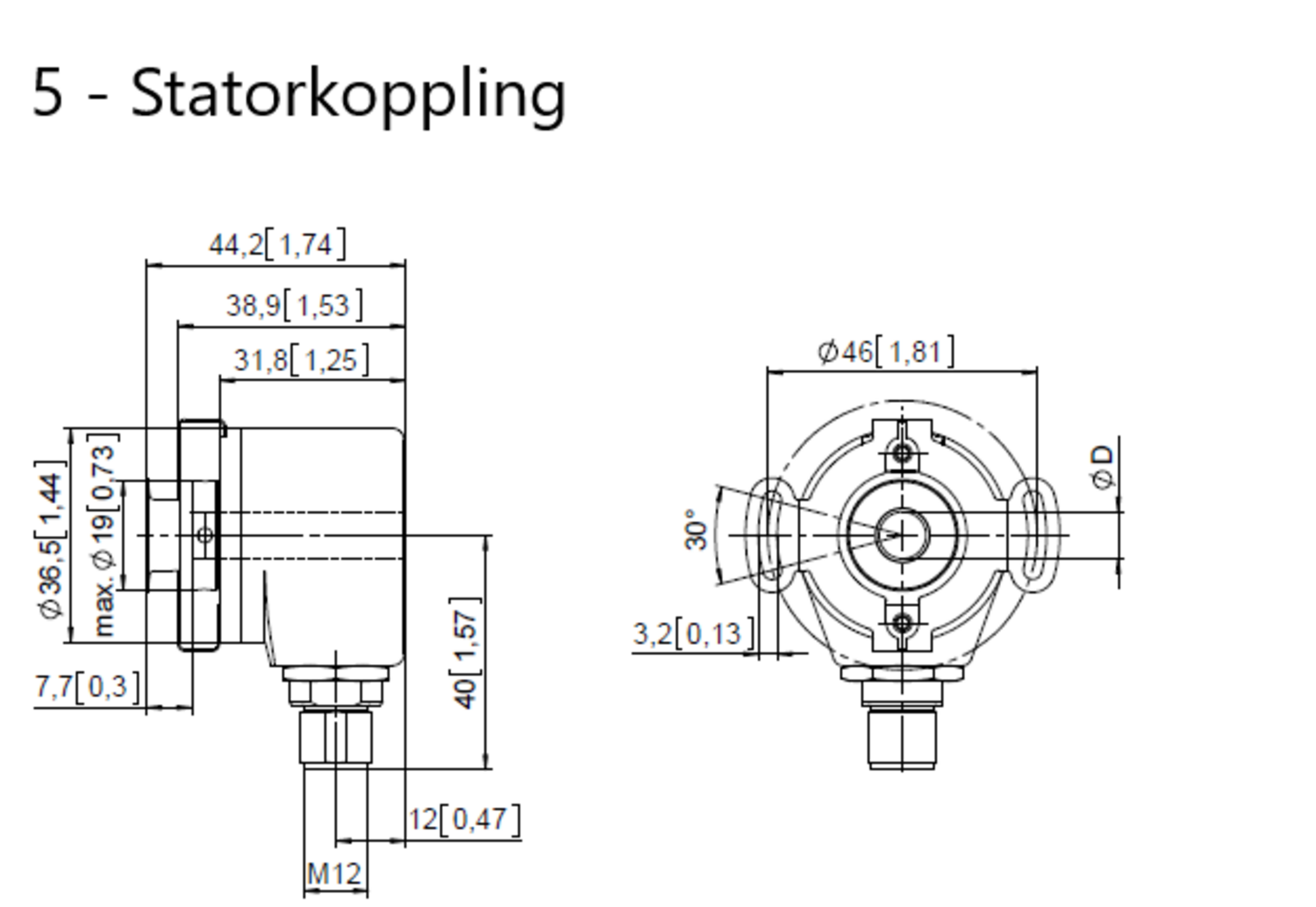

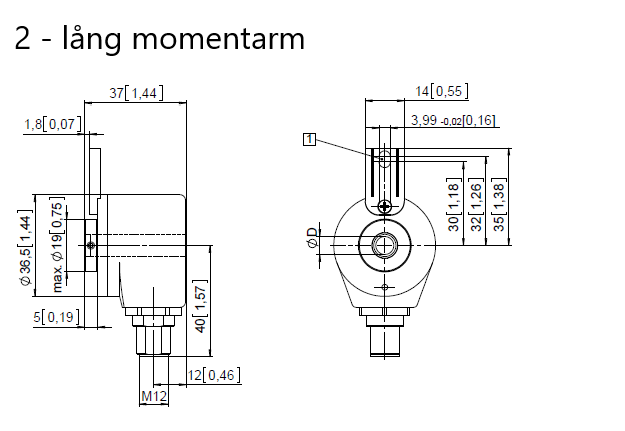

Please refer to the images below for ordering information.
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Connection | Housing diameter | IP class | Mounting | Output | Pulse max | Sensor type | Shaft diameter max | Shaft diameter min | Supply voltage dc max | Supply voltage dc min | Temperature operational max | Temperature operational min | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Art:
SERIE 3620
Copied
|
Cable, M12
|
36 mm
|
IP50, IP64, IP65
|
Hollow shaft
|
Push/Pull, RS422
|
2500
|
Incremental
|
8 mm
|
6 mm
|
30 V DC
|
5 V DC
|
85 °C
|
-20 °C
|
|
||
INC.ENCODER 6mm SHAFT 500PPR
Art:
3610.2334.0500
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
INC.ENCODER 6mm SHAFT 500PPR
Art:
3610.3332.0500
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
INC.ENCODER 6mm SHAFT 400PPR
Art:
3610.2362.0400
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
INC.ENCODER 6mm SHAFT 1024PPR
Art:
3610.3322.1024
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
INC.ENCODER 6mm SHAFT 360PPR
Art:
3610.3372.0360
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
INC.ENCODER 6mm SHAFT RS422 1024PPR
Art:
3610.3522.1024
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
8.0000.6901.0010.0031 ABS ENC CABLE 2M
Art:
0000.6901.0002.31
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Select a variant in the list
