KÜBLER

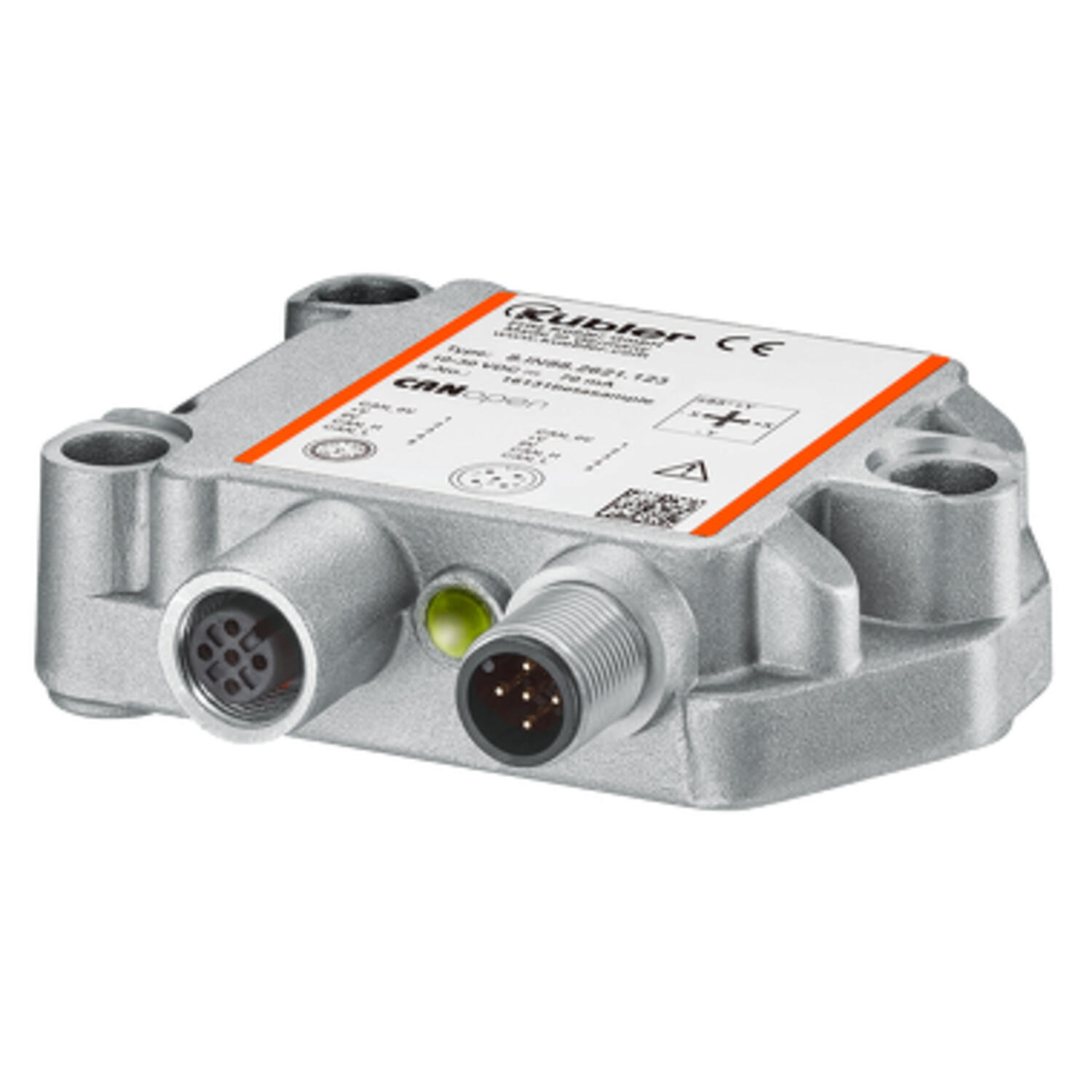

2-dimensional inclinometer series IN88 CANopen
The IN88 inclinometer is used for the acquisition of a tilt angle in the measuring range ±85°. Due to its high robustness and protection up to IP69k, as well as its wide temperature range from -40 °C to +85 °C, it is excellent for, among other uses, outdoor use in mobile automation.
- Measuring range ±85°
- Working temperature -40°C to +85°C
- Protection level IP67, IP69k
- Stackable assembly for redundancy
Selected variant
Technical data
| Connection | M12 |
|---|---|
| IP class | IP67, IP69K |
| Output | CANopen |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -40 °C |
Downloads
Product description
The IN88 inclinometer is used for the acquisition of a tilt angle in the measuring range ±85°. Due to its high robustness and protection up to IP69k, as well as its wide temperature range from -40 °C to +85 °C, it is excellent for, among other uses, outdoor use in mobile automation.
