KÜBLER
Kuebler - Wire Encoders C120
The Kübler wire generators are designed for demanding applications, for example within the machine building segment. The systems are robustly built with aluminum housing resistant to tough environments, they can handle high speed and have long life. The C120 series comes with analogue, incremental or absolute (SSI / BiSS, CANopen, Profibus, EtherCAT, Profinet or DeviceNet) outputs.
CE approval
EN 61000-6-2, EN 61000-6-3
ROHS approval
EU Guideline 2002/95 / EC
- Measurement length 6000 mm
- -20° to +85°C
- Ready speeds up to 10 m / s
- Titan-anodized aluminum housing
Selected variant
Technical data
Product description
The Kübler wire generators are designed for demanding applications, for example within the machine building segment. The systems are robustly built with aluminum housing resistant to tough environments, they can handle high speed and have long life. The C120 series comes with analogue, incremental or absolute (SSI / BiSS, CANopen, Profibus, EtherCAT, Profinet or DeviceNet) outputs.
CE approval
EN 61000-6-2, EN 61000-6-3
ROHS approval
EU Guideline 2002/95 / EC

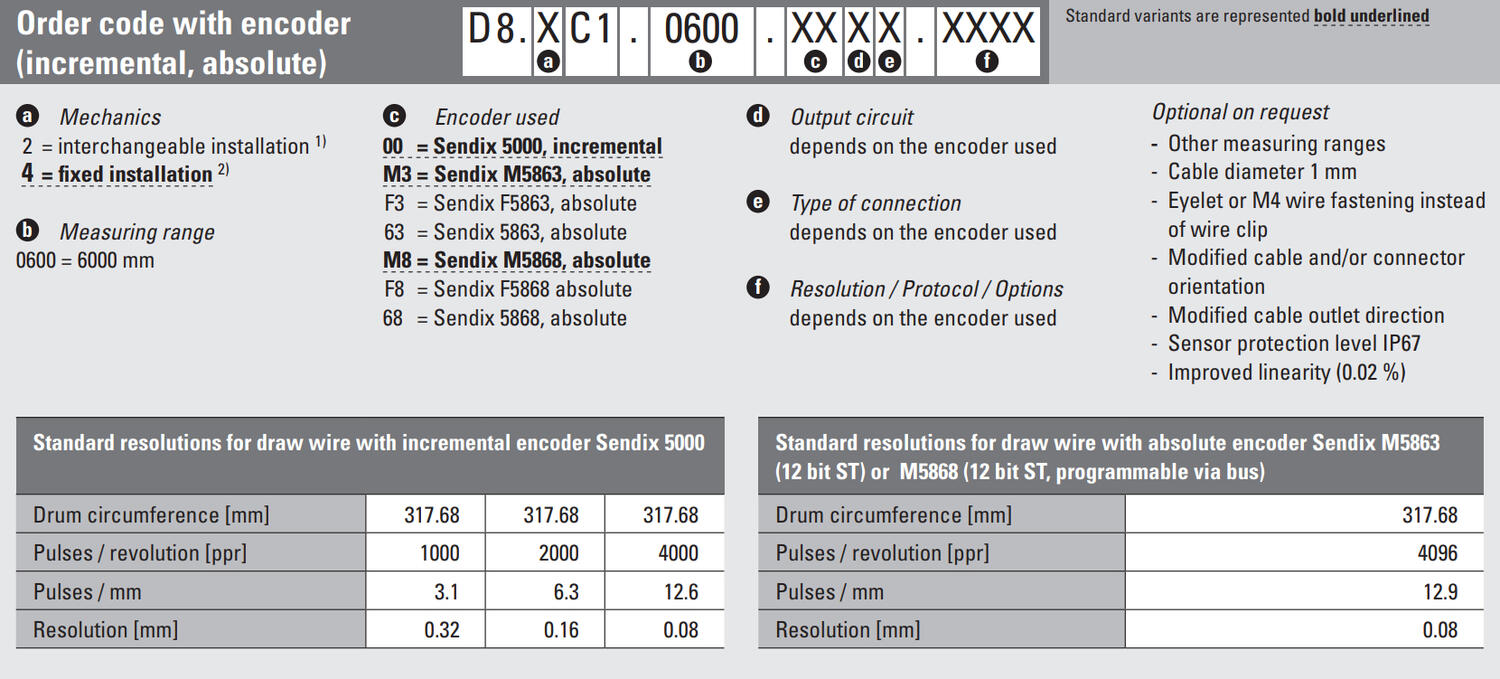

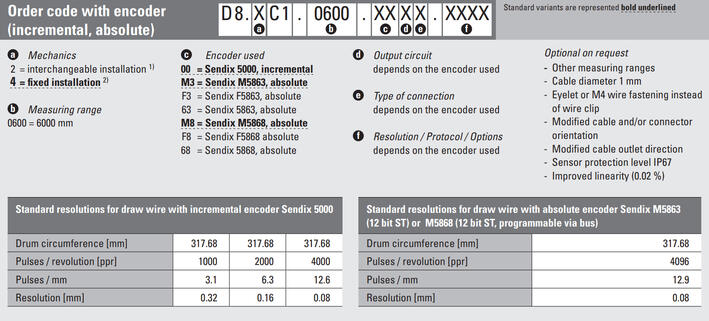

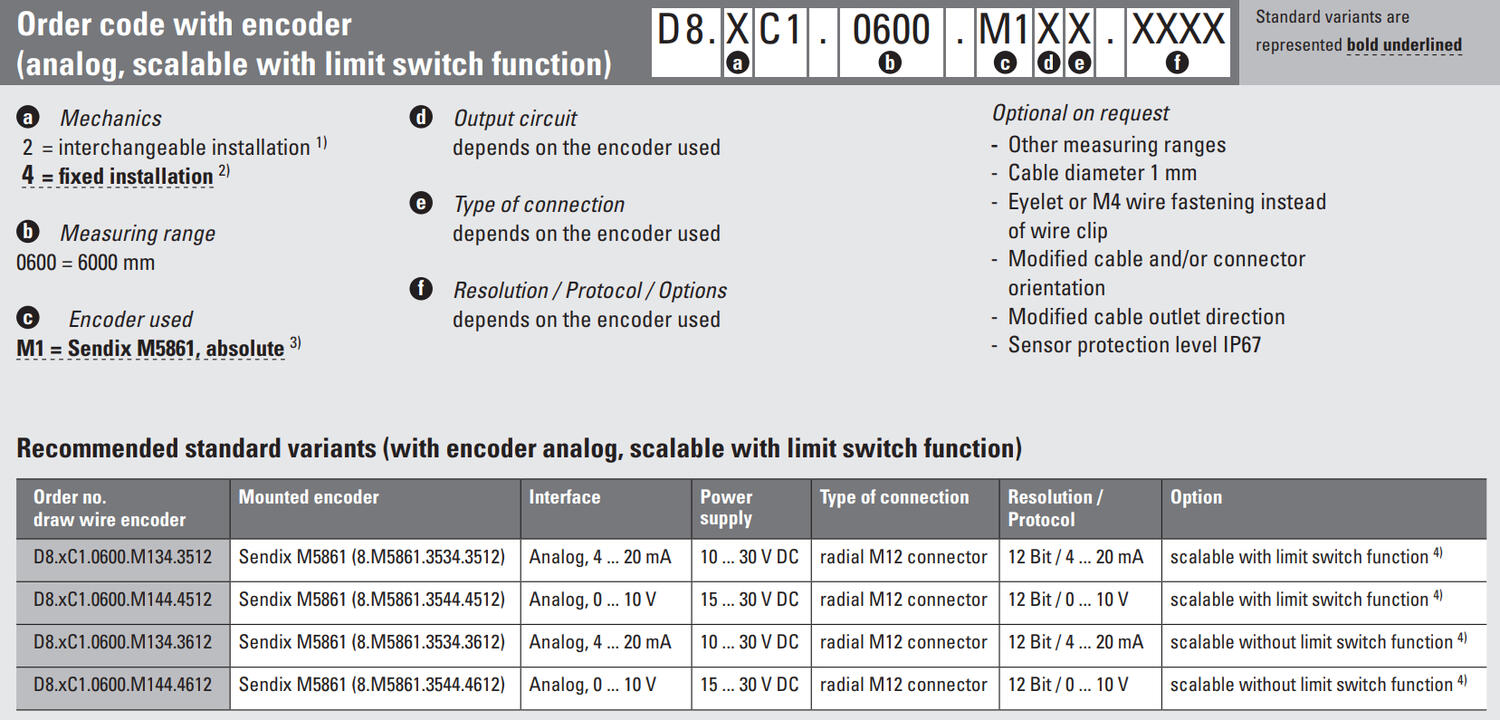

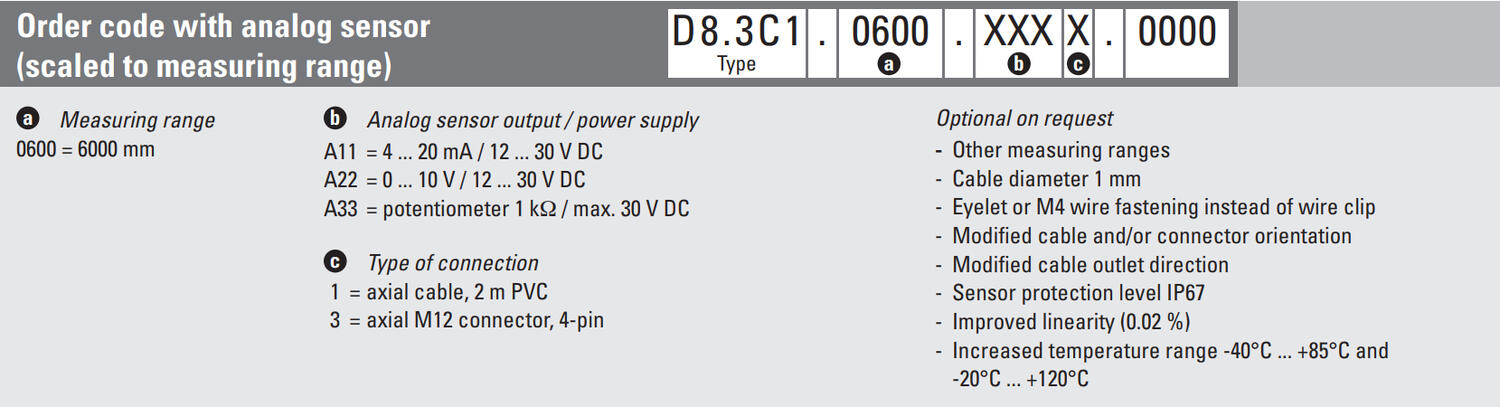

Ordering information
Please refer to the images below for ordering information.
