KÜBLER
Kuebler - Wire Encoders C100
Thanks to its robust design, wide temperature range, and IP67 rating, the C100 series fits well in demanding applications. The C100 can be equipped with analog, incremental, relay and switched outputs, and even with built-in inclinometers together with CANopen communication.
It is also possible to order the C100 series with redundancy.
The measuring range may range from 1m up to 5m.
- Robust design
- -40 to +85°C
- IP67 class
- Built-in inclinometer
Selected variant
Technical data
Product description
Thanks to its robust design, wide temperature range, and IP67 rating, the C100 series fits well in demanding applications. The C100 can be equipped with analog, incremental, relay and switched outputs, and even with built-in inclinometers together with CANopen communication.
It is also possible to order the C100 series with redundancy.
The measuring range may range from 1m up to 5m.

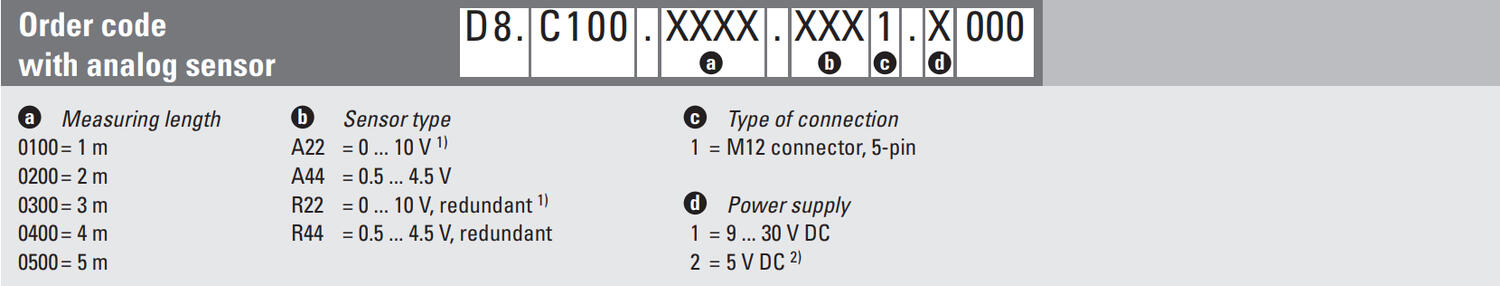

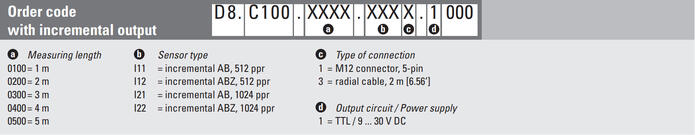

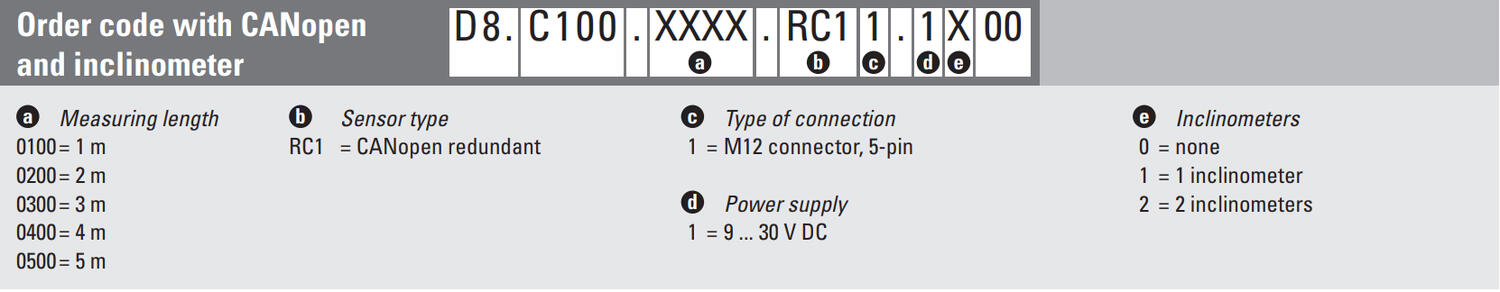

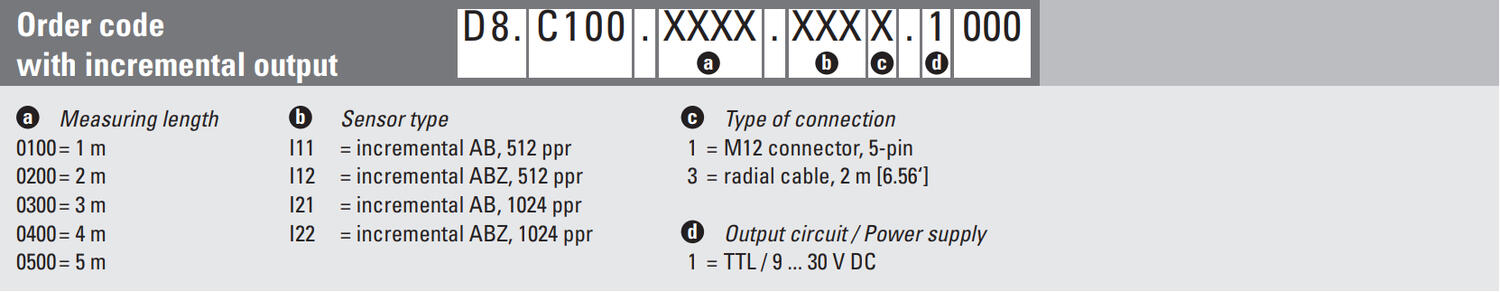

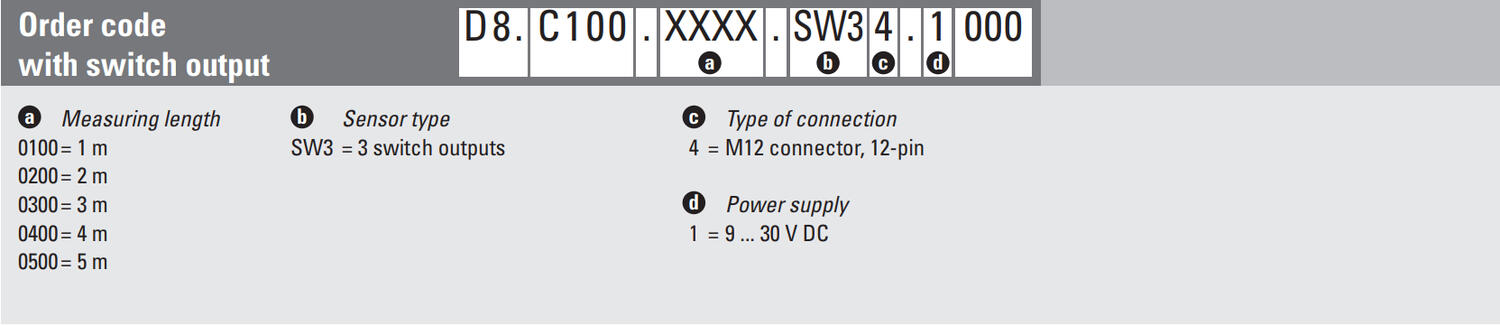

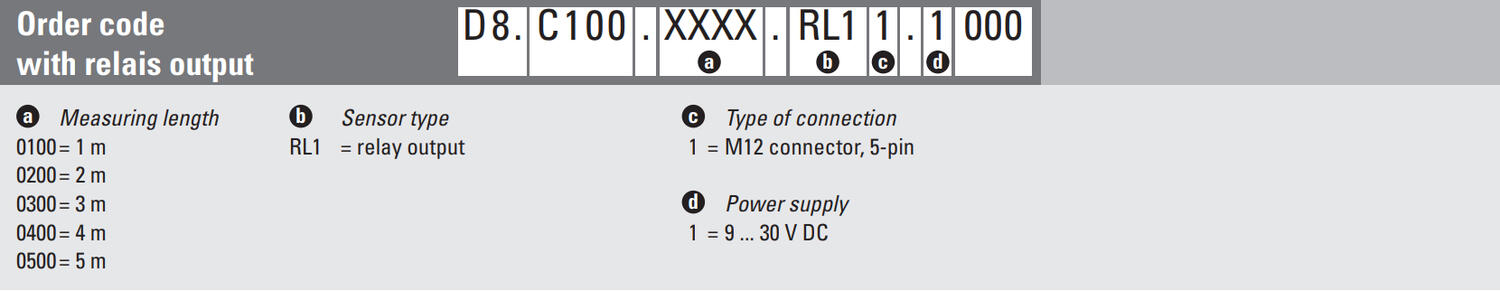

Ordering information
Please refer to the images below for ordering information.
