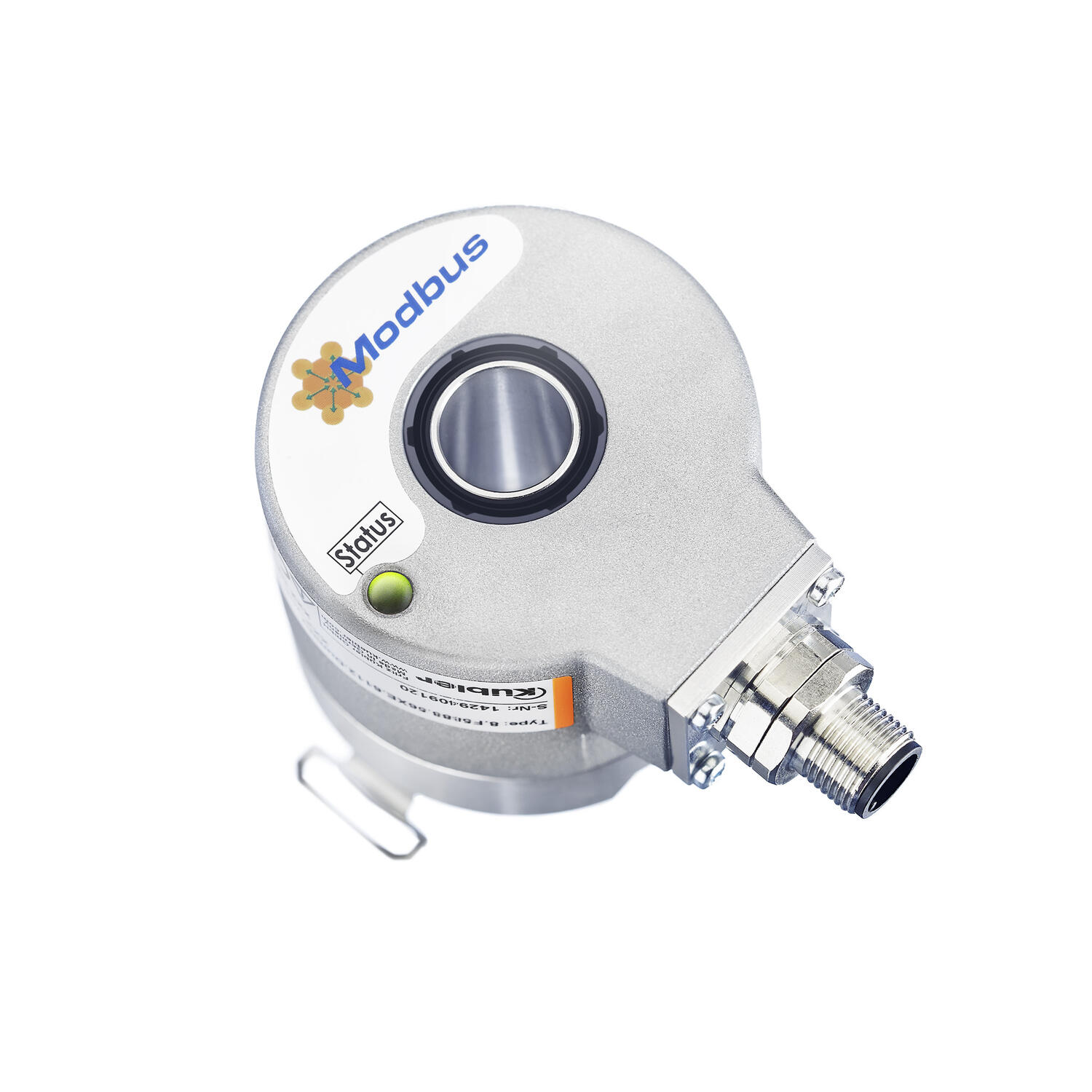

Kuebler - Absolute-coded Angular Transmitter Sendix F5868 / F5888, optical, Modbus, Ø58 mm
Sendix F5868 / F5888 is a series of multivalved optical axes and hole axes with Modbus interface and a resolution of up to 32 bits (16 bit multi-color + 16-bit one-turn).
The sensor also has high enclosure class, shock resistance and a wide temperature range. The F5868 / F5888 is therefore very suitable for applications where extreme environments or temperatures may occur, such as mobile applications.
- Housing diameter Ø58 mm
- Modbus - Interface
- 16 + 16 bit resolution
- -40 to +85 ° C working temperature
Selected variant
Technical data

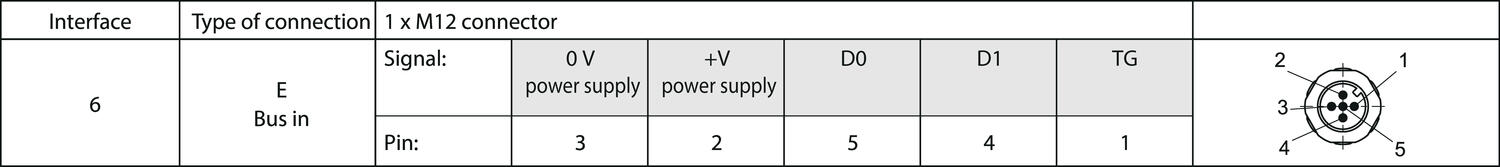

| Connection | M12 |
|---|---|

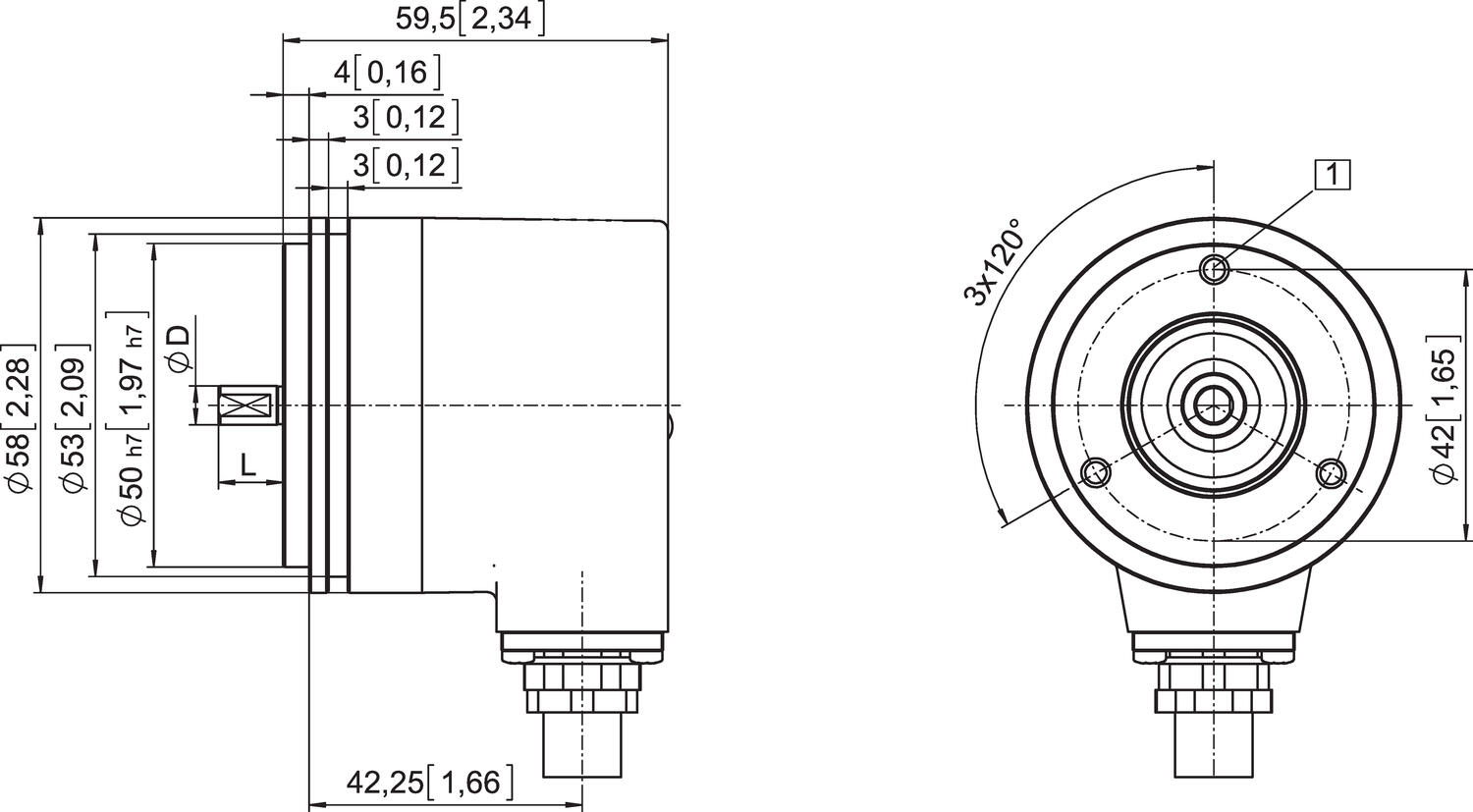

| Housing diameter | 58 mm |
| IP class | IP65, IP67 |
| Mounting | Shoulder |
| Output | Modbus |
| Resolution MT | 16 bit |
| Resolution ST | 16 bit |
| Sensor type | Absolute |
| Shaft diameter max | 10 mm |
|---|---|
| Shaft diameter min | 6 mm |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -40 °C |
| Version | Multiturn |
Downloads
Product description
Sendix F5868 / F5888 is a series of multivalved optical axes and hole axes with Modbus interface and a resolution of up to 32 bits (16 bit multi-color + 16-bit one-turn).
The sensor also has high enclosure class, shock resistance and a wide temperature range. The F5868 / F5888 is therefore very suitable for applications where extreme environments or temperatures may occur, such as mobile applications.
Ordering information

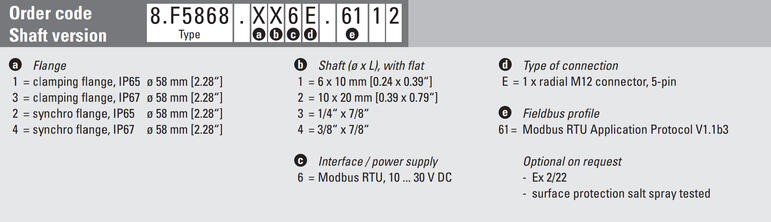

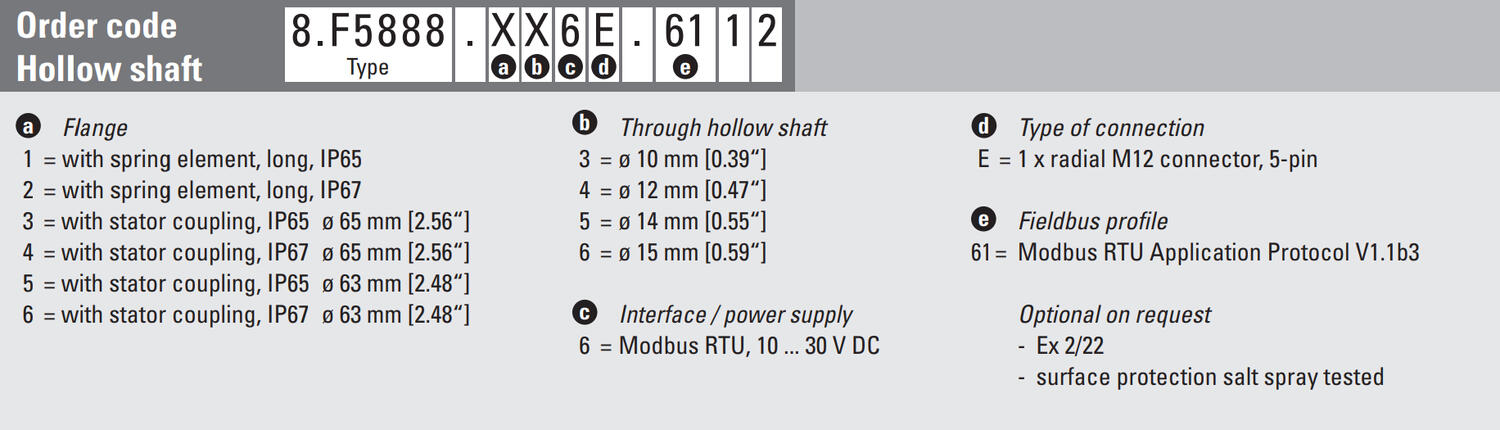

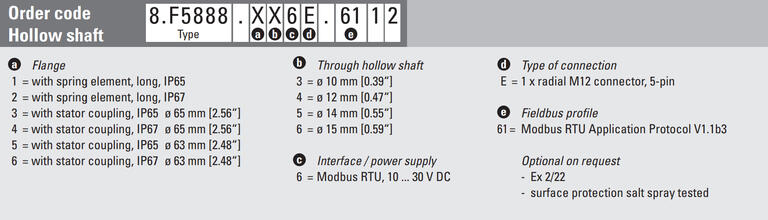

Please refer to the image below for ordering information.
