Kuebler - Absolute-coded Angular Transmitter Sendix M3668R, magnetic, CANopen, Ø36 mm
Sendix M3668R is a magnetically encoded absolute encoder with the latest in multi-field technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
In addition to multi-color technology, the M3668R has been equipped with extra strong ball bearings and secure attachments, also known as "Safety-Lockplus ™".
A unique multifarve pulse sensor with high IP classifications: IP66, IP67 and IP69K, available in stainless steel (V4A).
- Housing diameter Ø36 mm
- CANopen
- Up to IP69K
- Stainless steel
Selected variant
Technical data
| Connection | Cable, M12 |
|---|---|
| Housing diameter | 36 mm |
| IP class | IP66, IP67, IP69K |
| Mounting | Shoulder |
| Output | CANopen |
| Resolution MT | Max. 24 bit |
| Sensor type | Absolute |
| Shaft diameter max | 10 mm |
| Shaft diameter min | 6 mm |
|---|---|
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -40 °C |
| Version | Multiturn |
Product description
Sendix M3668R is a magnetically encoded absolute encoder with the latest in multi-field technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
In addition to multi-color technology, the M3668R has been equipped with extra strong ball bearings and secure attachments, also known as "Safety-Lockplus ™".
A unique multifarve pulse sensor with high IP classifications: IP66, IP67 and IP69K, available in stainless steel (V4A).
Ordering information

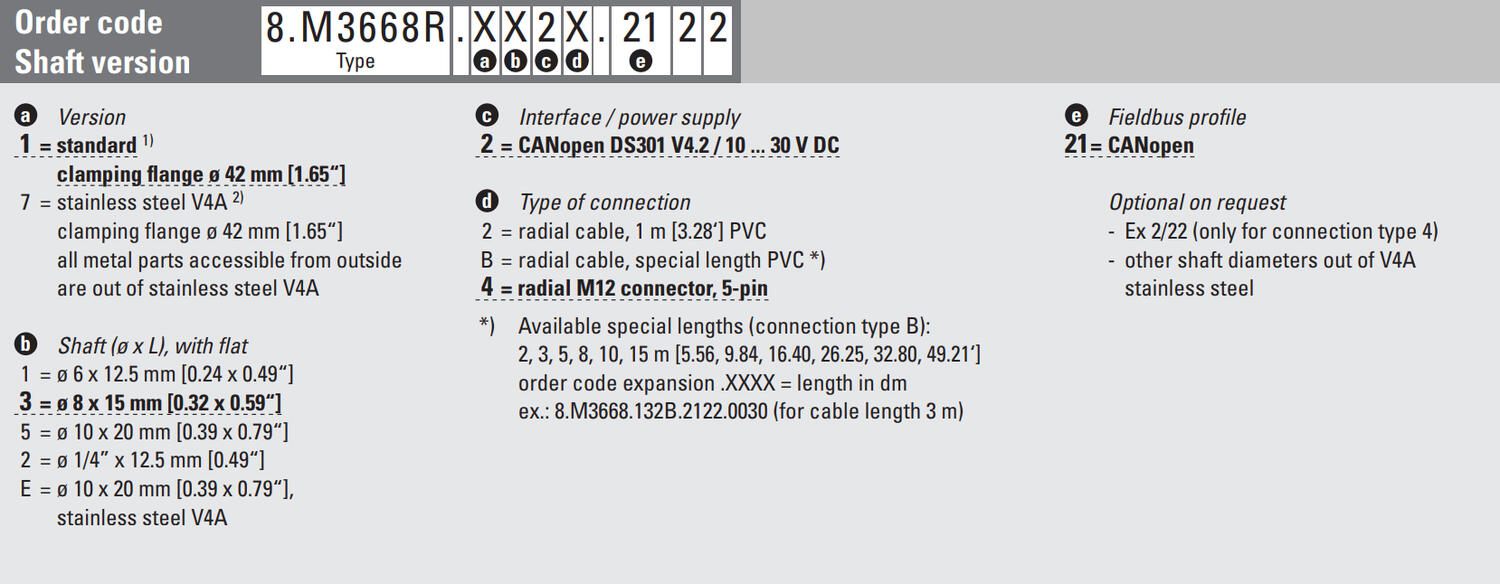

Please refer to the image below for ordering information.
