Kuebler - Absolute-coded Angular Transmitter Sendix M3668 / M3688, magnetic, CANopen, Ø36 mm

  • Housing diameter Ø36 mm
  • CANopen
  • New multicolor technology
  • IP67

Selected variant

Available in several variants
KUBLER.eps

Save page as PDF

Technical data / Documents

Ordering information

Accessories & Related products

Selected variant

Technical data

Connection Cable, M12
Housing diameter 36 mm
IP class IP65, IP67
Mounting Shoulder
Output CANopen
Resolution MT 24 bit
Sensor type Absolute
Shaft diameter max 10 mm
Shaft diameter min 6 mm
Supply voltage dc max 30 V DC
Supply voltage dc min 10 V DC
Temperature operational max 85 °C
Temperature operational min -40 °C
Version Multiturn

Downloads

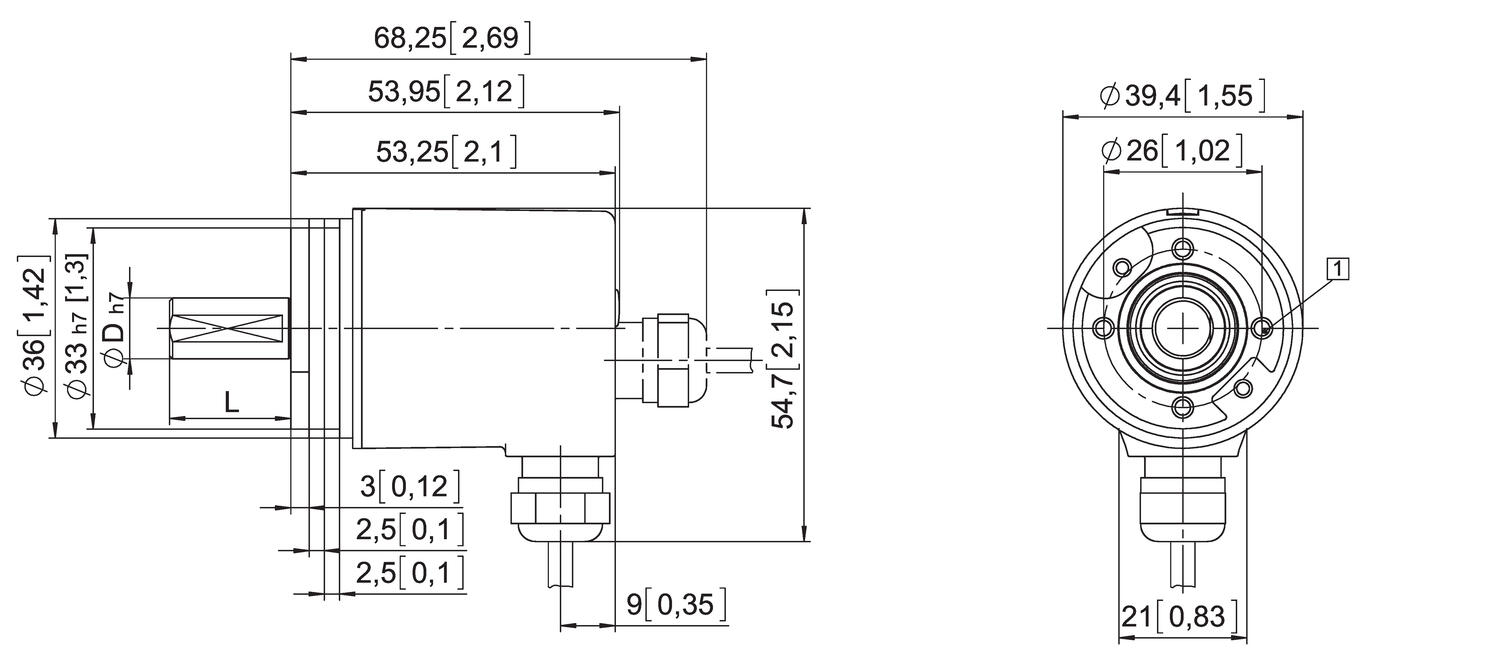

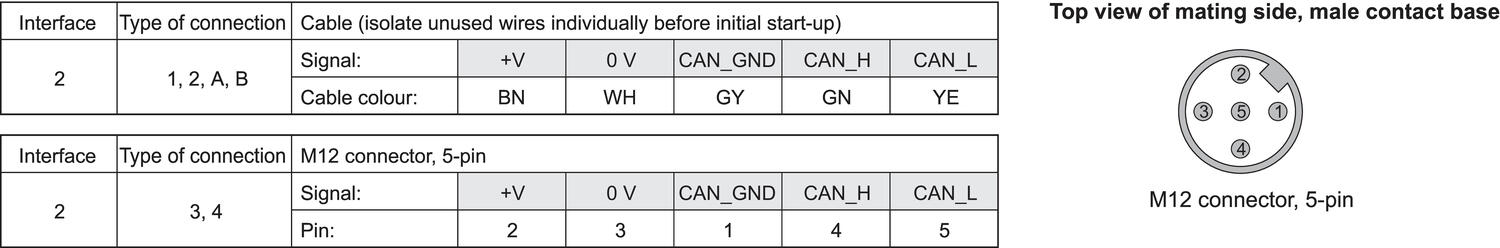

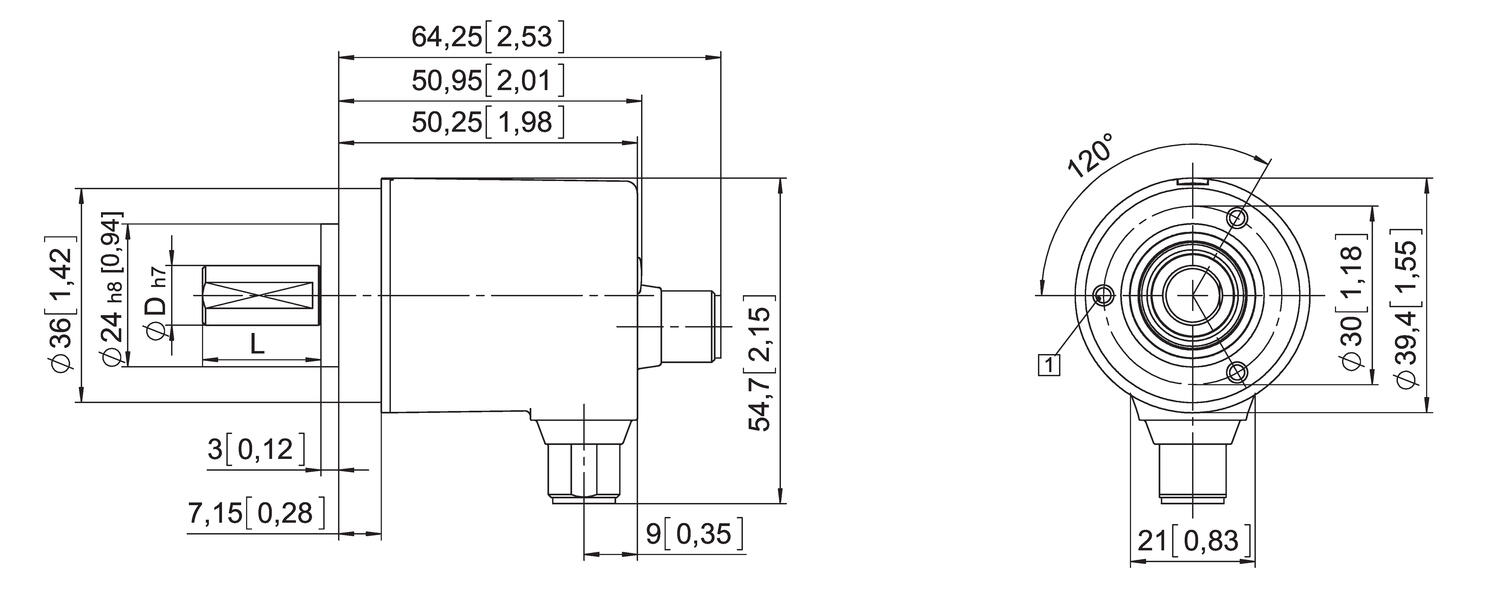

Measurements and connections

Ordering information

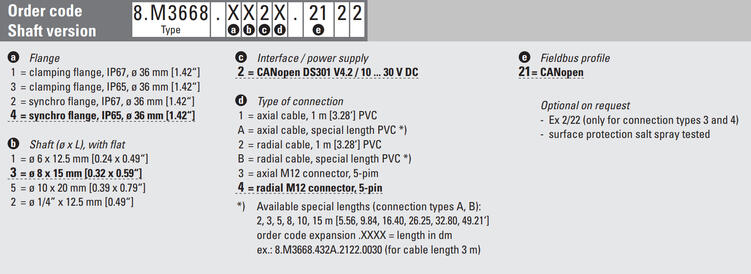

Please refer to the images below for ordering information.

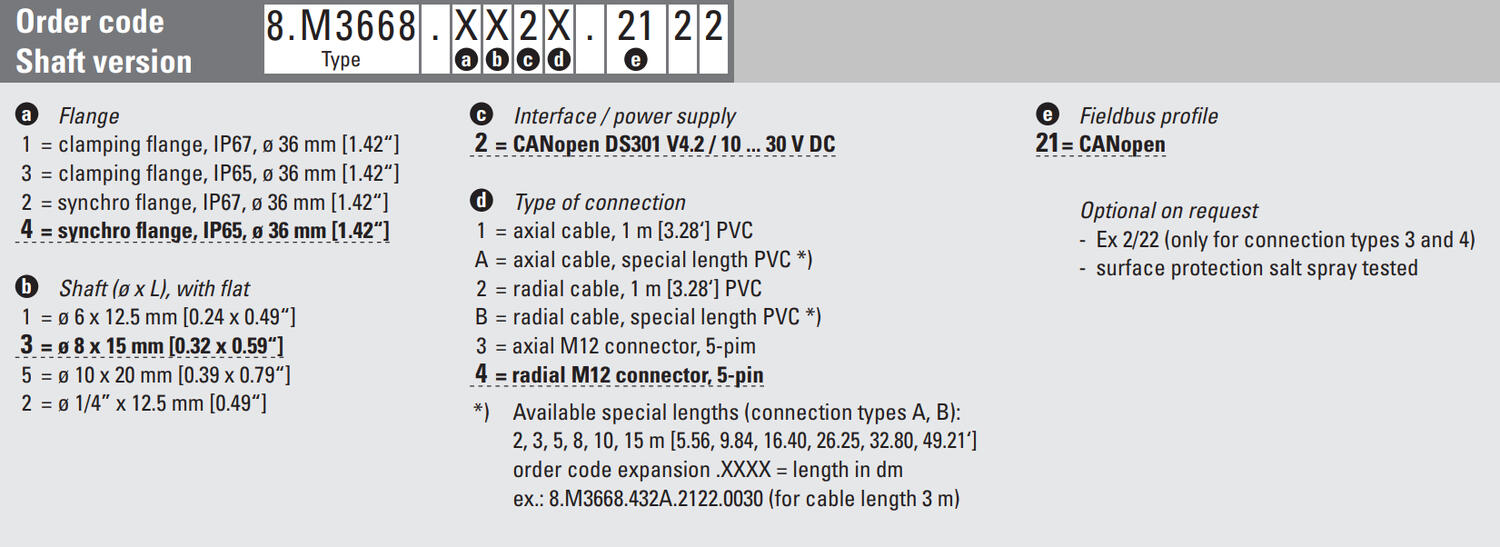

m3668 canopen.png

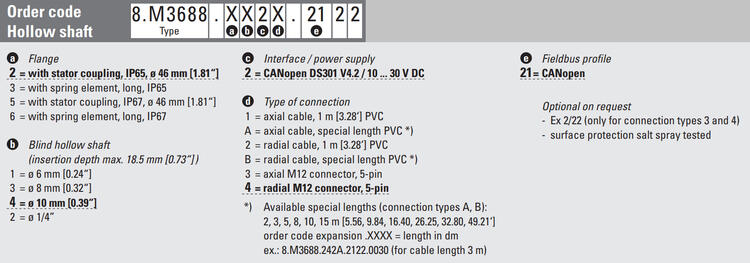

m3688 canopen.png

Accessories

Parts Mounting Price

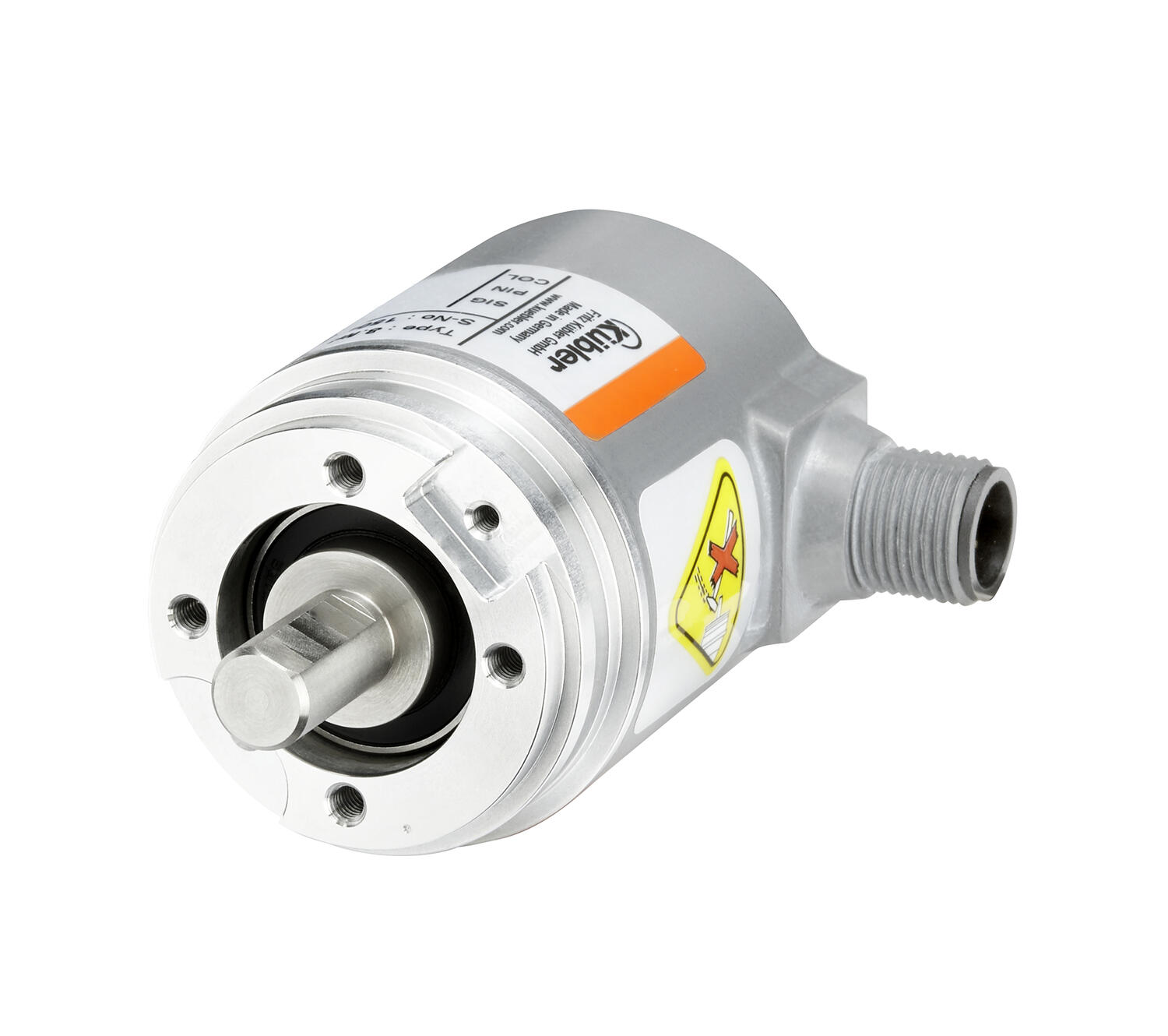

z2077_M3668_20150308_small.tif
Art:
SERIE M3668 Copied
Shoulder
Art:

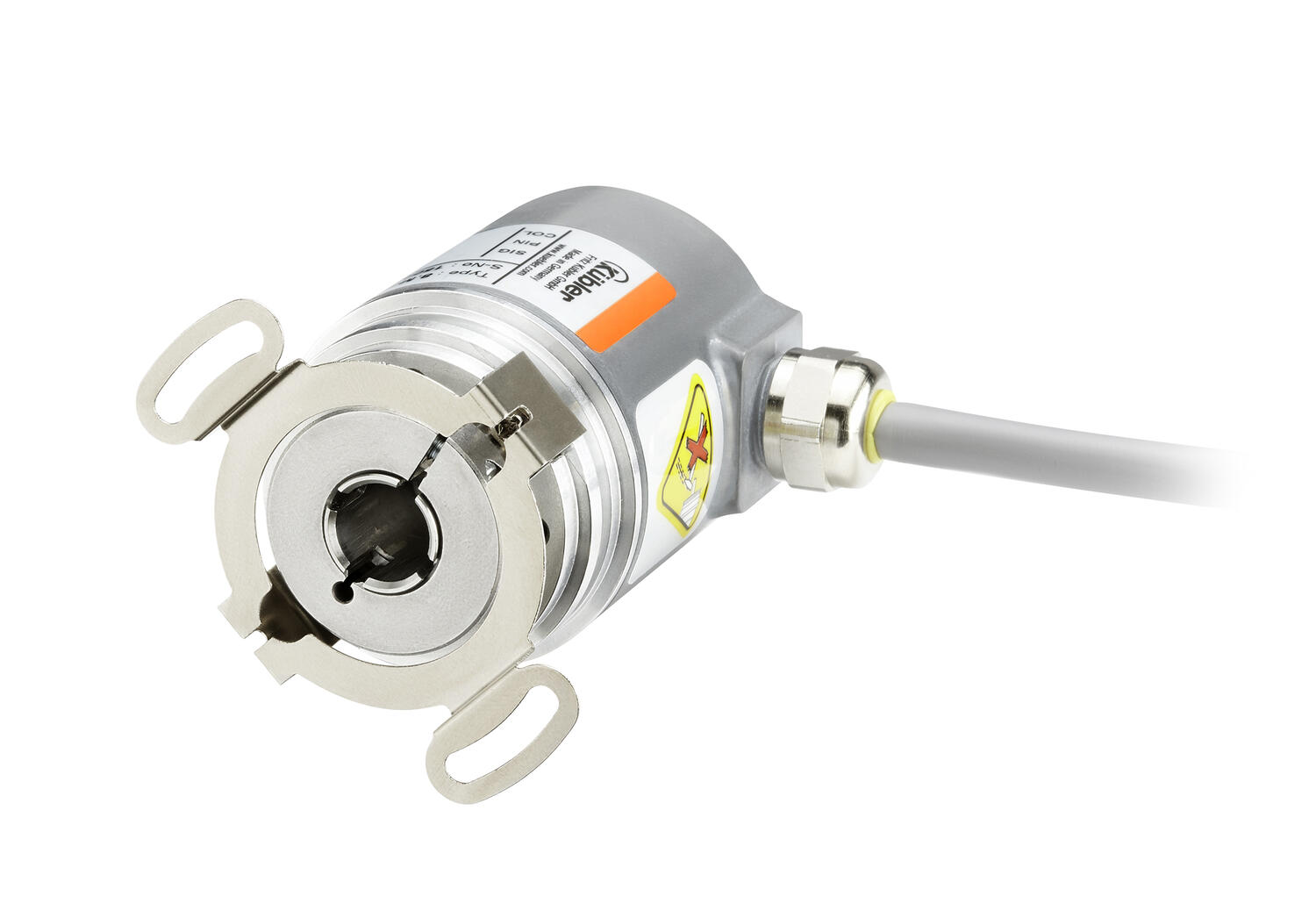

SERIE M3688 Copied
Hollow shaft
