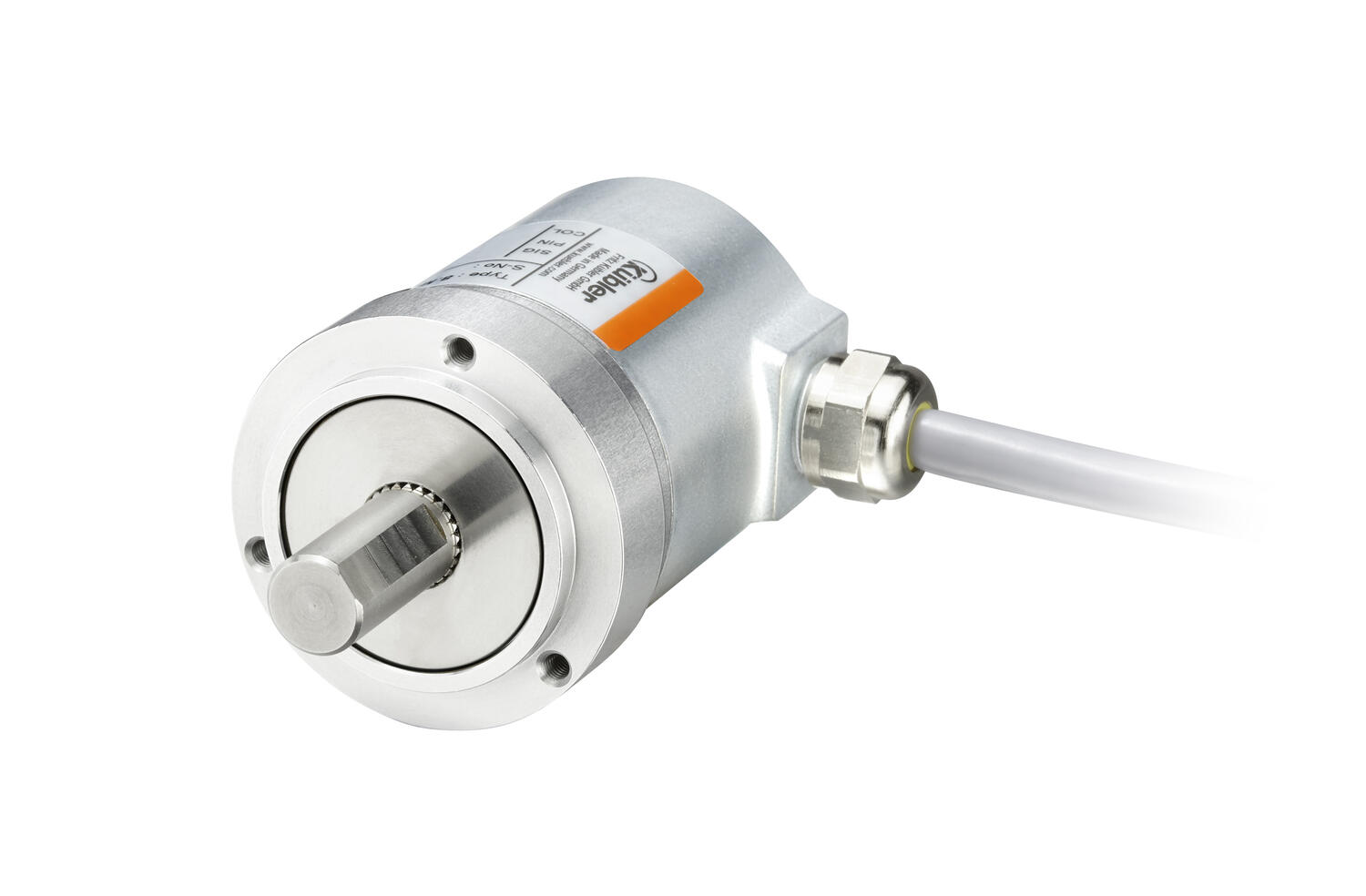

Kuebler - Absolute-coded Angular Transmitter Sendix M3663R, magnetic, SSI, Ø36 mm

Sendix M3663R is a magnetically encoded absolute encoder with the latest in multi-color technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.



In addition to multi-color technology, the M3663R has been equipped with extra strong ball bearings and secure attachments, also known as "Safety-Lockplus â„¢".



A unique multifarve pulse sensor with high IP classifications: IP66, IP67 and IP69K, available in stainless steel (V4A).

Read more
  • Housing diameter Ø36 mm
  • SSI
  • Up to IP69K
  • Stainless steel

Selected variant

Available in several variants
KUBLER.eps

Save page as PDF

Technical data / Documents

Product description

Ordering information

Accessories & Related products

Selected variant

Technical data

Connection Cable, M12
Housing diameter 36 mm
IP class IP66, IP67, IP69K
Mounting Shoulder
Output SSI
Resolution MT Max. 24 bit
Resolution ST 10-14 bit
Sensor type Absolute
Shaft diameter max 10 mm
Shaft diameter min 6 mm
Supply voltage dc max 30 V DC
Supply voltage dc min 10 V DC
Temperature operational max 85 °C
Temperature operational min -40 °C
Version Multiturn

Downloads

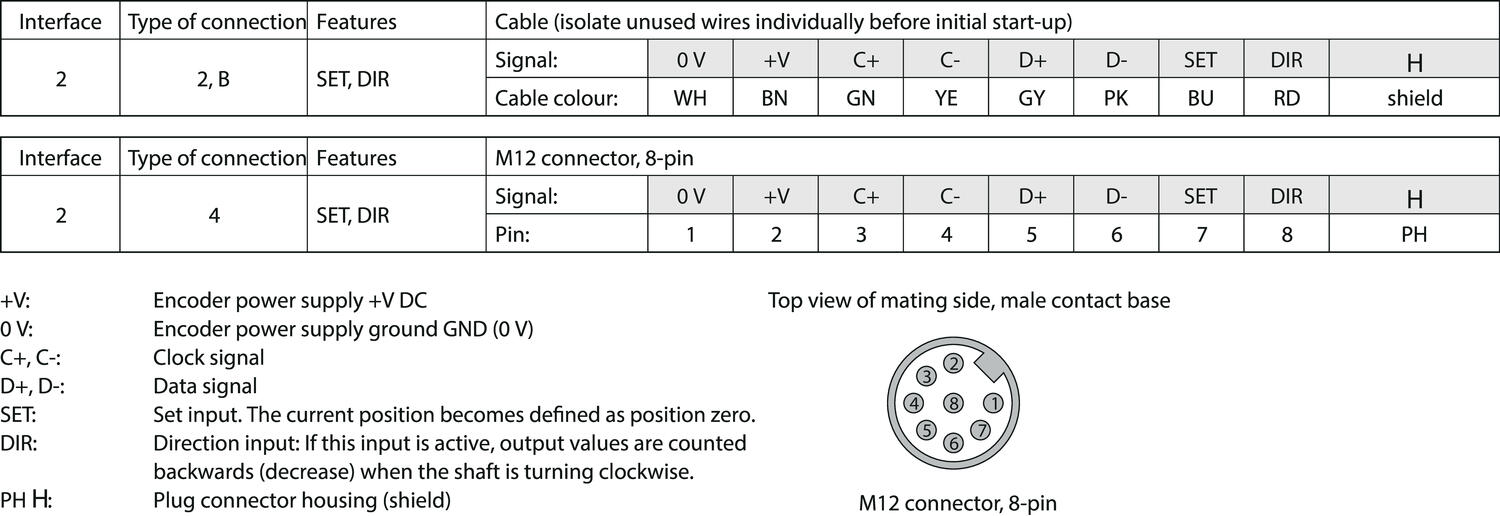

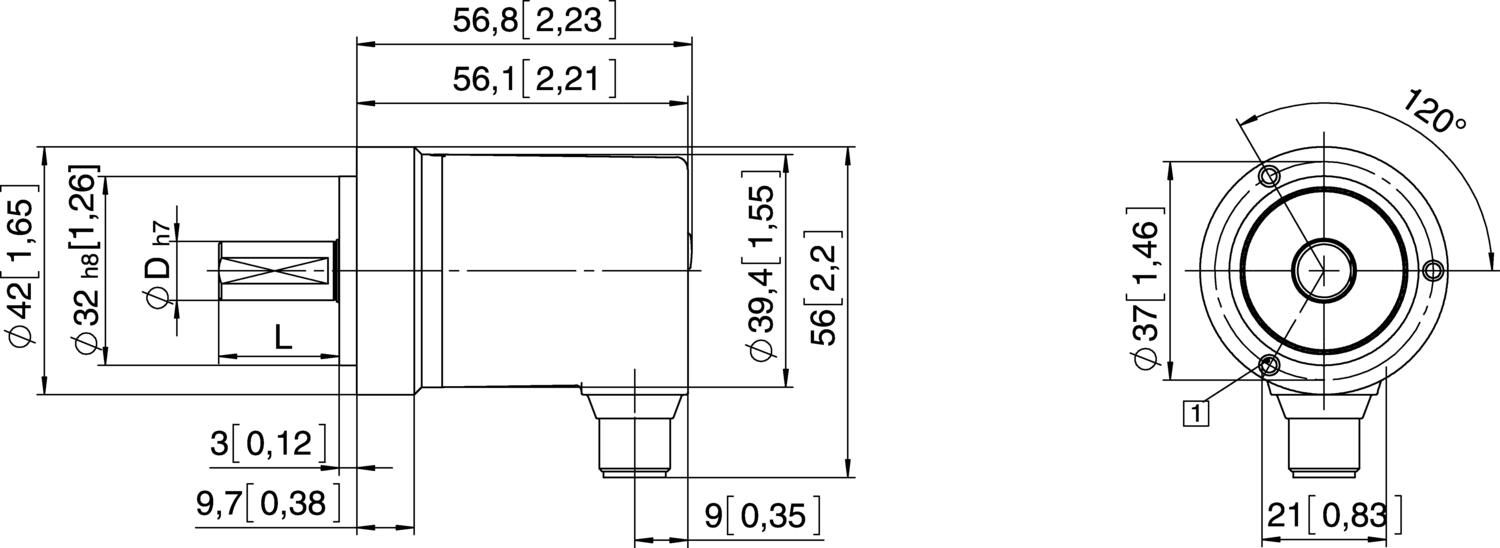

Measurements and connections

Product description

Sendix M3663R is a magnetically encoded absolute encoder with the latest in multi-color technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.



In addition to multi-color technology, the M3663R has been equipped with extra strong ball bearings and secure attachments, also known as "Safety-Lockplus â„¢".



A unique multifarve pulse sensor with high IP classifications: IP66, IP67 and IP69K, available in stainless steel (V4A).

Ordering information

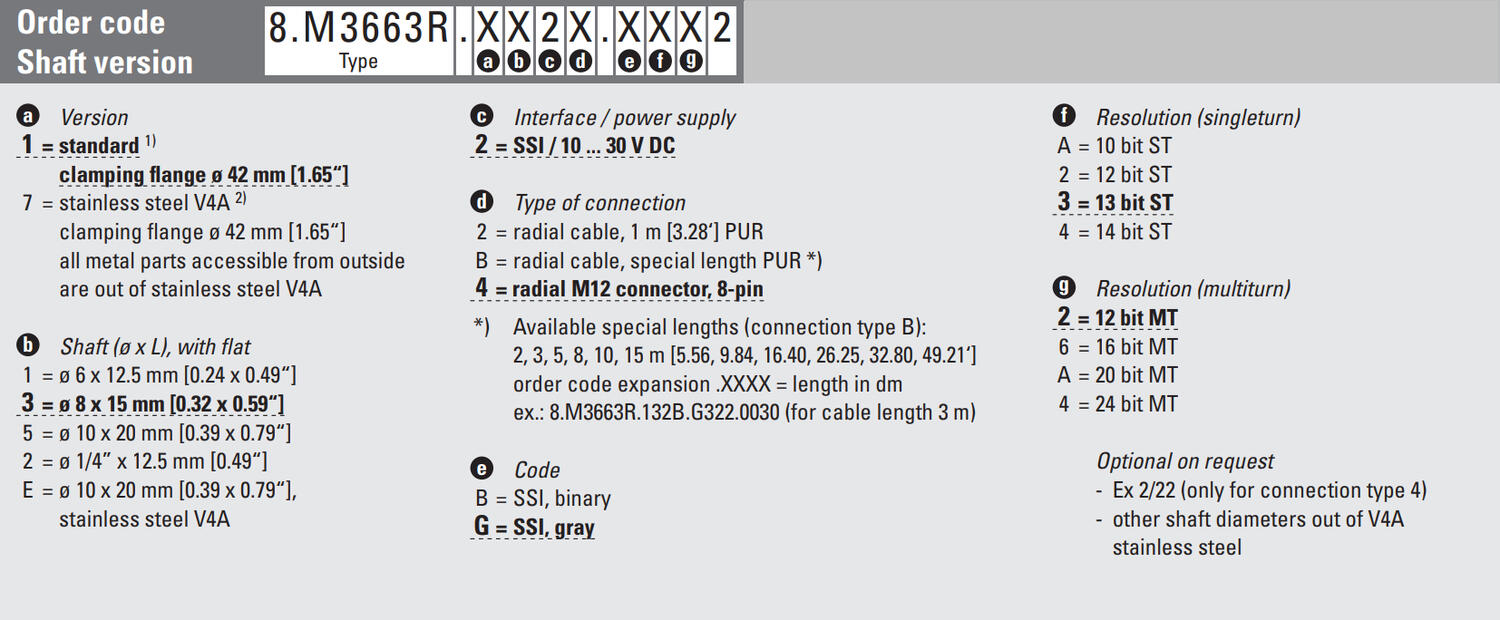

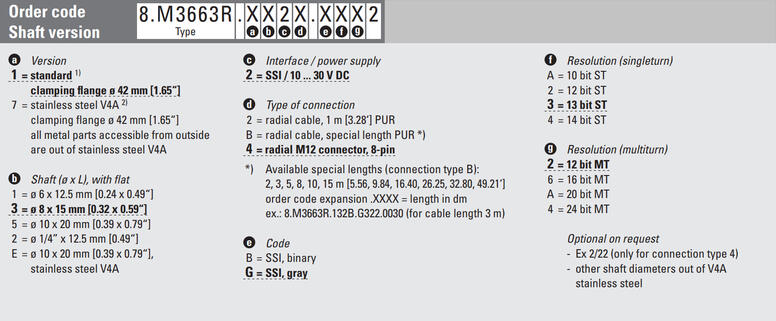

Please refer to the image below for ordering information.



m3663r ssi.png

Accessories

Related products

Parts Connection Shaft diameter min Price
Art:
SERIE M3663R Copied
Cable, M12
6 mm
Art:
SERIE M3663R SS Copied
M12
10 mm

Selected variant

Select a variant in the list
