KÜBLER
Kuebler - Absolute-coded Angular Transmitter Sendix F5868 / F5888, optical, EtherNet/IP, Ø58 mm

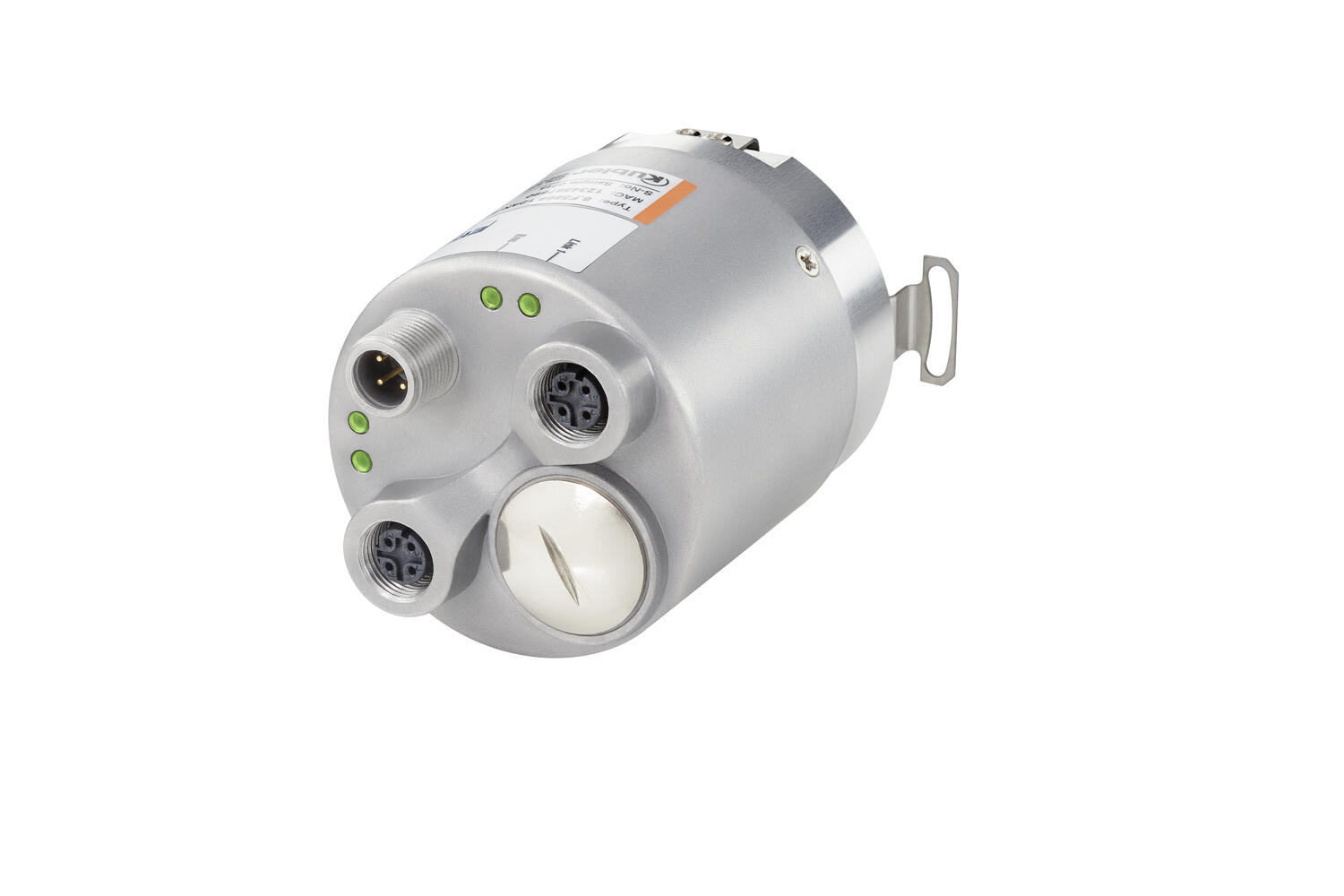

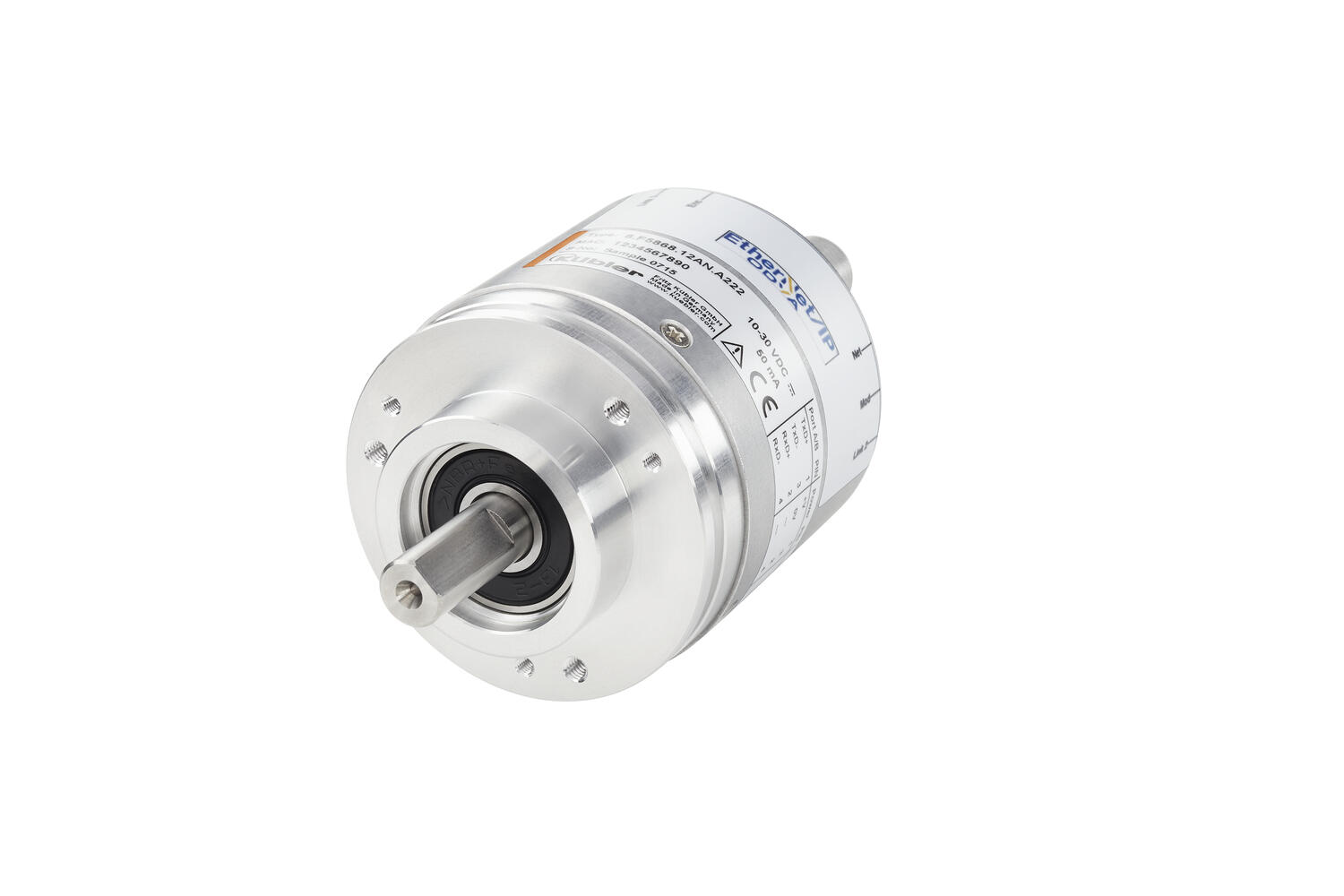

Sendix F5868 / F5888 is a multivalued fieldbus transducer with EtherNet / IP in robust design. Thanks to the construction of Safety-Lock ™ as well as the fully cast housing, the sensor is able to handle even the more demanding applications where there are high demands on the sensor. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. Sendix F5868 / F5888 comes with LED indication which facilitates diagnosis of the sensor.
- Housing diameter Ø58 mm
- EtherNet/IP
- Safety-Lock™
- Quick startup
Selected variant
Technical data
| Connection | M12 |
|---|---|
| Housing diameter | 58 mm |
| IP class | IP65 |
| Mounting | Shoulder |
| Output | EtherNet/IP |
| Resolution MT | Max. 16 bit |
| Sensor type | Absolute |
| Shaft diameter max | 10 mm |
| Shaft diameter min | 6 mm |
|---|---|
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 80 °C |
| Temperature operational min | -40 °C |
| Version | Multiturn |
Downloads
Product description
Sendix F5868 / F5888 is a multivalued fieldbus transducer with EtherNet / IP in robust design. Thanks to the construction of Safety-Lock ™ as well as the fully cast housing, the sensor is able to handle even the more demanding applications where there are high demands on the sensor. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. Sendix F5868 / F5888 comes with LED indication which facilitates diagnosis of the sensor.
Ordering information

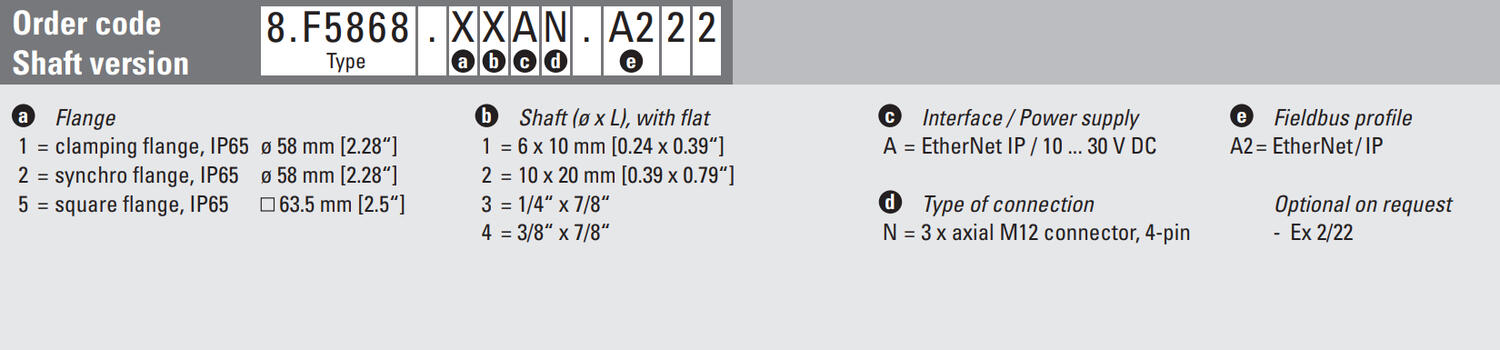

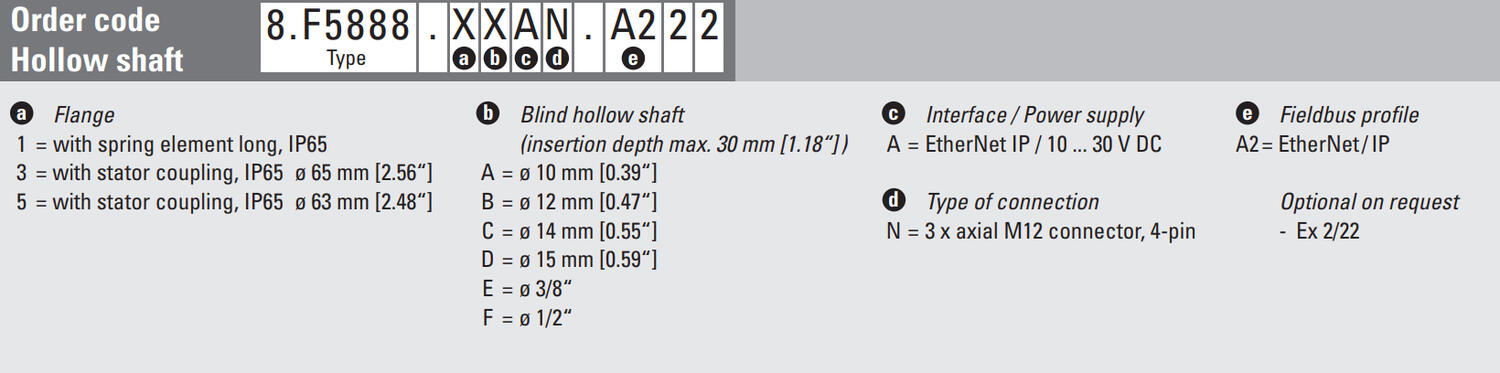

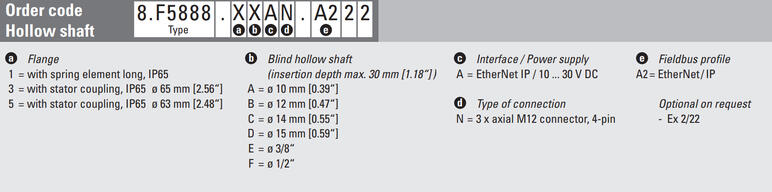

Please refer to the images below for ordering information.
