Kuebler - Absolute-coded Angular Transmitter Sendix F3668 / F3688, Optical, CANopen, Ø36 mm
The Sendix F3668 / F3688 is a series of multivalved optical axes with CANopen interface and a resolution of up to 16 + 16 bits despite its compact size of 36x42 mm. The sensor also has high enclosure class, shock resistance and a wide temperature range. The sensor is therefore very suitable for applications where extreme environments or temperatures can occur, such as mobile applications. The sensor is supplied with a tangential cable, which means that there is no exposed cable input on the sensor, but it is embedded in the housing itself to increase impact on impact and impact. The Sendix F3668 / F3688 is also available in a salt water resistant version.
- Housing diameter Ø36 mm
- CANopen
- Safety-Lock™
- Up to 16 + 16 bit resolution
Selected variant
Technical data
| Connection | Cable |
|---|---|
| Housing diameter | 36 mm |
| IP class | IP65, IP67 |
| Mounting | Shoulder |
| Output | CANopen |
| Resolution | 16+16 bit |
| Sensor type | Absolute |
| Shaft diameter max | 10 mm |
| Shaft diameter min | 6 mm |
|---|---|
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -40 °C |
| Version | Multiturn |
Product description
The Sendix F3668 / F3688 is a series of multivalved optical axes with CANopen interface and a resolution of up to 16 + 16 bits despite its compact size of 36x42 mm. The sensor also has high enclosure class, shock resistance and a wide temperature range. The sensor is therefore very suitable for applications where extreme environments or temperatures can occur, such as mobile applications. The sensor is supplied with a tangential cable, which means that there is no exposed cable input on the sensor, but it is embedded in the housing itself to increase impact on impact and impact. The Sendix F3668 / F3688 is also available in a salt water resistant version.
Ordering information

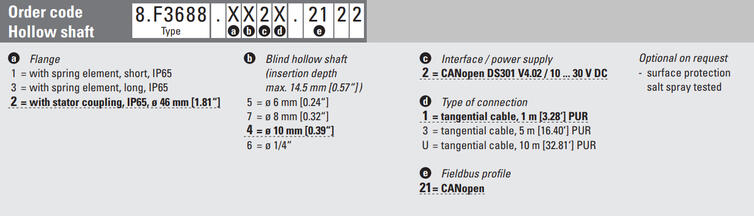

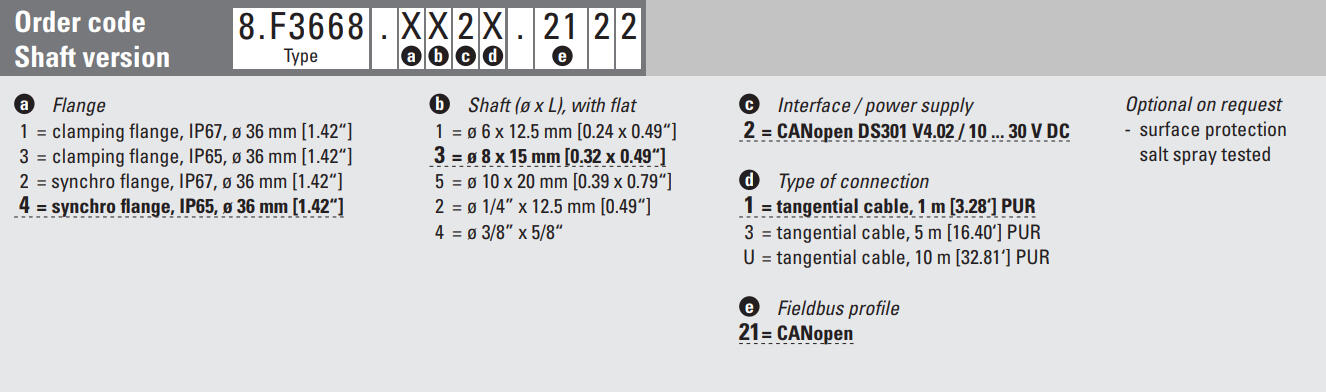

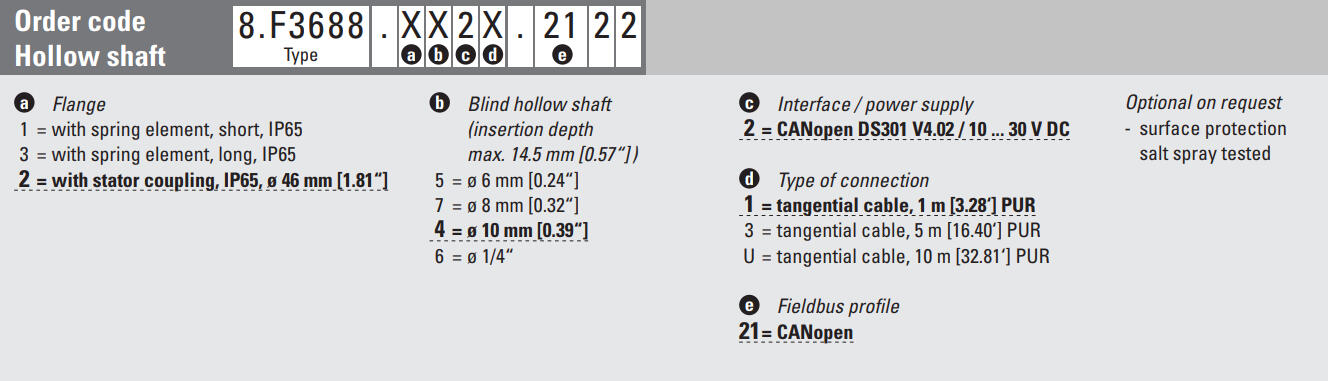

Please refer to the images below for ordering information.
