Annual usage | 8 cycles per hour/24 hours per day/365days |
---|---|
Approvals | EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1 |
ATEX approved | Yes |
Cable length | 3 m |
Conduit entry | 3m 4 core Ex |
Contact type | EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary) |
Contacts | 1NC 1NO |
Housing material | Die cast metal |
Integrated LED indication | No |
IP class | IP67 |
Material contacts | Silver |
Mechanical reliability B10d | 2.5x10⁶ operations at 100mA load |
Mounting | 4 x M5 |
---|---|
MTTFd | 214 years |
Operating temperature | -20°C +60°C |
Operational rating | 240V 3A |
PFHd | <1.0 x 10⁻⁷ |
PL | up to PLe acc. ISO13849-1 |
Rated insulation voltage | 500V |
Short circuit overload protection | Fuse externally 10A(FF) |
SIL | up to SIL 3 acc. EN62061 |
Withstand voltage | 2500V |
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.
Optimise your production line with encoders, inclinometers, displays and slip rings
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Conduit entry | Contacts | Number of poles | Weight | Vibration | Price | ||
---|---|---|---|---|---|---|---|---|
![]()

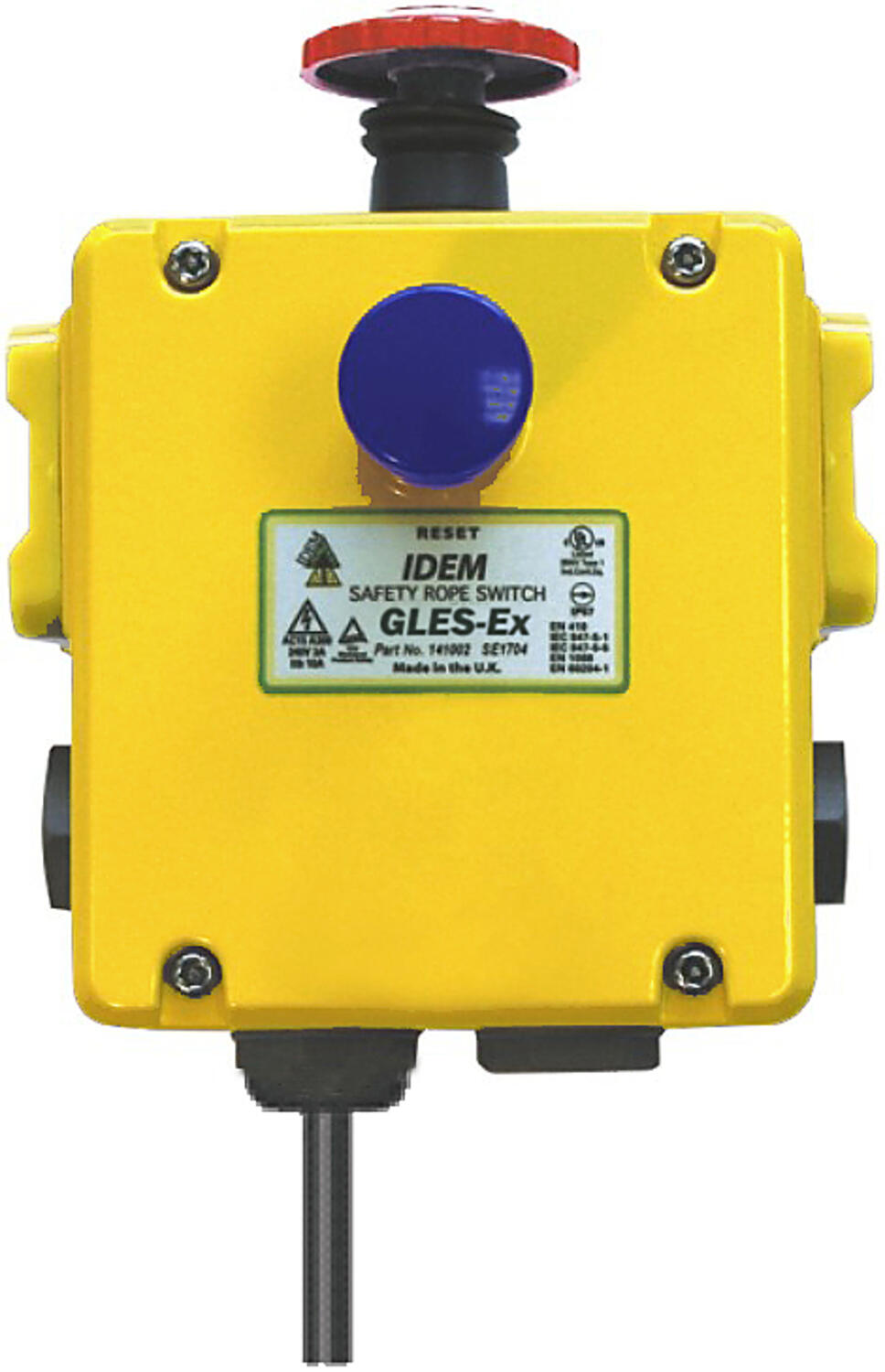

GLES-Ex 3M '1NC 1NO'
Art:
146003
Copied
|
3m 4 core Ex
|
1NC 1NO
|
|
|
|
| ||
![]()
GLES-Ex 3M '3NC 1NO'
Art:
146004
Copied
|
3m 8 core Ex
|
3NC 1NO
|
8
|
950 g
|
10-500hz 0,35mm
|
| ||
![]()
GLES-Ex 3M '2NC'
Art:
146005
Copied
|
3m 4 core Ex
|
2NC
|
|
|
|
| ||
![]()
GLES-Ex 3M '2NC 2NO'
Art:
146006
Copied
|
3m 8 core Ex
|
2NC 2NO
|
8
|
950 g
|
10-500hz 0,35mm
|
|
Select a variant in the list
