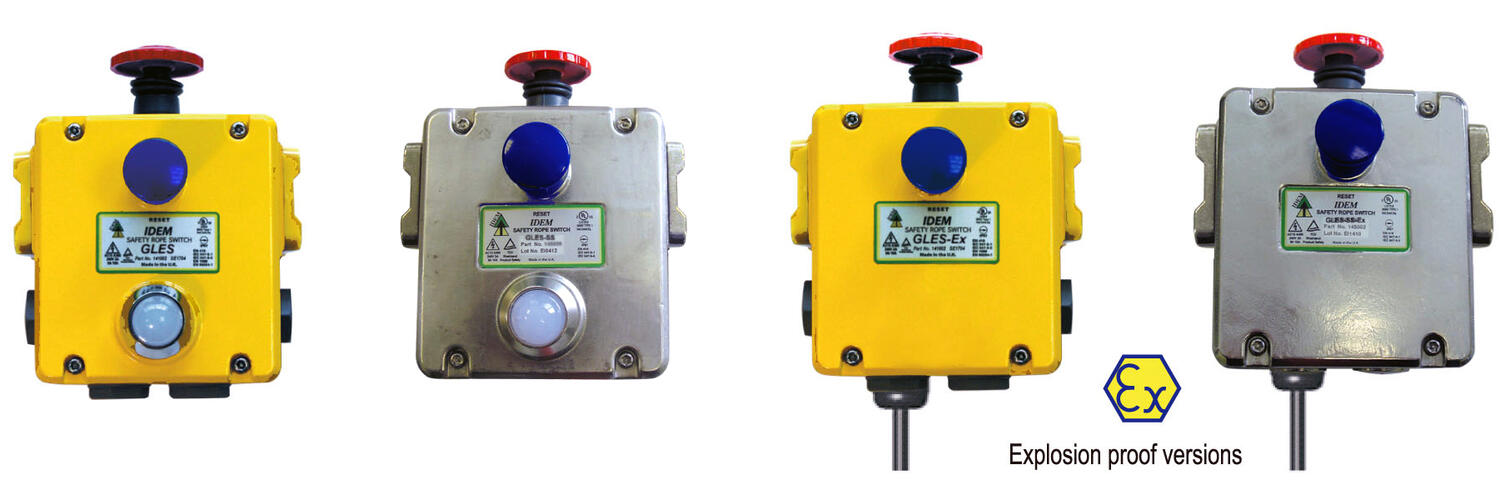

IDEM Emergency stop (E-Stop) switches GLES & GLES-SS

  • Stainless steel (IP69K) or cast metal (IP67)
  • 6 contact fields
  • 4 cable connection positions
  • 4NC 2NO contacts

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Annual usage 8 cycles per hour/24 hours per day/365days
Approvals EN60947-5-1, EN60947-5-5, EN62061, UL 508, ISO 13850, ISO 13849-1
ATEX approved No
Conduit entry M20
Contact type EN60947-5-1 double break type Zb Snap Action up to 4NC (positive break) 2NO (Auxiliary)
Contacts 4NC 2NO
Housing material Die cast metal
Integrated LED indication No
IP class IP67
Material contacts Silver
Mechanical reliability B10d 2.5x10⁶ operations at 100mA load
Mounting 4 x M5
MTTFd 214 years
Operating temperature -25°C +80°C
Operational rating 240V 3A
PFHd <1.0 x 10⁻⁷
PL up to PLe acc. ISO13849-1
Rated insulation voltage 500V
Short circuit overload protection Fuse externally 10A(FF)
SIL up to SIL 3 acc. EN62061
Thermal current (lth) 10 A
Withstand voltage 2500V

Downloads

Accessories

Parts Conduit entry Housing material Integrated LED indication IP class LED indication LED supply voltage Weight Price
IDEM Emergency stop (E-Stop) switches GLES & GLES-SS
GLES M20 '4NC 2NO'
Art:
146001 Copied
M20
Die cast metal
No
IP67

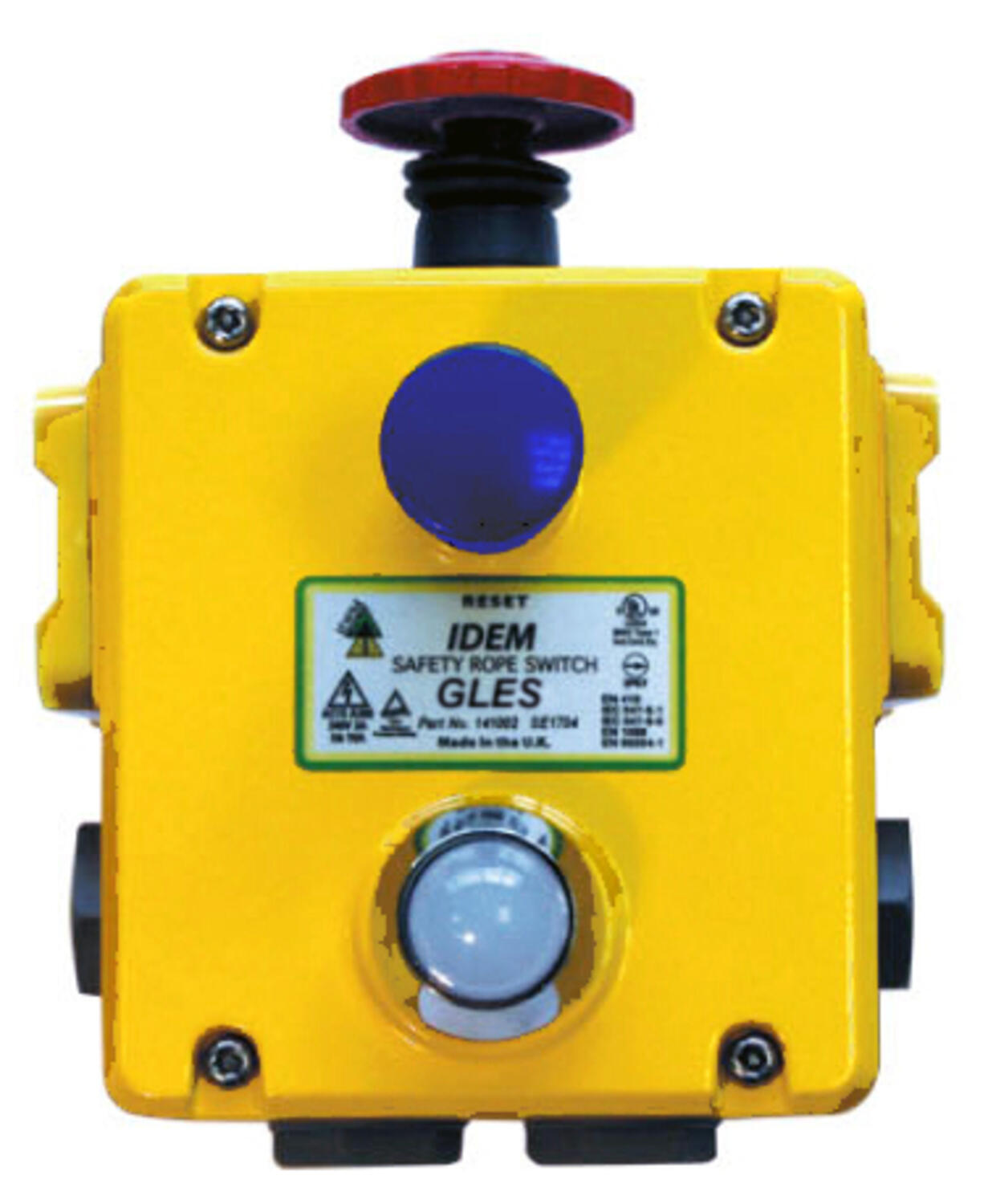

GLES_01.tif
GLES M20 '4NC 2NO' with 24v LED
Art:
146001A Copied
M20
Die cast metal
Yes
IP67
Steady Green, Flashing Red
24Vdc
765 g
GLES_01.tif
GLES M20 '4NC 2NO' with 110v LED
Art:
146001B Copied
M20
Die cast metal
Yes
IP67
Steady Green, Flashing Red
110Vac
GLES_01.tif
GLES M20 '4NC 2NO' with 230v LED
Art:
146001C Copied
M20
Die cast metal
Yes
IP67
Steady Green, Flashing Red
230Vac
IDEM Emergency stop (E-Stop) switches GLES & GLES-SS
GLES ½NPT '4NC 2NO'
Art:
146002 Copied
1/2"NPT
Die cast metal
No
IP67
GLES_01.tif
GLES ½NPT '4NC 2NO' with 24v LED
Art:
146002A Copied
1/2"NPT
Die cast metal
Yes
IP67
Steady Green, Flashing Red
24Vdc
GLES_01.tif
GLES ½NPT '4NC 2NO' with 110v LED
Art:
146002B Copied
1/2"NPT
Die cast metal
Yes
IP67
Steady Green, Flashing Red
110Vac
GLES_01.tif
GLES ½NPT '4NC 2NO' with 230v LED
Art:
146002C Copied
1/2"NPT
Die cast metal
Yes
IP67
Steady Green, Flashing Red
230Vac
IDEM Emergency stop (E-Stop) switches GLES & GLES-SS
GLES-SS M20 '4NC 2NO'
Art:
147001 Copied
M20
Stainless steel 316
No
IP69K

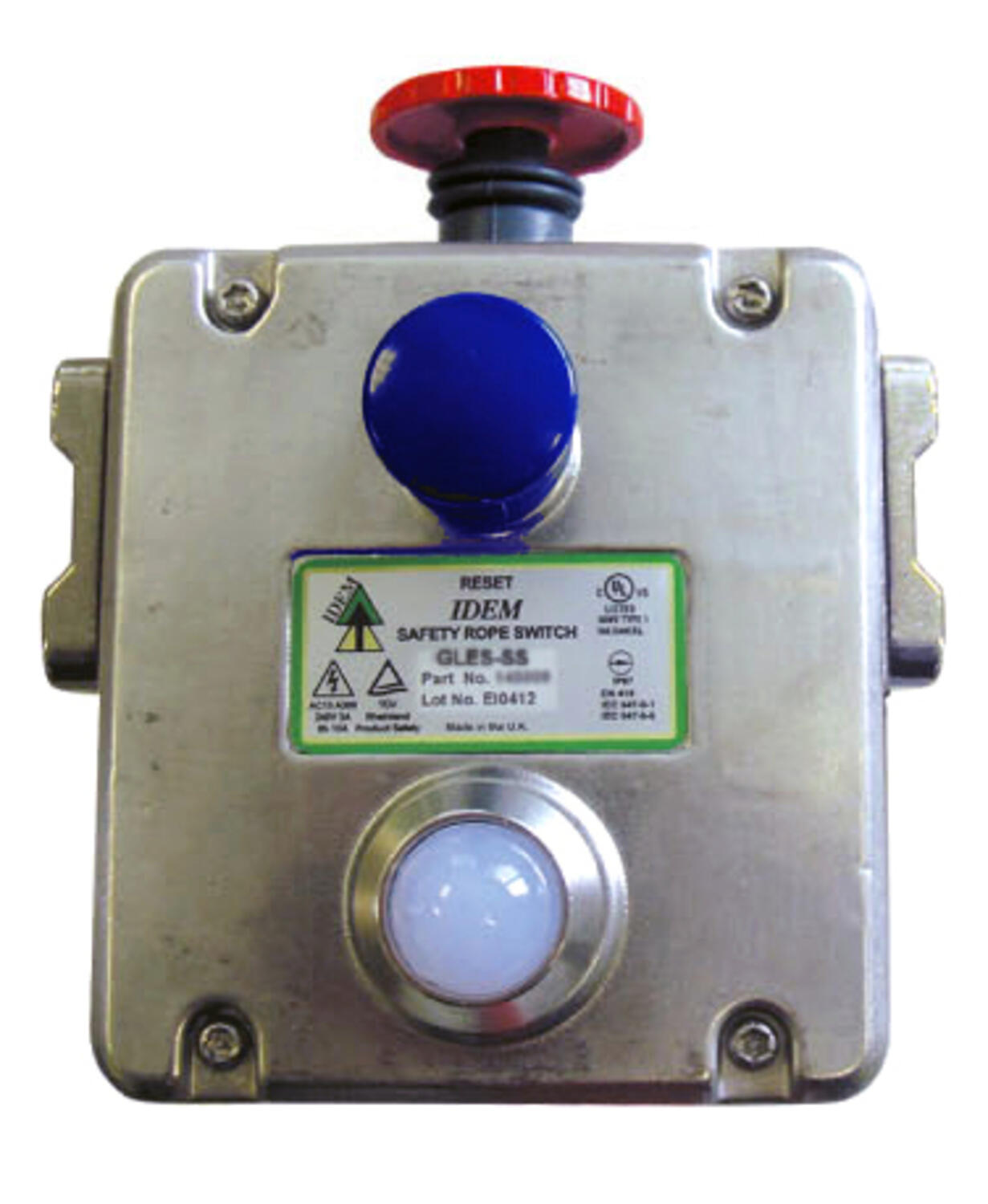

GLES_02.tif
GLES-SS M20 '4NC 2NO' with 24v LED
Art:
147001A Copied
M20
Stainless steel 316
Yes
IP69K
Steady Green, Flashing Red
24Vdc
GLES_02.tif
GLES-SS M20 '4NC 2NO' with 110v LED
Art:
147001B Copied
M20
Stainless steel 316
Yes
IP69K
Steady Green, Flashing Red
110Vac
GLES_02.tif
GLES-SS M20 '4NC 2NO' with 230v LED
Art:
147001C Copied
M20
Stainless steel 316
Yes
IP69K
Steady Green, Flashing Red
230Vac
IDEM Emergency stop (E-Stop) switches GLES & GLES-SS
GLES-SS ½NPT '4NC 2NO'
Art:
147002 Copied
1/2"NPT
Stainless steel 316
No
IP69K
GLES_02.tif
GLES-SS ½NPT '4NC 2NO' 24v LED
Art:
147002A Copied
1/2"NPT
Stainless steel 316
Yes
IP69K
Steady Green, Flashing Red
24Vdc
GLES_02.tif
GLES-SS ½NPT '4NC 2NO' 110v LED
Art:
147002B Copied
1/2"NPT
Stainless steel 316
Yes
IP69K
Steady Green, Flashing Red
110Vac
GLES_02.tif
GLES-SS ½NPT '4NC 2NO' 230v LED
Art:
147002C Copied
1/2"NPT
Stainless steel 316
Yes
IP69K
Steady Green, Flashing Red
230Vac
