MOLEX

Molex - M12 overmoulded connector cables male

  • Screw connection
  • Anti-vibration Nut
  • PVC, PUR / PVC or TPU cable

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Cable diameter 5,3 +0,30/-0,10 mm
Cable length 2 m
Coding A
Colour cable Black
Contact embodiment Straight male
Drag Chain Tested No
IP class IP67
LED indicator No
Manufacturer part no. 1200060257
Material cable PUR/PVC
Material contacts Gold plated
Number of poles 3
Rated current 4 A
Rated wire cross section 0.34 mm²
Shielded No
Temperature range fixed use from -30 °C
Temperature range flexible use from -5 °C
Temperature range flexible use to 80 °C
Voltage max 250 V

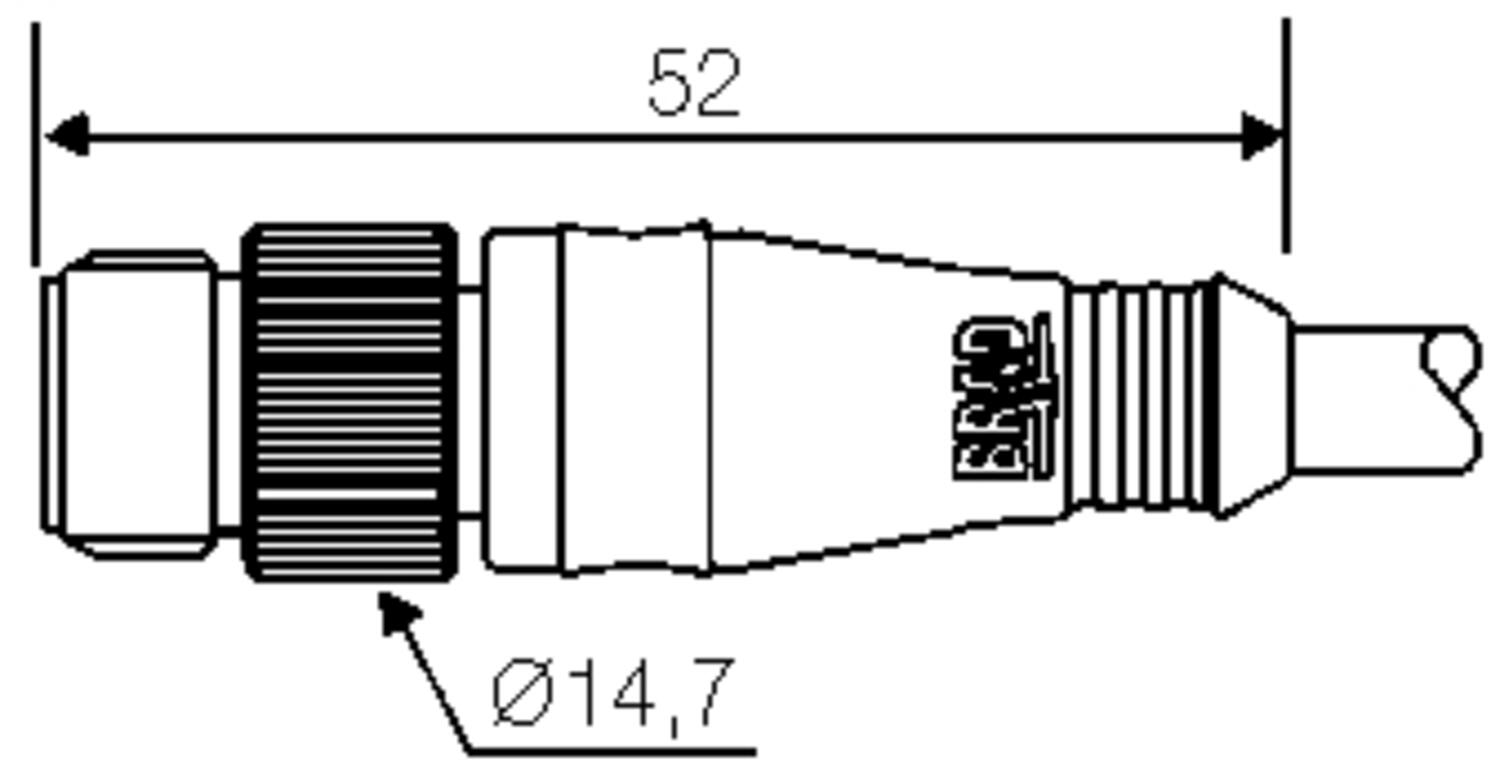

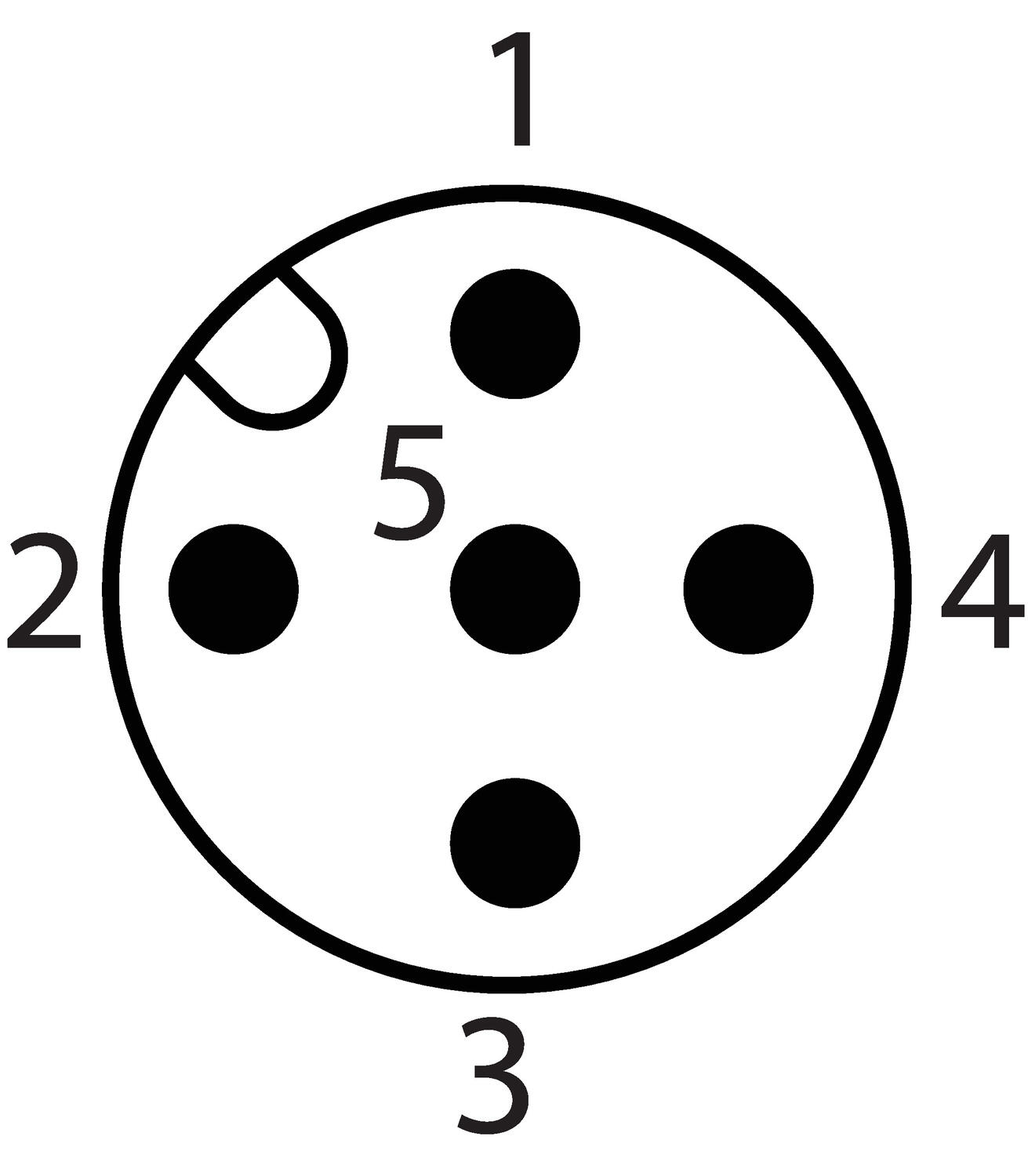

Measurements and connections

Accessories

Related products

Related

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

hokuyu
Product news

The Smallest Safety Laser Scanner on the market by Hokuyo

Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

ATEX hazardous environments and OEM ATEX products
Blog Learning hub

ATEX - Learn about explosion safety in hazardous environments

ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.

Parts Cable diameter Cable length Contact embodiment Current max Halogen-free Manufacturer part no. Number of poles Rated current Rated wire cross section Voltage max Price
M12, fully groated cable, straight male
MMC-4P-3W-MM-ST-2M-PUR
Art:
803006P03M020 Copied
5,3 +0,30/-0,10 mm
2 m
Straight male
1200060257
3
4 A
0.34 mm²
250 V
M12, fully groated cable, straight male
Cordset M12-M-ST-3p-5m
Art:
803006P03M050 Copied
5,3 +0,30/-0,10 mm
5 m
Straight male
1200060261
3
4 A
0.34 mm²
250 V
M12, fully groated cable, straight male
Art:
803006P03M100 Copied
5,3 +0,30/-0,10 mm
10 m
Straight male
1200658613
3
4 A
0.34 mm²
250 V
M12, fully groated cable, straight male
MMC-4P-4W-MM-ST-2M-PUR
Art:
804006P03M020 Copied
5,3 +0,30/-0,10 mm
2 m
Straight male
4 A
No
1200060570
4
0.34 mm²
250 V
M12, fully groated cable, straight male
MMC-4P-4W-MM-ST-5M-PUR
Art:
804006P03M050 Copied
5,3 +0,30/-0,10 mm
5 m
Straight male
4 A
No
1200060047
4
0.34 mm²
250 V
M12, fully groated cable, straight male
Cordset M12-MALE-ST-4p-10m PUR
Art:
804006P03M100 Copied
5,3 +0,30/-0,10 mm
10 m
Straight male
1200060572
4
4 A
0.34 mm²
250 V
M12, fully groated cable, straight male
Cordset M12-M-ST-5p-2m
Art:
805006P03M020 Copied
5,7 +0,30/-0,10 mm
2 m
Straight male
4 A
1200060680
5
0.34 mm²
60 V
M12, fully groated cable, straight male
Cordset M12-MALE-ST-5p-5m PUR
Art:
805006P03M050 Copied
5,7 +0,30/-0,10 mm
5 m
Straight male
4 A
1200060682
5
0.34 mm²
60 V
M12, fully groated cable, straight male
KABELKONT M12 RAK HA 10MPUR 5P
Art:
805006P03M100 Copied
5,7 +0,30/-0,10 mm
10 m
Straight male
1200652158
5
4 A
0.34 mm²
60 V
M12, fully groated cable, angled male
Art:
803007P03M020 Copied
5,3 +0,30/-0,10 mm
2 m
Angled male
1200060288
3
4 A
0.34 mm²
250 V
M12, fully groated cable, angled male
KABELKONT M12 90° HA 5MPUR 3P
Art:
803007P03M050 Copied
5,3 +0,30/-0,10 mm
5 m
Angled male
1200062055
3
4 A
0.34 mm²
250 V
M12, fully groated cable, angled male
Art:
803007P03M100 Copied
5,3 +0,30/-0,10 mm
10 m
Angled male
1200658618
3
4 A
0.34 mm²
250 V
M12, fully groated cable, angled male
Cordset M12-M-90-4p-2m
Art:
804007P03M020 Copied
5,3 +0,30/-0,10 mm
2 m
Angled male
1200060592
4
4 A
0.34 mm²
250 V
M12, fully groated cable, angled male
MMC-4P-4W-MM-90-10M-PUR
Art:
804007P03M100 Copied
5,3 +0,30/-0,10 mm
10 m
Angled male
1200060595
4
4 A
0.34 mm²
250 V
M12, fully groated cable, angled male
MMC-4P-4W-MM-90-5M-PUR
Art:
804007P03M050 Copied
5,3 +0,30/-0,10 mm
5 m
Angled male
1200060594
4
4 A
0.34 mm²
250 V
M12, fully groated cable, angled male
Cordset M12-M-90-5p-2m
Art:
805007P03M020 Copied
5,7 +0,30/-0,10 mm
2 m
Angled male
1200060697
5
4 A
0.34 mm²
60 V
M12, fully groated cable, angled male
M12 cordset 90º male 5m PUR
Art:
805007P03M050 Copied
5,7 +0,30/-0,10 mm
5 m
Angled male
4 A
1200658186
5
0.34 mm²
60 V
M12, fully groated cable, angled male
M12 cordset 90º male 5-pole 10m PUR
Art:
805007P03M100 Copied
5,7 +0,30/-0,10 mm
10 m
Angled male
4 A
1200655006
5
0.34 mm²
60 V
M12, fully groated cable, straight male
Cordset M12-M-ST-8p-5m, PUR
Art:
808006P02M050 Copied
6,7 +0,30/-0,10 mm
5 m
Straight male
1200650968
8
2 A
0.25 mm²
30 V
M12, fully groated cable, straight male
Cordset M12-MALE-ST-8p-10m
Art:
808006P02M100 Copied
6,7 +0,30/-0,10 mm
10 m
Straight male
1200650969
8
2 A
0.25 mm²
30 V
M12, fully groated cable, straight male
M12 CORDSET 8P MALE STRAIGHT 2m PUR
Art:
808006P02M020 Copied
6,7 +0,30/-0,10 mm
2 m
Straight male
1200650964
8
2 A
0.25 mm²
30 V
M12, fully groated cable, angled male
M12 cordset 90º male 2m PUR
Art:
808007P02M020 Copied
6,7 +0,30/-0,10 mm
2 m
Angled male
1200651800
8
2 A
0.25 mm²
30 V
M12, fully groated cable, angled male
Art:
808007P02M050 Copied
6,7 +0,30/-0,10 mm
5 m
Angled male
1200658258
8
2 A
0.25 mm²
30 V
M12, fully groated cable, angled male
Art:
808007P02M100 Copied
6,7 +0,30/-0,10 mm
10 m
Angled male
1200658259
8
2 A
0.25 mm²
30 V
