DATALOGIC
Datalogic - Quick Link 200
Quick Link is a complete series for fast, easy cabling of an ID-NET™ network by means of standard cables. QL100/150/200 are slave modules designed for use with the master modules QL300/500 or CBX100/500. Quick Link 200 is a T-connector used in ID-NET™ networks for distributing signals but not supply voltage. An additional connection provides the reader with supply voltage. The supply voltage then passes with the signals to the next network unit. This allows larger networks to be created which would otherwise not be possible due to the total current limit and/or voltage drop.
- Fast, easy connection for ID-NET™ networks

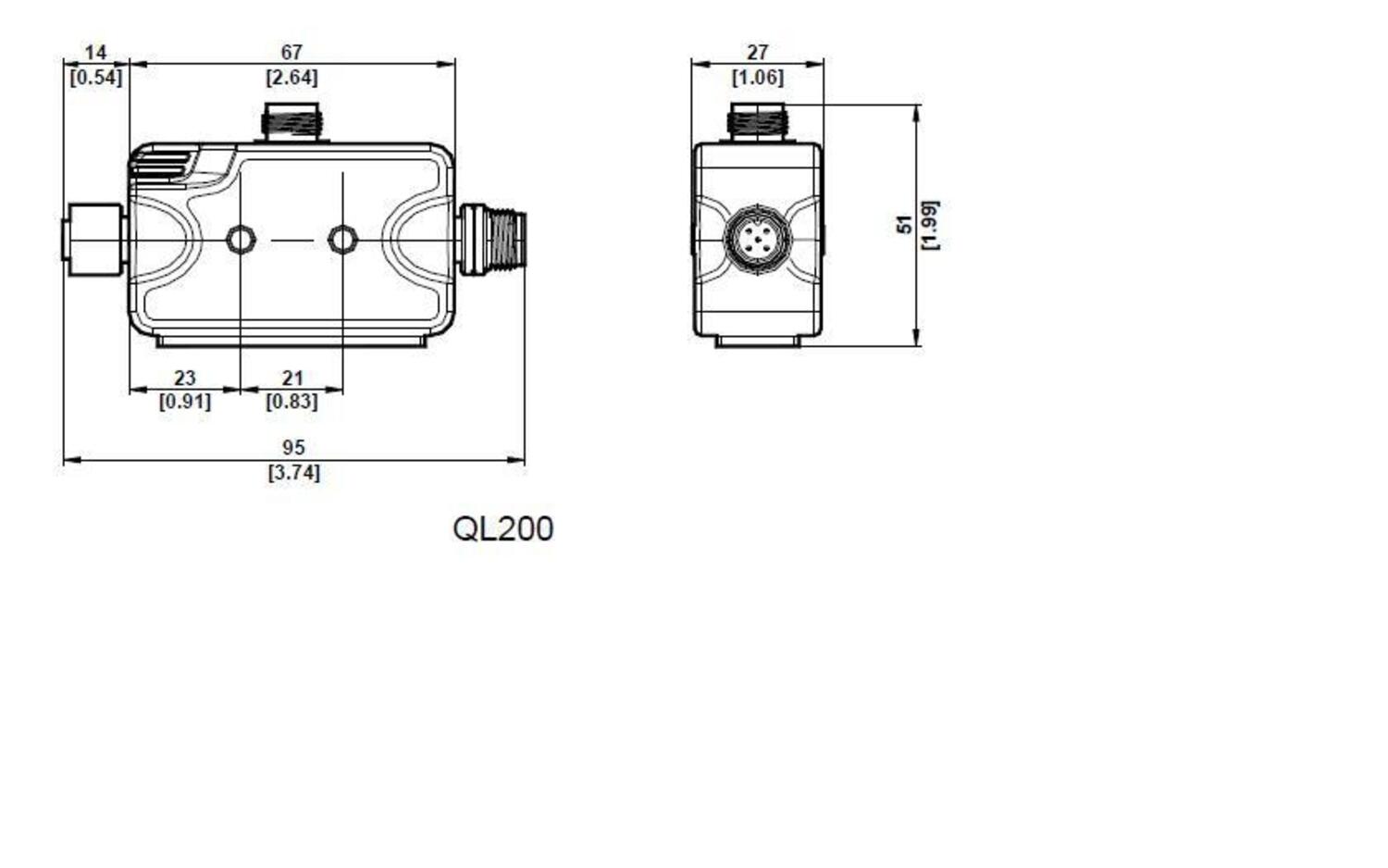

- Compact dimensions

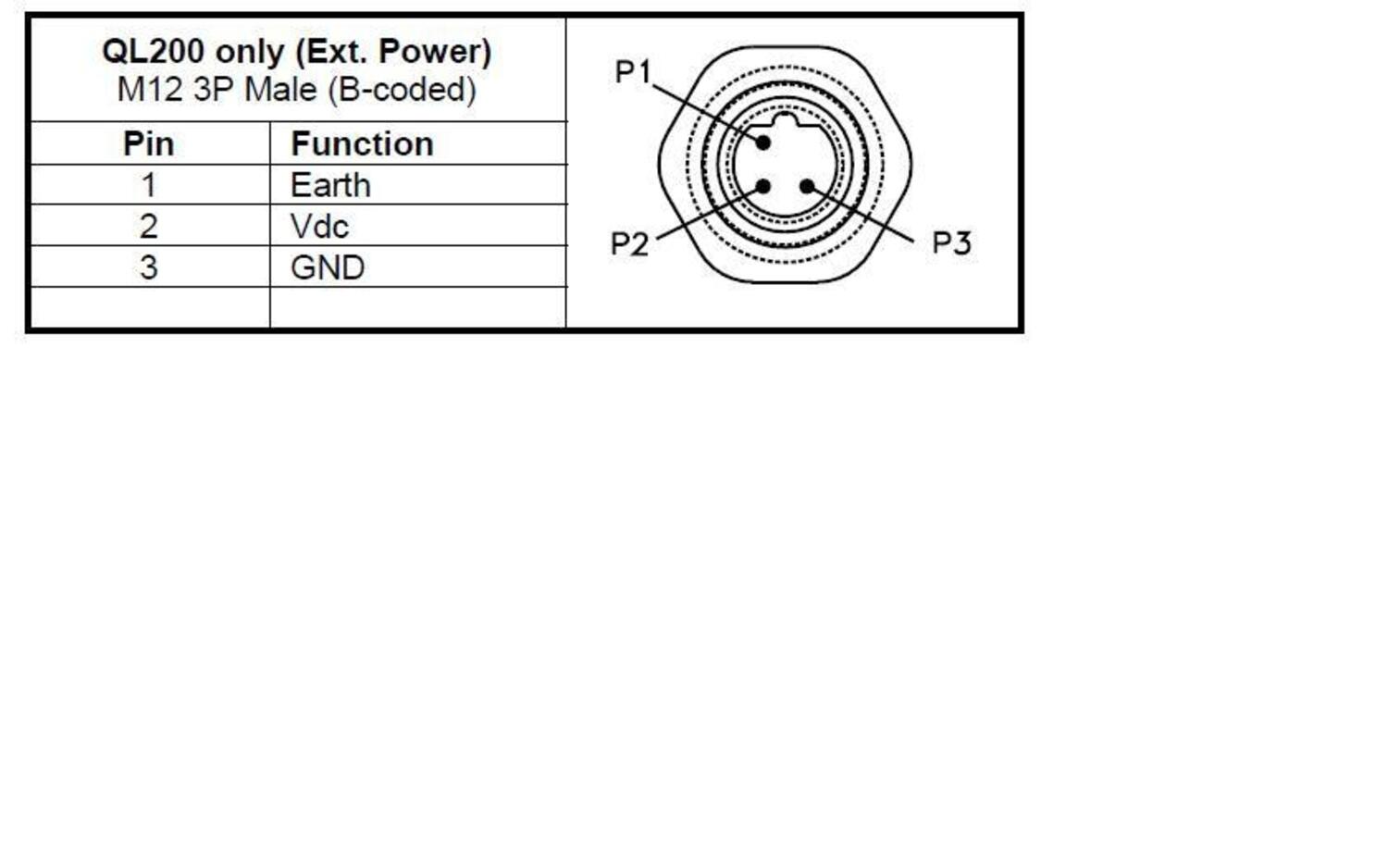

- Extra connection for supply voltage
Selected variant
Technical data
| IP class | IP65 |
|---|---|
| Power consumption max | 4 A |
| Storage temperature max | 70 °C |
| Storage temperature min | -20 °C |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 50 °C |
| Temperature operational min | 0 °C |
| Weight | 122 g |
Downloads
Product description
Quick Link is a complete series for fast, easy cabling of an ID-NET™ network by means of standard cables. QL100/150/200 are slave modules designed for use with the master modules QL300/500 or CBX100/500. Quick Link 200 is a T-connector used in ID-NET™ networks for distributing signals but not supply voltage. An additional connection provides the reader with supply voltage. The supply voltage then passes with the signals to the next network unit. This allows larger networks to be created which would otherwise not be possible due to the total current limit and/or voltage drop.
