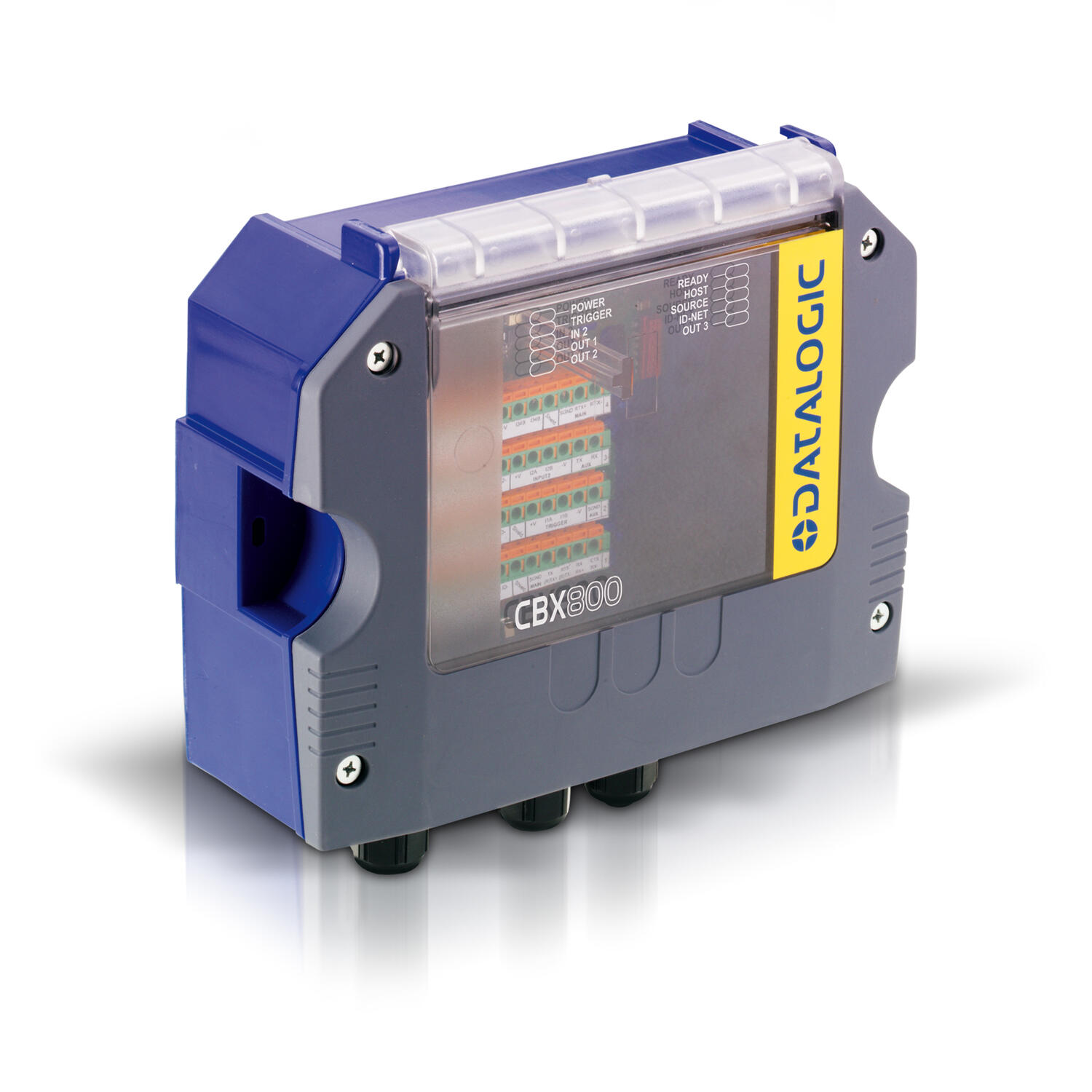

Datalogic - CBX 800
CBX800 permits connection of units which use a standard RS232 to the most common field bus systems and Datalogic's ID-NET™. The box is structured with a module system where you select a module depending on the interface to which you are going to send the signals, e,g, Profibus, Devicenet, Ethernet IP or CANopen.
CBX800 is compatible for use with Datalogic's handheld barcode readers.
ID-NET™ is a dedicated high-speed interface between barcode readers. It permits speeds of up to 1 Mbit/s and is integrated as standard in all boxes in the CBX and Quick Link series. ID-NET™ is used as a complement to the standard main interface and can be configured as a station with multiple readers. This allows up to 16 readers to be connected which read different sides of the same object. In addition, ID-NET™ can be configured as multiple stations with individual readers, which allows up to 32 readers to be connected which read objects on each individual station, independently of one another.
- Conversion RS232 to field bus
- ID-NET™ Interface
- Connection to Bus system
Selected variant
Technical data
| IP class | IP65 |
|---|---|
| Power consumption | 2.5 W |
| Storage temperature max | 70 °C |
| Storage temperature min | -20 °C |
| Temperature operational max | 50 °C |
| Temperature operational min | 0 °C |
Downloads
Product description
CBX800 permits connection of units which use a standard RS232 to the most common field bus systems and Datalogic's ID-NET™. The box is structured with a module system where you select a module depending on the interface to which you are going to send the signals, e,g, Profibus, Devicenet, Ethernet IP or CANopen.
CBX800 is compatible for use with Datalogic's handheld barcode readers.
ID-NET™ is a dedicated high-speed interface between barcode readers. It permits speeds of up to 1 Mbit/s and is integrated as standard in all boxes in the CBX and Quick Link series. ID-NET™ is used as a complement to the standard main interface and can be configured as a station with multiple readers. This allows up to 16 readers to be connected which read different sides of the same object. In addition, ID-NET™ can be configured as multiple stations with individual readers, which allows up to 32 readers to be connected which read objects on each individual station, independently of one another.
