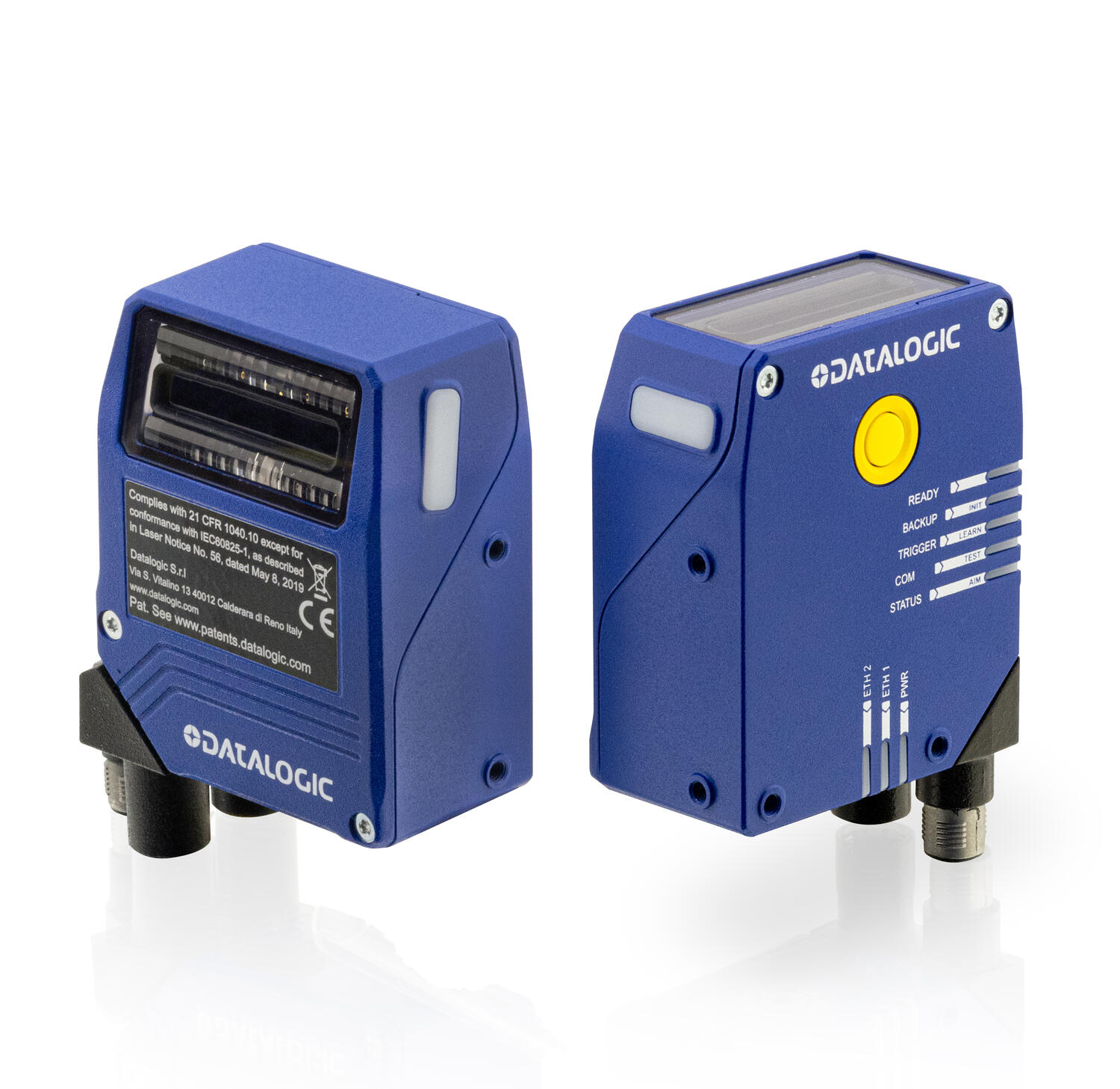

Datalogic Blade Laser Scanner 930190001

The Blade Series is the new generation of Compact Industrial 1D Readers designed for lean integration, simple installation, and reduced maintenance. The Blade represents the R-Evolution of the heroic DS2X000 Series:



  • Revolution: The Blade is adopting Imaging technology (no laser, no moving parts, all electronics) ensuring maximum reading performances over 1D barcodes and unsurpassed reliability.
  • Evolution: The Blade is fully backward compatible in terms of mechanical installation and reading coverage (distance, barcode resolution, connectivity) with DS2x00.



The different models provide ready-to-use, cutting edge solutions supporting a variety of Traceability applications in OEM, Factory and Warehousing Automation, whenever 1D barcodes are in use. The main Sub-Industry targets are Packaging (Pharma, Food & Beverage) and Intralogistics (Warehouse Automation and general Intralogistics).

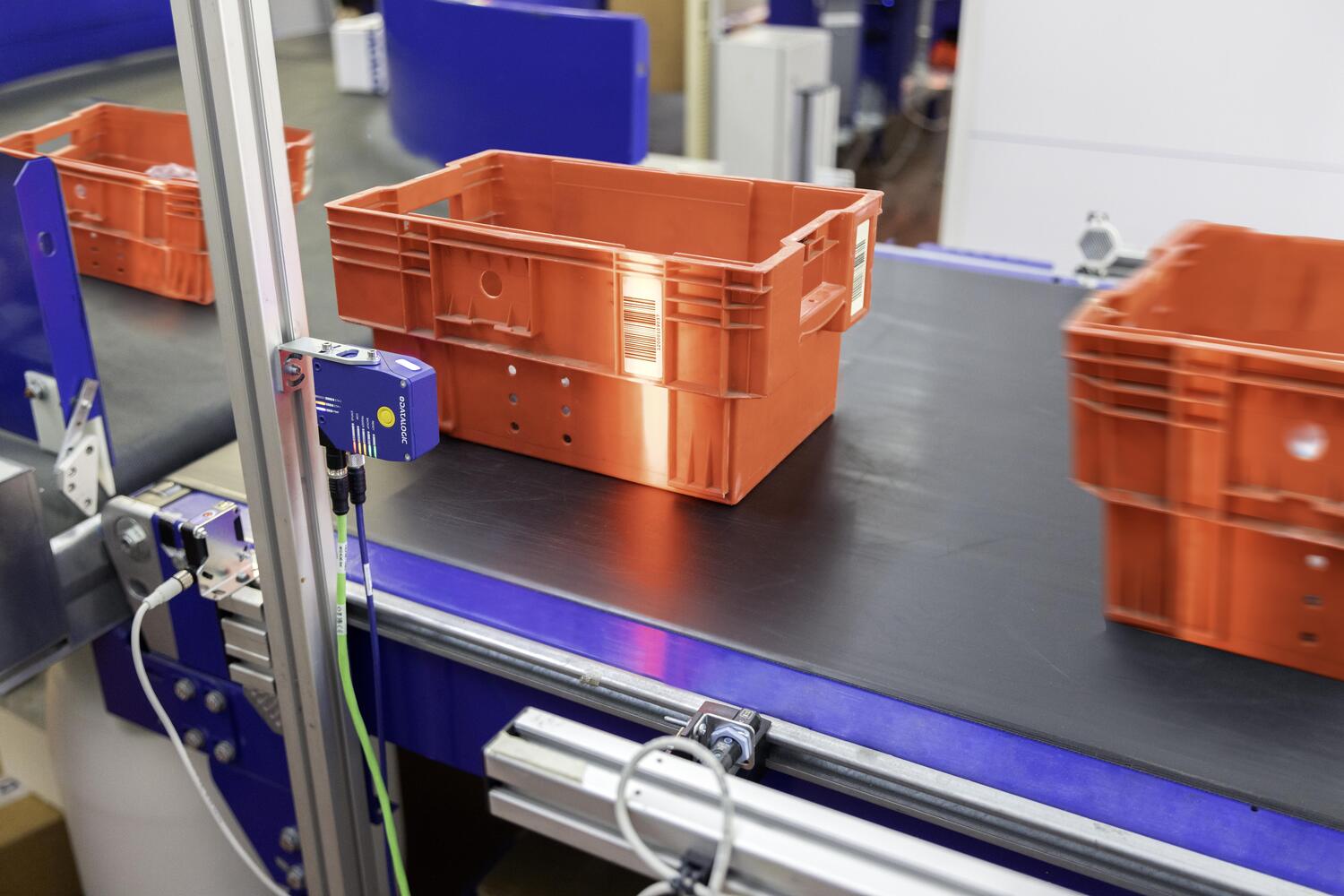

The main applications include Tote Routing, primary and secondary packaging traceability, end of line traceability/sorting. The Series is made of two product versions, Blade 100 and Blade 200, offering increasing reading power and flexibility to efficiently match different application needs.

Read more
  • Resolution up to 0.1mm (3.94 mils)
  • 270 frames per second
  • Simple installation
  • Ethernet and Profinet models

Selected variant

Available in several variants

Selected variant

Technical data

Approvals CE
Connector M12
Dimension (mm) 104 × 68,5 × 38,5
Frame rate max 270 fps
IP class IP65
Material of body Aluminium
Opening angle 47 °
Optical resolution 2000 x 128 pix
Power consumption 4.5 W
Read ranges min 40
Readable code types 1D
Reading distance 320 mm
Supply voltage 12-30 V DC
Temperature operational max 50 °C
Temperature operational min 0 °C
Weight 310 g

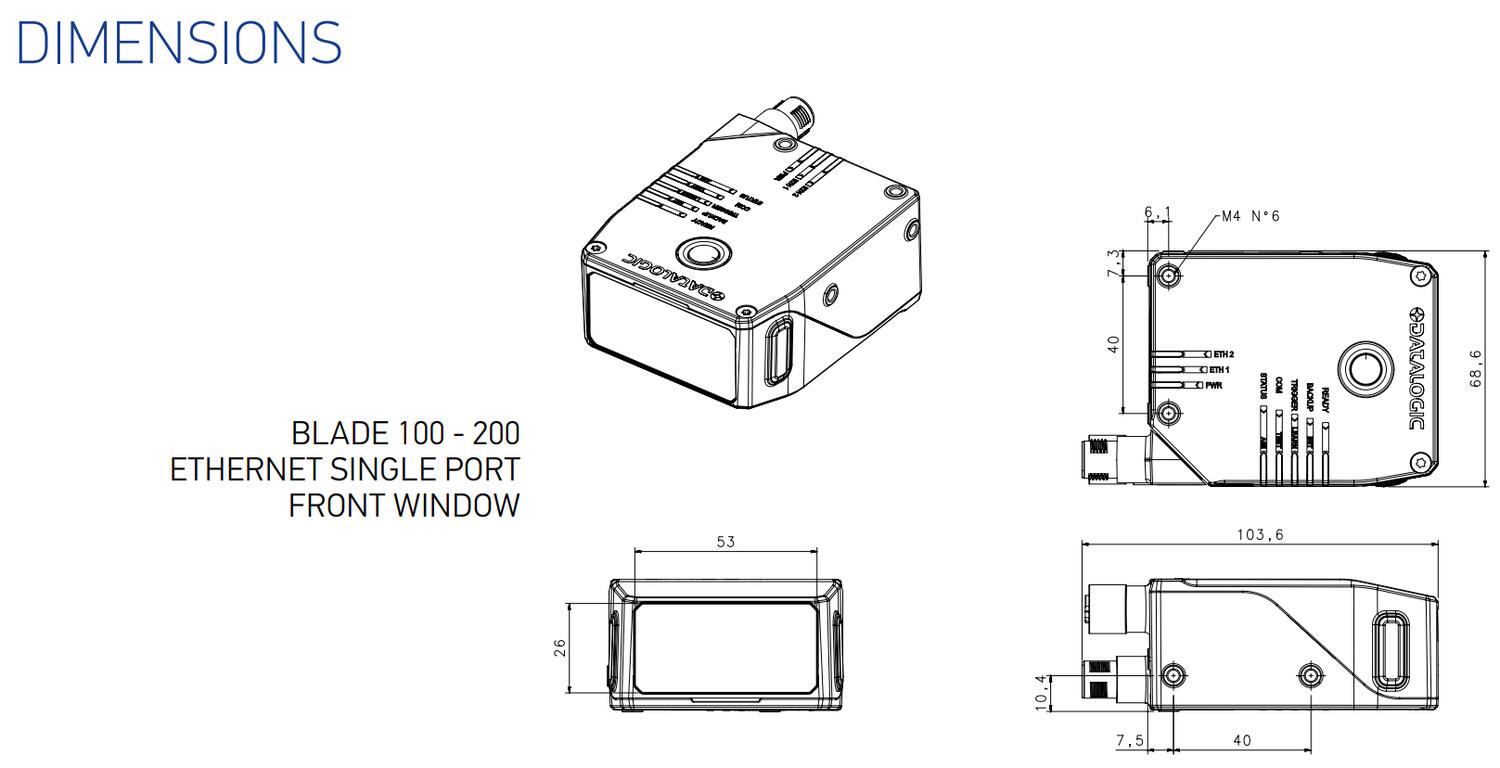

Measurements and connections

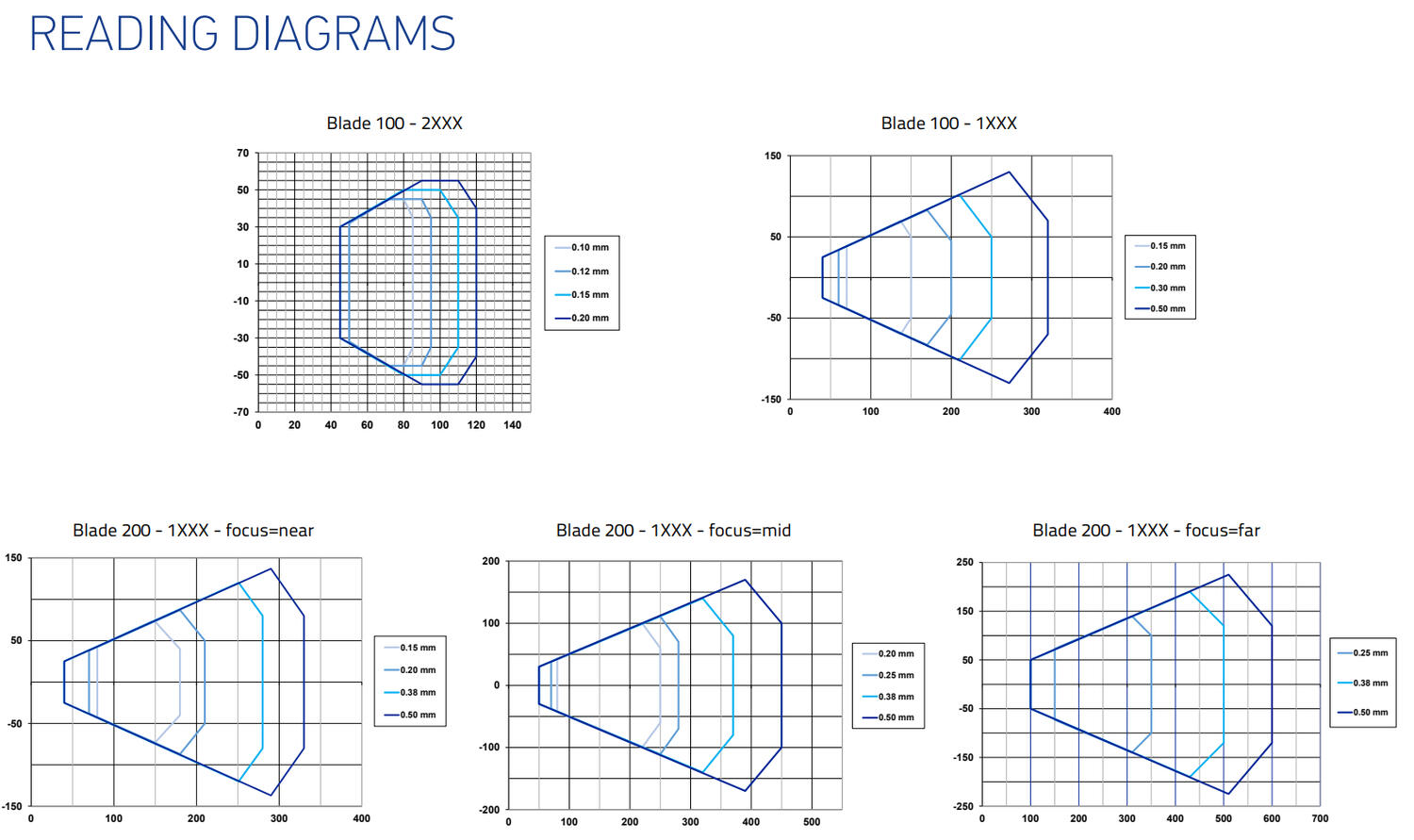

Technical illustrations

Product description

The Blade Series is the new generation of Compact Industrial 1D Readers designed for lean integration, simple installation, and reduced maintenance. The Blade represents the R-Evolution of the heroic DS2X000 Series:



  • Revolution: The Blade is adopting Imaging technology (no laser, no moving parts, all electronics) ensuring maximum reading performances over 1D barcodes and unsurpassed reliability.
  • Evolution: The Blade is fully backward compatible in terms of mechanical installation and reading coverage (distance, barcode resolution, connectivity) with DS2x00.



The different models provide ready-to-use, cutting edge solutions supporting a variety of Traceability applications in OEM, Factory and Warehousing Automation, whenever 1D barcodes are in use. The main Sub-Industry targets are Packaging (Pharma, Food & Beverage) and Intralogistics (Warehouse Automation and general Intralogistics).

The main applications include Tote Routing, primary and secondary packaging traceability, end of line traceability/sorting. The Series is made of two product versions, Blade 100 and Blade 200, offering increasing reading power and flexibility to efficiently match different application needs.

Accessories

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

Parts Dimension (mm) Power consumption Reading distance Price
104 × 68,5 × 38,5
4.5 W
320 mm
104 × 68,5 × 38,5
4.5 W
320 mm
104 × 68,5 × 38,5
4.5 W
320 mm
104 × 86 × 38,5
4.5 W
320 mm
104 × 86 × 38,5
4.5 W
320 mm
104 × 68,5 × 38,5
5.5 W
600 mm
104 × 68,5 × 38,5
5.5 W
600 mm
104 × 86 × 38,5
5.5 W
600 mm
104 × 86 × 38,5
5.5 W
600 mm
104 × 86 × 38,5
5.5 W
600 mm
104 × 86 × 38,5
5.5 W
600 mm
