JUNG PROCESS SYSTEMS

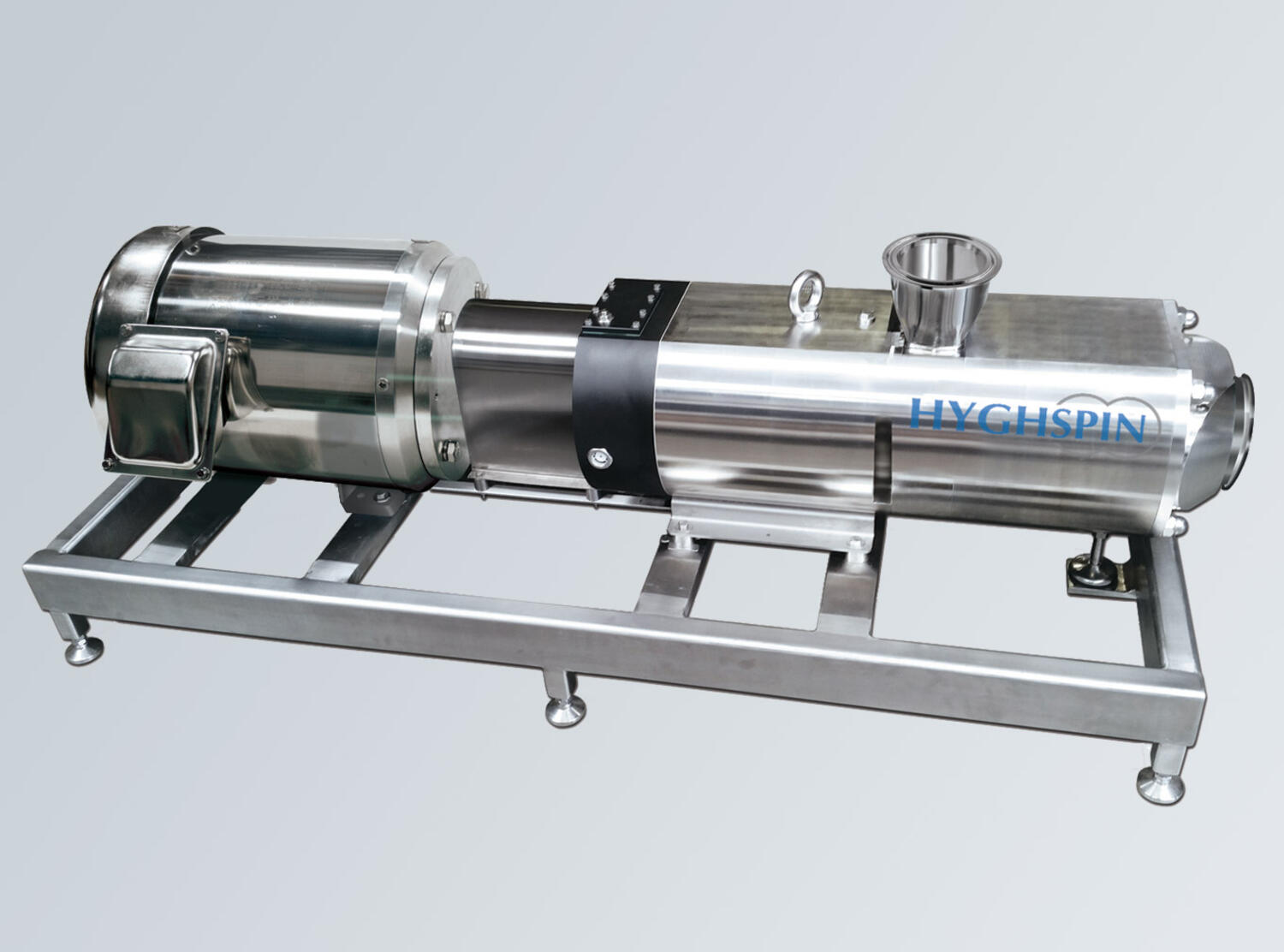

Jung HYGHSPIN extended series pump JPS HYGHSPIN 50E
Hygienic twin screw pump
The HYGHSPIN Extended is a variant of the worldwide tried and tested HYGHSPIN pump series made of high-quality stainless steel. The special focus for the HYGHSPIN Extended is on applications in the low-pressure range of up to 6 bar differential pressure.
Â
The feed screws and the pump housing are extended. The HYGHSPIN Extended therefore expands the application possibilities for the individual sizes for higher volume flow rates or very large solids.
Â

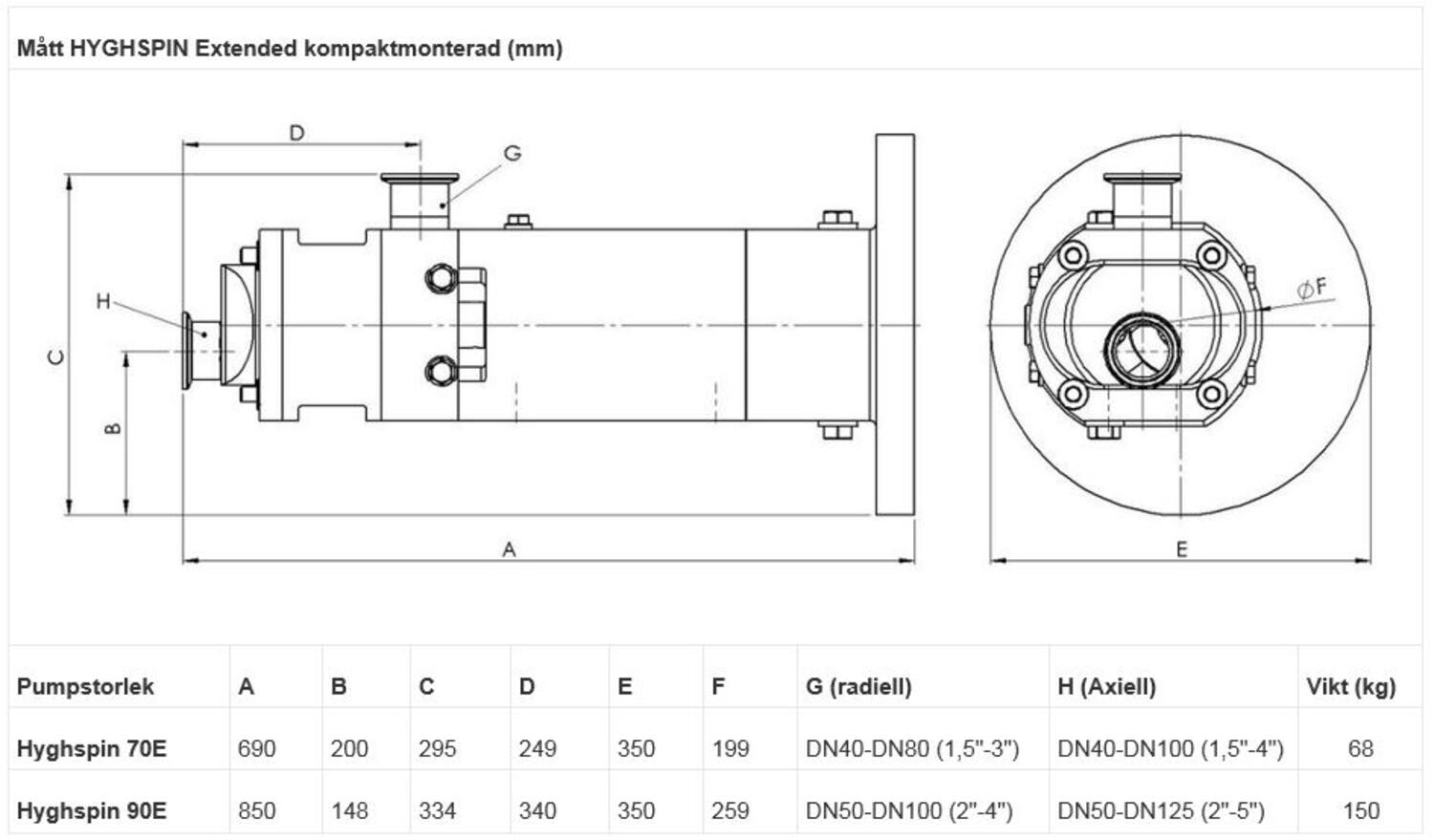

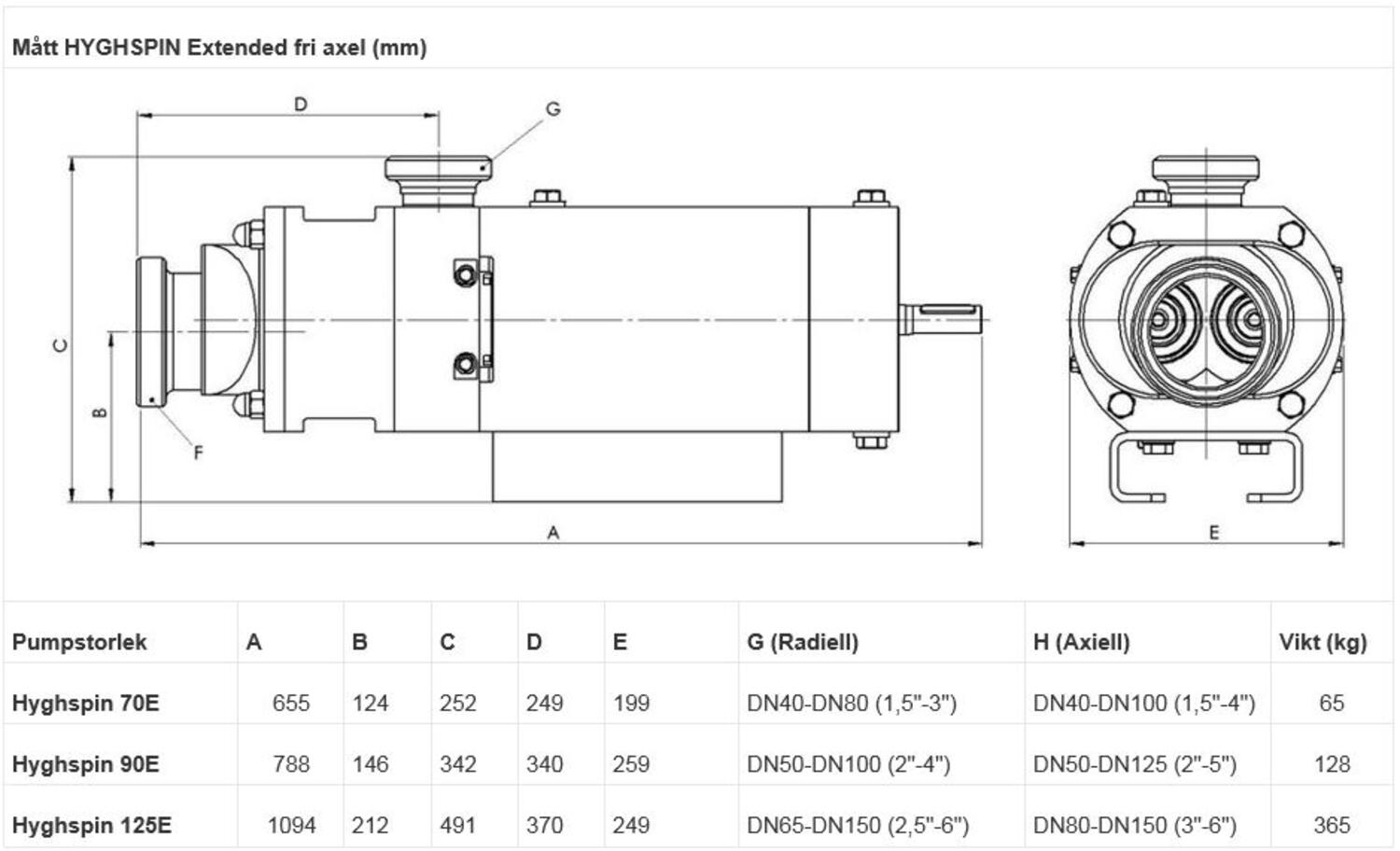

The HYGHSPIN Extended stands for high performance with compact dimensions. It is available in block design or with free shaft end.
- Flow 100l/h to 350m³/h
- Pressure up to 6 bar
- Viscosity up to 1,000,000 cSt
- Temperature -10°C to +130°C (180°C)
- Max. particle size 67mm
Selected variant
Technical data
| Connection type | Different sizes and connector standards by arrangement |
|---|---|
| Differential pressure | 4 bar |
| Flow max | 20 m³/h |
| Material of elastomers | EPDM, FPM, HNBR (Nitrile rubber), FFPM |
| Material of wetted parts | Stainless steel 316/316L (1.4401/1.4404), Stainless steel 1.4462, 1.4404, Stainless Steel 1.4539 |
| Maximum diameter of solid material | 16 mm |
| Pump orientation | Horizontal, vertical or lateral |
|---|---|
| Temperature operational max | 180 °C |
| Temperature operational min | -10 °C |
| Viscosity | 0.5 - 1,000,000 mPas |
Product description
The HYGHSPIN Extended is a variant of the worldwide tried and tested HYGHSPIN pump series made of high-quality stainless steel. The special focus for the HYGHSPIN Extended is on applications in the low-pressure range of up to 6 bar differential pressure.
Â
The feed screws and the pump housing are extended. The HYGHSPIN Extended therefore expands the application possibilities for the individual sizes for higher volume flow rates or very large solids.
Â
The HYGHSPIN Extended stands for high performance with compact dimensions. It is available in block design or with free shaft end.
