APLISENS

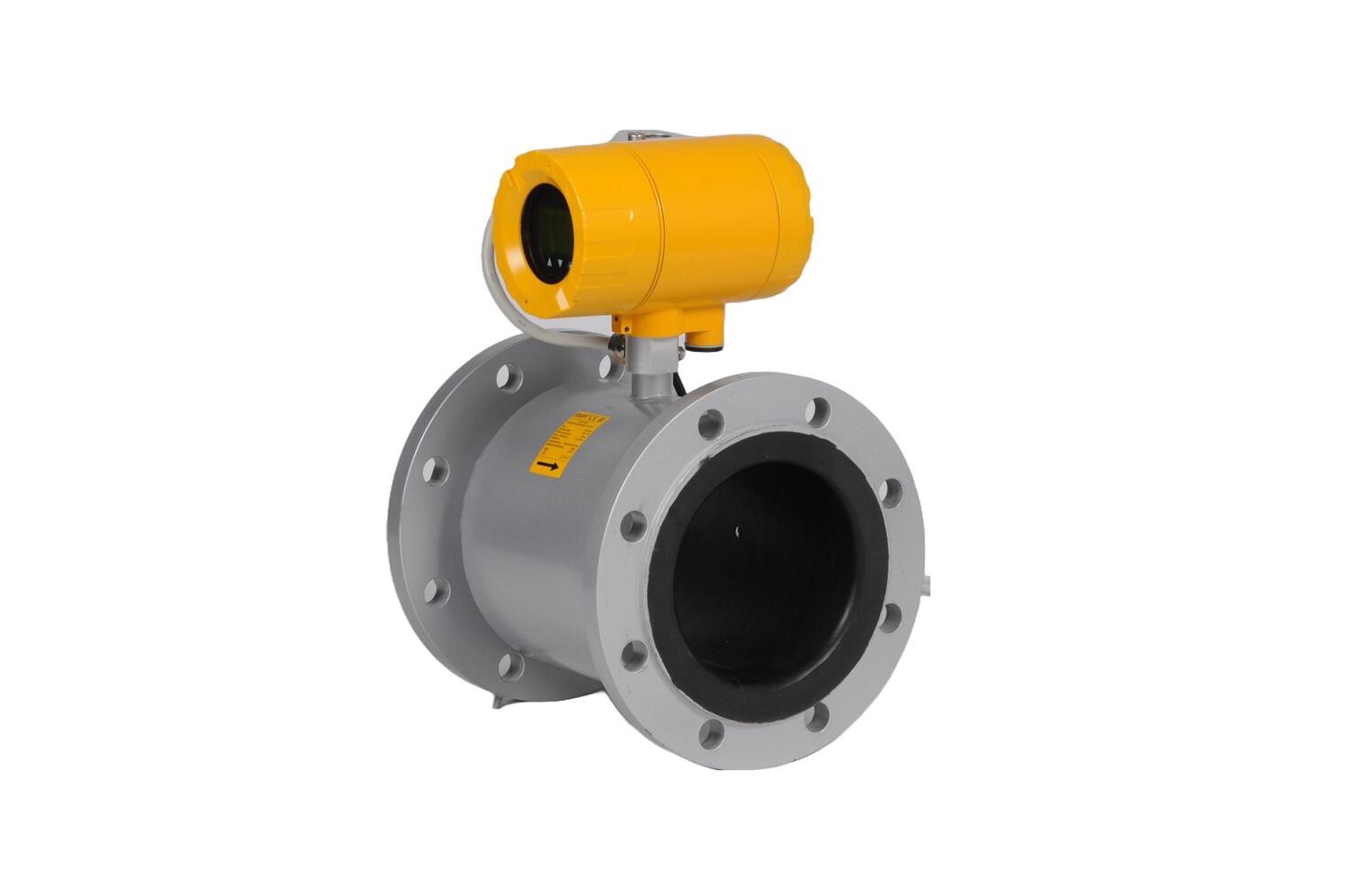

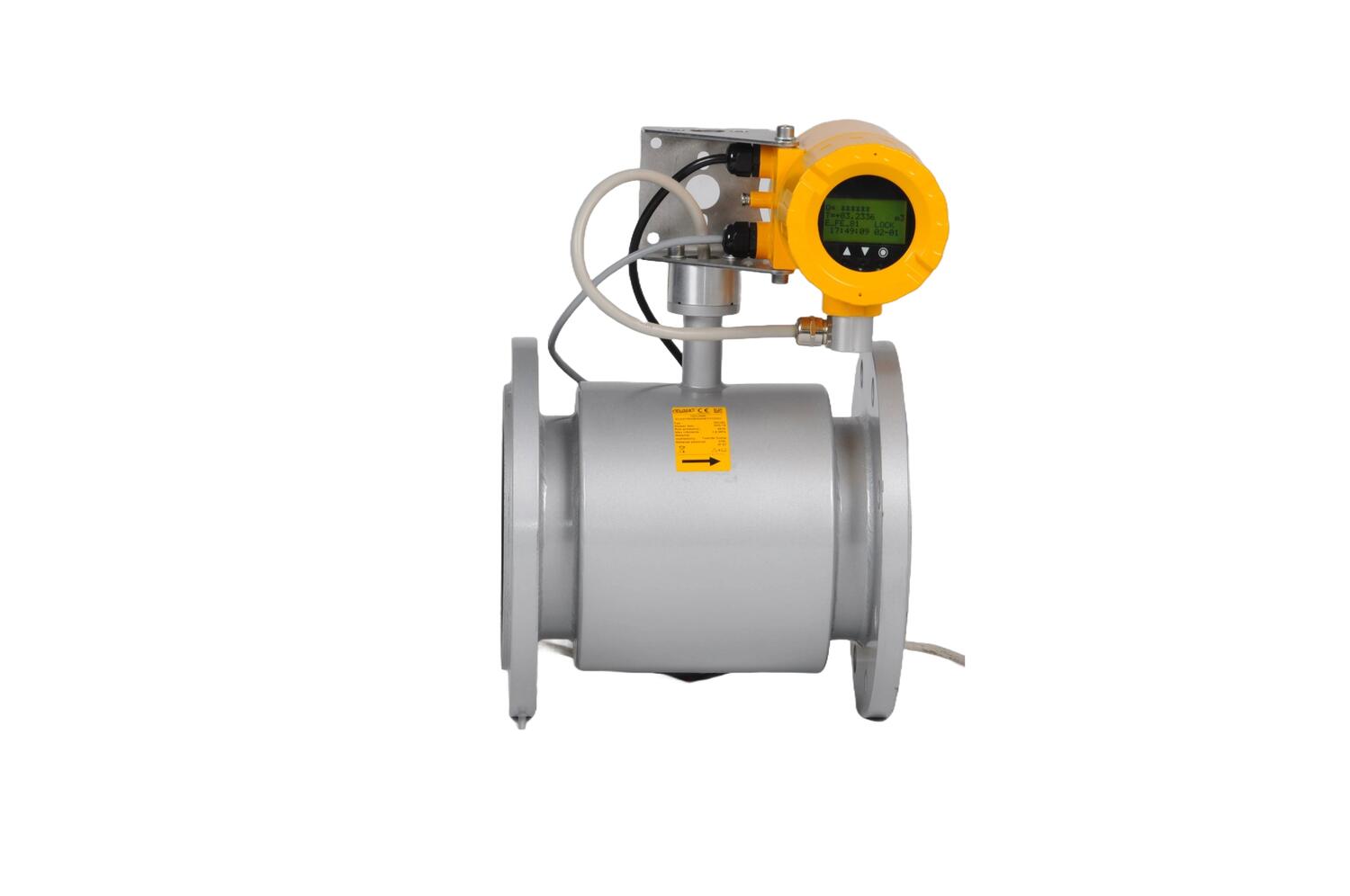

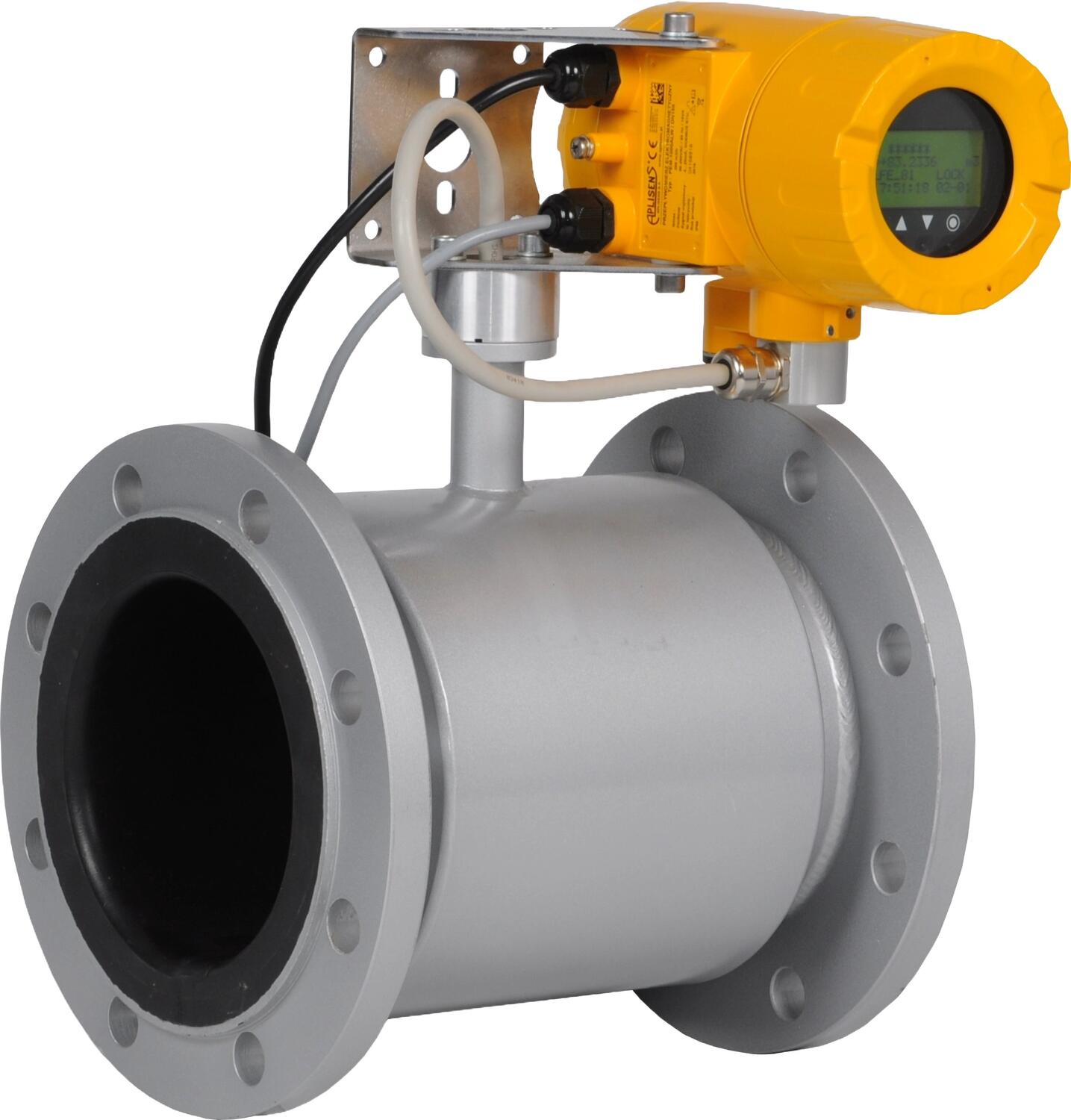

Electromagnetic Flowmeter
- Maximum static pressure 1,6MPa
- ATEX versions available on request
- Analog outputs: 4-20mA
- Communication interface: Modbus RTU / RS 485
- IP65 or IP67 (depending on model and configuration)
Selected variant
Technical data
| Accuracy | 0.5% of measured value |
|---|---|
| Approvals | CE, ATEX |
| Cable length | 8 m |
| Conductivity | ≥ 20 µS/cm |
| Flow Range | 0.3 to 10 m/s |
| Installation postition | Horizontal or vertical |
| IP class | IP67, IP66 |
| Material electrode | Stainless steel, Hastelloy, Titanium |
| Material of wetted parts | Rubber, PTFE, Neoprene |
| Pipe size | DN10 to DN1000 / ANSI 0,5"... 40" |
|---|---|
| Power supply | 24 V DC (standard), optionally 230 V AC |
| Process connection | Flanged (EN 1092-1) |
| Signal outputs | 4–20 mA, Pulse/Frequency, Modbus RS-485 |
| Temperature ambient from | -20 °C |
| Temperature ambient to | 60 °C |
| Temperature range | Up to 80°C for rubber, Up to 130°C for PTFE |
Product description
How Magnetic Flow Meter Sensors Support Wastewater Management
Magnetic flowmeters are essential tools in modern wastewater treatment because they accurately measure the flow of conductive liquids without any moving parts. This makes them highly reliable in challenging conditions like sewage, sludge, and industrial effluent.
Key Benefits in Wastewater Applications:
Accurate Flow Monitoring
- Measures influent and effluent flows for regulatory reporting and process control.
- Detects abnormal flow rates to identify leaks, blockages, or system inefficiencies.
Handles Dirty and Slurry Fluids
- Can measure raw sewage, sludge, or chemical‑treated wastewater because solids do not affect the measurement.
- No moving parts to clog or wear out.
Supports Process Optimisation
- Enables precise dosing of chemicals such as coagulants, neutralisers, or disinfectants.
- Tracks return activated sludge (RAS) and waste activated sludge (WAS) flows to optimise biological treatment.
Regulatory Compliance
- Provides reliable flow data for discharge permits and environmental compliance reporting.
- Digital outputs (Modbus / 4–20 mA) integrate seamlessly with SCADA systems.
Low Maintenance and Long Service Life
- Non-intrusive, fully sealed design eliminates mechanical wear.
- This design also minimises downtime and lowers the lifetime operating costs.
