PTKS Push In Transformer Terminals
Push In Transformer Terminals - PTKS

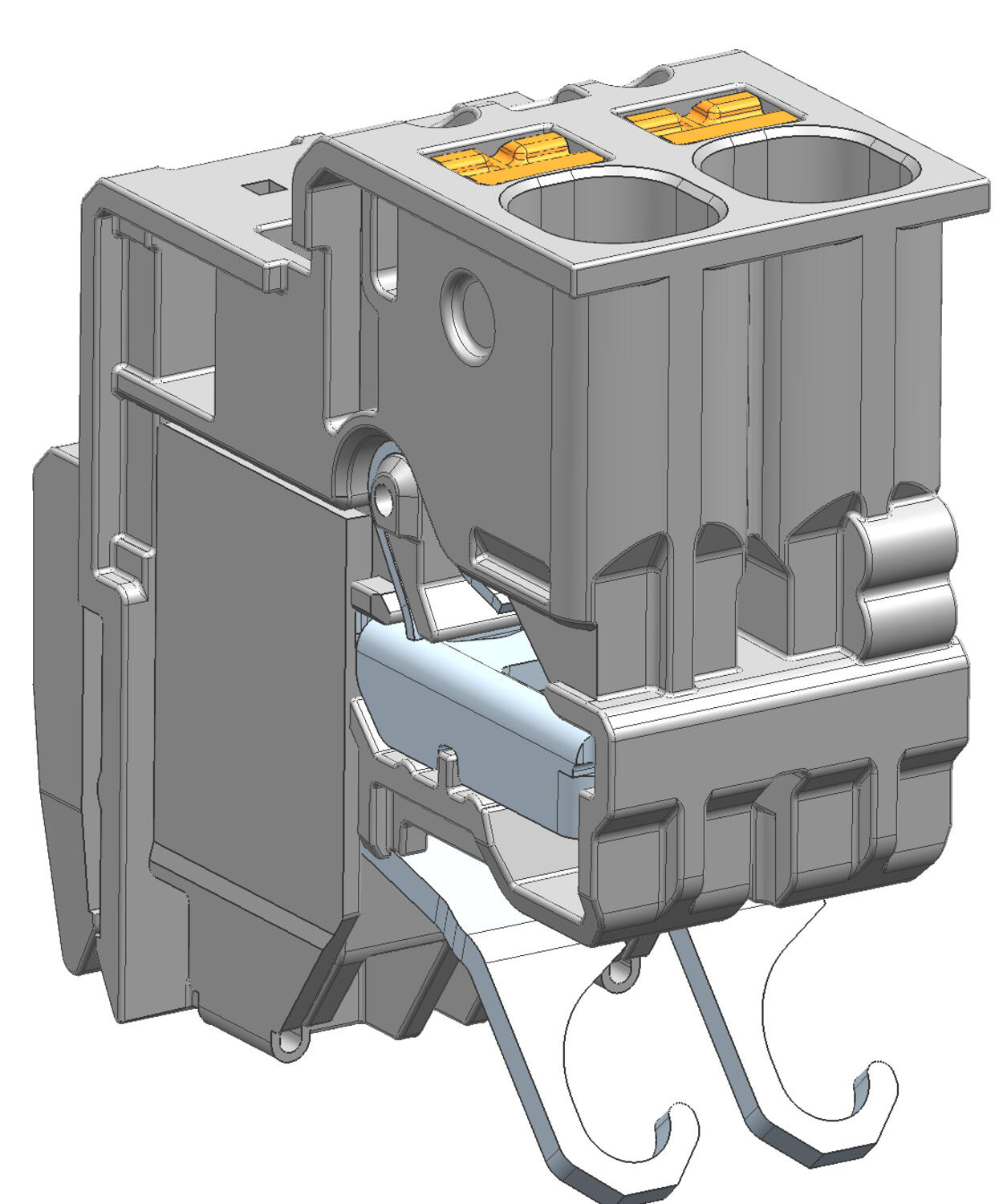

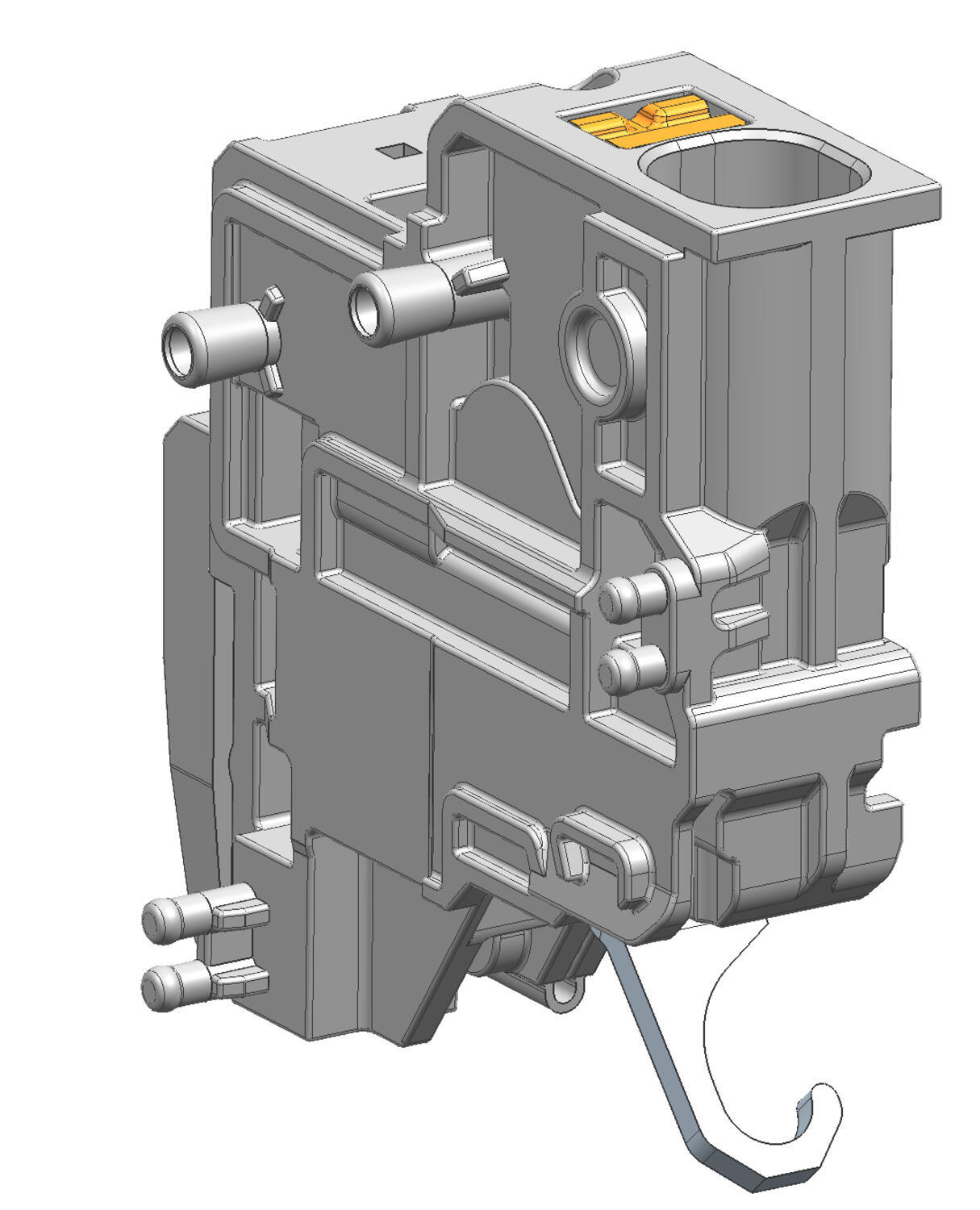

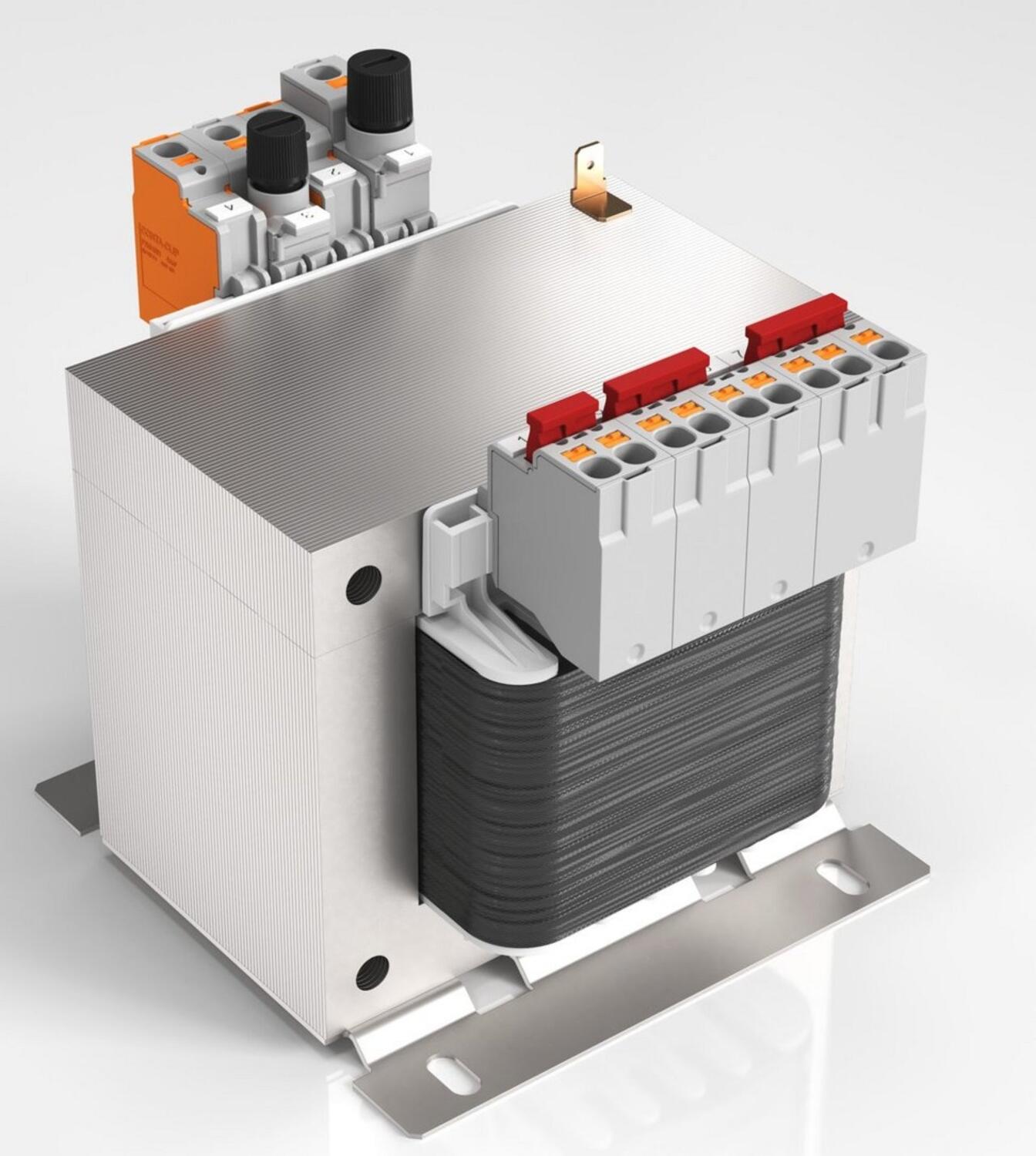

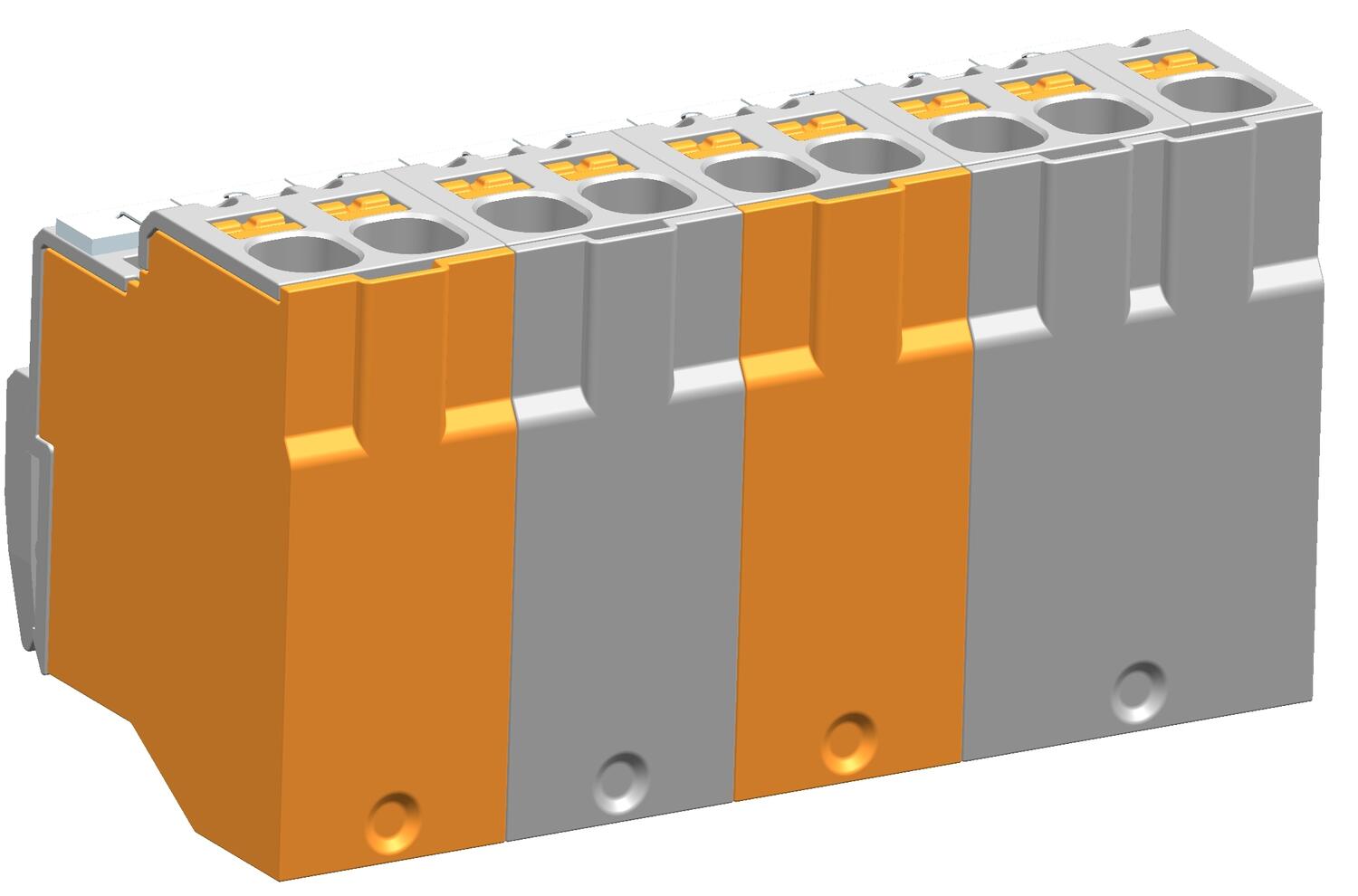

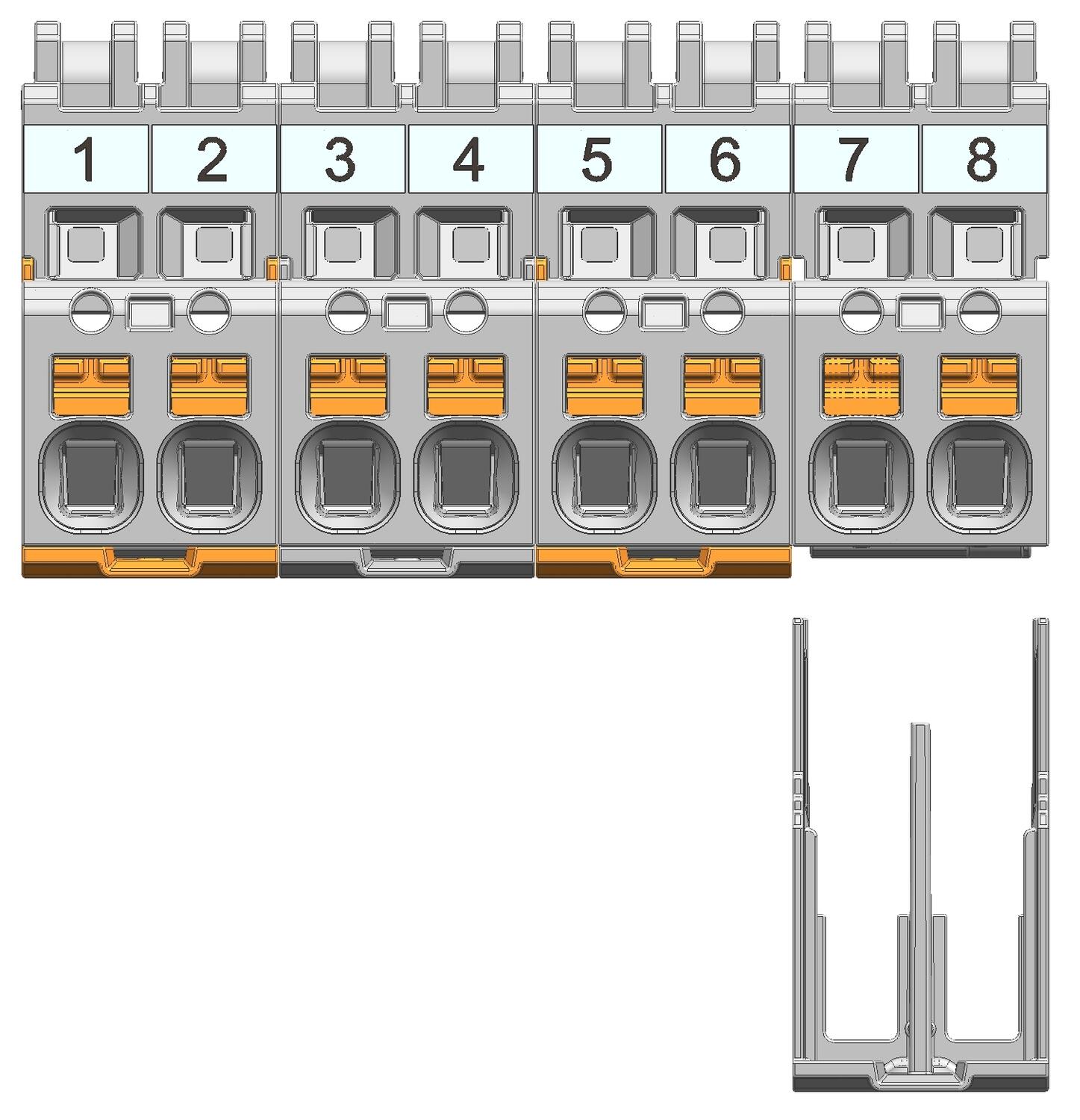

The cross-connectable PTKS 4 transformer terminals are designed to mount directly on the 'Transformer Bobbin' with integrated receptacles or can also be mounted on aluminium 10x2mm DIN rails.
They are used for terminating the coil ends of the transformer and converting to a quick and easy push-in connection for the field side of the transformer.

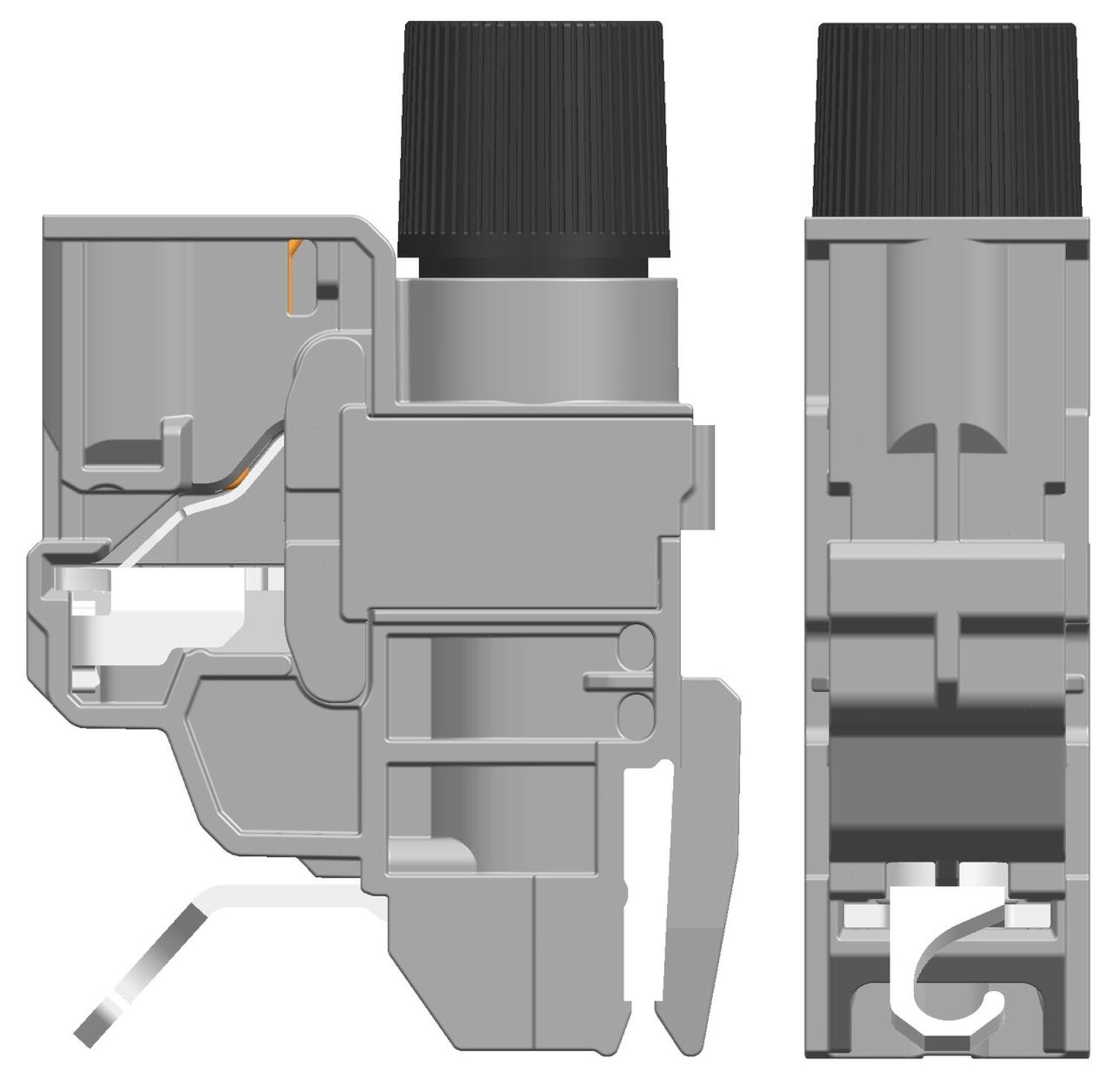

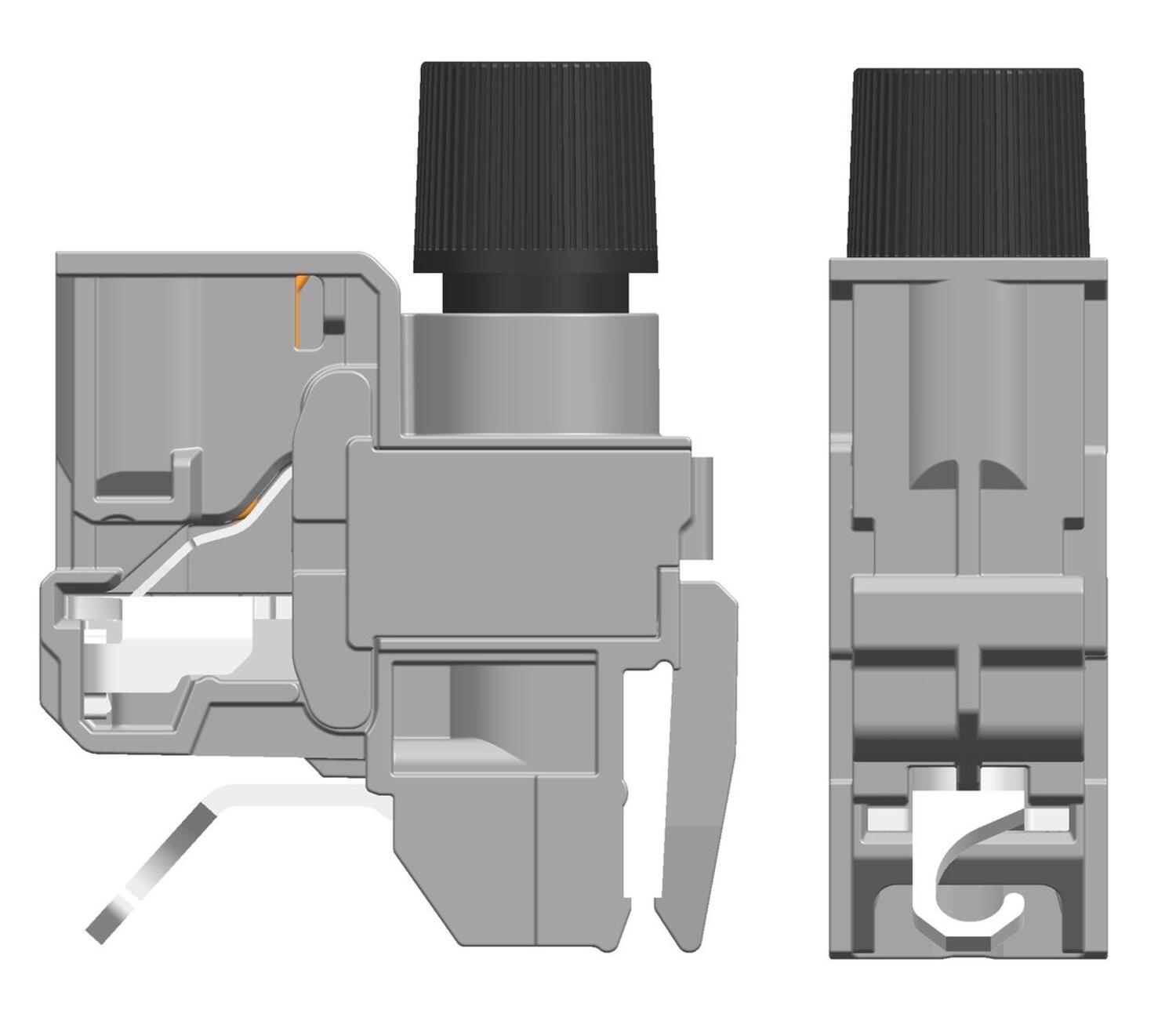

The range includes the PTKS/SI fused terminals for 5 x 20 or 6.3 x 32 fuses.
- Push-In technology

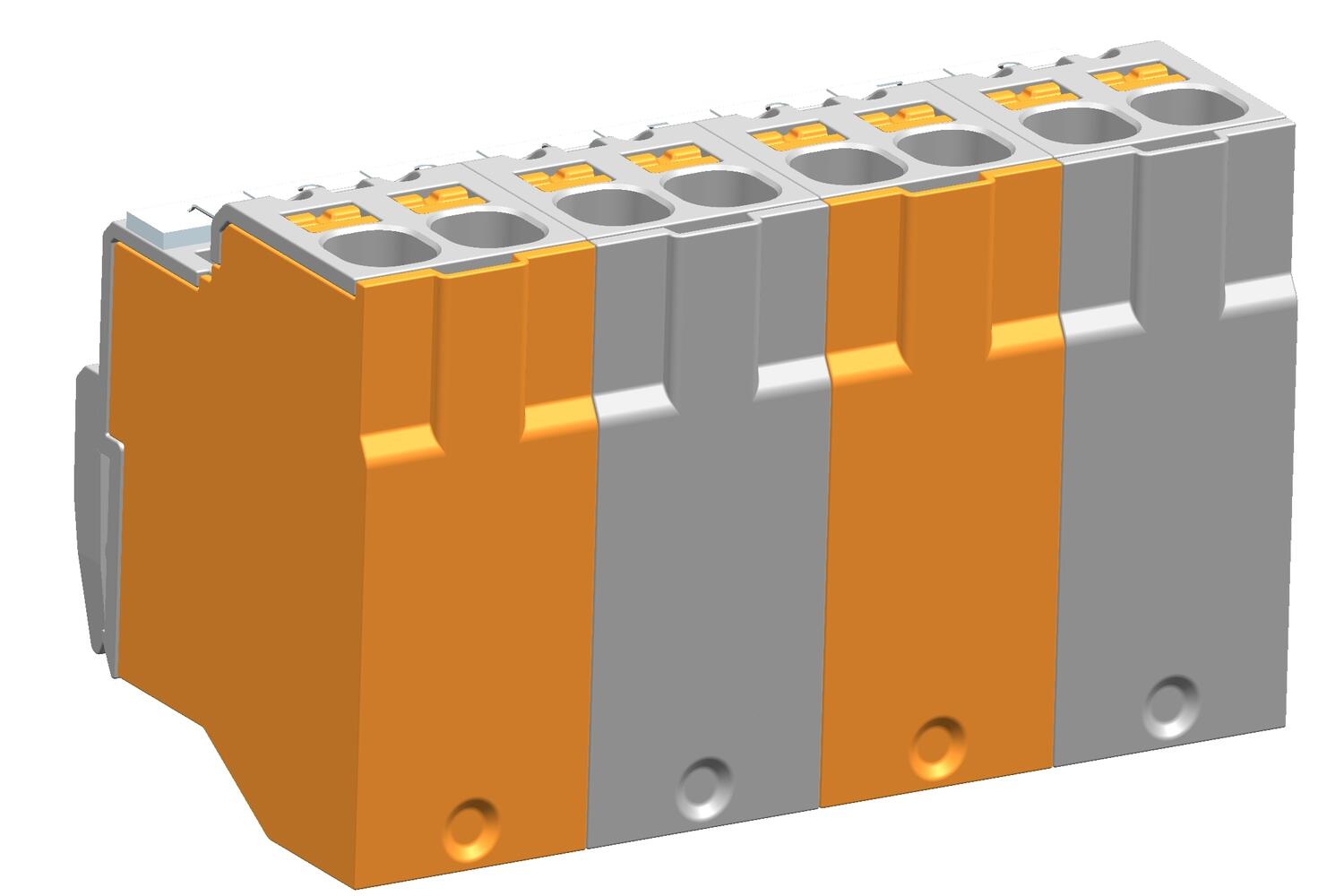

- Protective covers

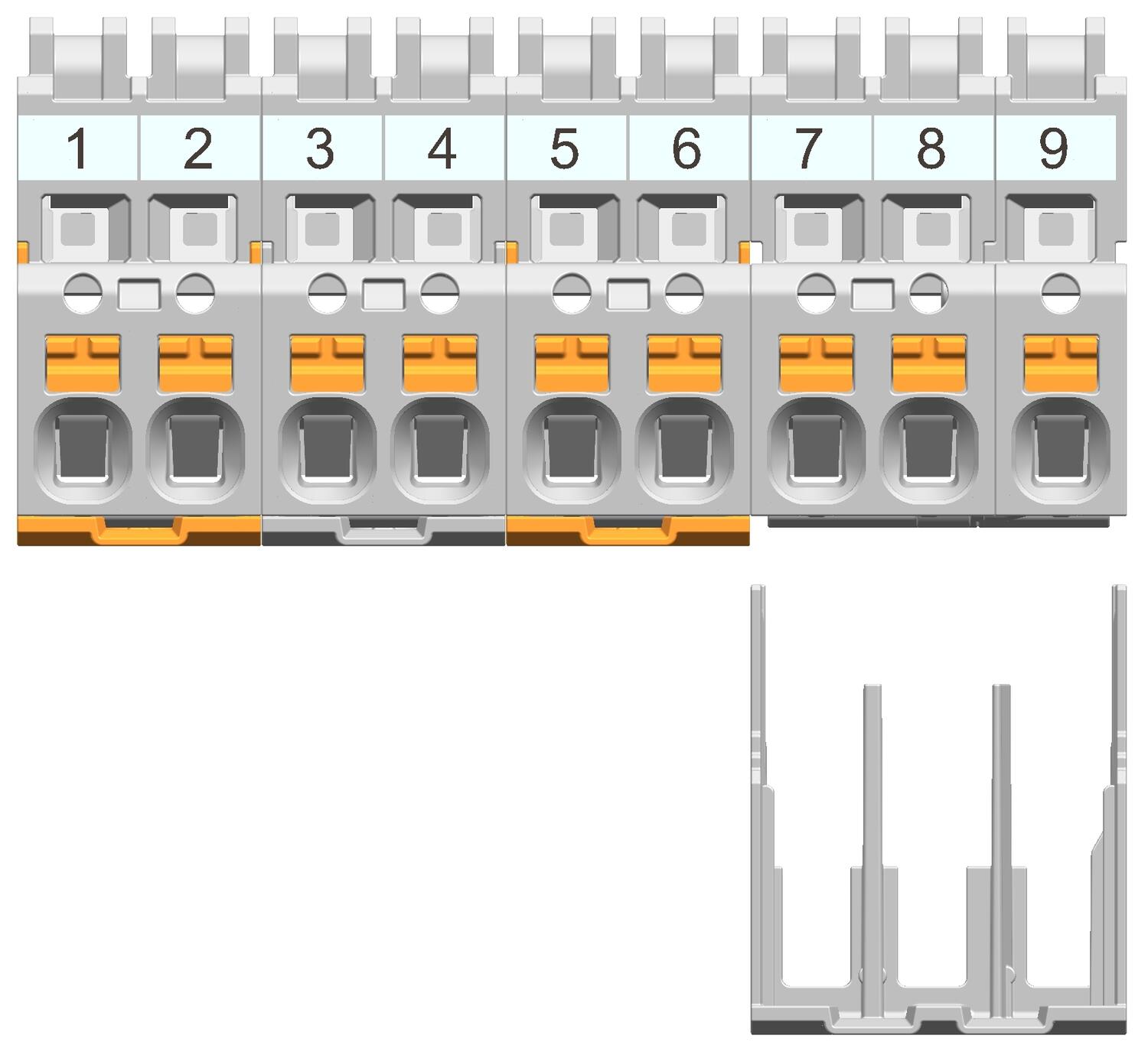

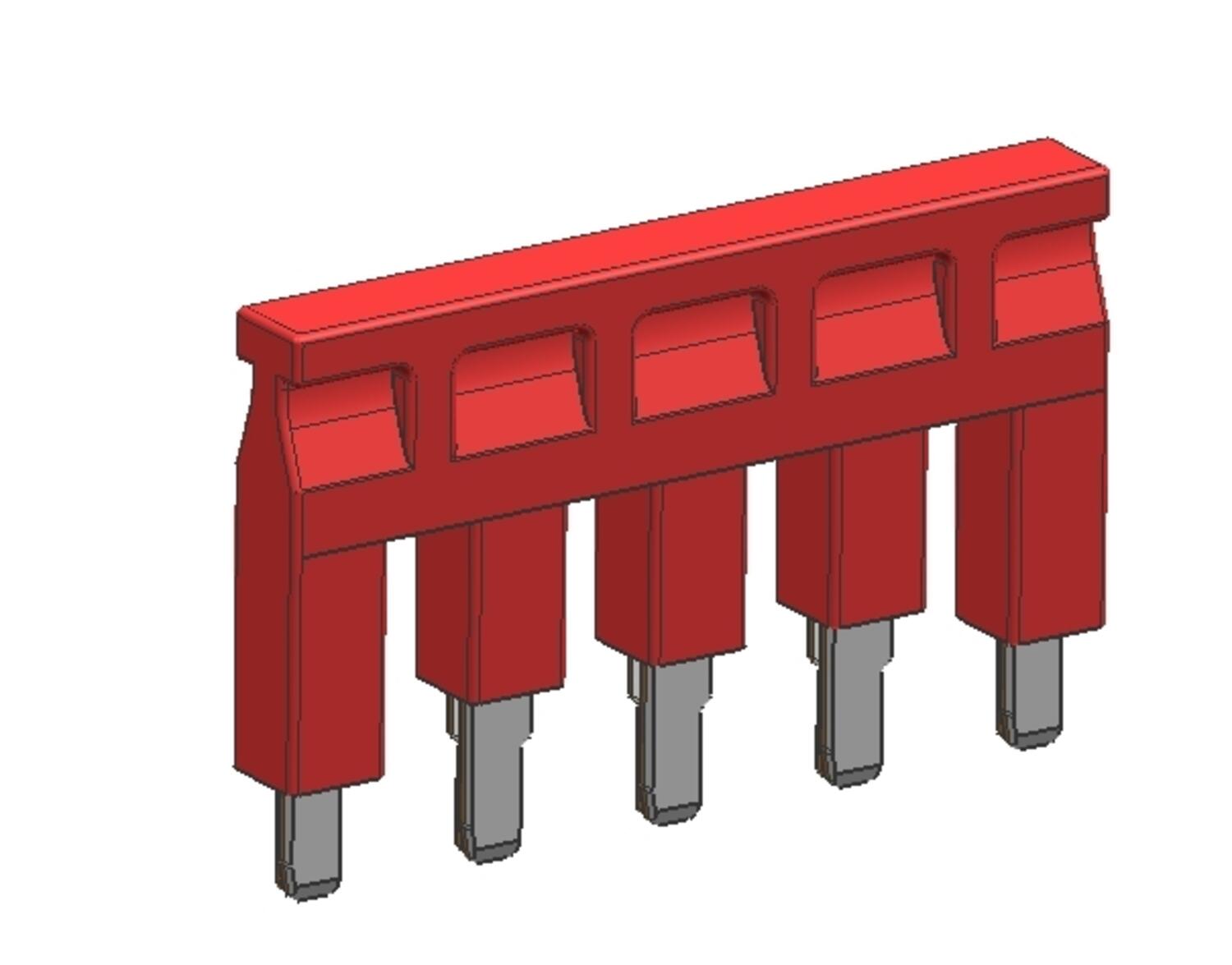

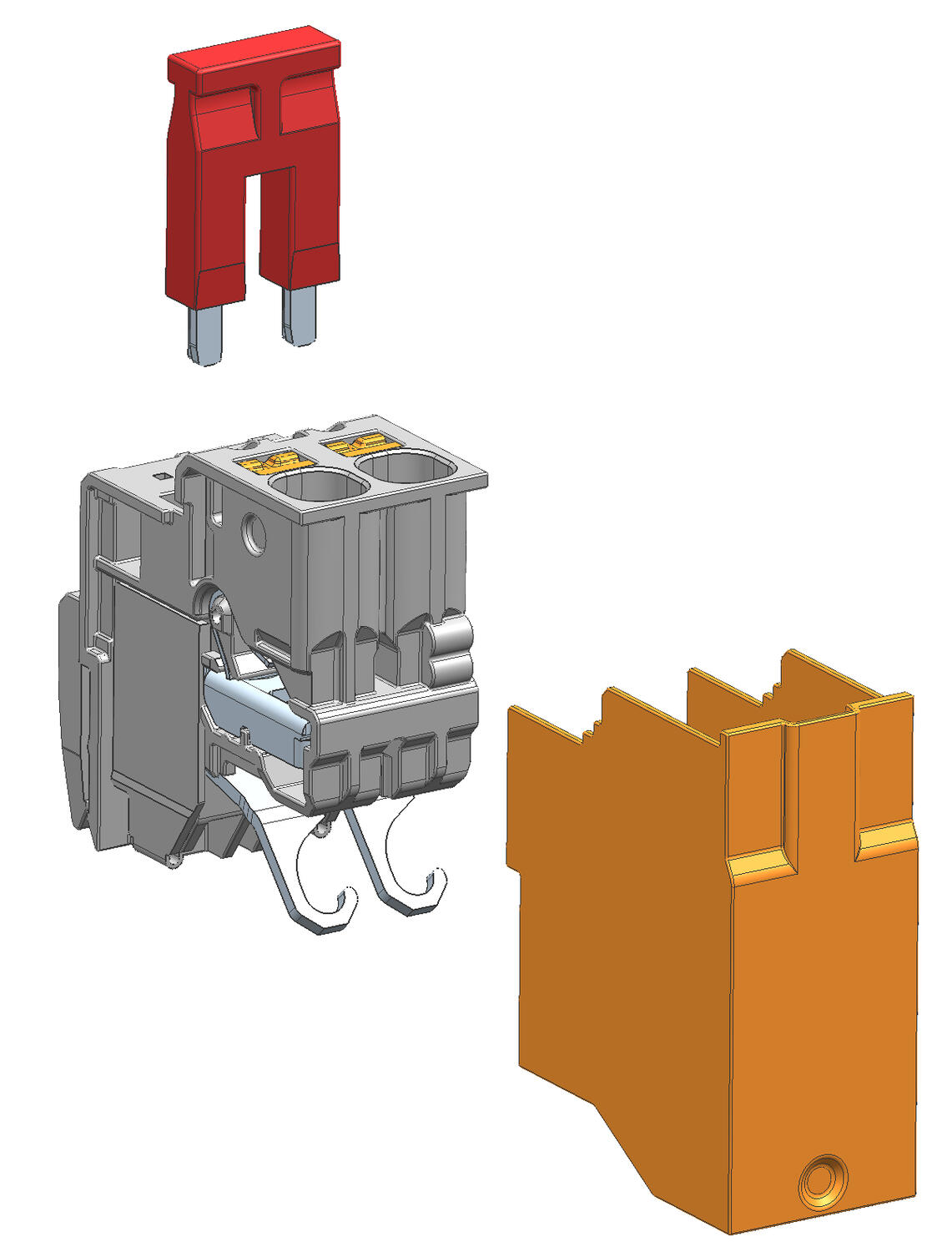

- Cross Connectable

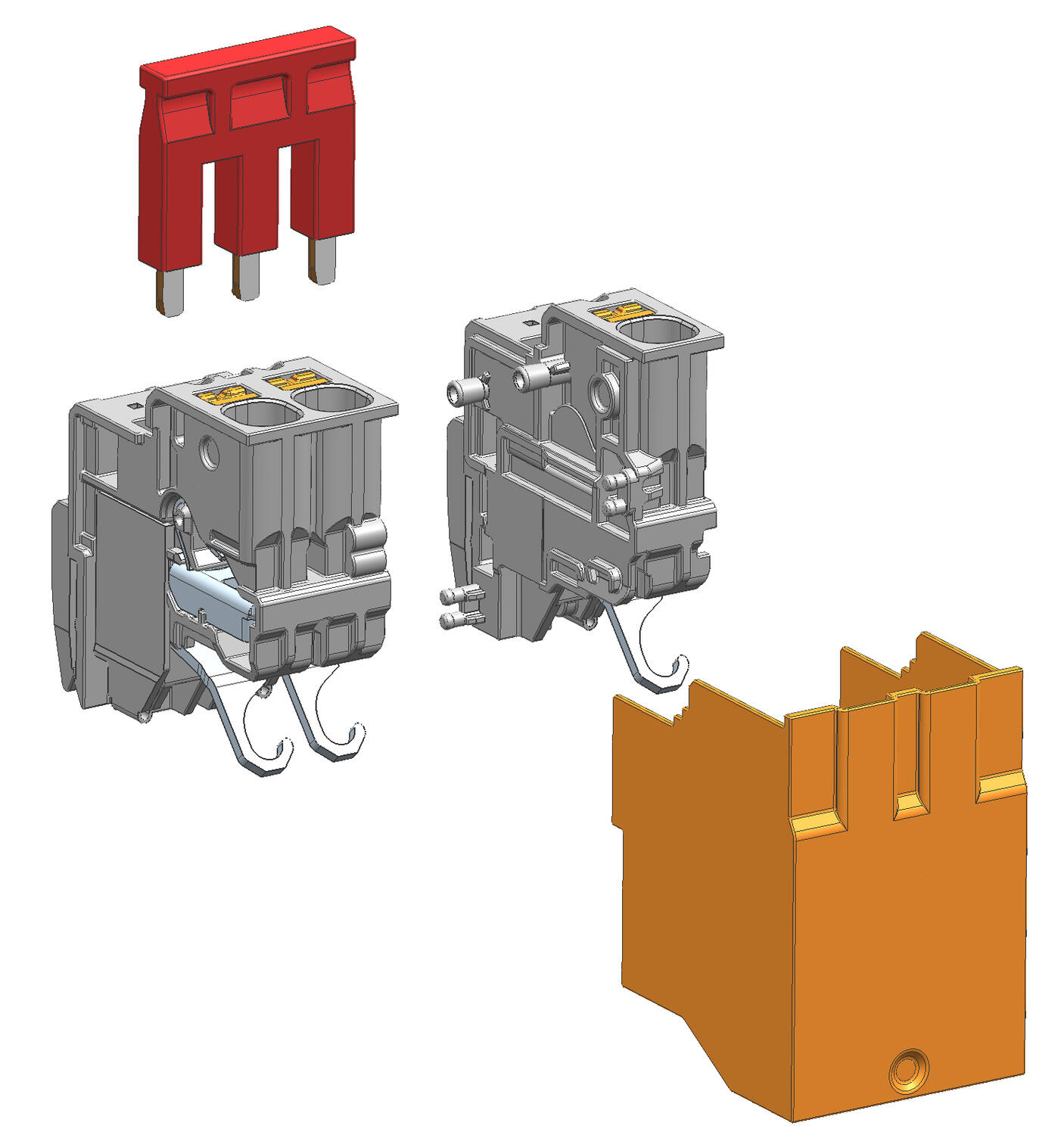

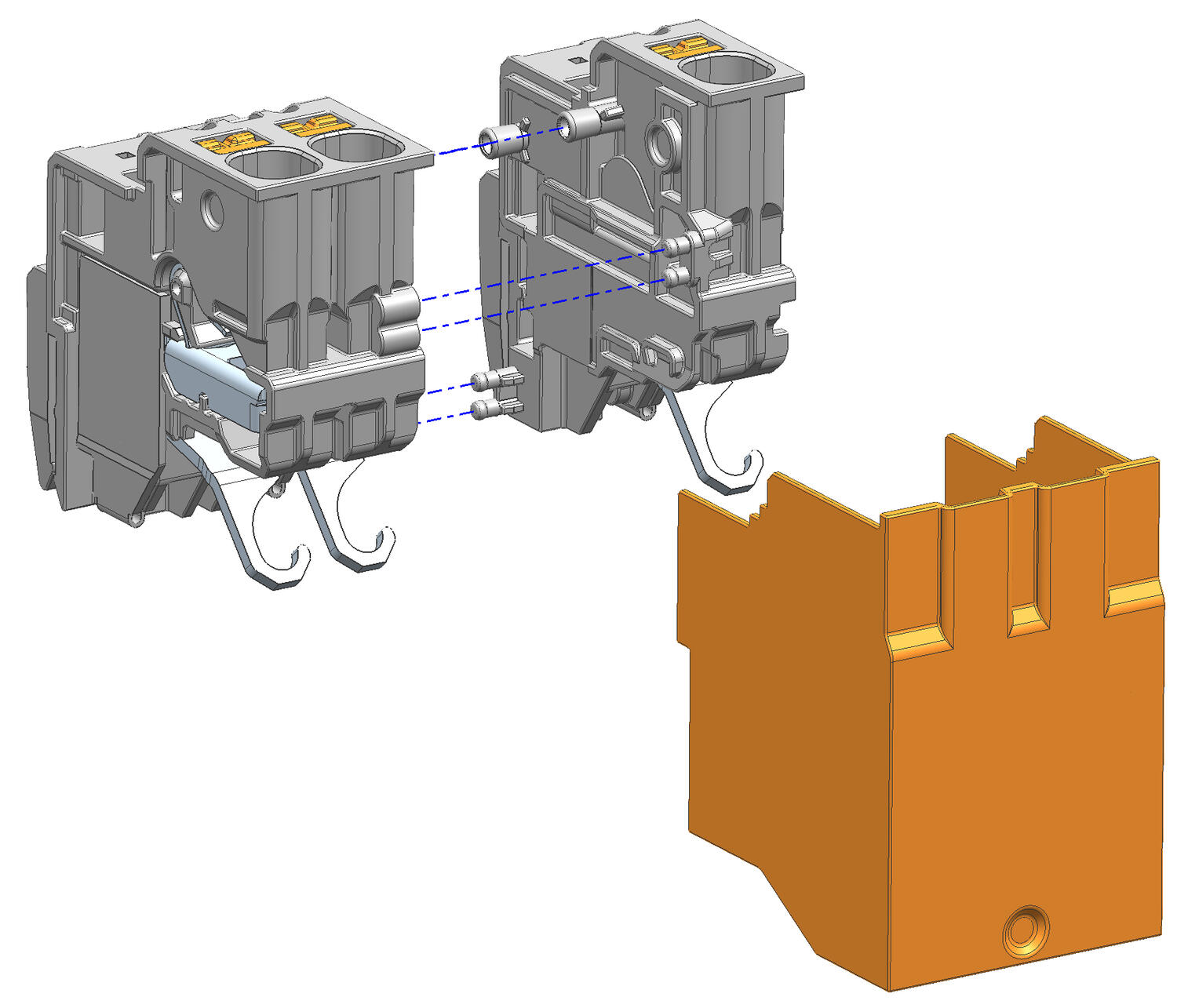

- Modular - Clip together
- Wave soldering, robotics and hand soldering possible
Selected variant
Technical data
General data |
|
|---|---|
| Colour | Grey |
| Rated cross section | 4 mm² |
| Rated current | 32 A |
| Rated voltage | 800 V |
| Rated impulse voltage | 8 kV |
| Overvoltage category | III |
| Contamination degree | 3 |
Dimensions |
|
| Length | 32.5 mm |
| Width | 8.1 mm |
| Height | 35.4 mm |

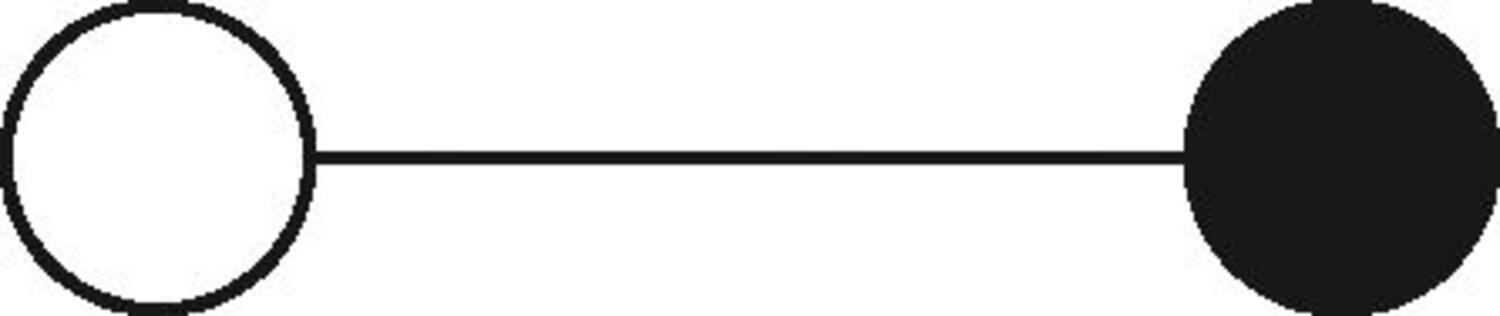

Connection data |
|
| Connections | 1 |
| Cross connect channels | 1 |
| Cross section single wire from | 0.5 mm² |
| Cross section single wire to | 6 mm² |
| Cross section stranded wire from | 0.5 mm² |
| Cross section stranded wire to | 4 mm² |
*Invisible Heading* |
|
|---|---|
| Cross section stranded with ferrule from | 0.5 mm² |
| Cross section stranded with ferrule to | 4 mm² |
| Rated wire cross section from (AWG) | 21 |
| Rated wire cross section to (AWG) | 10 |
| Stripping length | 12 mm |
Materials |
|
| Material | Polyamide 6.6 |
| Insulation material | Polyamide 6.6 |
| Flammability class | V-0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
Approvals |
|
| KEMA KEUR test standard | EN 60947-7-1:2009 |
Additional data |
|
| Tariff code | 85369010 |
| Country of origin | DE |
| Weight | 5.29 g |
| Pack size | 50 |
Product description
The cross-connectable PTKS 4 transformer terminals are designed to mount directly on the 'Transformer Bobbin' with integrated receptacles or can also be mounted on aluminium 10x2mm DIN rails.
They are used for terminating the coil ends of the transformer and converting to a quick and easy push-in connection for the field side of the transformer.
The range includes the PTKS/SI fused terminals for 5 x 20 or 6.3 x 32 fuses.
