CROUZET CONTROL
SyrLine, the new specialised range from Crouzet. Aimed to satisfy the most unique requirements of any application by innovations in design, engineering and develipment.
The new family of 8 pin plug-in analog timers - multifunction or monofunction, with a wide time range, and with all the classic timing functions.
Â
Function |
|
---|---|

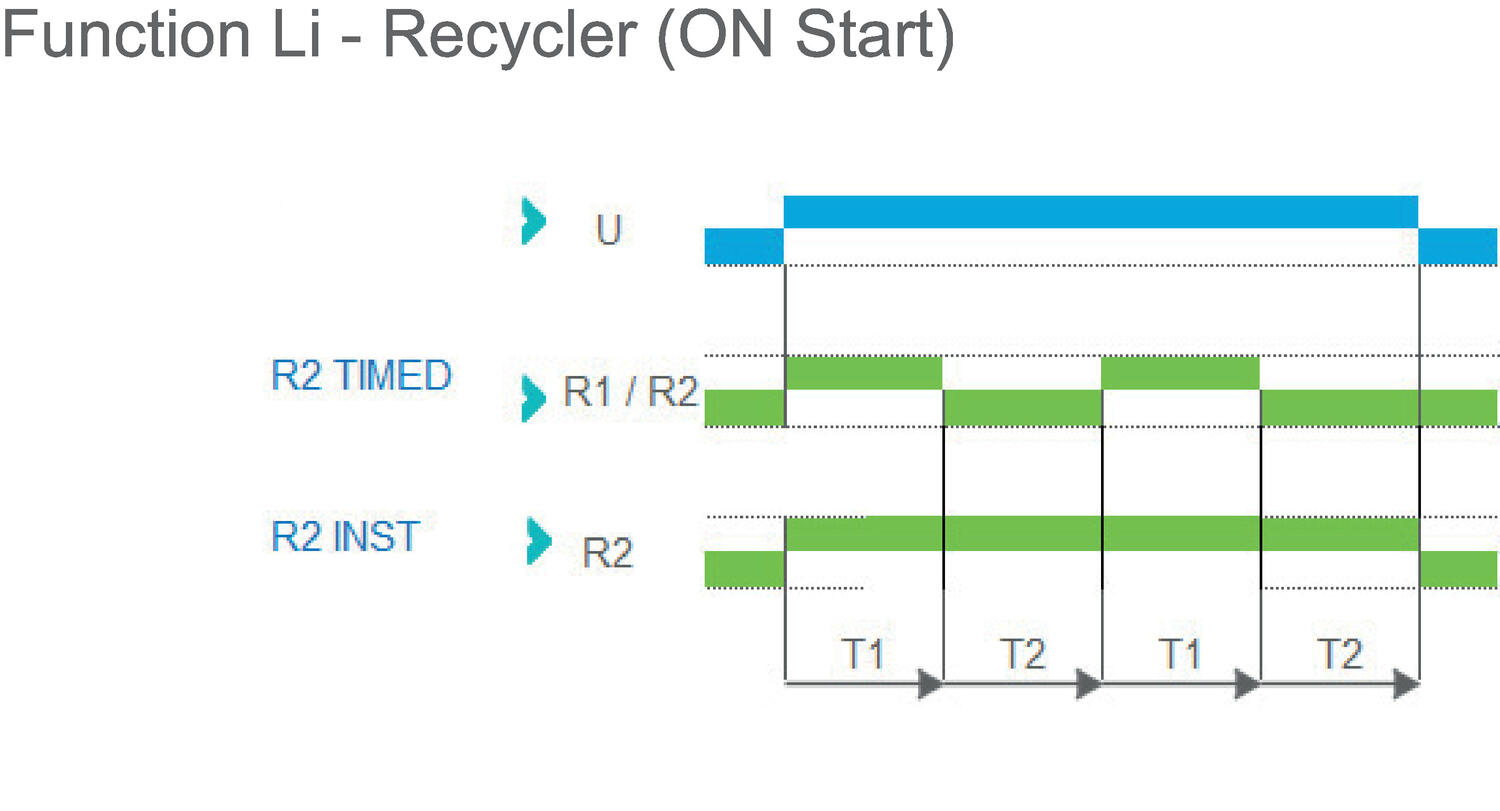

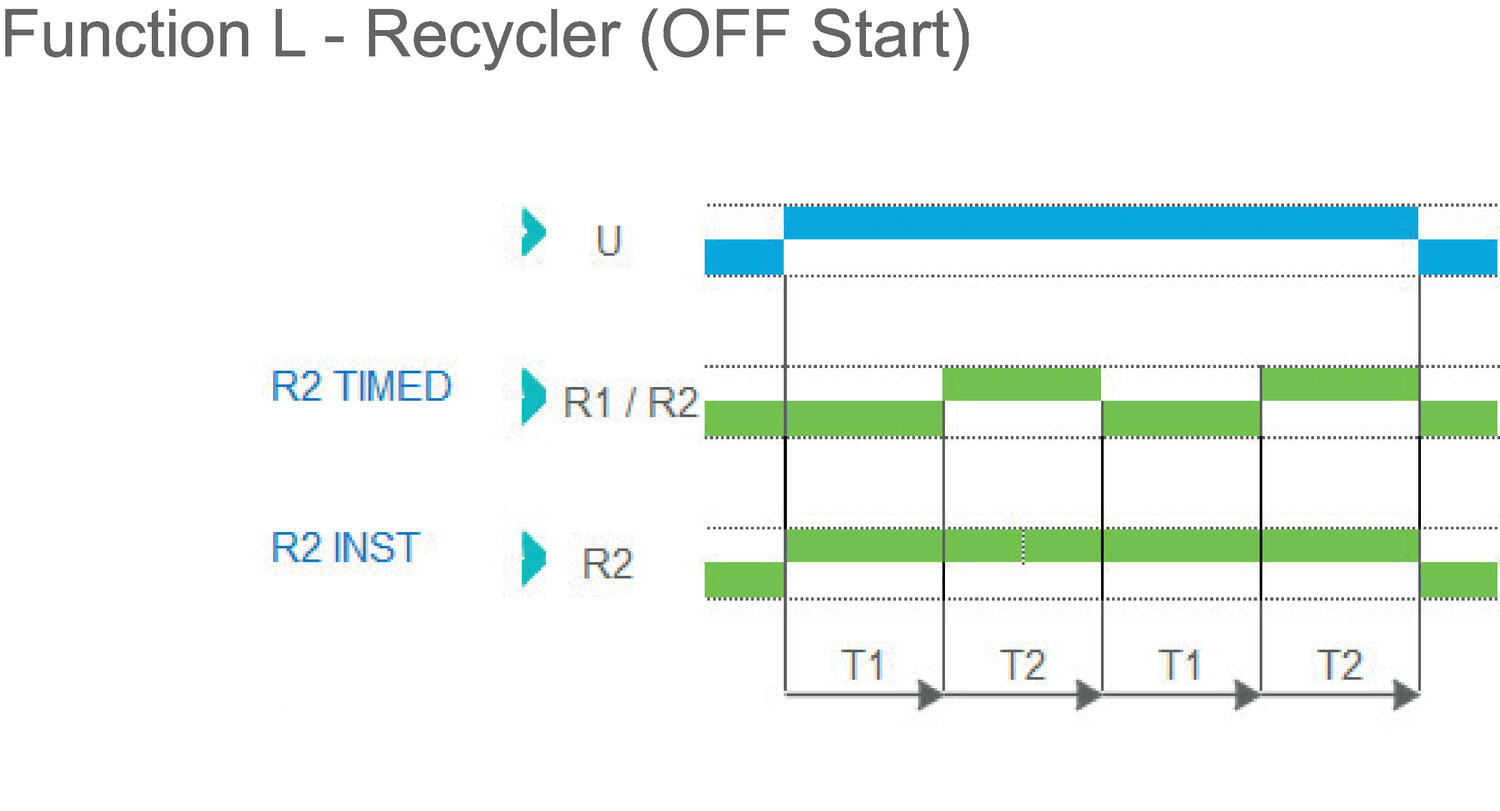

Function | L, Li |
Time range | 0,5-10s, 0,05-1min, 0,5-10min, 0,05-1h, 0,5-10h, 0,05-1d, 0,5-10d |
Close delay | 40 ms |
Response time off | 120 ms |
Repeatability | 0.5 % |
Multi-function | No |
Output | Relay 1 pole C/O |
Electrical data |
|
Power consumption | 1.5 W |
Breaking capacity | 2500 VA / 300W |
Switching current max | 10 A |
Electrical lifetime | 105 cycles min at 10A 250V (resistive load) |
Mechanical life expectancy | 10x106 cycles |
*Invisible Heading* |
|
---|---|
Supply voltage | 12-240V AC/DC |
Other technical data |
|

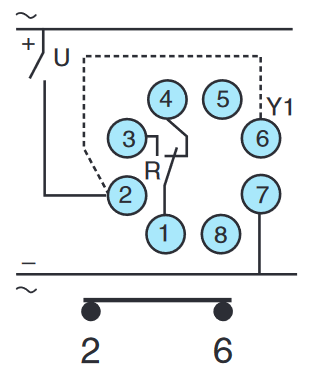

Mounting | 8-pin socket |
Temperature operational min | -20 °C |
Temperature operational max | 60 °C |
Storage temperature min | -40 °C |
Storage temperature max | 70 °C |
Approvals | CE, cULus, REACH, RoHS |

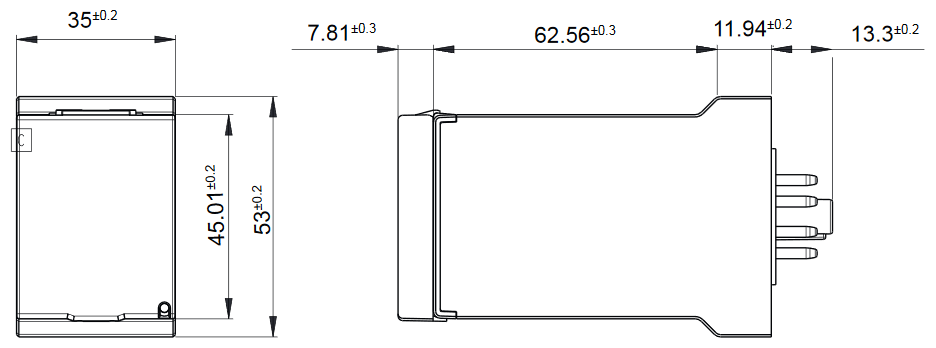

Width | 35 mm |
Depth | 95.6 mm |
Height | 53 mm |
IP class | IP40 |
SyrLine, the new specialised range from Crouzet. Aimed to satisfy the most unique requirements of any application by innovations in design, engineering and develipment.
The new family of 8 pin plug-in analog timers - multifunction or monofunction, with a wide time range, and with all the classic timing functions.
Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Function | Multi-function | Output | Price | ||
---|---|---|---|---|---|---|
![]()

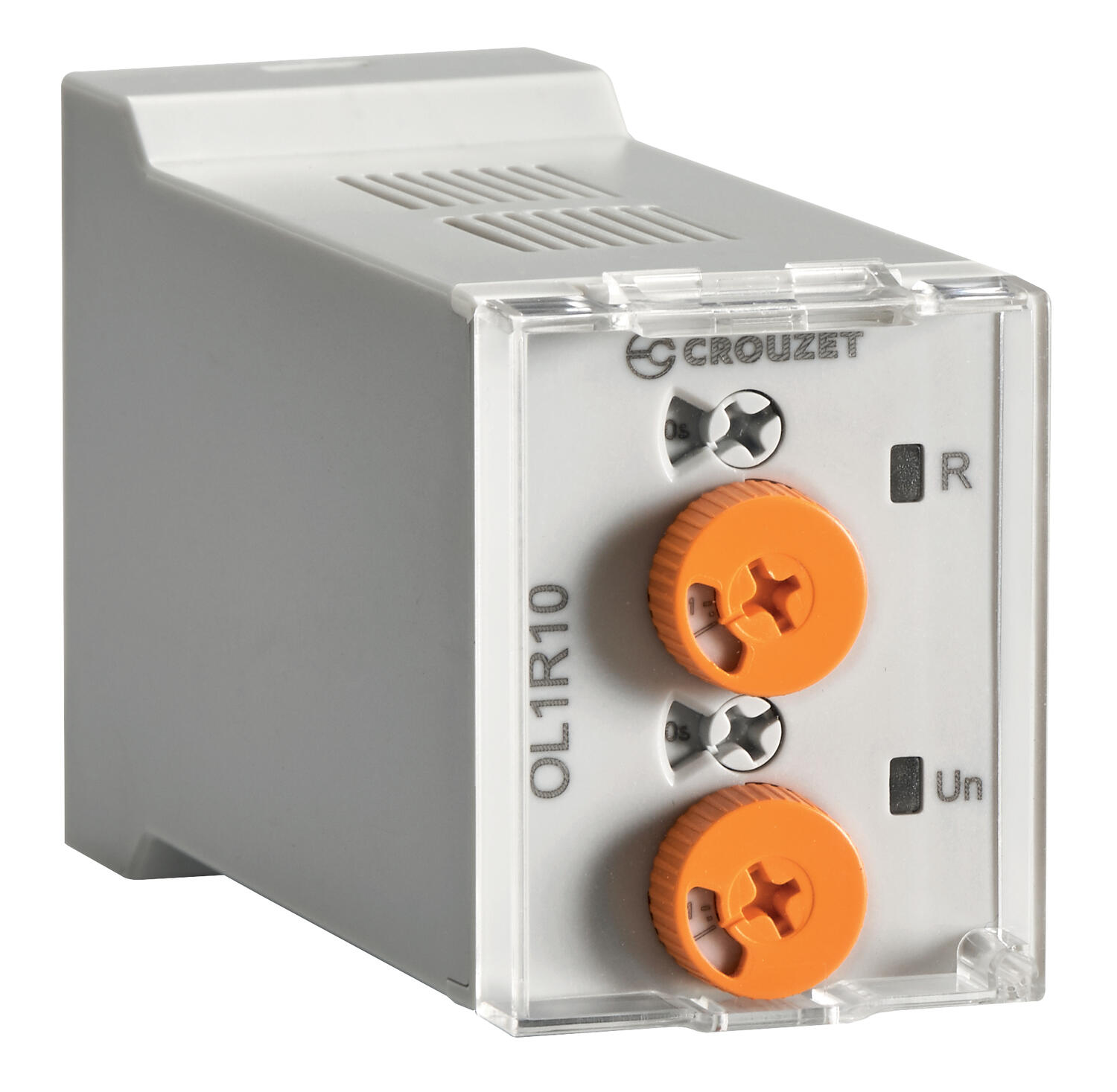

SyrLine Recycle 10A 12-240Vac/dc 8pin
Art:
OL1R10MV1
Copied
|
L, Li
|
No
|
Relay 1 pole C/O
|
| ||
![]()

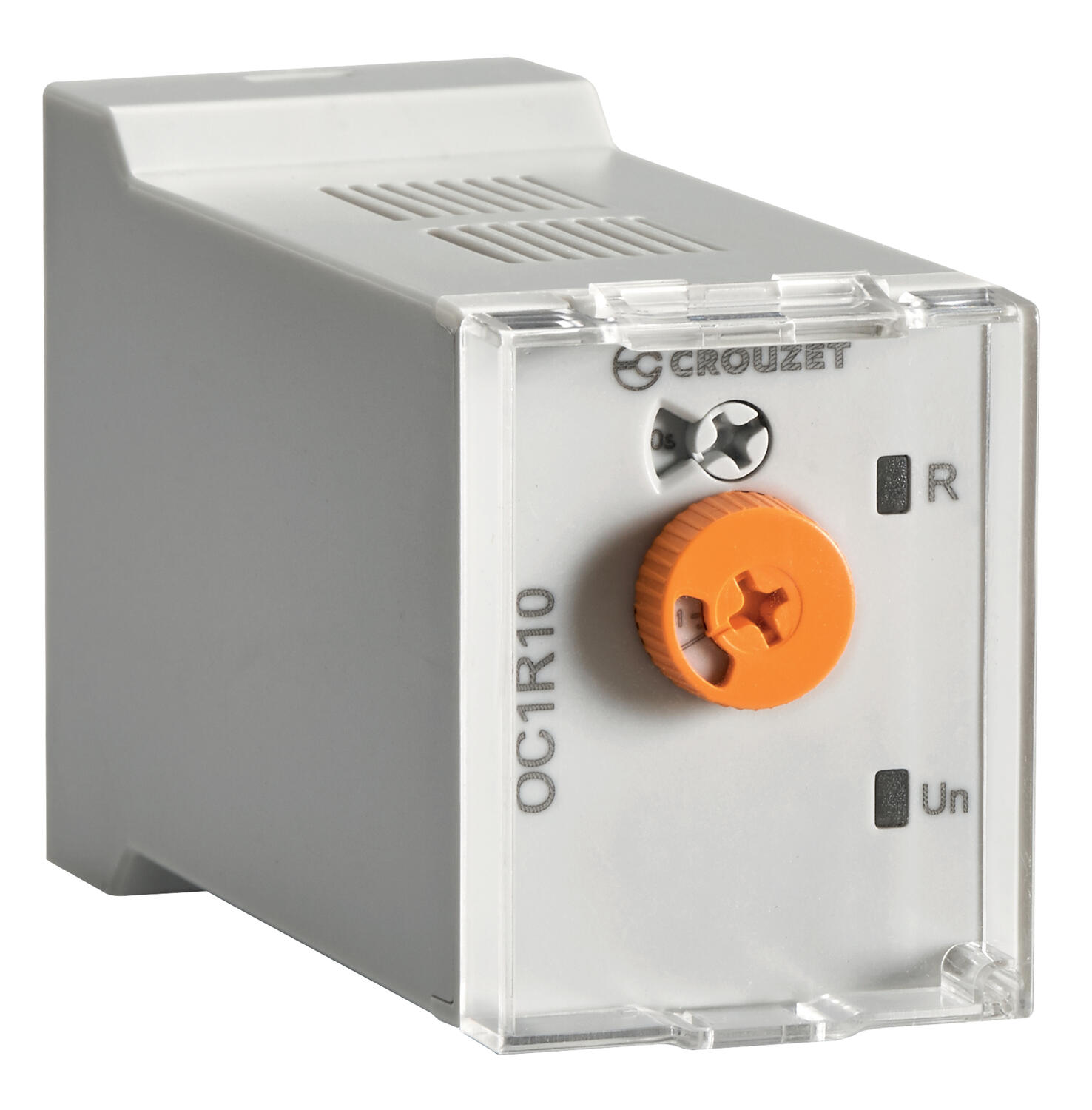

SyrLine OFF-Delay 10A 12-240Vac/dc 8pin
Art:
OC1R10MV1
Copied
|
C
|
No
|
Relay 1 pole C/O
|
| ||
![]()

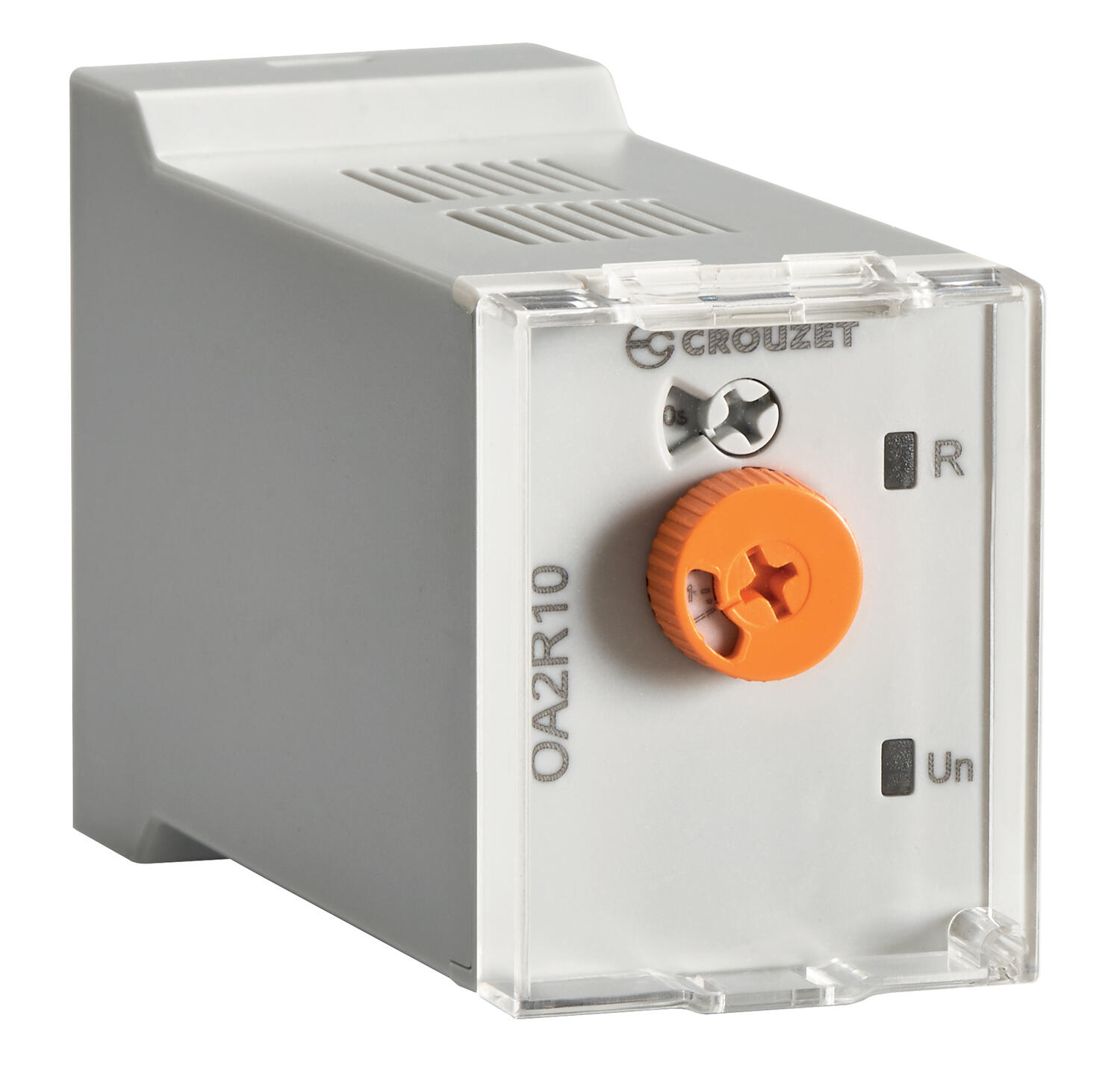

SyrLine ON-Delay 10A 12-240Vac/dc 8pin
Art:
OA2R10MV1
Copied
|
A
|
No
|
Relay 2 pole C/O
|
| ||
![]()

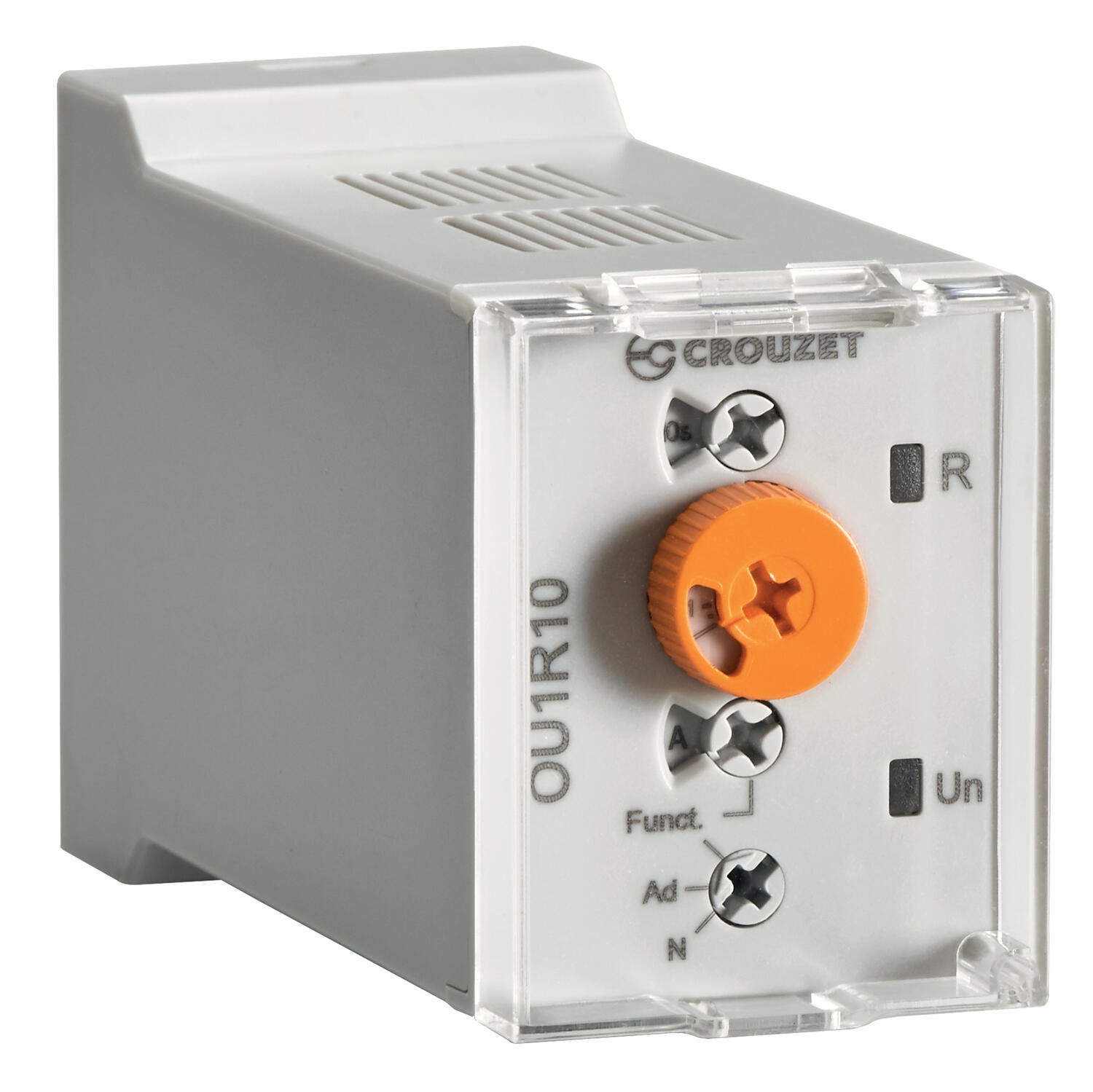

SyrLine Multifunc. 10A 12-240Vac/dc 8pin
Art:
OU1R10MV1
Copied
|
A, Ac, Ad, At, B, Bw, C, D, Di, H, Ht
|
Yes
|
Relay 1 pole C/O
|
|
Select a variant in the list
