CAL CONTROLS
Panel Mount ETM2432 Timer

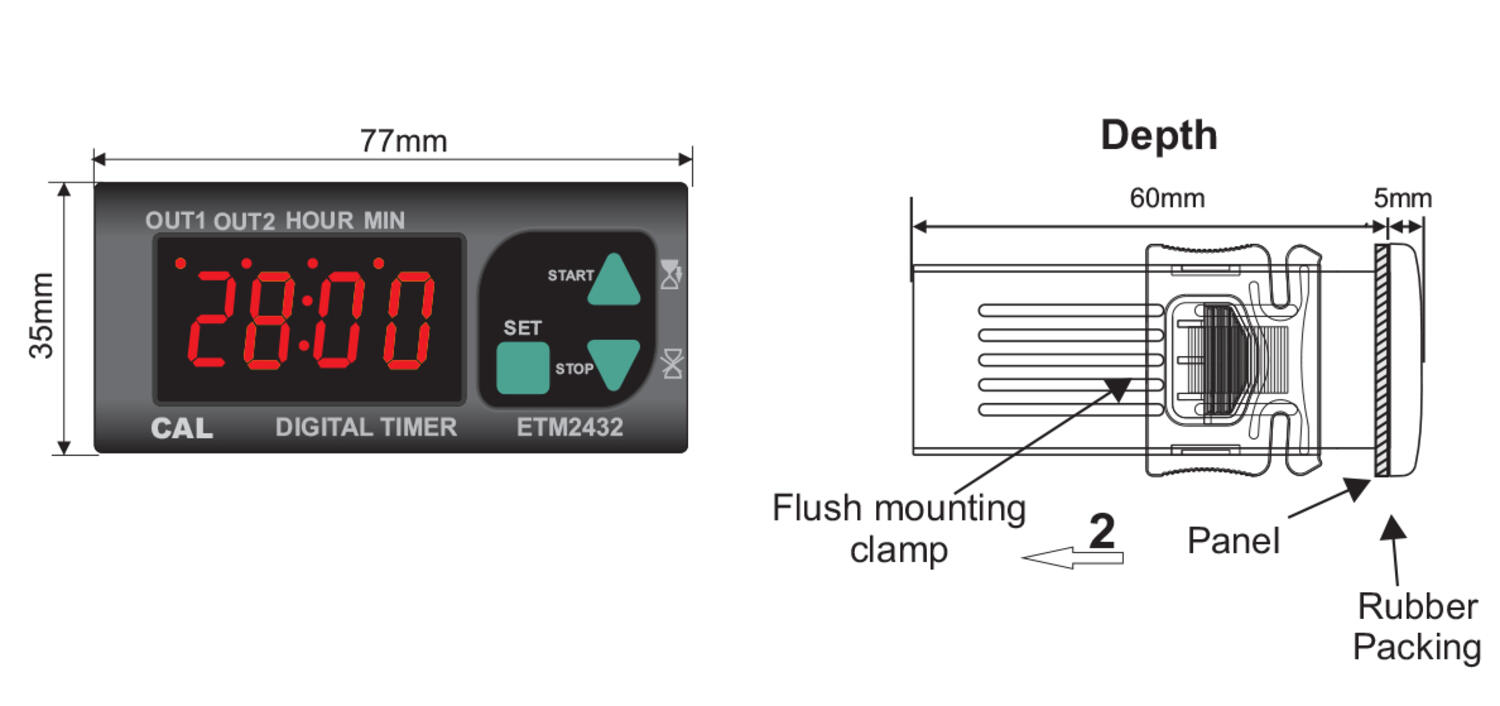

35 x 77 mm format
This is a digital timer with delay and pulse functions that can be set for hours, minutes and seconds. Start and stop is managed using buttons on the front or with separate control inputs. The timer has one relay output and adjustable warning tones. The functions are programmed with buttons in an easy-to-understand menu system, the program can be locked preventing access.
- External start, reset and hold digital inputs
- Dual contact timed output
- Nine timing modes
- Easy integration
Selected variant
Technical data
| Approvals | CE, EMC, RoHS |
|---|---|
| Depth | 60 mm |
| Digit height | 12.5 mm |
| Digital signal in | Yes |
| Display | 0.01 - 99.59 minutes or hours |
| Display colour | Red |
| Frequency | 50-60 |
| Galvanic isolation | Between supply voltage and input/output |
| Indication | Red LED |
| Input | Mechanical contact (min 50ms, 12V) |
| IP class | IP65 |
| Memory | 10 years (EEPROM) |
| Mounting | Panel mount |
| Number of digits | 4 |
| Operating voltage ac max | 253 V |
|---|---|
| Operating voltage ac min | 207 V |
| Output | Relay 2 pole C/O |
| Panel size | 35x77 mm |
| Power consumption | Max 7 VA |
| Relay function | 1 x NO; 1 x NC |
| Relay output | 8A, 250Vac, resistive load |
| Storage temperature max | 70 °C |
| Storage temperature min | -25 °C |
| Supply voltage | 230 VAC |
| Temperature resistance housing to | 50 °C |
| Weight | 200 g |
Product description
This is a digital timer with delay and pulse functions that can be set for hours, minutes and seconds. Start and stop is managed using buttons on the front or with separate control inputs. The timer has one relay output and adjustable warning tones. The functions are programmed with buttons in an easy-to-understand menu system, the program can be locked preventing access.
