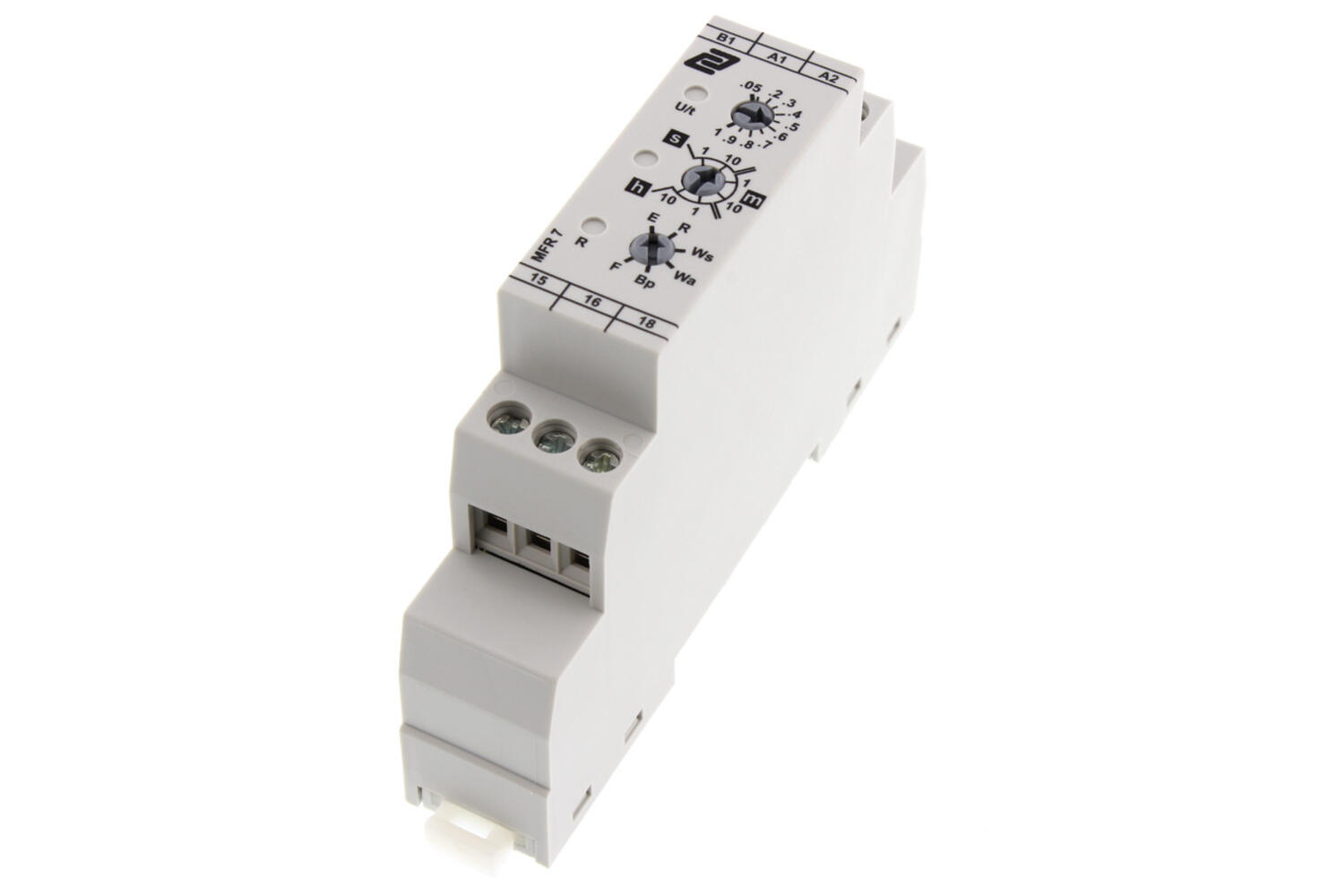

Selected variant
Technical data
| Basic accuracy | <1,5%(of the range) |
|---|---|
| Colour | Light gray |
| Connection type | Screw |
| Contact material | AgNi |
| Continuous current max / Inrush current max | 5 / 5 A |
| Control contact terminals | A1-B1 |
| Country of origin | AT |
| Cross section single wire from | 2.5 mm² |
| Cross section single wire to | 0.25 mm² |
| Cross section stranded with ferrule from | 0.25 mm² |
| Cross section stranded with ferrule to | 1.5 mm² |
| Electrical life in hours (AC1) | 1x10⁵ |
| Fuse | 5 A |

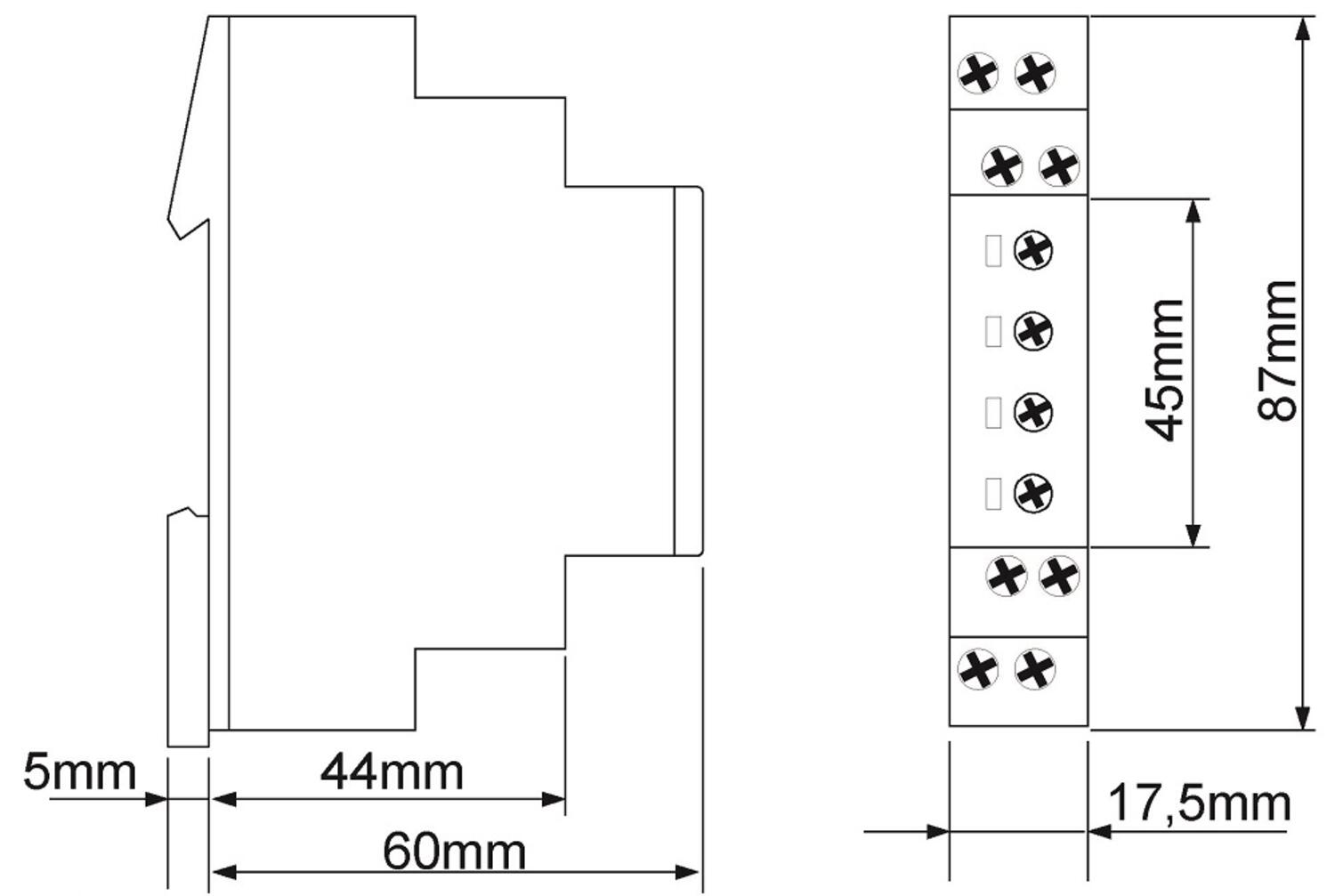

| Height TS 35 / 7.5 with base | 57.9 mm |
| Length | 90 mm |
| Mechanical life hours | 1x10⁶ |
| Nominal frequency min | 48 Hz |
| Number of functions | 6 |
| Pack size | 10 |
|---|---|
| Rated contact voltage | 250V ac |
| Rated frequency max | 63 Hz |
| Relay contact | 1 CO |
| Repeatability accuracy | <0,5% / ± 5 ms |
| Setting accuracy | <5% (of the range) |
| Stripping length | 7 mm |
| Supply voltage | 24…240 ac, 24…48 ac/dc |
| Switching voltage max | 250 v ac |
| Tariff code | 85364900 |
| Temperature influence | <0,05% / °C |
| Time range | 50 ms - 10 h |
| Tolerance | -15% / 10% |
| Torque | 0.5 |
| Weight | 42.3 g |
| Width | 17.5 mm |
