CROUZET CONTROL
DIN Timer Solid State Output
Chronos 2 Series

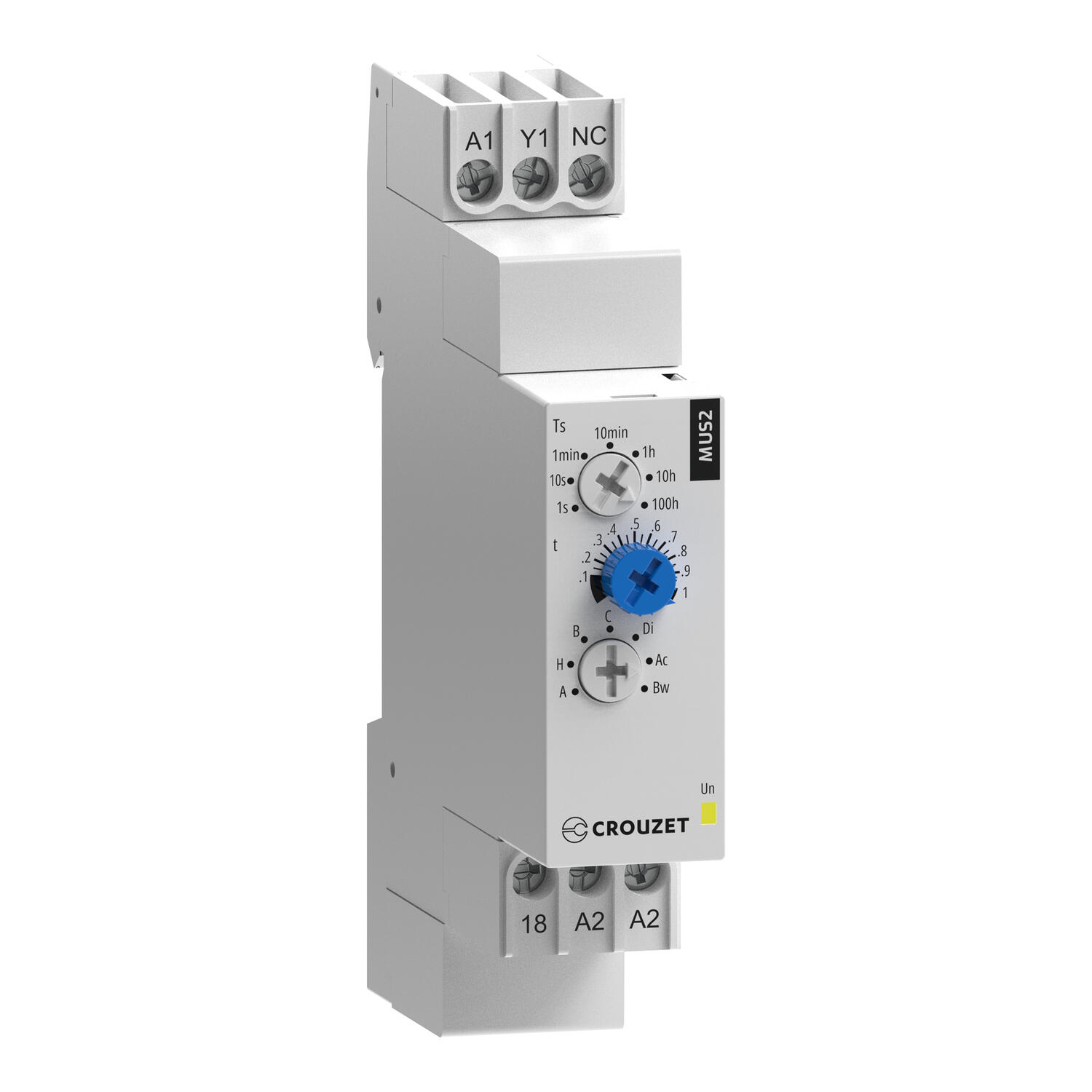

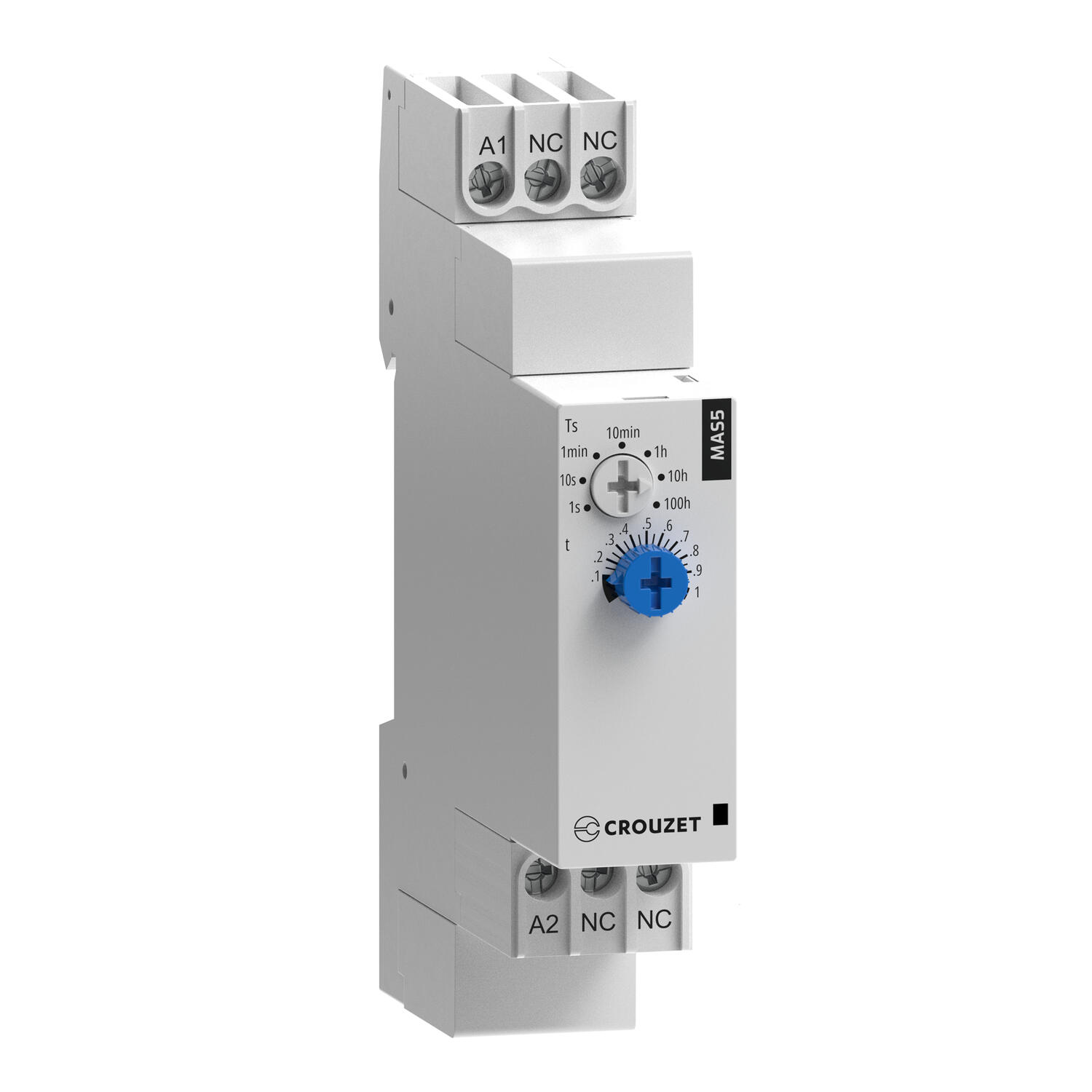

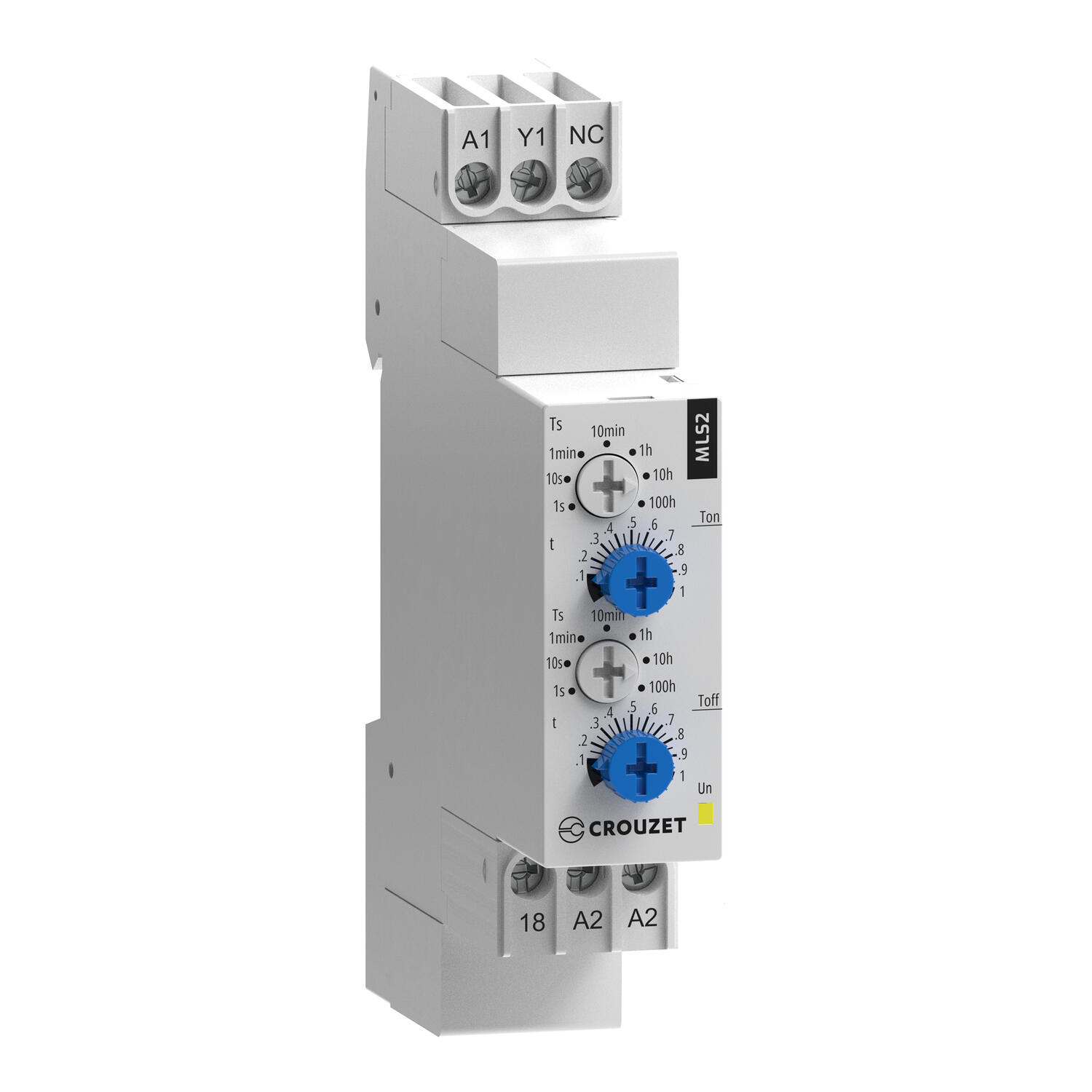

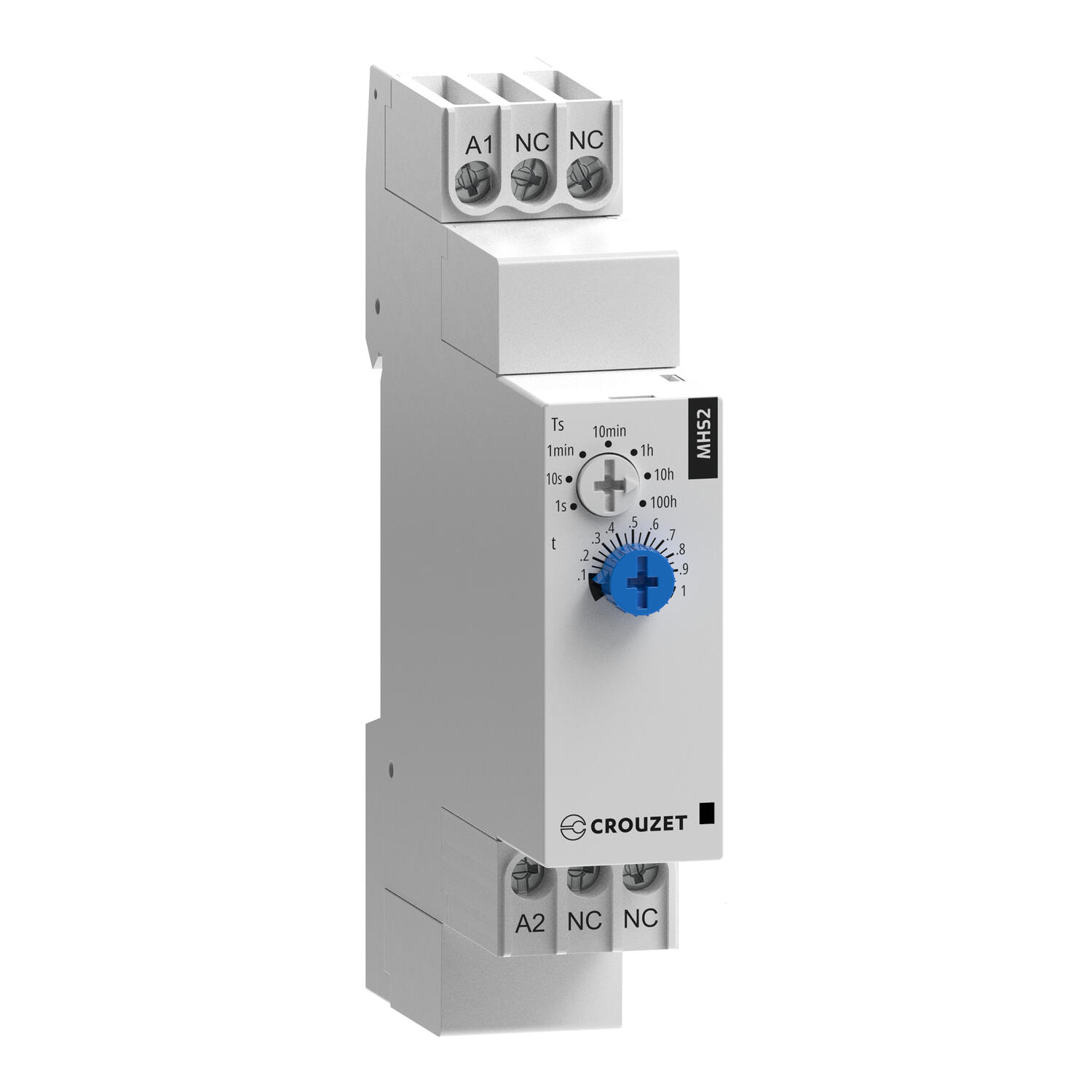

Chronos 2 series timer relays for DIN rail mounting with screw terminal connections and these versions have a 0.7A rated solid state output in a 17.5mm wide housing.
Â
Time range is adjustable (in sub ranges) from 0.1 sec to 100 hours using a selector switch and potentiometer on the front face of the device.
Â
A wide range supply voltage covers most requirements in the standard units.
Â
Some units are single function and some are multi function with the required timing function set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.
Â
Â
- 17.5mm wide
- Time range 0.1 sec – 100 hrs
- Wide range supply voltage
- Solid state output
Selected variant
Technical data
| Approvals | CE, Lloyd´s, RoHS, UL |
|---|---|
| Breaking capacity | 0,7 A |
| Cable area with sleeve | 2 x 1,5 mm² |
| Cable area without sleeve | 2 x 2,5 mm² |
| Close delay | 50 ms |
| Electrical lifetime | 108 operations |
| Function | A, Ac, At, B, Bw, C, D, Di, H, Ht |
| IP class connection | IP20 |
| IP class front | IP50 |
| Mounting | DIN rail |
| Multi-function | Yes |
| Output | Solid state |
| Power min | 0.01 A |
|---|---|
| Repeatability | 0.5 % |
| Response time off | 350 ms |
| Storage temperature max | 60 °C |
| Storage temperature min | -30 °C |
| Supply voltage | 24-240V AC |
| Switching current max | 0.7 A |
| Temperature operational max | 60 °C |
| Temperature operational min | -20 °C |
| Time range | 0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h |
Product description
Chronos 2 series timer relays for DIN rail mounting with screw terminal connections and these versions have a 0.7A rated solid state output in a 17.5mm wide housing.
Â
Time range is adjustable (in sub ranges) from 0.1 sec to 100 hours using a selector switch and potentiometer on the front face of the device.
Â
A wide range supply voltage covers most requirements in the standard units.
Â
Some units are single function and some are multi function with the required timing function set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.
Â
Â
