DIN Timer Relay Output

Syr-Line Series

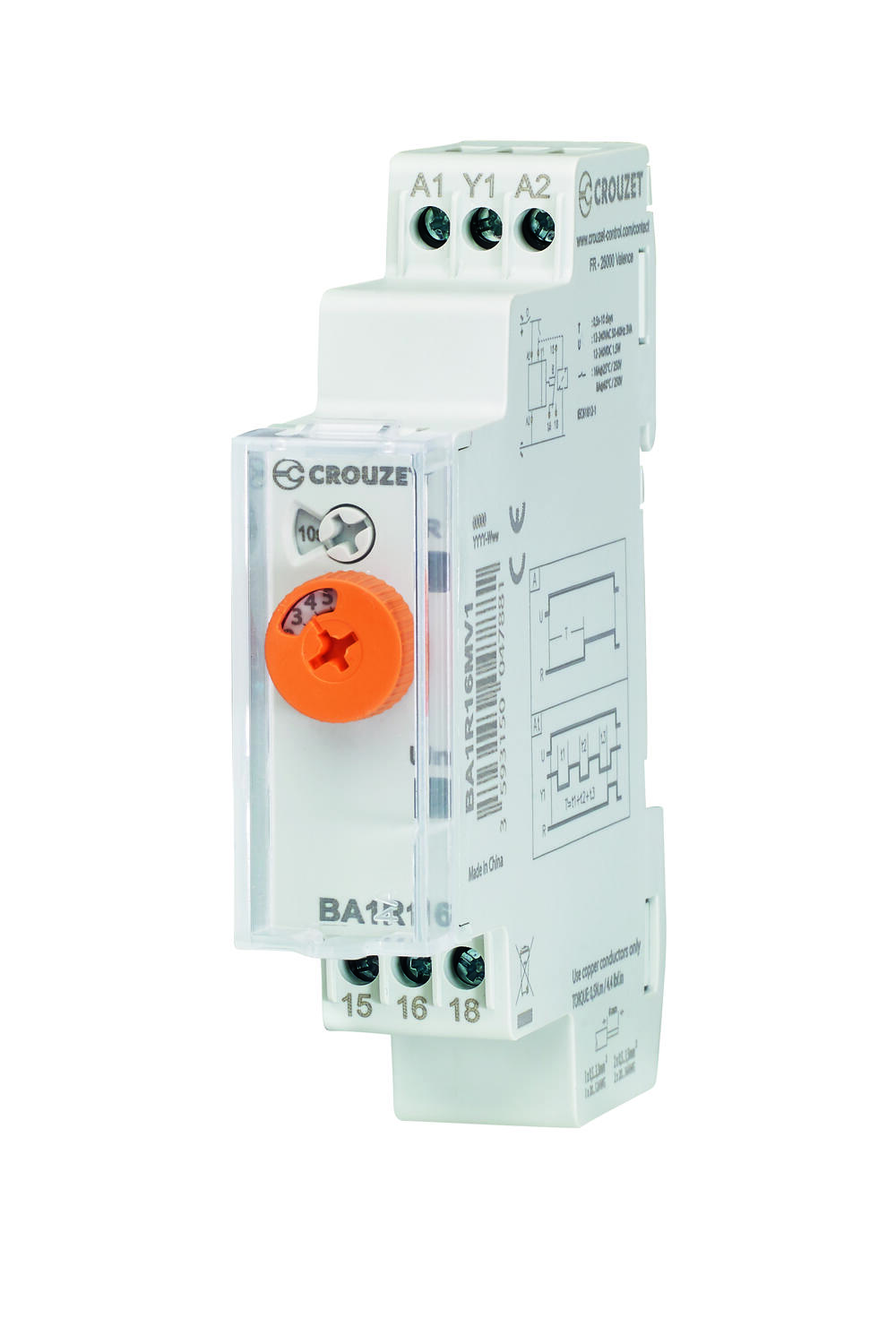

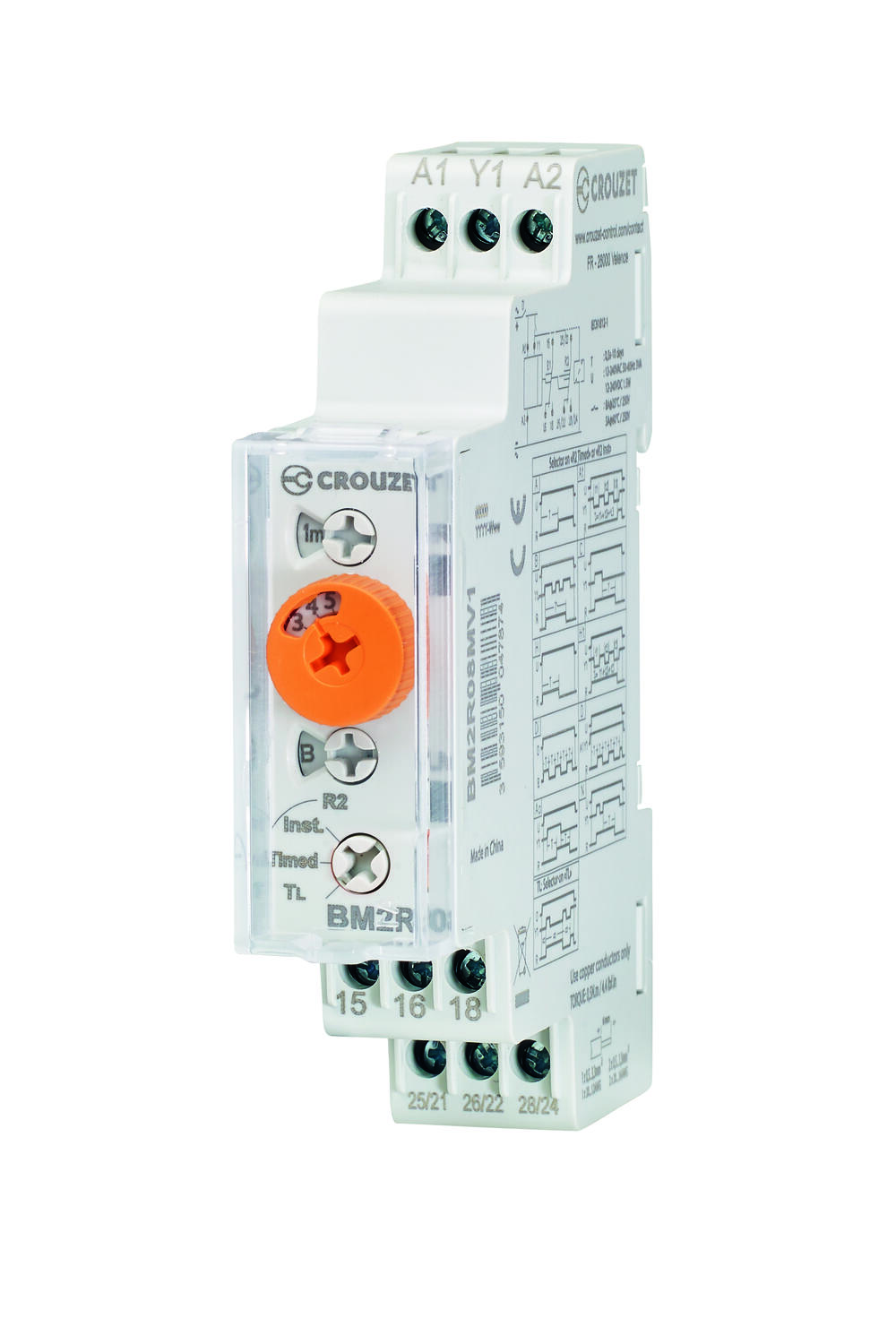

Syr-line series timer relays are for DIN rail mount with screw terminal connections in a slimline 17.5mm wide housing.

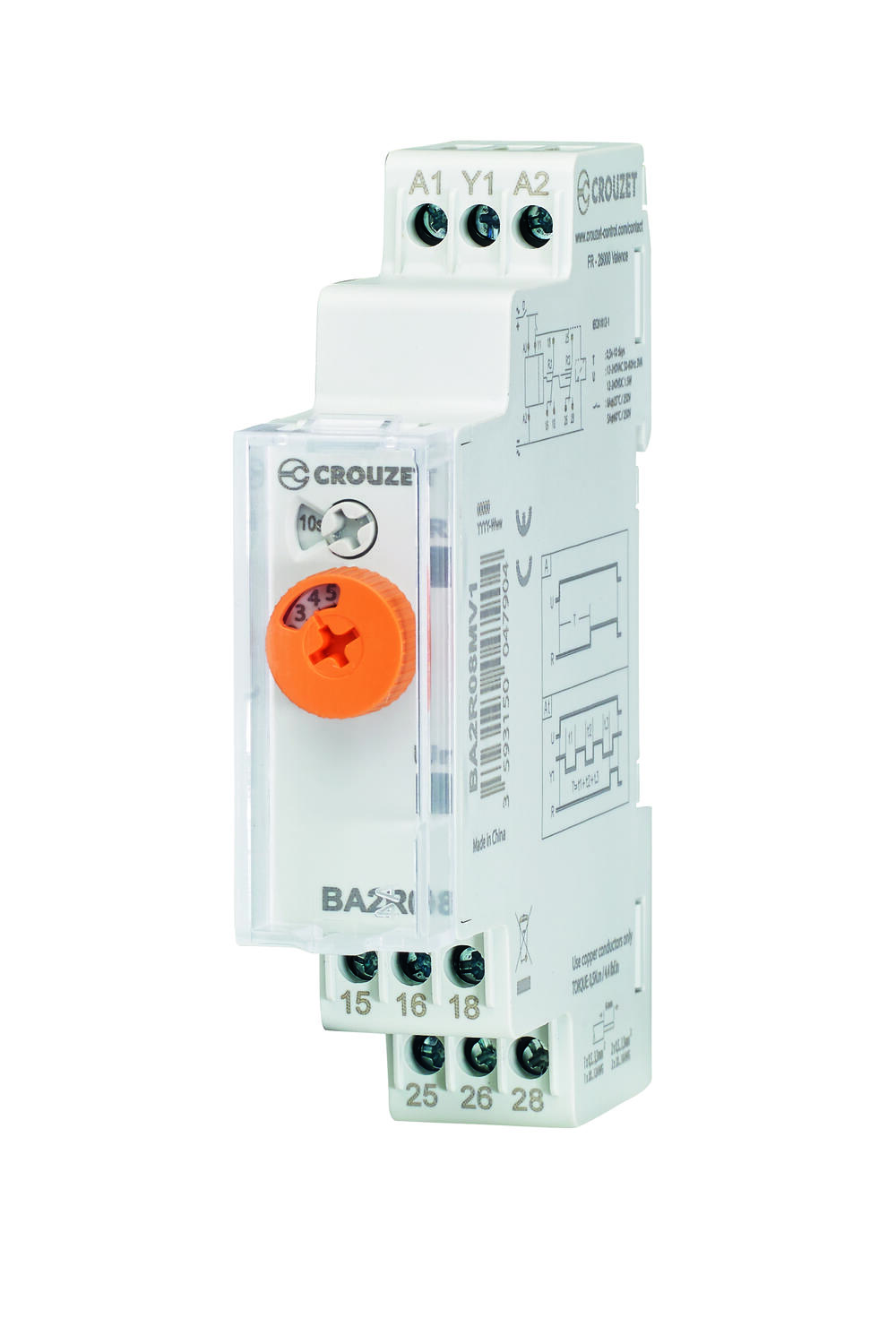

The single relay ouput versions have a high power 16A rated changeover contact ideal for switching bigger loads. The dual relay output versions have 2 x 8A rated changeover contacts with the option to set one as timed or instantaneous.



Time range is adjustable (in sub ranges) from as little as 0.5 seconds to 240 hours (10 days) using a selector switch and potentiometer on the front face of the device.



All supply voltage requirements are covered by a wide range 12-240V ac/dc.



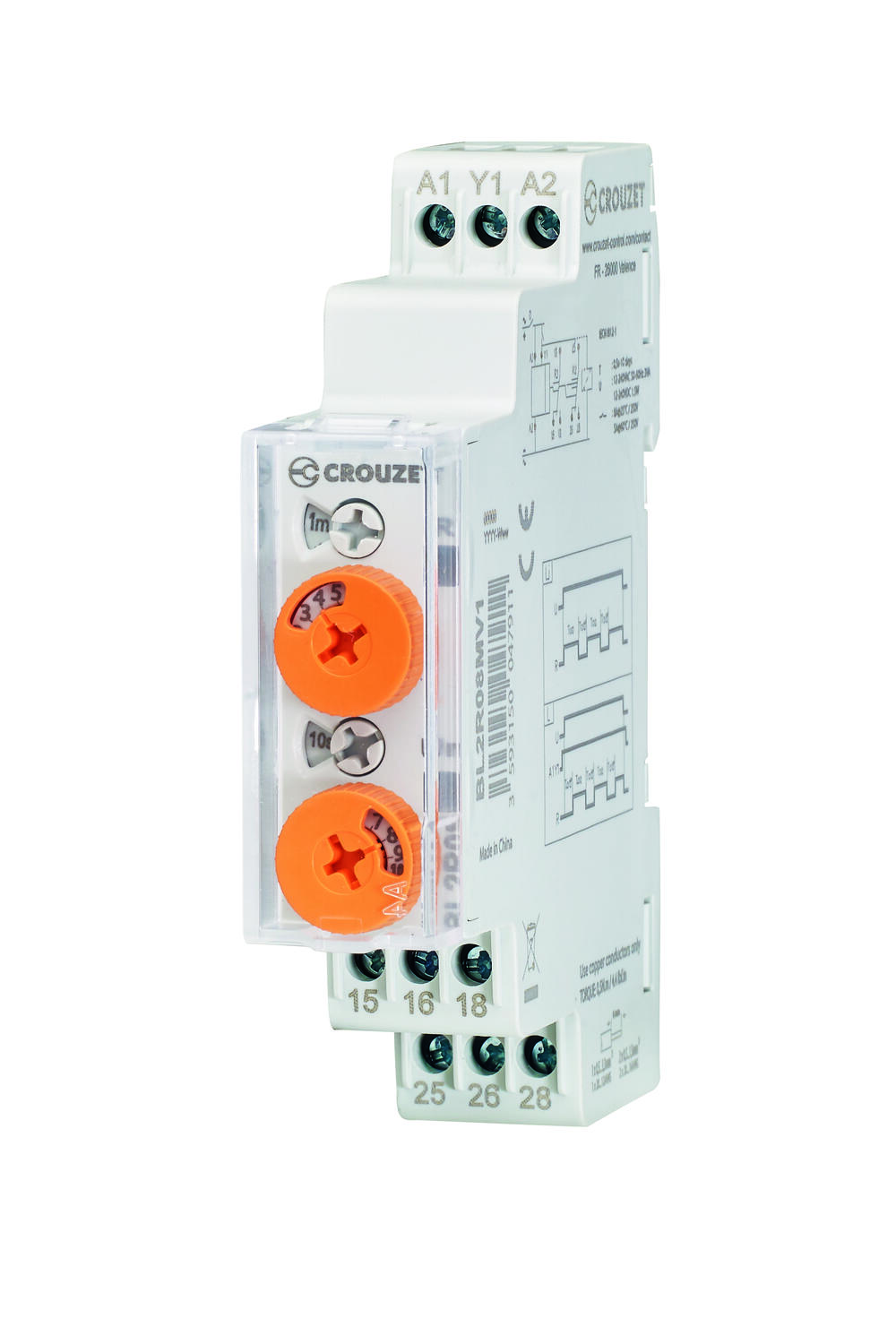

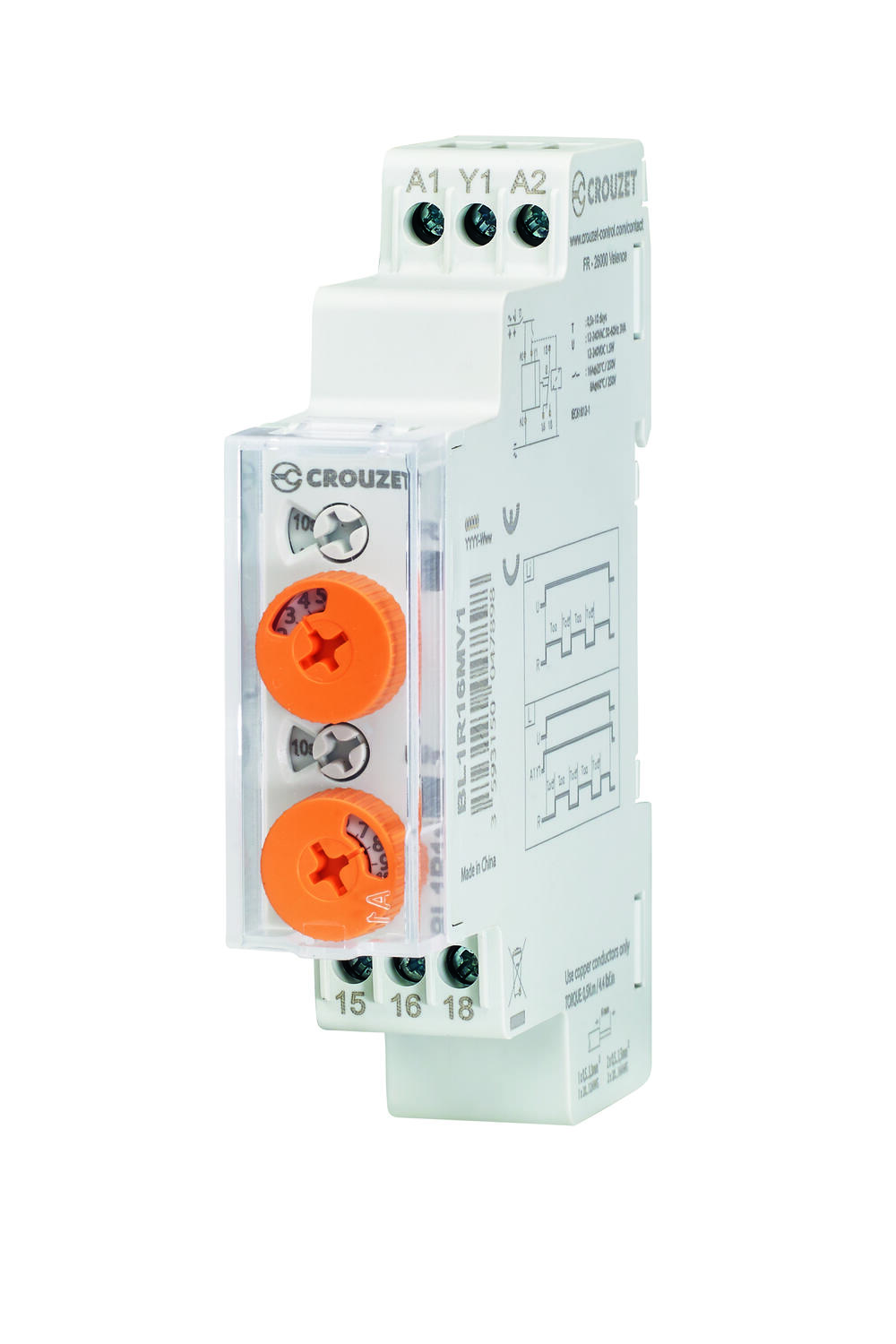

There are mono function versions available with A function (delay on make) and L function (asymetrical recyling).



The multifunction versions have 12 of the most common functions plus 2 new function created for this range which are set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.



There are also 2 LED indicators that give a complete visualisation of the status of the timer and it's ouputs at all times.

Read more
  • 17.5mm wide
  • Time range 0.5 sec - 240 hrs
  • Supply voltage 12-240V ac/dc
  • 1 or 2 relay outputs

Selected variant

Available in several variants

Selected variant

Technical data

Approvals CCC, CE, REACH, RoHS, UL
Breaking capacity 4000 VA / 90W @25°C
Cable area without sleeve 1 x 0,5-3,3 mm², 2 x 0,5-1,5 mm²
Close delay 30 ms
Electrical lifetime 30 x 103 operations 16A 250V (resistive load)

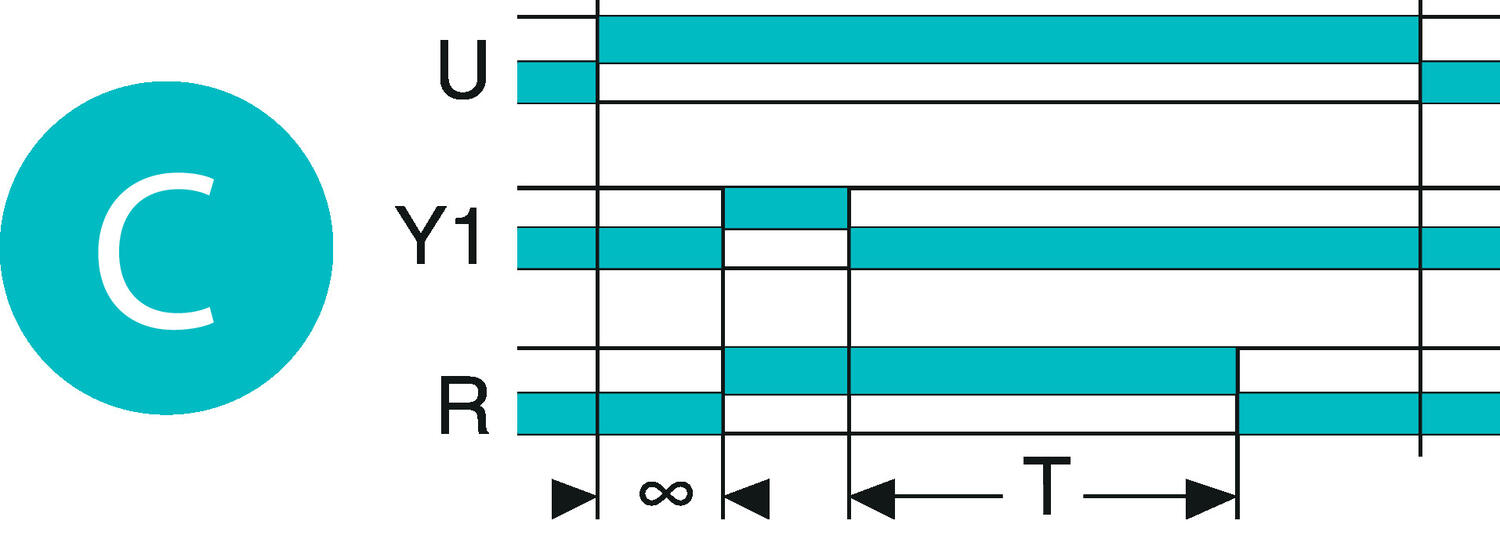

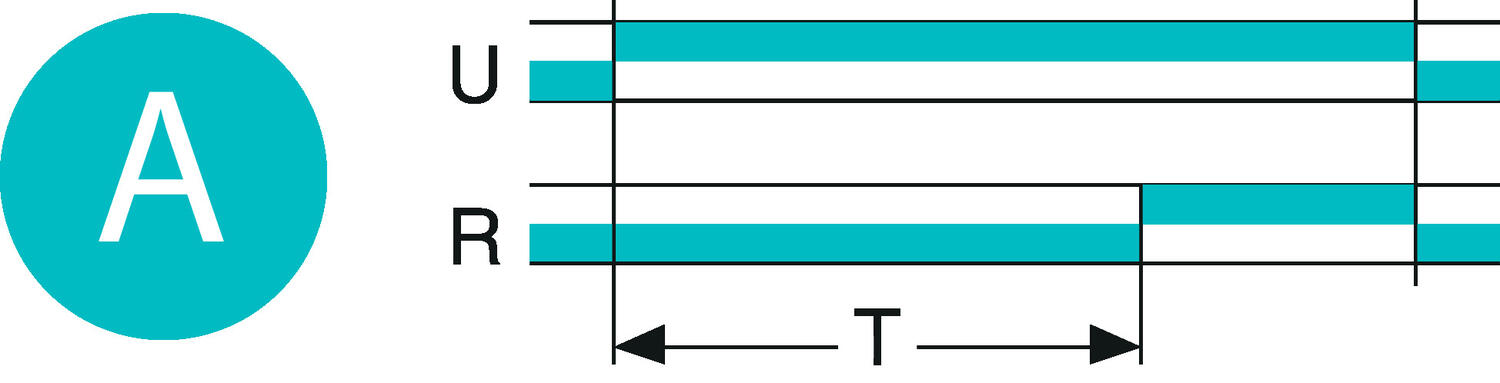

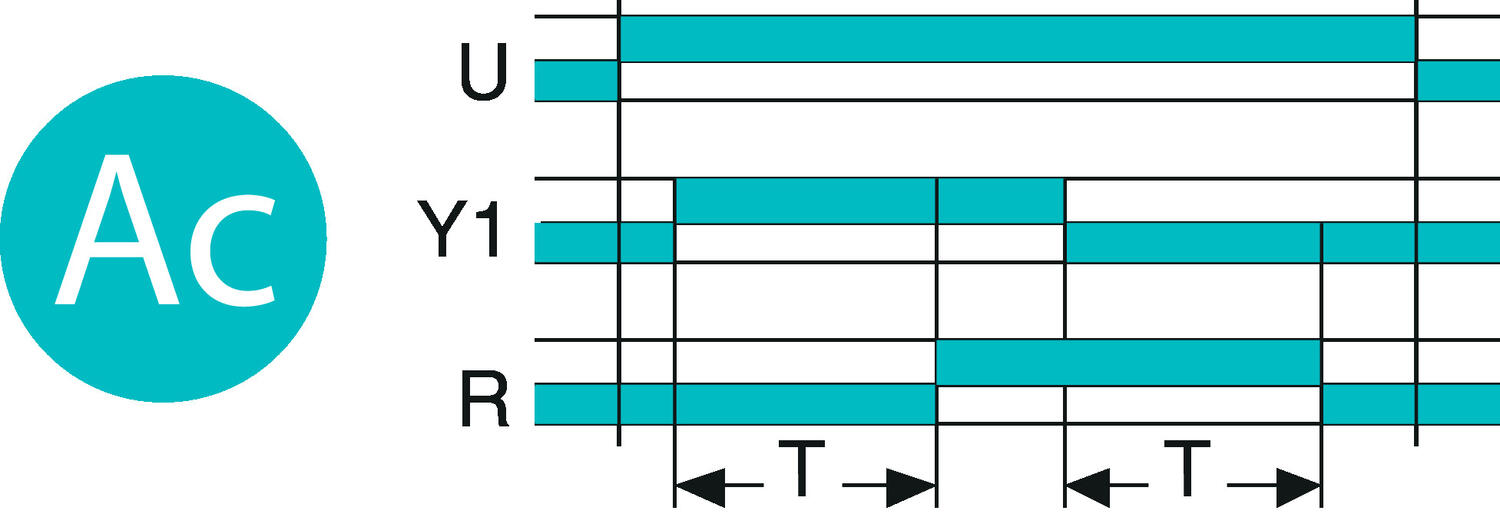

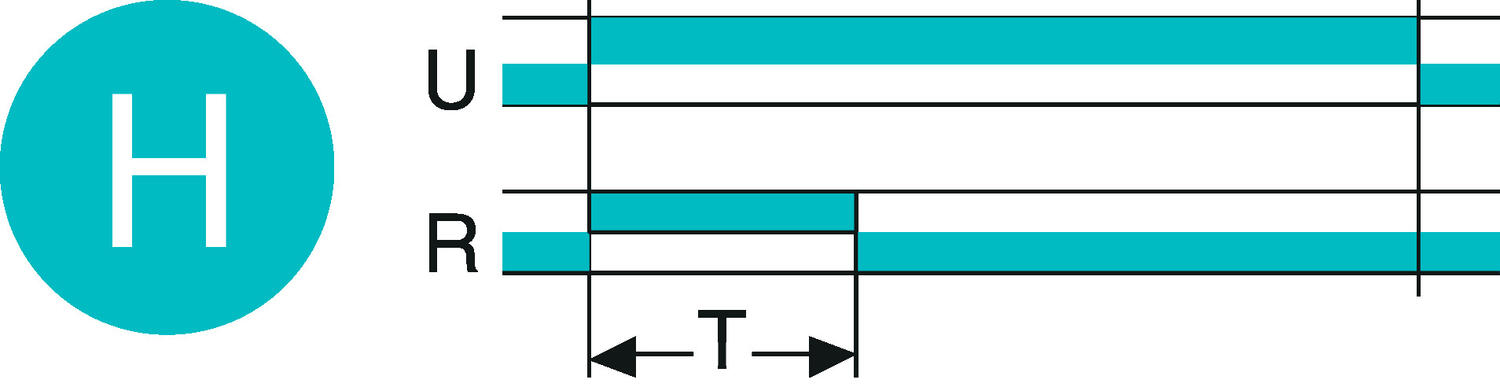

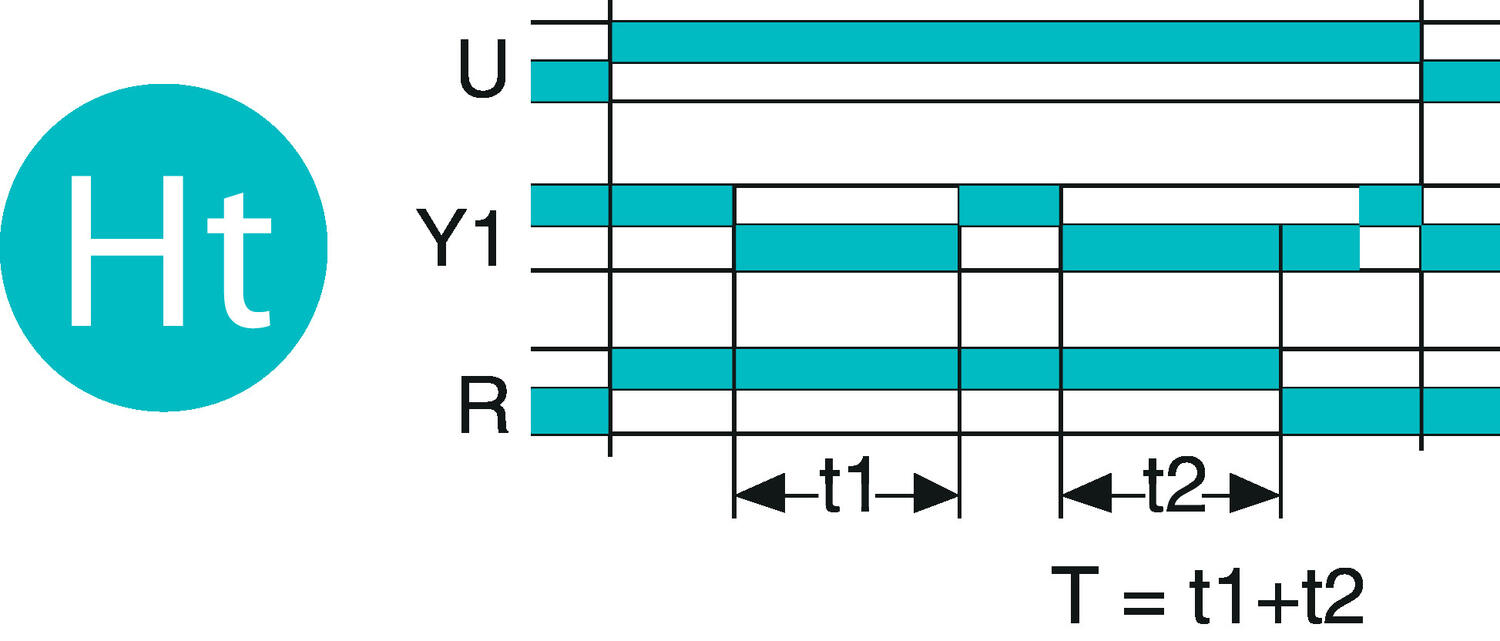

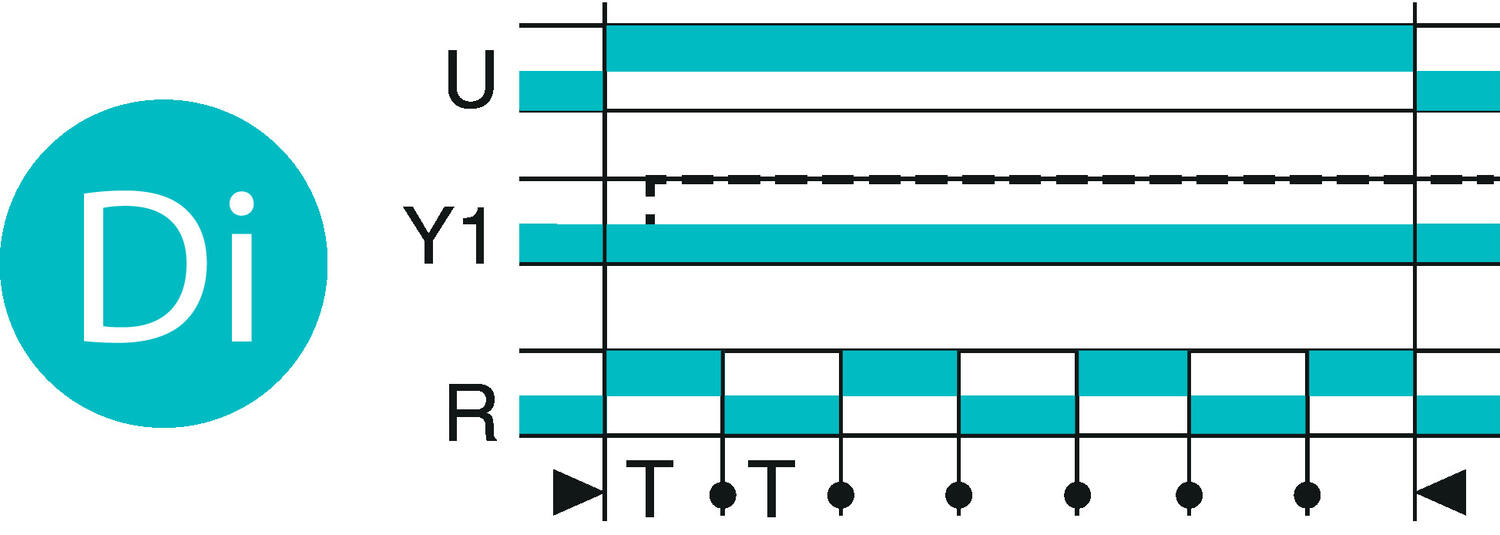

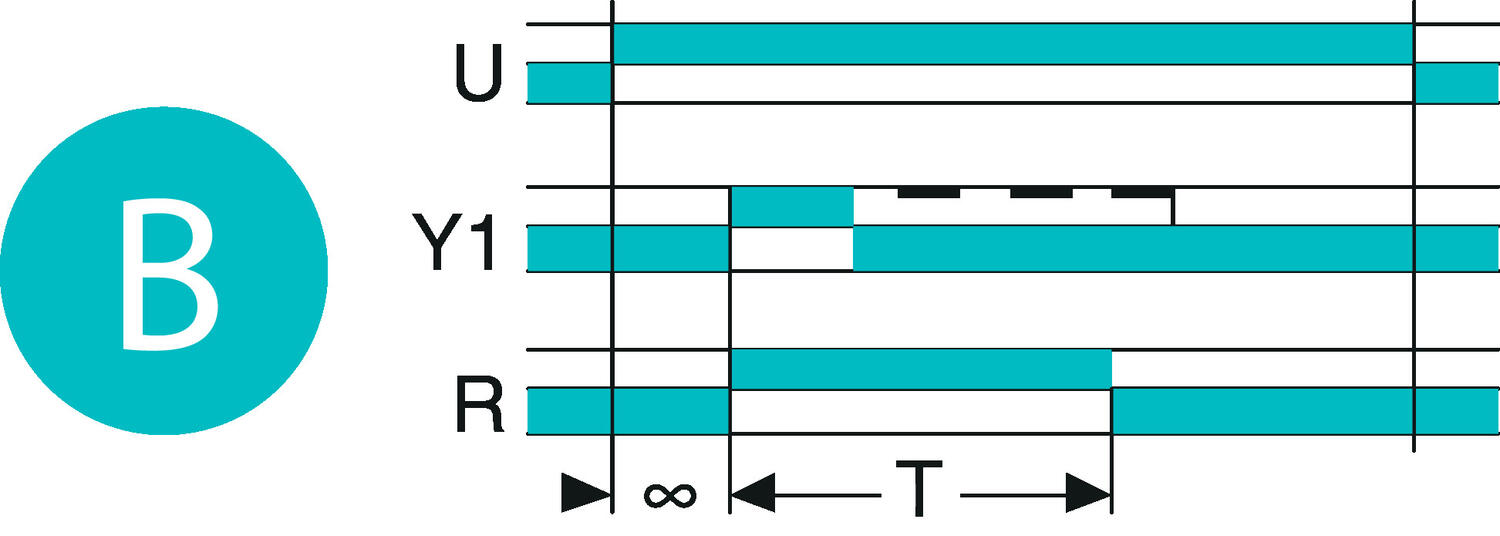

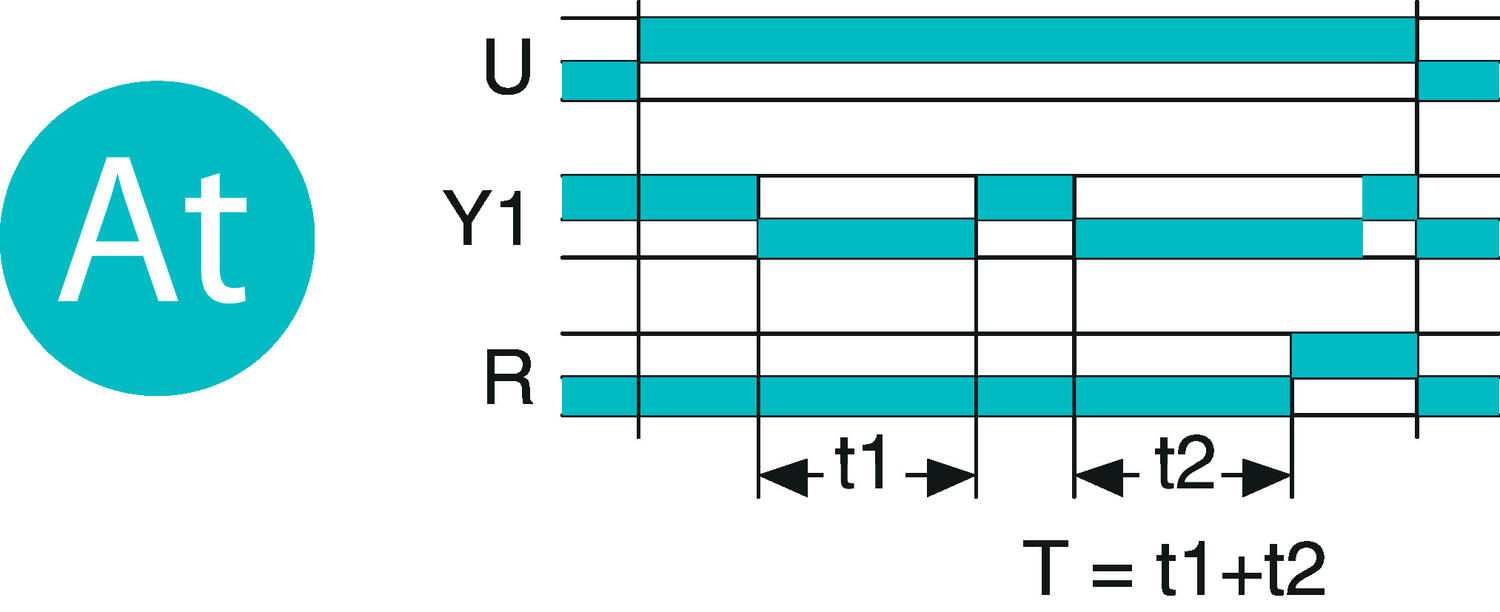

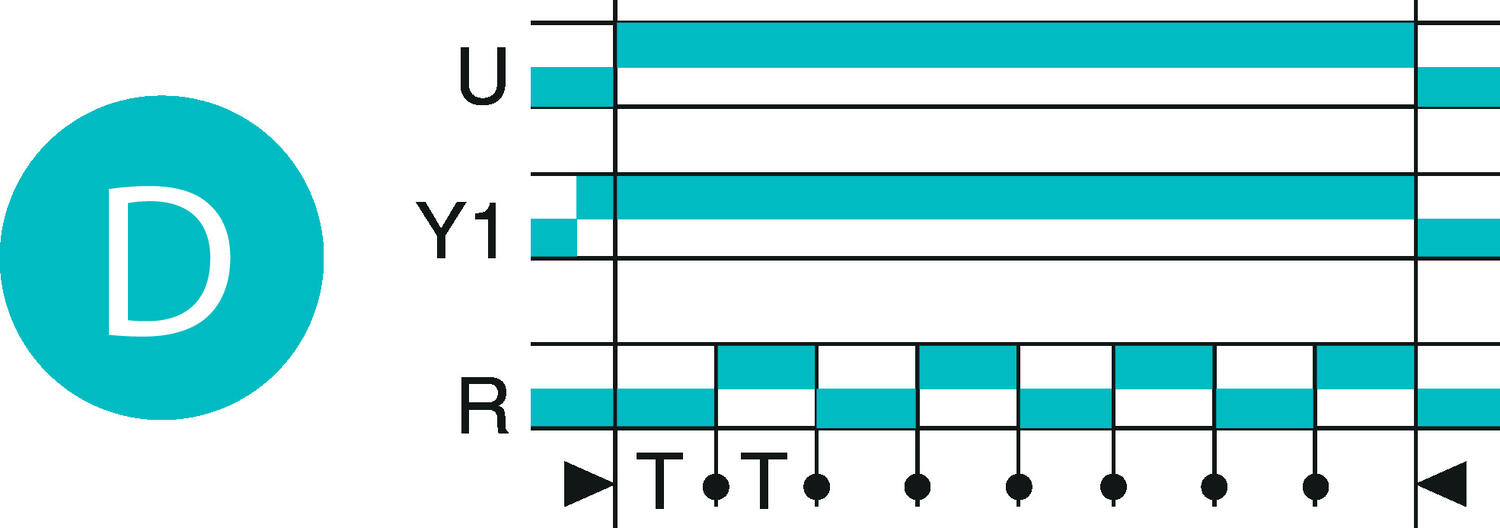

Function A, Ac, At, B, C, D, Di, H, Ht, N - Safe-guard, TL, Tt
IP class connection IP20
IP class housing IP40
Mechanical life expectancy 30 x 106 operations
Mounting DIN rail
Multi-function Yes
Output Relay 1 pole C/O
Power consumption 1.5 W
Relay output 1 pole C/O
Repeatability 0.5 %
Response time off 120 ms
Storage temperature max 70 °C
Storage temperature min -40 °C
Supply voltage 12-240V AC/DC
Switching current max 16 A
Temperature operational max 60 °C
Temperature operational min -20 °C
Time range 0,5-10 s, 0,05-1 min, 0,5-10 min, 0,05-1 h, 0,5-10 h, 0,05-1 d, 0,5-10 d
Weight 70 g

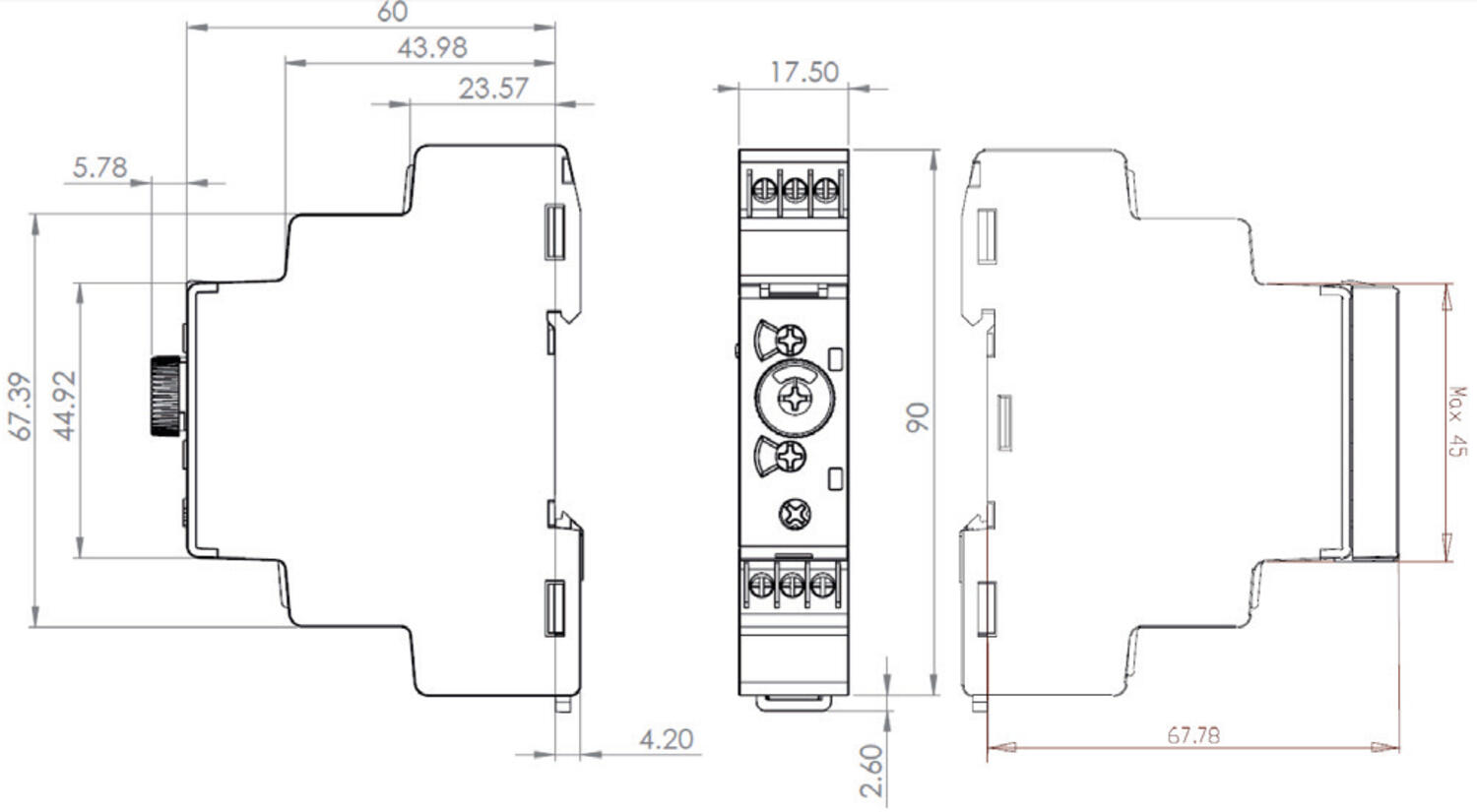

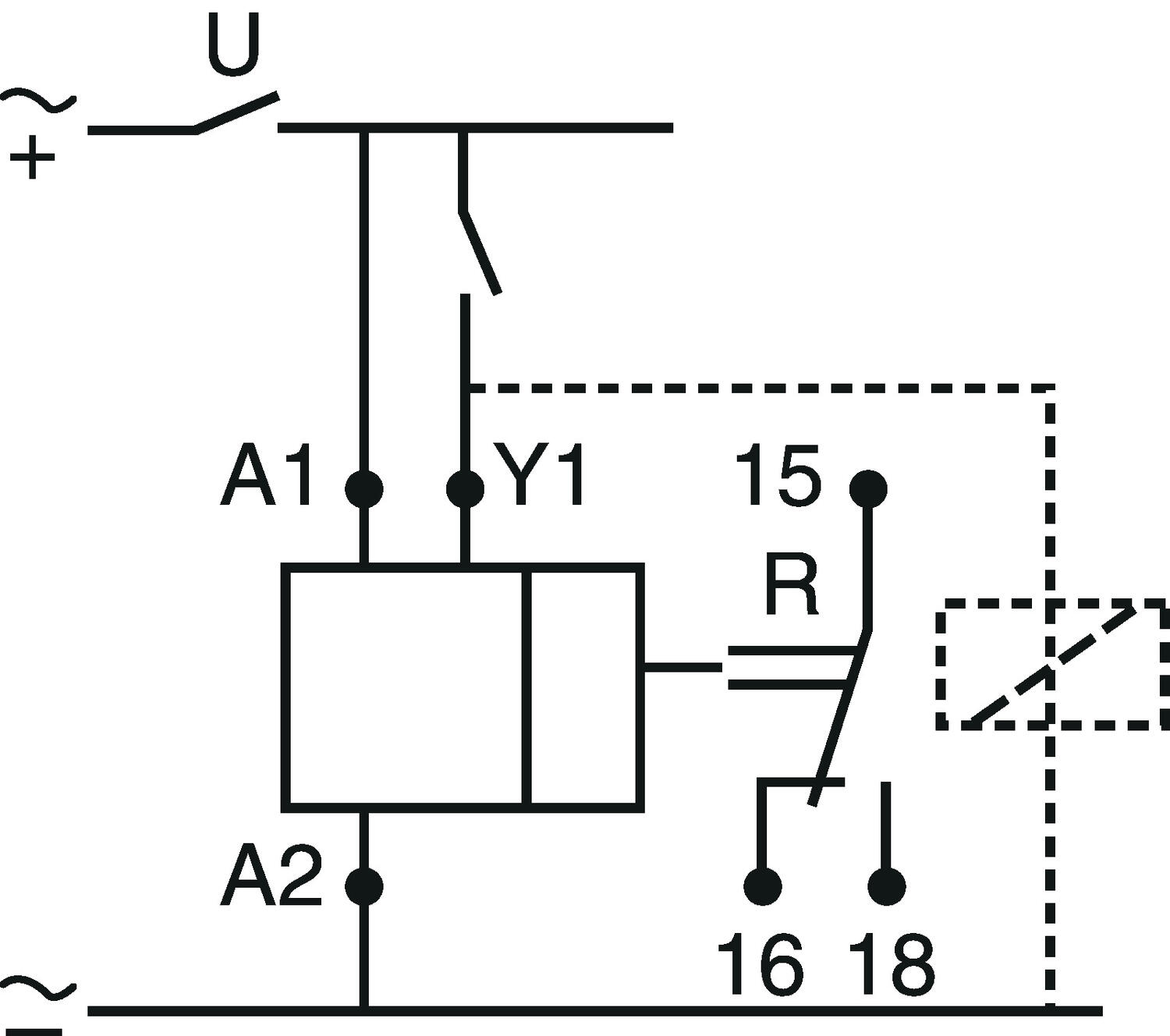

Measurements and connections

Technical illustrations

Product description

Syr-line series timer relays are for DIN rail mount with screw terminal connections in a slimline 17.5mm wide housing.



The single relay ouput versions have a high power 16A rated changeover contact ideal for switching bigger loads. The dual relay output versions have 2 x 8A rated changeover contacts with the option to set one as timed or instantaneous.



Time range is adjustable (in sub ranges) from as little as 0.5 seconds to 240 hours (10 days) using a selector switch and potentiometer on the front face of the device.



All supply voltage requirements are covered by a wide range 12-240V ac/dc.



There are mono function versions available with A function (delay on make) and L function (asymetrical recyling).



The multifunction versions have 12 of the most common functions plus 2 new function created for this range which are set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.



There are also 2 LED indicators that give a complete visualisation of the status of the timer and it's ouputs at all times.

Accessories

Related

Parts Breaking capacity Function Multi-function Output Relay output Switching current max Price
4000 VA / 90W @25°C
A, Ac, At, B, C, D, Di, H, Ht, N - Safe-guard, TL, Tt
Yes
Relay 1 pole C/O
1 pole C/O
16 A
2000 VA / 80W @25°C
A, Ac, At, B, C, D, Di, H, Ht, N - Safe-guard, TL, Tt
Yes
Relay 2 pole C/O
2 pole C/O
8 A
4000 VA / 90W @25°C
A, At
No
Relay 1 pole C/O
1 pole C/O
16 A
2000 VA / 80W @25°C
A, At
No
Relay 2 pole C/O
2 pole C/O
8 A
4000 VA / 90W @25°C
L, Li
No
Relay 1 pole C/O
1 pole C/O
16 A
2000 VA / 80W @25°C
L, Li
No
Relay 2 pole C/O
2 pole C/O
8 A

Selected variant
