CROUZET CONTROL

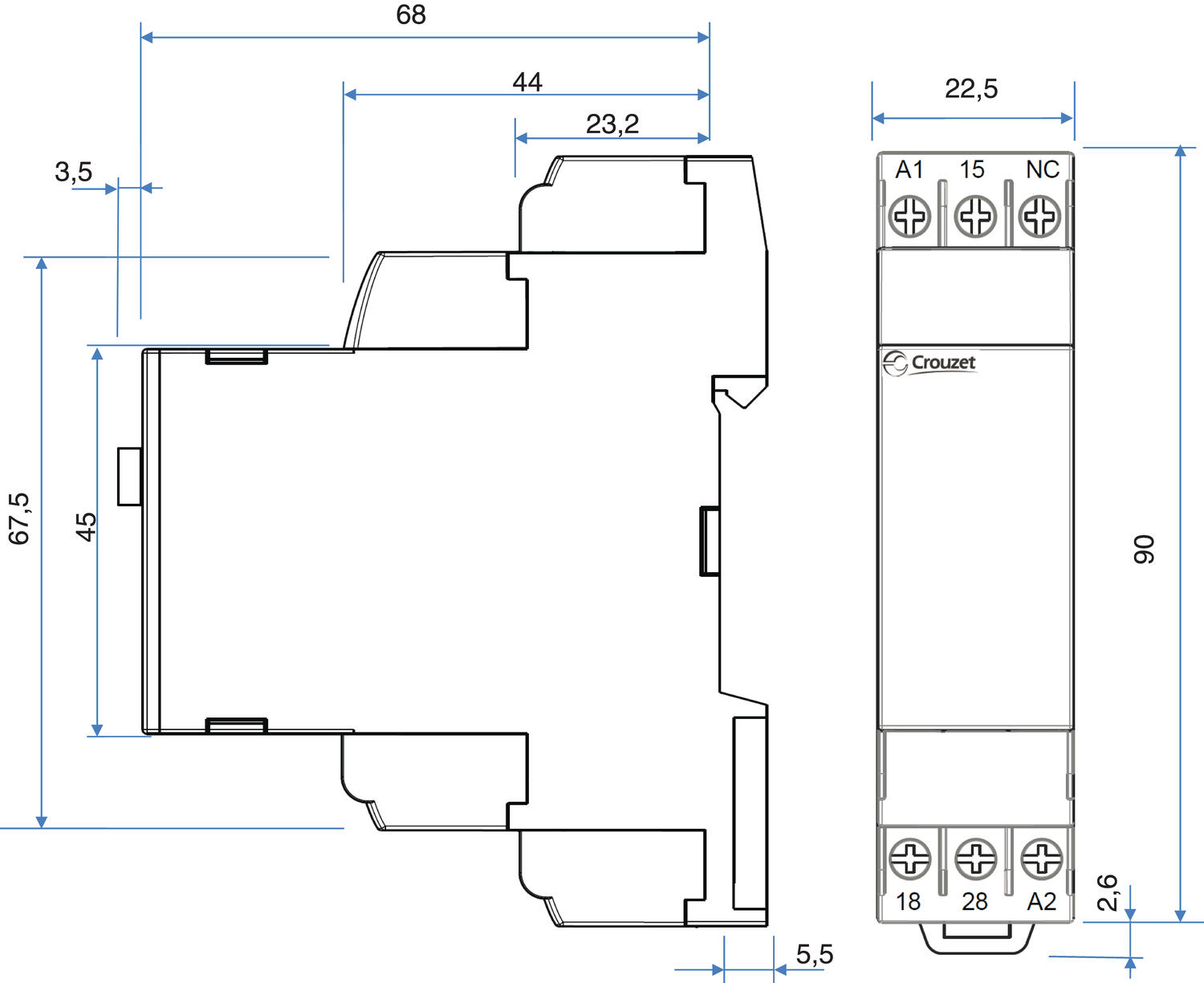

Chronos 2 series timer relays for DIN rail mounting with screw terminal connections and these versions have 2 x relay outputs with 8A rated changeover contacts in a 22.5mm wide housing.
Time range is adjustable (in sub ranges) from 0.1 sec to 100 hours using a selector switch and potentiometer on the front face of the device.
The most common supply voltage requirements are covered by the standard units but there are also special versions that offer additional supply voltage options if required.
Some units are single function and some are multi function with the required timing function set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.
| Approvals | CE, Lloyd´s, RoHS, UL |
|---|---|
| Breaking capacity | 2000 VA / 80W |
| Cable area with sleeve | 2 x 1,5 mm² |
| Cable area without sleeve | 2 x 2,5 mm² |
| Close delay | 30 ms |
| Electrical lifetime | 105 operations 8A 250V (resistive load) |
| Function | A, Ac, At, B, Bw, C, D, Di, H, Ht |
| IP class connection | IP20 |
| IP class front | IP50 |
| Mechanical life expectancy | 10 x 10⁶ operations |
| Mounting | DIN rail |
| Multi-function | Yes |
| Output | Relay 2 pole C/O |
| Power consumption | 0,6 W |
|---|---|
| Relay output | 2 pole C/O |
| Repeatability | 0,5 % |
| Response time off | 120 ms |
| Storage temperature max | 60 °C |
| Storage temperature min | -30 °C |
| Supply voltage | 12-240V AC/DC |
| Switching current max | 8 A |
| Temperature operational max | 60 °C |
| Temperature operational min | -20 °C |
| Time range | 0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h |
Chronos 2 series timer relays for DIN rail mounting with screw terminal connections and these versions have 2 x relay outputs with 8A rated changeover contacts in a 22.5mm wide housing.
Time range is adjustable (in sub ranges) from 0.1 sec to 100 hours using a selector switch and potentiometer on the front face of the device.
The most common supply voltage requirements are covered by the standard units but there are also special versions that offer additional supply voltage options if required.
Some units are single function and some are multi function with the required timing function set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Function | Multi-function | Output | Relay output | Supply voltage | Time range | Price | ||
|---|---|---|---|---|---|---|---|---|---|

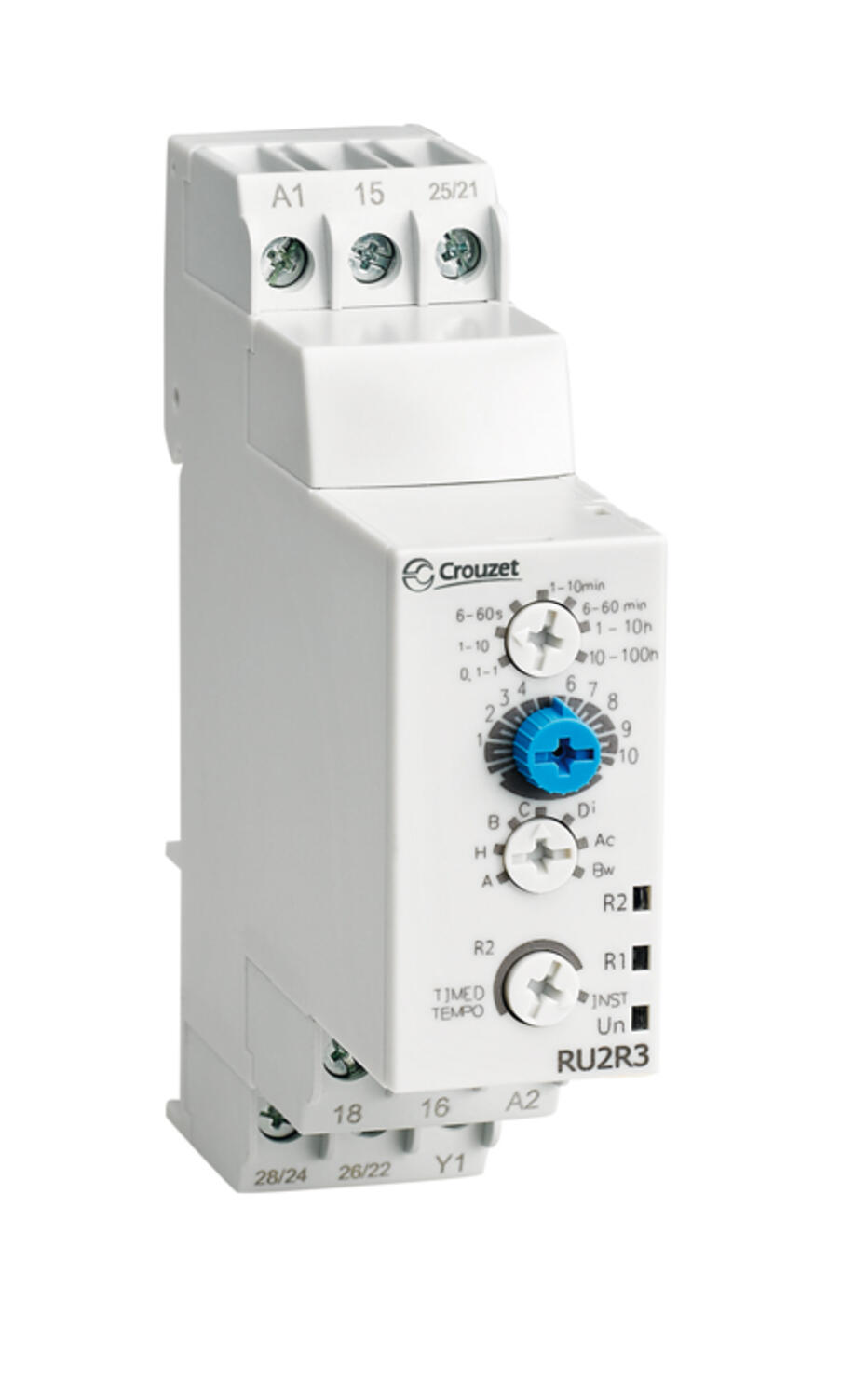

Timer RU2R3 Multifunction 2 x Relay 12-240V ac/dc
Art:
88866303
Copied
|
A, Ac, At, B, Bw, C, D, Di, H, Ht
|
Yes
|
Relay 2 pole C/O
|
2 pole C/O
|
12-240V AC/DC
|
0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h
|
| ||
Timer RU2R1 Multifunction 2 x Relay 24V dc / 24-240V ac
Art:
88866305
Copied
|
A, Ac, At, B, Bw, C, D, Di, H, Ht
|
Yes
|
Relay 2 pole C/O
|
2 pole C/O
|
24V DC / 24-240V AC
|
0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h
|
| ||

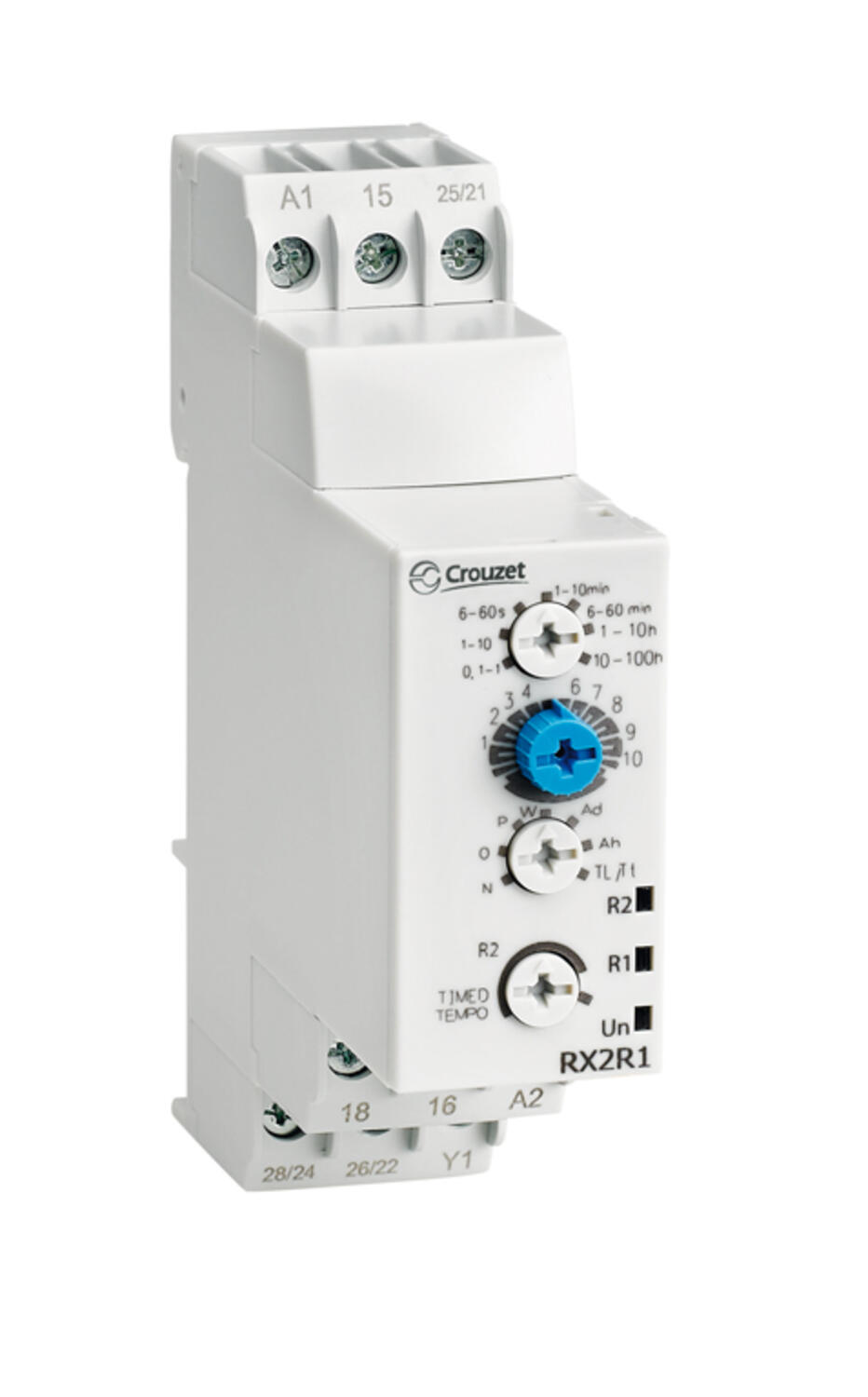

Timer RX2R1 Multifunction 2 x Relay 24V dc / 24-240V ac
Art:
88866385
Copied
|
Ad, Ah, N - Safe-guard, O, P, Pt, TL, Tt, W
|
Yes
|
Relay 2 pole C/O
|
2 pole C/O
|
24V DC / 24-240V AC
|
0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h
|
| ||

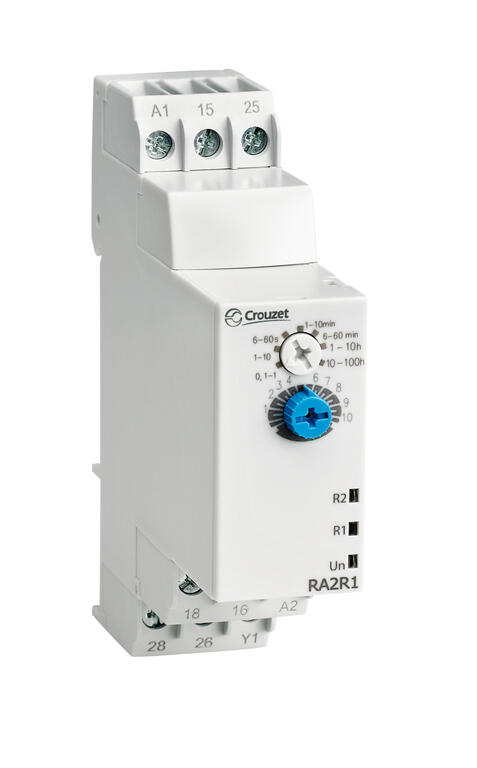

Timer RA2R1 Delay Off 2 x Relay 24V dc / 24-240V ac
Art:
88866215
Copied
|
A, At
|
No
|
Relay 2 pole C/O
|
2 pole C/O
|
24V DC / 24-240V AC
|
0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h
|
| ||

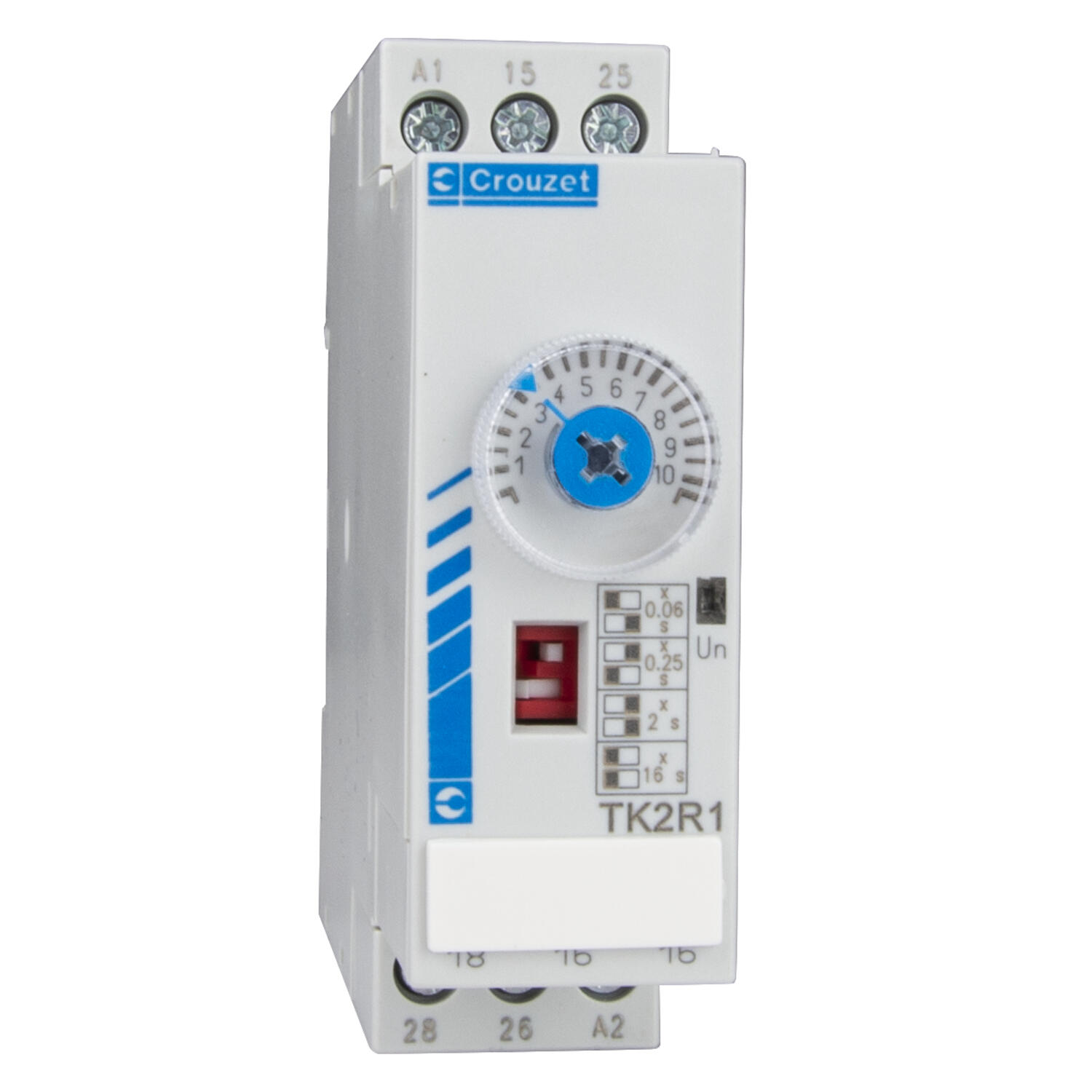

Timer TK2R1 True Delay Off 24V dc
Art:
88865265
Copied
|
K
|
No
|
Relay 2 pole C/O
|
2 pole C/O
|
24V DC / 24-240V AC
|
0,6-160 s
|
| ||

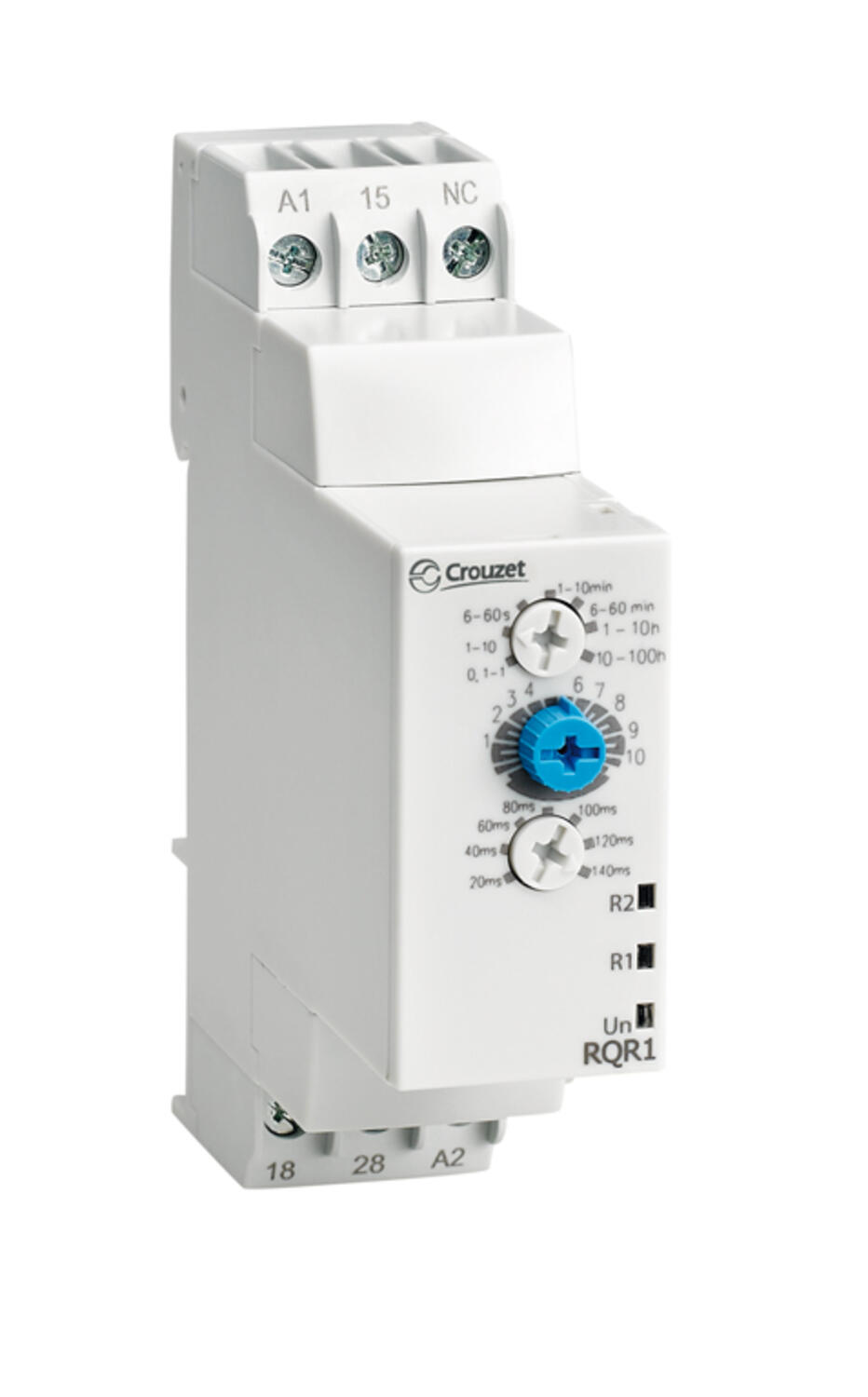

Timer RQR1 Star Delta 2 x Relay 24V dc / 24-240V ac
Art:
88866175
Copied
|
Q
|
No
|
Relay 1 pole C/O
|
1 pole C/O
|
24V DC / 24-240V AC
|
0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h / 20-140ms
|
| ||

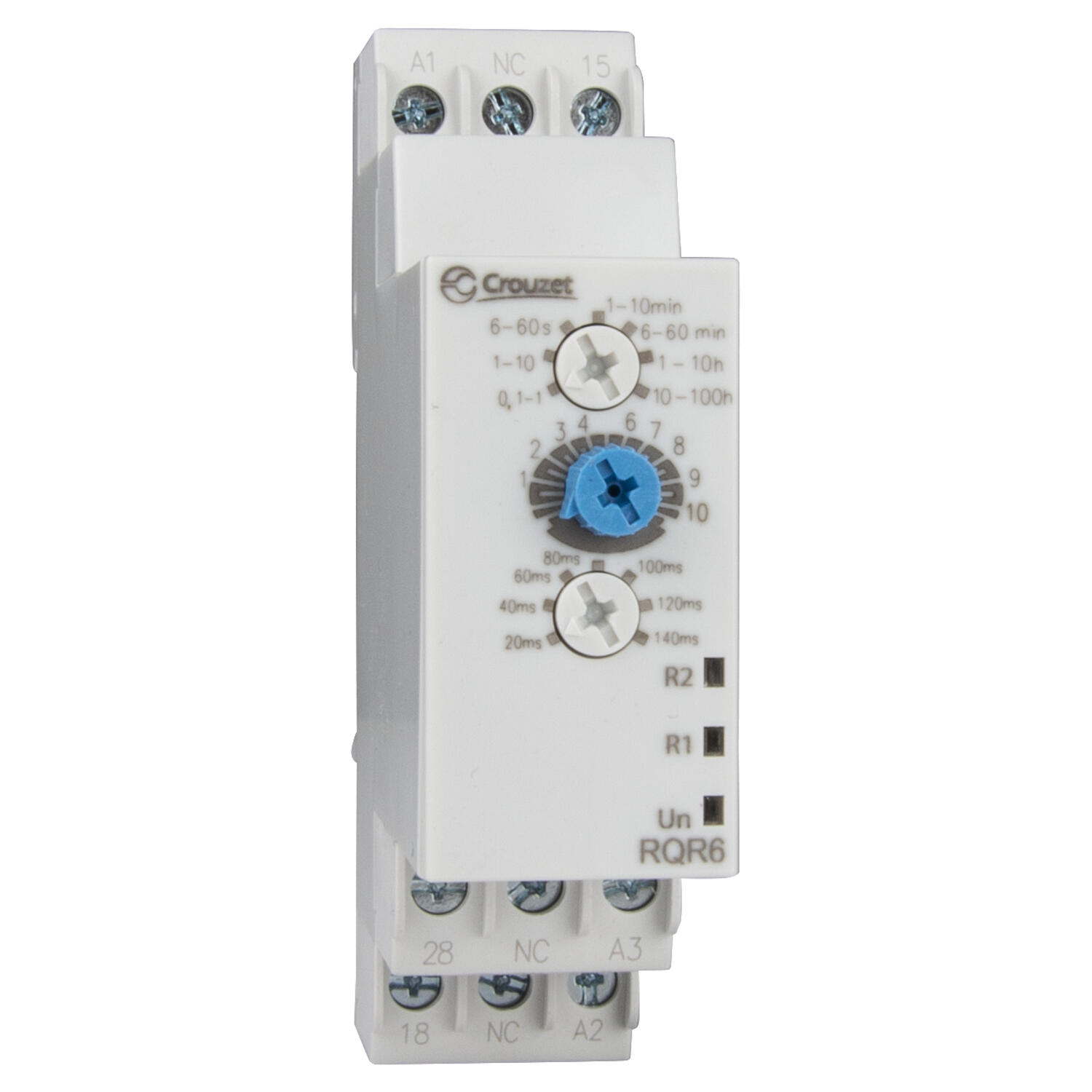

Timer RQR6 Star Delta 2 x Relay 230-240V ac / 380-440V ac
Art:
88866176
Copied
|
Q
|
No
|
Relay 1 pole C/O
|
1 pole C/O
|
230-240V AC / 380-440V AC
|
0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h / 20-140ms
|
|
Select a variant in the list
