CONTA-CLIP

End stops - TS35/TS32 & TS15

TS 15, TS 32, TS35

  • Compact & heavy duty versions
  • Material polyamide 6.6
  • Snap on or Screw mounting

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General data
Colour Beige
Mounting TS 35

Dimensions
Length 45.5 mm
Width 7.5 mm
Height 31 mm

Materials
Material Polyamide 6.6
Flammability class UL94-V2

*Invisible Heading*
Operating temperature from -40 °C
Operating temperature to 105 °C

Additional data
Tariff code 85389099
Country of origin DE
Weight 4.7 g
Pack size 50

Downloads

Accessories

Related

cable port
Product news

We now offer cable

What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Parts Colour Mounting Length Width Height Hole diameter Material Flammability class Operating temperature from Operating temperature to Tariff code Country of origin Weight Pack size Housing material Price

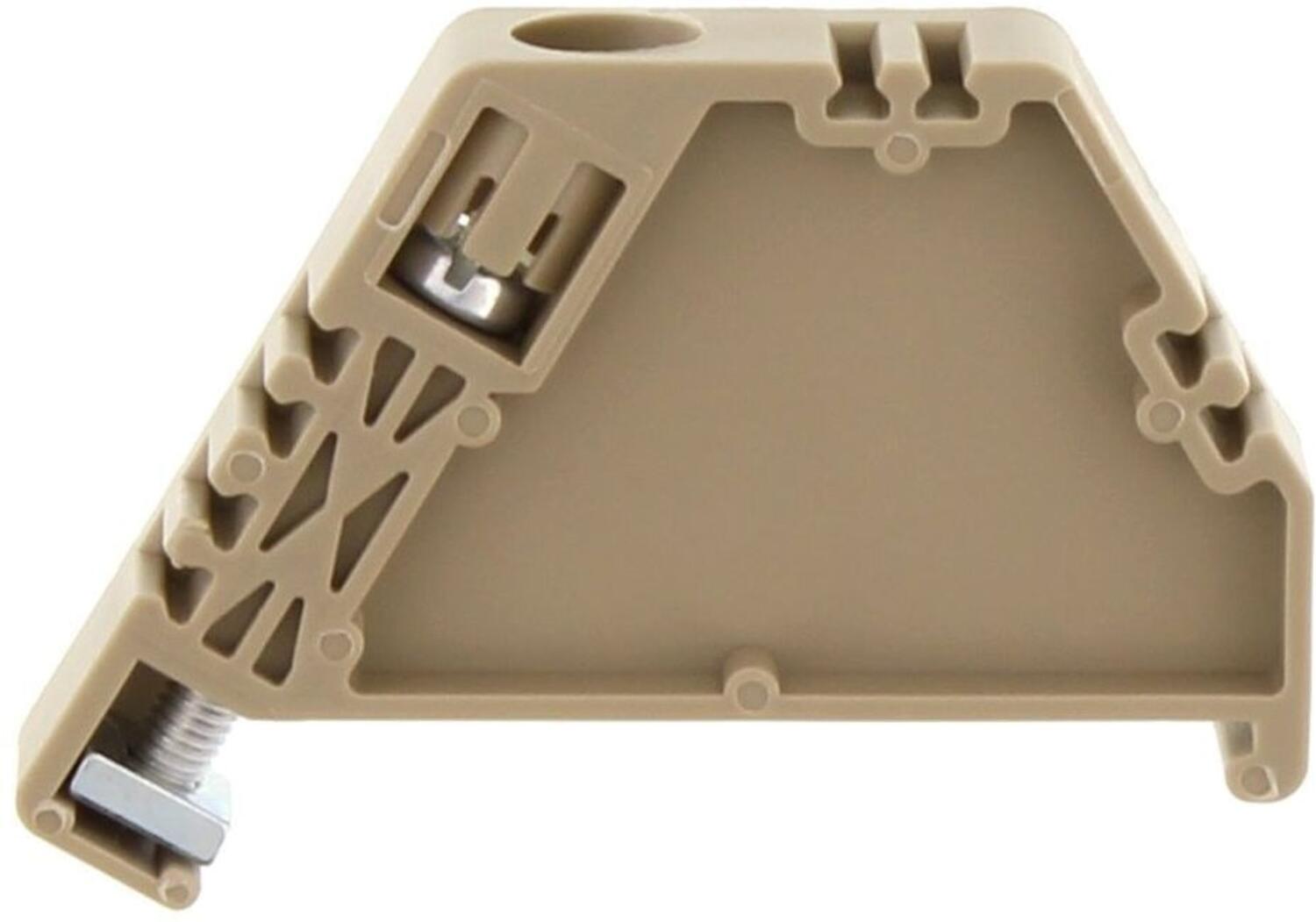

ES 35 Beige, Compact TS35 screw end stop
Art:
2005.2 Copied
Beige
TS 35
45.5 mm
7.5 mm
31 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
4.7 g
50

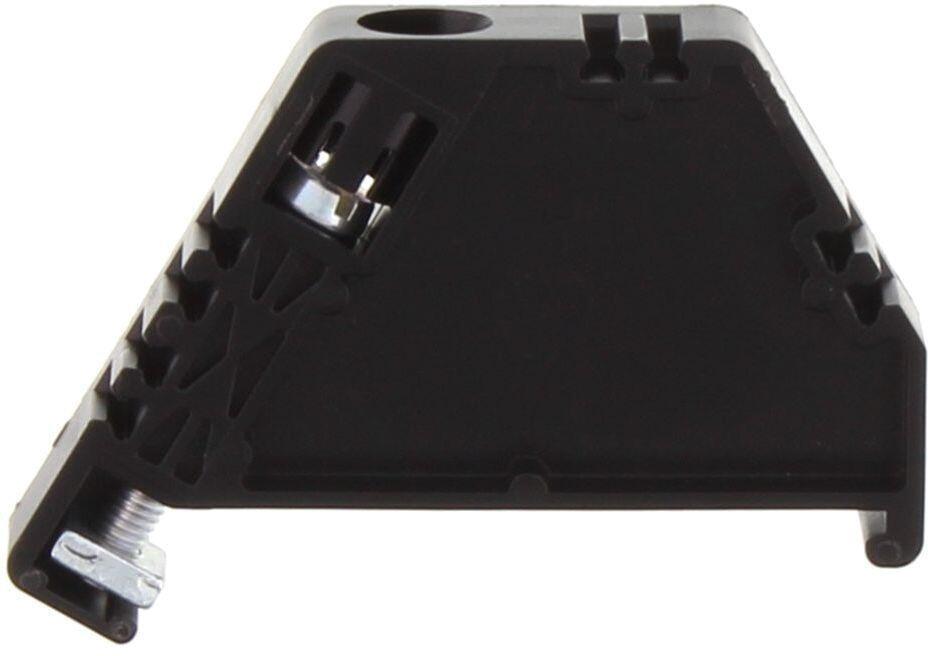

ES 35 - Black, Compact TS35 screw end stop
Art:
2005.4 Copied
Black
TS 35
45.5 mm
7.5 mm
31 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
4.7 g
50

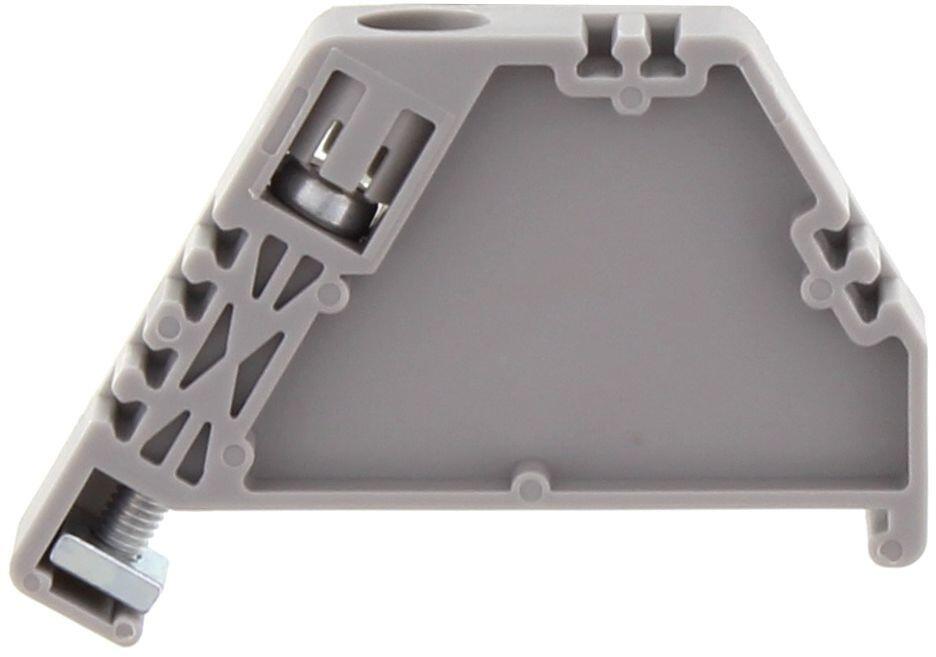

ES 35 - Grey, Compact TS 35 screw end stop
Art:
2005.6 Copied
Grey
TS 35
45.5 mm
7.5 mm
31 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
4.7 g
50

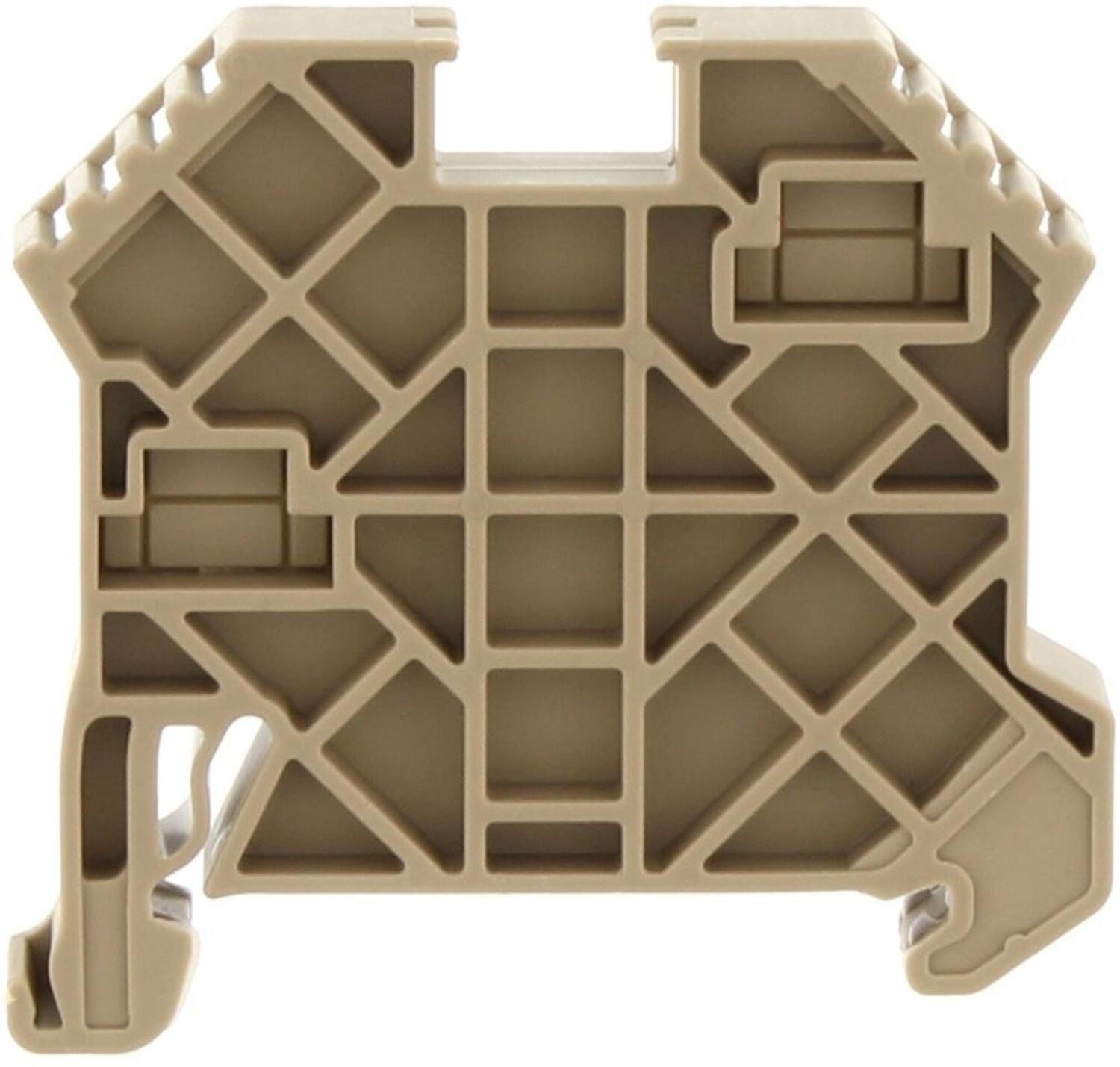

SES 35 - Beige, Snap on TS35 heavy duty end stop (SRK Profile)
Art:
17250.2 Copied
Beige
TS 35
98 mm
8 mm
47.1 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
7.95 g
50

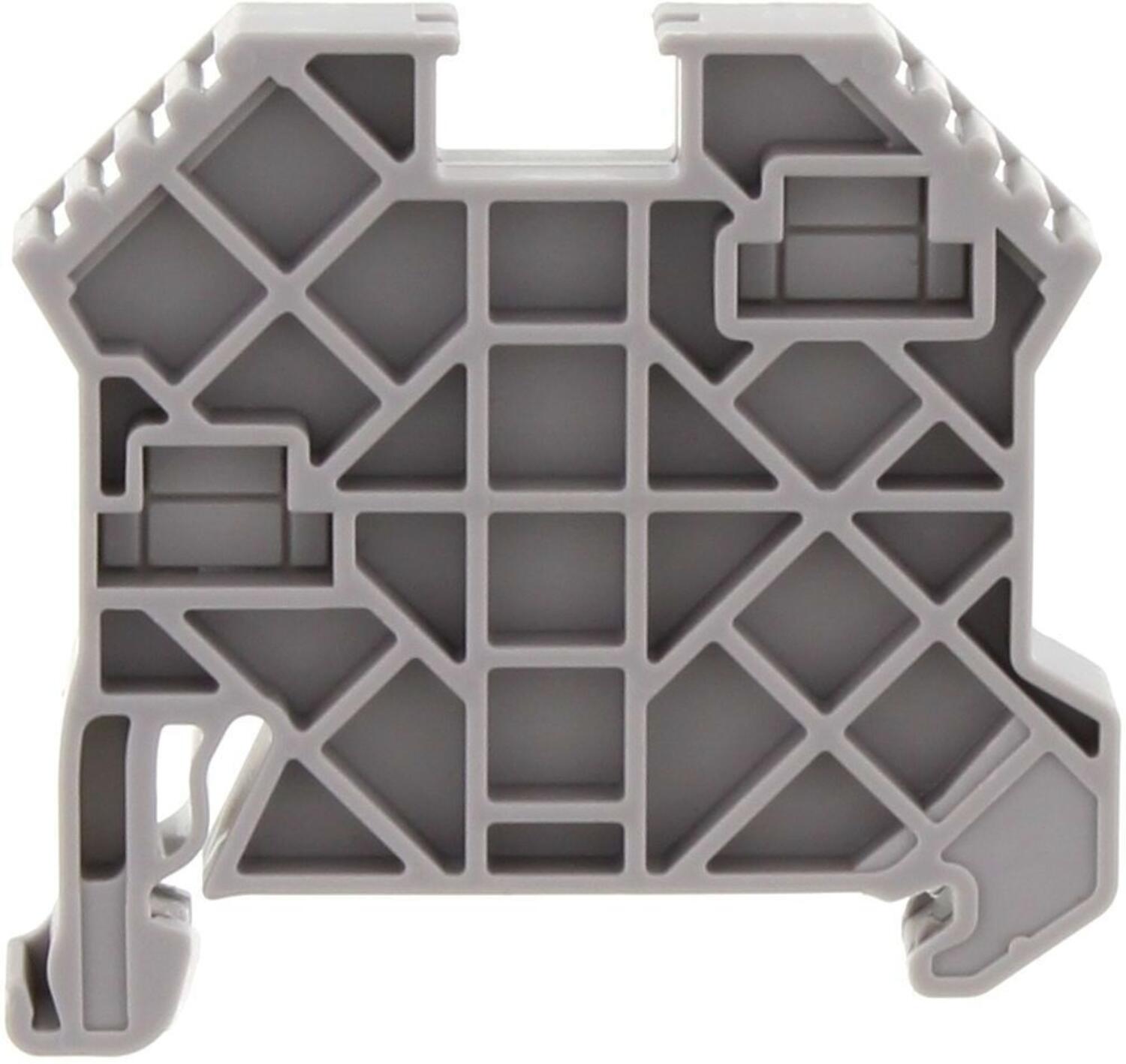

SES 35 - Grey, Snap on TS35 end stop (SRK Profile)
Art:
17250.6 Copied
Grey
TS 35
98 mm
8 mm
47.1 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
7.95 g
50

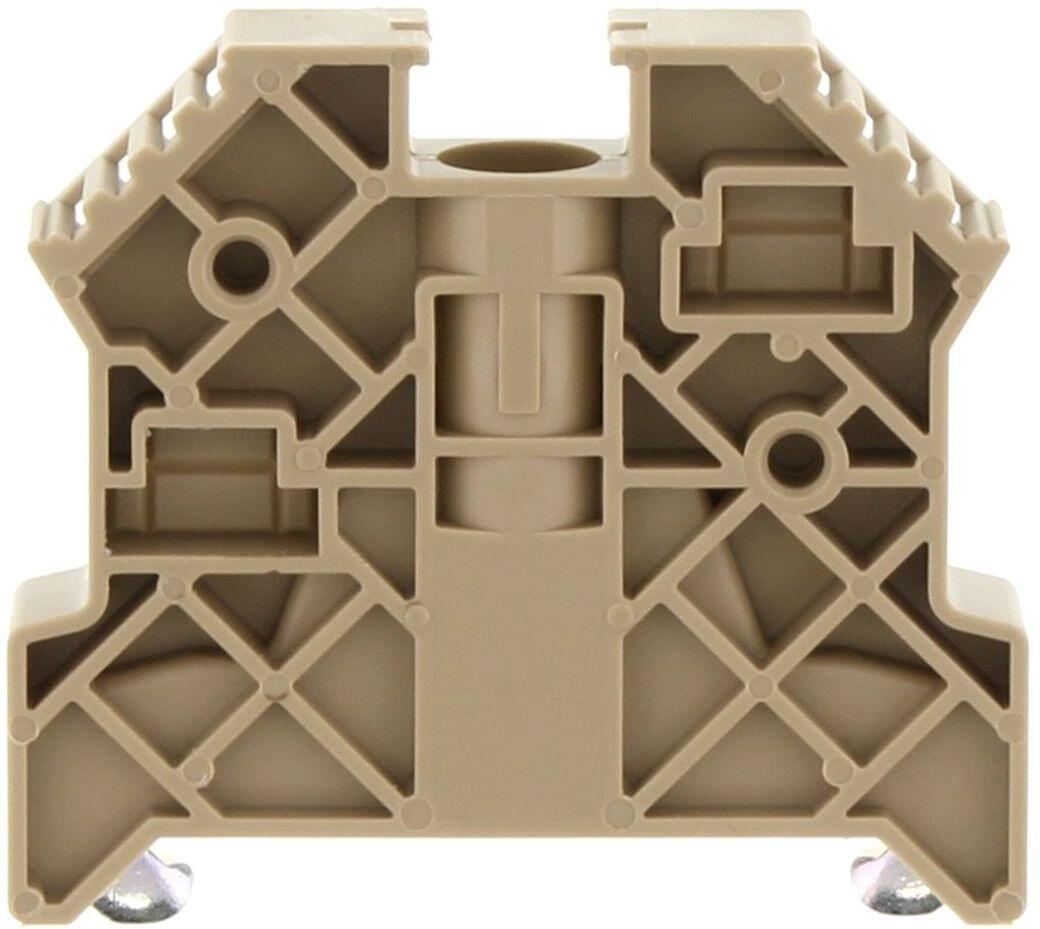

ES 35/K/ST - Beige, Heavy duty TS35 screw end stop
Art:
2828.0 Copied
Beige
TS 35
50 mm
9.5 mm
44 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
20.8 g
50

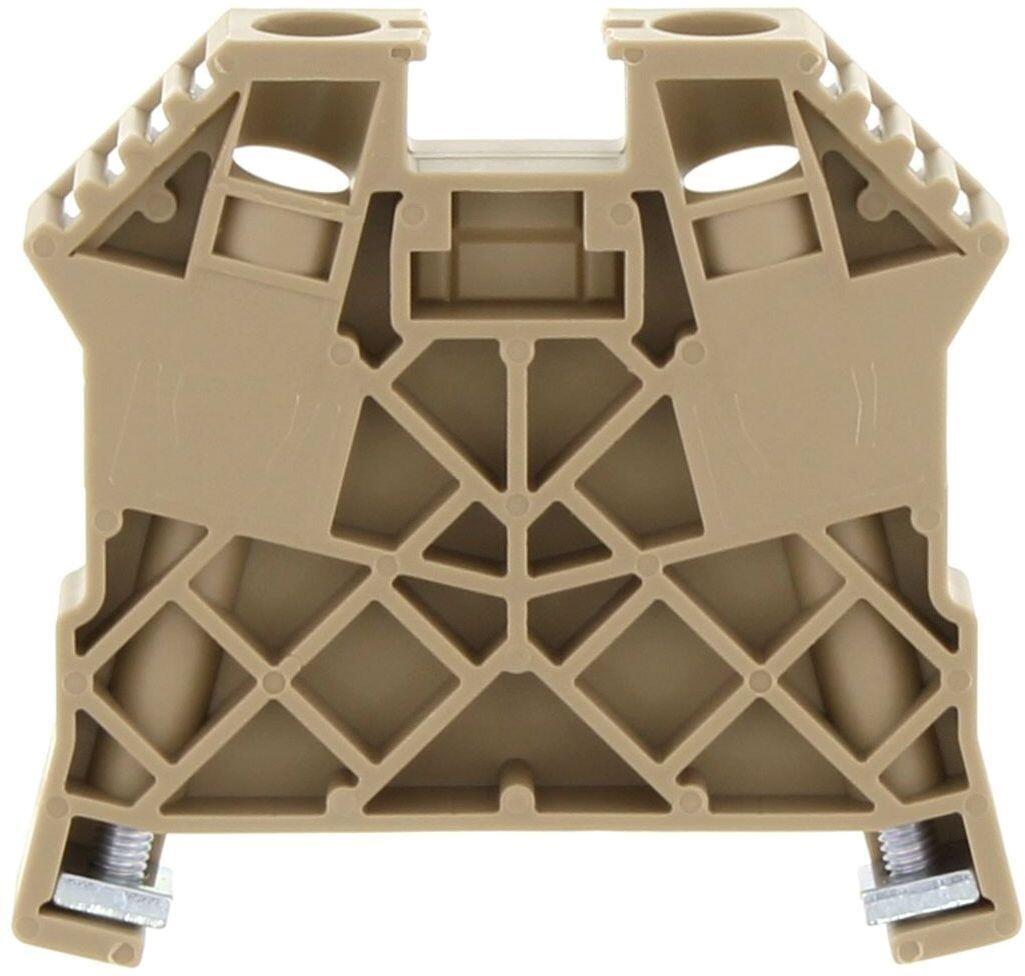

ES 35/2/K Beige, Twin screw heavy duty end stop TS35
Art:
2826.2 Copied
Beige
TS 35
50 mm
8 mm
47 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
10.9 g
50

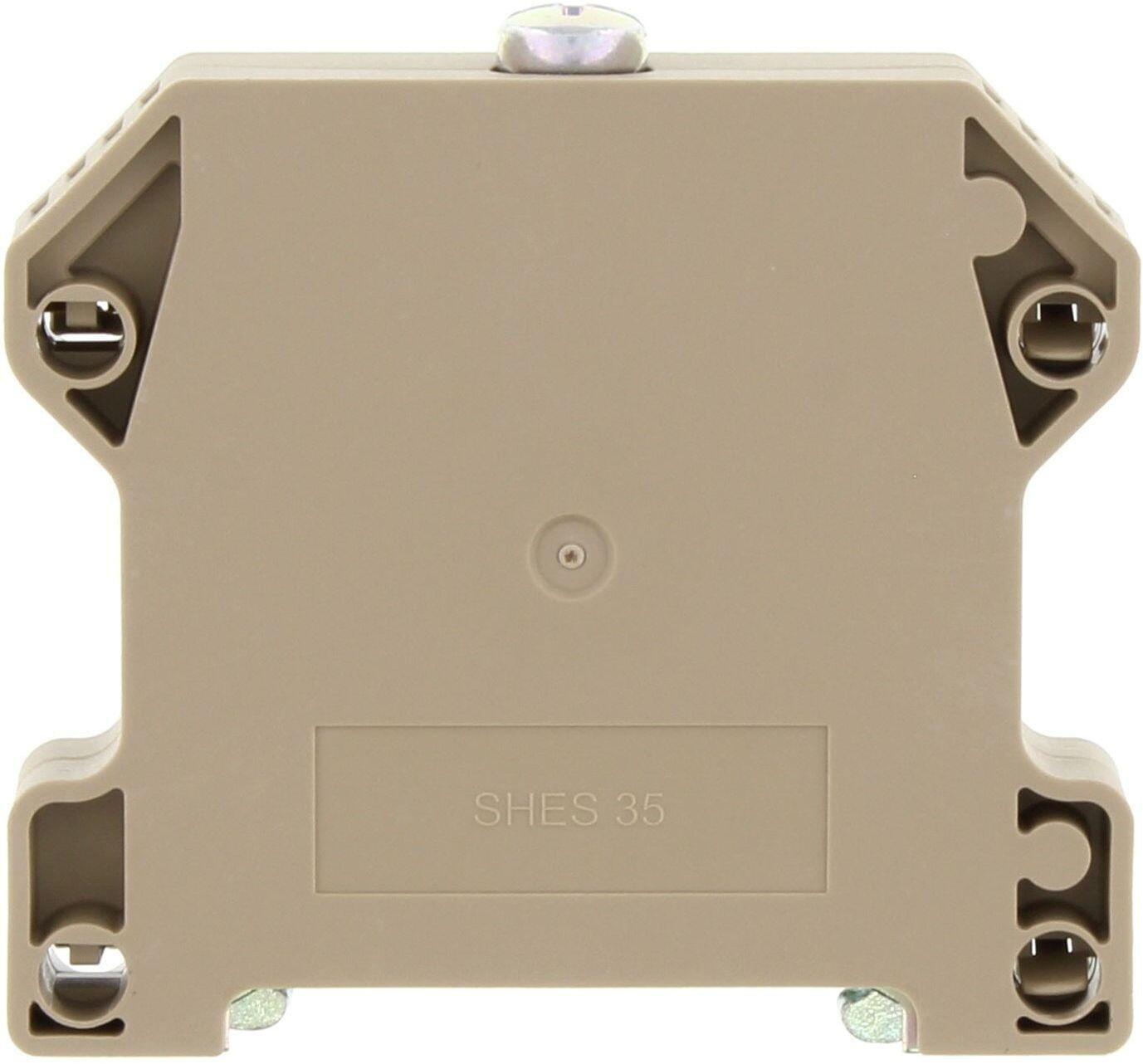

SHES 35 - Beige, Ultra heavy duty metal/plastic TS35 screw end stop
Art:
17259.2 Copied
Beige
TS 35
66 mm
13.4 mm
60.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
74.49 g
20

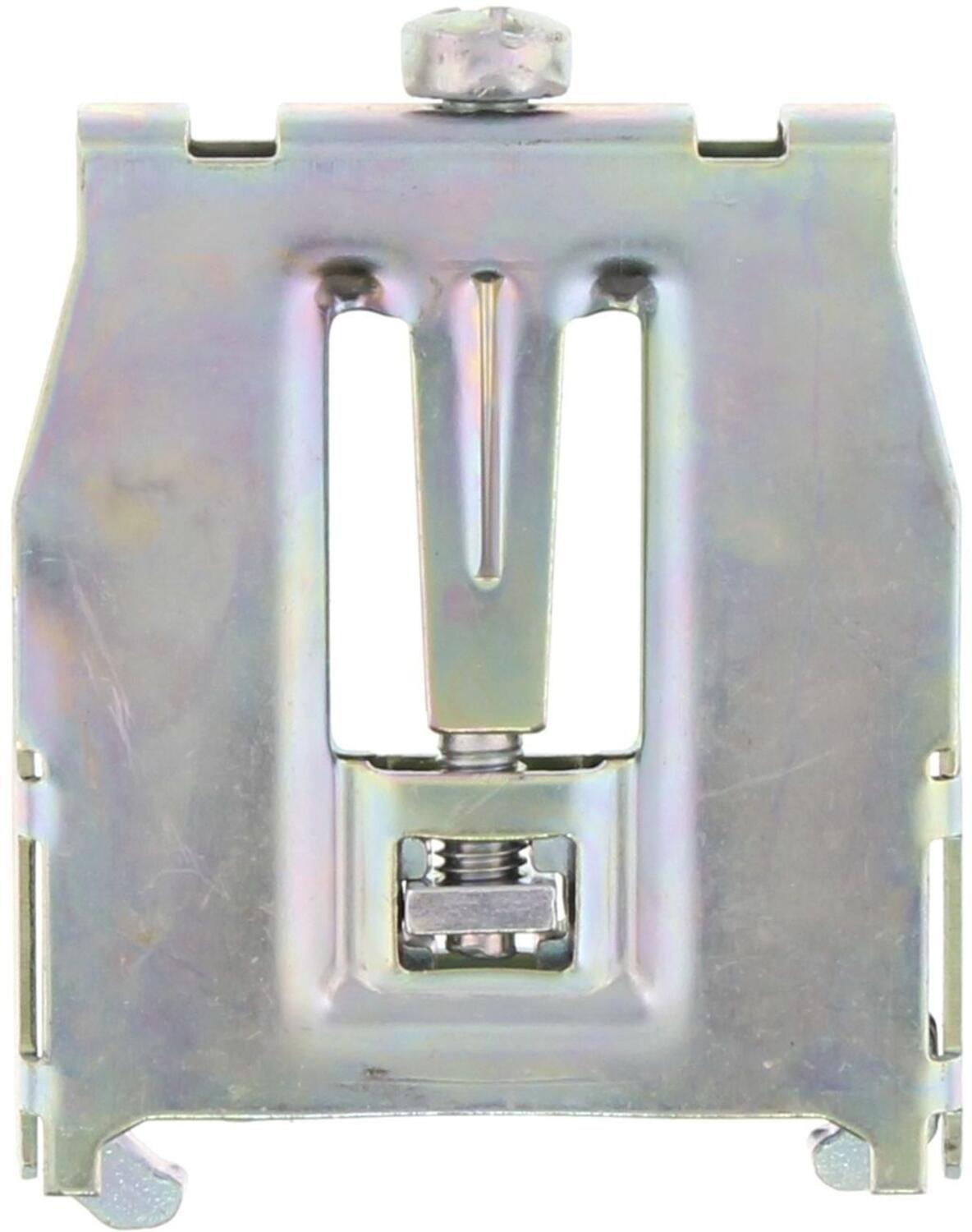

HES 35/ST, Metal heavy duty TS35 screw end stop
Art:
2761.0 Copied
TS 35
49 mm
10 mm
64 mm
Steel
85389099
DE
54.6 g
50
Galvanized

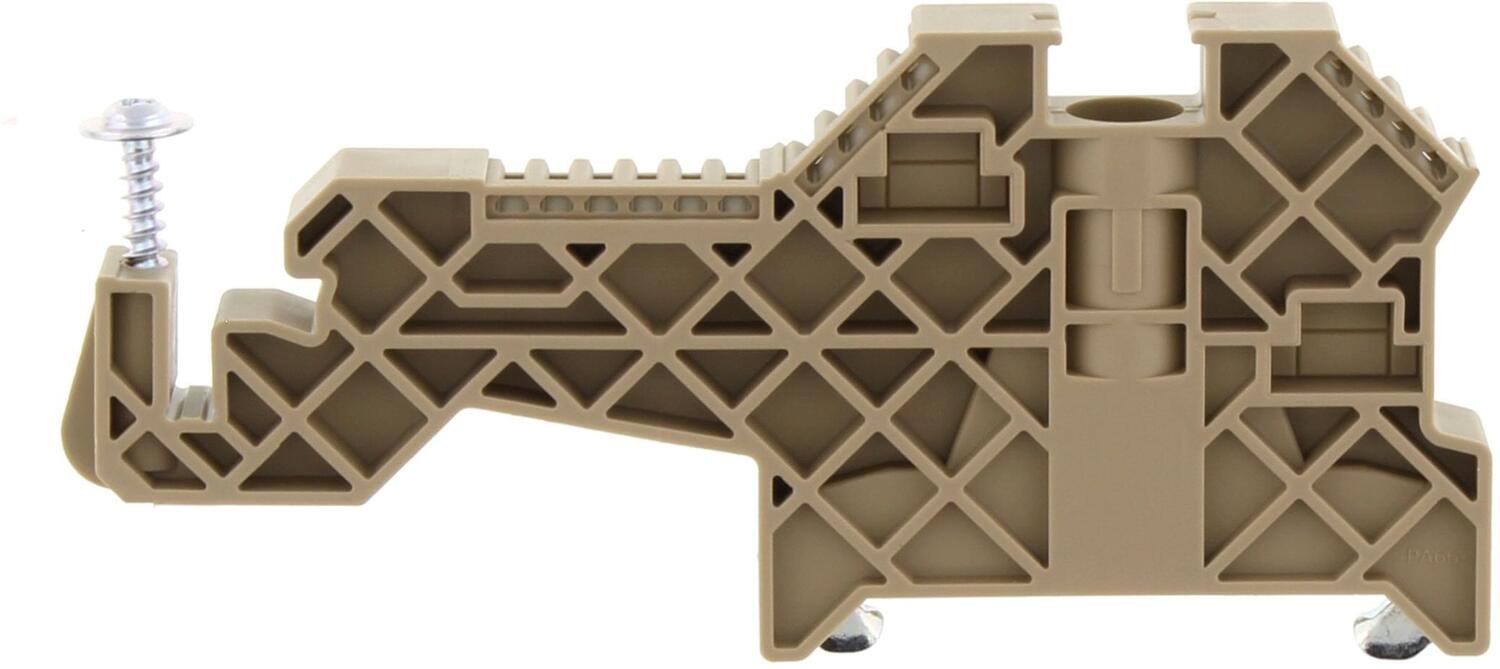

SH-SAB - Beige, Busbar support combined with end stop
Art:
1530.2 Copied
Beige
TS 35
50 mm
9.5 mm
44 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
25.44 g
10

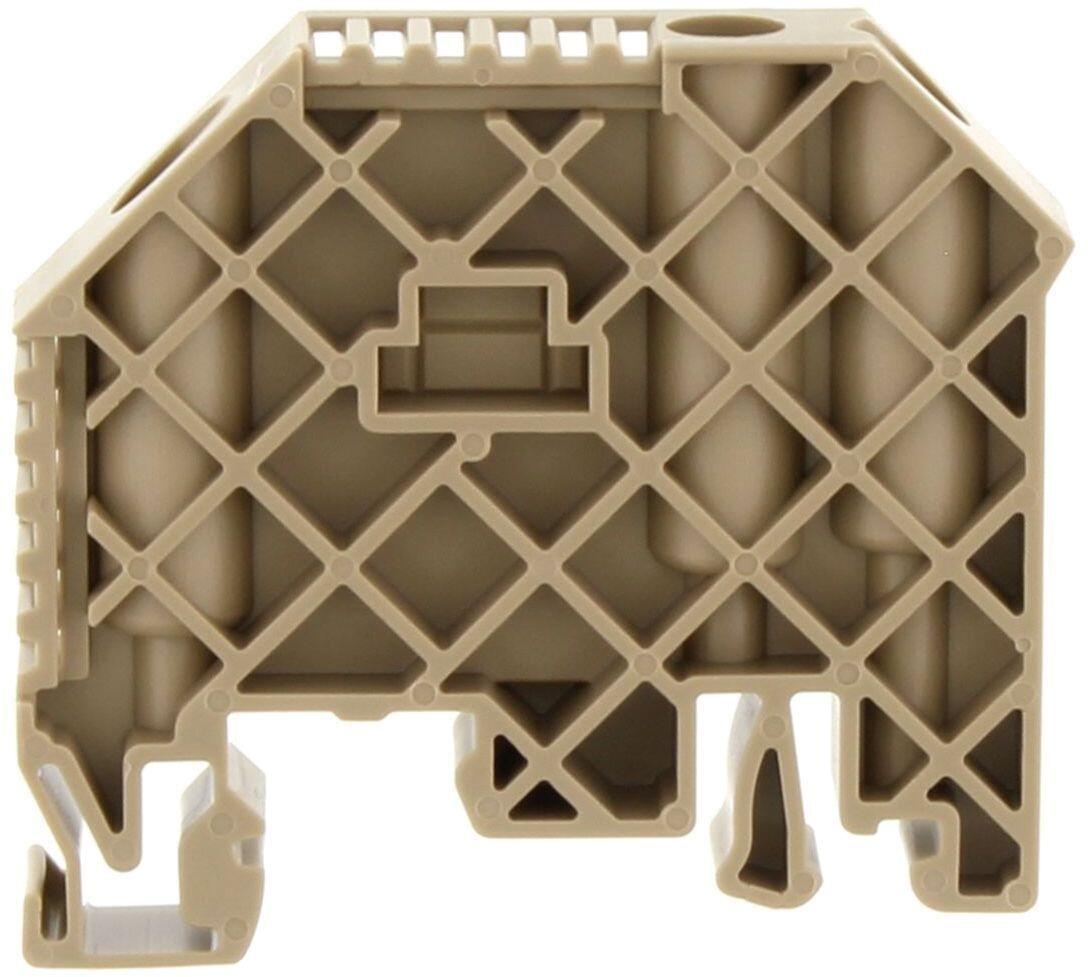

ES 32/35 - Beige, Combi TS32/35 screw end stop
Art:
1424.2 Copied
Beige
TS 35 and TS 32
52 mm
9.5 mm
47 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
11.52 g
50

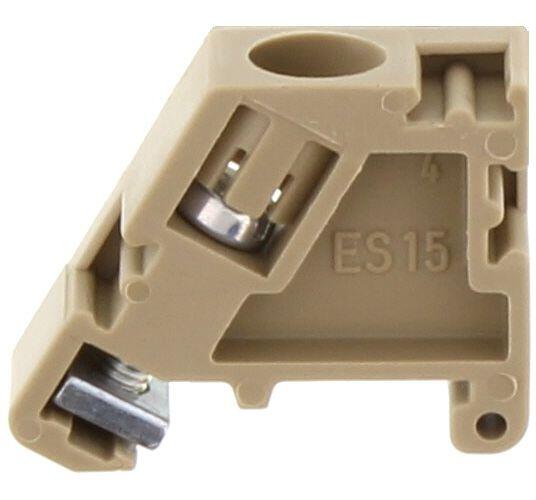

ES 15 - Beige, Compact TS15 screw end stop
Art:
2074.2 Copied
Beige
TS 15
26 mm
7.5 mm
22 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.74 g
50

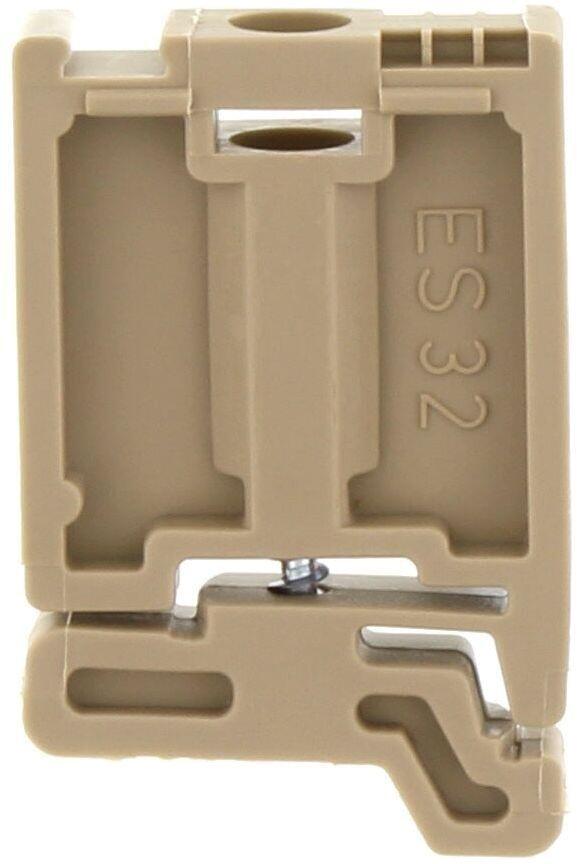

ES 32 - Beige, Compact TS32 screw end stop
Art:
2004.2 Copied
Beige
TS 32
27 mm
7.5 mm
44 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
5.5 g
50

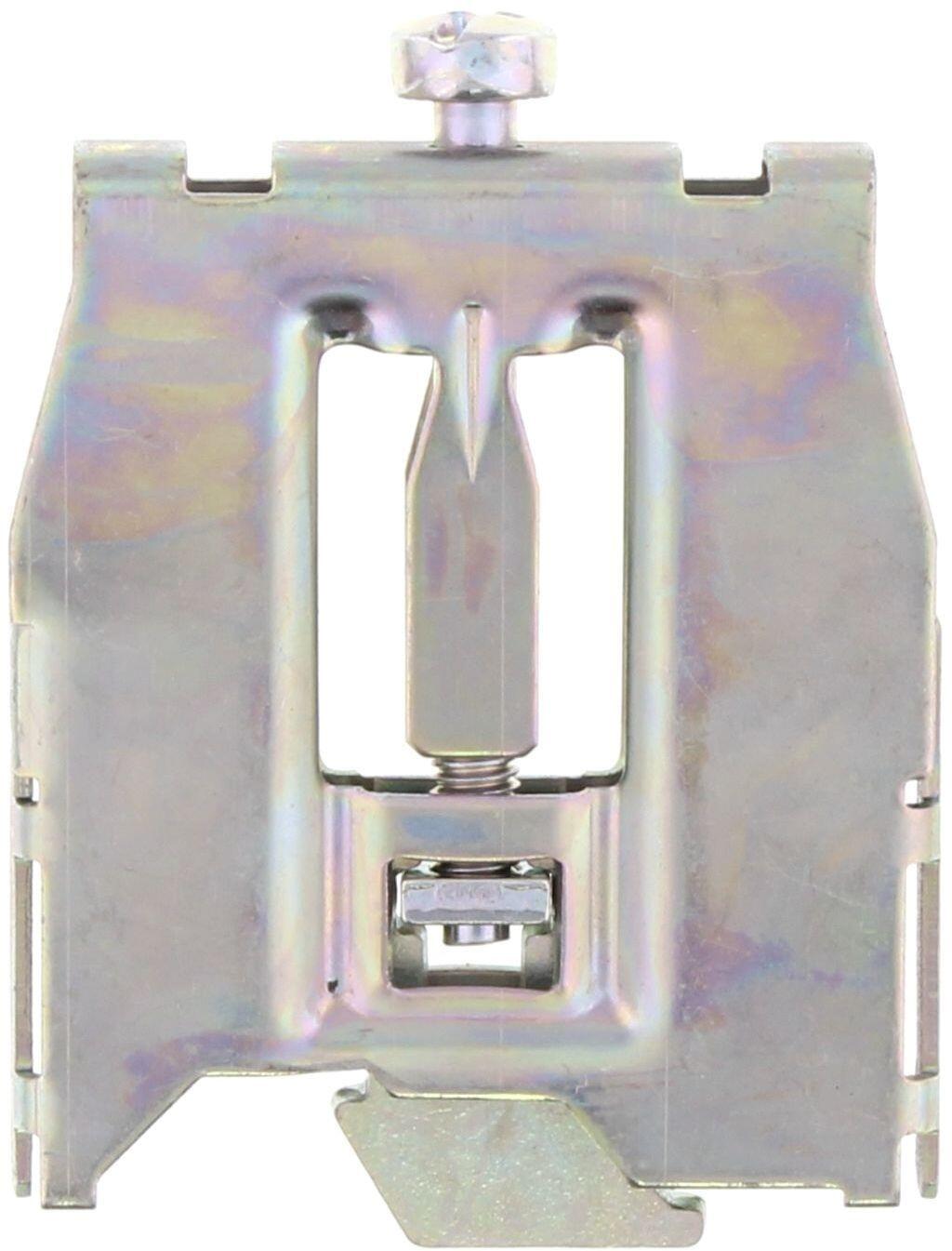

HES 32/ST - Metal TS32 screw end stop
Art:
2760.0 Copied
TS 35
49 mm
10 mm
64 mm
Steel
-40 °C
105 °C
85389099
DE
54.6 g
50
Galvanized

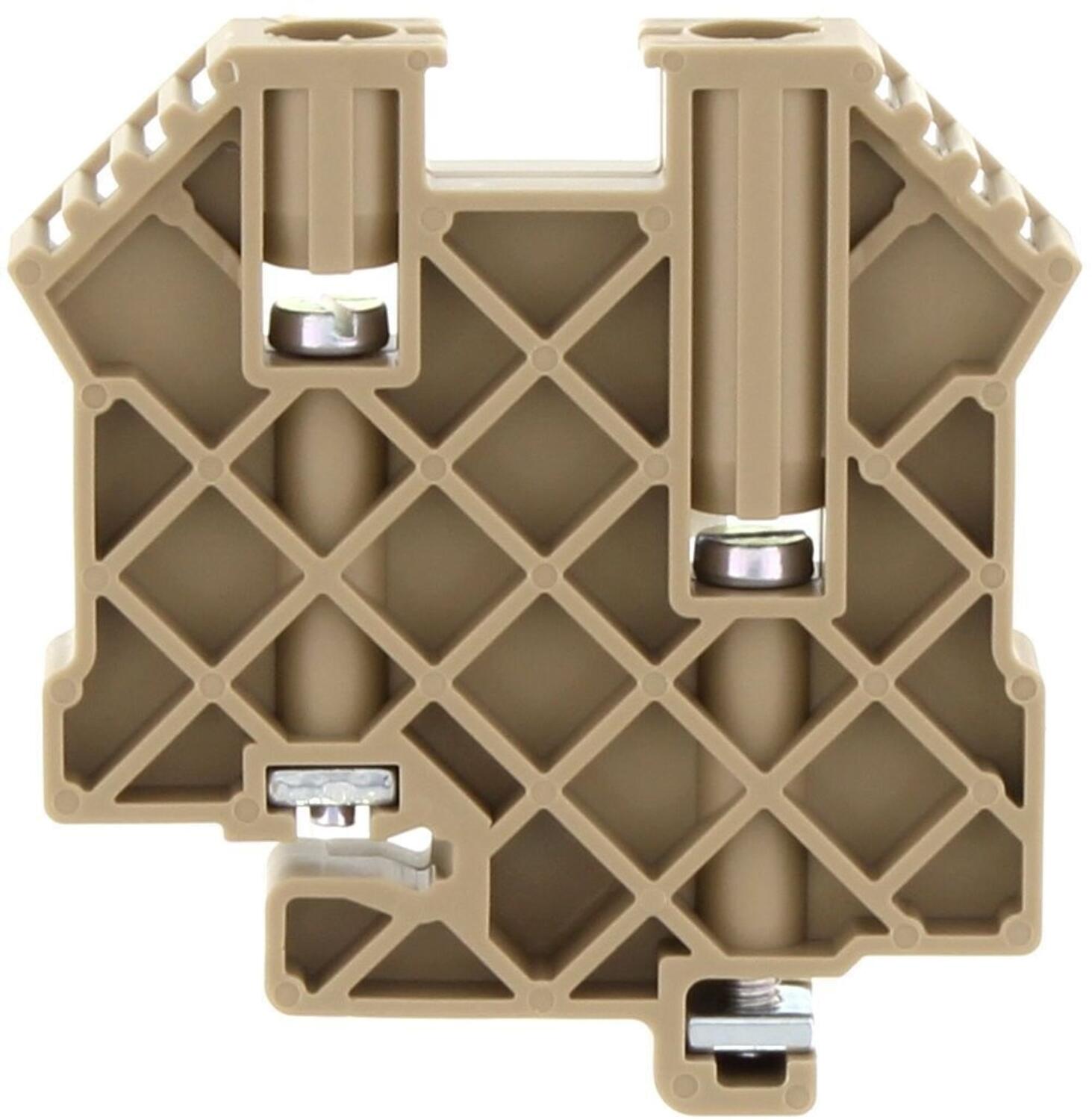

ES 32/2/K- Beige, Twin heavy duty TS32 screw end stop
Art:
2825.2 Copied
Beige
TS 32
48 mm
8 mm
48 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
11.36 g
50

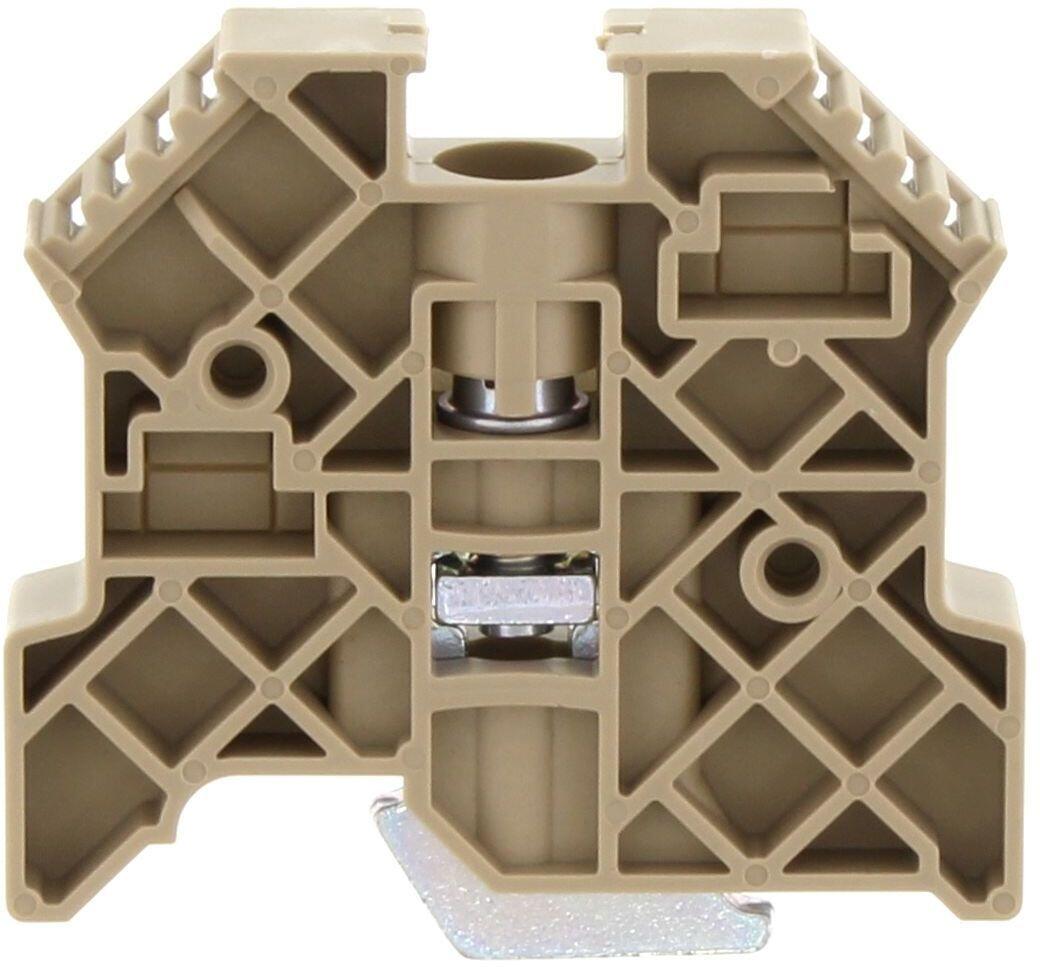

ES 32/K/ST - Beige, Heavy duty TS32 screw end stop
Art:
2827.0 Copied
Beige
TS 32
50 mm
9.5 mm
44 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
17.74 g
50

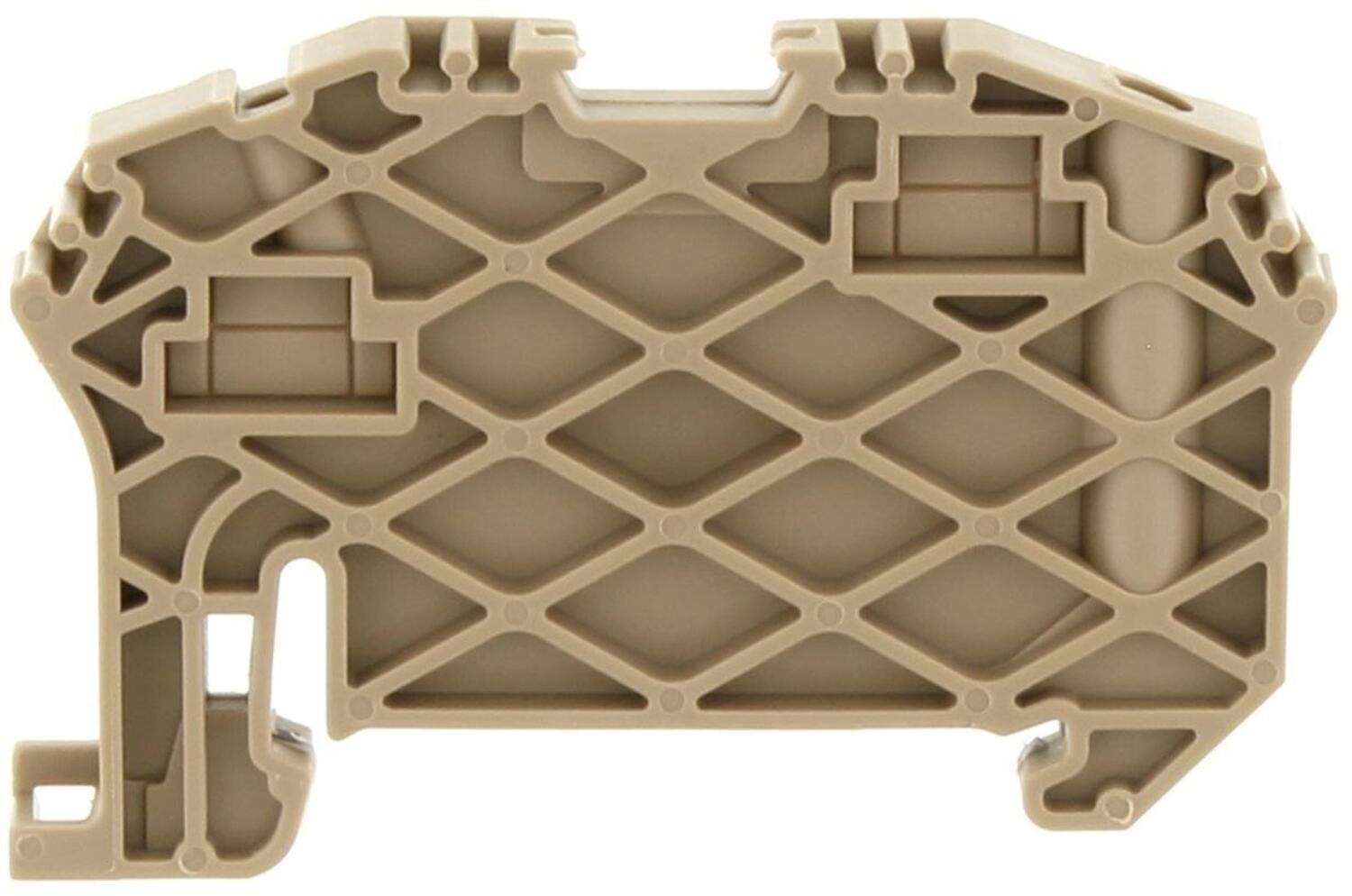

ZES 35 Beige, Snap on TS35 medium profile end stop
Art:
3748.2 Copied
Beige
TS 35
59 mm
6 mm
38.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
6.14 g
50

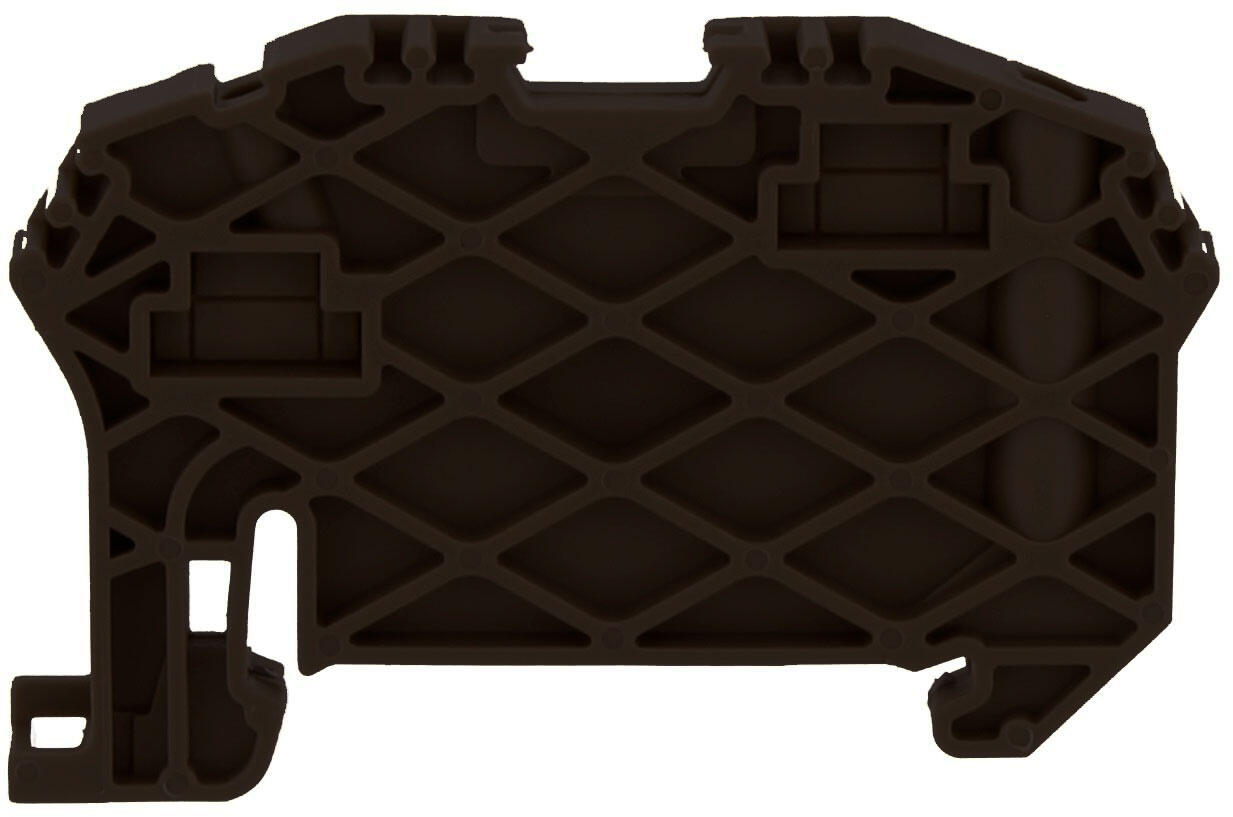

ZES 35 - Black, Snap on TS35 medium profile end stop
Art:
3748.4 Copied
Black
TS 35
59 mm
6 mm
38.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
6.14 g
50

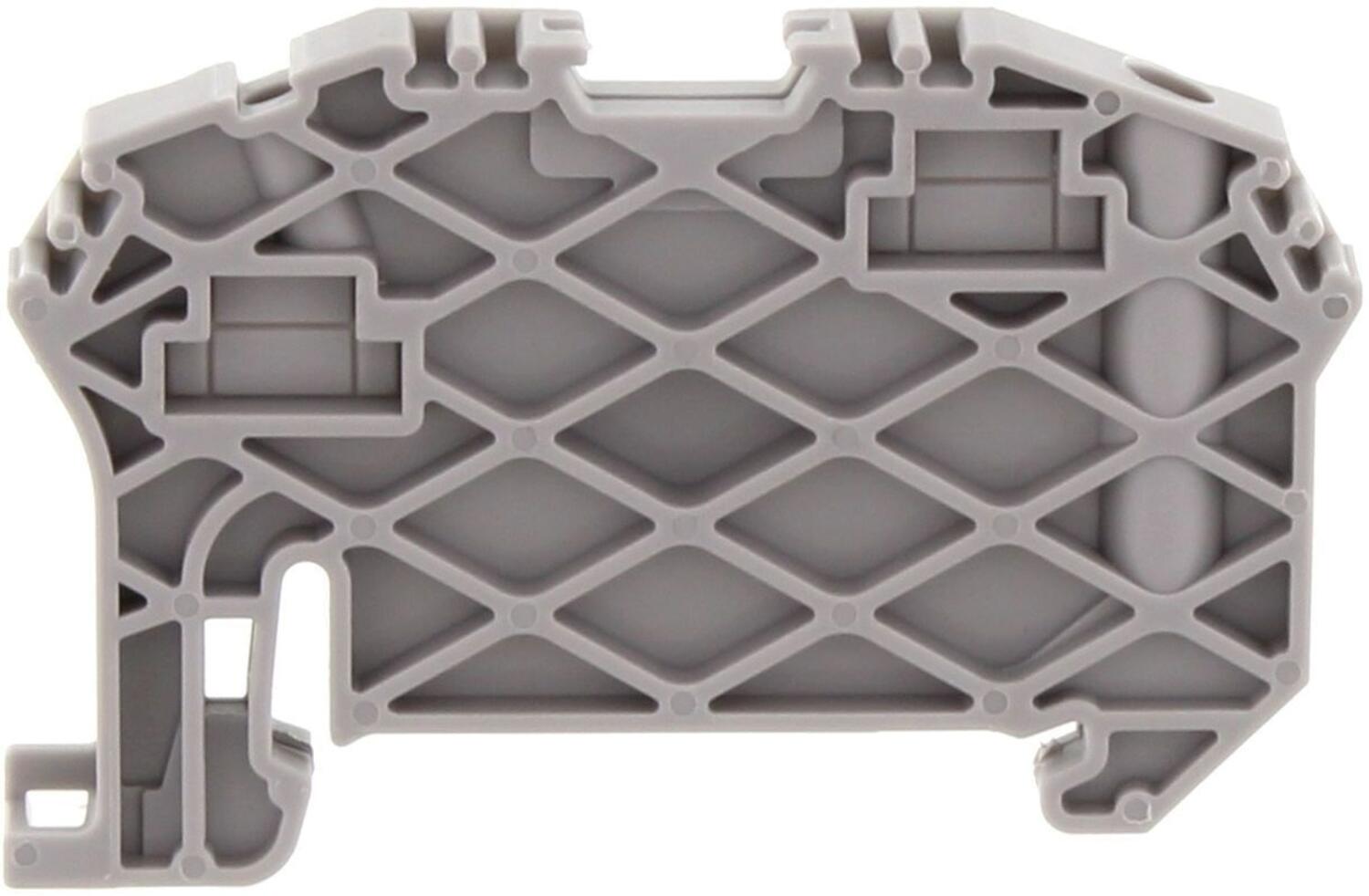

ZES 35 - Grey, Snap on TS35 medium profile end stop
Art:
3748.6 Copied
Grey
TS 35
59 mm
6 mm
38.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
6.14 g
50

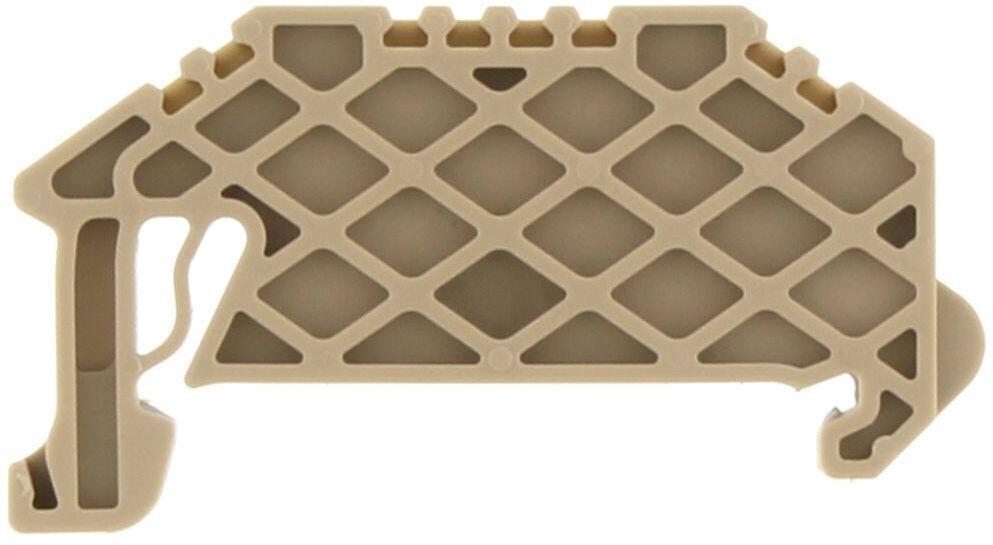

ZES 35/2 - Beige, Snap on TS35 low profile end stop
Art:
3811.2 Copied
Beige
TS 35
48 mm
5 mm
26.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
3.15 g
50

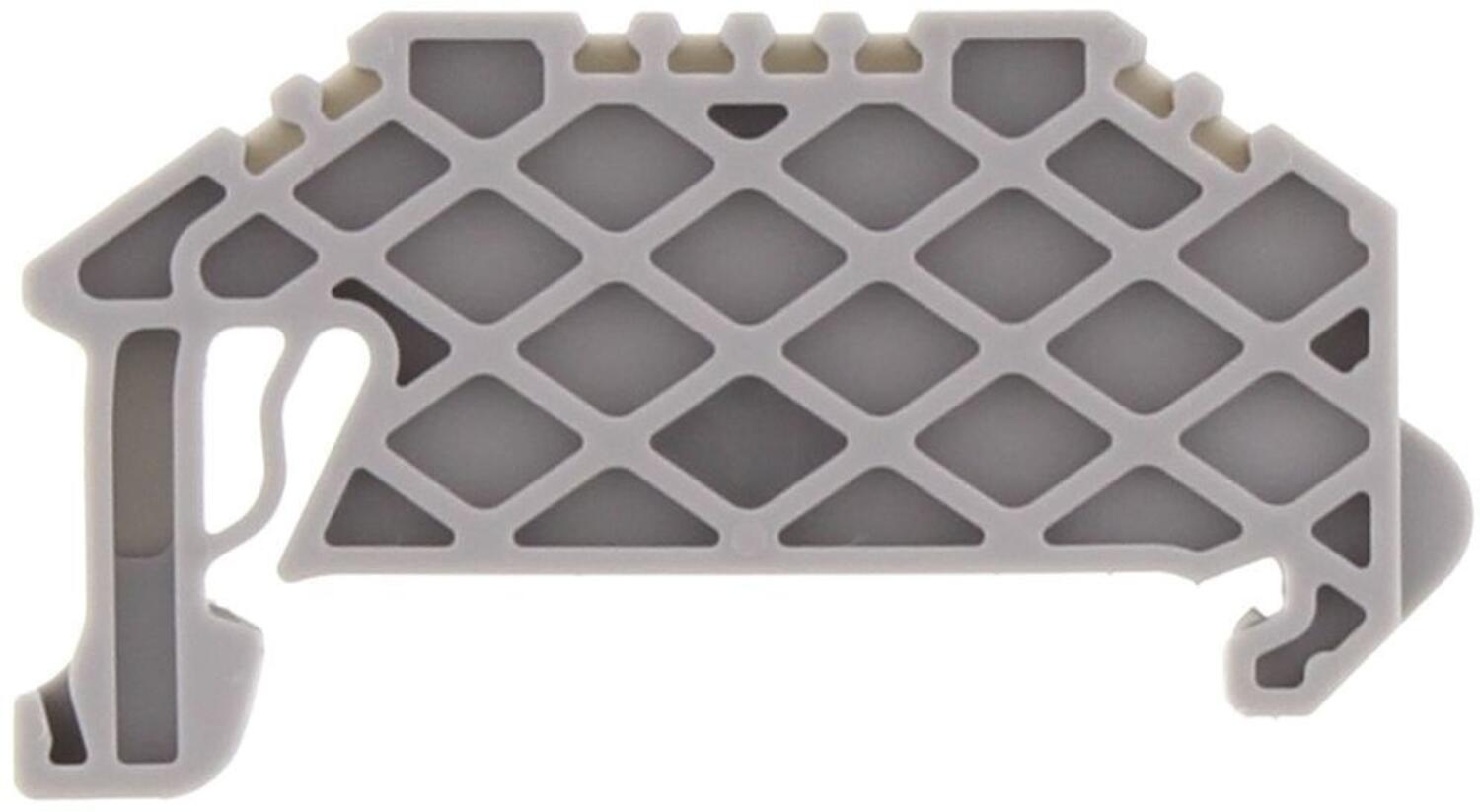

ZES 35/2 - Grey, Snap on TS35 low profile end stop
Art:
3811.6 Copied
Grey
TS 35
48 mm
5 mm
26.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
3.15 g
50

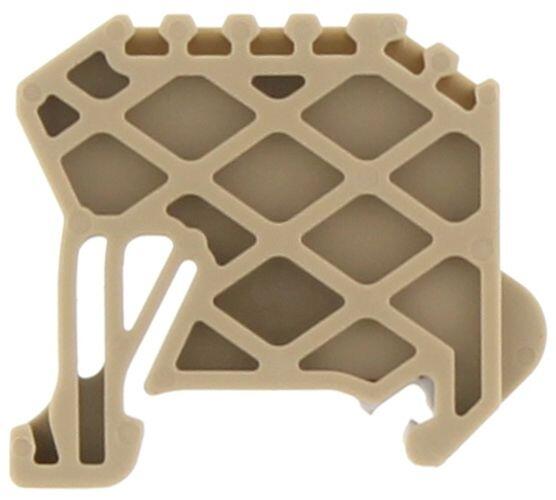

ZES 15 - Beige, Compact TS15 snap on end stop
Art:
3812.2 Copied
Beige
TS 15
27 mm
5 mm
23.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
1.64 g
50

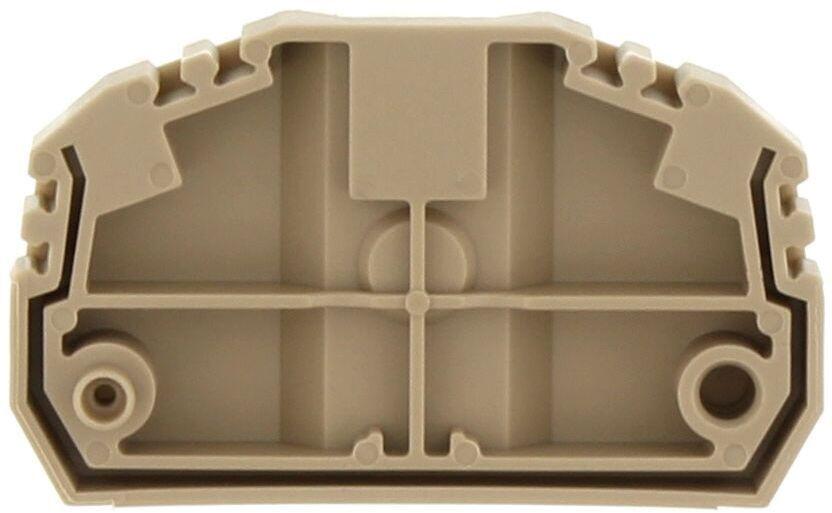

ZEH 1 - Beige, End support for ZSRKD direct mount
Art:
3759.2 Copied
Beige
surface mounted
40 mm
11.1 mm
24 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.21 g
50

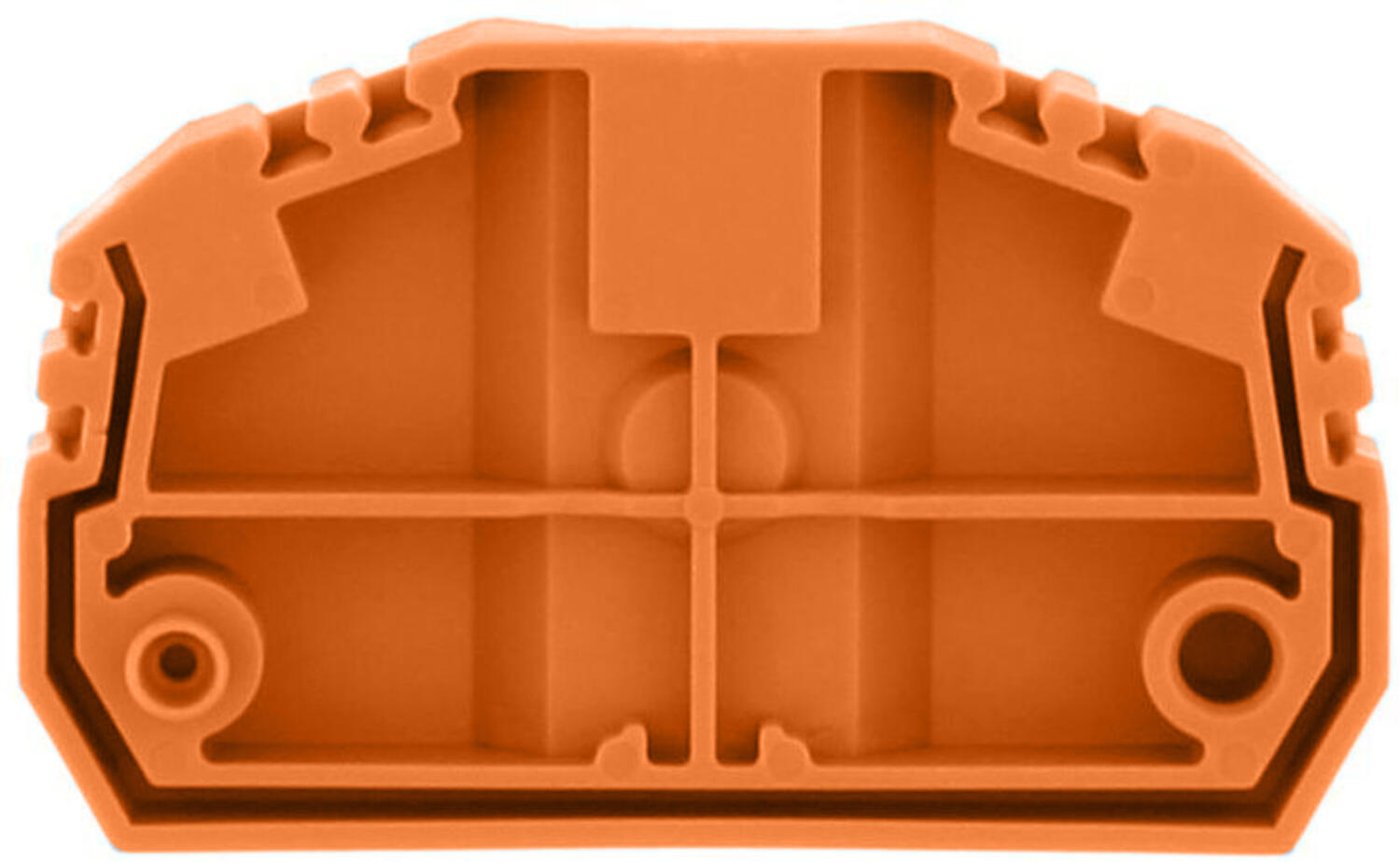

ZEH 1 - Orange, End support for ZSRKD direct mount
Art:
3759.3 Copied
Orange
surface mounted
40 mm
11.1 mm
24 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.21 g
50

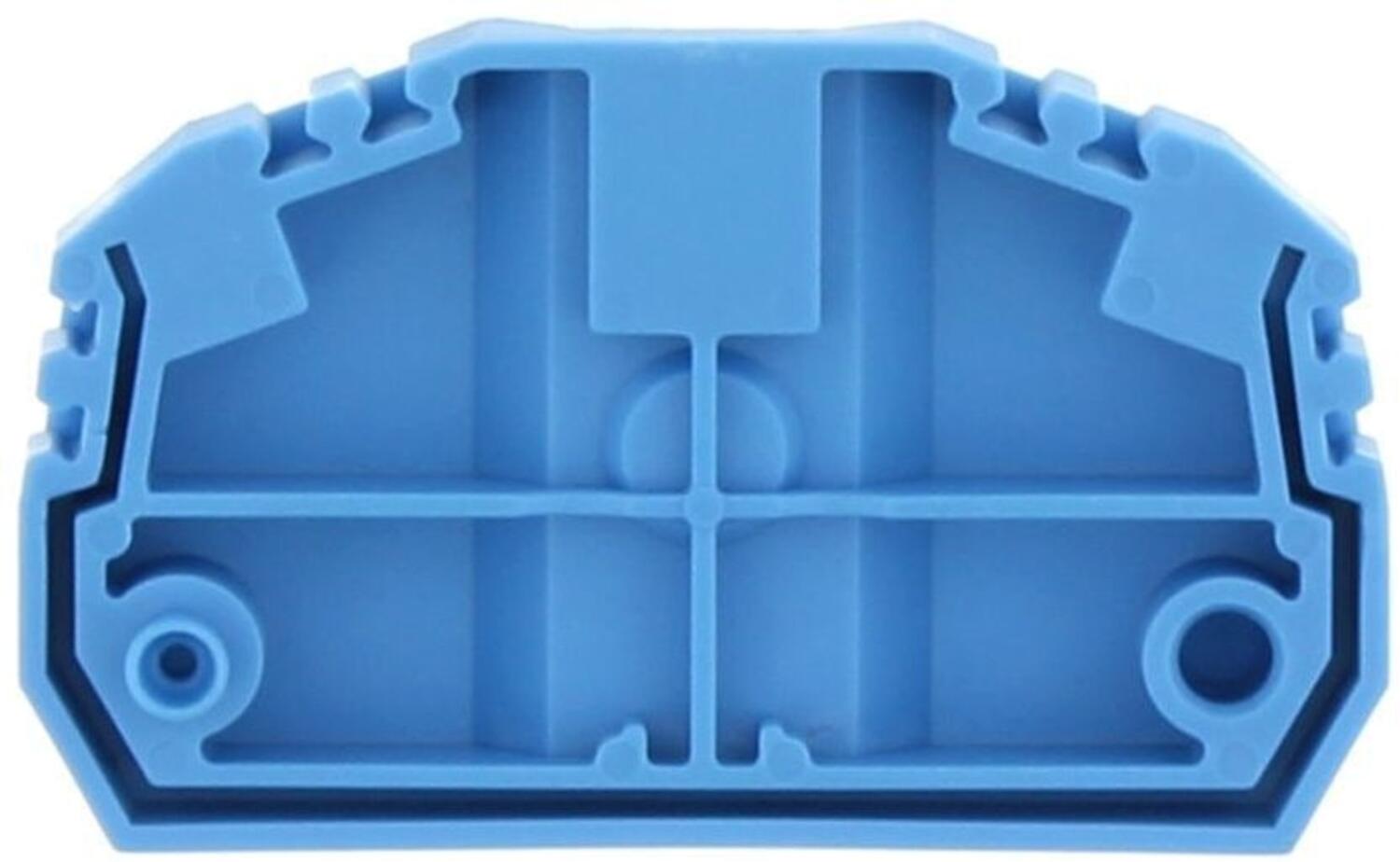

ZEH 1 - Blue, End support for ZSRKD direct mount
Art:
3759.5 Copied
Blue
surface mounted
40 mm
11.1 mm
24 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.21 g
50

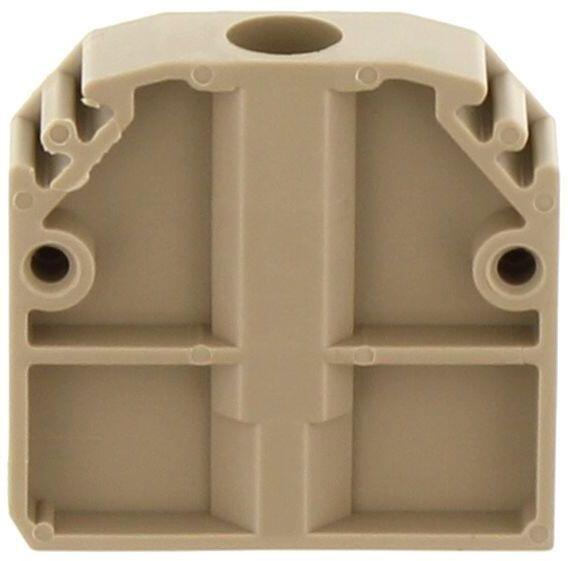

EH 1 - Beige, End support for RKB 4 direct mount
Art:
2135.2 Copied
Beige
surface mounted
27 mm
7 mm
21 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.4 g
50

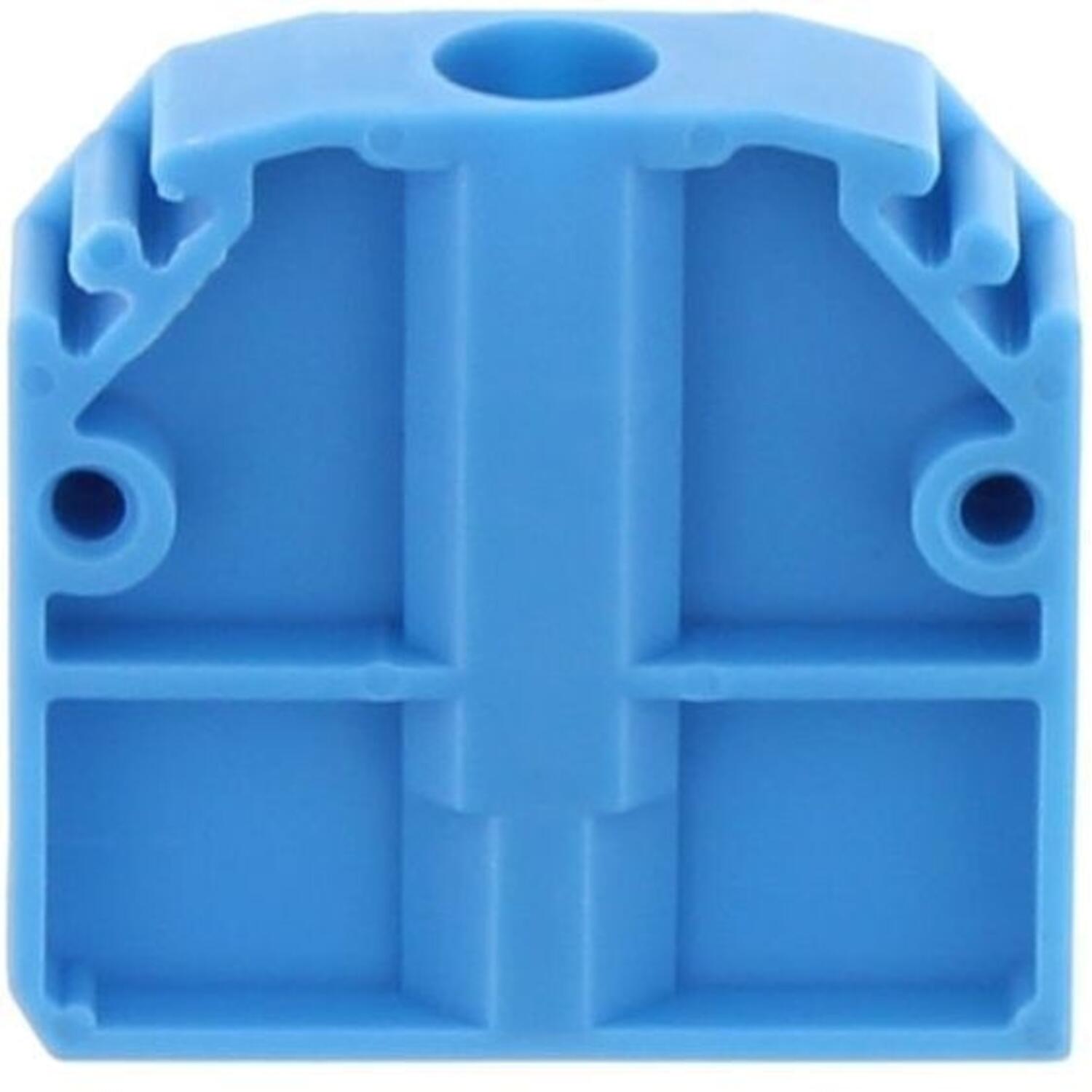

EH 1 - Blue, End support for RKB 4 direct mount
Art:
2135.5 Copied
Beige
surface mounted
27 mm
7 mm
21 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.4 g
50

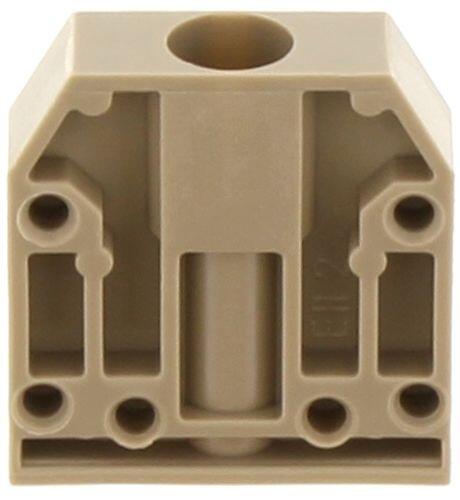

EH 2 - Beige, End support for BKA 2.5/4 direct mount
Art:
2136.2 Copied
Beige
surface mounted
27 mm
7 mm
21 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.4 g
50

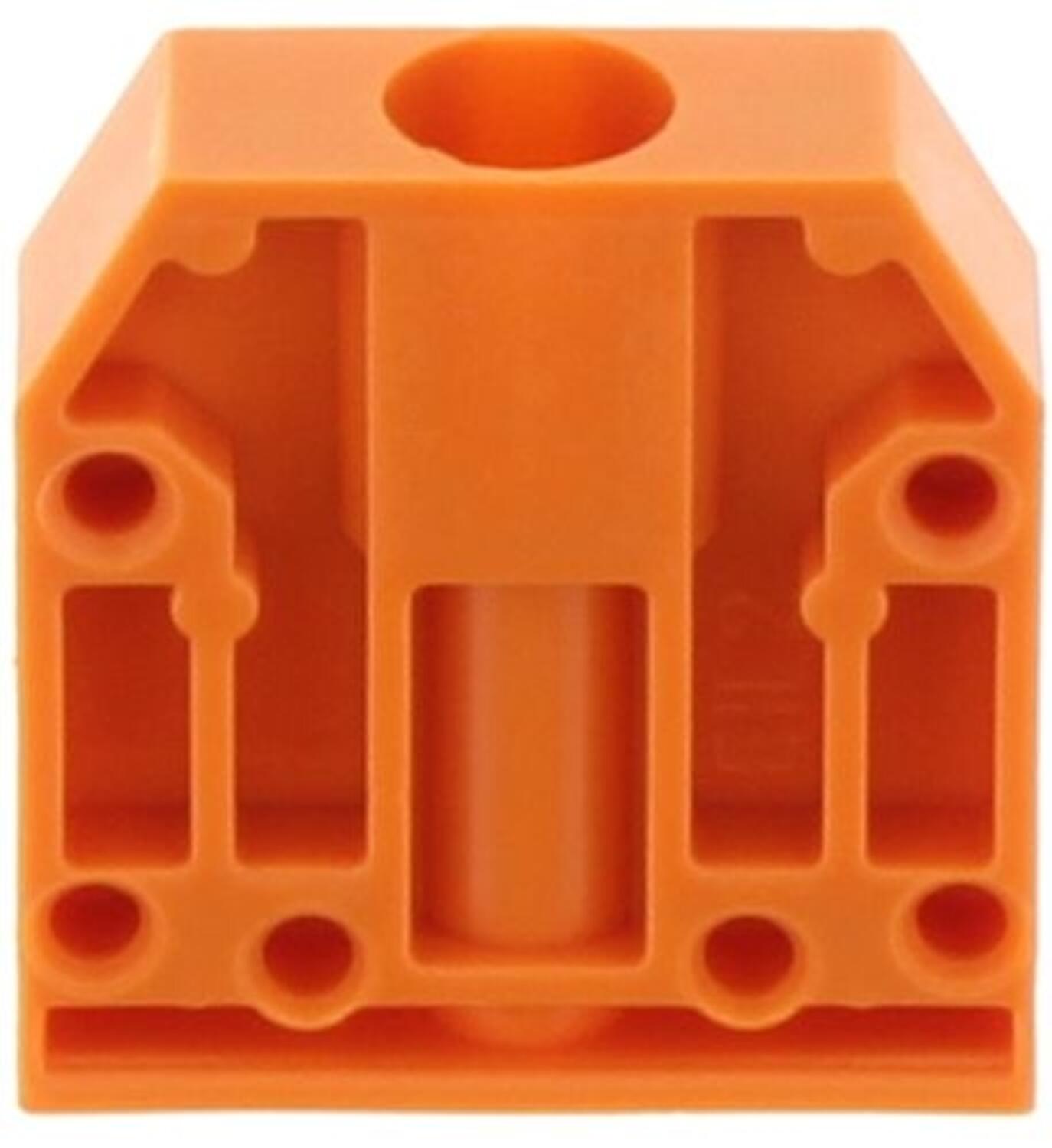

EH 2 - Orange, End support for BKA 2.5/4 direct mount
Art:
2136.3 Copied
Orange
surface mounted
27 mm
7 mm
21 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.4 g
50

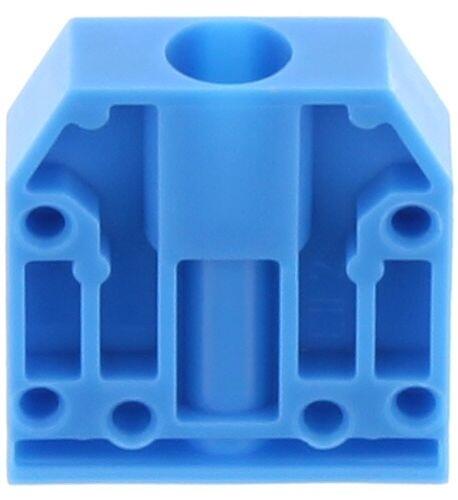

EH 2 - Blue, End support for BKA 2.5/4 direct mount
Art:
2136.5 Copied
Blue
surface mounted
27 mm
7 mm
21 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.4 g
50

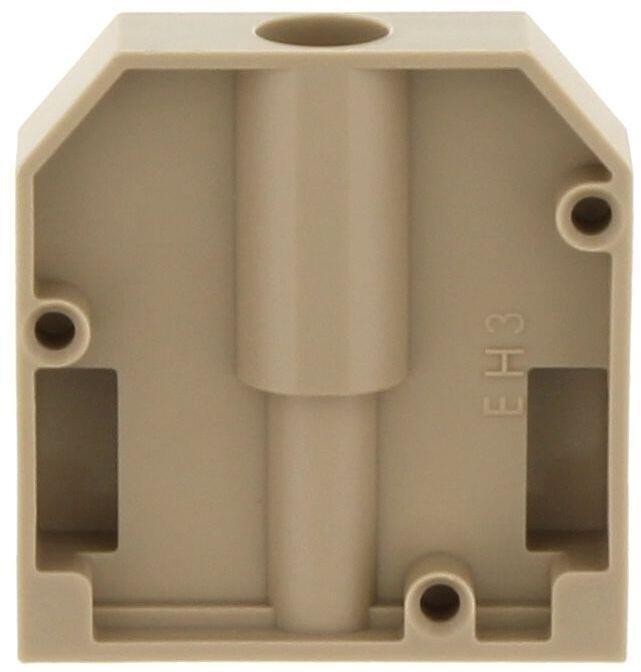

EH 3 - Beige, End support for BKA 10 direct mount
Art:
2939.2 Copied
Beige
surface mounted
30 mm
8 mm
31 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.74 g
20

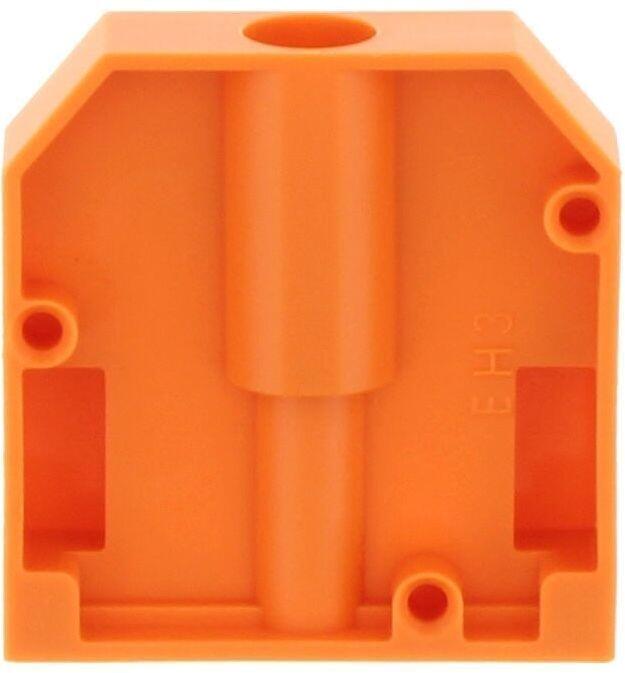

EH 3 - Orange, End support for BKA 10 direct mount
Art:
2939.3 Copied
Orange
surface mounted
30 mm
8 mm
31 mm
3.5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85389099
DE
2.74 g
20

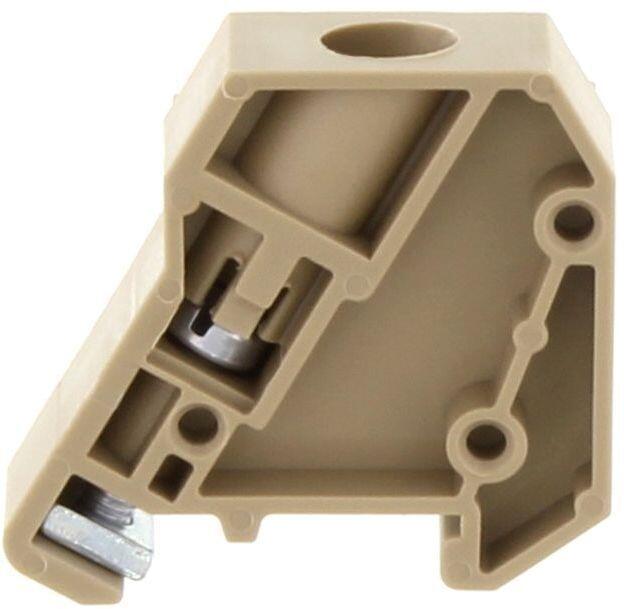

EH 15, End bracket for BKA 2.5/4, TS15
Art:
2945.2 Copied
Beige
TS 15
31 mm
9 mm
28 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
3.72 g
50

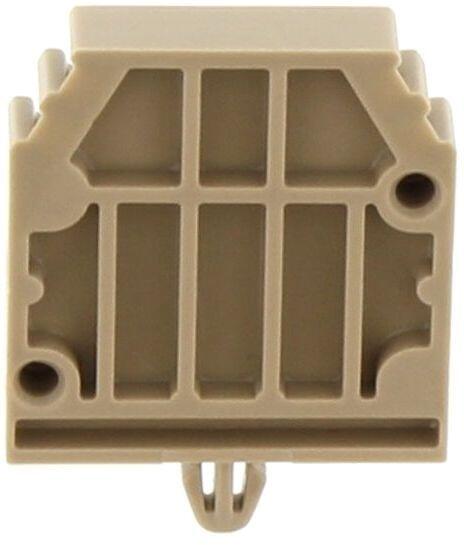

EH 2/Z, End bracket, snap in surface mount for BKA 2.5/4
Art:
2147.2 Copied

Selected variant
