CONTA-CLIP
End plates are usually inserted at the end of a rail of terminals or when a smaller terminal is used next to a larger one.
This ensures contact protection and the safety of fingers.
The outer dimensions of the end plates correspond to the dimensions of the terminal blocks.
Coloured end plates are often used to mark different power circuits or a change in voltage.
The use of end plates lengthens the airways and leakage paths, which in turn influences the rated voltage.
Â
General data |
|
---|---|
Colour | Beige |
Dimensions |
|
Length | 53.9 mm |
Width | 1.5 mm |
Height | 31 mm |
Materials |
|
Material | Polyamide 6.6 |
Flammability class | UL94-V0 |
Operating temperature from | -40 °C |
*Invisible Heading* |
|
---|---|
Operating temperature to | 120 °C |
Additional data |
|
Tariff code | 85369010 |
Country of origin | DE |
Weight | 2 g |
Pack size | 50 Â |
End plates are usually inserted at the end of a rail of terminals or when a smaller terminal is used next to a larger one.
This ensures contact protection and the safety of fingers.
The outer dimensions of the end plates correspond to the dimensions of the terminal blocks.
Coloured end plates are often used to mark different power circuits or a change in voltage.
The use of end plates lengthens the airways and leakage paths, which in turn influences the rated voltage.
Â
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Colour | Length | Width | Height | Flammability class | Operating temperature to | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|
![]()

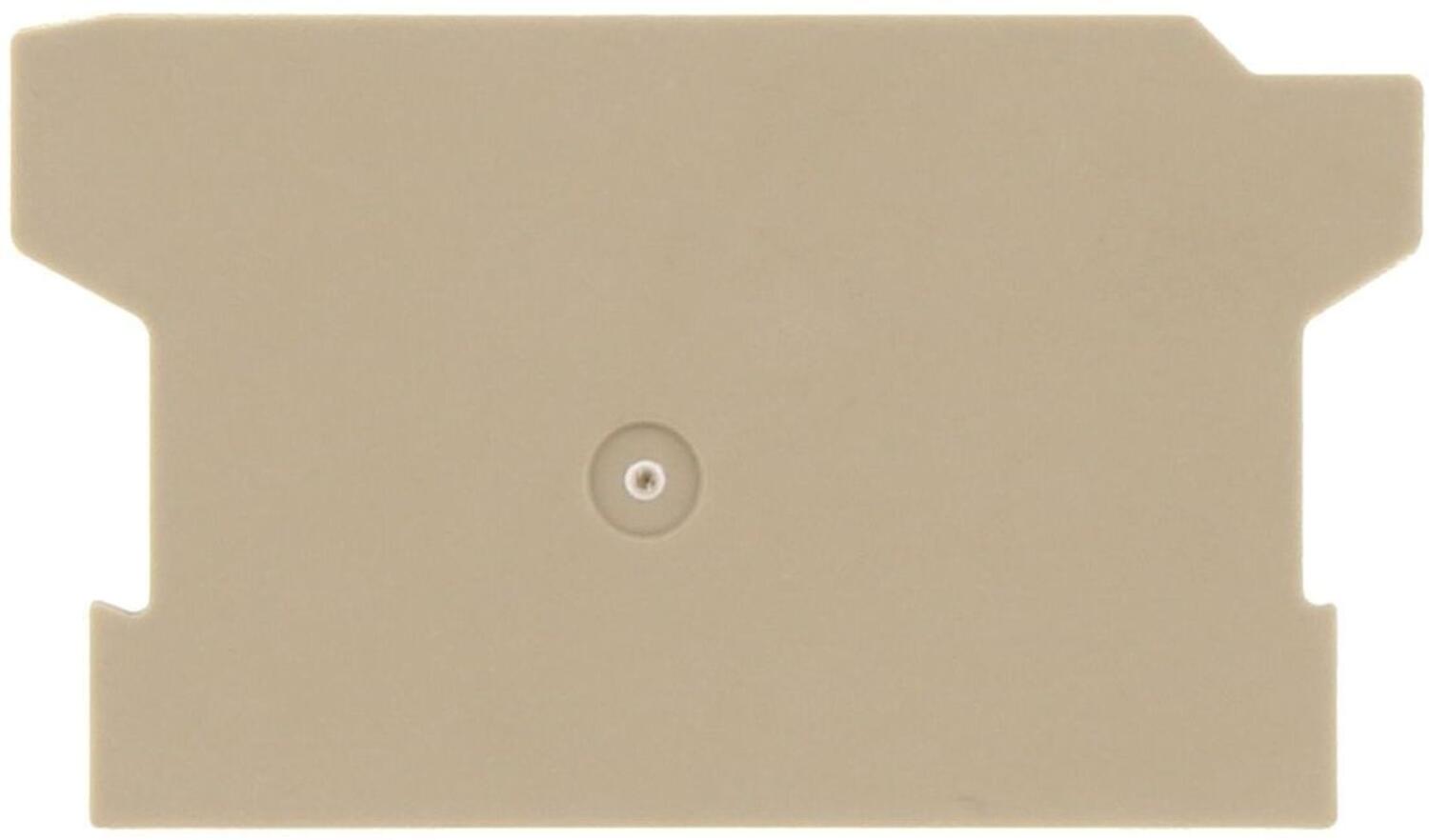

ZAPS 2.5/1A/1S Beige, End plate for ZRKS 2.5/1A/1S
Art:
3680.2
Copied
|
Beige
|
53.9 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2 g
|
| ||
![]()

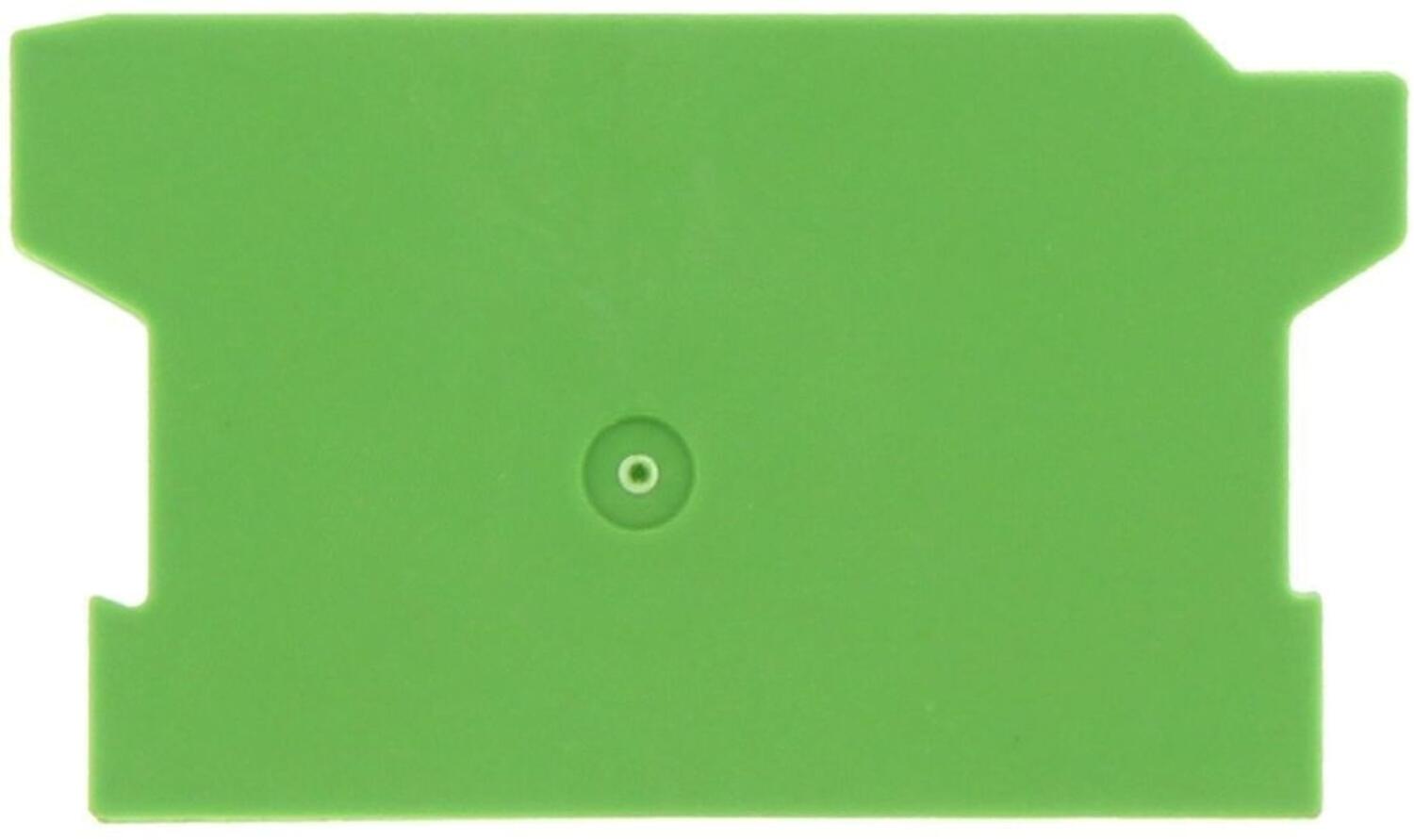

ZAPS 2.5/1A/1S Green, End plate for ZRKS 2.5/1A/1S
Art:
3680.1
Copied
|
Green
|
53.9 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2 g
|
| ||
![]()
ZAPS 2.5/1A/2S Beige, End plate for ZRKS 2.5/1A/2S
Art:
3681.2
Copied
|
Beige
|
72.3 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2.75 g
|
| ||
![]()

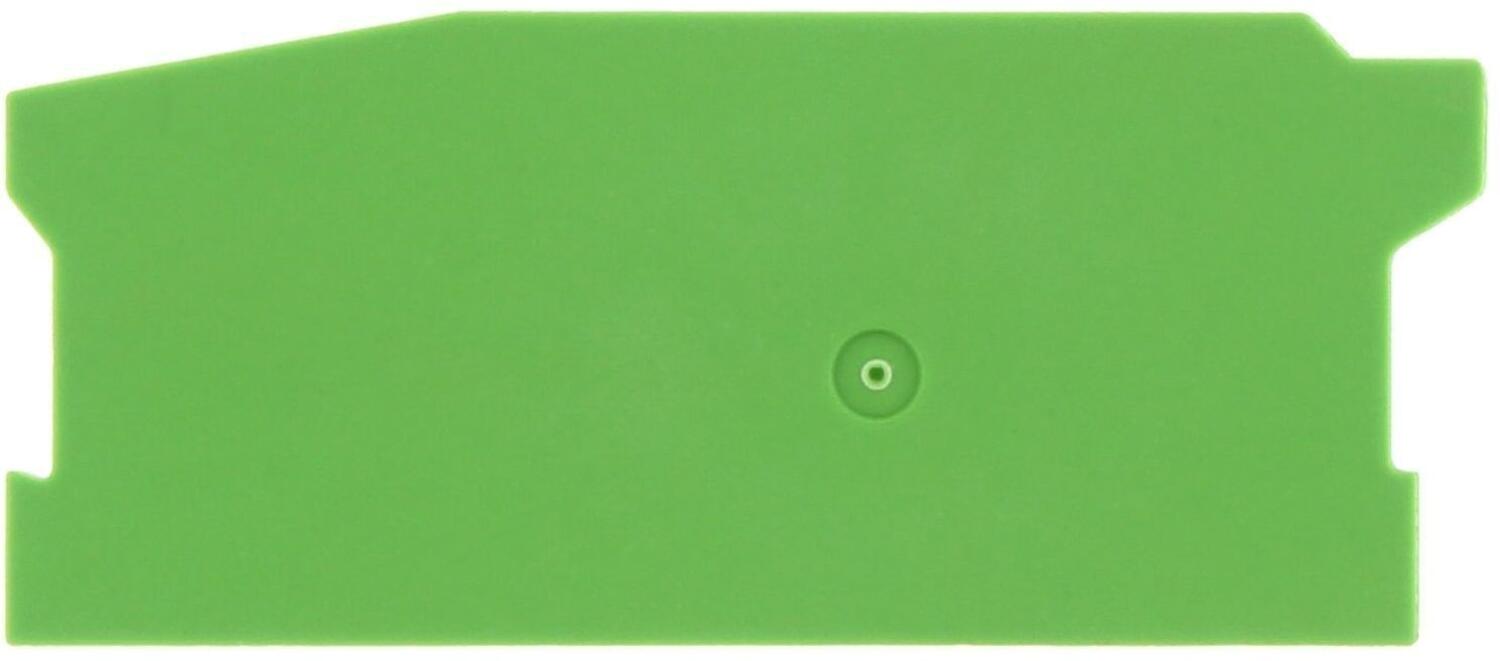

ZAPS 2.5/1A/2S Green, End plate for ZRKS 2.5/1A/2S
Art:
3681.1
Copied
|
Green
|
72.3 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2.75 g
|
| ||
![]()
ZAPS 2.5/2A/1S Beige, End plate for ZRKS 2.5/2A/1S
Art:
3682.2
Copied
|
Beige
|
63.7 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
0.28 g
|
| ||
![]()

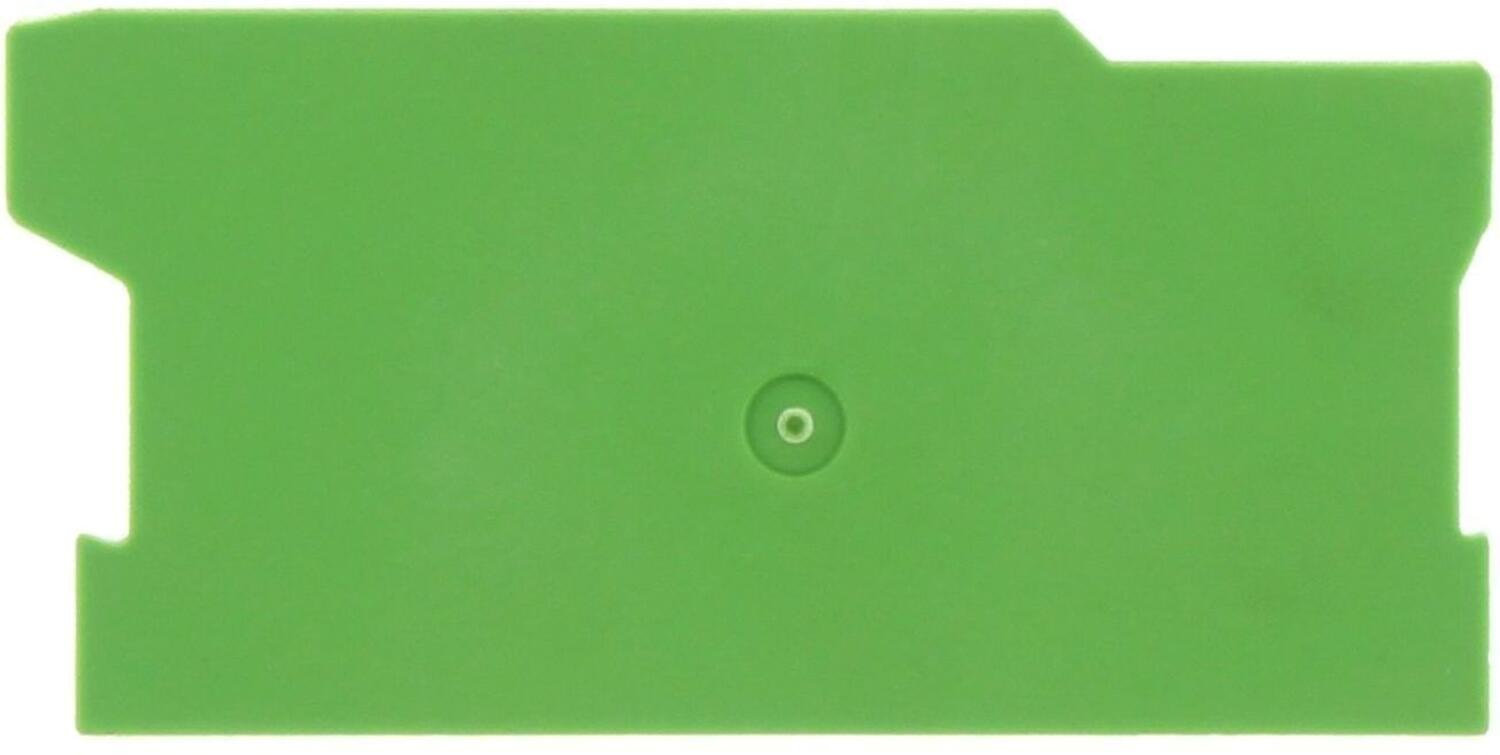

ZAPS 2.5/2A/1S Green, End plate for ZRKS 2.5/2A/1S
Art:
3682.1
Copied
|
Green
|
63.7 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
0.28 g
|
| ||
![]()
ZAPS 2.5/2A/2S Beige, End plate for ZRKS 2.5/2A/2S
Art:
3683.2
Copied
|
Beige
|
82.1 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
3.2 g
|
| ||
![]()

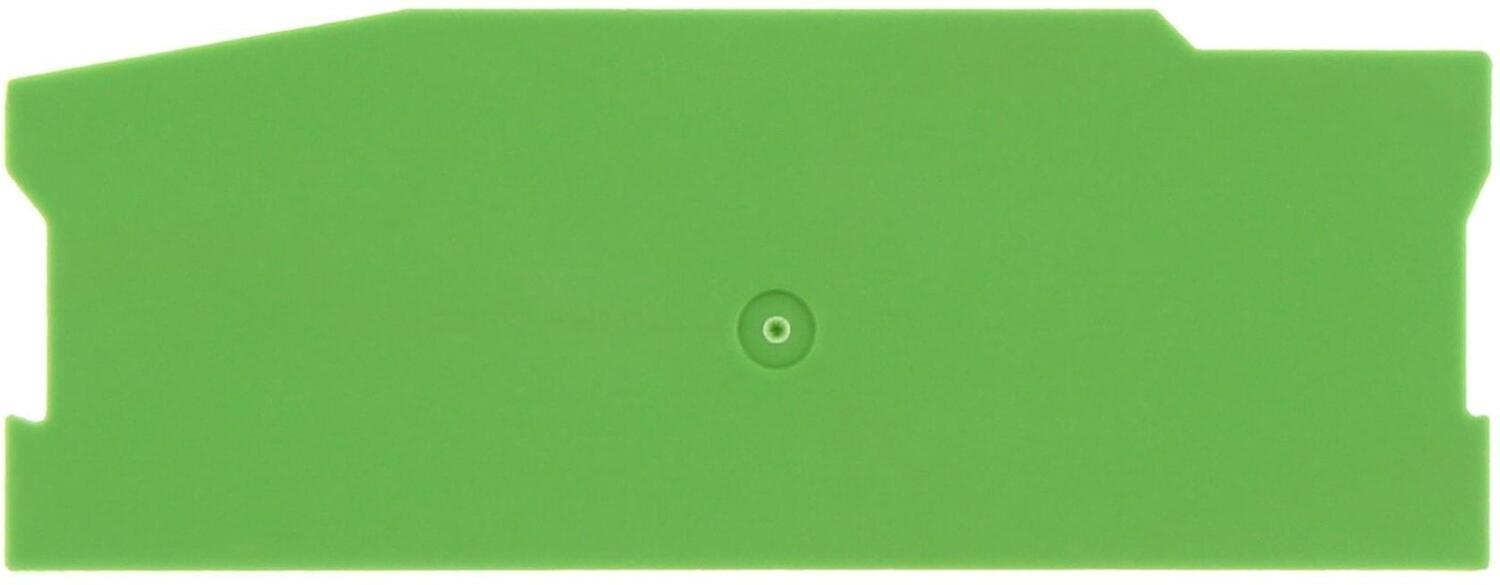

ZAPS 2.5/2A/2S Green, End plate for ZRKS 2.5/2A/1S
Art:
3683.1
Copied
|
Green
|
82.1 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
3.2 g
|
| ||
![]()
ZAPS 2.5/2S Beige, End plate for ZRKS 2.5/2S
Art:
3691.2
Copied
|
Beige
|
53.9 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2 g
|
| ||
![]()

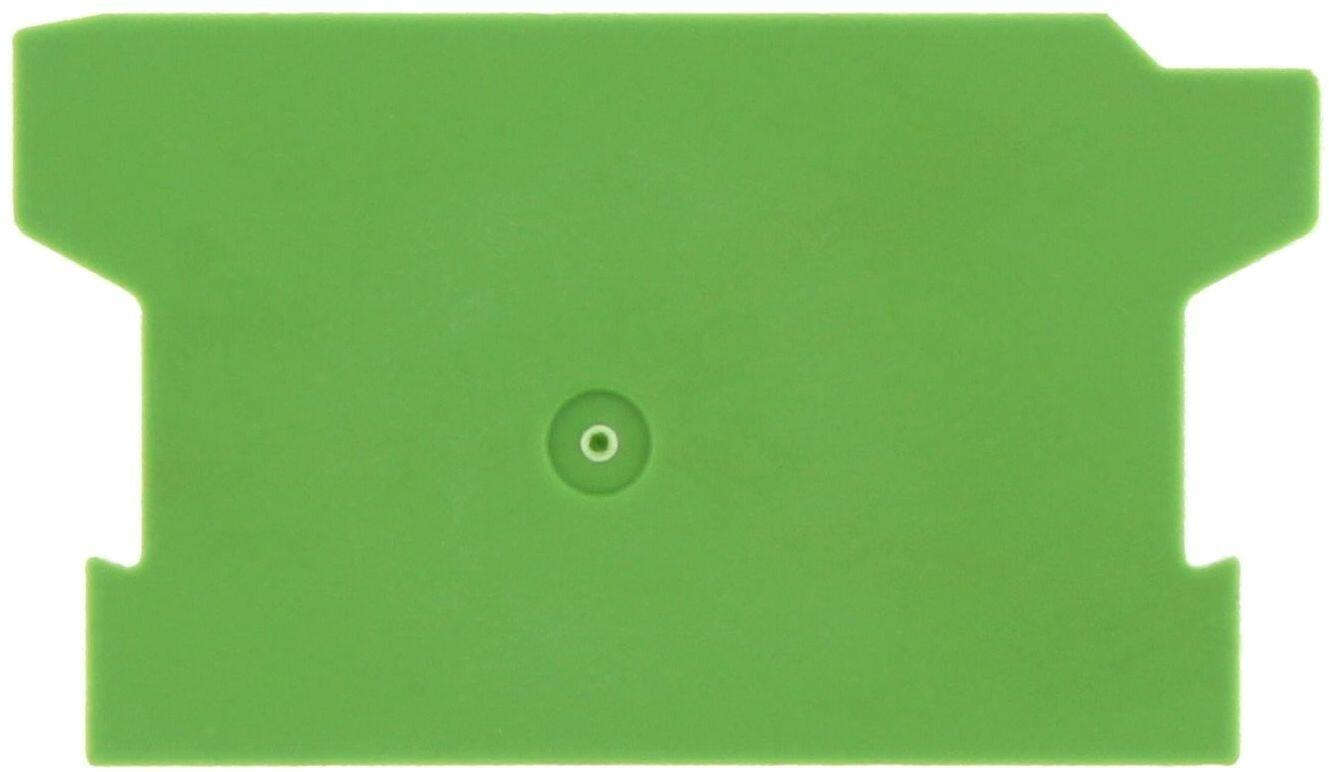

ZAPS 2.5/2S Green, End plate for ZRKS 2.5/2S
Art:
3691.1
Copied
|
Green
|
53.9 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2 g
|
| ||
![]()

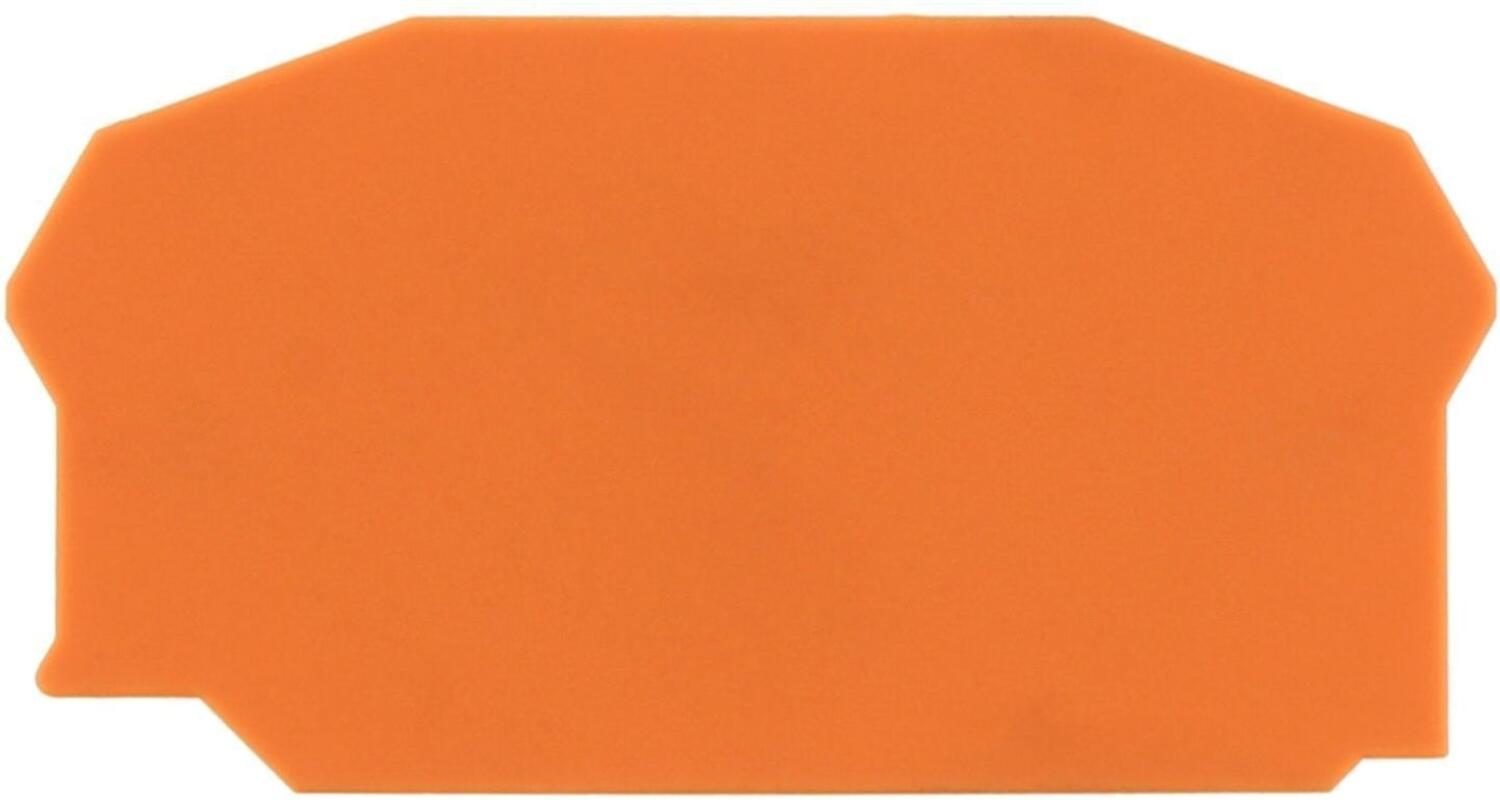

ZAP 2.5/2A Orange, End plate for ZRK/ZSL 2.5/2A
Art:
3700.3
Copied
|
Orange
|
59 mm
|
2 mm
|
30.8 mm
|
UL94-V2
|
105 °C
|
2.4 g
|
| ||
![]()

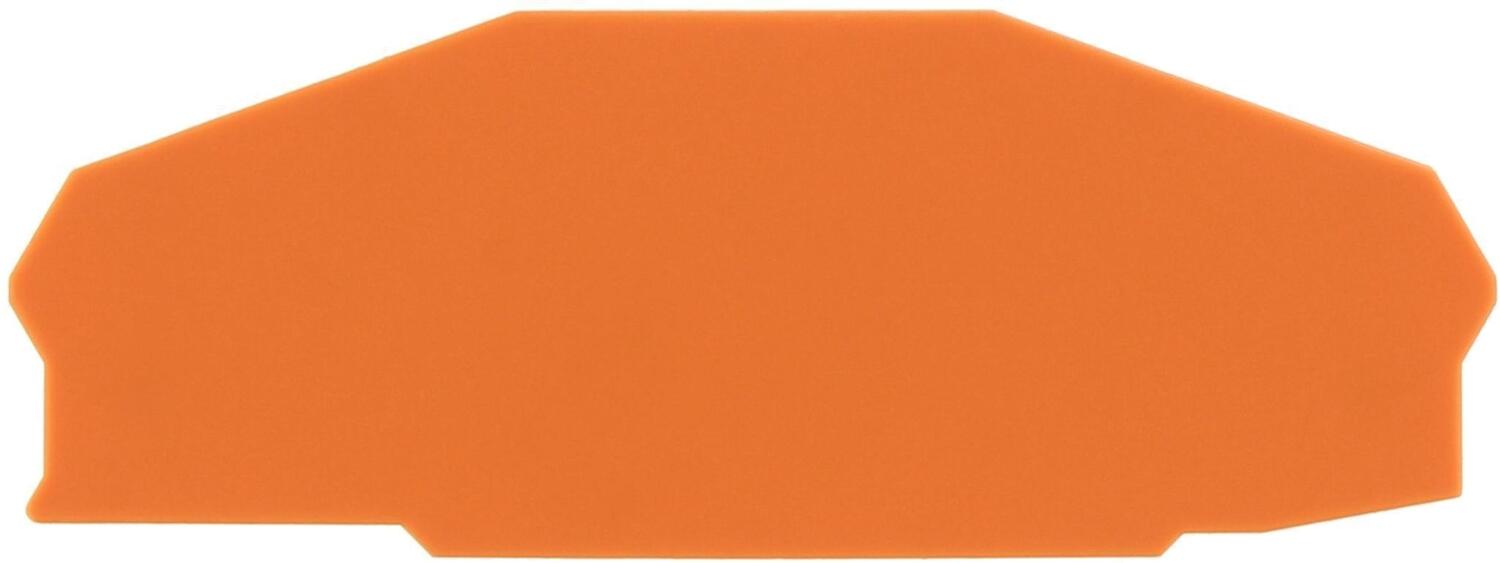

ZAP 2.5/4A Orange, End plate for ZRK/ZSL 2.5/4A
Art:
3702.3
Copied
|
Orange
|
83.6 mm
|
2 mm
|
30.8 mm
|
UL94-V2
|
105 °C
|
3 g
|
| ||
![]()
ZAP 4/2A Grey, End plate for ZRK/ZSL 4/2A
Art:
3703.6
Copied
|
Grey
|
64 mm
|
2 mm
|
33.9 mm
|
UL94-V2
|
105 °C
|
2.6 g
|
| ||
![]()
ZAPS 2.5/1A/1S Blue, End plate for ZRKS/ZSLS 2.5/1A/1S
Art:
3680.5
Copied
|
Blue
|
53.9 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2 g
|
| ||
![]()

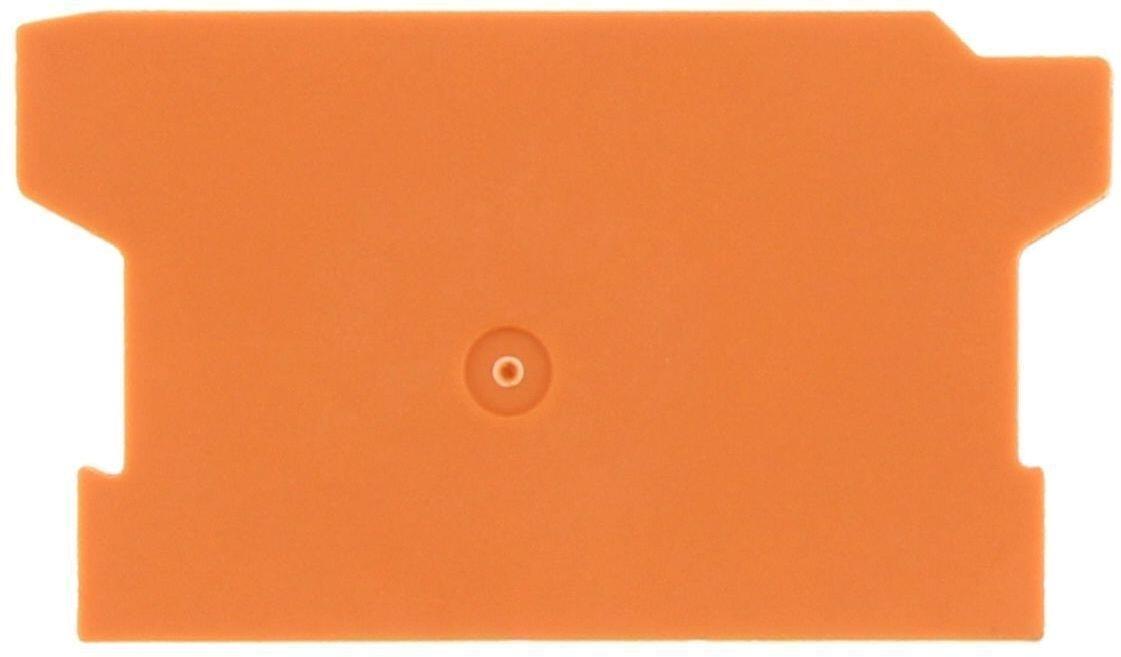

ZAPS 2.5/1A/1S Orange, End plate for ZRKS/ZSLS 2.5/1A/1S
Art:
3680.3
Copied
|
Orange
|
53.9 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2 g
|
| ||
![]()
ZAPS 2.5/1A/2S Orange, End plate for ZRKS/ZSLS 2.5/1A/2S
Art:
3681.3
Copied
|
Orange
|
72.3 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2.75 g
|
| ||
![]()
ZAPS 2.5/1A/2S Blue, End plate for ZRKS/ZSLS 2.5/1A/2S
Art:
3681.5
Copied
|
Blue
|
72.3 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2.75 g
|
| ||
![]()

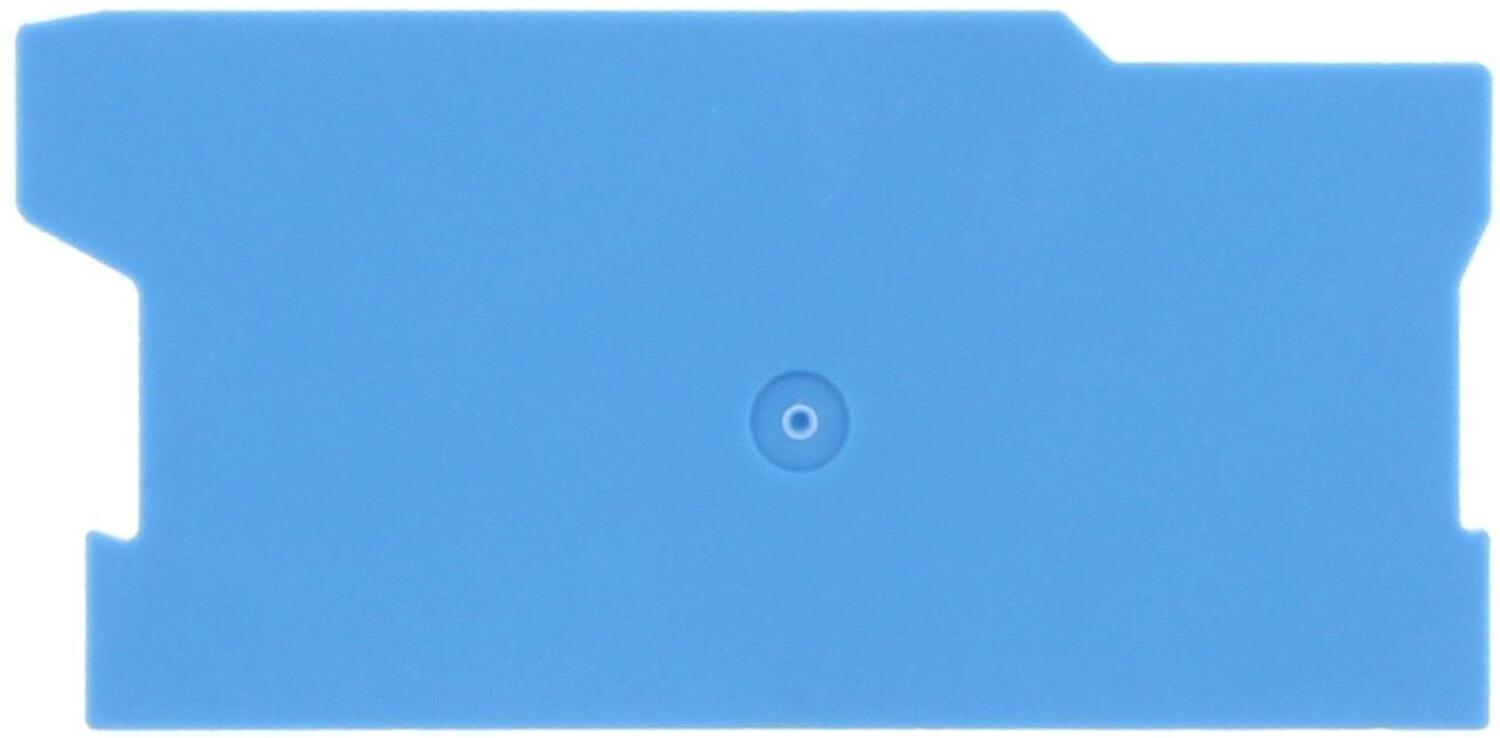

ZAPS 2.5/2A/1S Blue, End plate for ZRKS/ZSLS 2.5/2A/1S
Art:
3682.5
Copied
|
Blue
|
63.7 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
0.28 g
|
| ||
![]()
ZAPS 2.5/2A/1S Orange, End plate for ZRKS/ZSLS 2.5/2A/1S
Art:
3682.3
Copied
|
Orange
|
63.7 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
0.28 g
|
| ||
![]()

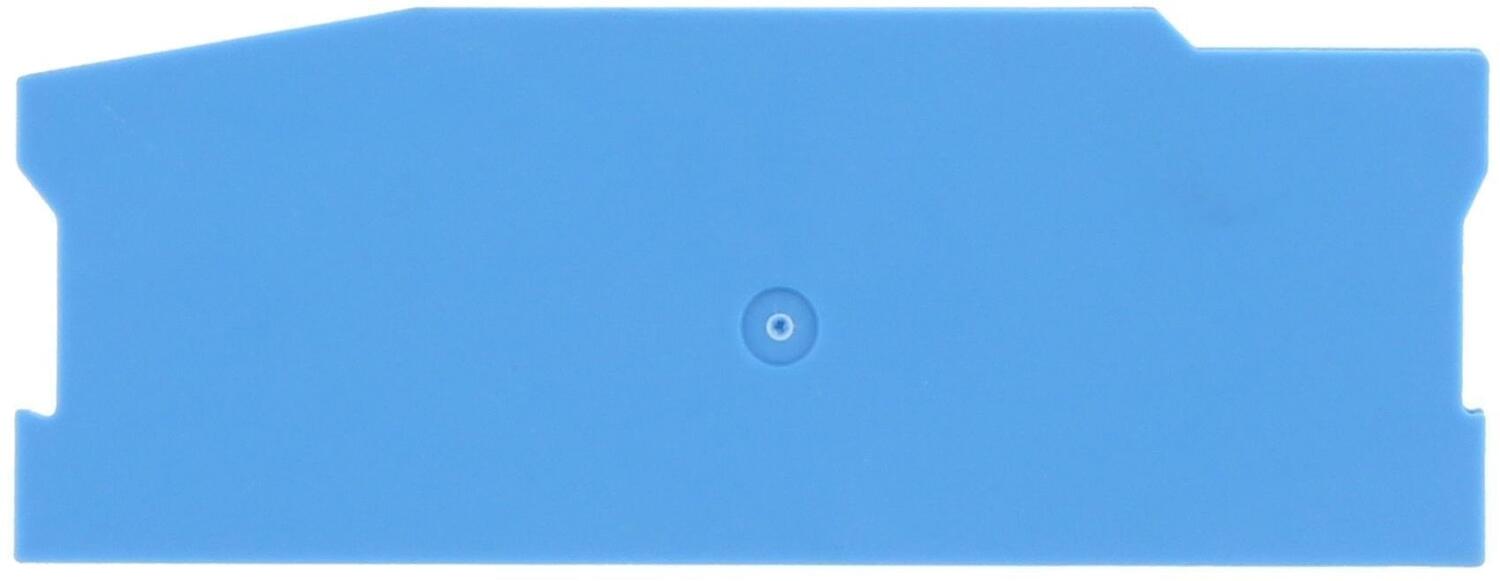

ZAPS 2.5/2A/2S Blue, End plate for ZRKS/ZSLS 2.5/2A/2S
Art:
3683.5
Copied
|
Blue
|
82.1 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
3.2 g
|
| ||
![]()
ZAPS 2.5/2A/2S Orange, End plate for ZRKS/ZSLS 2.5/2A/2S
Art:
3683.3
Copied
|
Orange
|
82.1 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
3.2 g
|
| ||
![]()

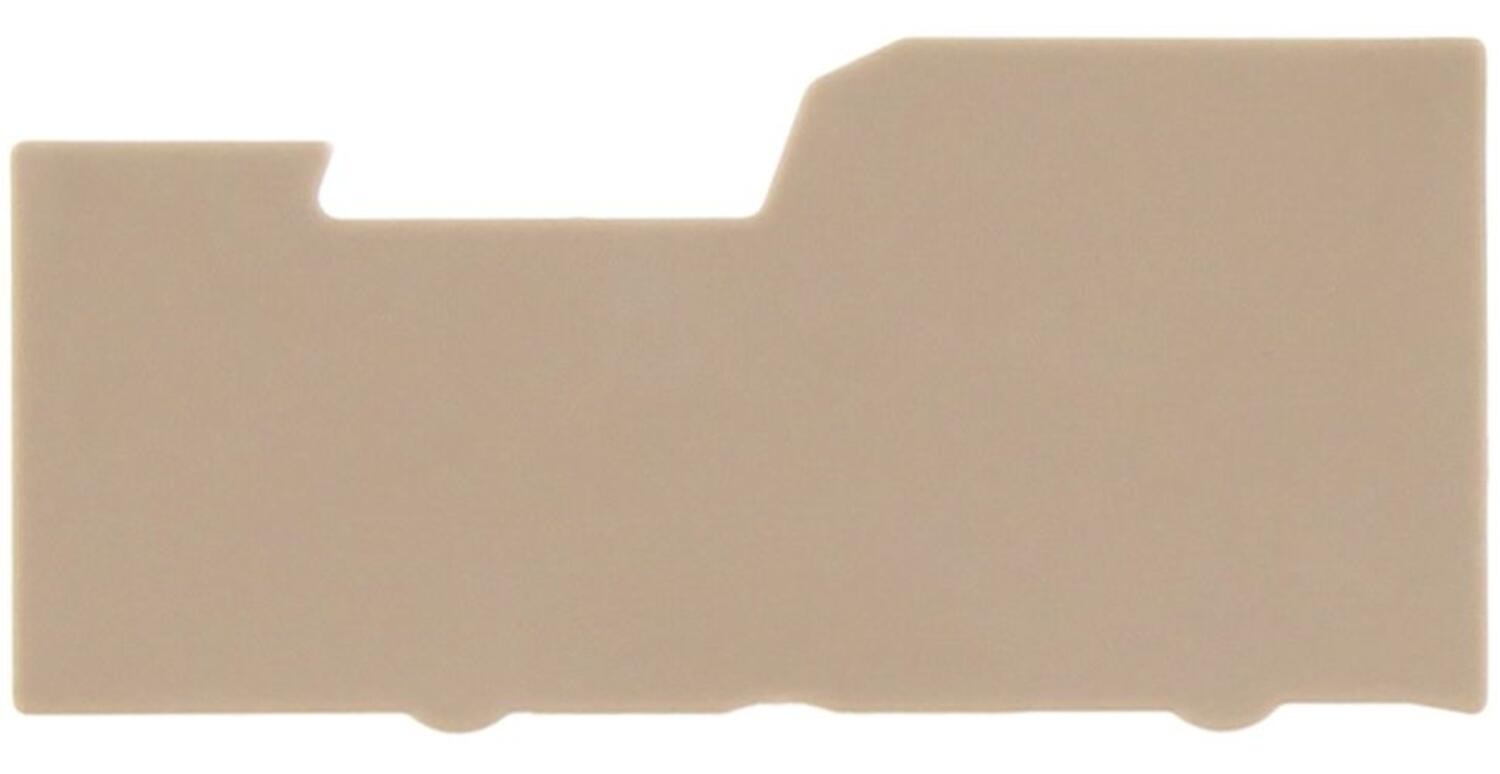

ZAPSK 2.5/1A/1S Beige, End plate for ZSTK2.5/1A/1S
Art:
3686.2
Copied
|
Beige
|
39.8 mm
|
0.6 mm
|
18.8 mm
|
UL94-V0
|
120 °C
|
0.85 g
|
| ||
![]()

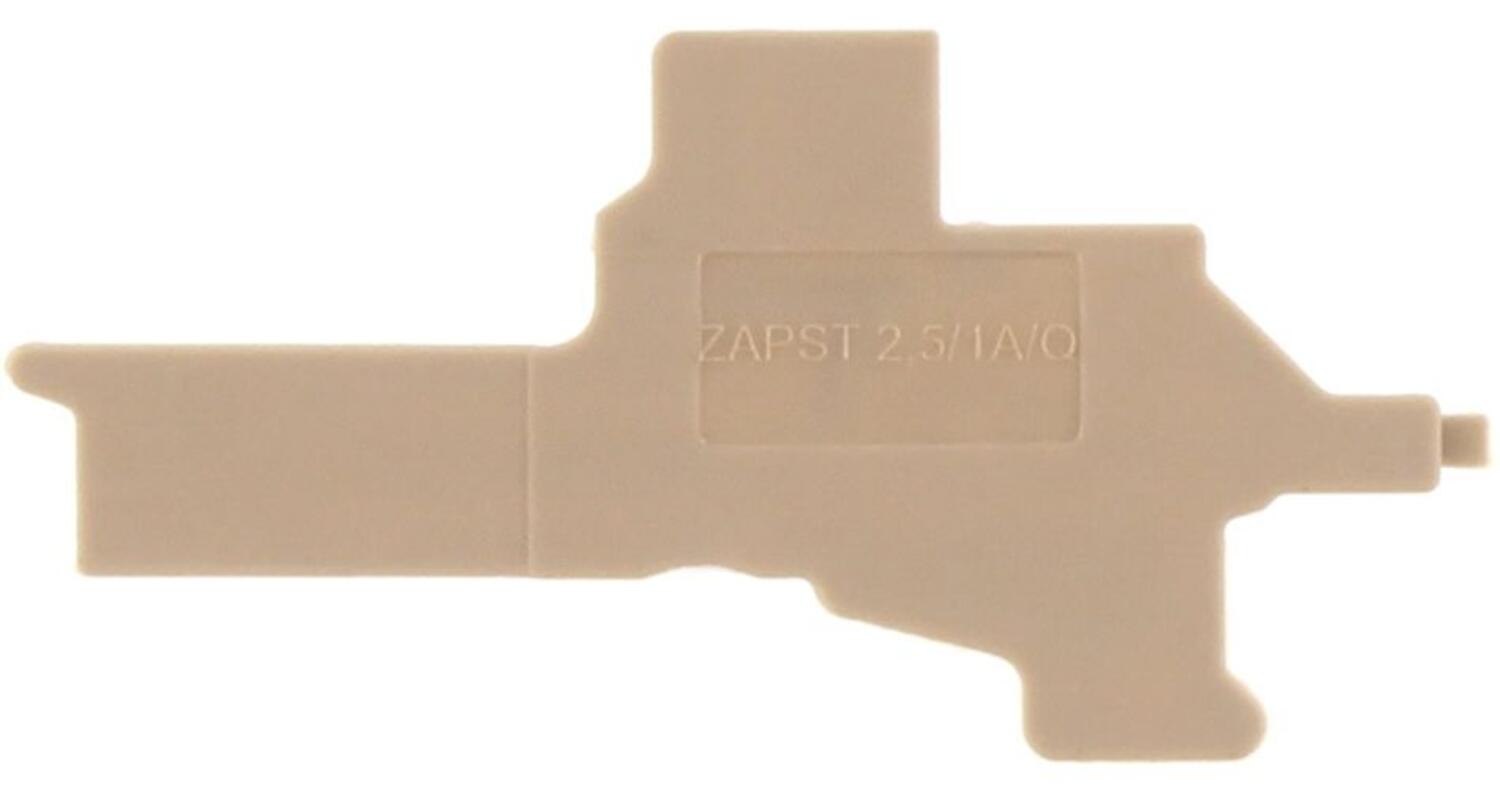

ZAPST 2.5/1A/Q Beige, End plate for ZST2.5/1A/Q plug
Art:
3685.2
Copied
|
Beige
|
39 mm
|
0.6 mm
|
19.4 mm
|
UL94-V0
|
120 °C
|
0.25 g
|
| ||
![]()
ZAPST 2.5/1A Orange, End plate for ZST 2.5/1A plug
Art:
3684.3
Copied
|
Orange
|
39 mm
|
0.6 mm
|
14.7 mm
|
UL94-V0
|
120 °C
|
0.21 g
|
| ||
![]()

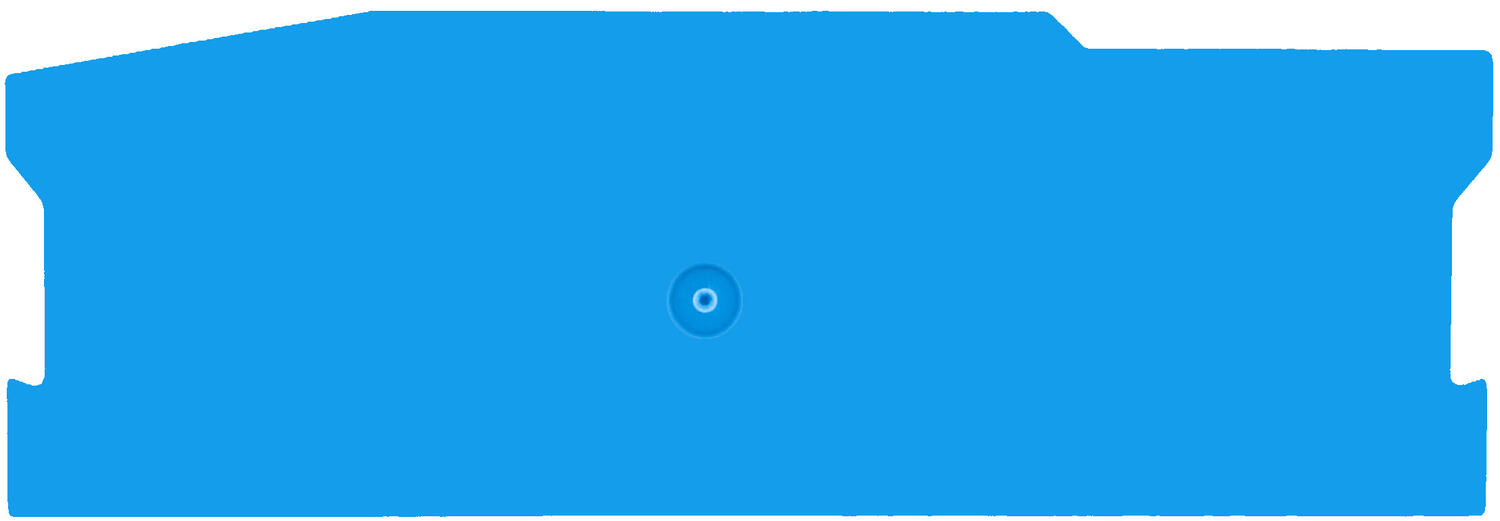

ZAPS 2.5/4S Blue, End plate for ZRKS/ZSL S2.5/2S
Art:
3692.5
Copied
|
Blue
|
90.7 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
3.5 g
|
| ||
![]()
ZAPS 2.5/4S Green, End plate for ZRKS/ZSL S2.5/2S
Art:
3692.1
Copied
|
Green
|
90.7 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
3.5 g
|
| ||
![]()
ZAPS 2.5/4S Orange, End plate for ZRKS/ZSL S2.5/2S
Art:
3692.3
Copied
|
Orange
|
90.7 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
3.5 g
|
| ||
![]()

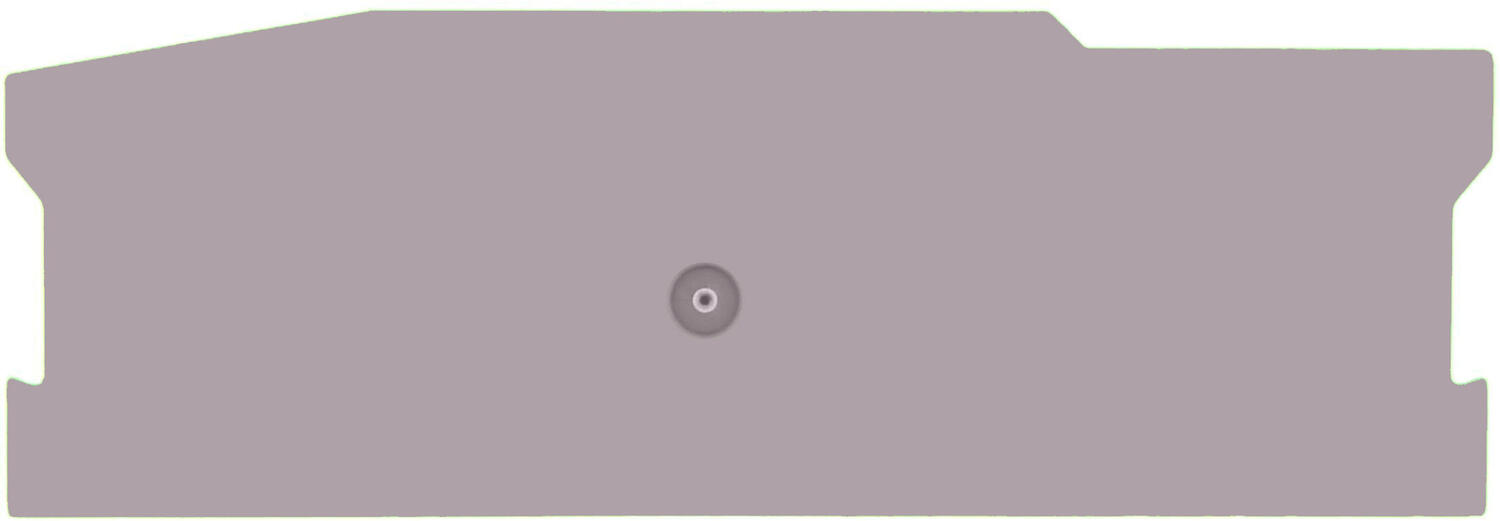

ZAPS 2.5/4S Beige, End plate for ZRKS/ZSL S2.5/2S
Art:
3692.2
Copied
|
Beige
|
90.7 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
3.5 g
|
| ||
![]()
ZAPS 2.5/2S Blue, End plate for ZRKS/ZSL S2.5/2S
Art:
3691.5
Copied
|
Blue
|
53.9 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2 g
|
| ||
![]()
ZAPS 2.5/2S Orange, End plate for ZRKS/ZSL S2.5/2S
Art:
3691.3
Copied
|
Orange
|
53.9 mm
|
1.5 mm
|
31 mm
|
UL94-V0
|
120 °C
|
2 g
|
| ||
![]()

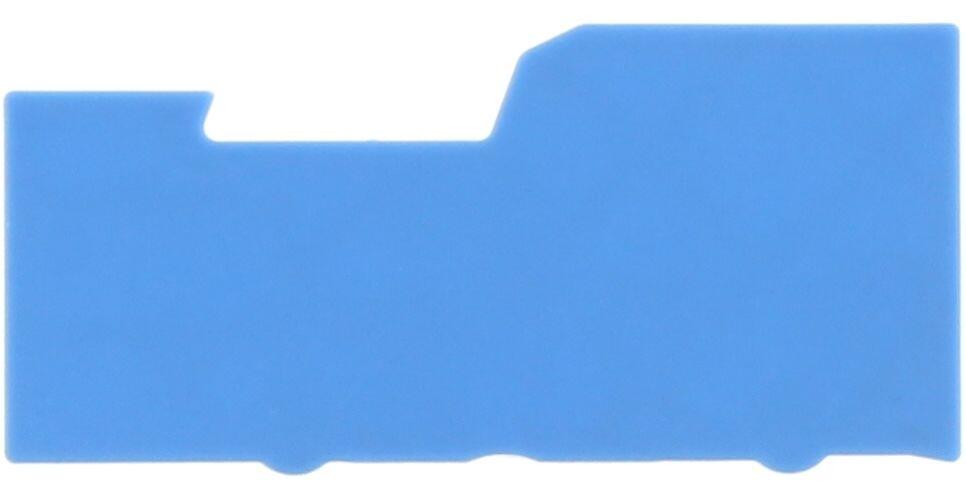

ZAPSK 2.5/1A/1S Blue, End plate for ZSTK 2.5/1A/1S
Art:
3686.5
Copied
|
Blue
|
39.8 mm
|
0.6 mm
|
18.8 mm
|
UL94-V0
|
120 °C
|
0.85 g
|
| ||
![]()
ZAPST 2.5/1A/Q Blue, End plate for ZST 2.5/1A/Q plug
Art:
3685.5
Copied
|
Blue
|
39 mm
|
0.6 mm
|
19.4 mm
|
UL94-V0
|
120 °C
|
0.25 g
|
| ||
![]()

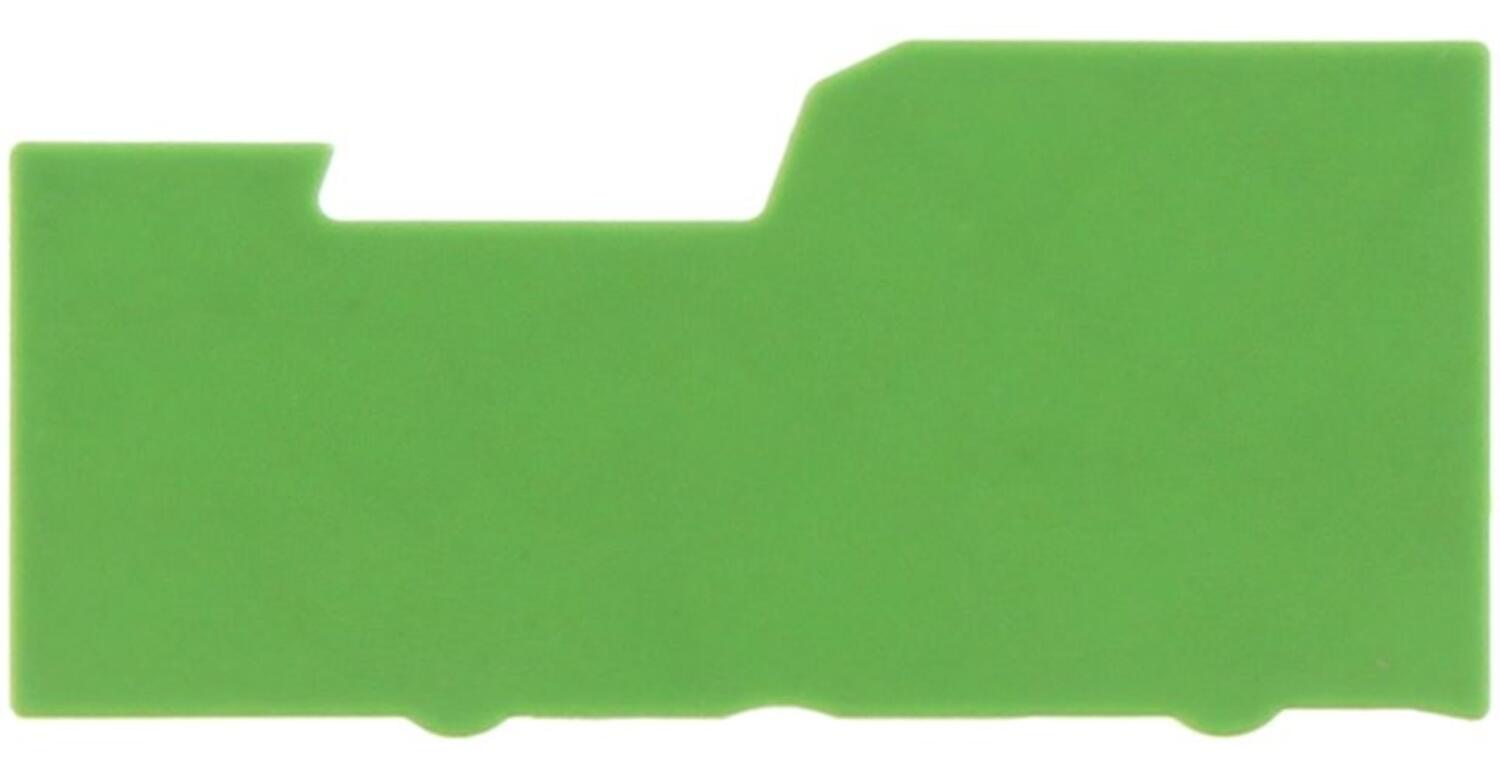

ZAPSK 2.5/1A/1S Green, End plate for ZSTK 2.5/1A/1S
Art:
3686.1
Copied
|
Green/yellow
|
39.8 mm
|
0.6 mm
|
18.8 mm
|
UL94-V0
|
120 °C
|
0.85 g
|
| ||
![]()

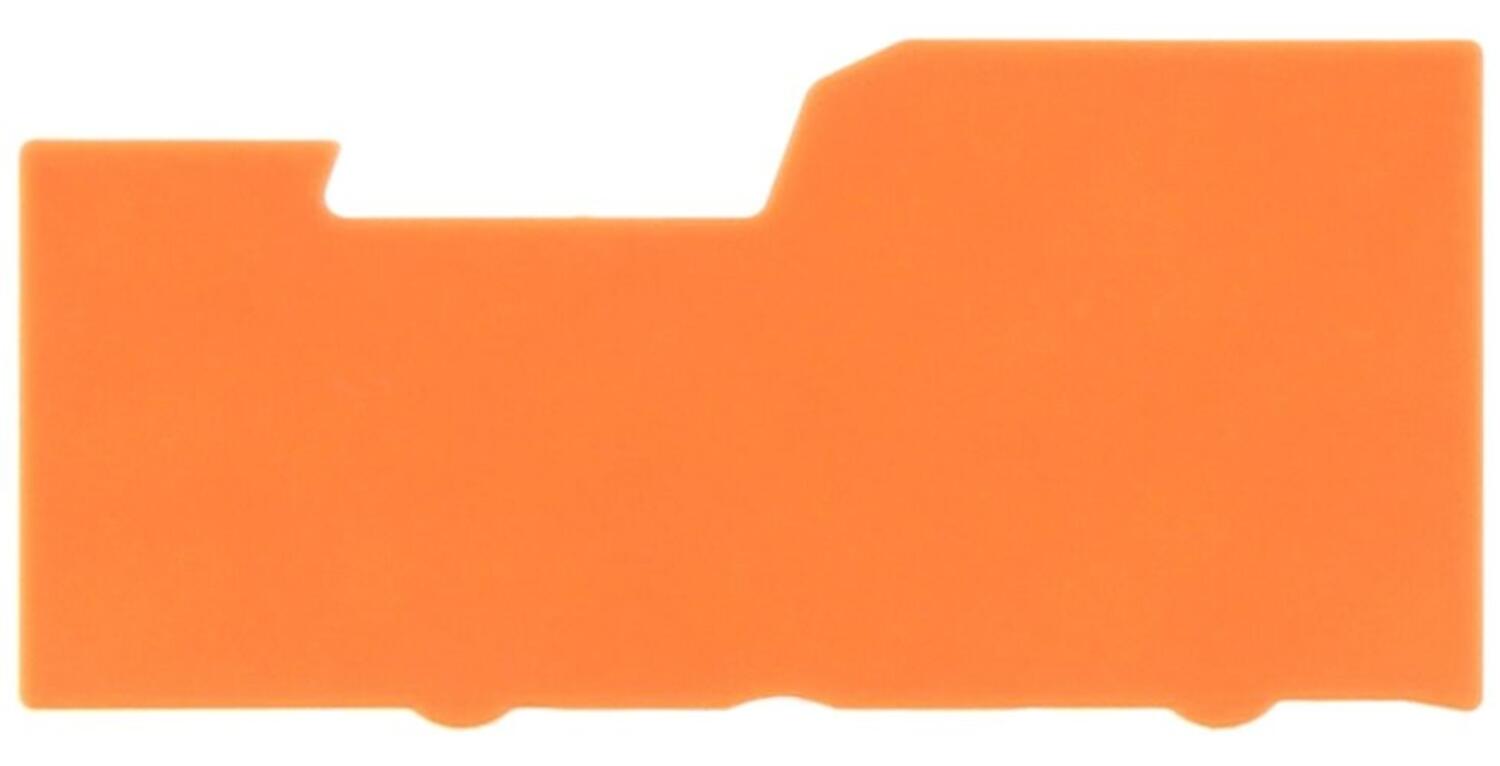

ZAPSK 2.5/1A/1S Orange, End plate for ZSTK 2.5/1A/1S
Art:
3686.3
Copied
|
Orange
|
39.8 mm
|
0.6 mm
|
18.8 mm
|
UL94-V0
|
120 °C
|
0.85 g
|
| ||
![]()

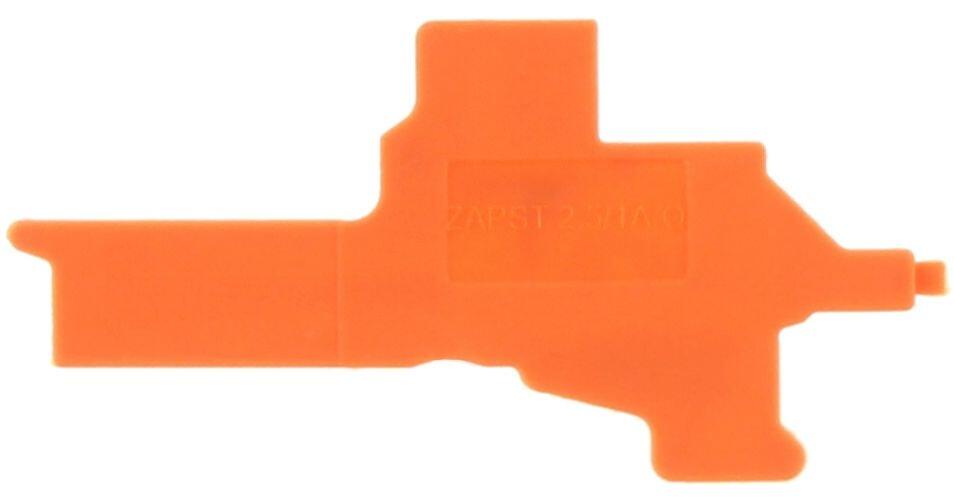

ZAPST 2.5/1A/Q Orange, End plate for ZST 2.5/1A/Q plug
Art:
3685.3
Copied
|
Orange
|
39 mm
|
0.6 mm
|
19.4 mm
|
UL94-V0
|
120 °C
|
0.25 g
|
| ||
![]()

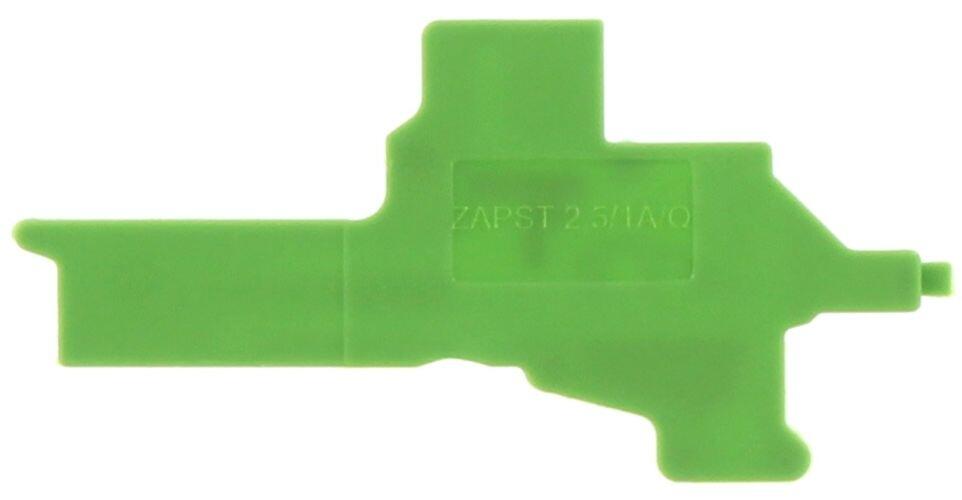

ZAPST 2.5/1A/Q Green, End plate for ZST 2.5/1A/Q plug
Art:
3685.1
Copied
|
Green/yellow
|
39 mm
|
0.6 mm
|
19.4 mm
|
UL94-V0
|
120 °C
|
0.25 g
|
| ||
![]()
ZAPST 2.5/1A Green, End plate for ZST 2.5/1A plug
Art:
3684.1
Copied
|
Green
|
39 mm
|
0.6 mm
|
14.7 mm
|
UL94-V0
|
120 °C
|
0.21 g
|
| ||
![]()

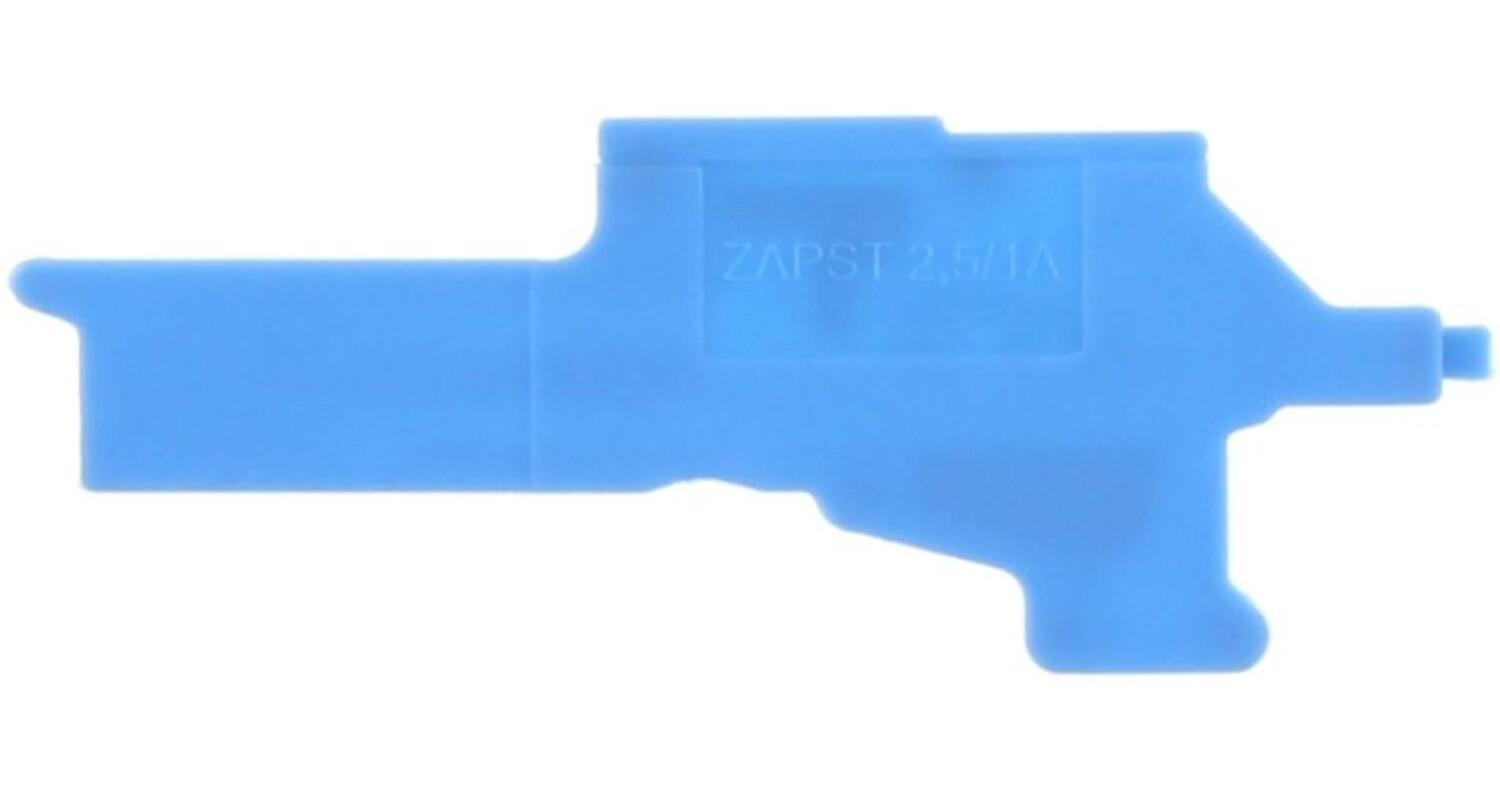

ZAPST 2.5/1A Blue, End plate for ZST 2.5/1A plug
Art:
3684.5
Copied
|
Blue
|
39 mm
|
0.6 mm
|
14.7 mm
|
UL94-V0
|
120 °C
|
0.21 g
|
|
Select a variant in the list
