End Plates for tension spring terminals

General data
Colour	Beige
Dimensions
Length	59 mm
Width	2 mm
Height	30.8 mm
Materials
Material	Polyamide 6.6
Flammability class	UL94-V2
Operating temperature from	-40 °C

Invisible Heading
Operating temperature to	105 °C
Additional data
Tariff code	85369010
Country of origin	DE
Weight	2.4 g
Pack size	50

Parts	Colour	Length	Width	Height	Flammability class	Operating temperature to	Weight	Pack size
ZAP 2.5/2A Beige, End plate for ZRK/ZSL 2.5/2A Art: 3700.2 Copied	Beige	59 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.4 g	50

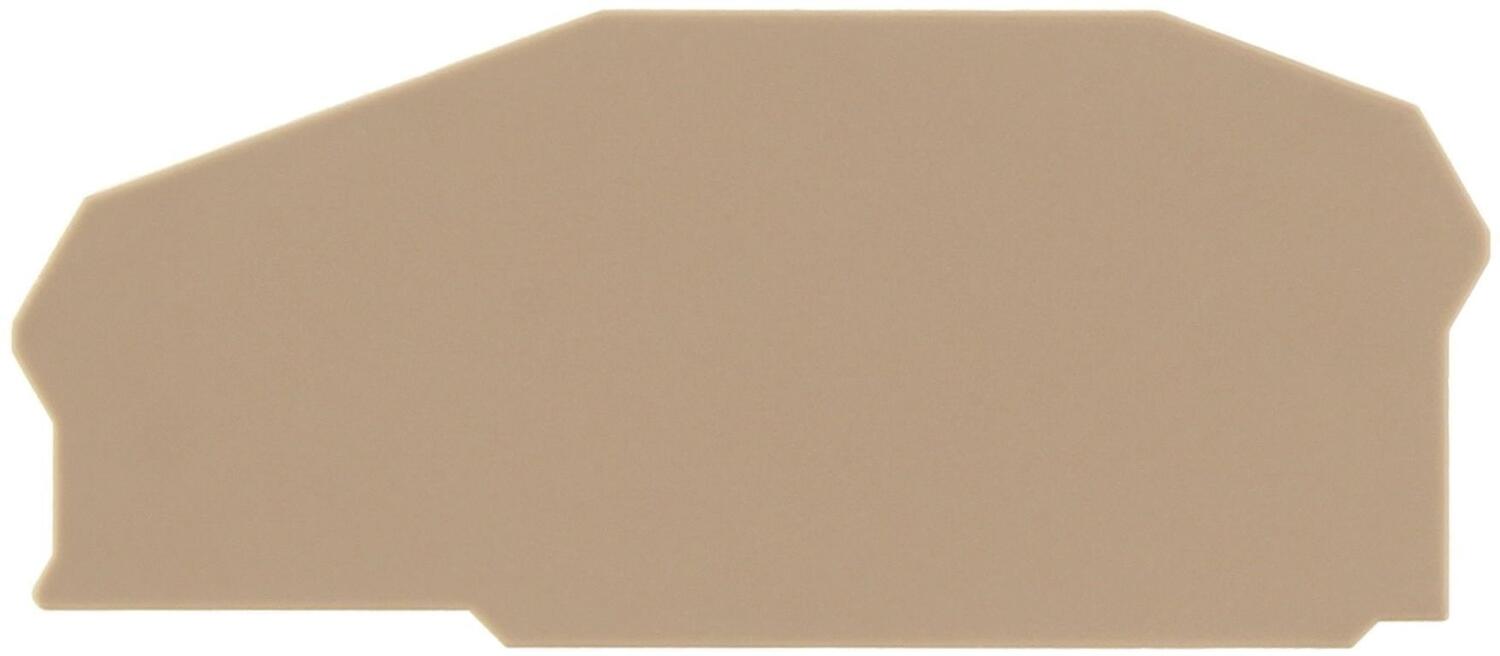

ZAP 2.5/3A Beige, End plate for ZRK/ZSL 2.5/3A Art: 3701.2 Copied	Beige	71.3 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.6 g	50

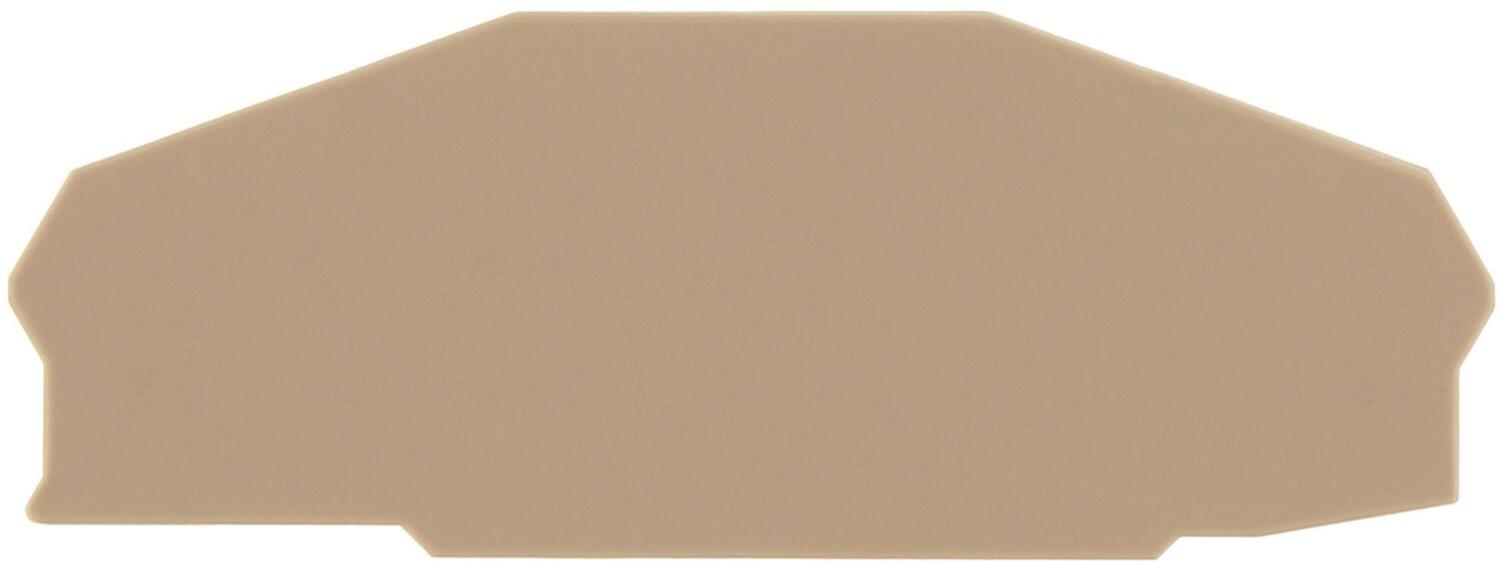

ZAP 2.5/4A Beige, End plate for ZRK/ZSL 2.5/4A Art: 3702.2 Copied	Beige	83.6 mm	2 mm	30.8 mm	UL94-V2	105 °C	3 g	50

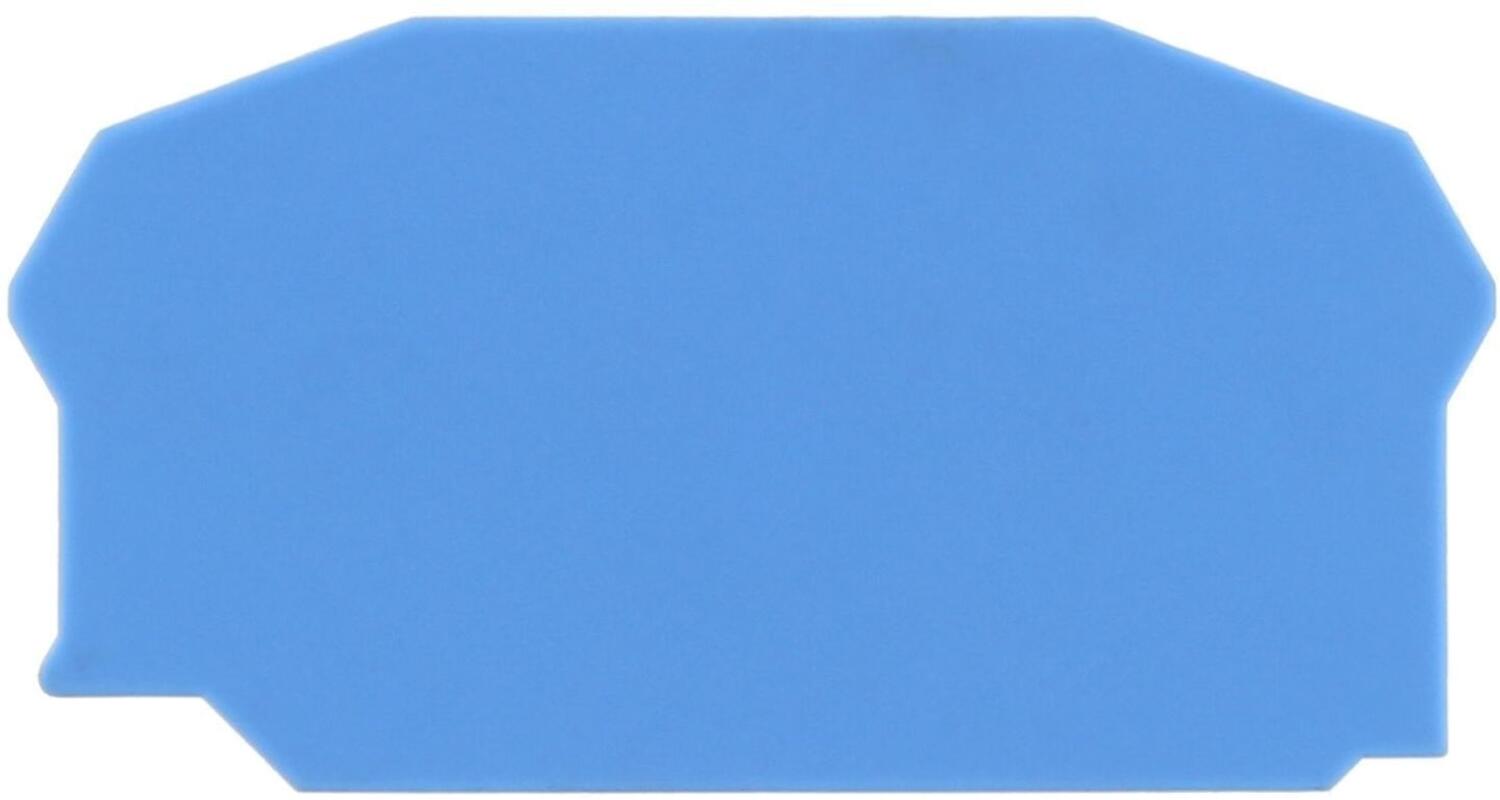

ZAP 2.5/2A Blue, End plate for ZRK/ZSL 2.5/2A Art: 3700.5 Copied	Blue	59 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.4 g	50

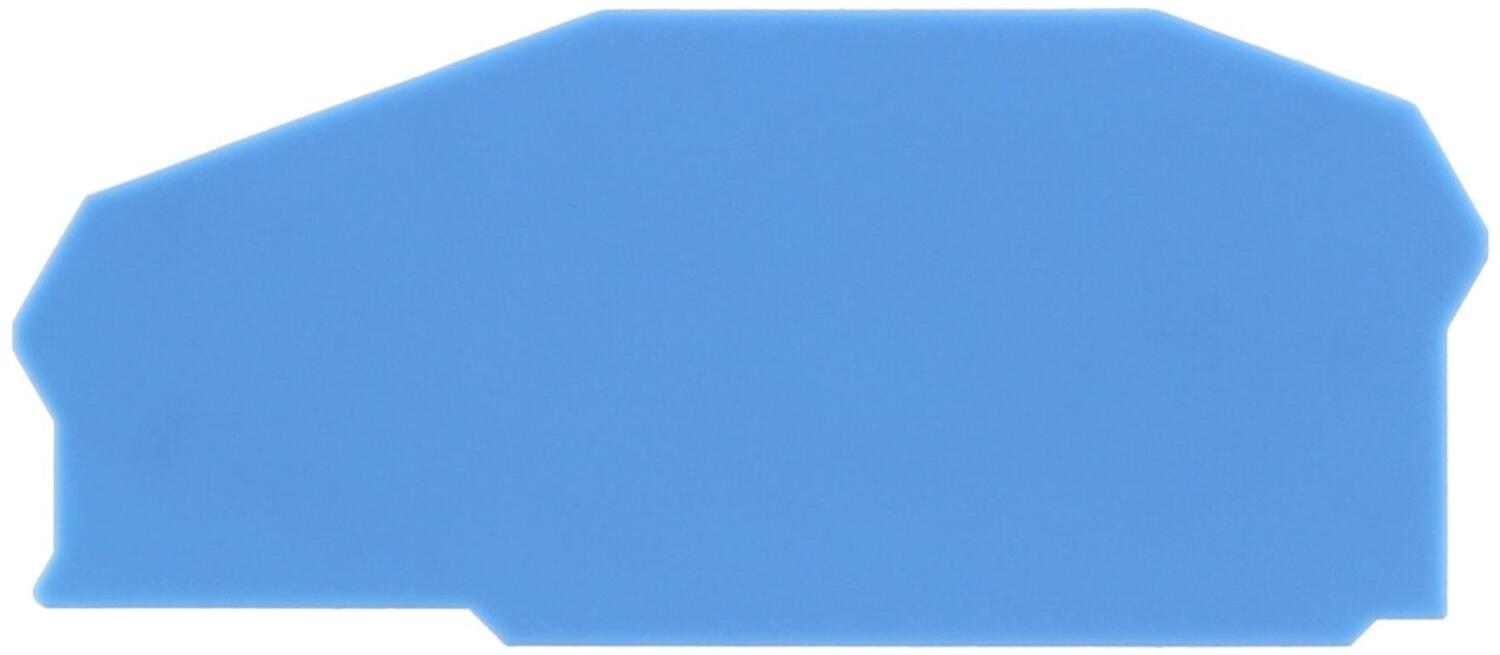

ZAP 2.5/3A Blue, End plate for ZRK/ZSL 2.5/3A Art: 3701.5 Copied	Blue	71.3 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.6 g	50
ZAP 2.5/4A Blue, End plate for ZRK/ZSL 2.5/4A Art: 3702.5 Copied	Blue	83.6 mm	2 mm	30.8 mm	UL94-V2	105 °C	3 g	50

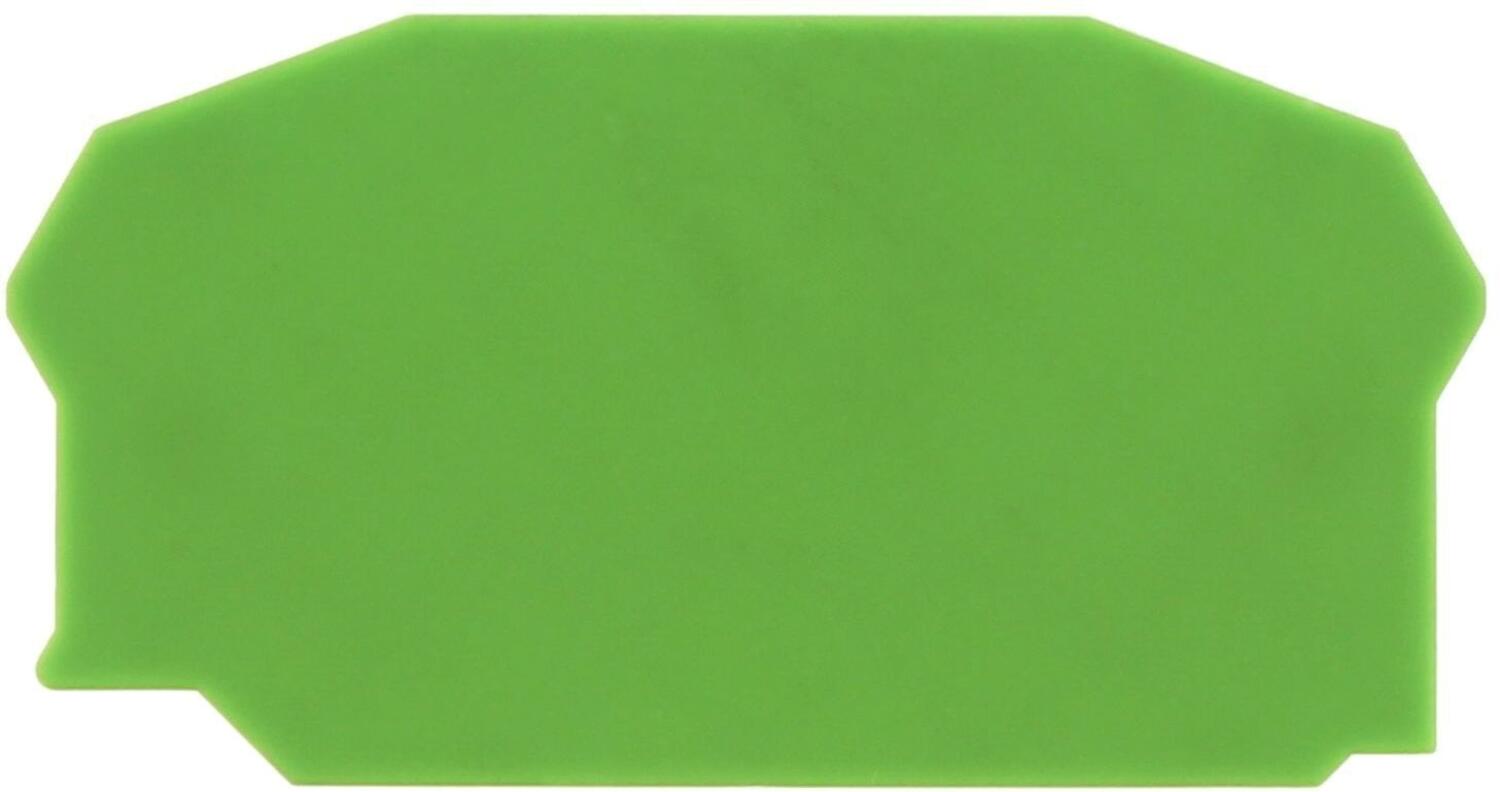

ZAP 2.5/2A Green, End plate for ZRK/ZSL 2.5/2A Art: 3700.1 Copied	Green	59 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.4 g	50
ZAP 2.5/3A Green, End plate for ZRK/ZSL 2.5/3A Art: 3701.1 Copied	Green	71.3 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.6 g	50

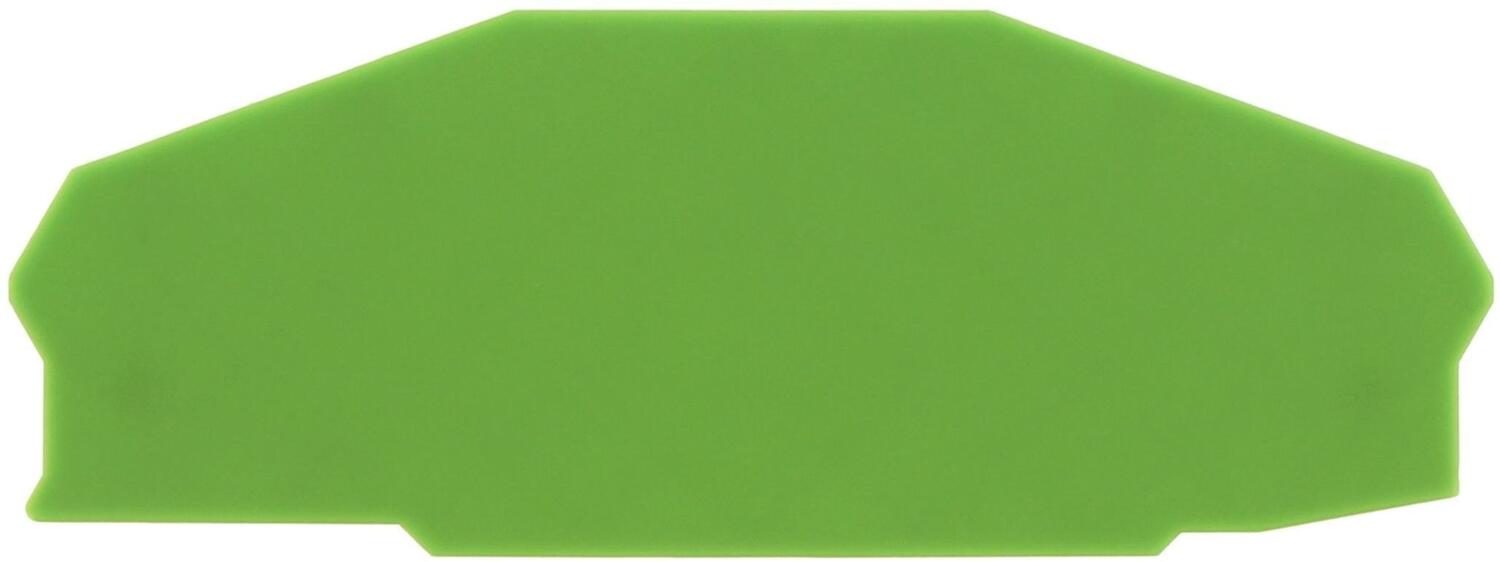

ZAP 2.5/4A Green, End plate for ZRK/ZSL 2.5/4A Art: 3702.1 Copied	Green	83.6 mm	2 mm	30.8 mm	UL94-V2	105 °C	3 g	50

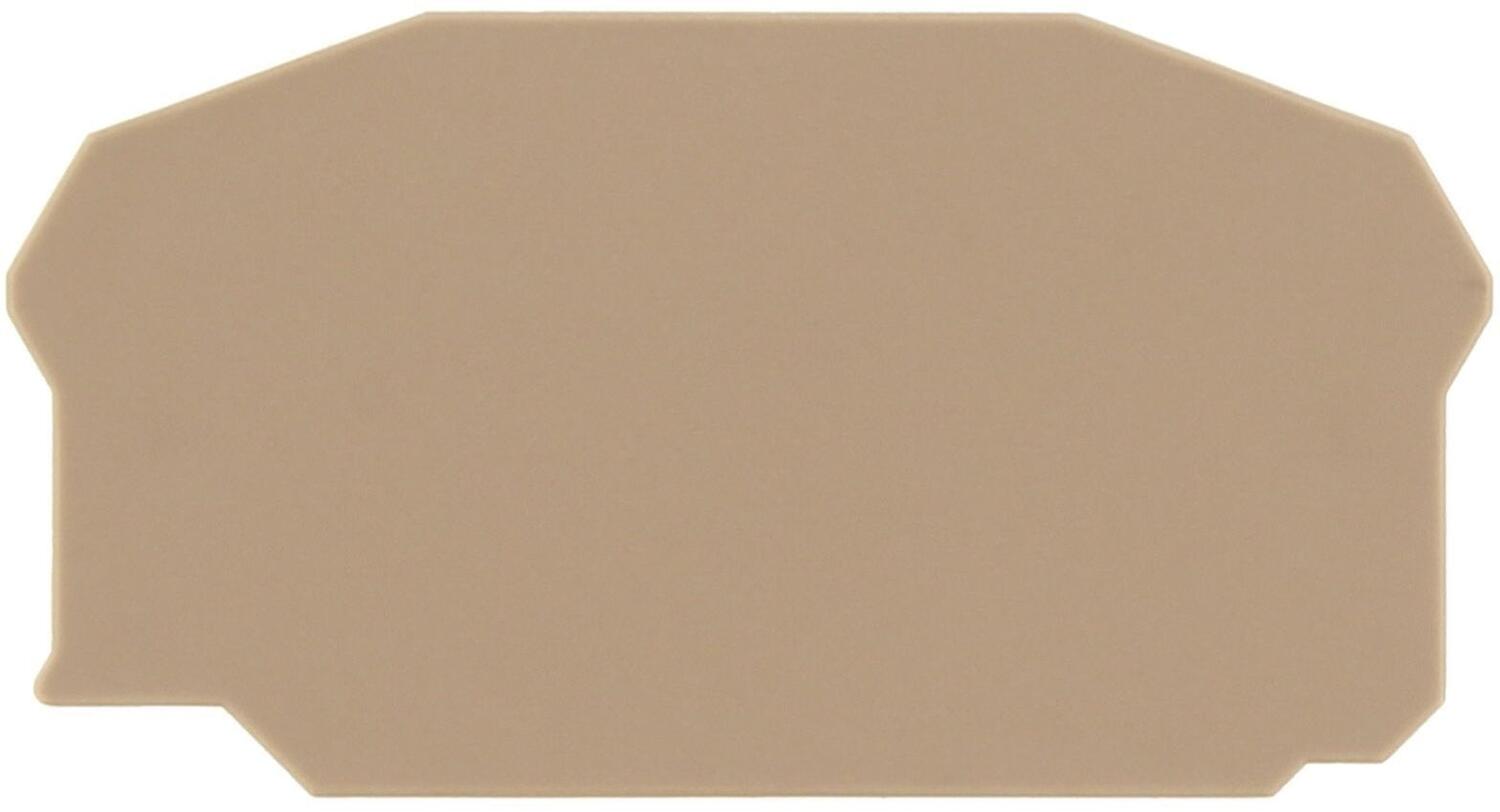

ZAP 4/2A Beige, End plate for ZRK/ZSL 4/2A Art: 3703.2 Copied	Beige	64 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.6 g	50

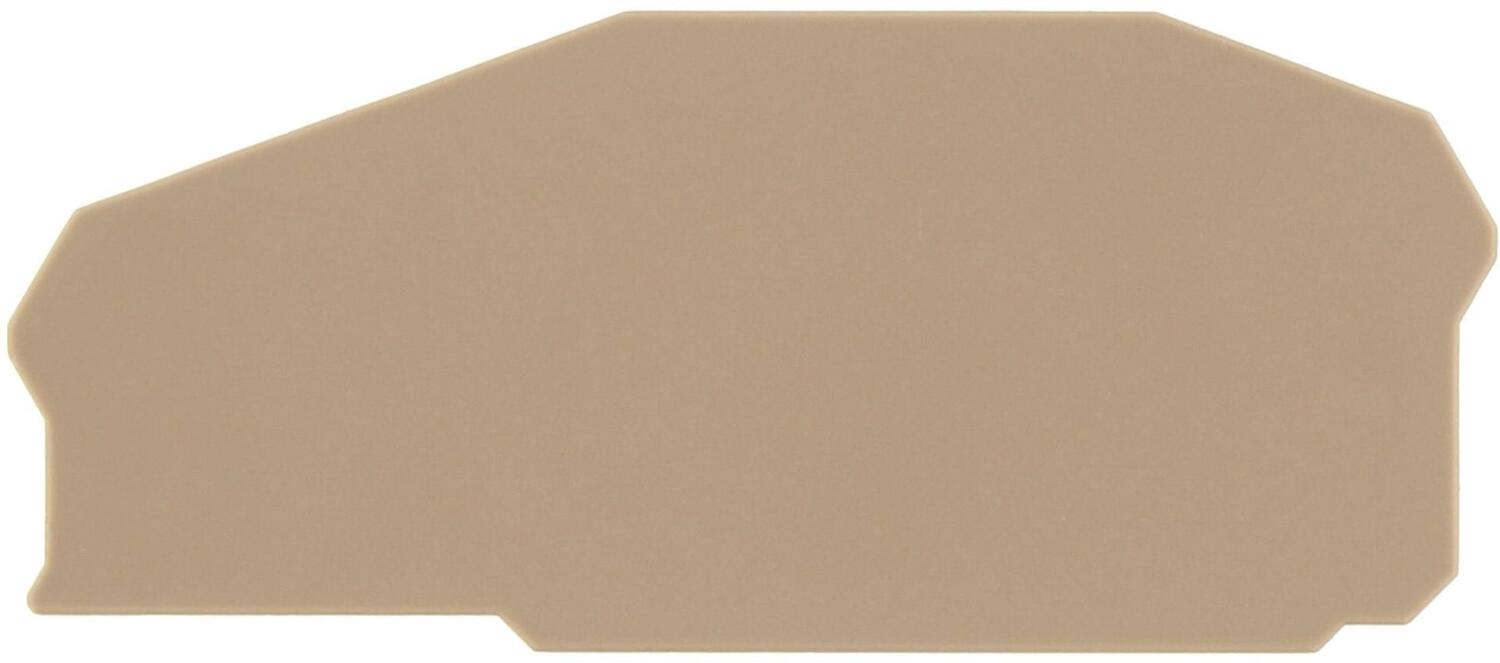

ZAP 4/3A Beige, End plate for ZRK/ZSL 4/3A Art: 3704.2 Copied	Beige	78.5 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50
ZAP 4/4A Beige, End plate for ZRK/ZSL 4/4A Art: 3705.2 Copied	Beige	93 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50
ZAP 4/2A Blue, End plate for ZRK/ZSL 4/2A Art: 3703.5 Copied	Blue	64 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.6 g	50

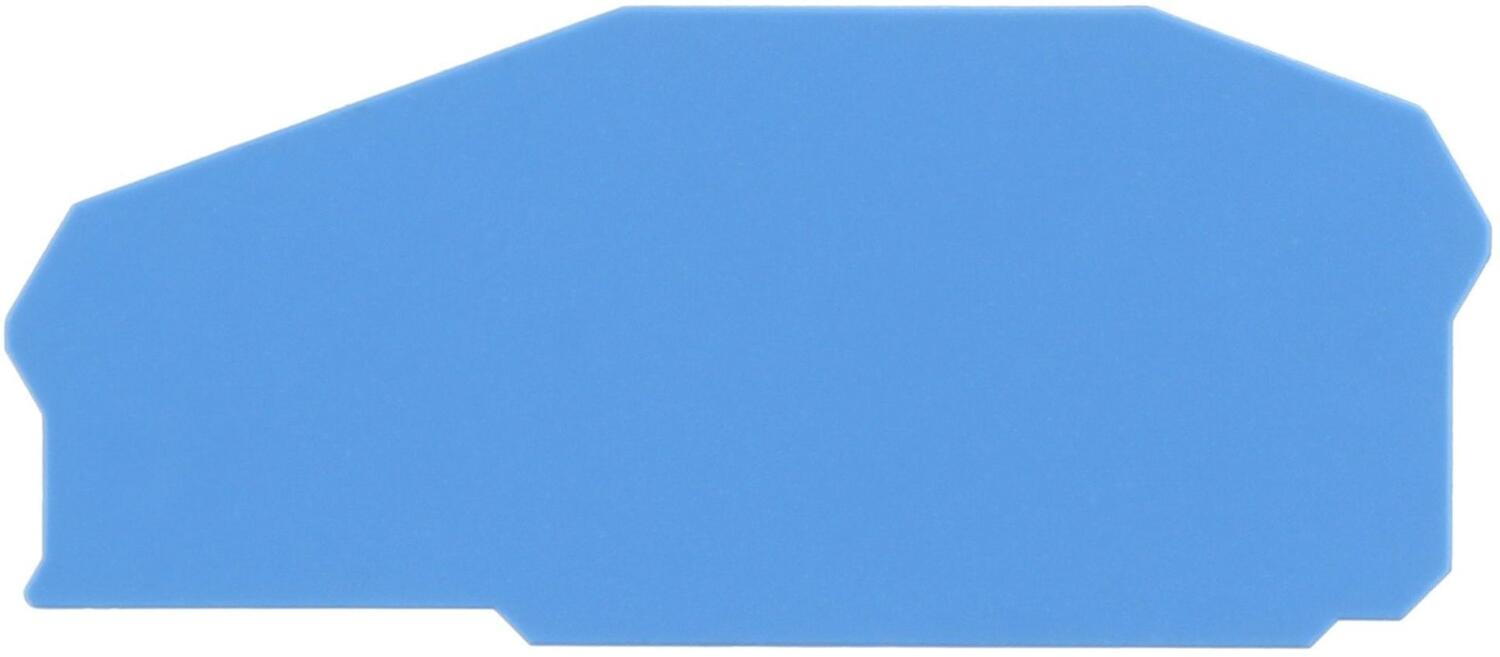

ZAP 4/3A Blue, End plate for ZRK/ZSL 4/3A Art: 3704.5 Copied	Blue	78.5 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50
ZAP 4/4A Blue, End plate for ZRK/ZSL 4/4A Art: 3705.5 Copied	Blue	93 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50
ZAP 4/2A Green, End plate for ZRK/ZSL 4/2A Art: 3703.1 Copied	Green	64 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.6 g	50
ZAP 4/3A Green, End plate for ZRK/ZSL 4/3A Art: 3704.1 Copied	Green	78.5 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50

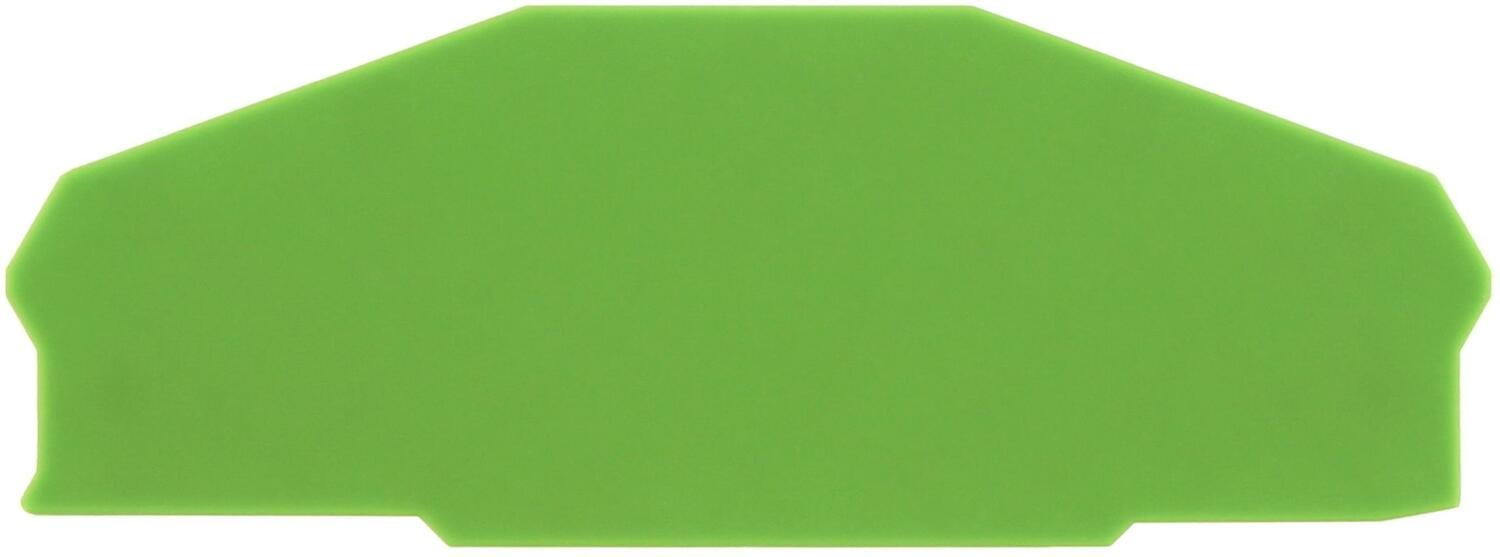

ZAP 4/4A Green, End plate for ZRK/ZSL 4/4A Art: 3705.1 Copied	Green	93 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50

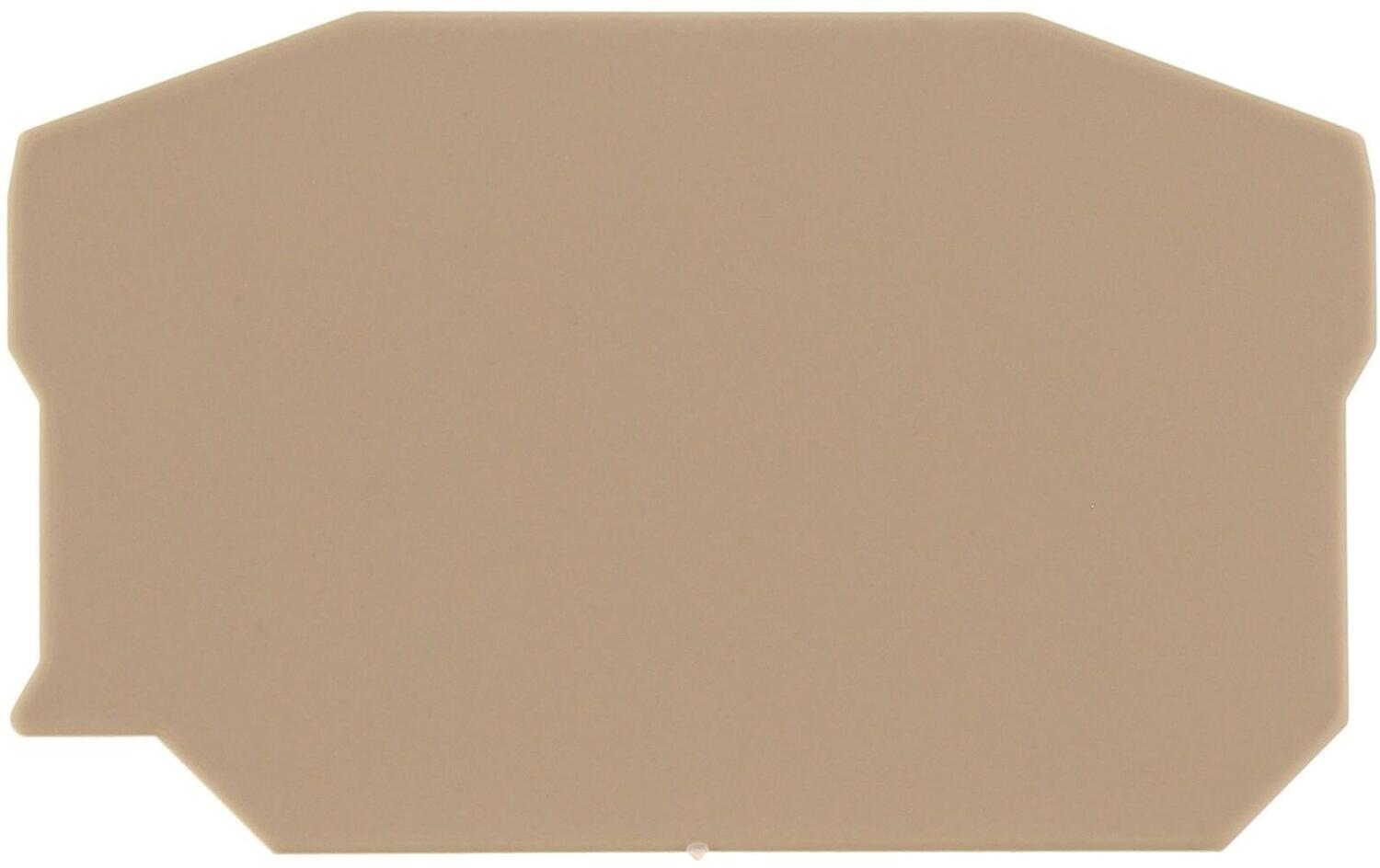

ZAP 6/2A Beige, End plate for ZRK/ZSL 6/2A Art: 3760.2 Copied	Beige	65 mm	2 mm	40 mm	UL94-V2	105 °C	3.8 g	20

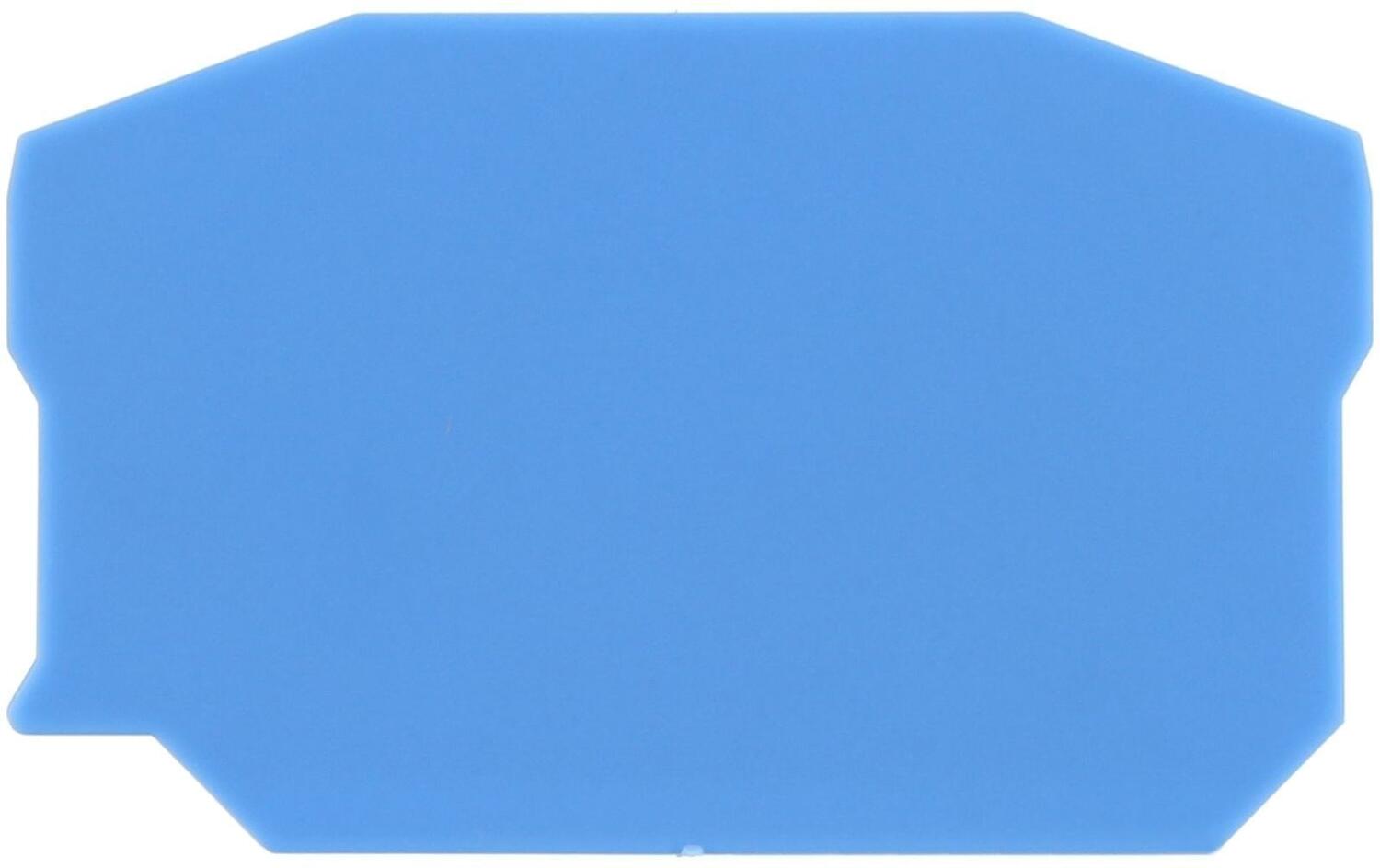

ZAP 6/2A Blue, End plate for ZRK/ZSL 6/2A Art: 3760.5 Copied	Blue	65 mm	2 mm	40 mm	UL94-V2	105 °C	3.8 g	20

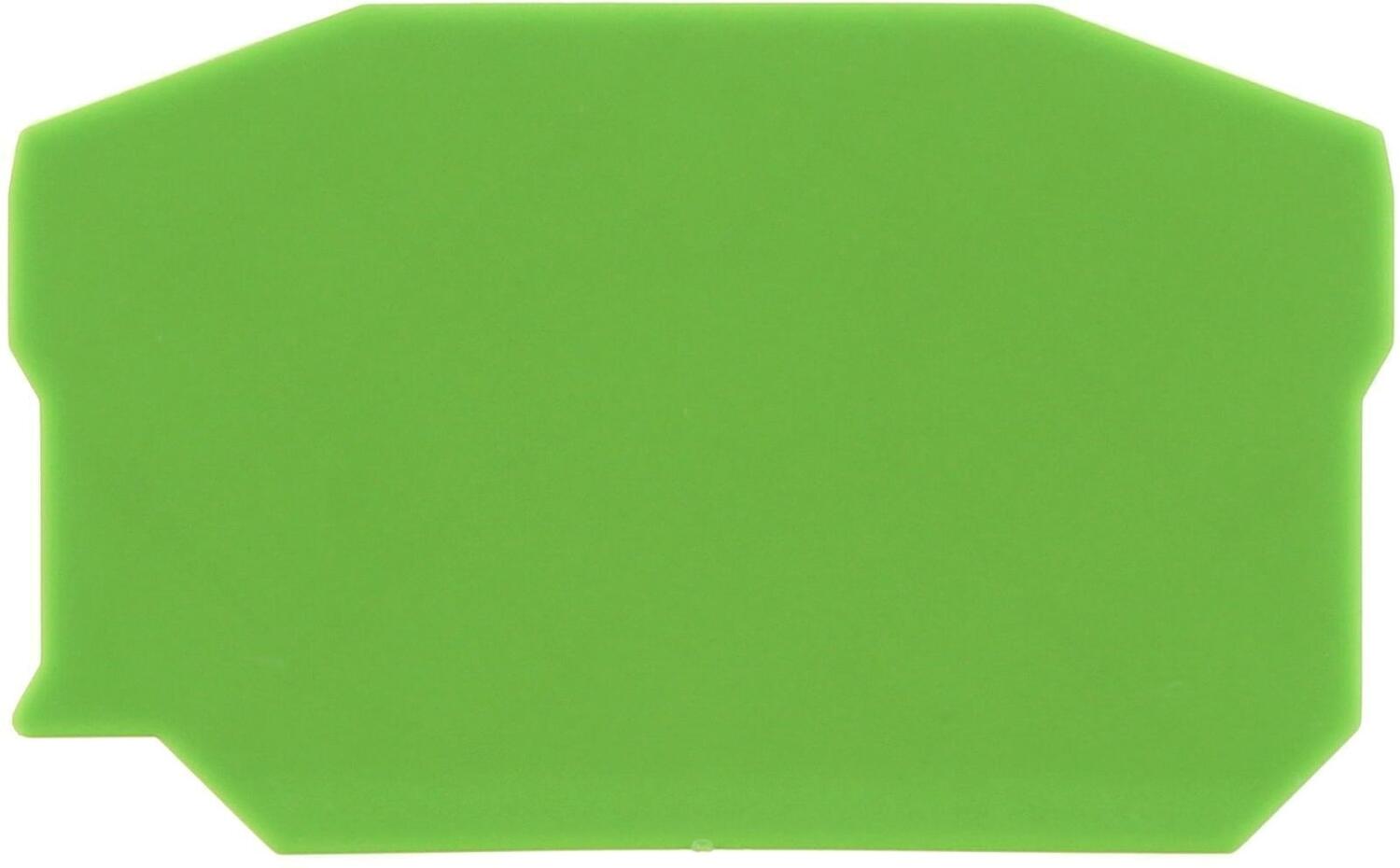

ZAP 6/2A Green, End plate for ZRK/ZSL 6/2A Art: 3760.1 Copied	Green	65 mm	2 mm	40 mm	UL94-V2	105 °C	3.8 g	20

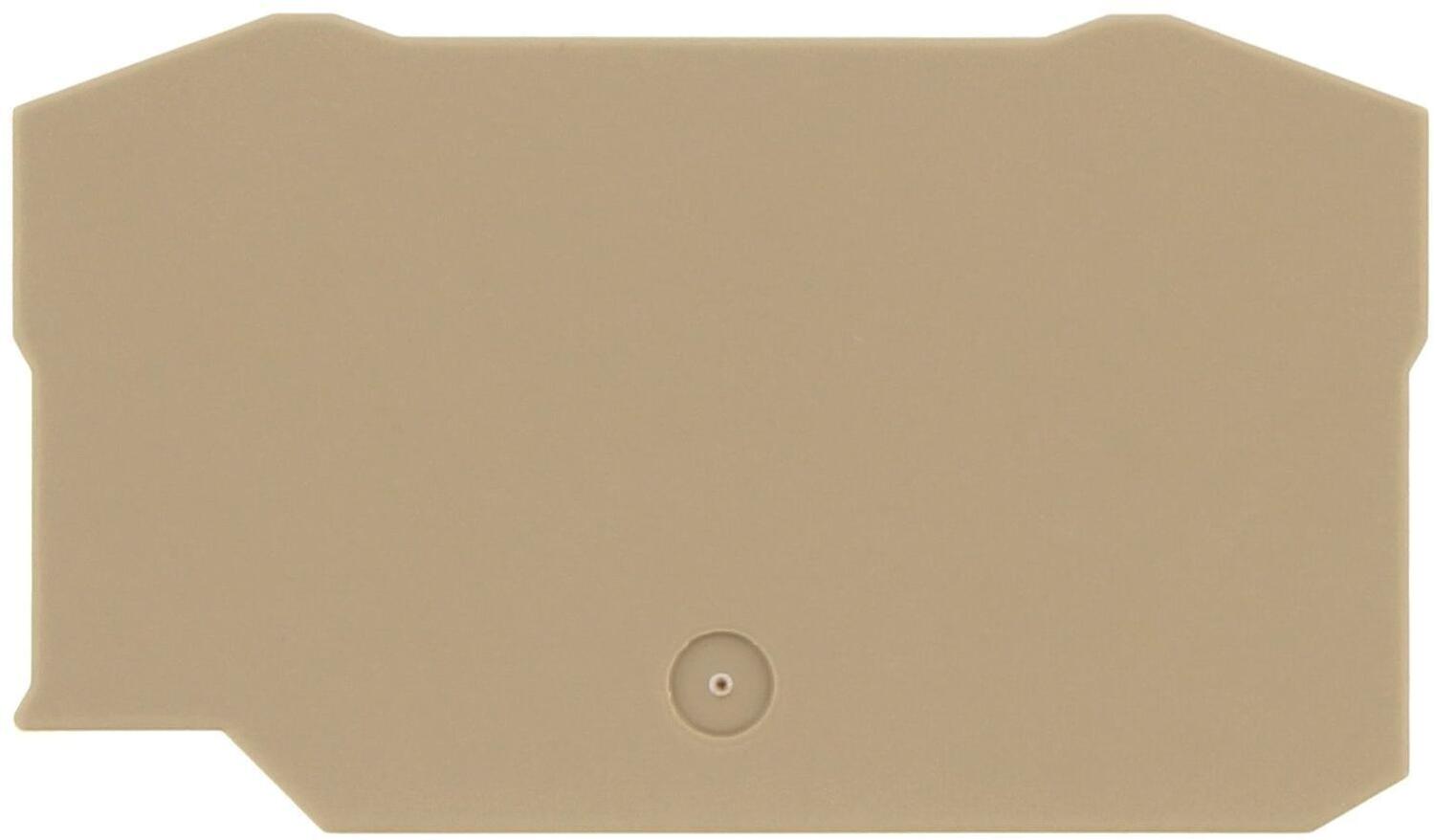

ZAP 10/2A Beige, End plate for ZRK/ZSL 10/2A Art: 3788.2 Copied	Beige	73.5 mm	2 mm	42.7 mm	UL94-V2	105 °C	4 g	20

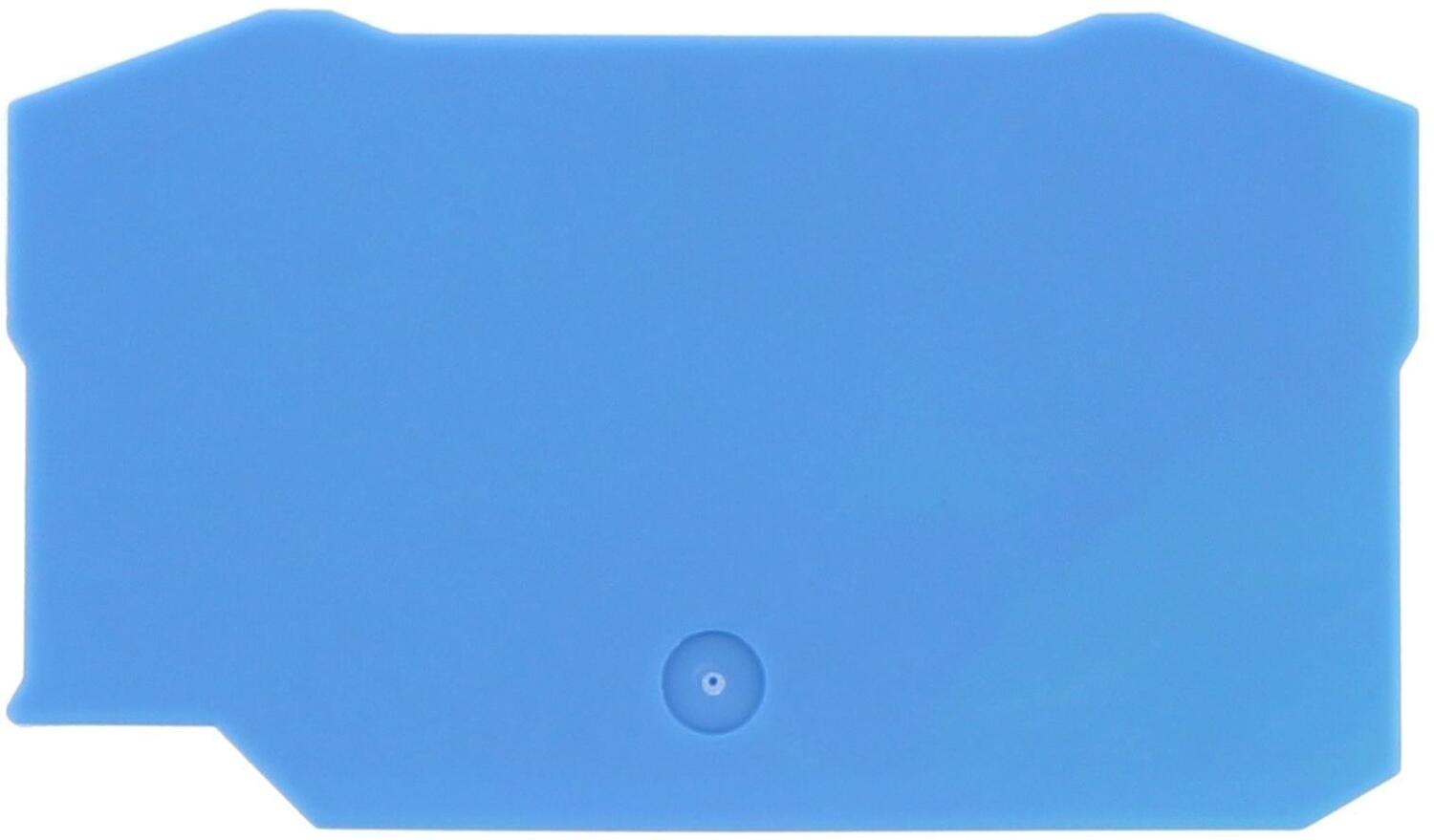

ZAP 10/2A Blue, End plate for ZRK/ZSL 10/2A Art: 3788.5 Copied	Blue	73.5 mm	2 mm	42.7 mm	UL94-V2	105 °C	4 g	20

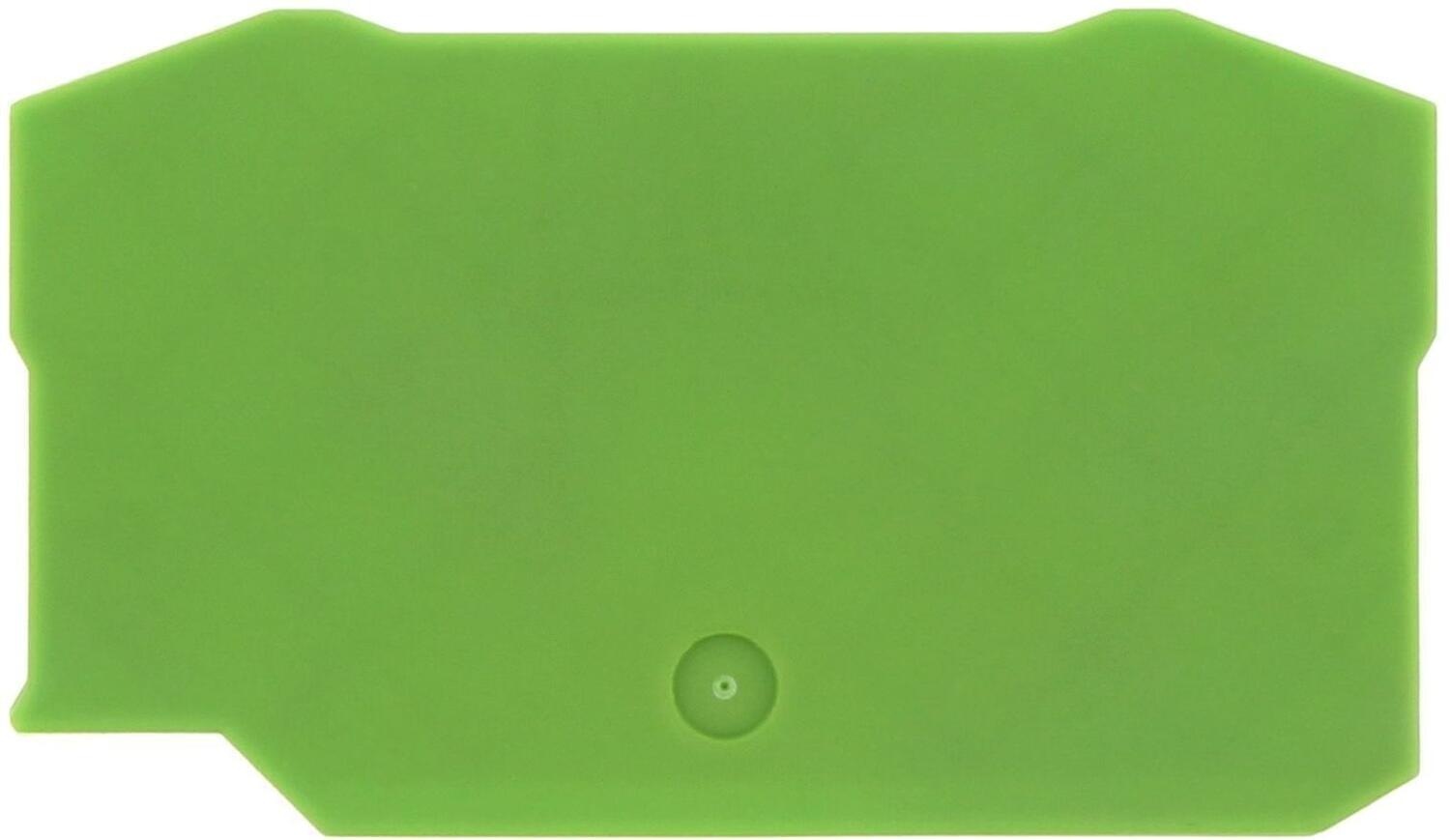

ZAP 10/2A Green, End plate for ZRK/ZSL 10/2A Art: 3788.1 Copied	Green	73.5 mm	2 mm	42.7 mm	UL94-V2	105 °C	4 g	20

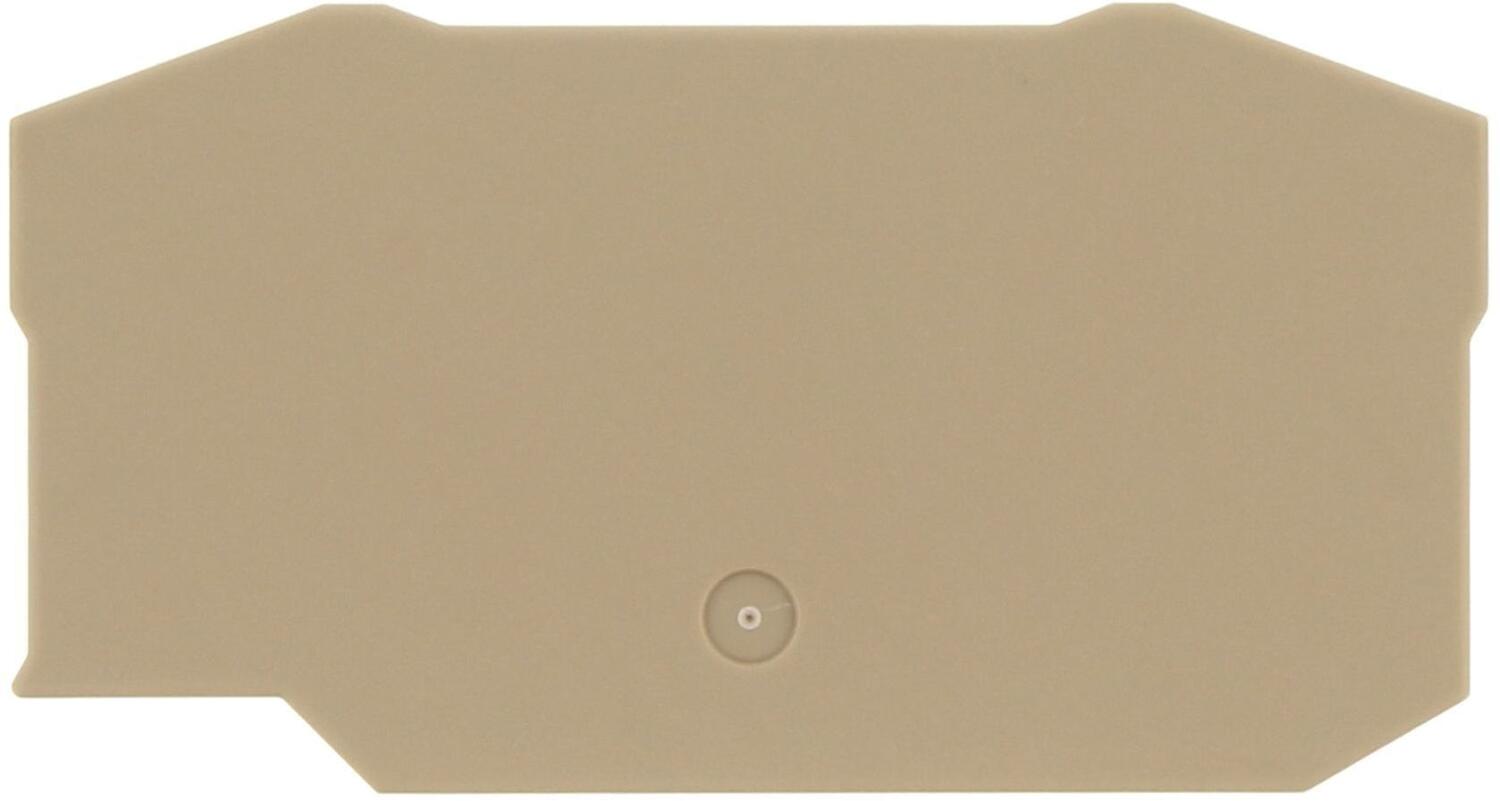

ZAP 16/2A Beige, End plate for ZRK/ZSL 16/2A Art: 3799.2 Copied	Beige	81.5 mm	2 mm	43.7 mm	UL94-V2	105 °C	4.4 g	20

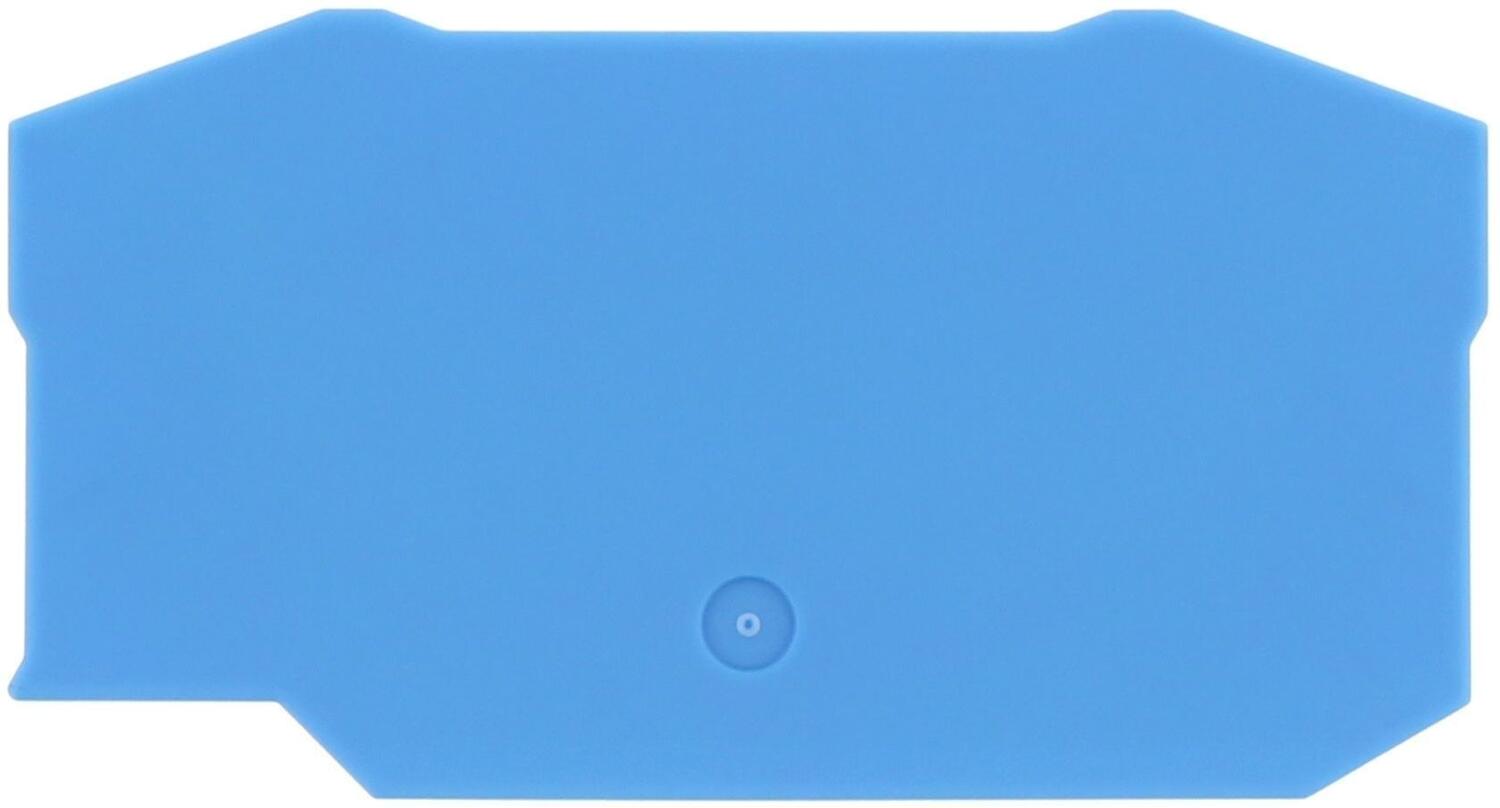

ZAP 16/2A Blue, End plate for ZRK/ZSL 16/2A Art: 3799.5 Copied	Blue	81.5 mm	2 mm	43.7 mm	UL94-V2	105 °C	4.4 g	20

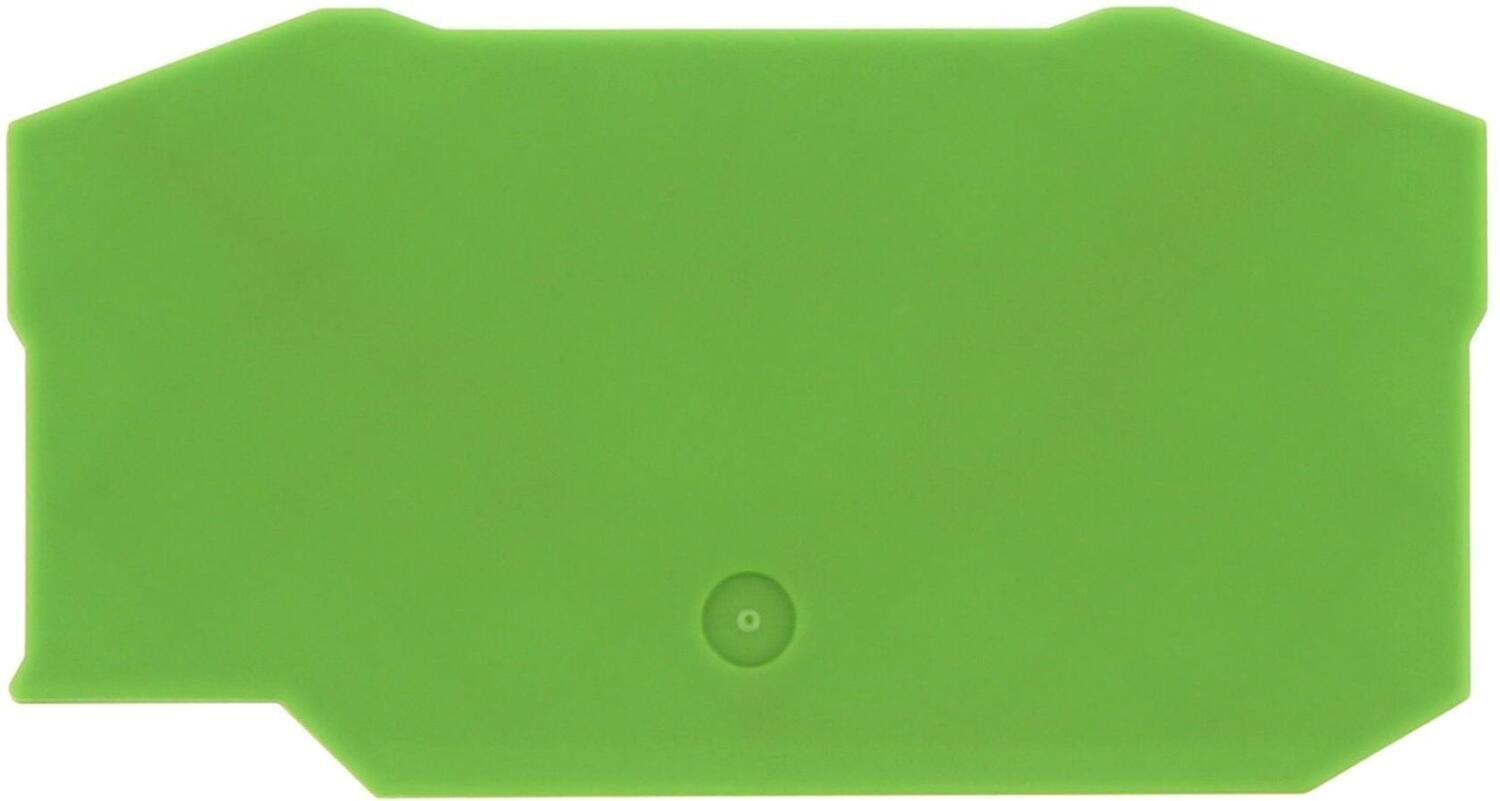

ZAP 16/2A Green, End plate for ZRK/ZSL16/2A Art: 3799.1 Copied	Green	81.5 mm	2 mm	43.7 mm	UL94-V2	105 °C	4.4 g	20

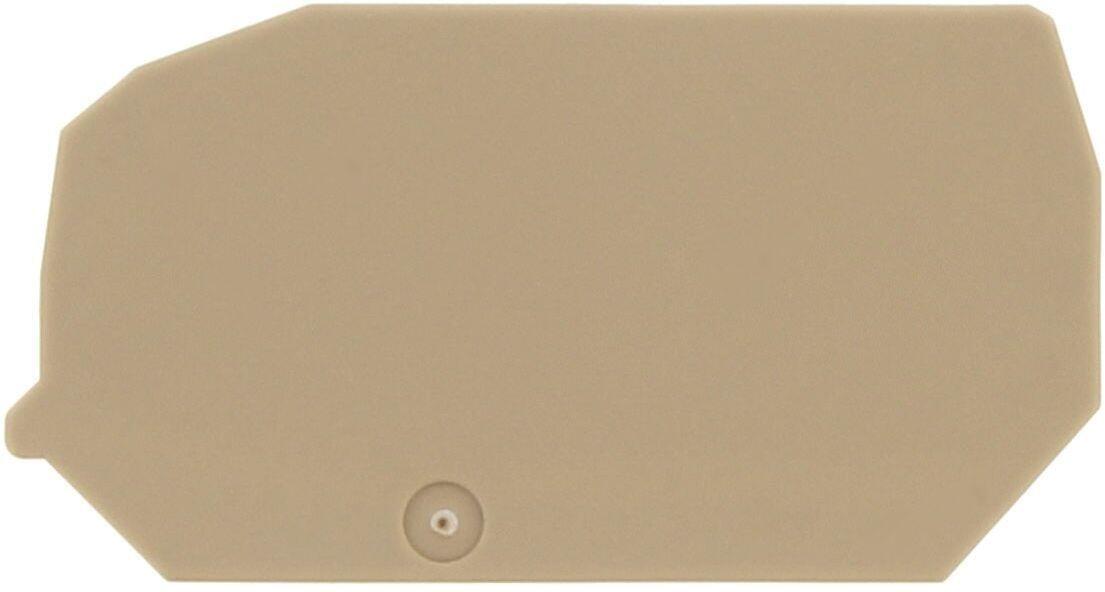

ZAP SR 3A/35 Beige, End plate for ZSRK/ZSLN 2.5/3A/35 Art: 3795.2 Copied	Beige	54.2 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.9 g	50

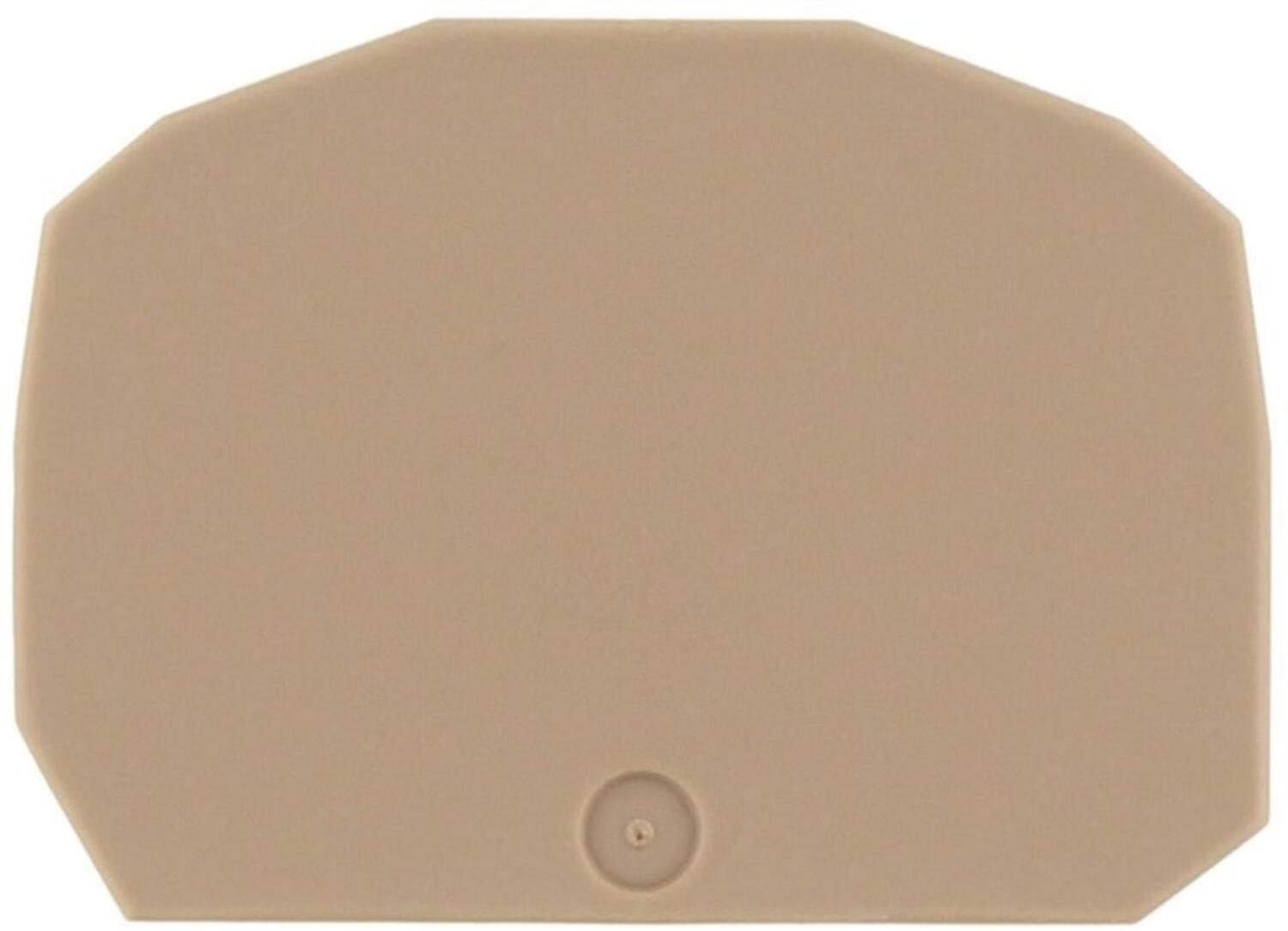

ZAP SR Beige, End plate for ZSRK/ZSLN 2.5/2A Art: 3757.2 Copied	Beige	40 mm	1.5 mm	287 mm	UL94-V2	105 °C	1.8 g	50

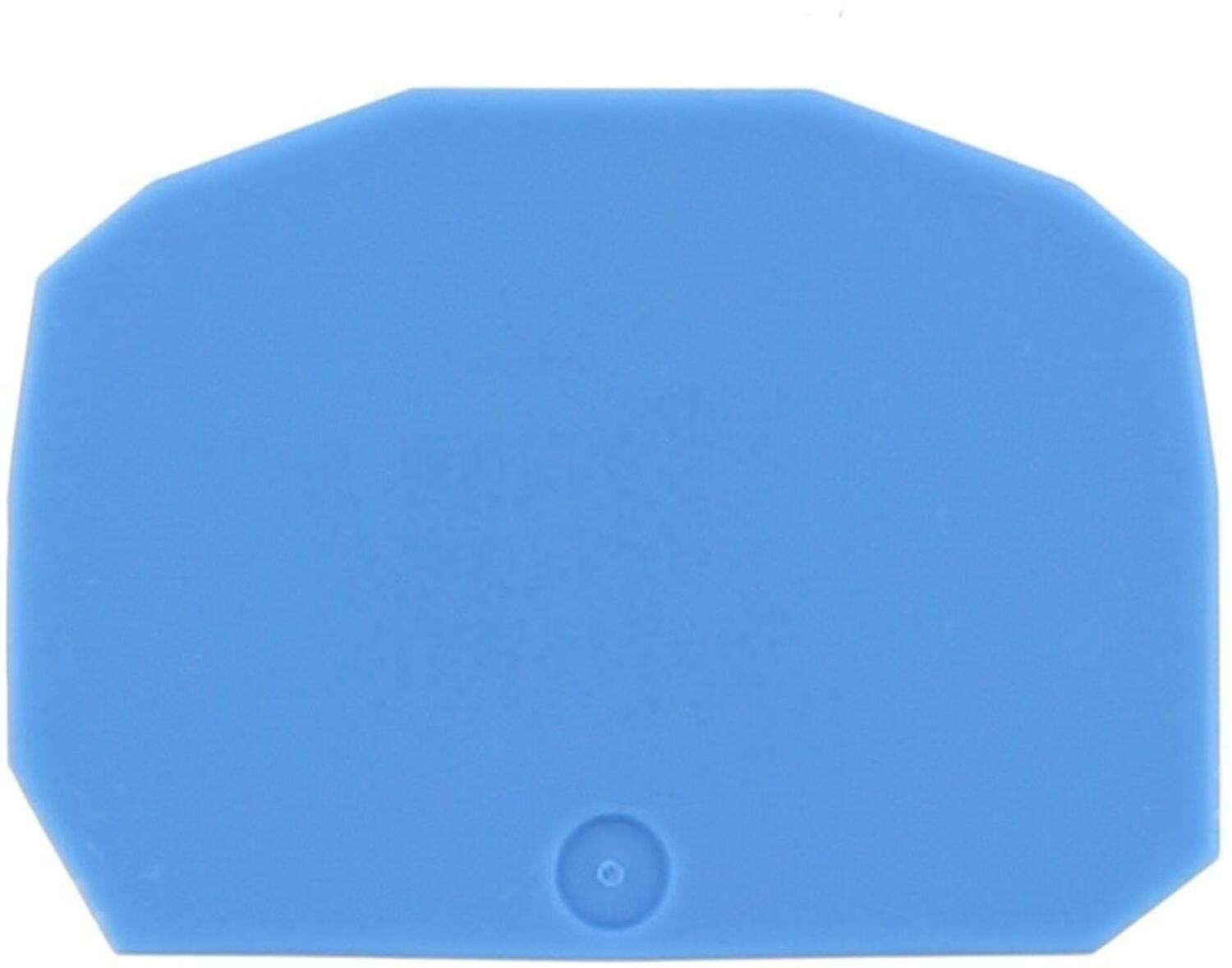

ZAP SR Blue, End plate for ZSRK/ZSLN 2.5/2A Art: 3757.5 Copied	Blue	40 mm	1.5 mm	287 mm	UL94-V2	105 °C	1.8 g	50

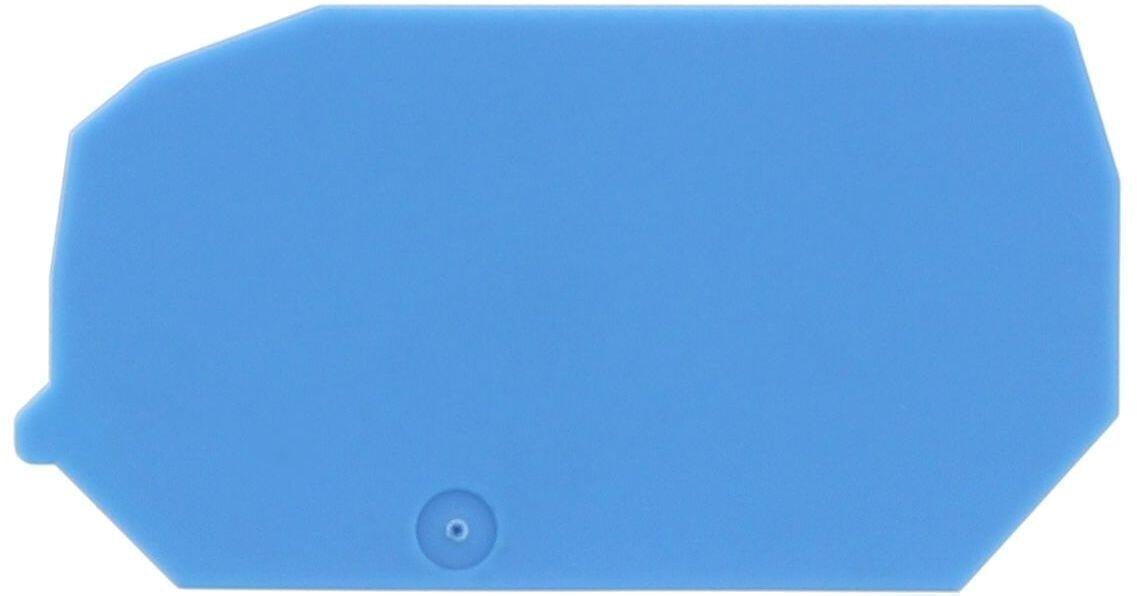

ZAP SR 3A/35 Blue, End plate for ZSRK/ZSLN 2.5/3A/35 Art: 3795.5 Copied	Blue	54.2 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.9 g	50

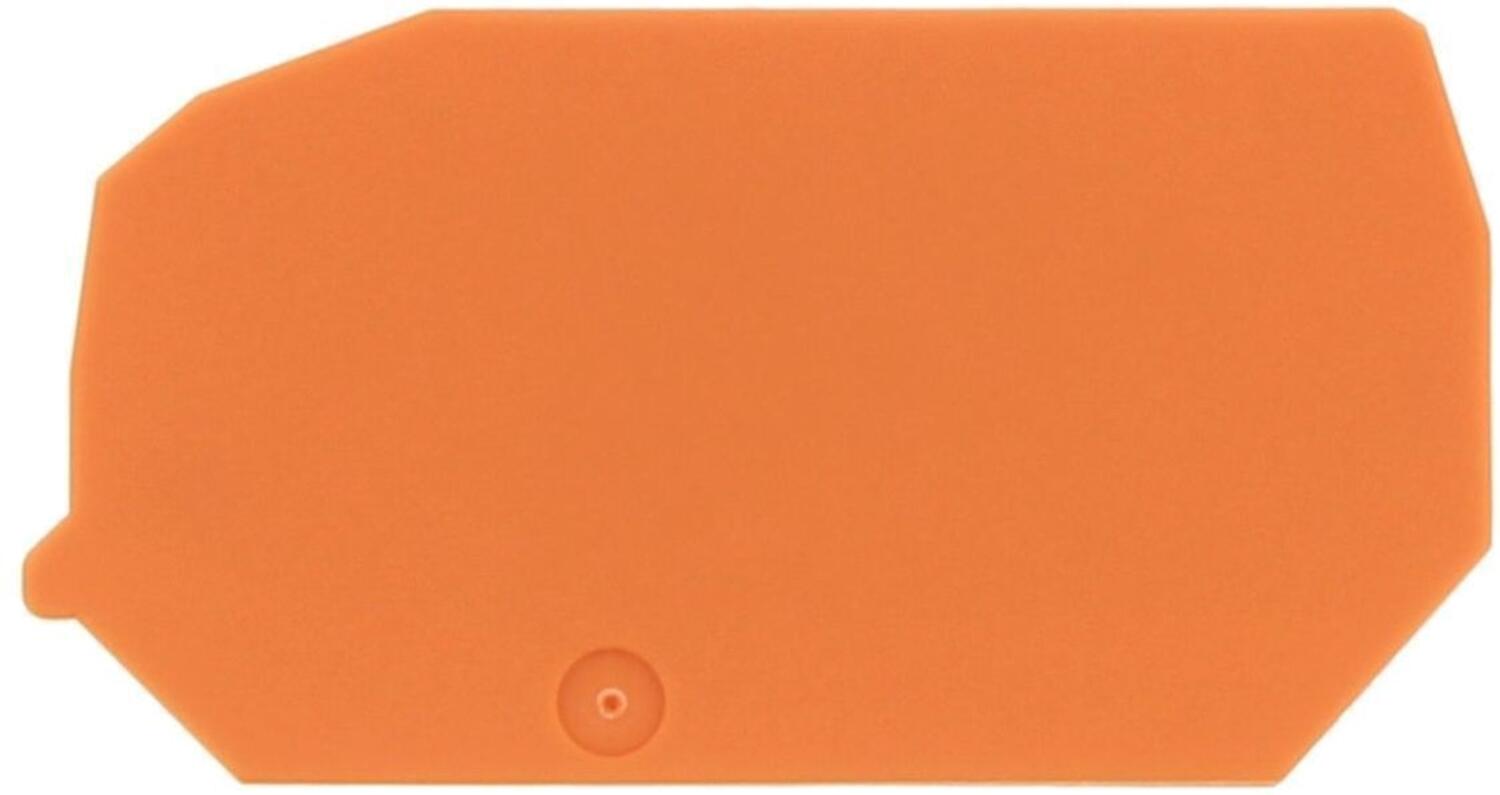

ZAP SR 3A/35 Orange, End plate for ZSRK/ZSLN 2.5/3A/35 Art: 3795.3 Copied	Orange	54.2 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.9 g	50

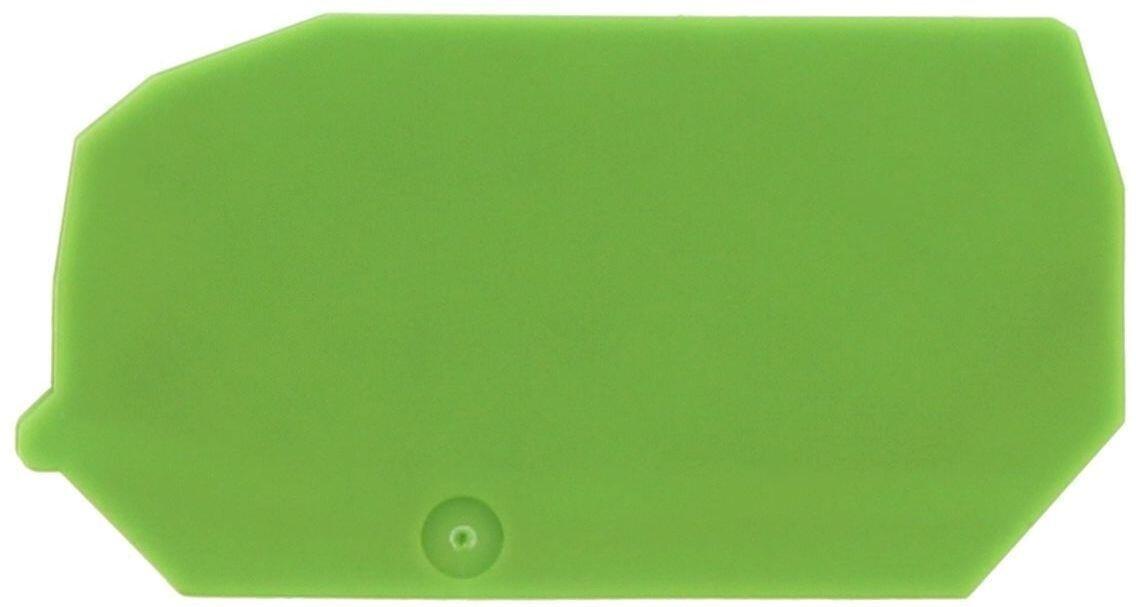

ZAP SR 3A/35 Green, End plate forZSRK/ZSLN 2.5/3A/35 Art: 3795.1 Copied	Green	54.2 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.9 g	50

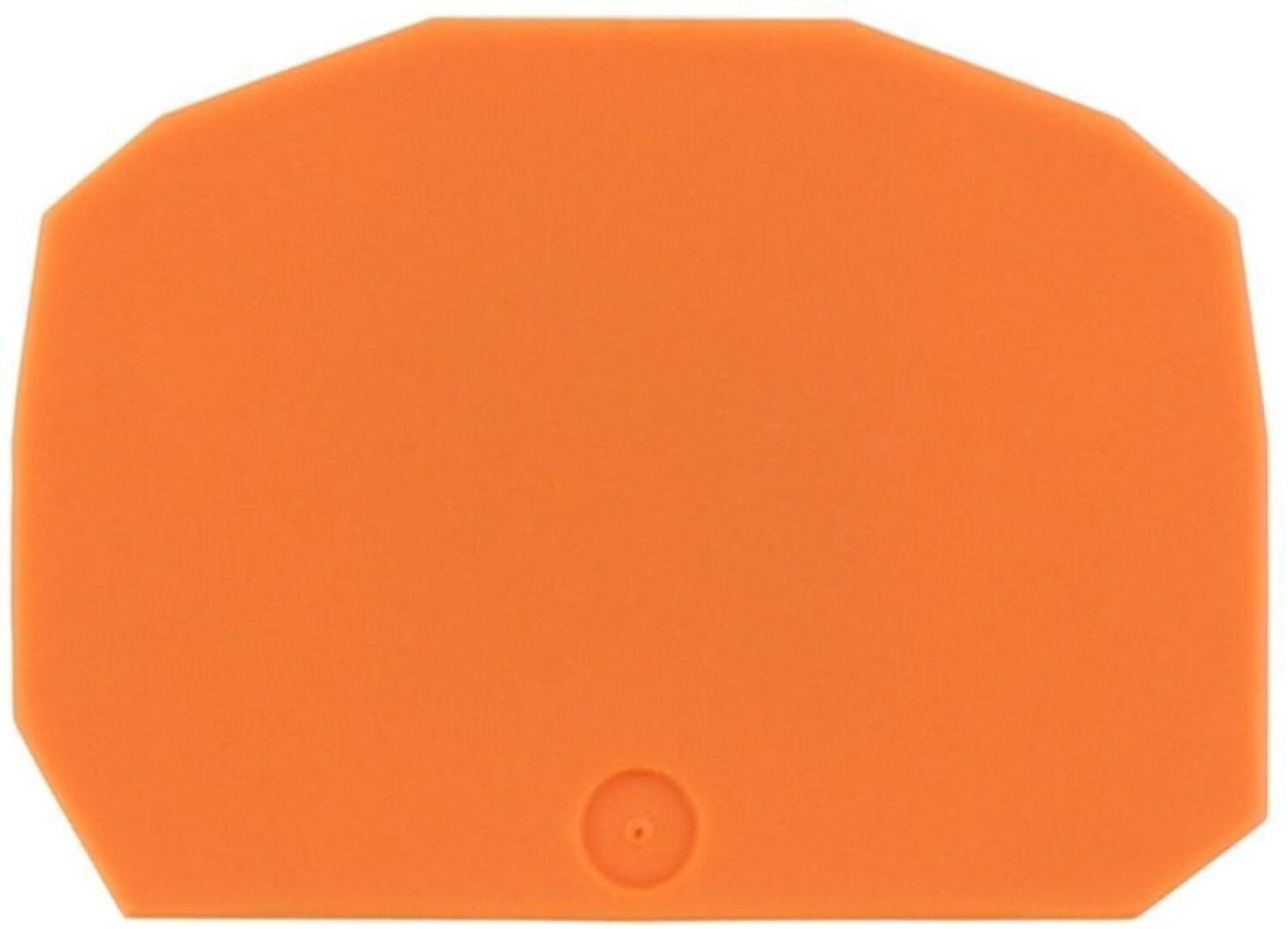

ZAP SR Orange, End plate for ZSRK/ZSLN 2.5/2A Art: 3757.3 Copied	Orange	40 mm	1.5 mm	287 mm	UL94-V2	105 °C	1.8 g	50

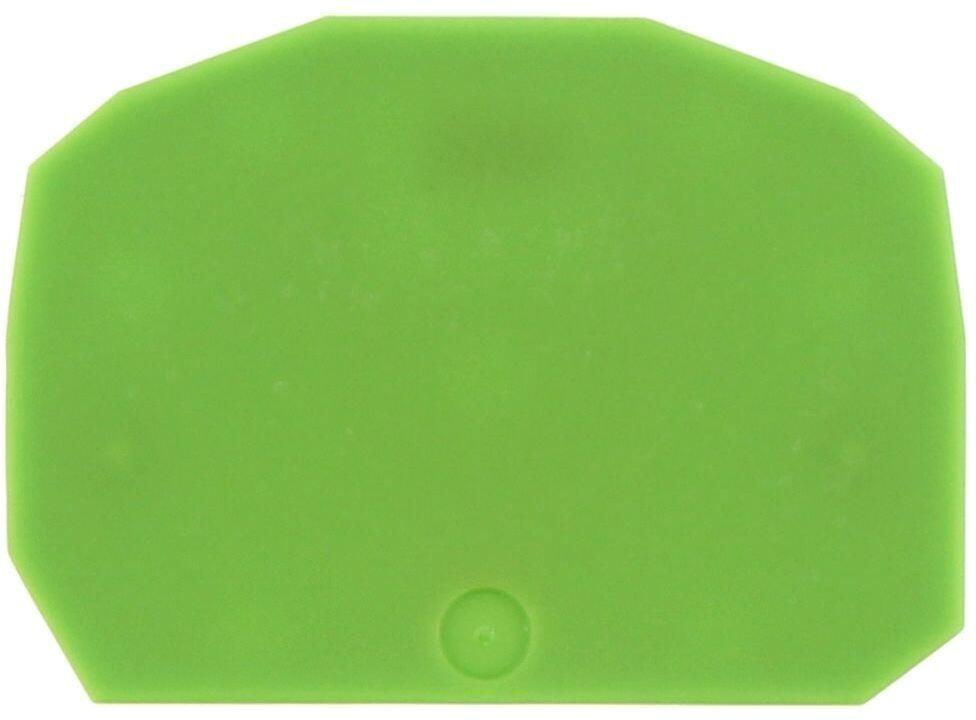

ZAP SR Green, End plate for ZSRK/ZSLN 2.5/2A Art: 3757.1 Copied	Green	40 mm	1.5 mm	287 mm	UL94-V2	105 °C	1.8 g	50

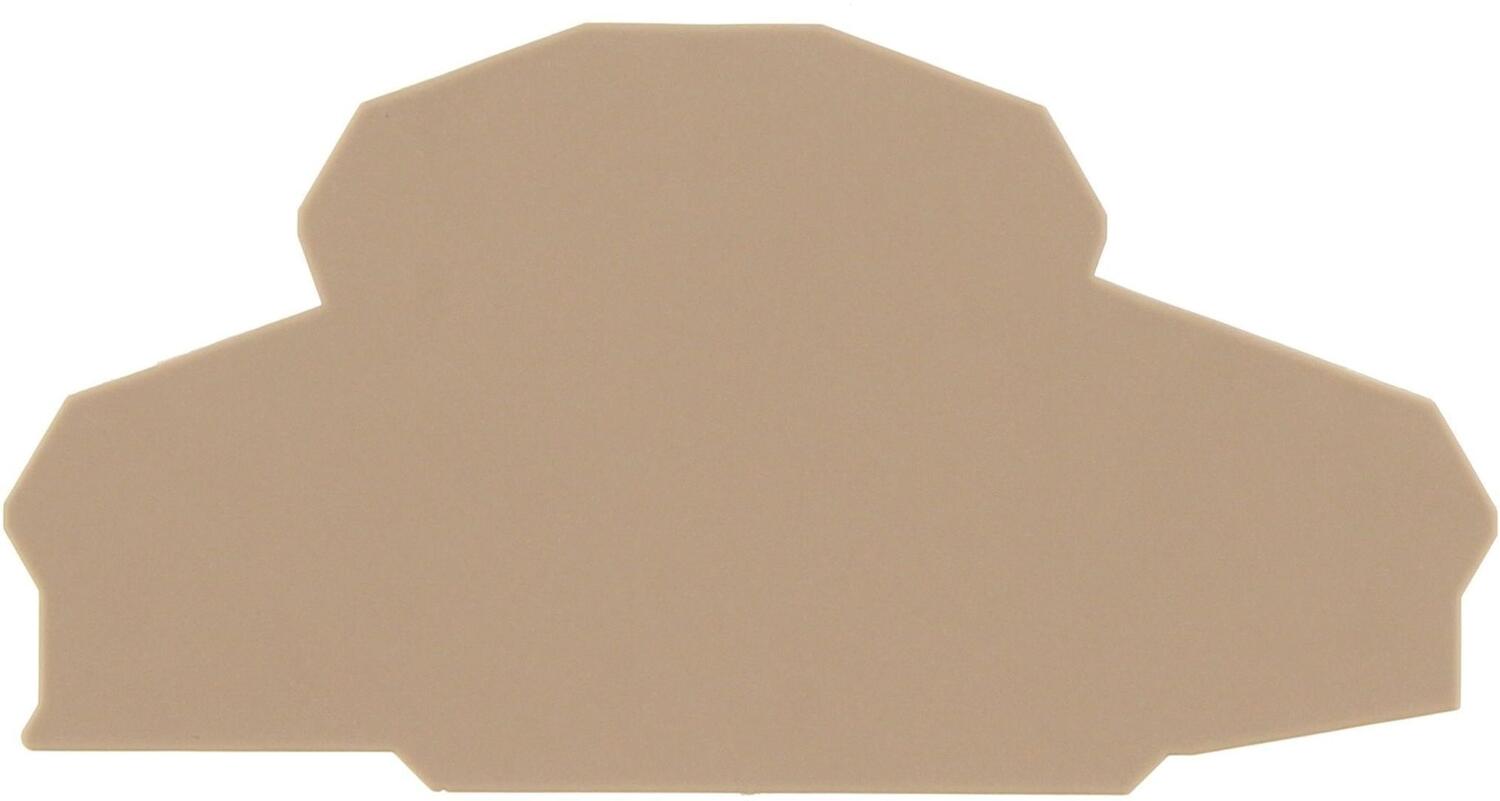

ZAPD 2.5 Beige, End plate for ZRKD 2.5 Art: 3756.2 Copied	Beige	83.6 mm	2 mm	43.2 mm	UL94-V2	105 °C	4.2 g	20

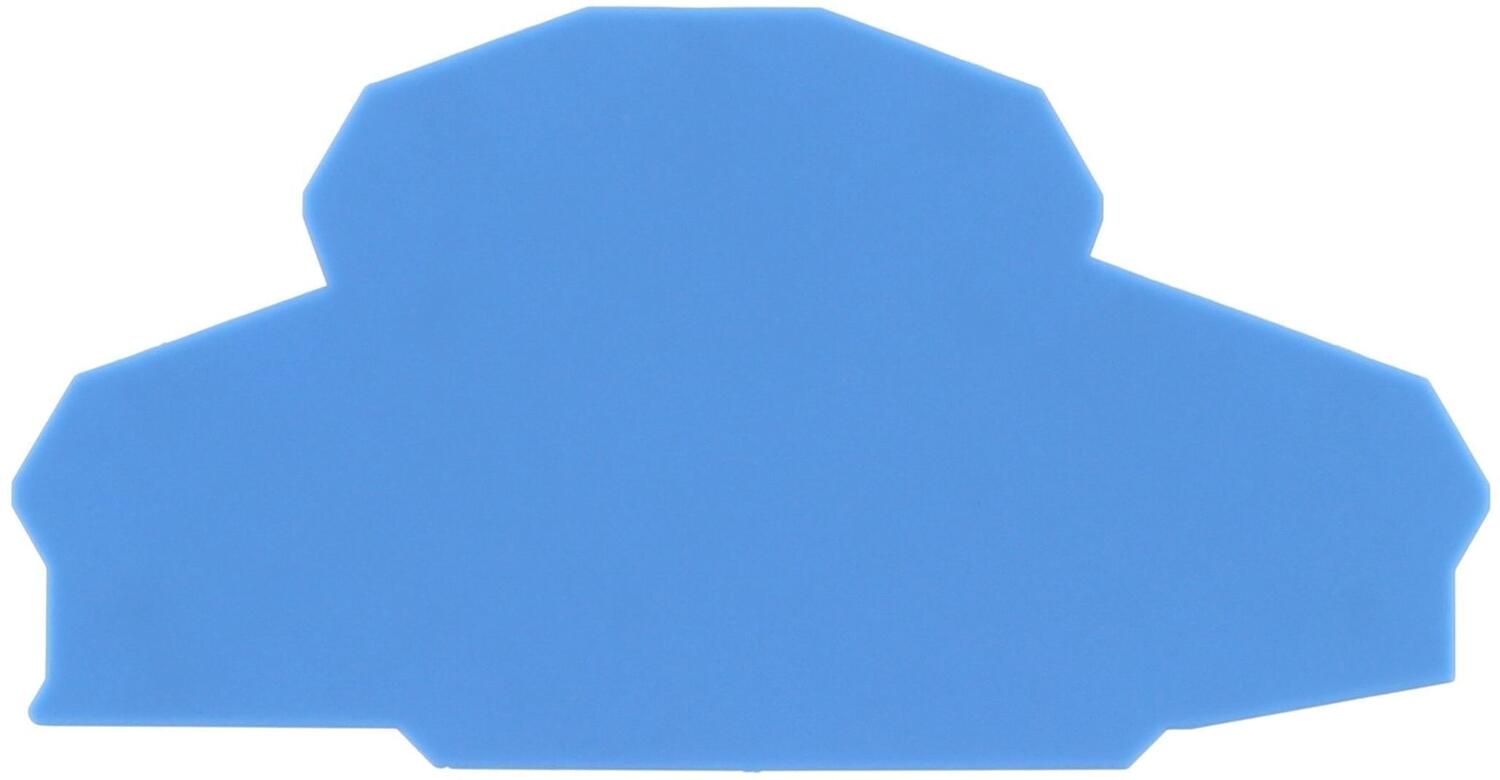

ZAPD 2.5 Blue, End plate for ZRKD 2.5 Art: 3756.5 Copied	Blue	83.6 mm	2 mm	43.2 mm	UL94-V2	105 °C	4.2 g	20

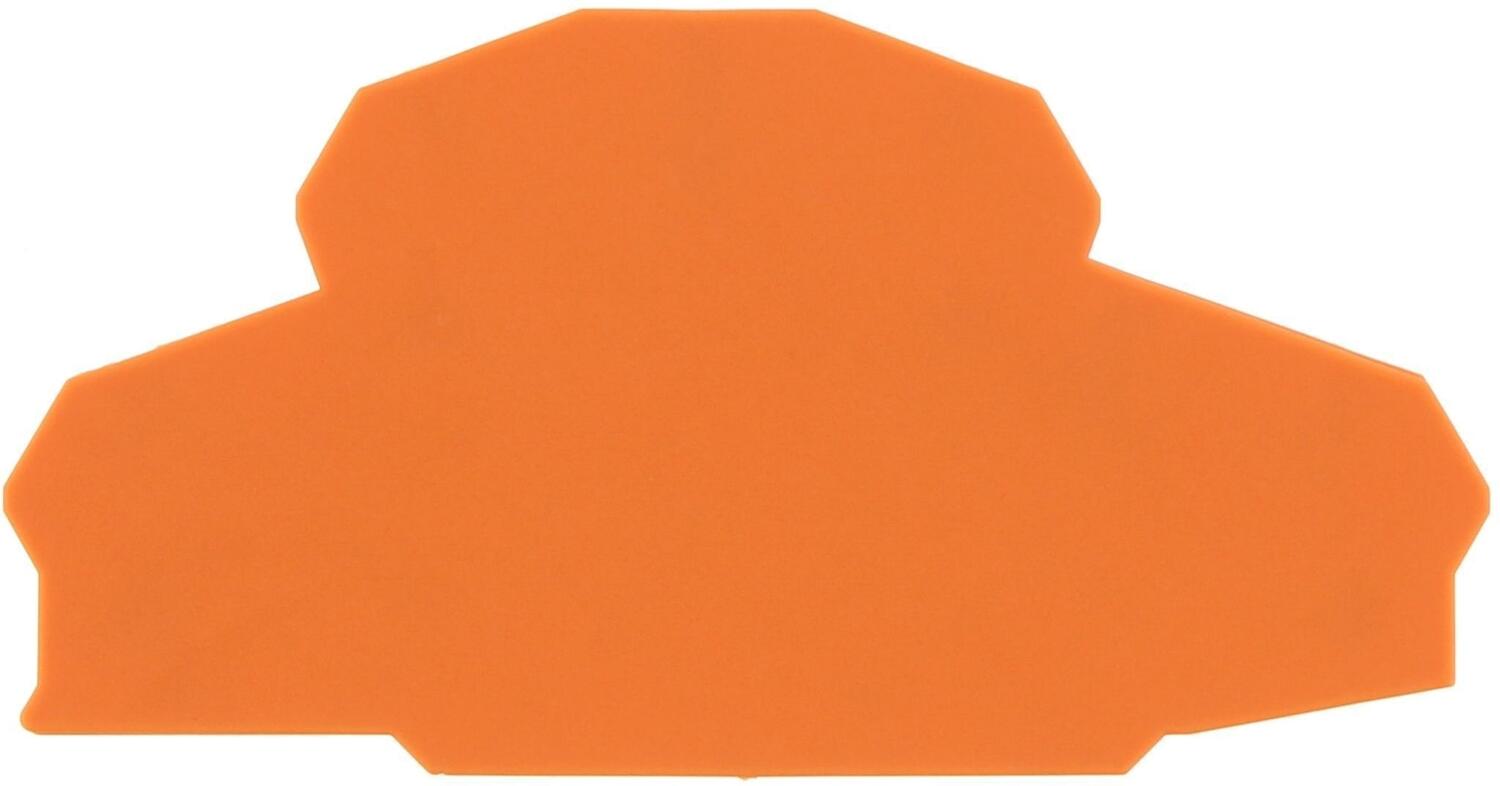

ZAPD 2.5 Orange, End plate for ZRKD 2.5 Art: 3756.3 Copied	Orange	83.6 mm	2 mm	43.2 mm	UL94-V2	105 °C	4.2 g	20

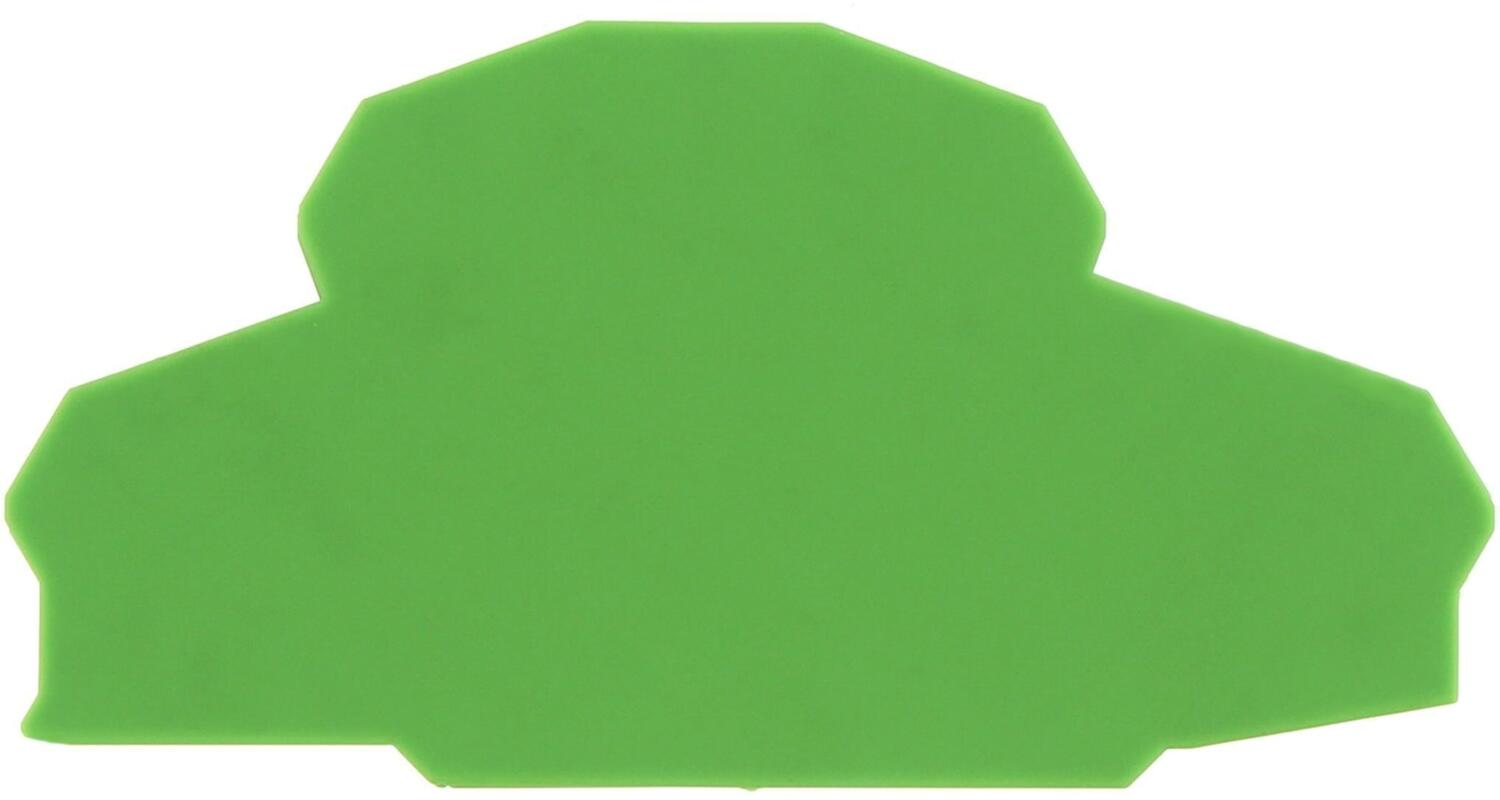

ZAPD 2.5 Green, End plate for ZRKD 2.5 Art: 3756.1 Copied	Green	83.6 mm	2 mm	43.2 mm	UL94-V2	105 °C	4.2 g	20

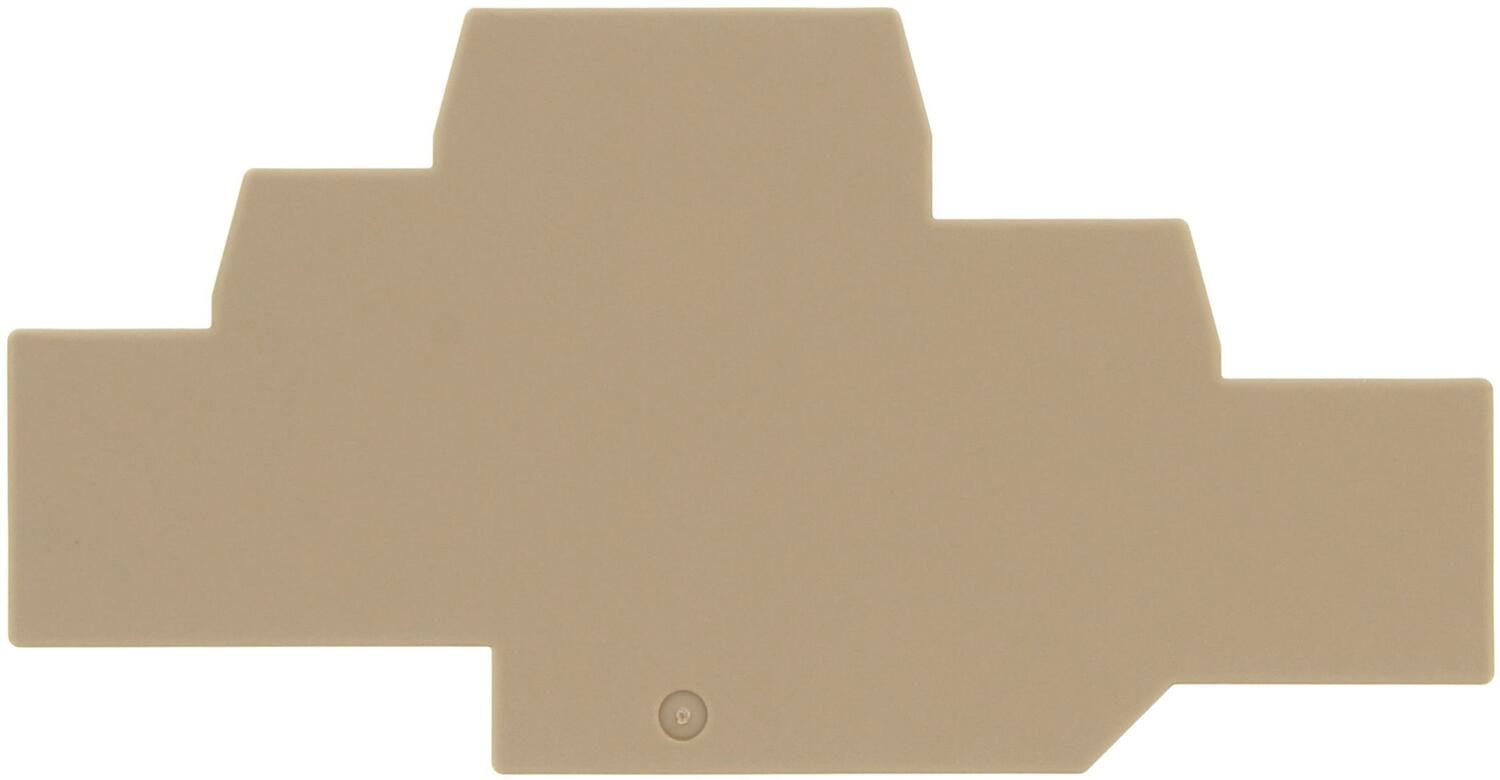

ZAP 2.5/ID Beige, End plate for ZIKD 2.5 Art: 3761.2 Copied	Beige	116 mm	1.5 mm	60.2 mm	UL94-V2	105 °C	6.2 g	20

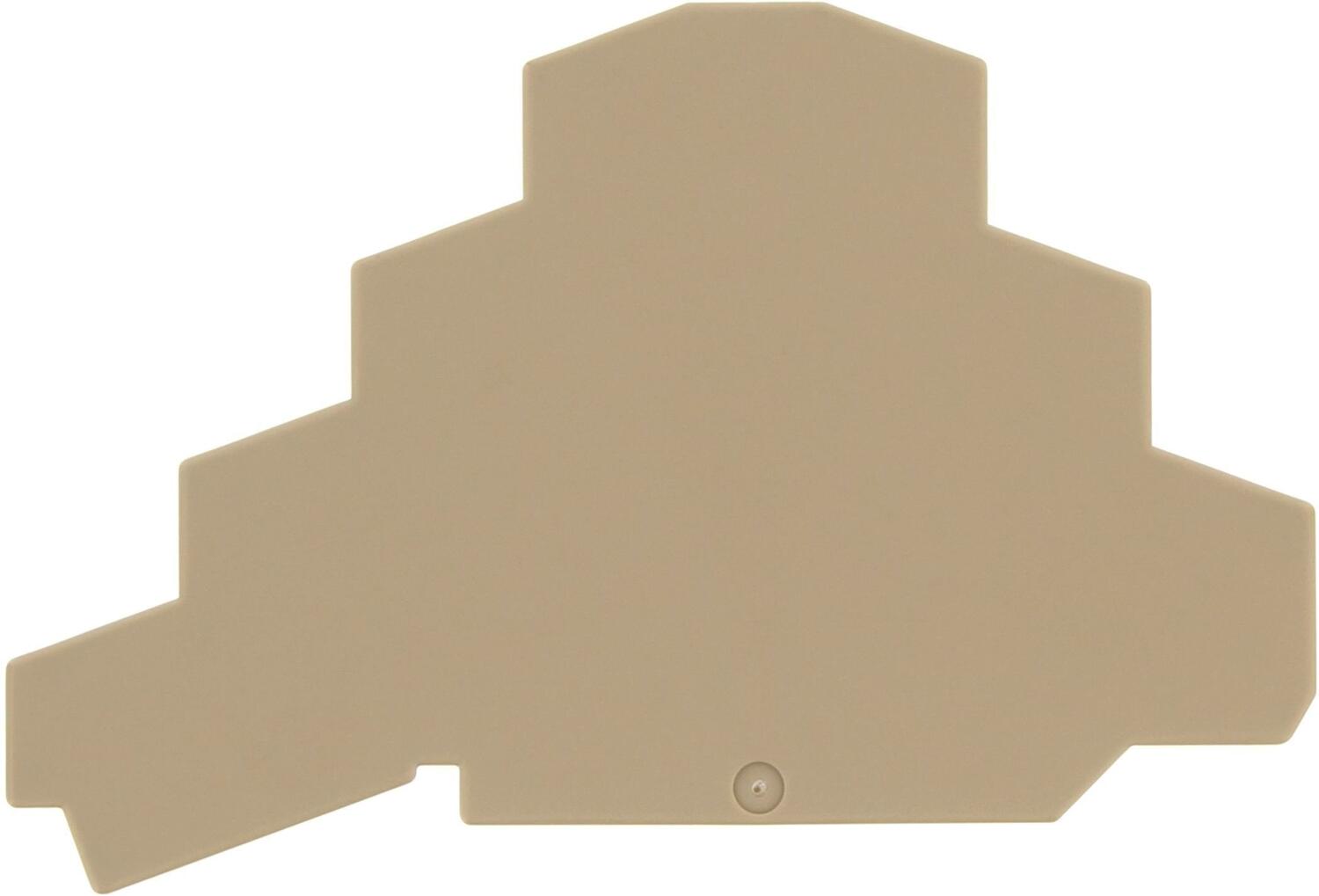

ZAP MA Beige, End plate for VMAK 2.5 Art: 3762.2 Copied	Beige	86.4 mm	1.5 mm	17.6 mm	UL94-V2	105 °C	6.4 g	20

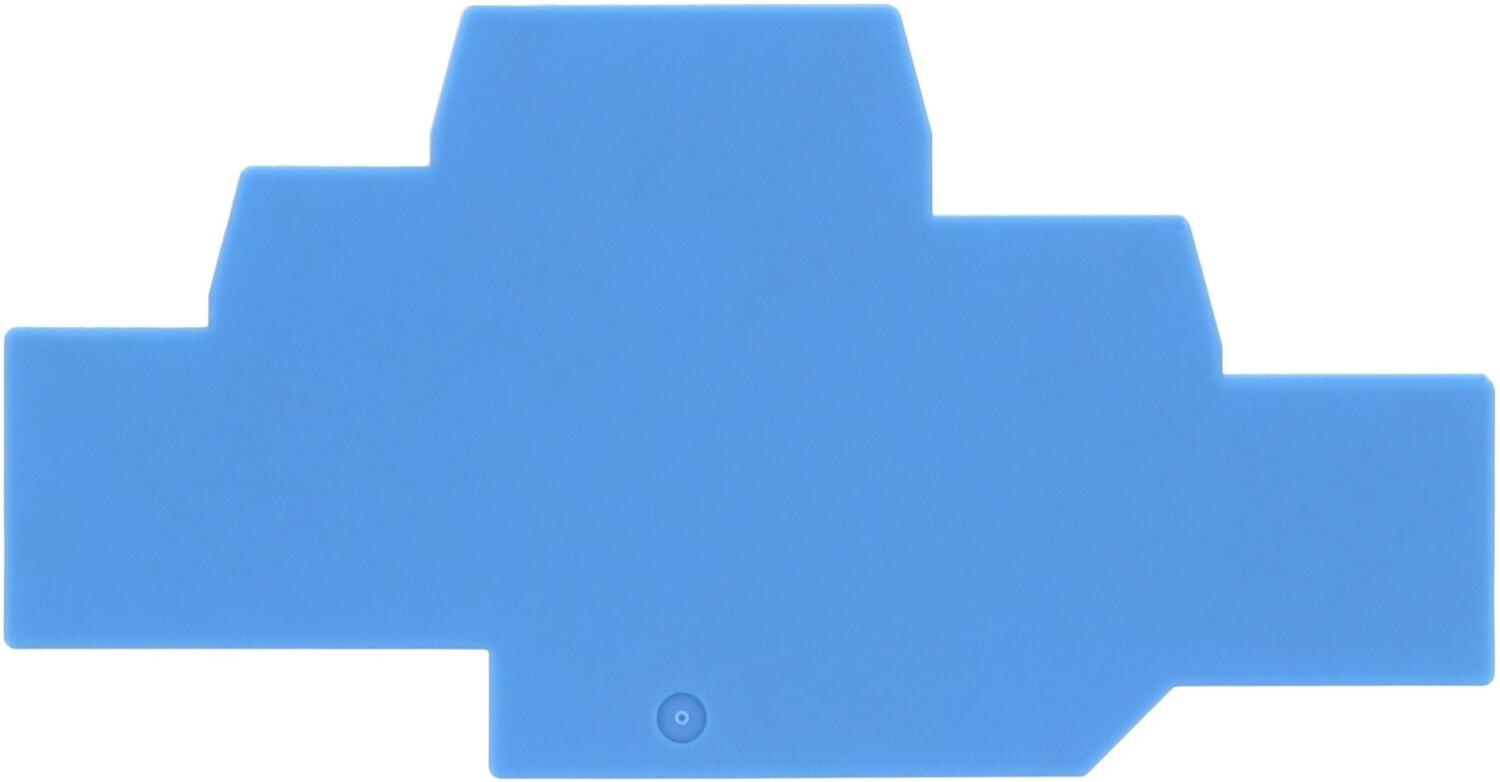

ZAP 2.5/ID Blue, End plate for ZIKD 2.5 Art: 3761.5 Copied	Blue	116 mm	1.5 mm	60.2 mm	UL94-V2	105 °C	6.2 g	20
ZAP MA Blue, End plate for VMAK 2.5 Art: 3762.5 Copied	Blue	86.4 mm	1.5 mm	17.6 mm	UL94-V2	105 °C	6.4 g	20

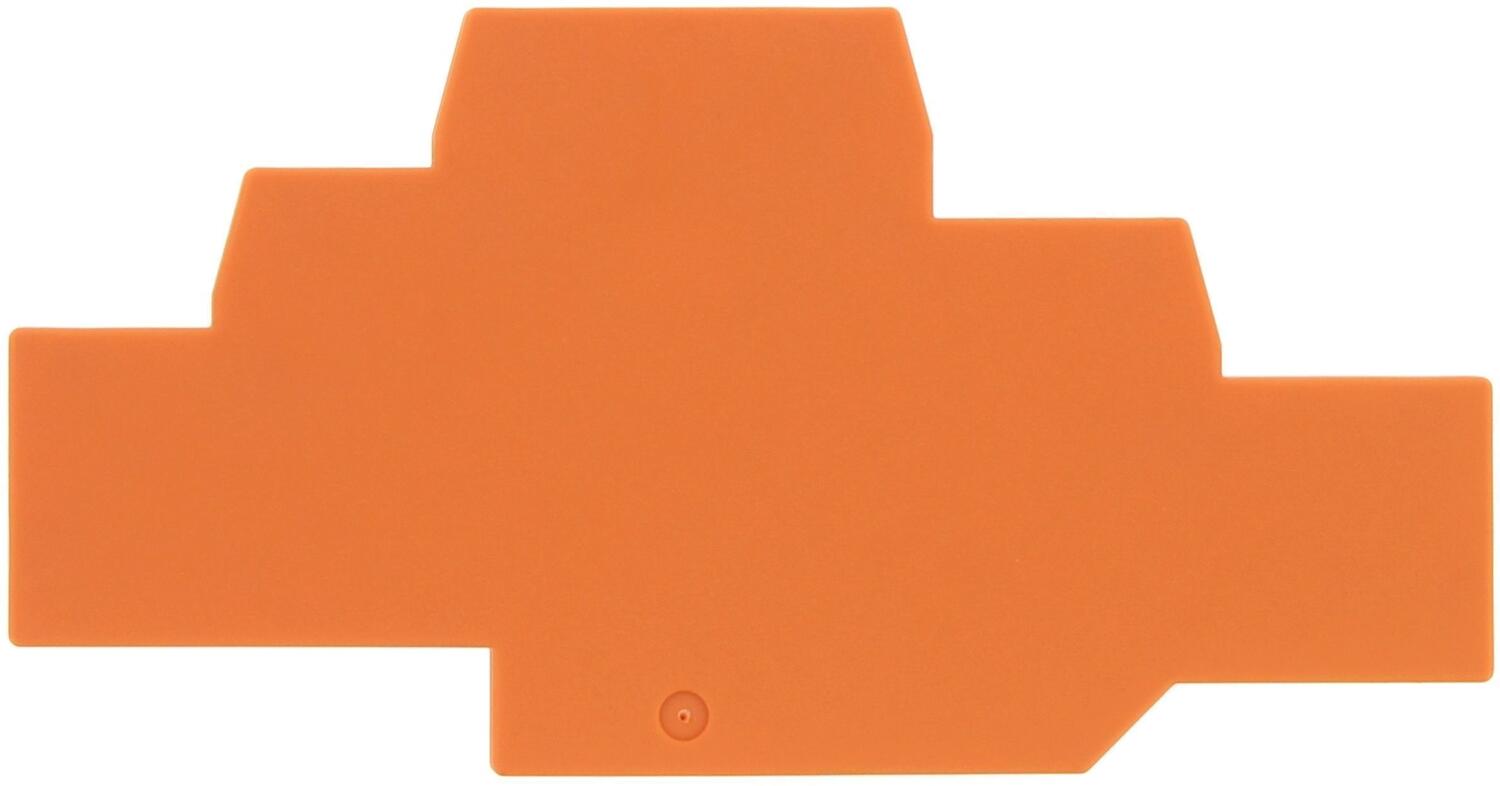

ZAP 2.5/ID Orange, End plate for ZIKD 2.5 Art: 3761.3 Copied	Orange	116 mm	1.5 mm	60.2 mm	UL94-V2	105 °C	6.2 g	20

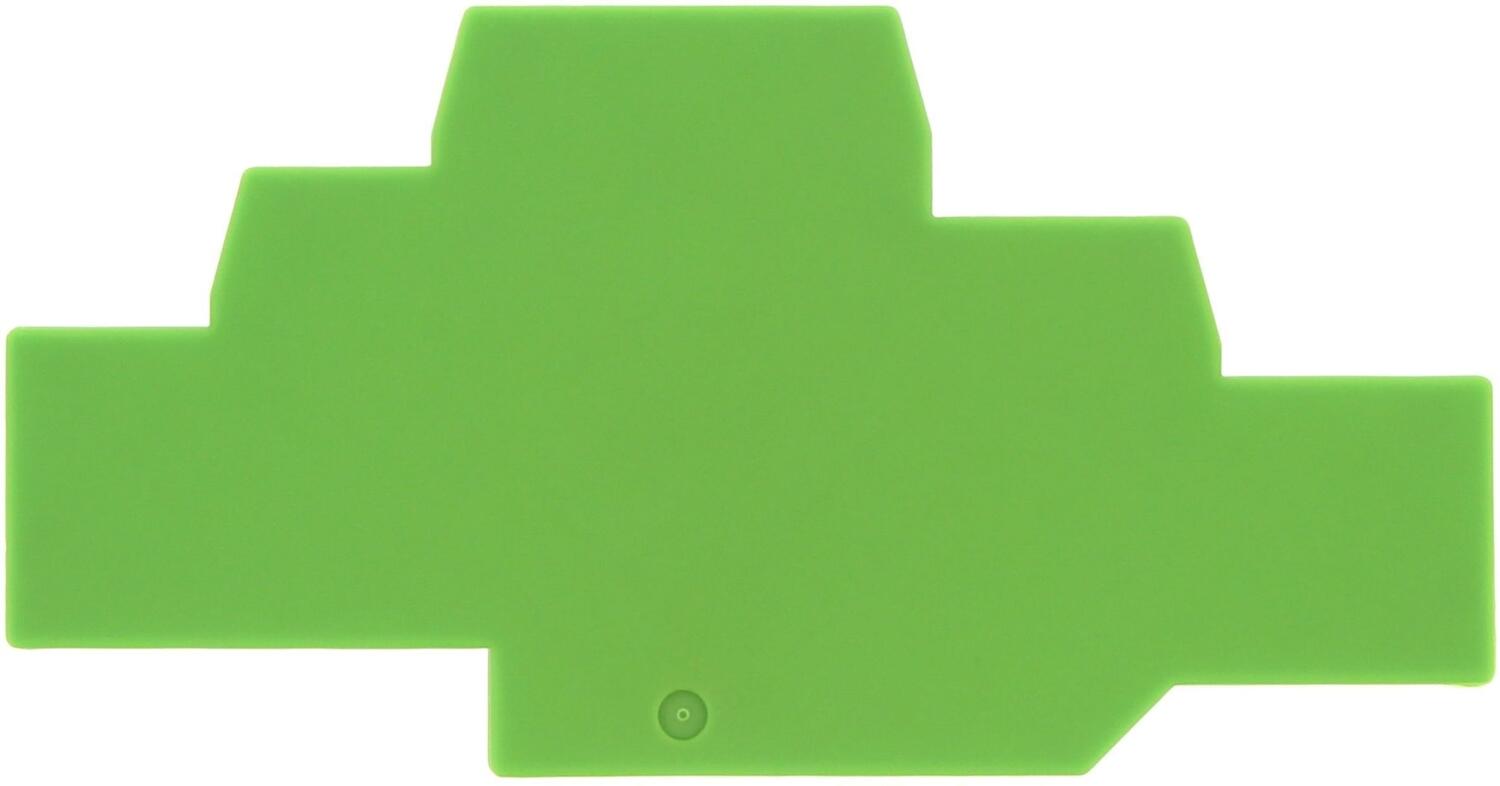

ZAP 2.5/ID Green, End plate for ZIKD 2.5 Art: 3761.1 Copied	Green	116 mm	1.5 mm	60.2 mm	UL94-V2	105 °C	6.2 g	20
ZAPT 2.5/2A Beige, End plate for ZTRK 2.5/2A Art: 3796.2 Copied	Beige	68 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.4 g	20
ZAPT 2.5/3A Beige, End plate for ZTRK 2.5/3A Art: 3797.2 Copied	Beige	80.2 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.8 g	20
ZAPT 2.5/4A Beige, End plate for ZTRK 2.5/4A Art: 3798.2 Copied	Beige	92.4 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	3 g	20

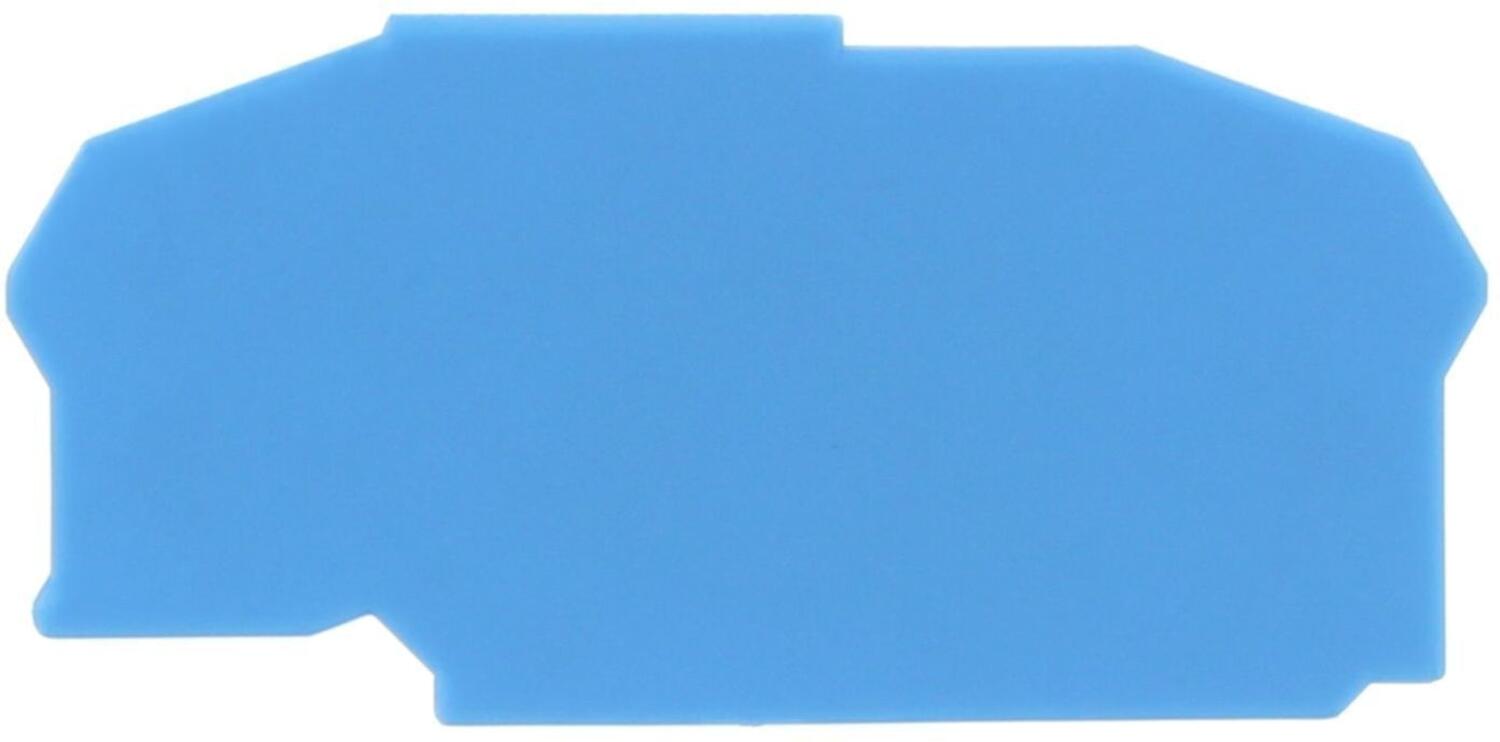

ZAPT 2.5/2A Blue, End plate for ZTRK 2.5/2A Art: 3796.5 Copied	Blue	68 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.4 g	20
ZAPT 2.5/3A Blue, End plate for ZTRK 2.5/3A Art: 3797.5 Copied	Blue	80.2 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.8 g	20

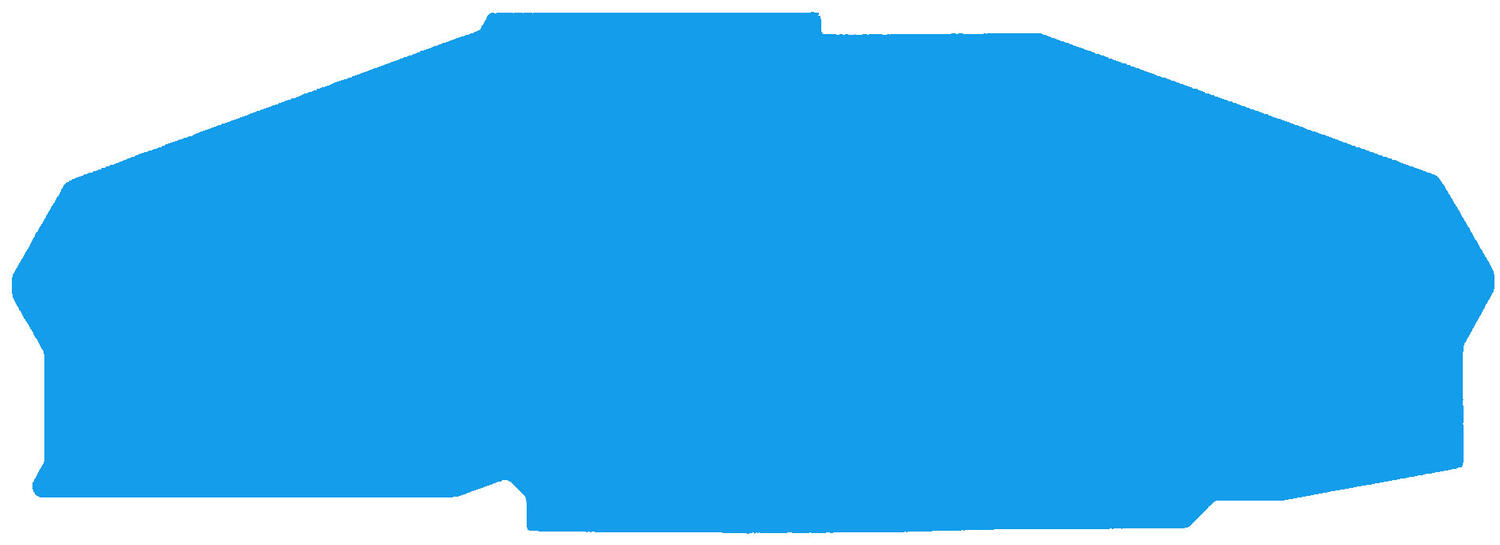

ZAPT 2.5/4A - Bluev Art: 3798.5 Copied	Blue	92.4 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	3 g	20
ZAP SR 3A/15 Beige, End plate for ZSRK 2.5/3A/15 Art: 3794.2 Copied	Beige	52.5 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.84 g	50

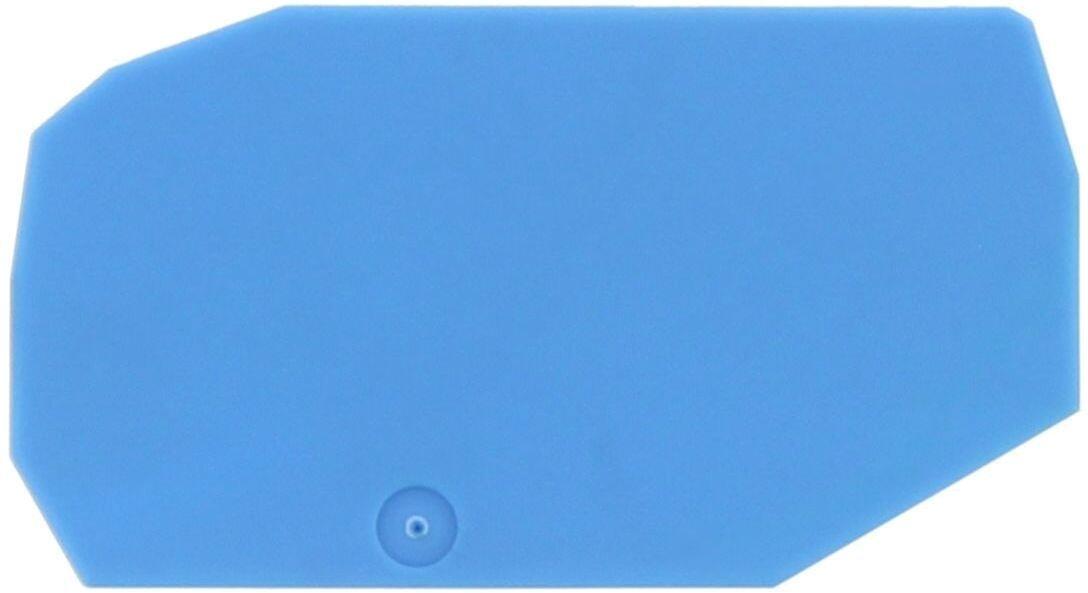

ZAP SR 3A/15 Blue, End plate for ZSRK 2.5/3A/15 Art: 3794.5 Copied	Blue	52.5 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.84 g	50
ZAP SR 3A/15 Orange, End plate for ZSRK 2.5/3A/15 Art: 3794.3 Copied	Orange	52.5 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.84 g	50

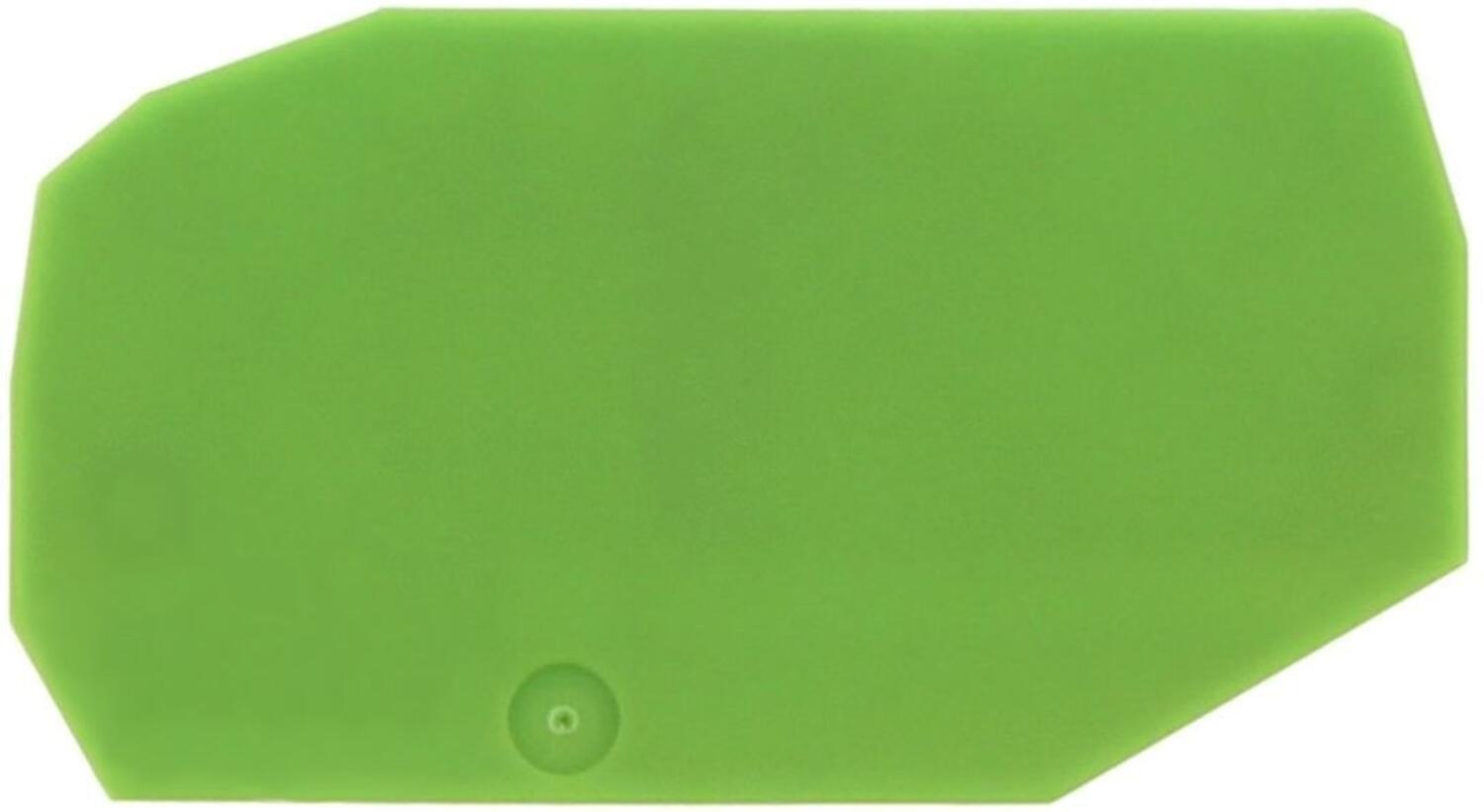

ZAP SR 3A/15 Green, End plate for ZSRK 2.5/3A/15 Art: 3794.1 Copied	Green	52.5 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.84 g	50

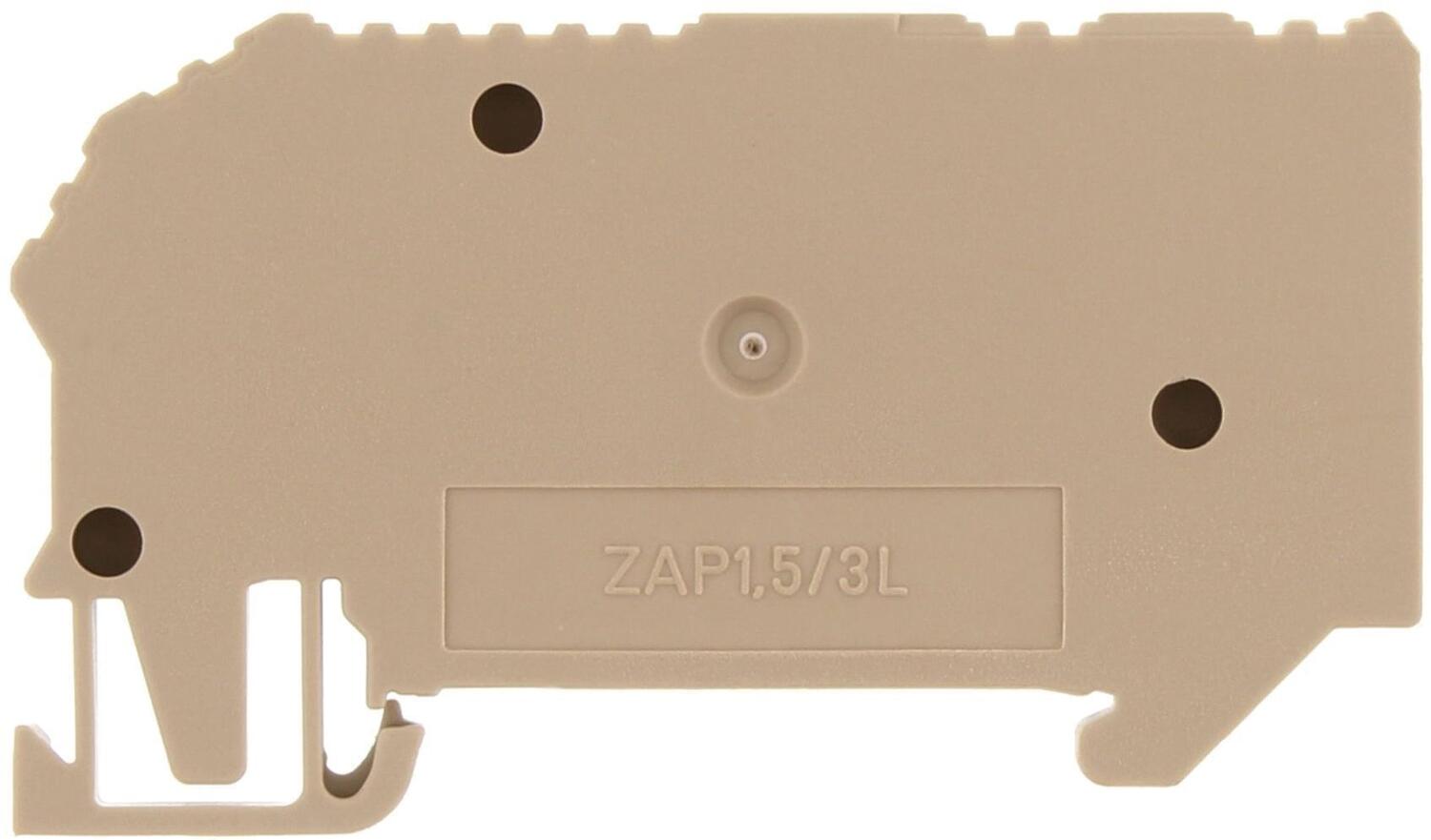

ZAP/TW ZIZA 1 -5/3 Beige, End plate for ZIZA 1.5/3 Art: 3746.2 Copied	Beige	68.5 mm	5.1 mm	39.9 mm	UL94-V0	120 °C	5.3 g	20

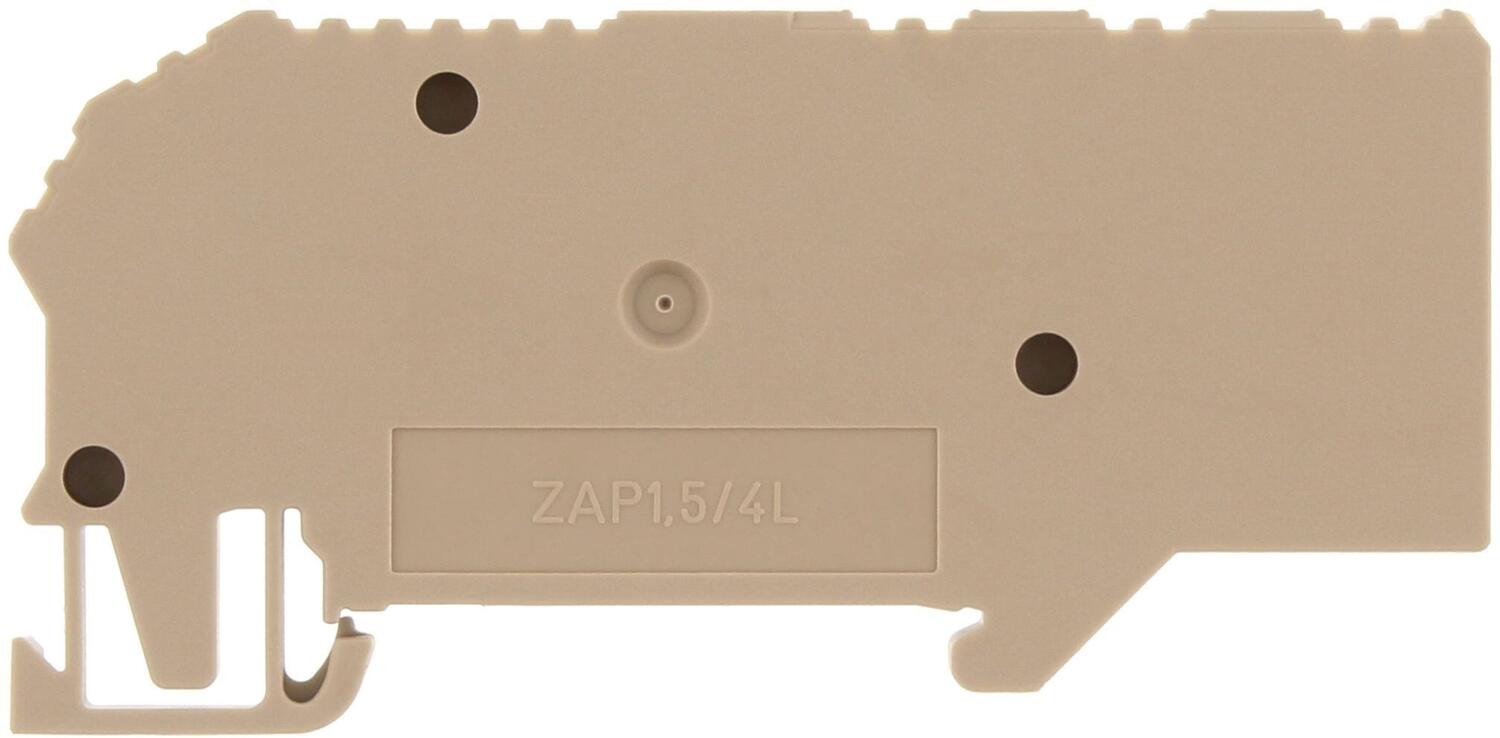

ZAP/TW ZIZA 1 -5/4 Beige, End plate for ZIZA 1.5/4 Art: 3747.2 Copied	Beige	81.5 mm	5.1 mm	39.9 mm	UL94-V0	120 °C	6.6 g	20

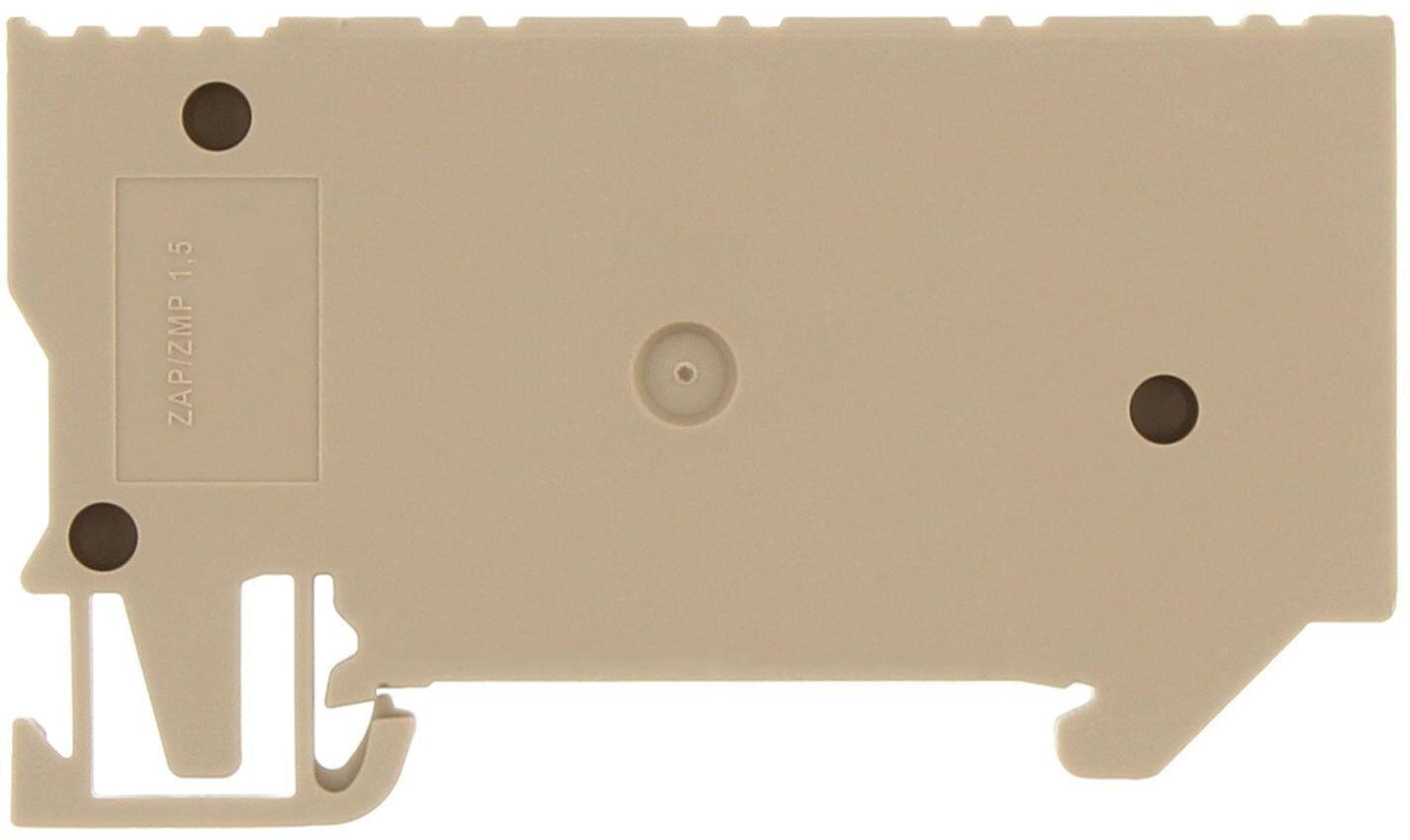

ZAP ZMP BG, End plate for ZMP Art: 3785.2 Copied	Beige	68.5 mm	5.1 mm	40 mm	UL94-V2	105 °C	5.6 g	20

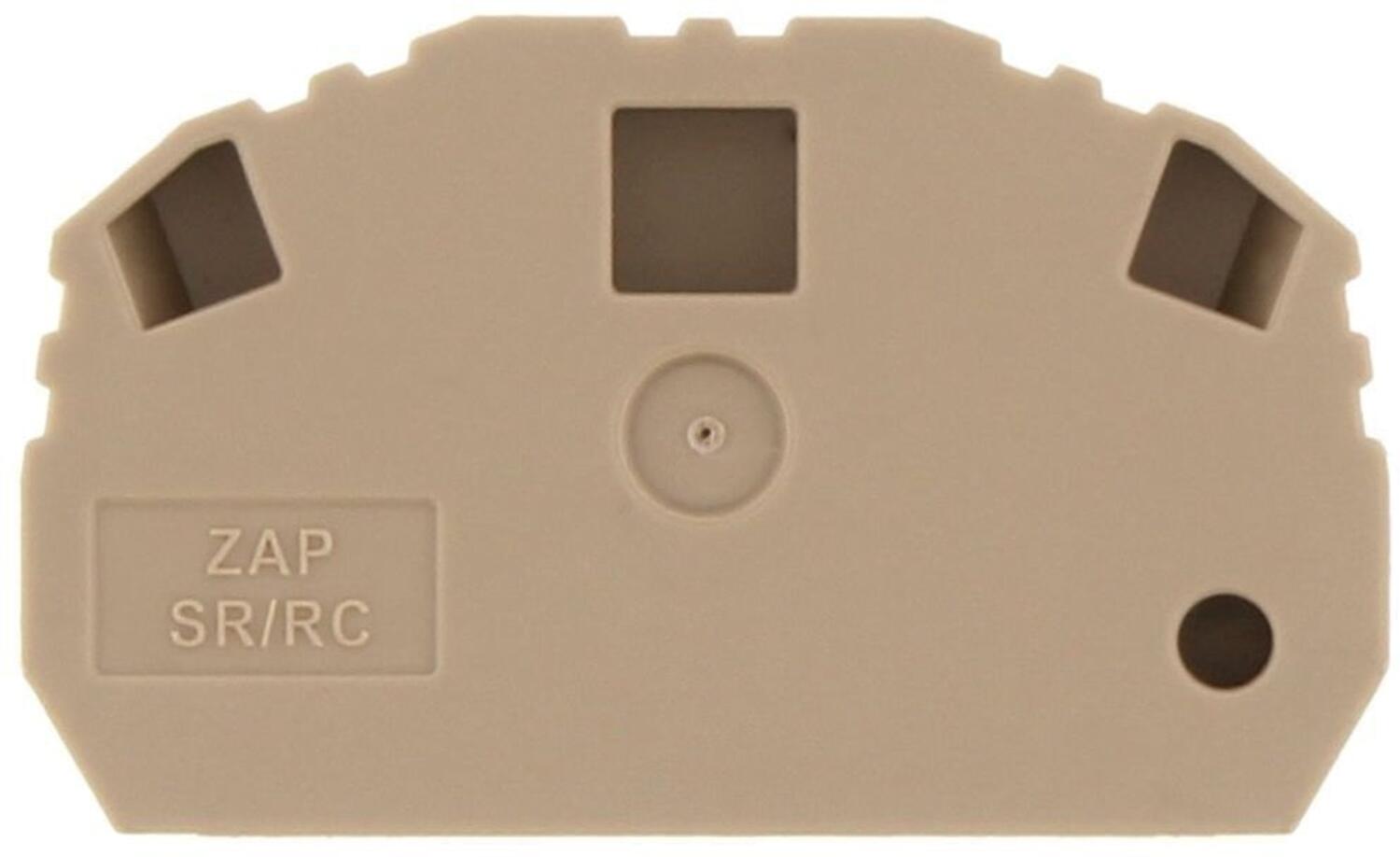

ZAP SR/RC Beige, End plate for ZSRK/RC Art: 3758.2 Copied	Beige	40 mm	5.1 mm	23.9 mm	UL94-V2	105 °C	2.2 g	50

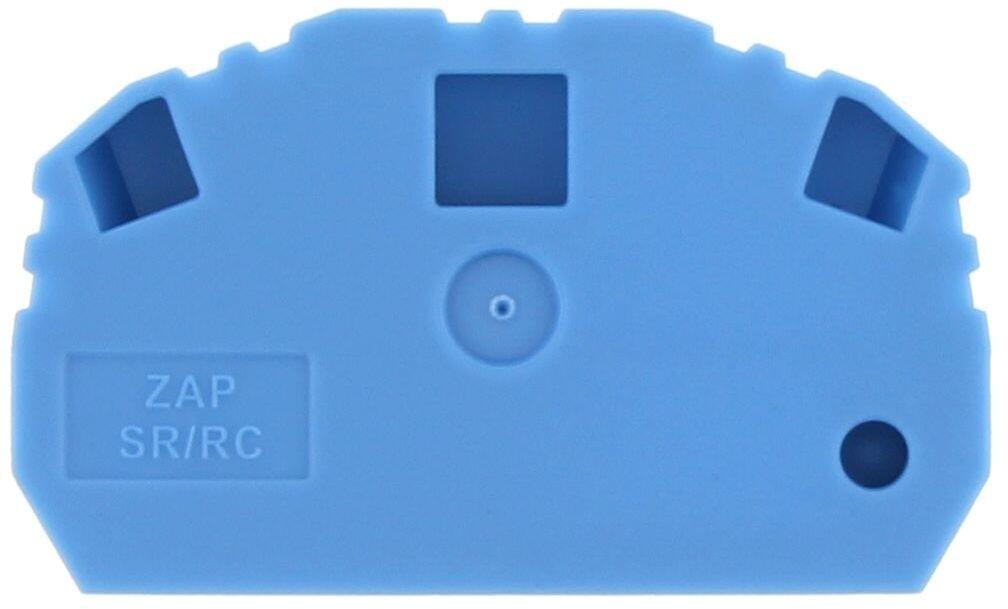

ZAP SR/RC Blue, End plate for ZSRK/RC Art: 3758.5 Copied	Blue	40 mm	5.1 mm	23.9 mm	UL94-V2	105 °C	2.2 g	50

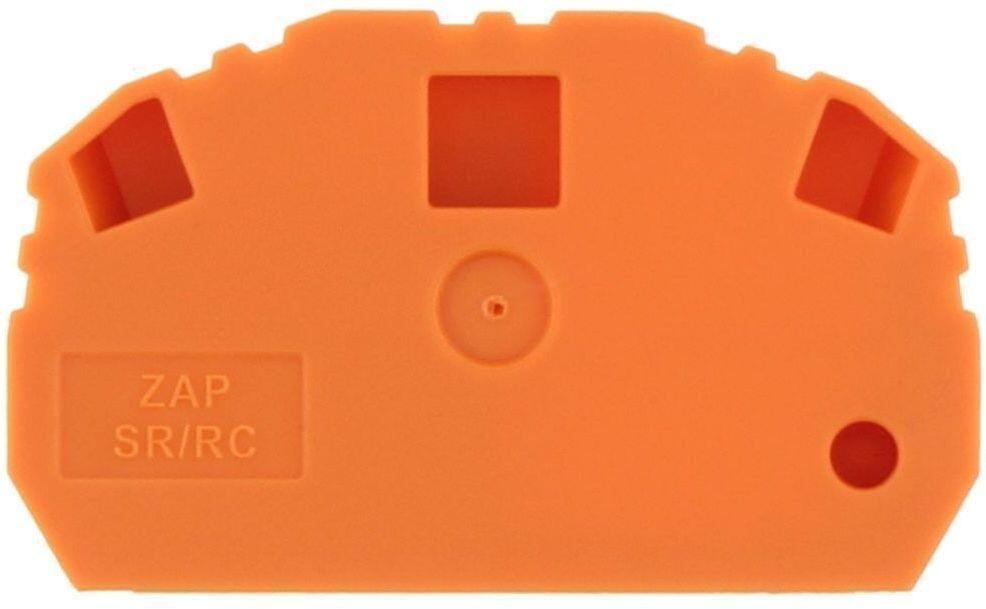

ZAP SR/RC Orange, End plate for ZSRK/RC Art: 3758.3 Copied	Orange	40 mm	5.1 mm	23.9 mm	UL94-V2	105 °C	2.2 g	50

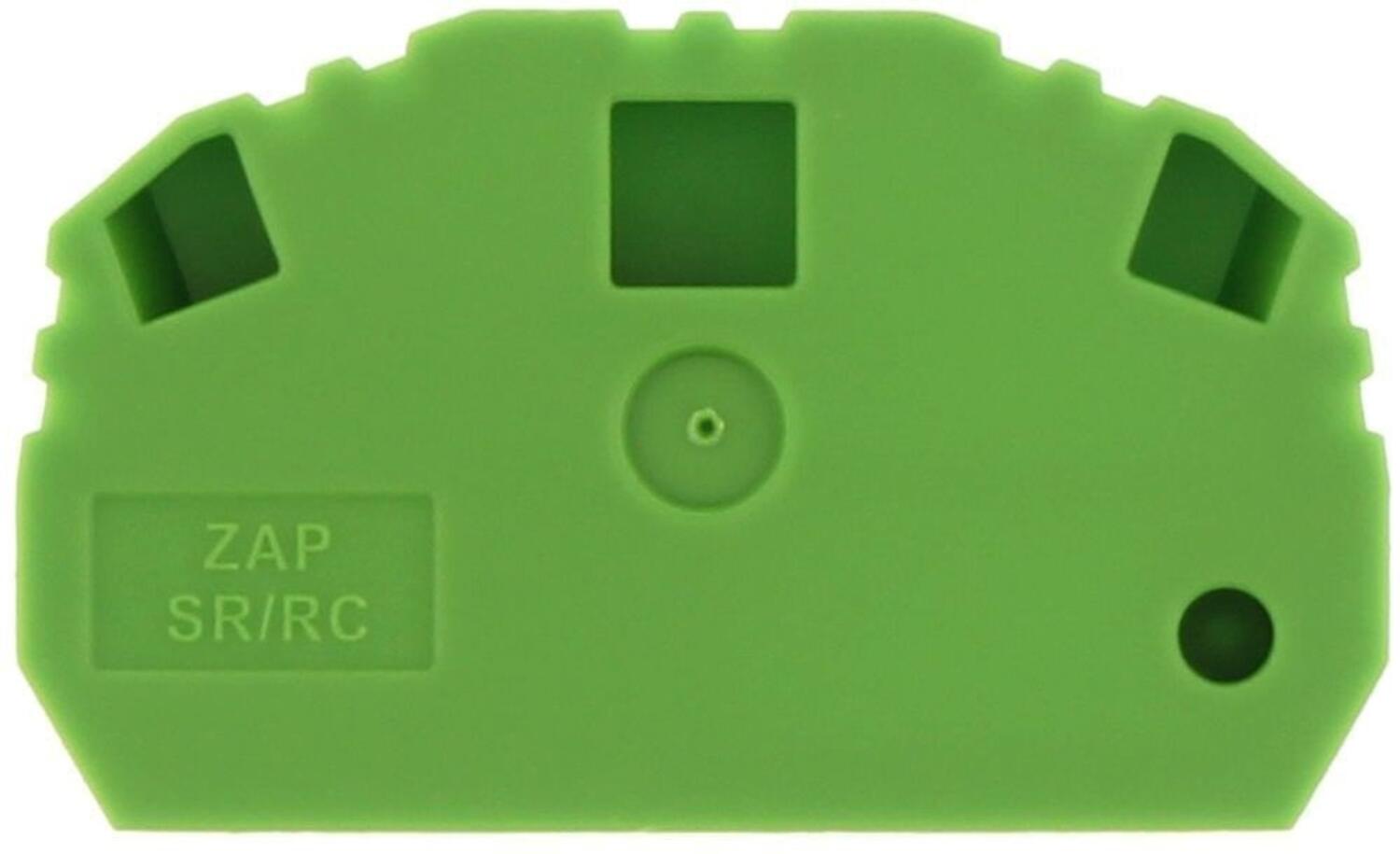

ZAP SR/RC Green, End plate for ZSRK/RC Art: 3758.1 Copied	Green	40 mm	5.1 mm	23.9 mm	UL94-V2	105 °C	2.2 g	50

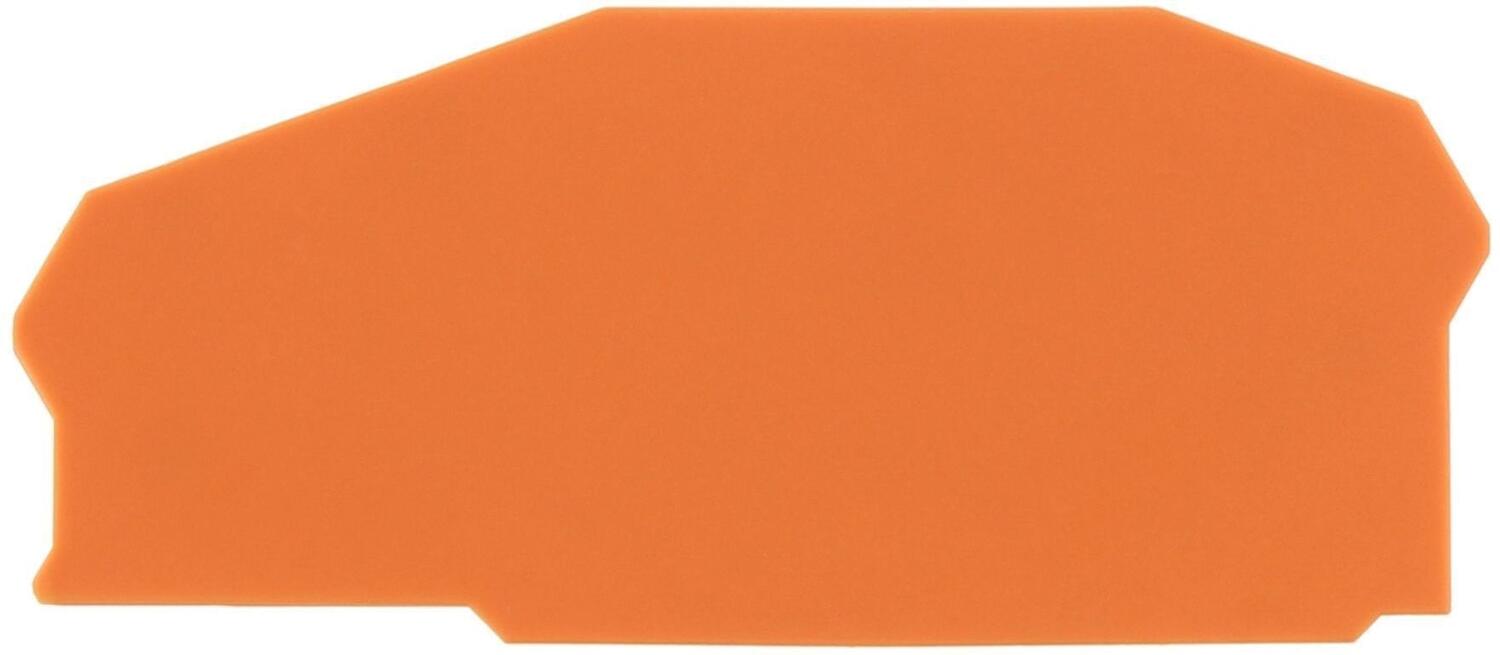

ZAP 2.5/3A Orange, End plate for ZRK/ZSL 2.5/3A Art: 3701.3 Copied	Orange	71.3 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.6 g	50
ZAP 2.5/3A Yellow, End plate for ZRK/ZSL 2.5/3A Art: 3701.8 Copied	Yellow	71.3 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.6 g	50
ZAP 2.5/3A Red, End plate for ZRK/ZSL 2.5/3A Art: 3701.9 Copied	Red	71.3 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.6 g	50
ZAP 2.5/4A Red, End plate for ZRK/ZSL 2.5/4A Art: 3702.9 Copied	Red	83.6 mm	2 mm	30.8 mm	UL94-V2	105 °C	3 g	50
ZAP 2.5/4A Yellow, End plate for ZRK/ZSL 2.5/4A Art: 3702.8 Copied	Yellow	83.6 mm	2 mm	30.8 mm	UL94-V2	105 °C	3 g	50

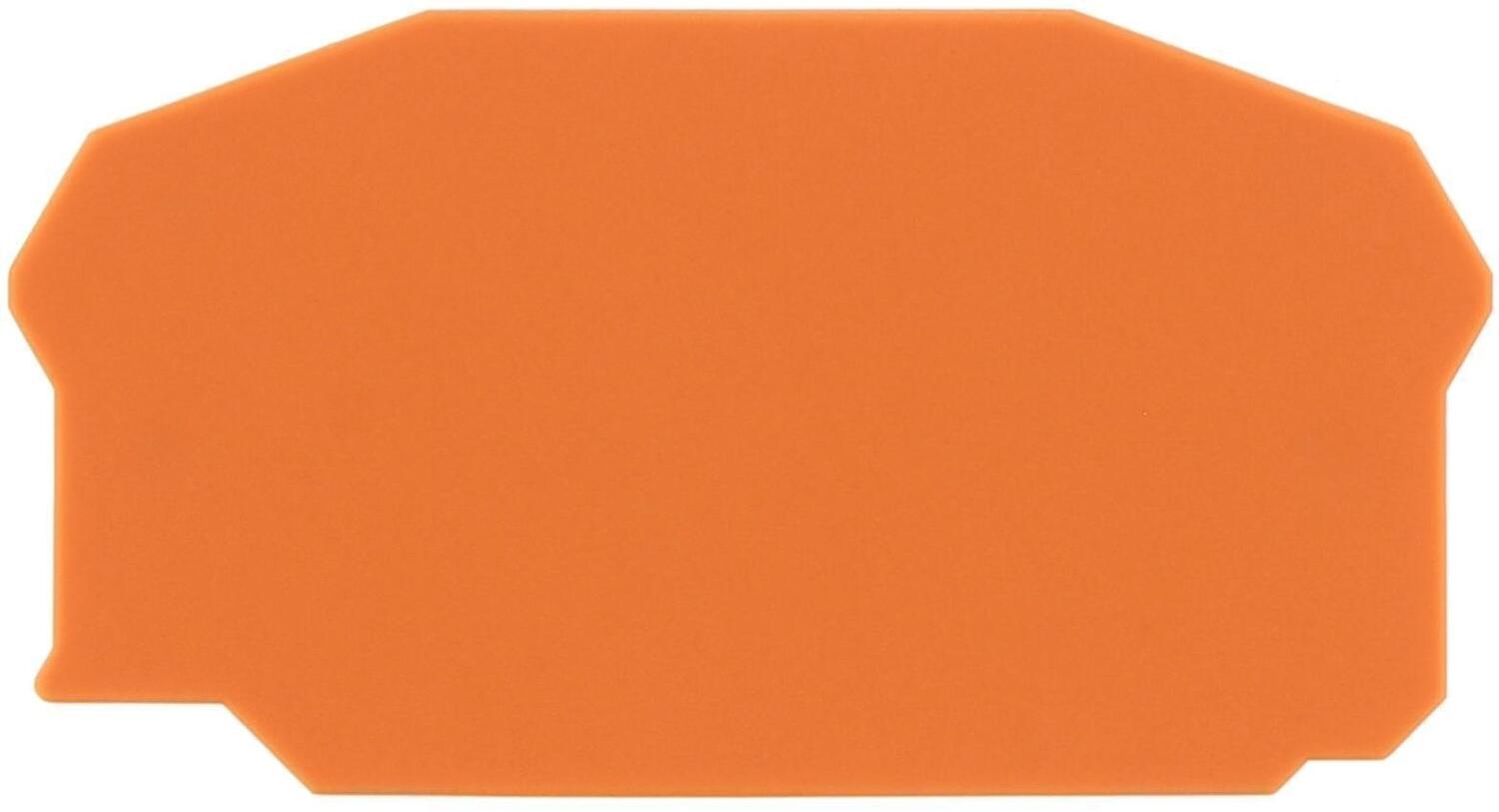

ZAP 4/2A Orange, End plate for ZRK/ZSL 4/2A Art: 3703.3 Copied	Orange	64 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.6 g	50

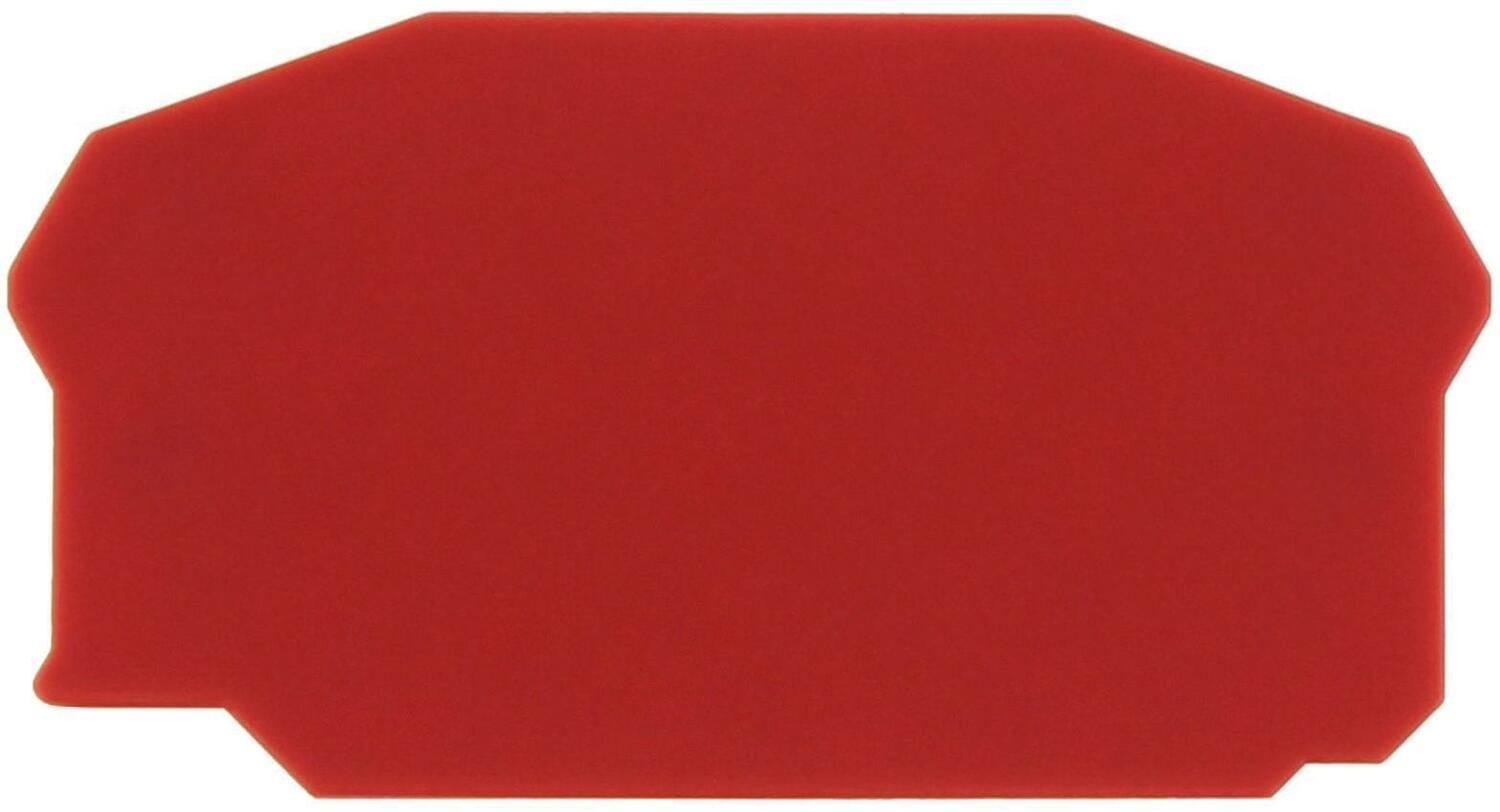

ZAP 4/2A Red, End plate for ZRK/ZSL 4/2A Art: 3703.9 Copied	Red	64 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.6 g	50
ZAP 4/2A Yellow, End plate for ZRK/ZSL 4/2A Art: 3703.8 Copied	Yellow	64 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.6 g	50
ZAP 4/3A Red, End plate for ZRK/ZSL 4/3A Art: 3704.9 Copied	Red	78.5 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50
ZAP 4/3A Orange, End plate for ZRK/ZSL 4/3A Art: 3704.3 Copied	Orange	78.5 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50
ZAP 4/3A Yellow, End plate for ZRK/ZSL 4/3A Art: 3704.8 Copied	Yellow	78.5 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50
ZAP 4/4A Yellow, End plate for ZRK/ZSL 4/4A Art: 3705.8 Copied	Yellow	93 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50
ZAP 4/4A Orange, End plate for ZRK/ZSL 4/4A Art: 3705.3 Copied	Orange	93 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50

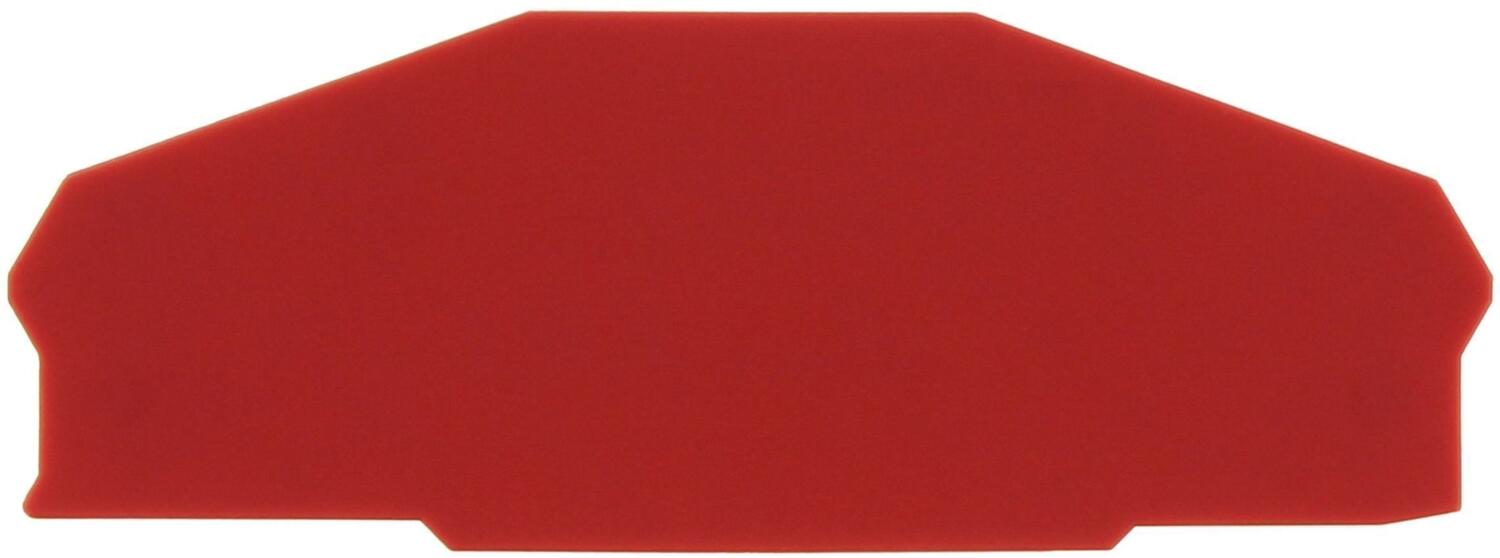

ZAP 4/4A Red, End plate for ZRK/ZSL 4/4A Art: 3705.9 Copied	Red	93 mm	2 mm	33.9 mm	UL94-V2	105 °C	2.4 g	50

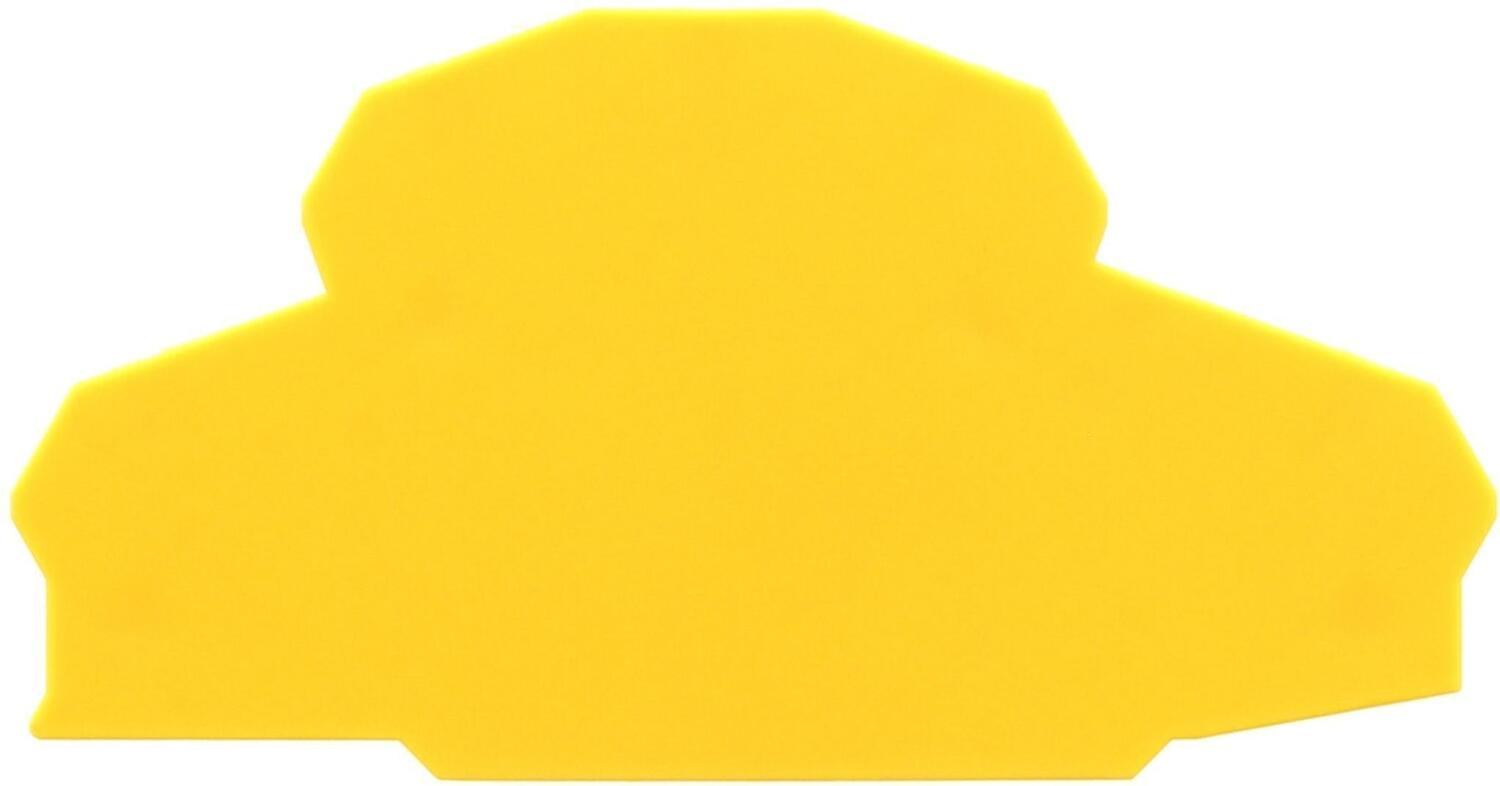

ZAPD 2.5 Yellow, End plate for ZRKD/ZSLD 2.5 Art: 3756.8 Copied	Yellow	83.6 mm	2 mm	43.2 mm	UL94-V2	105 °C	4.2 g	20

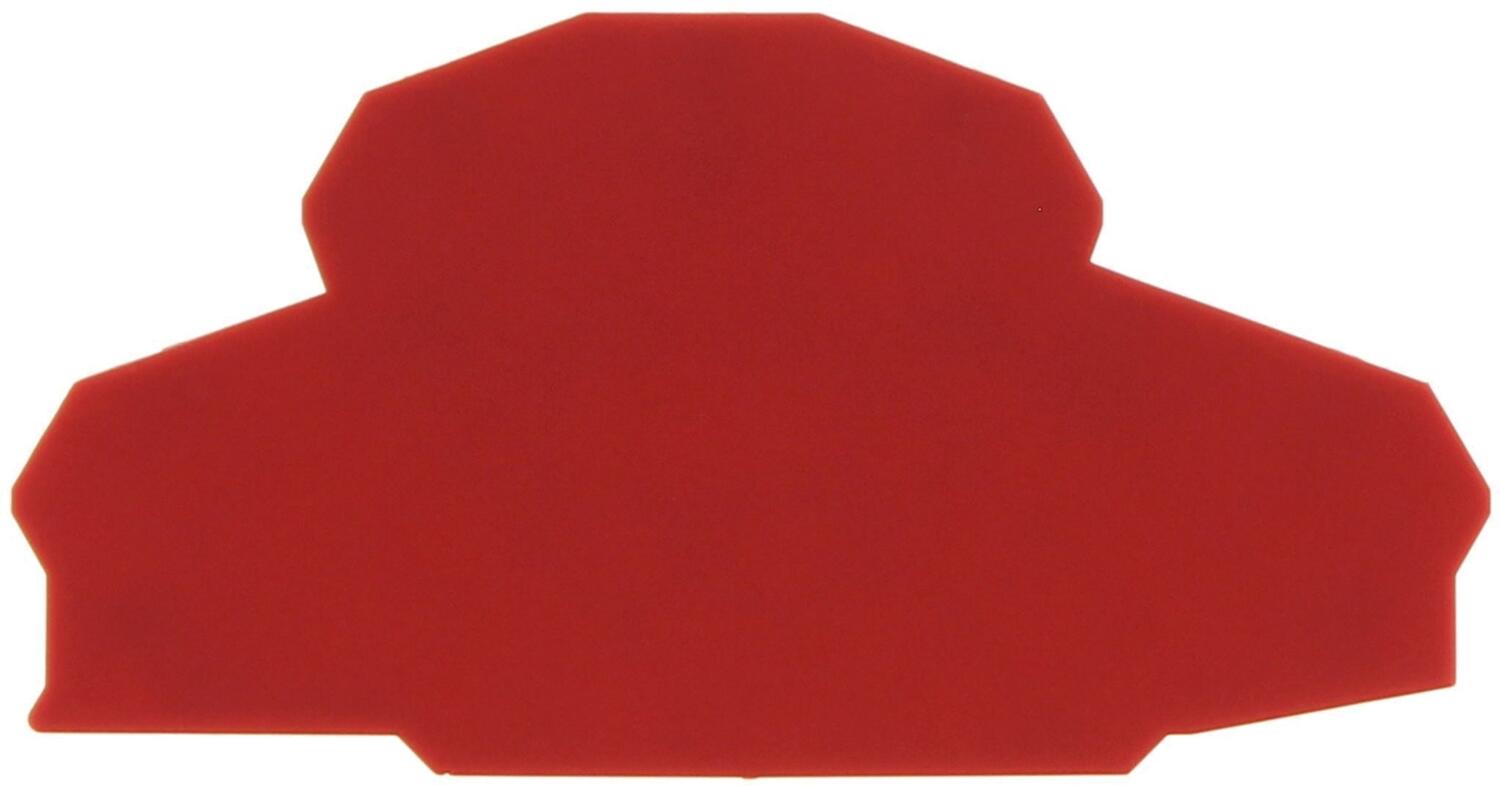

ZAPD 2.5 Red, End plate for ZRKD/ZSLD 2.5 Art: 3756.9 Copied	Red	83.6 mm	2 mm	43.2 mm	UL94-V2	105 °C	4.2 g	20

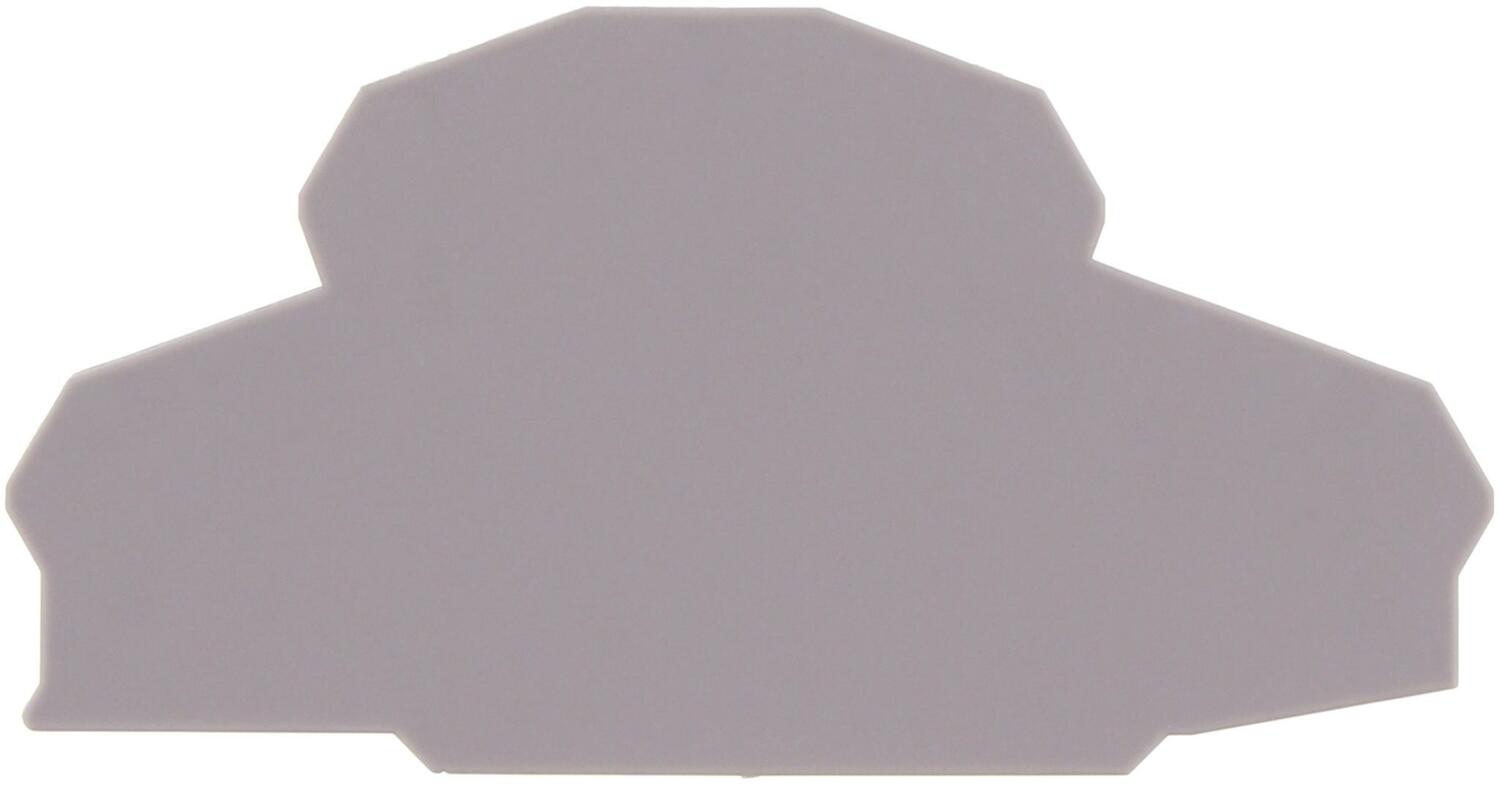

ZAPD 2.5 Grey, End plate for ZRKD/ZSLD 2.5 Art: 3756.6 Copied	Grey	83.6 mm	2 mm	43.2 mm	UL94-V2	105 °C	4.2 g	20

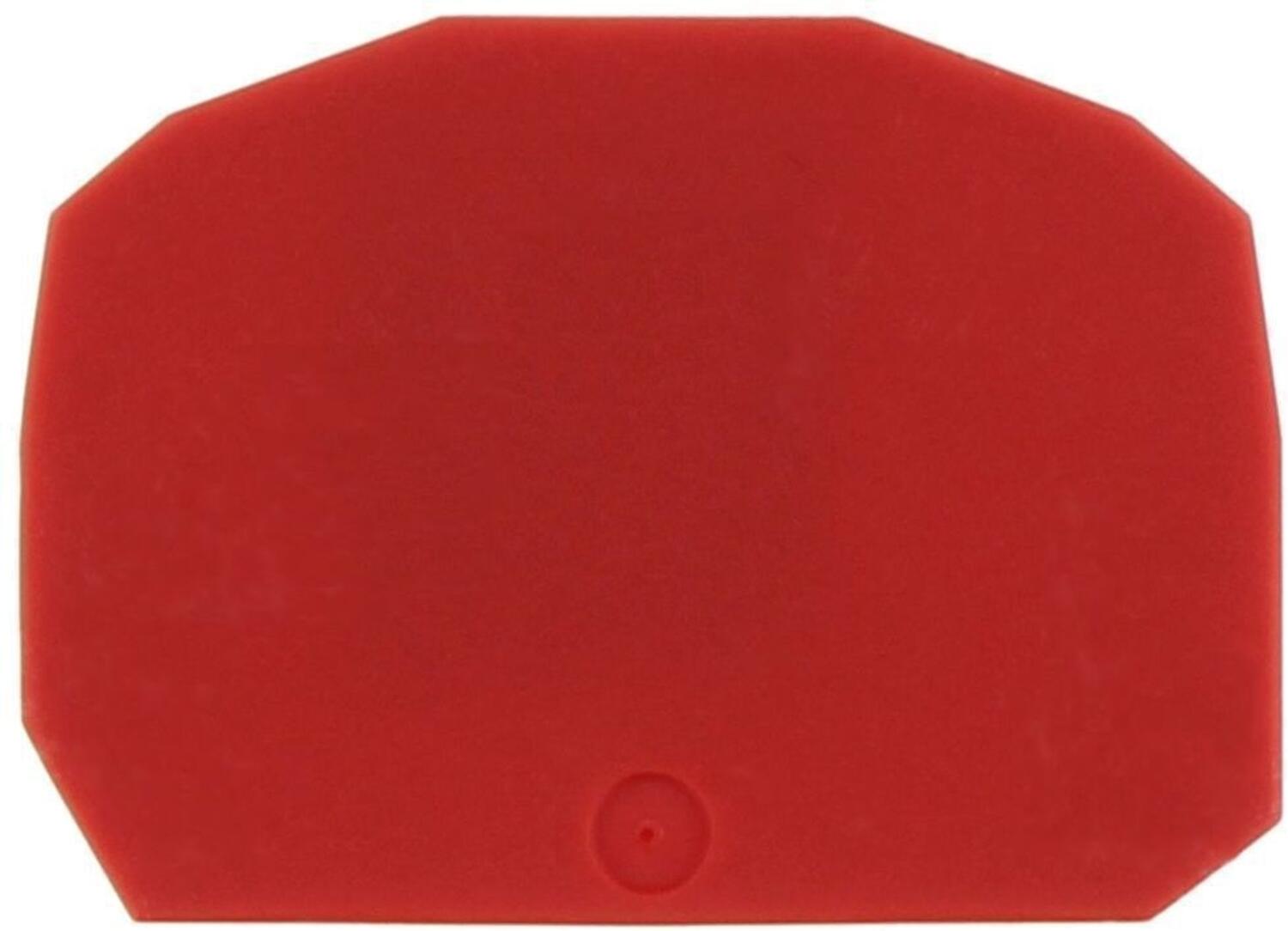

ZAP SR Red, End plate for ZSRK/ZSLN 2.5 Art: 3757.9 Copied	Red	40 mm	1.5 mm	287 mm	UL94-V2	105 °C	1.8 g	50
ZAP SR Yellow, End plate for ZSRK/ZSLN 2.5 Art: 3757.8 Copied	Yellow	40 mm	1.5 mm	287 mm	UL94-V2	105 °C	1.8 g	50

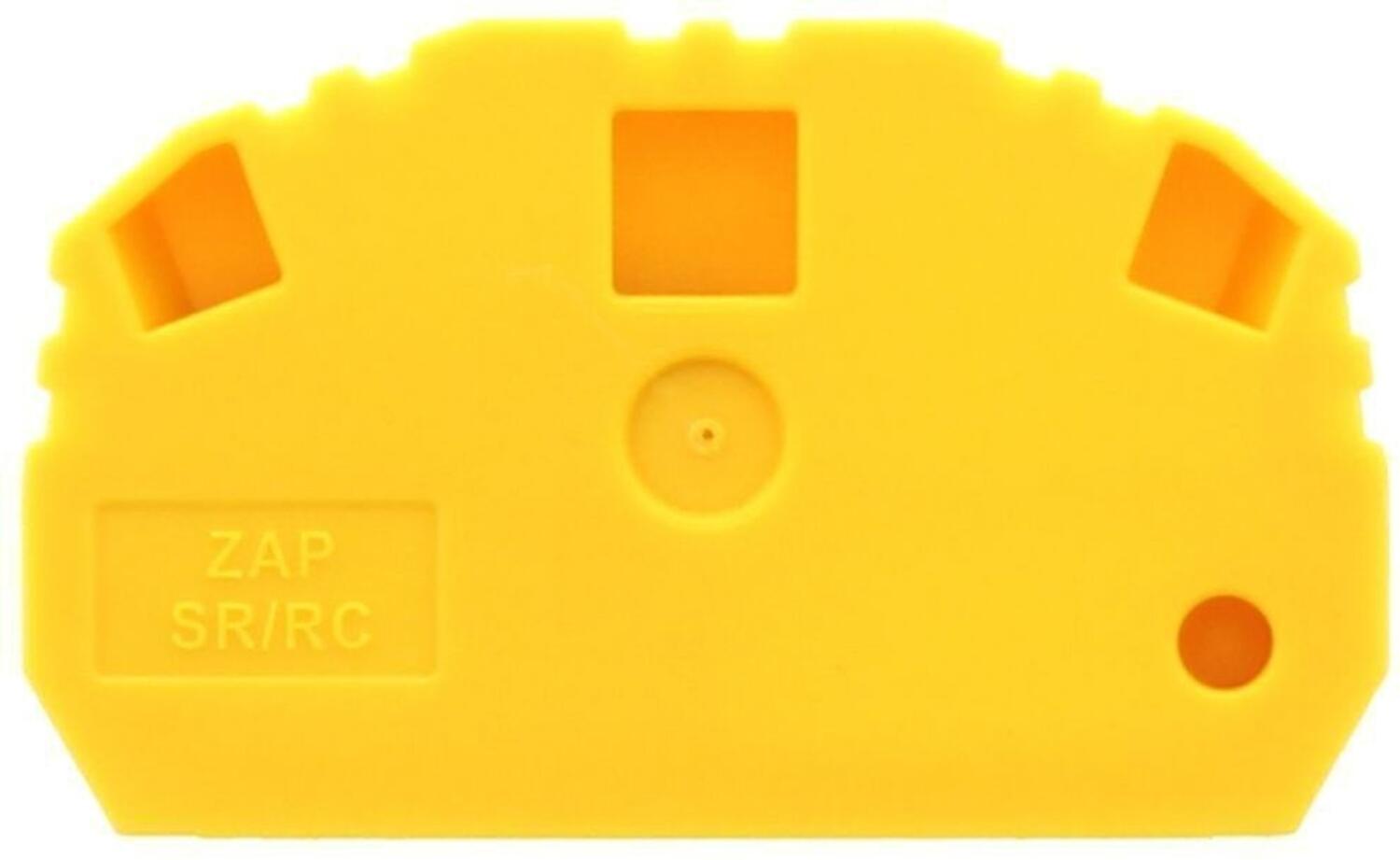

ZAP SR/RC Yellow, End plate for ZSRK 2.5/2A/RC Art: 3758.8 Copied	Yellow	40 mm	5.1 mm	23.9 mm	UL94-V2	105 °C	2.2 g	50
ZAP SR/RC Red, End plate for ZSRK 2.5/2A/RC Art: 3758.9 Copied	Red	40 mm	5.1 mm	23.9 mm	UL94-V2	105 °C	2.2 g	50
ZAP 6/2A Yellow, End plate for ZRK 6/2A Art: 3760.8 Copied	Yellow	65 mm	2 mm	40 mm	UL94-V2	105 °C	3.8 g	20

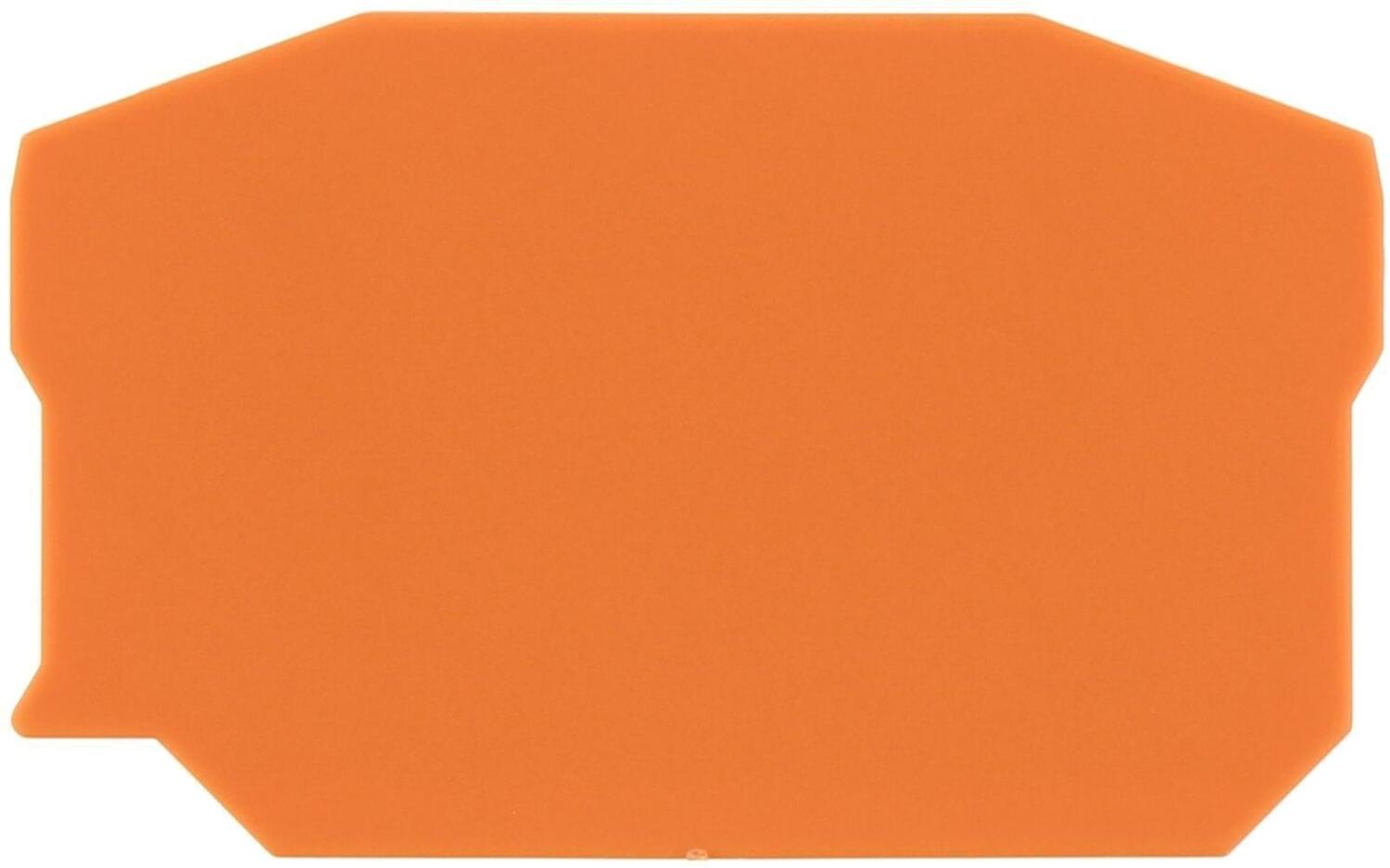

ZAP 6/2A Orange, End plate for ZRK 6/2A Art: 3760.3 Copied	Orange	65 mm	2 mm	40 mm	UL94-V2	105 °C	3.8 g	20

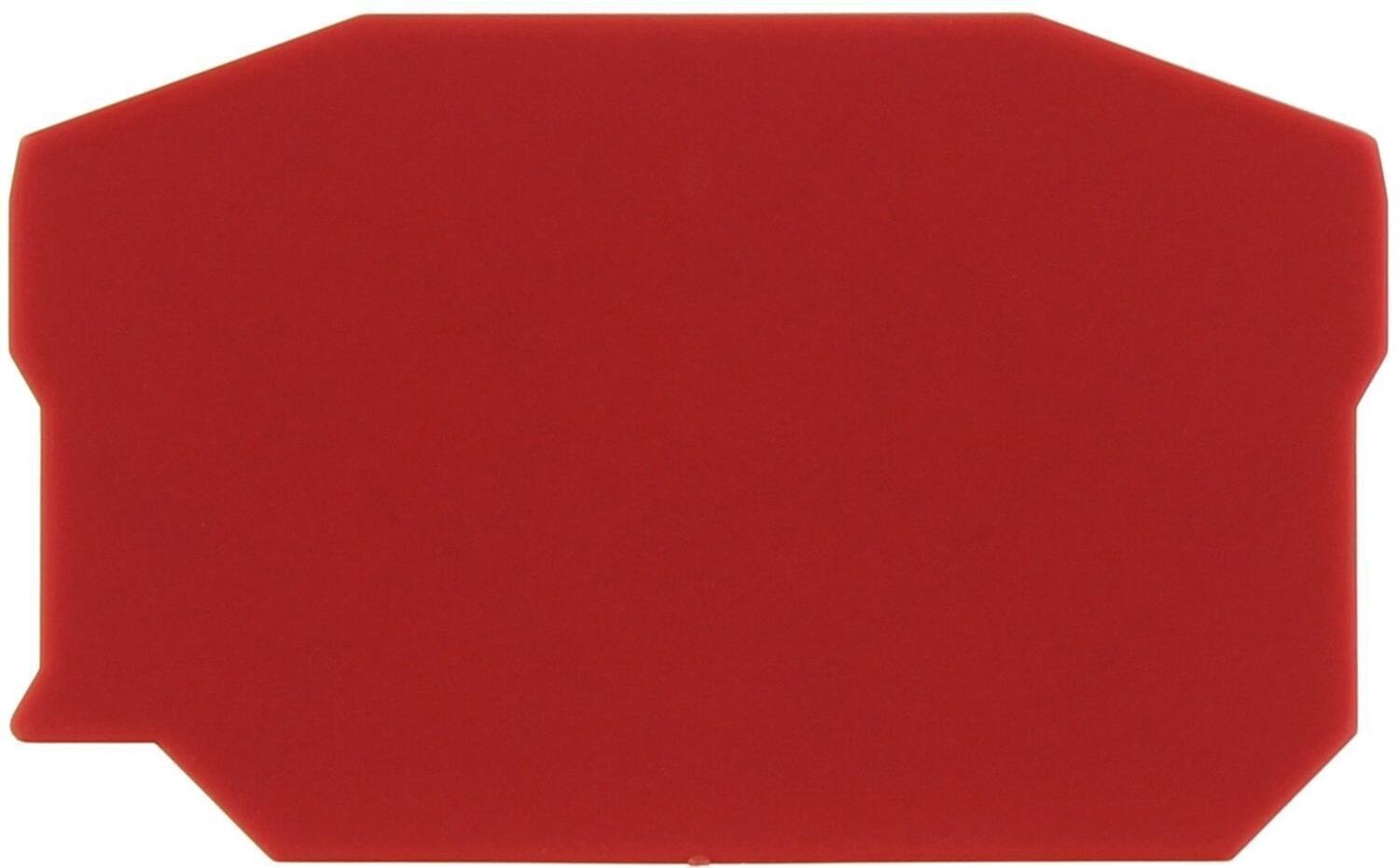

ZAP 6/2A Red, End plate for ZRK 6/2A Art: 3760.9 Copied	Red	65 mm	2 mm	40 mm	UL94-V2	105 °C	3.8 g	20
ZAP 2.5/ID Yellow, End plate for ZIKD 2.5 Art: 3761.8 Copied	Yellow	116 mm	1.5 mm	60.2 mm	UL94-V2	105 °C	6.2 g	20
ZAP 2.5/ID Red, End plate for ZIKD 2.5 Art: 3761.9 Copied	Red	116 mm	1.5 mm	60.2 mm	UL94-V2	105 °C	6.2 g	20

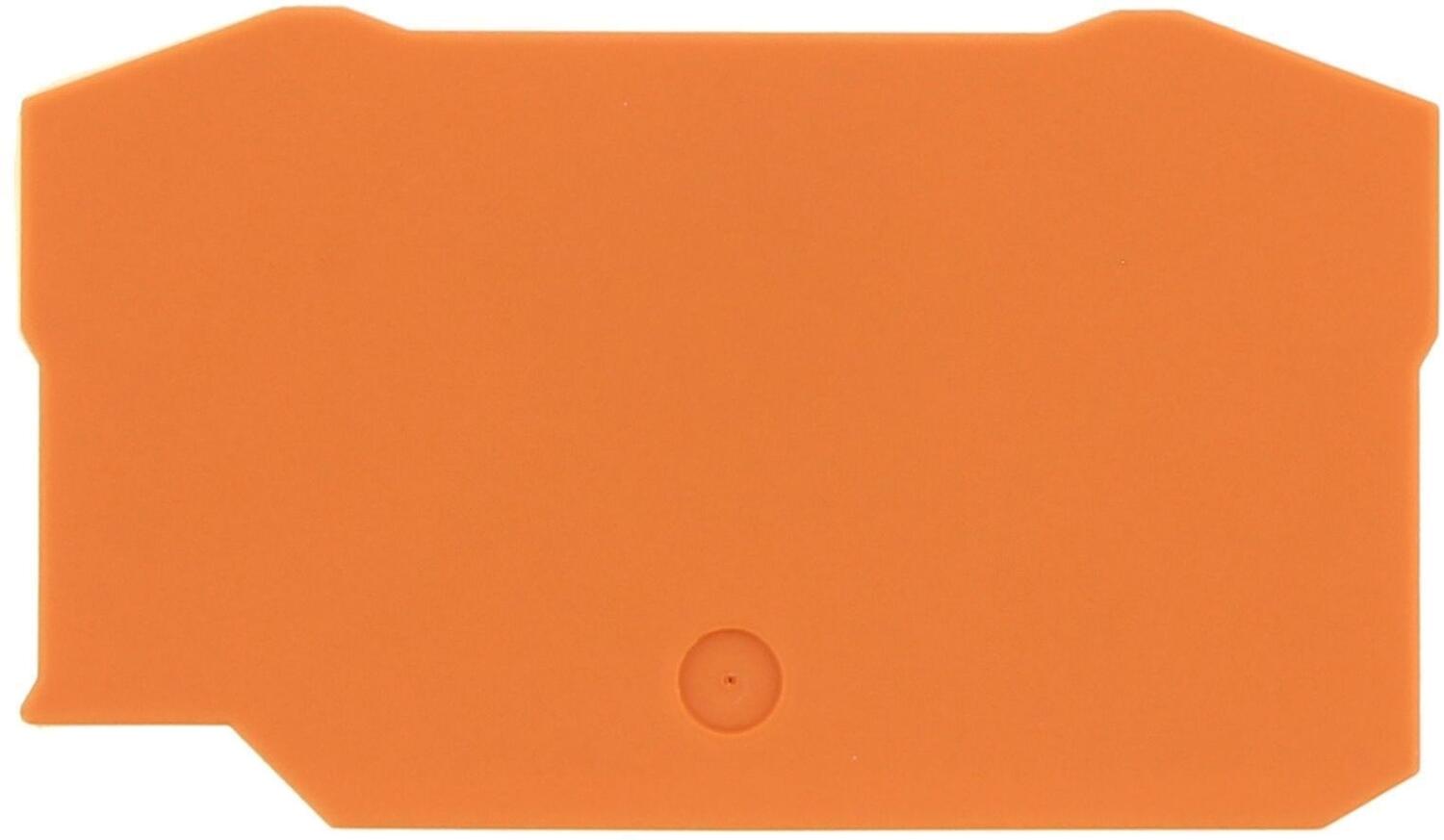

ZAP 10/2A Orange, End plate for ZRK 10/2A Art: 3788.3 Copied	Orange	73.5 mm	2 mm	42.7 mm	UL94-V2	105 °C	4 g	20

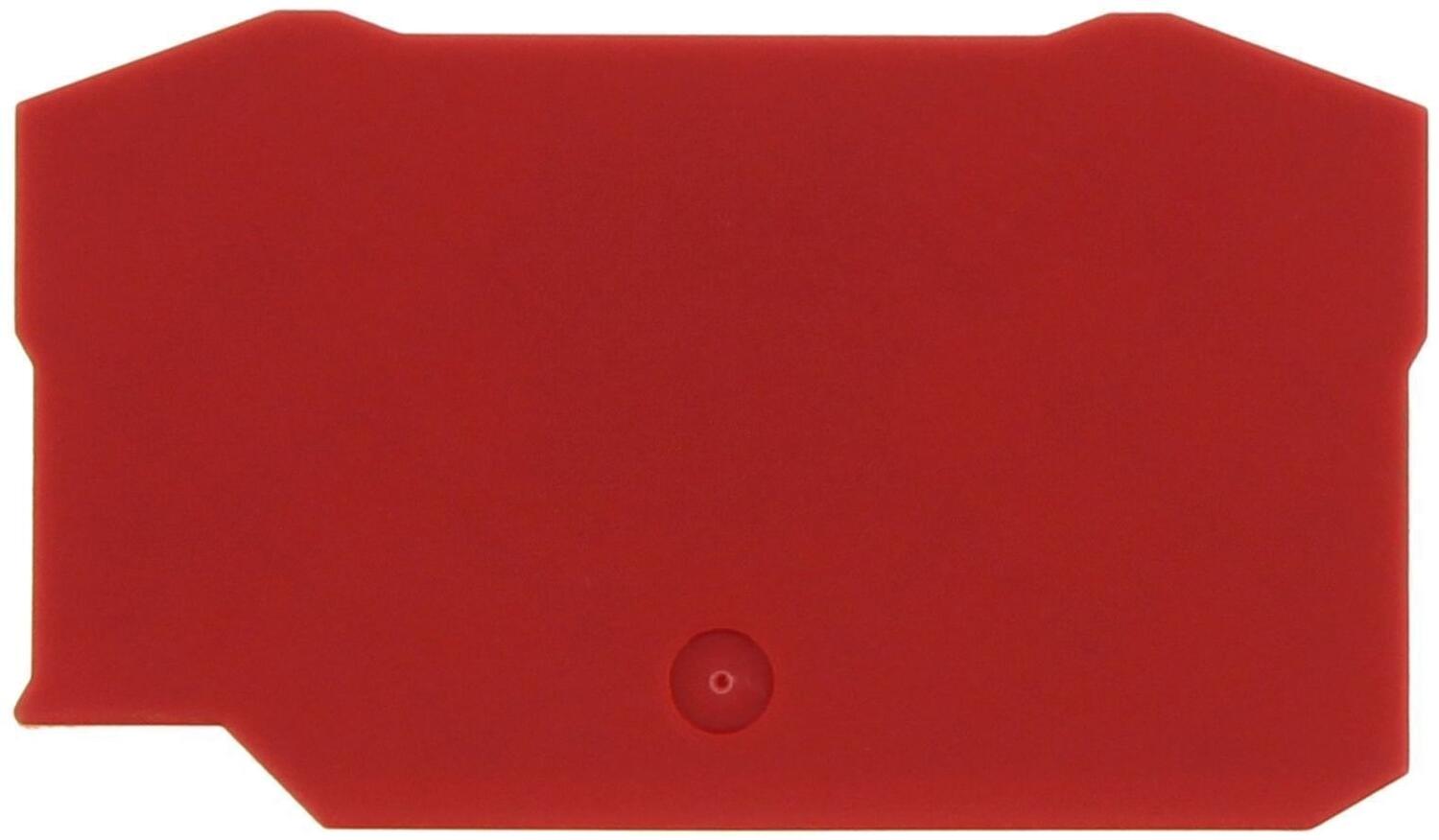

ZAP 10/2A Red, End plate for ZRK 10/2A Art: 3788.9 Copied	Red	73.5 mm	2 mm	42.7 mm	UL94-V2	105 °C	4 g	20
ZAP 10/2A Yellow, End plate for ZRK 10/2A Art: 3788.8 Copied	Yellow	73.5 mm	2 mm	42.7 mm	UL94-V2	105 °C	4 g	20
ZAP SR 3A/15 Yellow, End plate for ZSRK 2.5/3A/15 Art: 3794.8 Copied	Yellow	52.5 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.84 g	50
ZAP SR 3A/15 Red, End plate for ZSRK2.5/3A/15 Art: 3794.9 Copied	Red	52.5 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.84 g	50
ZAP SR 3A /35 Yellow, End plate for ZSRK 2.5/3A/15 Art: 3795.8 Copied	Yellow	54.2 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.9 g	50
ZAP SR 3A /35 Red, End plate for ZSRK 2.5/3A/15 Art: 3795.9 Copied	Red	54.2 mm	1.6 mm	28.7 mm	UL94-V2	105 °C	1.9 g	50

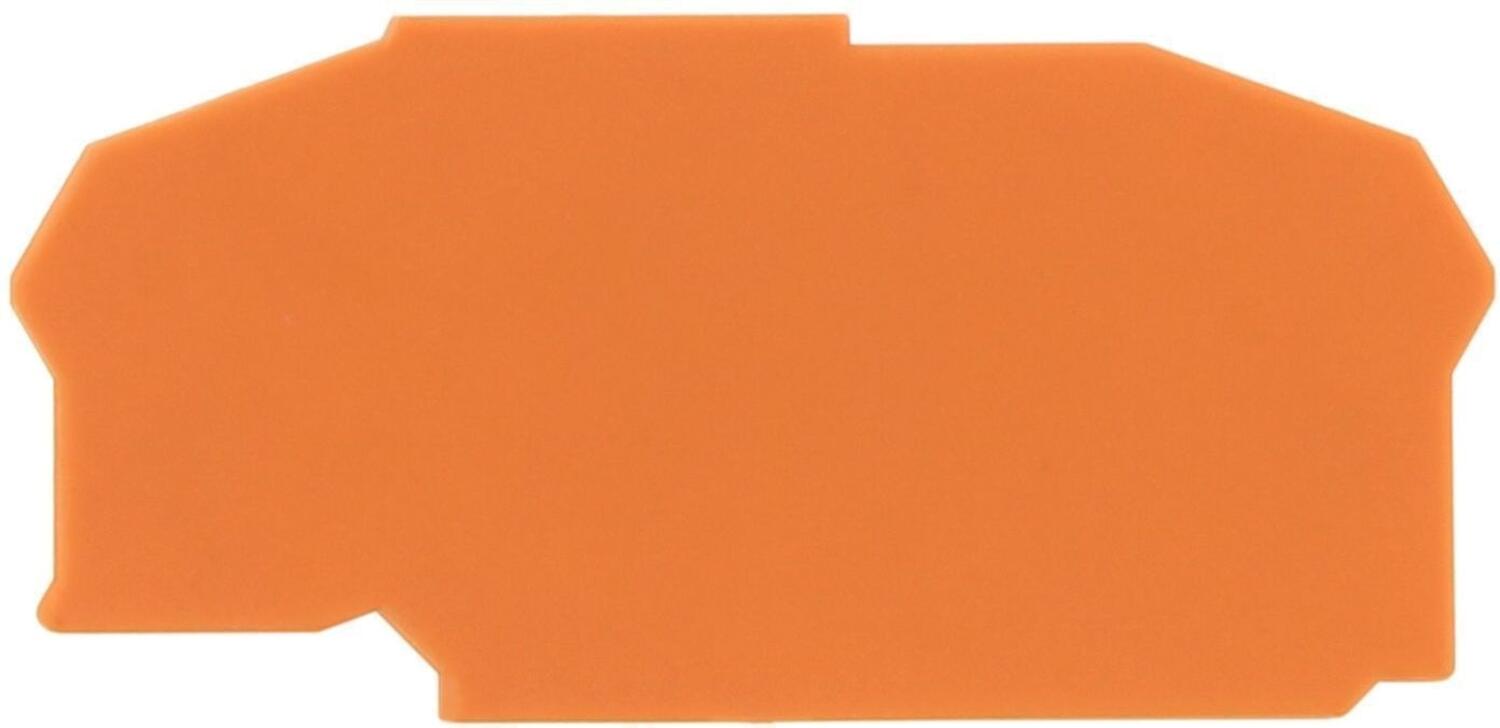

ZAPT 2.5/2A Orange, End plate for ZTRK 2.5/2A Art: 3796.3 Copied	Orange	68 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.4 g	20
ZAPT 2.5/2A Red, End plate for ZTRK 2.5/2A Art: 3796.9 Copied	Red	68 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.4 g	20
ZAPT 2.5/2A Yellow, End plate for ZTRK 2.5/2A Art: 3796.8 Copied	Yellow	68 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.4 g	20
ZAPT 2.5/2A Green, End plate for ZTRK 2.5/2A Art: 3796.1 Copied	Green	68 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.4 g	20
ZAPT 2.5/3A Green, End plate for ZTRK 2.5/3A Art: 3797.1 Copied	Green	80.2 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.8 g	20

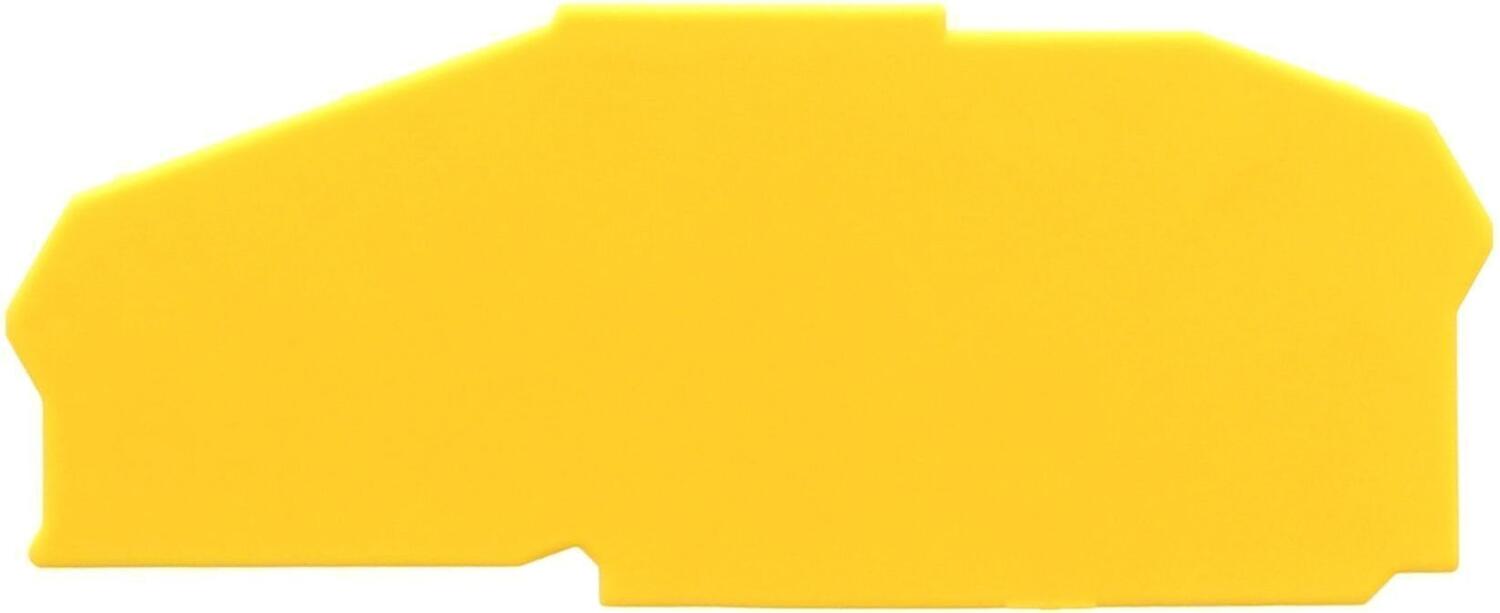

ZAPT 2.5/3A Yellow, End plate for ZTRK 2.5/3A Art: 3797.8 Copied	Yellow	80.2 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.8 g	20
ZAPT 2.5/3A Orange, End plate for ZTRK 2.5/3A Art: 3797.3 Copied	Orange	80.2 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.8 g	20

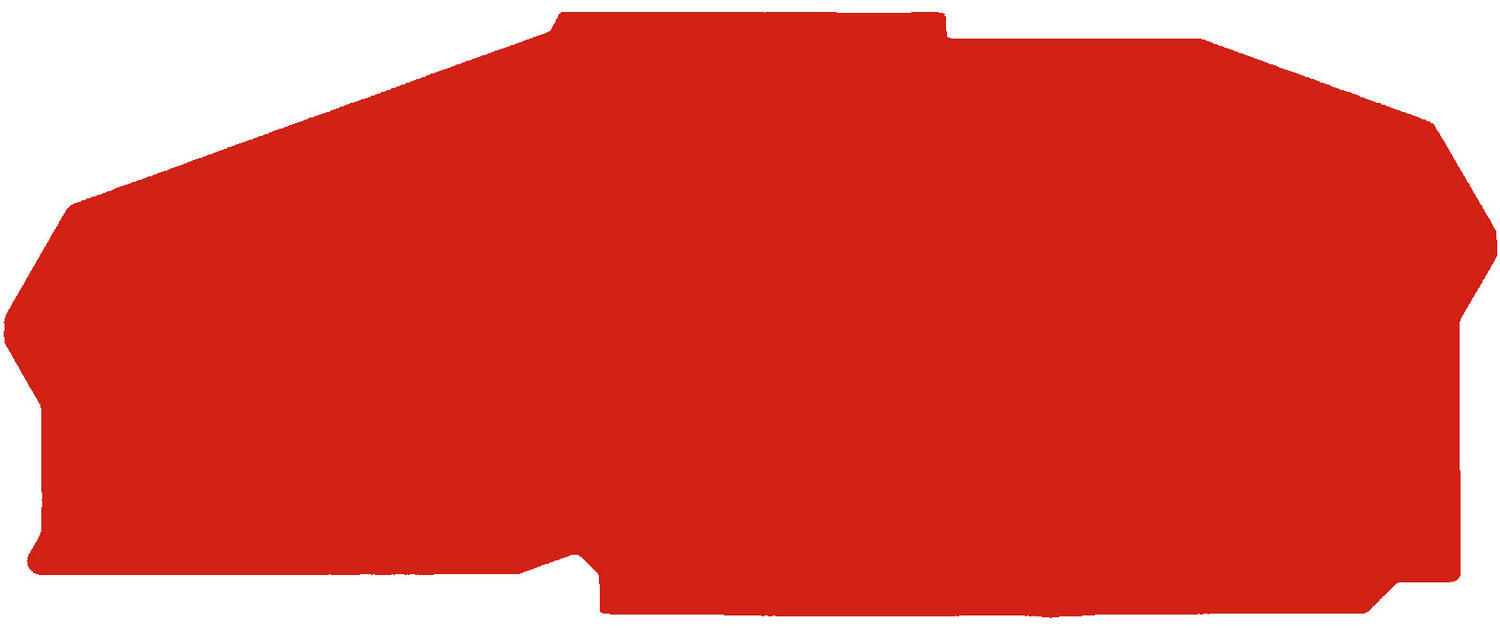

ZAPT 2.5/3A Red, End plate for ZTRK 2.5/3A Art: 3797.9 Copied	Red	80.2 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	2.8 g	20
ZAPT 2,5/4A Green, End plate for ZTRK 2.5/4A Art: 3798.1 Copied	Green	92.4 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	3 g	20
ZAPT 2,5/4A Orange, End plate for ZTRK 2.5/4A Art: 3798.3 Copied	Orange	92.4 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	3 g	20
ZAPT 2,5/4A Red, End plate for ZTRK 2.5/4A Art: 3798.9 Copied	Red	92.4 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	3 g	20
ZAPT 2,5/4A Yellow, End plate for ZTRK 2.5/4A Art: 3798.8 Copied	Yellow	92.4 mm	1.5 mm	31.2 mm	UL94-V2	105 °C	3 g	20
ZAP 16/2A Yellow, End plate for ZRK/ZSL 16/2A Art: 3799.8 Copied	Yellow	81.5 mm	2 mm	43.7 mm	UL94-V2	105 °C	4.4 g	20
ZAP 16/2A Red, End plate for ZRK/ZSL 16/2A Art: 3799.9 Copied	Red	81.5 mm	2 mm	43.7 mm	UL94-V2	105 °C	4.4 g	20

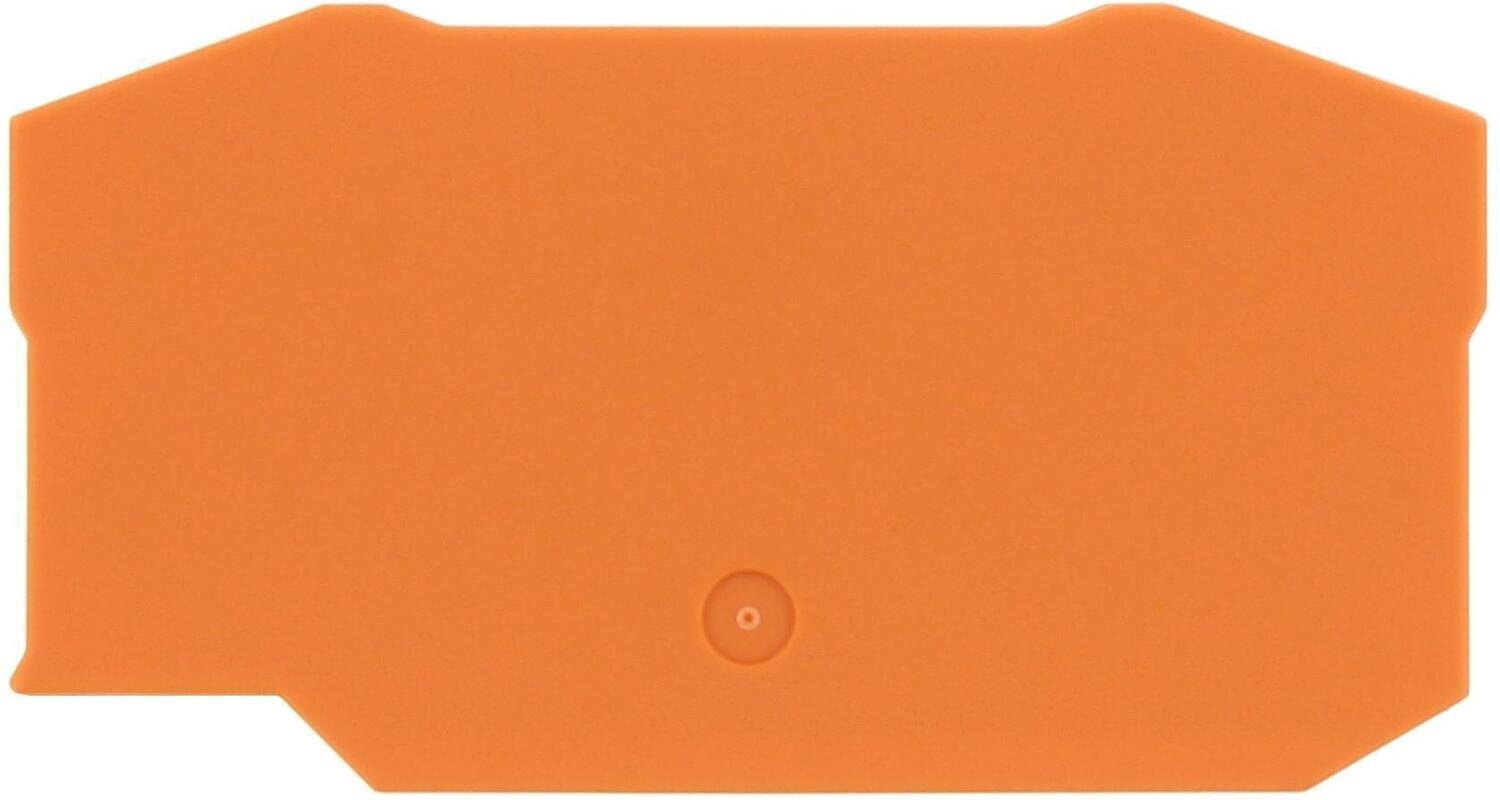

ZAP 16/2A Orange, End plate for ZRK/ZSL 16/2A Art: 3799.3 Copied	Orange	81.5 mm	2 mm	43.7 mm	UL94-V2	105 °C	4.4 g	20

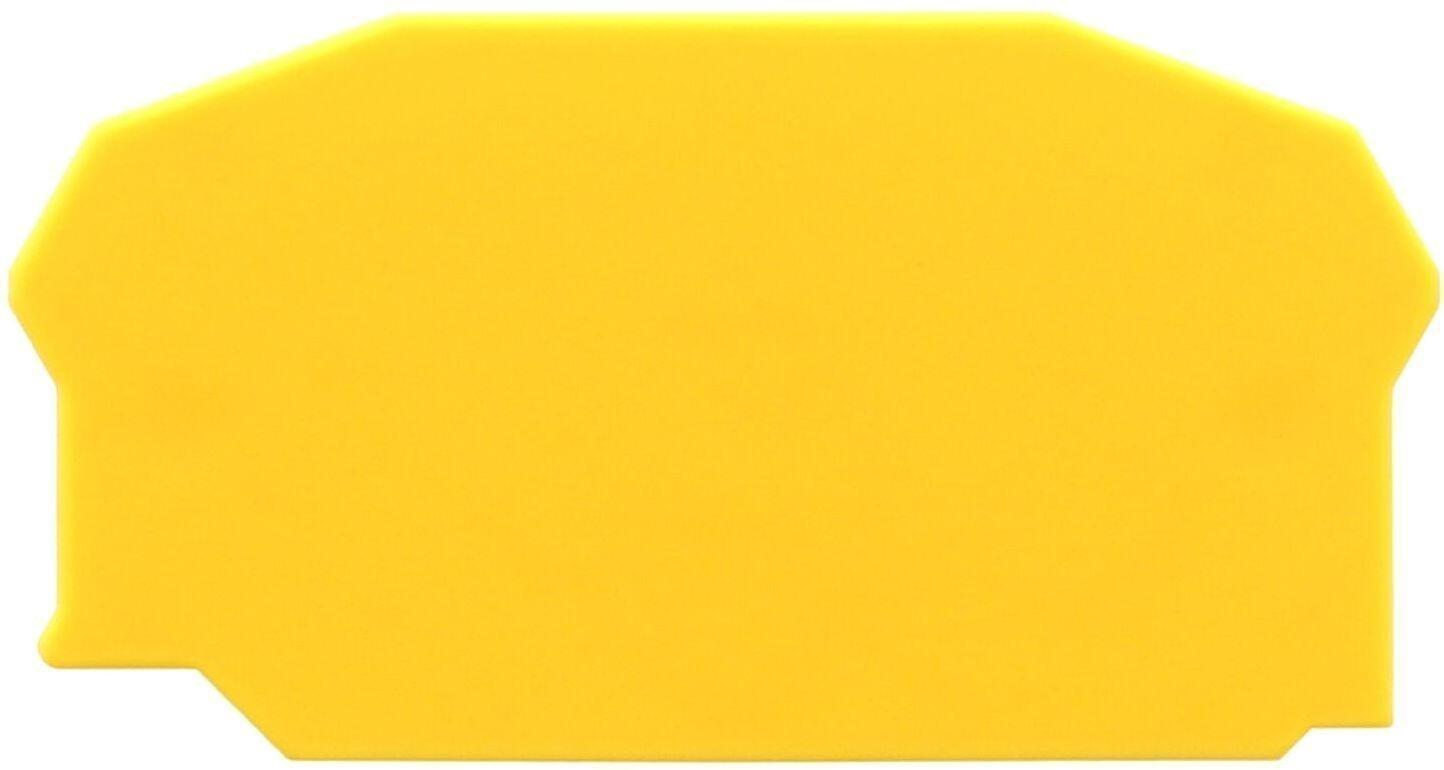

ZAP 2,5/2A YE Art: 3700.8 Copied	Yellow	59 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.4 g	50

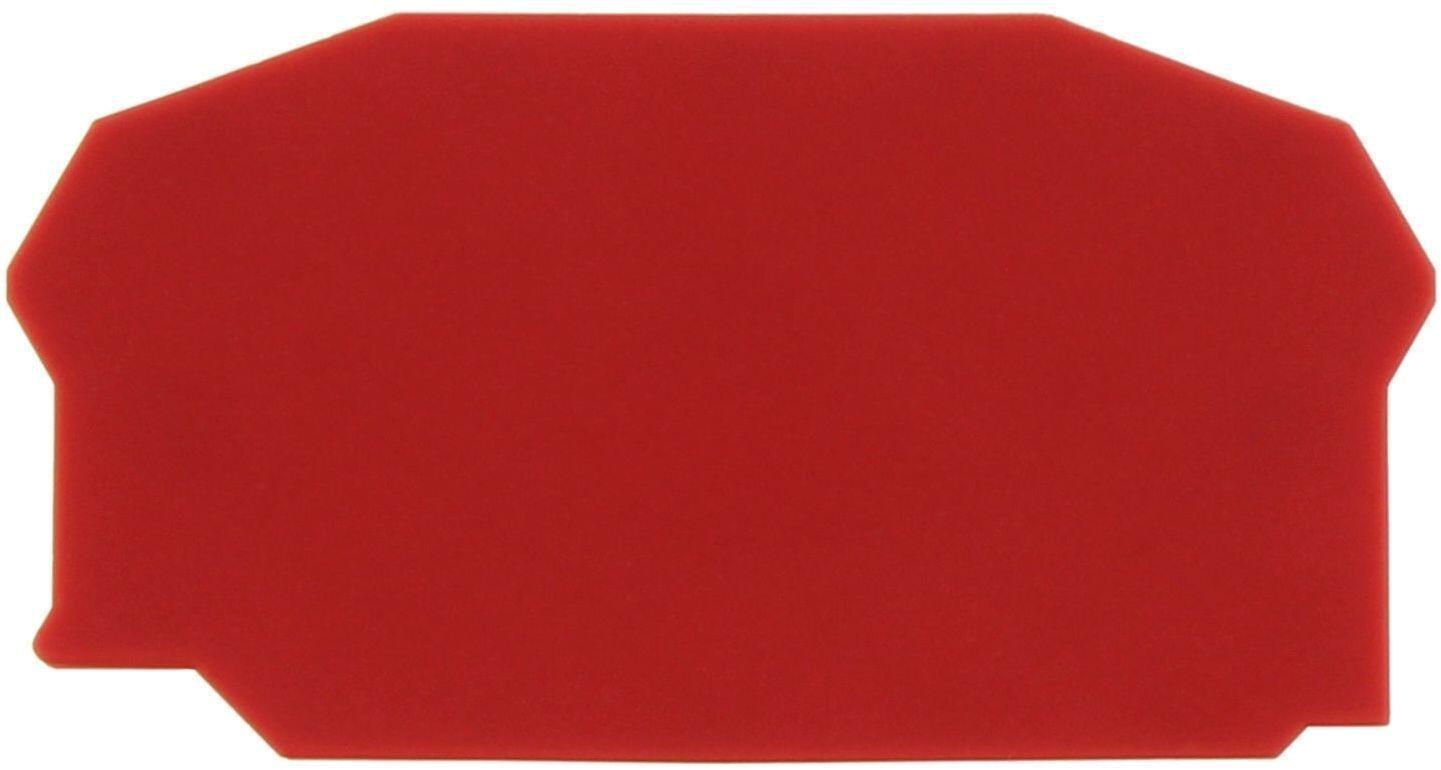

ZAP 2,5/2A RD Art: 3700.9 Copied	Red	59 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.4 g	50
ZAP 2.5/2A Grey, End plate for ZRK/ZSL 2.5/2A Art: 3700.6 Copied	Grey	59 mm	2 mm	30.8 mm	UL94-V2	105 °C	2.4 g	50
