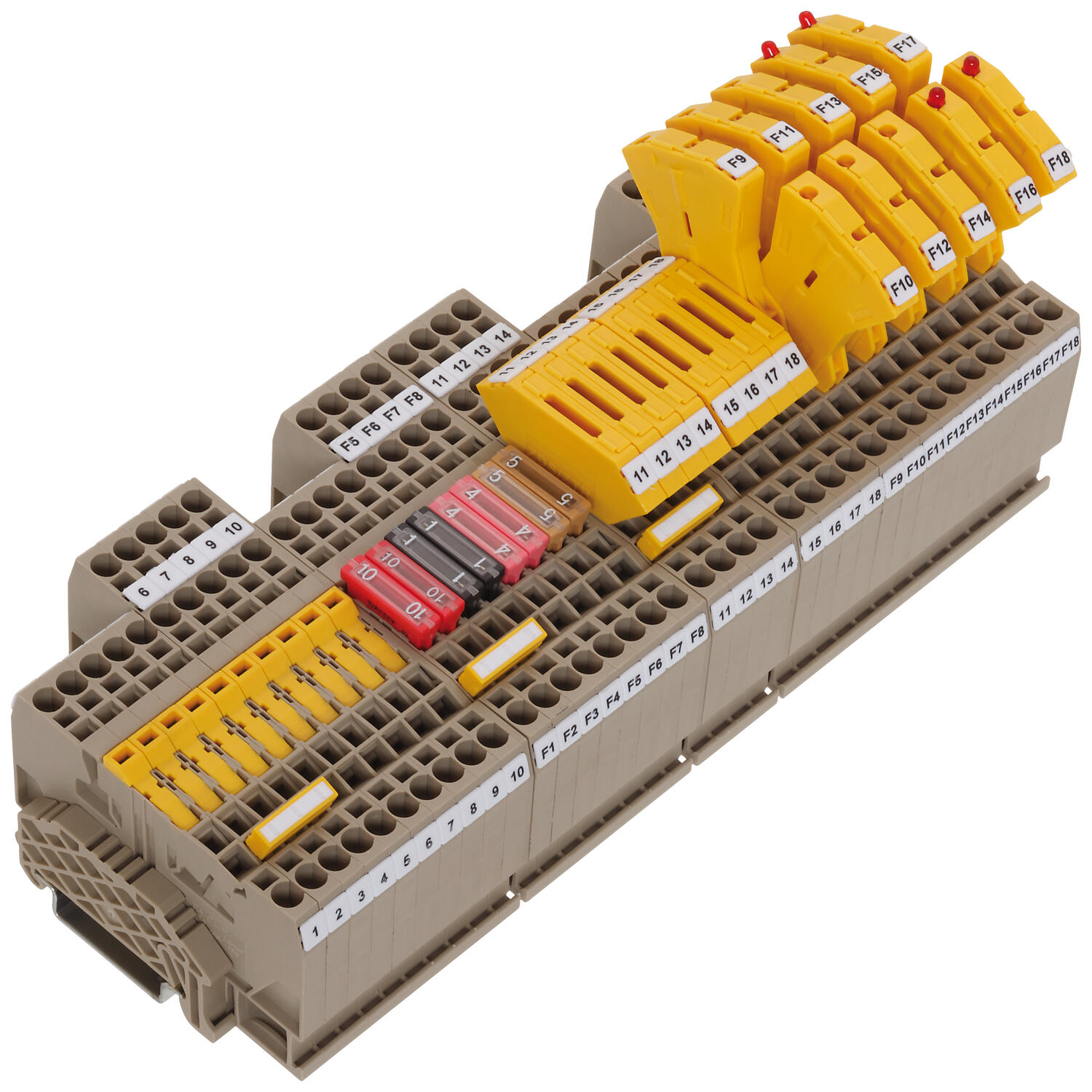

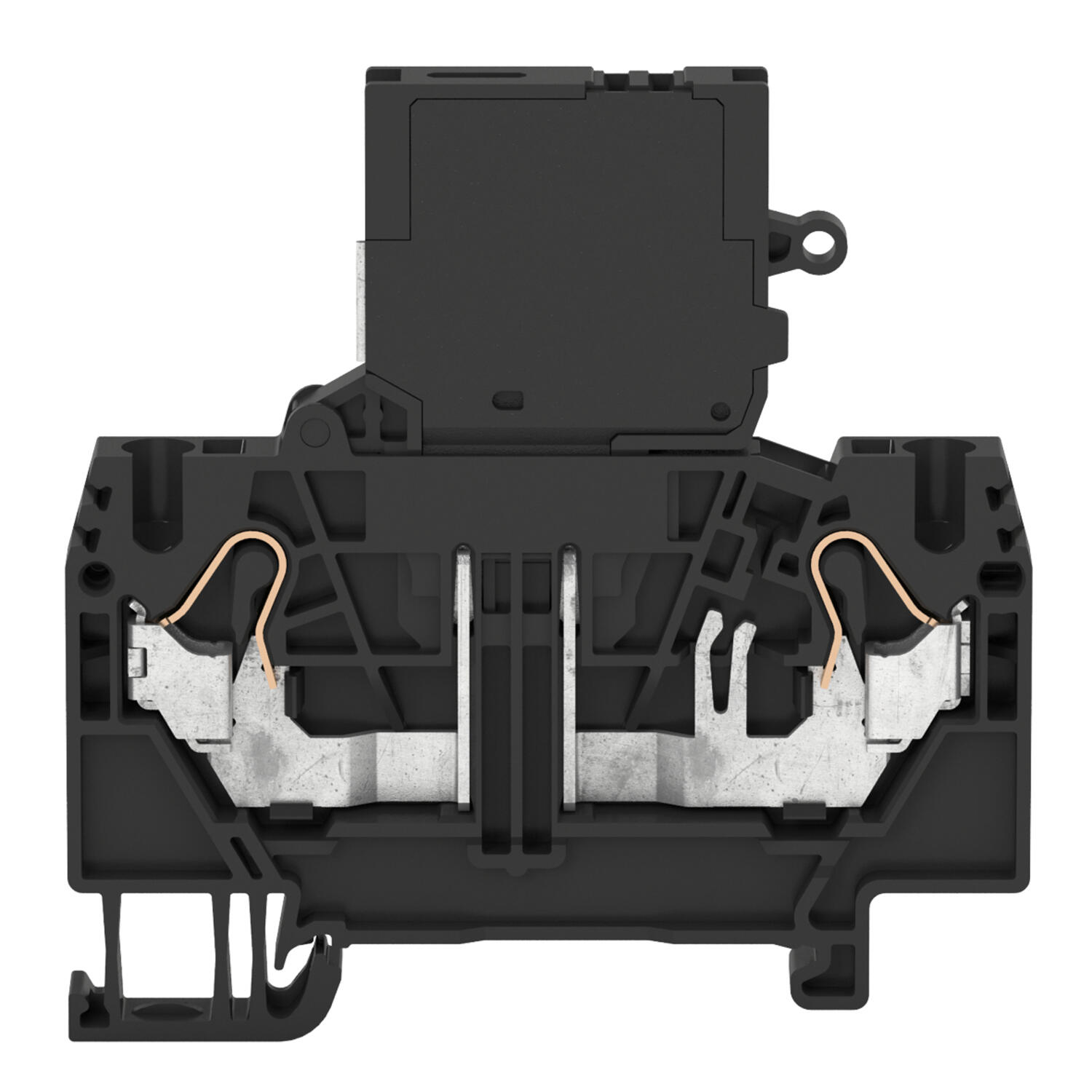

The FTRK and FSIK series are DIN-rail mountable fuse terminal blocks engineered for both 5 × 20 mm glass tube fuses and flat automotive blade fuses. Constructed from robust polyamide 6.6 and rated to UL94-V0, they’re specified for temperature resistance from –40 °C up to +120 °C. They support conductor cross-sections from 0.2 mm² up to 4 mm² (AWG 24–10), accommodate nominal currents from 6.3 A to 18 A, and handle system voltages up to 400 V IEC. Mechanically, they clip easily onto TS 35 rails, measuring about 67.5 mm in length, 5–6 mm in width, and approximately 47 mm in height, with two or three-level connection options. Approvals include CSA, cCSAus, and KEMA KUR, and they support impulse voltages up to 6 kV under pollution degree 3 for overvoltage category III environments.
Both series are perfect for compact, modular electrical distribution and protection in control cabinets. The FSIK variants offer integrated blade fuse holders for quick fuse changes, while certain FTRK models include status plug or LED indicators (e.g., 10–36 V and 35–70 V versions) to signal blown fuses. They're ideal in industrial automation, machine panels, power distribution, and automotive control systems where space-saving, reliable fusing and clear fault indication are essential. The ability to mix glass and blade fuses and use accessories like status display plugs adds flexibility for maintenance-focused installations.Â
General data |
|
---|---|
Rated wire cross section | 4 mm² |
Colour | Black |
Rated current | 18 A |
Rated voltage | 400 V |
Rated voltage IEC | 400 V |
Rated current IEC | 18 A |
Fuse size | Blade Disconnect |
Mounting | TS 35 |
Rated impulse voltage | 6 kV |
Overvoltage category | III |
Contamination degree | 3 |
Approvals | Pending, CSA, cCSAus, KEMA KUR |
Dimensions |
|
Length | 67.5 mm |
Width | 6.1 mm |
Height TS 35/7.5 | 47 mm |
Height | 46 mm |
Connection data |
|
Connections | 2 |
Number of levels | 1 Â |
Plug gauge acc. EN 60 947-1 | A3 |
Cross connect channels | 1 Â |
Cross section single wire from | 0.2 mm² |
Cross section single wire to | 4 mm² |
Cross section stranded wire from | 0.2 mm² |
Cross section stranded wire to | 2.5 mm² |
Cross section stranded with ferrule from | 0.2 mm² |
*Invisible Heading* |
|
---|---|
Cross section stranded with ferrule to | 2.5 mm² |
Rated wire cross section from (AWG) | 24 |
Rated wire cross section to (AWG) | 10 |
Stripping length | 12 mm |
Materials |
|
Insulation material | Polyamide 6.6 |
Flammability class | UL94-V0 |
Operating temperature from | -40 °C |
Operating temperature to | 120 °C |
Approvals |
|
Rated voltage UL | 300 |
Rated voltage UL | 300 V |
Rated current UL | 15 A |
UL test standard | UL 1059 |
Rated voltage CSA | 300 V |
Rated current CSA | 15 A |
CSA test standard | C22.2 No 158 |
Rated voltage CSAus | 300 V |
Rated current CSAus | 15 A |
CSAus test standard | UL 1059 |
KEMA KEUR test standard | EN 60947-7-3:2009 |
Additional data |
|
Tariff code | 85369010 |
Country of origin | BG |
Weight | 13.72 g |
Pack size | 50 Â |
The FTRK and FSIK series are DIN-rail mountable fuse terminal blocks engineered for both 5 × 20 mm glass tube fuses and flat automotive blade fuses. Constructed from robust polyamide 6.6 and rated to UL94-V0, they’re specified for temperature resistance from –40 °C up to +120 °C. They support conductor cross-sections from 0.2 mm² up to 4 mm² (AWG 24–10), accommodate nominal currents from 6.3 A to 18 A, and handle system voltages up to 400 V IEC. Mechanically, they clip easily onto TS 35 rails, measuring about 67.5 mm in length, 5–6 mm in width, and approximately 47 mm in height, with two or three-level connection options. Approvals include CSA, cCSAus, and KEMA KUR, and they support impulse voltages up to 6 kV under pollution degree 3 for overvoltage category III environments.
Both series are perfect for compact, modular electrical distribution and protection in control cabinets. The FSIK variants offer integrated blade fuse holders for quick fuse changes, while certain FTRK models include status plug or LED indicators (e.g., 10–36 V and 35–70 V versions) to signal blown fuses. They're ideal in industrial automation, machine panels, power distribution, and automotive control systems where space-saving, reliable fusing and clear fault indication are essential. The ability to mix glass and blade fuses and use accessories like status display plugs adds flexibility for maintenance-focused installations.Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Rated wire cross section | Colour | Rated current | Rated voltage | Rated voltage IEC | Rated current IEC | Fuse size | Approvals | Additional information | Length | Width | Height TS 35/7.5 | Height | Connections | Cross section single wire from | Cross section stranded wire from | Cross section stranded wire to | Cross section stranded with ferrule from | Rated wire cross section from (AWG) | Rated wire cross section to (AWG) | Stripping length | Rated voltage UL | Rated voltage UL | Rated current UL | UL test standard | Rated current CSA | Rated current CSAus | KEMA KEUR test standard | Country of origin | Weight | Pack size | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

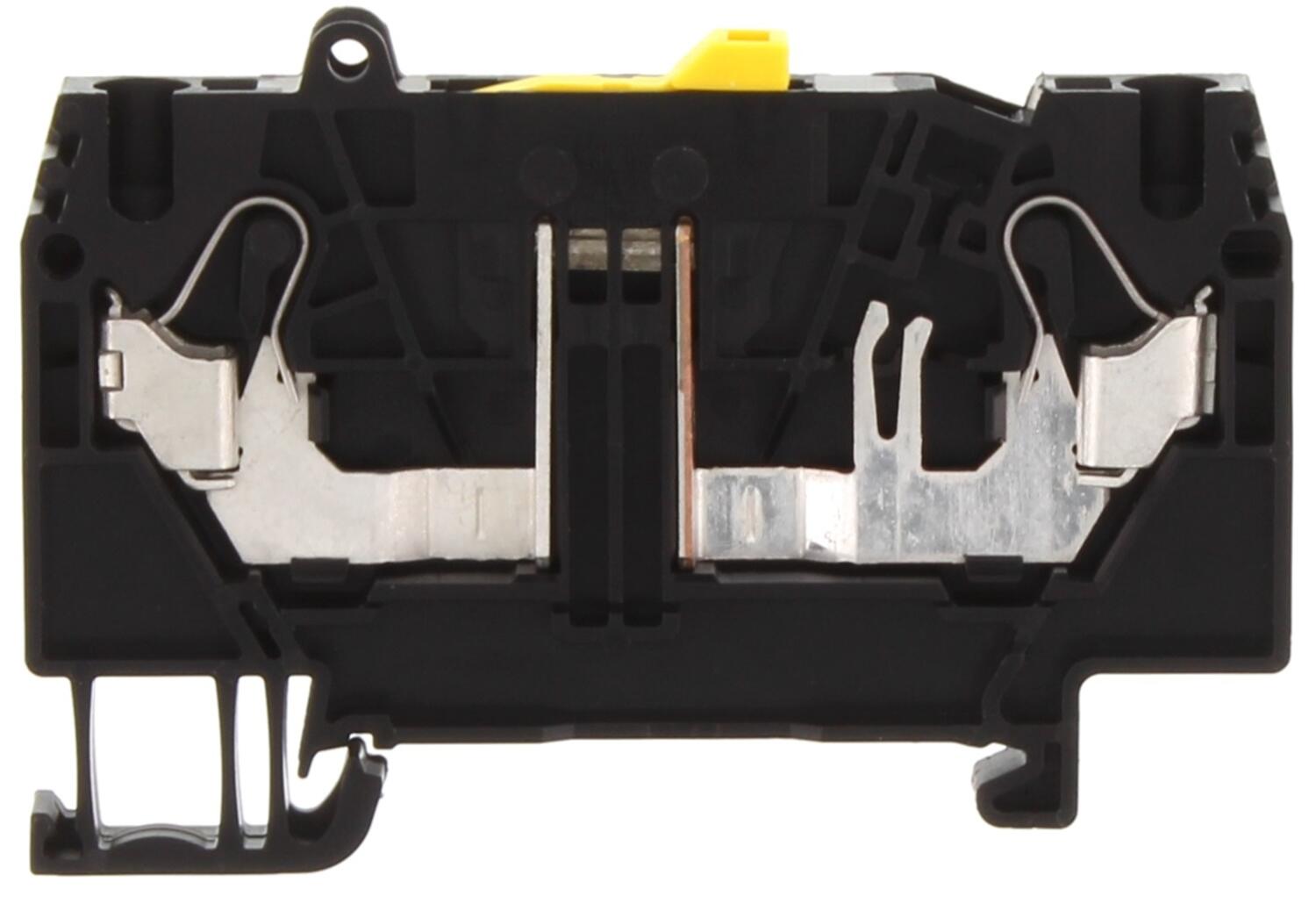

FSIK 4/2A/MT BK
Art:
3239.4
Copied
|
4 mm²
|
Black
|
18 A
|
400 V
|
400 V
|
18 A
|
Blade Disconnect
|
Pending, CSA, cCSAus, KEMA KUR
|
|
67.5 mm
|
6.1 mm
|
47 mm
|
46 mm
|
2
|
0.2 mm²
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
24
|
10
|
12 mm
|
300
|
300 V
|
15 A
|
UL 1059
|
15 A
|
15 A
|
EN 60947-7-3:2009
|
BG
|
13.72 g
|
50
|
| ||
![]()

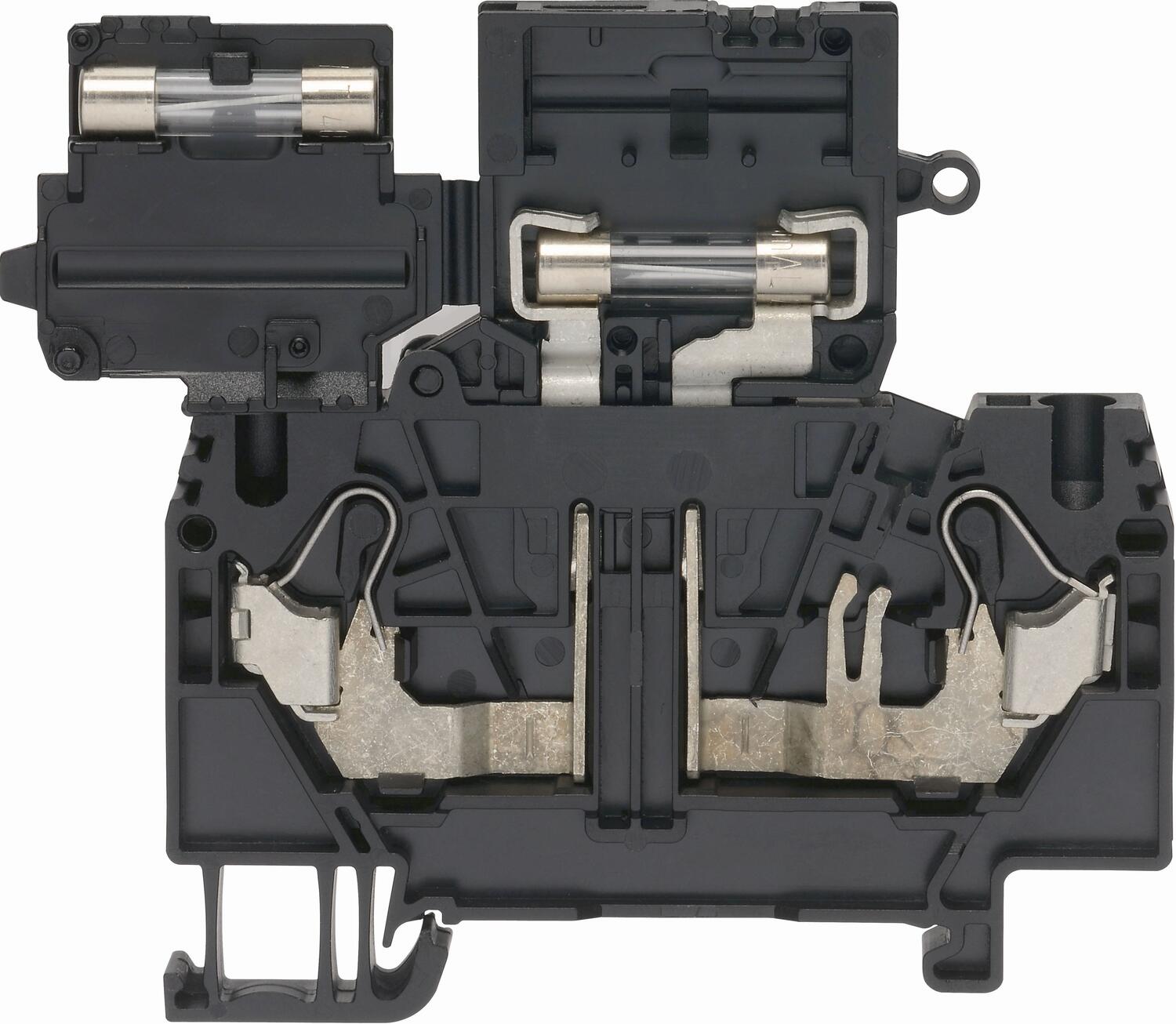

FSIK 4/2A BK
Art:
3290.4
Copied
|
4 mm²
|
Black
|
|
|
|
6.3 A
|
5 x 20 mm
|
UL, CSA, CSA US, KEMA KUR
|
|
67.5 mm
|
6.1 mm
|
70 mm
|
69 mm
|
2
|
0.2 mm²
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
24
|
10
|
12 mm
|
|
300 V
|
6.3 A
|
UL 1059
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
BG
|
17.94 g
|
25
|
| ||
![]()

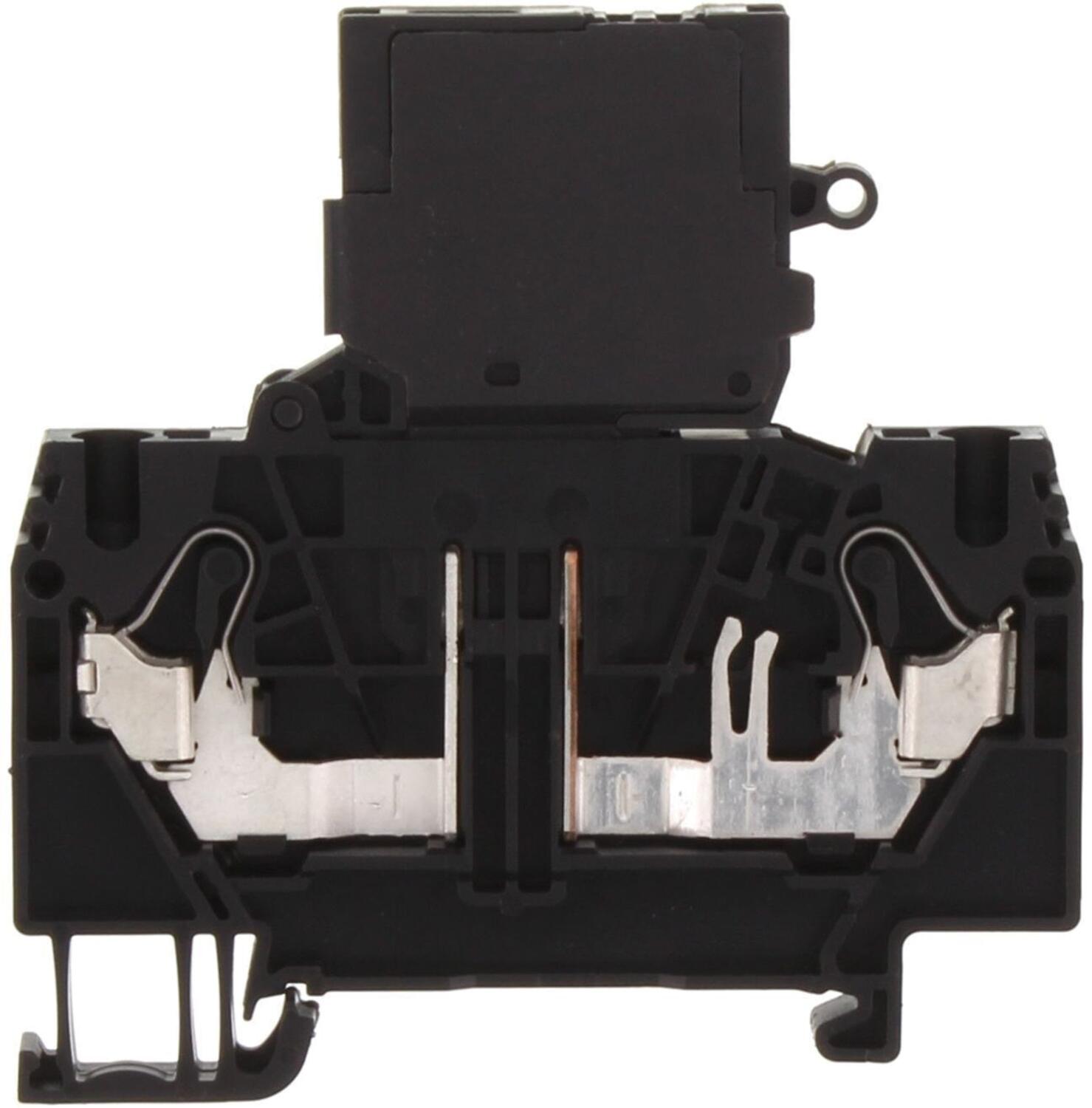

FSIK 4/2A/LED 12-30V AC/DC BK
Art:
3291.4
Copied
|
4 mm²
|
Black
|
|
|
|
6.3 A
|
5 x 20 mm
|
UL, CSA, CSA US, KEMA KUR
|
|
67.5 mm
|
6.1 mm
|
70 mm
|
69 mm
|
2
|
0.2 mm²
|
0.2 mm²
|
2.5 mm²
|
0.22 mm²
|
24
|
10
|
12 mm
|
|
300 V
|
6.3 A
|
UL 1059
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
87.66 g
|
25
|
| ||
![]()
FSIK 4/2A/LED 30-60V AC/DC BK
Art:
3292.4
Copied
|
4 mm²
|
Black
|
|
|
|
6.3 A
|
5 x 20 mm
|
UL, CSA, CSA US, KEMA KUR
|
|
67.5 mm
|
6.1 mm
|
70 mm
|
69 mm
|
2
|
0.2 mm²
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
24
|
10
|
12 mm
|
|
300 V
|
6.3 A
|
UL 1059
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
87.66 g
|
25
|
| ||
![]()

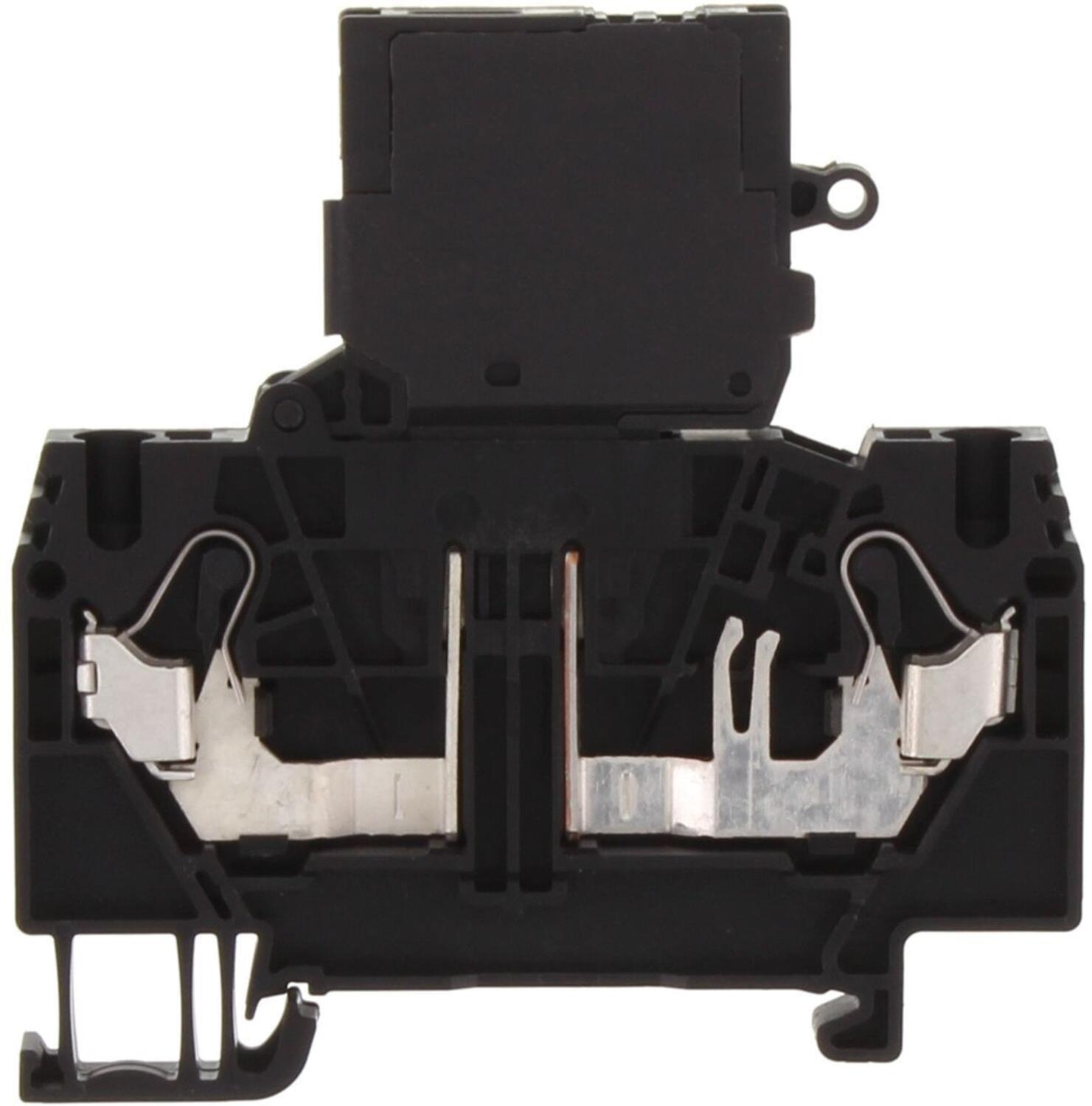

FSIK 4/2A/LED/110-250V AC/DC BK
Art:
3293.4
Copied
|
4 mm²
|
Black
|
|
|
|
6.3 A
|
5 x 20 mm
|
UL, CSA, CSA US, KEMA KUR
|
|
67.5 mm
|
6.1 mm
|
70 mm
|
69 mm
|
2
|
0.2 mm²
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
24
|
10
|
12 mm
|
|
300 V
|
6.3 A
|
UL 1059
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
87.66 g
|
25
|
| ||
![]()

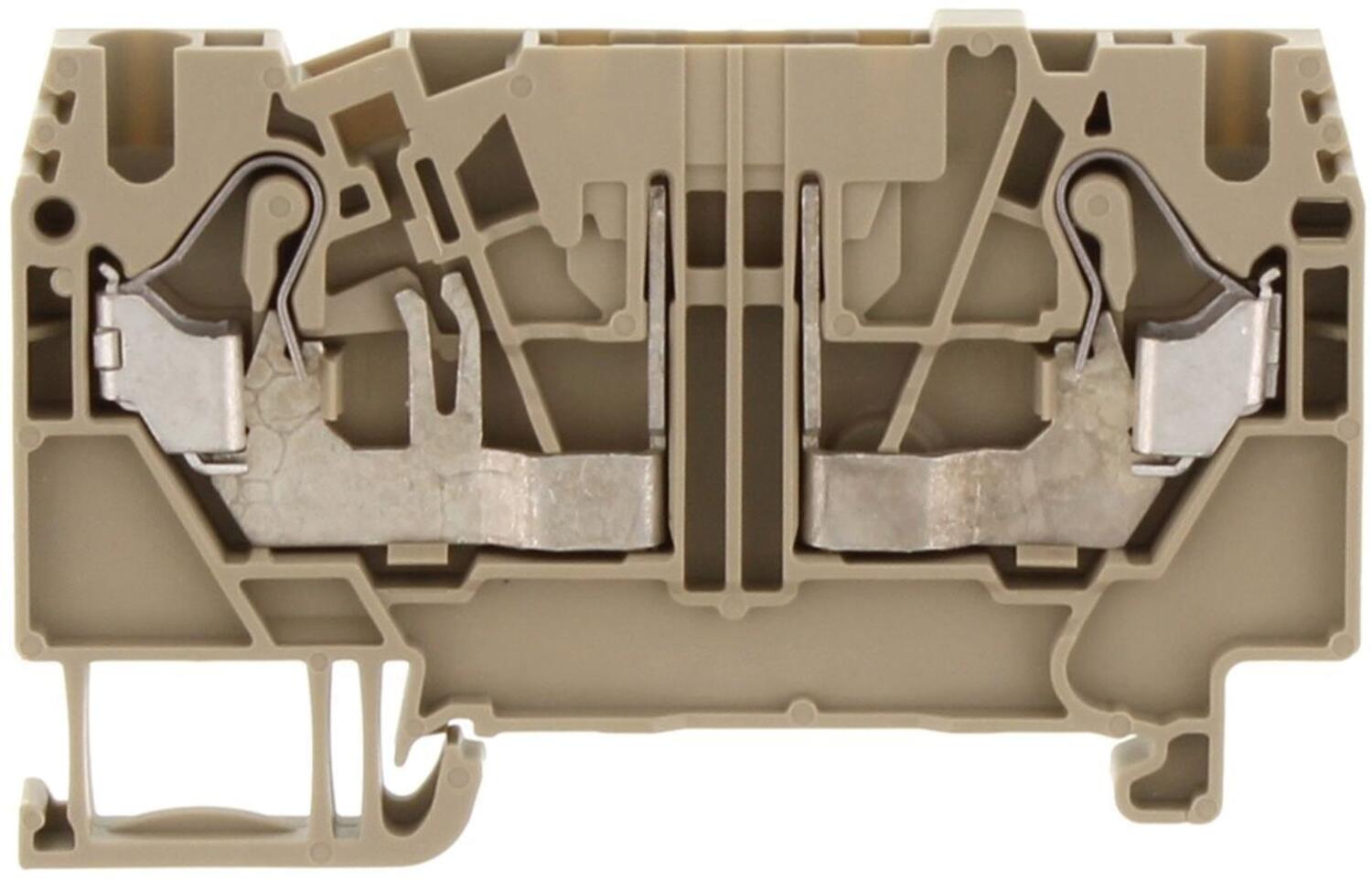

FTRK 2,5/2A/OT BG
Art:
3257.2
Copied
|
2.5 mm²
|
Beige
|
|
|
400 V
|
18 A
|
|
CSA, CSA US, KEMA KUR
|
without function element
|
67.5 mm
|
5.1 mm
|
43 mm
|
|
2
|
0.2 mm²
|
0.2 mm²
|
4 mm²
|
0.2 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
15 A
|
15 A
|
EN 60947-7-1:2009, EN 60947-7-3:2009
|
CZ
|
10.99 g
|
100
|
| ||
![]()
FTRK 2,5/2A/OT OG
Art:
3257.3
Copied
|
2.5 mm²
|
Orange
|
|
|
400 V
|
18 A
|
|
CSA, CSA US, KEMA KUR
|
without function element
|
67.5 mm
|
5.1 mm
|
43 mm
|
|
2
|
0.2 mm²
|
0.2 mm²
|
4 mm²
|
0.2 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
15 A
|
15 A
|
EN 60947-7-1:2009, EN 60947-7-3:2009
|
CZ
|
10.99 g
|
100
|
| ||
![]()
FTRK 2,5/2A/OT BU
Art:
3257.5
Copied
|
2.5 mm²
|
Blue
|
|
|
400 V
|
18 A
|
|
CSA, CSA US, KEMA KUR
|
without function element
|
67.5 mm
|
5.1 mm
|
43 mm
|
|
2
|
0.2 mm²
|
0.2 mm²
|
4 mm²
|
0.2 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
15 A
|
15 A
|
EN 60947-7-1:2009, EN 60947-7-3:2009
|
CZ
|
10.99 g
|
100
|
| ||
![]()

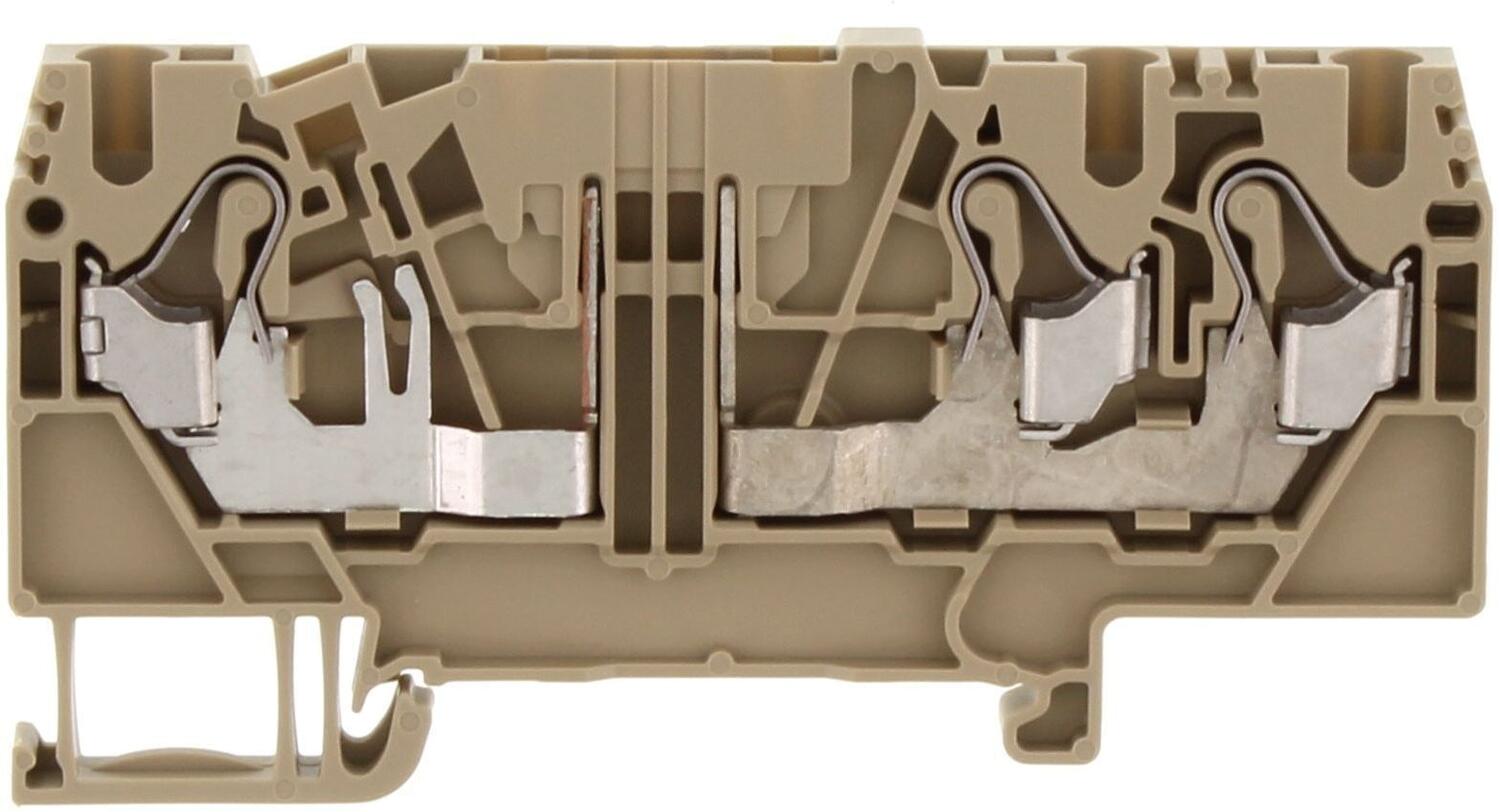

FTRK 2,5/3A/OT BG
Art:
3258.2
Copied
|
2.5 mm²
|
Beige
|
|
|
400 V
|
18 A
|
|
CSA, CSA US, KEMA KUR
|
without function element
|
82 mm
|
5.1 mm
|
43 mm
|
|
3
|
0.2 mm²
|
0.2 mm²
|
4 mm²
|
0.2 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
15 A
|
15 A
|
EN 60947-7-1:2009, EN 60947-7-3:2009
|
CZ
|
13.94 g
|
100
|
| ||
![]()
FTRK 2,5/3A/OT OG
Art:
3258.3
Copied
|
2.5 mm²
|
Orange
|
|
|
400 V
|
18 A
|
|
CSA, CSA US, KEMA KUR
|
without function element
|
82 mm
|
5.1 mm
|
43 mm
|
|
3
|
0.2 mm²
|
0.2 mm²
|
4 mm²
|
0.2 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
15 A
|
15 A
|
EN 60947-7-1:2009, EN 60947-7-3:2009
|
CZ
|
13.94 g
|
100
|
| ||
![]()
FTRK 2,5/3A/OT BU
Art:
3258.5
Copied
|
2.5 mm²
|
Blue
|
|
|
400 V
|
18 A
|
|
CSA, CSA US, KEMA KUR
|
without function element
|
82 mm
|
5.1 mm
|
43 mm
|
|
3
|
0.2 mm²
|
0.2 mm²
|
4 mm²
|
0.2 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
15 A
|
15 A
|
EN 60947-7-1:2009, EN 60947-7-3:2009
|
CZ
|
13.94 g
|
100
|
| ||
![]()
FTRK 2,5/2A/ZS BG
Art:
3263.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug
|
67.5 mm
|
5.1 mm
|
81.2 mm
|
|
2
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
19.9 g
|
100
|
| ||
![]()
FTRK 2,5/2A/ZS BU
Art:
3263.5
Copied
|
2.5 mm²
|
Blue
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug
|
67.5 mm
|
5.1 mm
|
81.2 mm
|
|
2
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
19.9 g
|
100
|
| ||
![]()

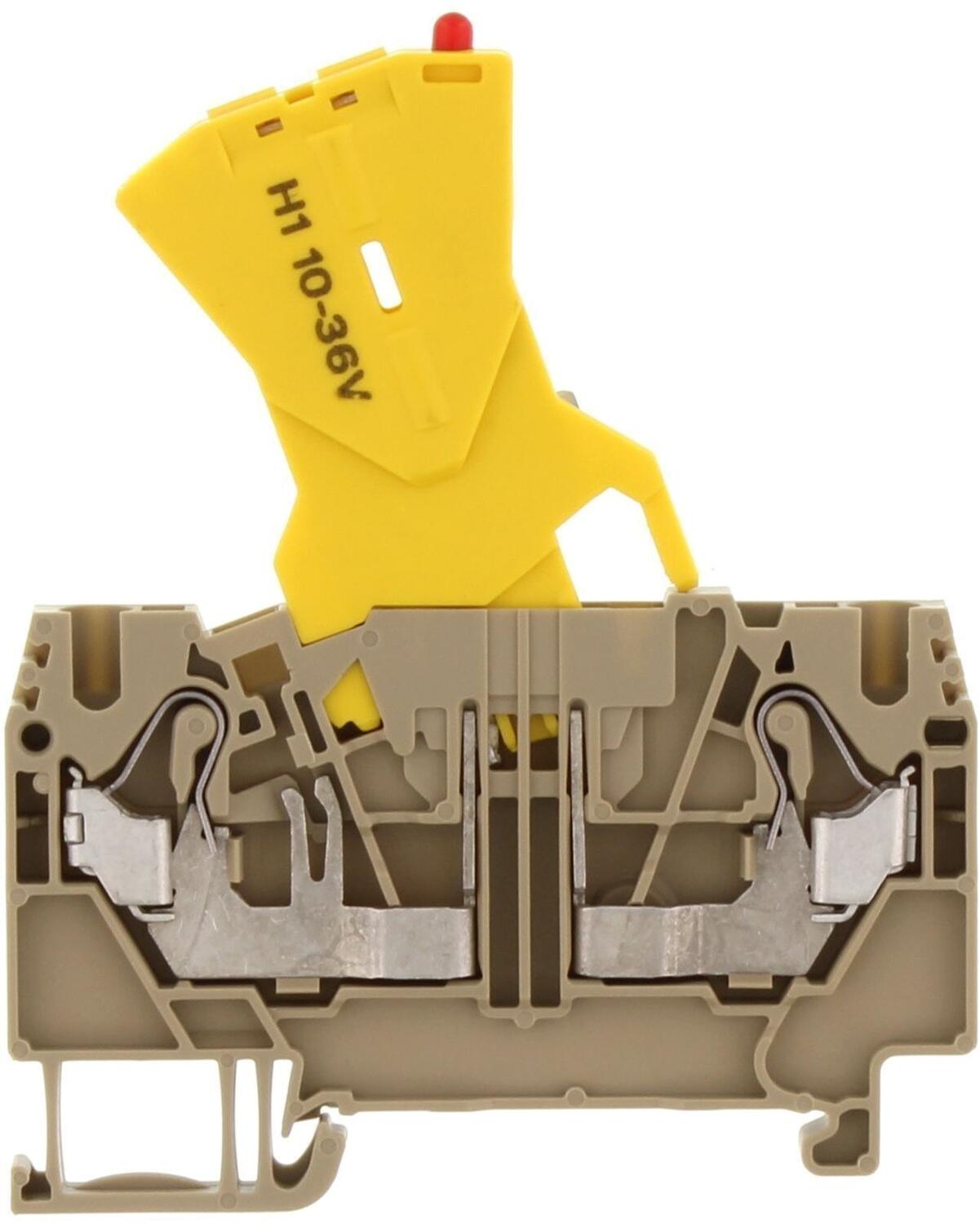

FTRK 2,5/2A/ZS 36 BG
Art:
3264.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug + status display 10-36V
|
67.5 mm
|
5.1 mm
|
81.2 mm
|
|
2
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
19.9 g
|
100
|
| ||
![]()
FTRK 2,5/2A/ZS 70 BG
Art:
3265.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug + status display 35-70V
|
67.5 mm
|
5.1 mm
|
81.2 mm
|
|
2
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
19.9 g
|
100
|
| ||
![]()
FTRK 2,5/2A/ZS 150 BG
Art:
3266.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug + status display 60-150V
|
67.5 mm
|
5.1 mm
|
81.2 mm
|
|
2
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
19.9 g
|
100
|
| ||
![]()
FTRK 2,5/2A/ZS 250 BG
Art:
3267.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug + status display 140-250V
|
67.5 mm
|
5.1 mm
|
81.2 mm
|
|
2
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
19.9 g
|
100
|
| ||
![]()
FTRK 2,5/3A/ZS BG
Art:
3268.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug
|
82 mm
|
5.1 mm
|
81.2 mm
|
|
3
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
19.1 g
|
100
|
| ||
![]()
FTRK 2,5/3A/ZS BU
Art:
3268.5
Copied
|
2.5 mm²
|
Blue
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug
|
82 mm
|
5.1 mm
|
81.2 mm
|
|
3
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
19.1 g
|
100
|
| ||
![]()
FTRK 2,5/3A/ZS 36 BG
Art:
3269.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug + status display 10-36V
|
82 mm
|
5.1 mm
|
81.2 mm
|
|
3
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
20.34 g
|
100
|
| ||
![]()
FTRK 2,5/3A/ZS 70 BG
Art:
3270.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug + status display 35-70V
|
82 mm
|
5.1 mm
|
81.2 mm
|
|
3
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
20.34 g
|
100
|
| ||
![]()
FTRK 2,5/3A/ZS 150 BG
Art:
3271.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug + status display 60-150V
|
82 mm
|
5.1 mm
|
81.2 mm
|
|
3
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
20.34 g
|
100
|
| ||
![]()
FTRK 2,5/3A/ZS 250 BG
Art:
3272.2
Copied
|
2.5 mm²
|
Beige
|
|
|
|
6.3 A
|
5 x 20 mm
|
CSA, CSA US, KEMA KUR
|
with fuse plug + status display 140-250V
|
82 mm
|
5.1 mm
|
81.2 mm
|
|
3
|
0.5 mm²
|
0.5 mm²
|
4 mm²
|
0.5 mm²
|
20
|
12
|
10 mm
|
|
|
|
|
6.3 A
|
6.3 A
|
EN 60947-7-3:2009
|
DE
|
20.34 g
|
100
|
|
