General data |
|
---|---|
Rated wire cross section | 2.5 mm² |
Colour | Beige |
Rated voltage IEC | 400 V |
Rated current IEC | 18 A |
Mounting | TS 35 |
Rated impulse voltage | 6 kV |
Overvoltage category | III |
Contamination degree | 3 |
Approvals | CSA, CSA US, KEMA KUR |
Additional information | with disconnect blade |
Dimensions |
|
Length | 67.5 mm |
Width | 5.1 mm |
Height TS 35/7.5 | 45.6 mm |
Connection data |
|
Connections | 2 |
Number of levels | 1 Â |
Plug gauge acc. EN 60 947-1 | A3 |
Cross connect channels | 1 Â |
Cross section single wire from | 0.2 mm² |
Cross section single wire to | 4 mm² |
Cross section stranded wire from | 0.2 mm² |
Cross section stranded wire to | 4 mm² |
*Invisible Heading* |
|
---|---|
Cross section stranded with ferrule from | 0.2 mm² |
Cross section stranded with ferrule to | 2.5 mm² |
Rated wire cross section from (AWG) | 20 |
Rated wire cross section to (AWG) | 12 |
Stripping length | 10 mm |
Materials |
|
Insulation material | Polyamide 6.6 |
Flammability class | UL94-V0 |
Operating temperature from | -40 °C |
Operating temperature to | 120 °C |
Approvals |
|
Rated voltage CSA | 300 V |
Rated current CSA | 15 A |
CSA test standard | C22.2 No 158 |
Rated voltage CSAus | 300 V |
Rated current CSAus | 15 A |
CSAus test standard | UL 1059 |
KEMA KEUR test standard | EN 60947-7-1:2009, EN 60947-7-3:2009 |
Additional data |
|
Tariff code | 85369010 |
Country of origin | CZ |
Weight | 11.93 g |
Pack size | 100 Â |
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Colour | Additional information | Length | Height TS 35/7.5 | Connections | Country of origin | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|
![]()

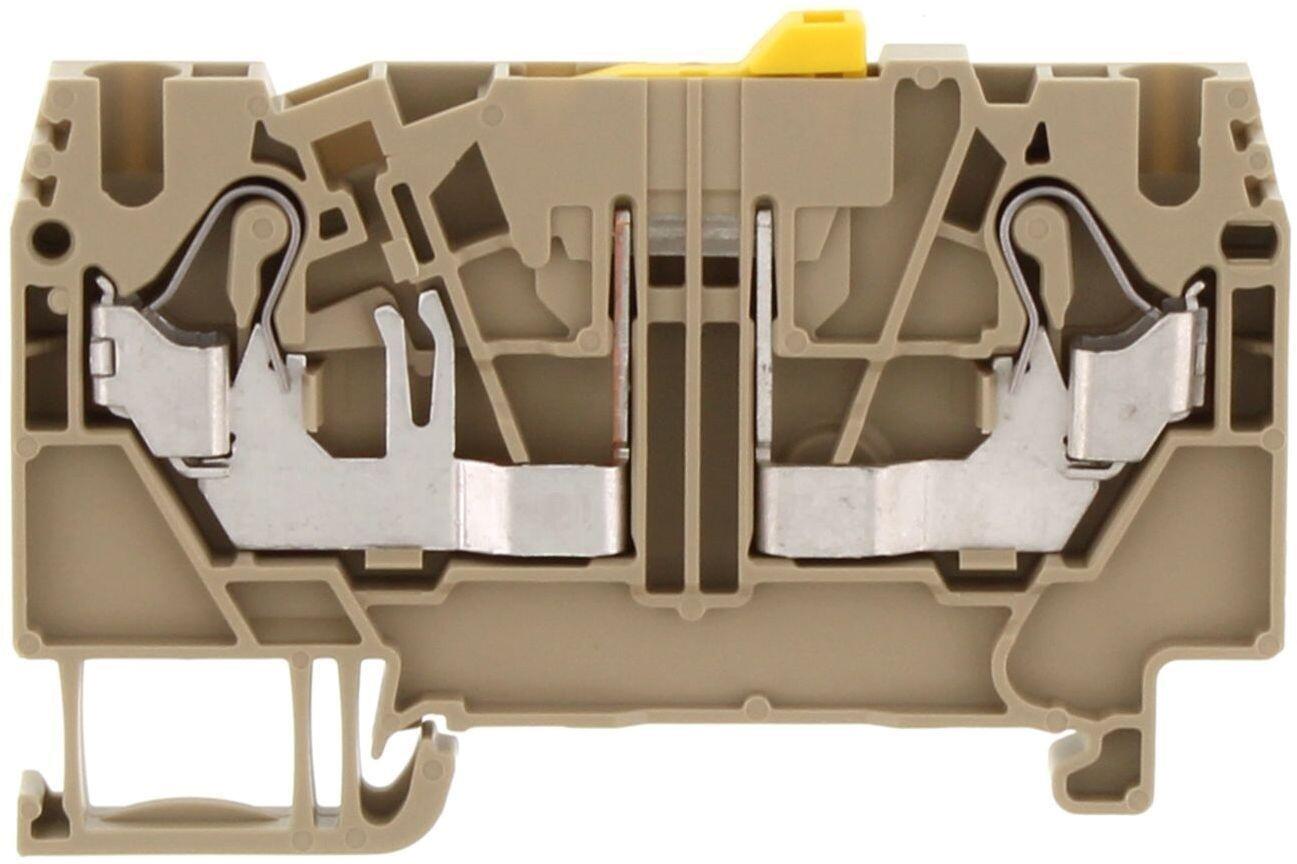

FTRK 2,5/2A/MT BG
Art:
3259.2
Copied
|
Beige
|
with disconnect blade
|
67.5 mm
|
45.6 mm
|
2
|
CZ
|
11.93 g
|
| ||
![]()
FTRK 2,5/2A/MT OG
Art:
3259.3
Copied
|
Orange
|
with disconnect blade
|
67.5 mm
|
45.6 mm
|
2
|
CZ
|
11.93 g
|
| ||
![]()
FTRK 2,5/2A/MT BU
Art:
3259.5
Copied
|
Blue
|
with disconnect blade
|
67.5 mm
|
45.6 mm
|
2
|
CZ
|
11.93 g
|
| ||
![]()

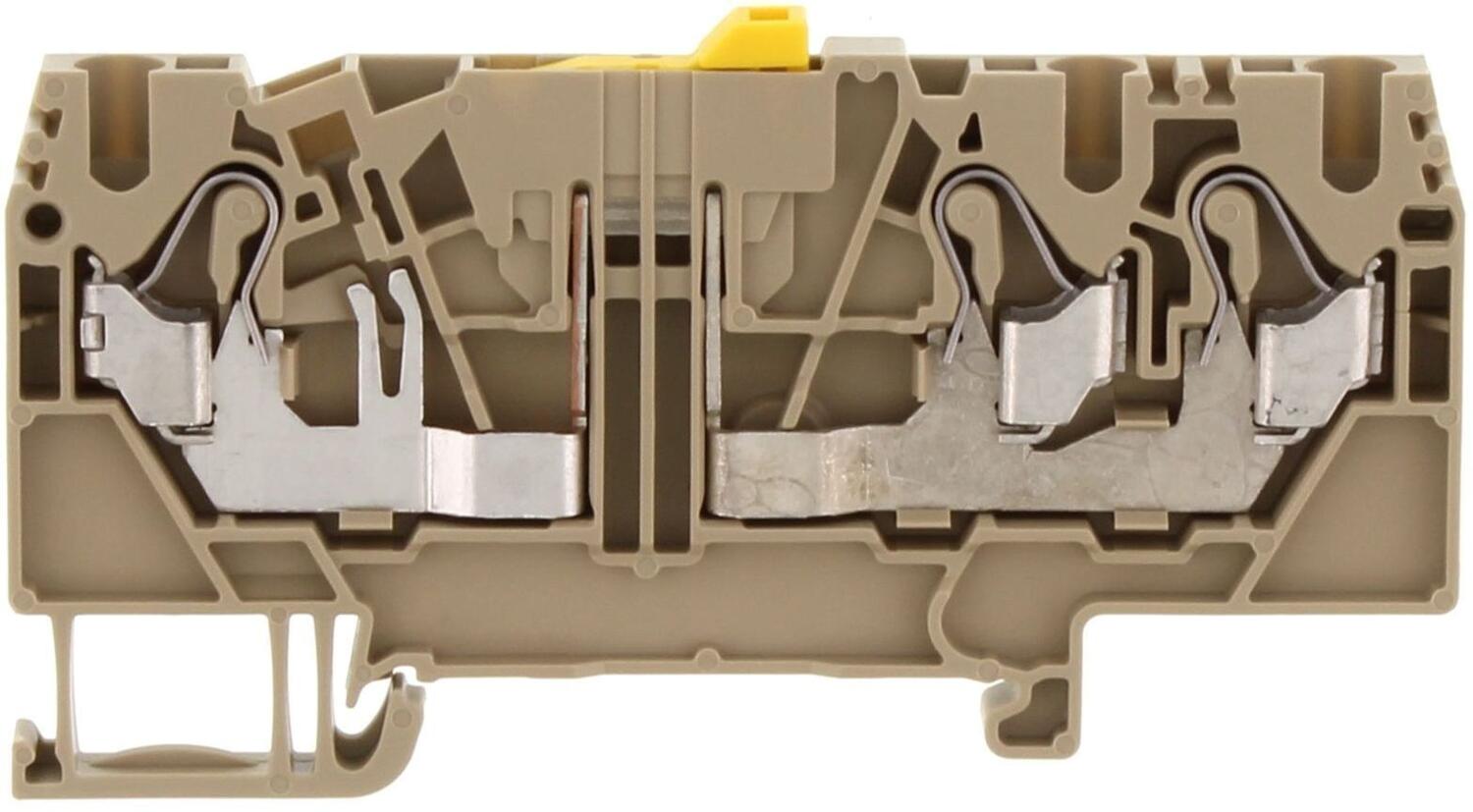

FTRK 2,5/3A/MT BG
Art:
3260.2
Copied
|
Beige
|
with disconnect blade
|
67.5 mm
|
45.6 mm
|
3
|
CZ
|
14.93 g
|
| ||
![]()
FTRK 2,5/3A/MT OG
Art:
3260.3
Copied
|
Orange
|
with disconnect blade
|
67.5 mm
|
45.6 mm
|
3
|
CZ
|
14.93 g
|
| ||
![]()

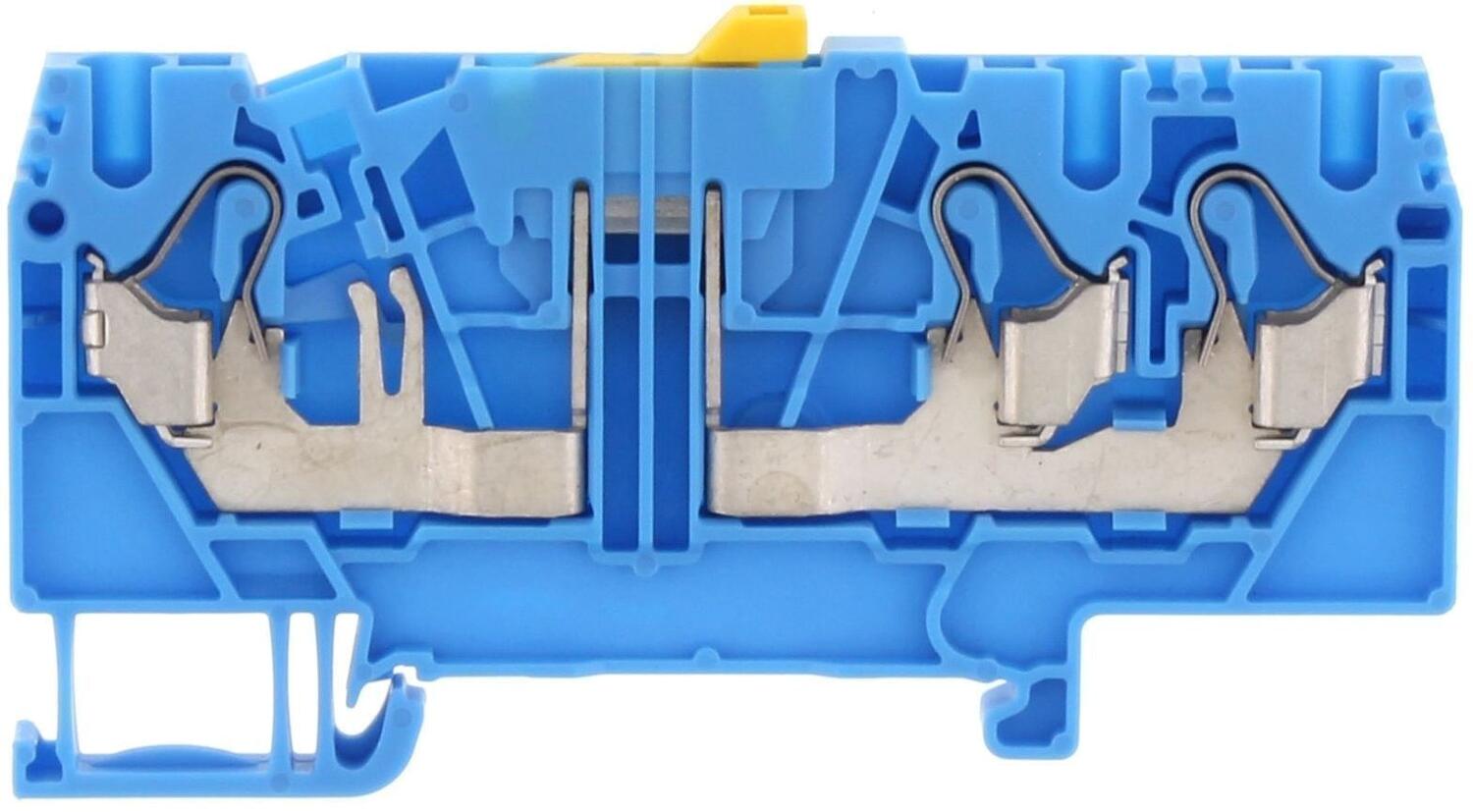

FTRK 2,5/3A/MT BU
Art:
3260.5
Copied
|
Blue
|
with disconnect blade
|
67.5 mm
|
45.6 mm
|
3
|
CZ
|
14.93 g
|
| ||
![]()

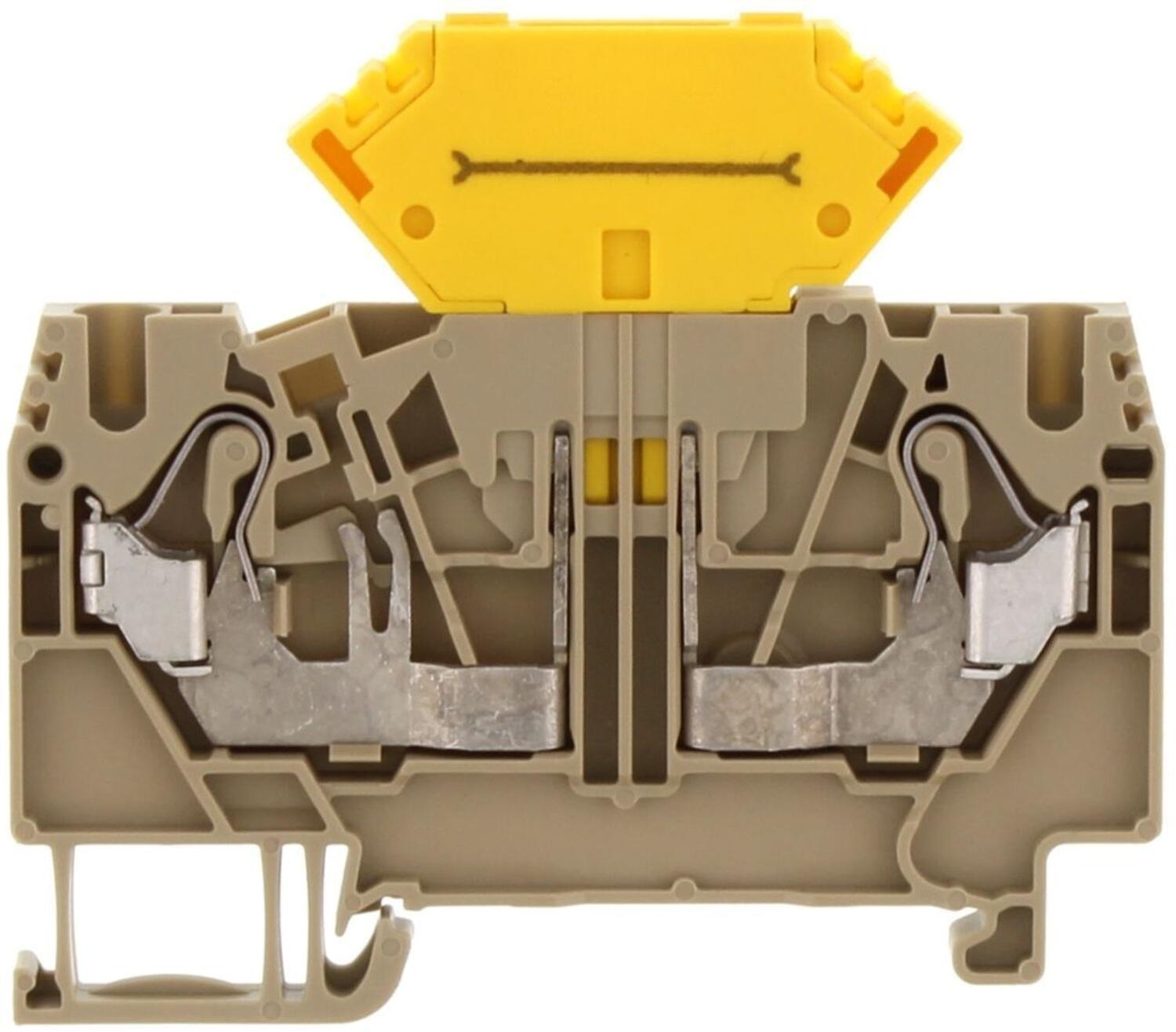

FTRK 2,5/2A/ST BG
Art:
3261.2
Copied
|
Beige
|
with disconnect-plug (ST with wire jumper)
|
67.5 mm
|
59.5 mm
|
2
|
DE
|
19.9 g
|
| ||
![]()
FTRK 2,5/2A/ST BU
Art:
3261.5
Copied
|
Blue
|
with disconnect-plug (ST with wire jumper)
|
67.5 mm
|
59.5 mm
|
2
|
DE
|
19.9 g
|
| ||
![]()

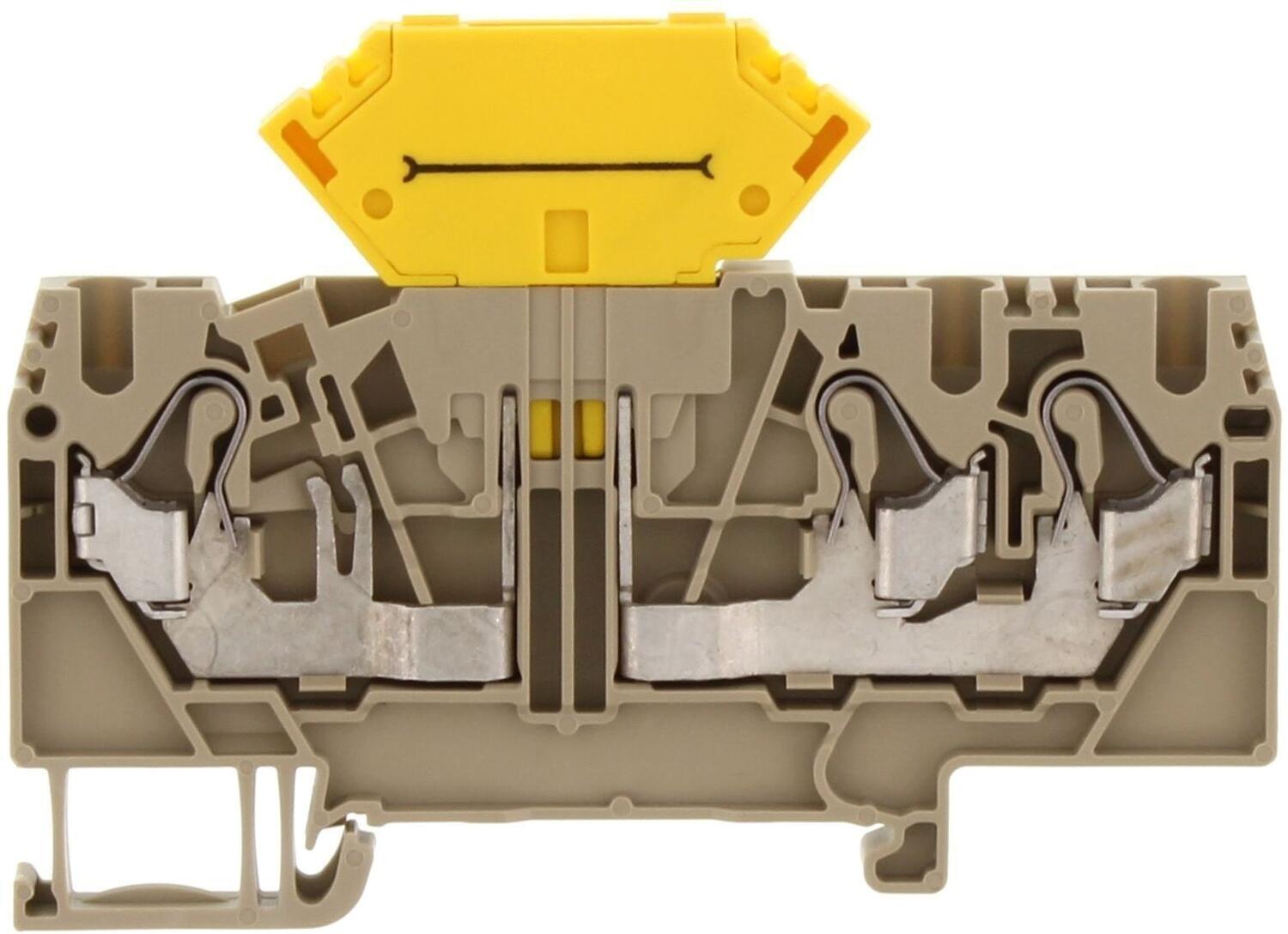

FTRK 2,5/3A/ST BG
Art:
3262.2
Copied
|
Beige
|
with disconnect-plug (ST with wire jumper)
|
82 mm
|
59.5 mm
|
3
|
DE
|
19.9 g
|
| ||
![]()
FTRK 2,5/3A/ST BU
Art:
3262.5
Copied
|
Blue
|
with disconnect-plug (ST with wire jumper)
|
82 mm
|
59.5 mm
|
3
|
DE
|
19.9 g
|
|
Select a variant in the list
