CONTA-CLIP
The base terminals of the FDLI 2.5-4 series are available in eight different versions. This range offers you the best  all round solution, whether you are using our feed-through terminals, feedthrough terminals with disconnect-blade or the empty terminal versions together with custom-fit accessories.
Â
All can be combined together in one neat package with a uniform size to give a professional and easy to wire solution
Â
Â
General data |
|
|---|---|
| Rated wire cross section | 4 mm² |
| Colour | Beige |
| Rated voltage IEC | 400 V |
| Rated current IEC | 18 A |
| Load current max | 32 A |
| Mounting | TS 35 |
| Rated impulse voltage | 6 kV |
| Overvoltage category | III |
| Contamination degree | 3 |
| Approvals | EAC |
Dimensions |
|
| Length | 101 mm |
| Width | 5.1 mm |
| Height TS 35/7.5 | 55.6 mm |
Connection data |
|
| Connections | 5 |
| Plug gauge acc. EN 60 947-1 | A3 |
| Cross connect channels | 2 Â |
| Cross section single wire from | 0.2 mm² |
| Cross section single wire to | 4 mm² |
*Invisible Heading* |
|
|---|---|
| Cross section stranded wire from | 0.2 mm² |
| Cross section stranded wire to | 4 mm² |
| Cross section stranded with ferrule from | 0.2 mm² |
| Cross section stranded with ferrule to | 2.5 mm² |
| Rated wire cross section from (AWG) | 26 |
| Rated wire cross section to (AWG) | 10 |
| Stripping length | 12 mm |
Materials |
|
| Insulation material | Polyamide 6.6 |
| Flammability class | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
Approvals |
|
| EAC test standard | TR ZU 004/2011 |
Additional data |
|
| Tariff code | 85369010 |
| Country of origin | DE |
| Weight | 27.25 g |
| Pack size | 50 Â |
The base terminals of the FDLI 2.5-4 series are available in eight different versions. This range offers you the best  all round solution, whether you are using our feed-through terminals, feedthrough terminals with disconnect-blade or the empty terminal versions together with custom-fit accessories.
Â
All can be combined together in one neat package with a uniform size to give a professional and easy to wire solution
Â
Â
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Rated current IEC | Height TS 35/7.5 | Connections | Weight | Price | ||
|---|---|---|---|---|---|---|---|
FDLI 2,5-4 NT/L/PE
Art:
3283.2
Copied
|
18 A
|
55.6 mm
|
5
|
27.25 g
|
|
||

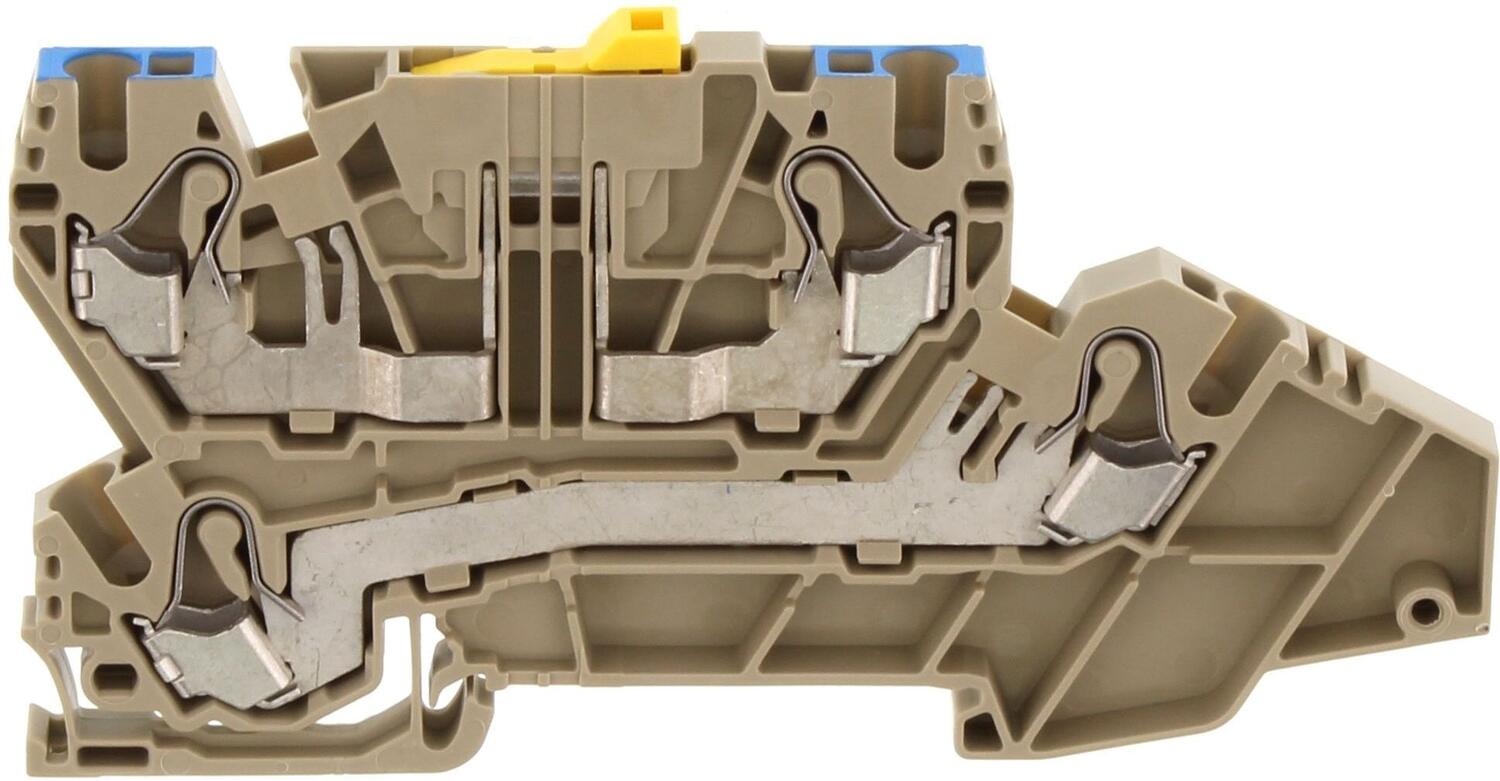

FDLI 2,5-4 NT/L
Art:
3284.2
Copied
|
18 A
|
55.6 mm
|
4
|
21.25 g
|
|
||
FDLI 2,5-4 L/L/PE
Art:
3285.2
Copied
|
18 A
|
54 mm
|
5
|
26.25 g
|
|
||

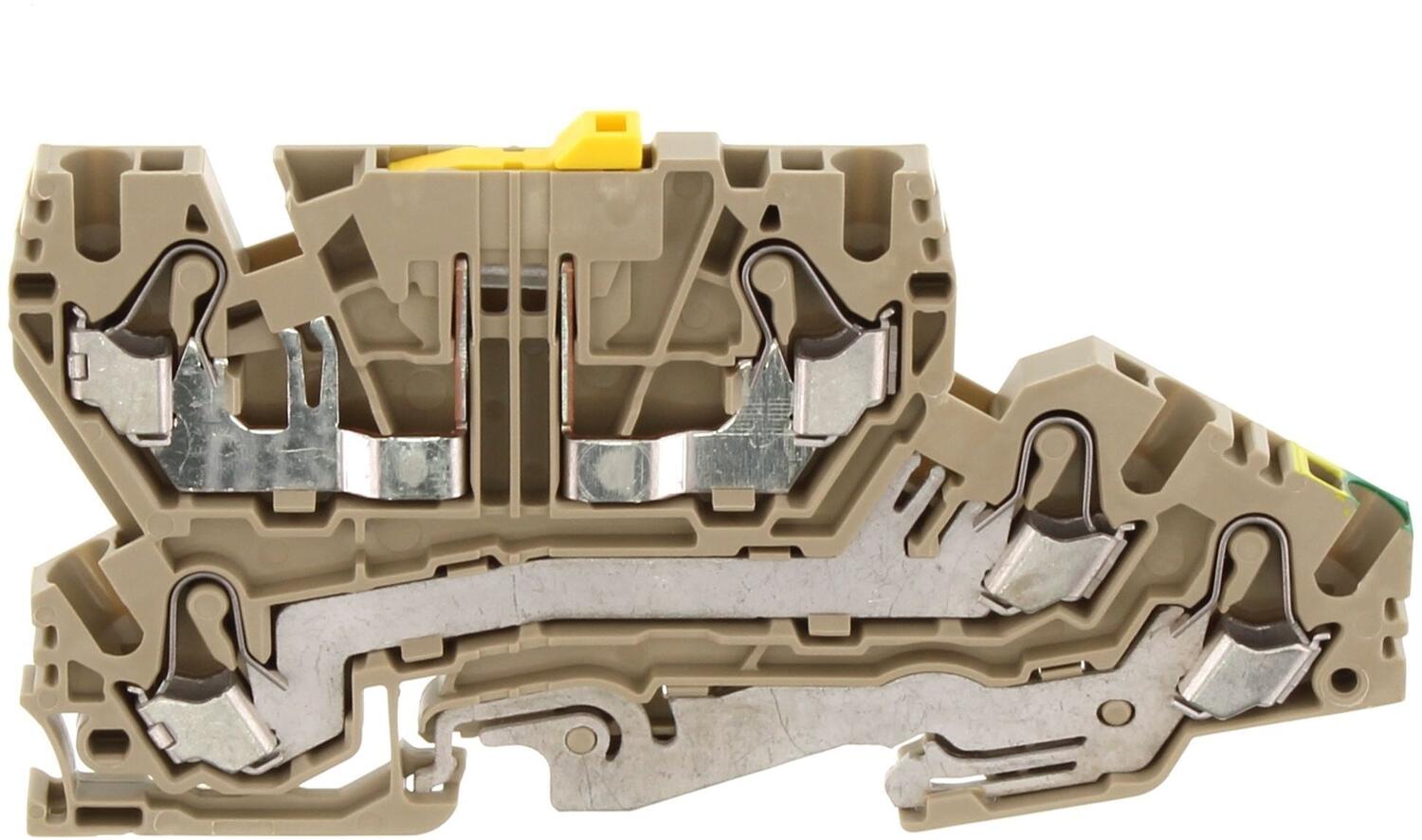

FDLI 2,5-4 MT/L/PE
Art:
3282.2
Copied
|
18 A
|
55.6 mm
|
5
|
27.25 g
|
|
||

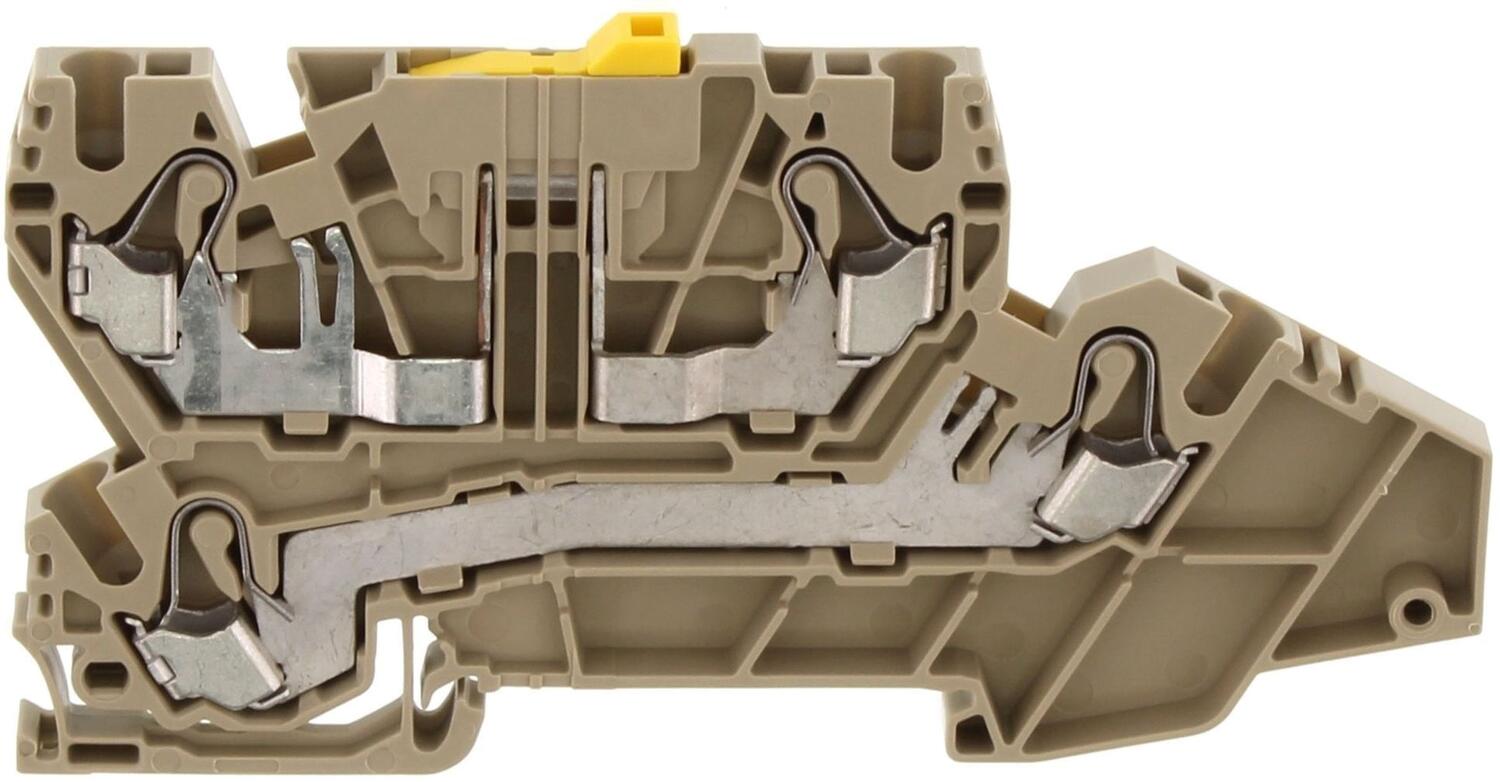

FDLI 2,5-4 MT/L
Art:
3289.2
Copied
|
18 A
|
55.6 mm
|
4
|
22.25 g
|
|
||
FDLI 2,5-4 L/L
Art:
3286.2
Copied
|
18 A
|
54 mm
|
4
|
21.25 g
|
|
||

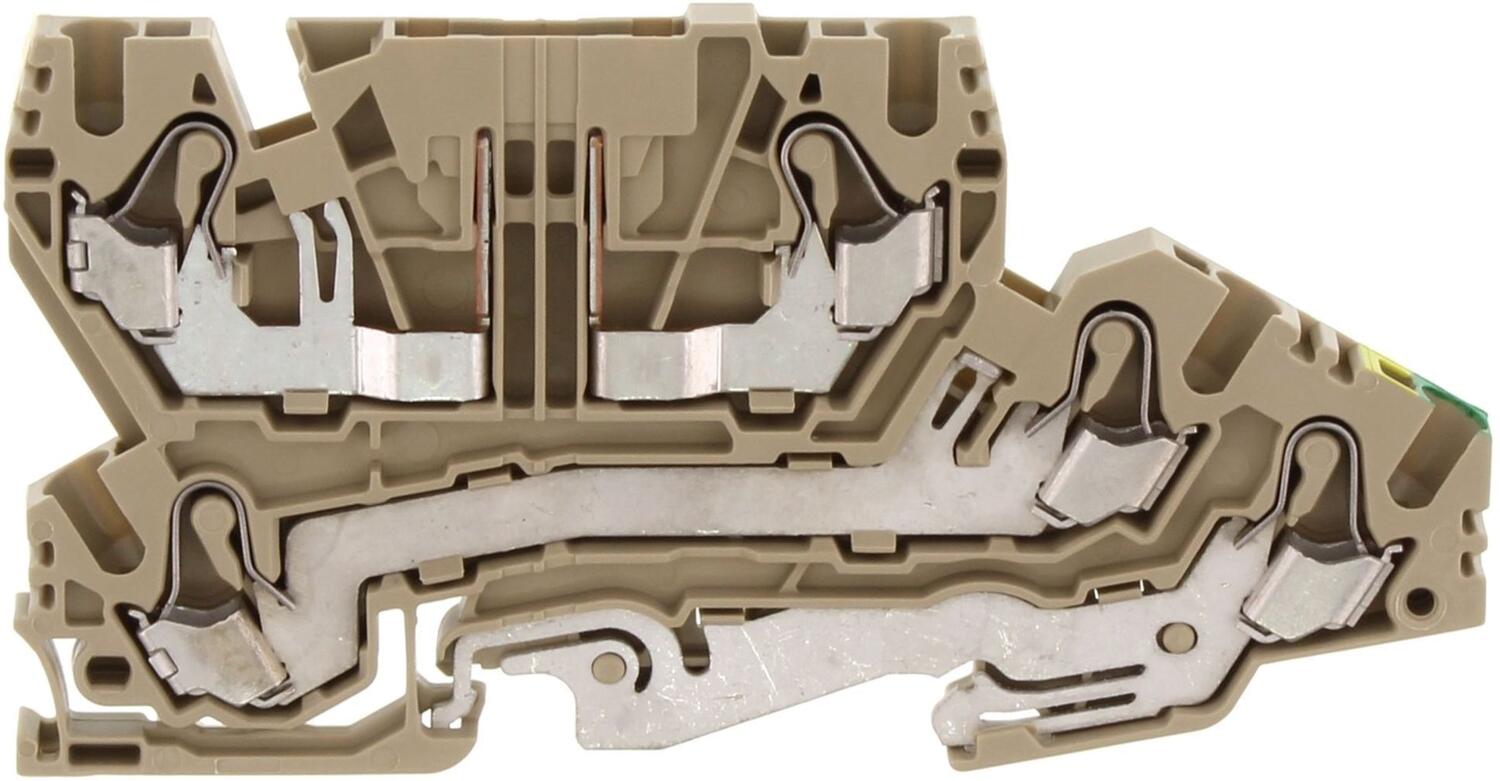

FDLI 2,5-4 OT/L/PE
Art:
3287.2
Copied
|
15 A
|
54 mm
|
5
|
25.25 g
|
|
||

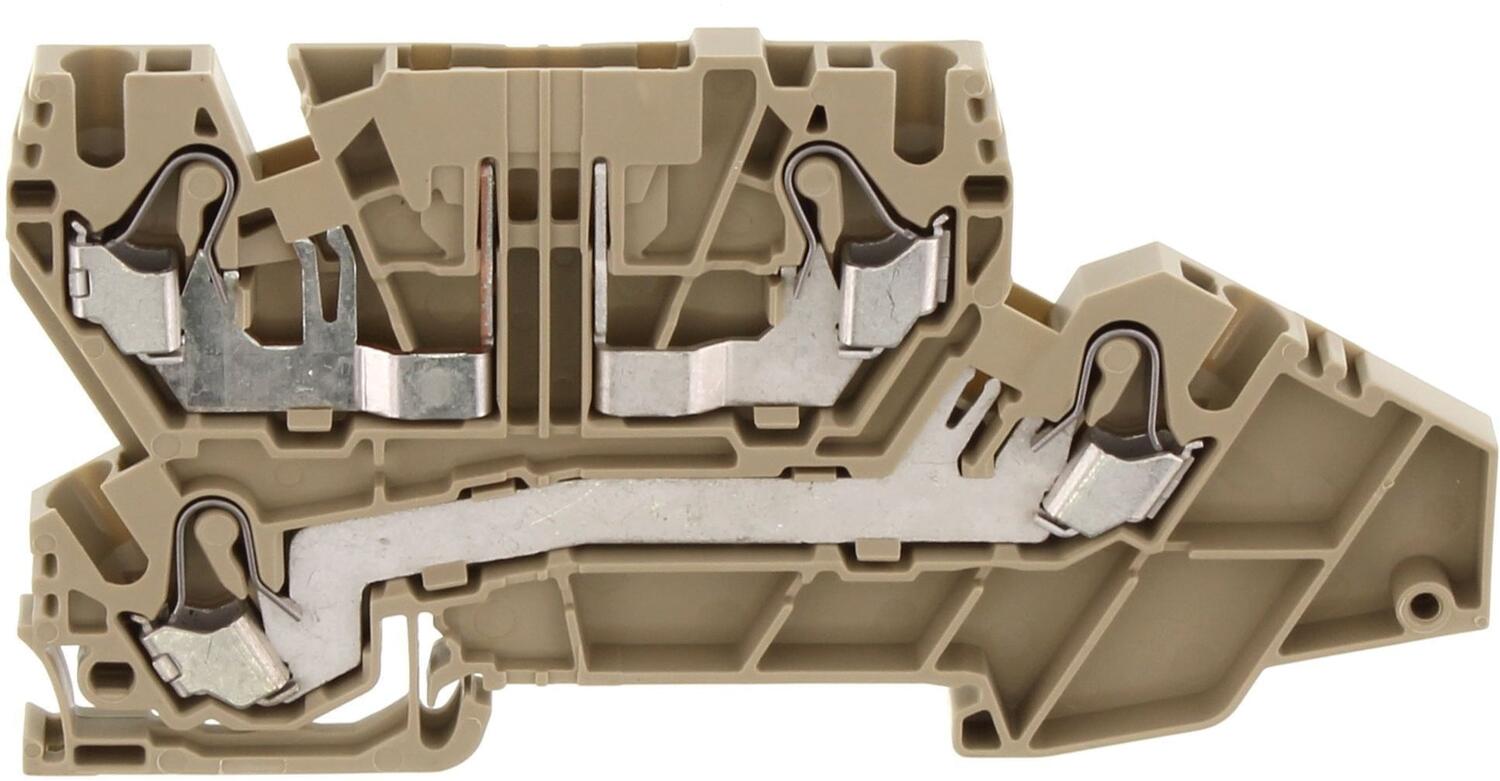

FDLI 2,5-4 OT/L
Art:
3288.2
Copied
|
15 A
|
54 mm
|
4
|
21.25 g
|
|
