Panel mount wall bushing for ZST
ZST-WA
Wall bushing for ZST
CONTA-CLIP's modular and flexible ZST connection systems are in high demand wherever off-the-shelf units need to be connected or replaced. Pluggable wiring is thus permitted up to a rated current of 24A and a rated voltage of 500V.

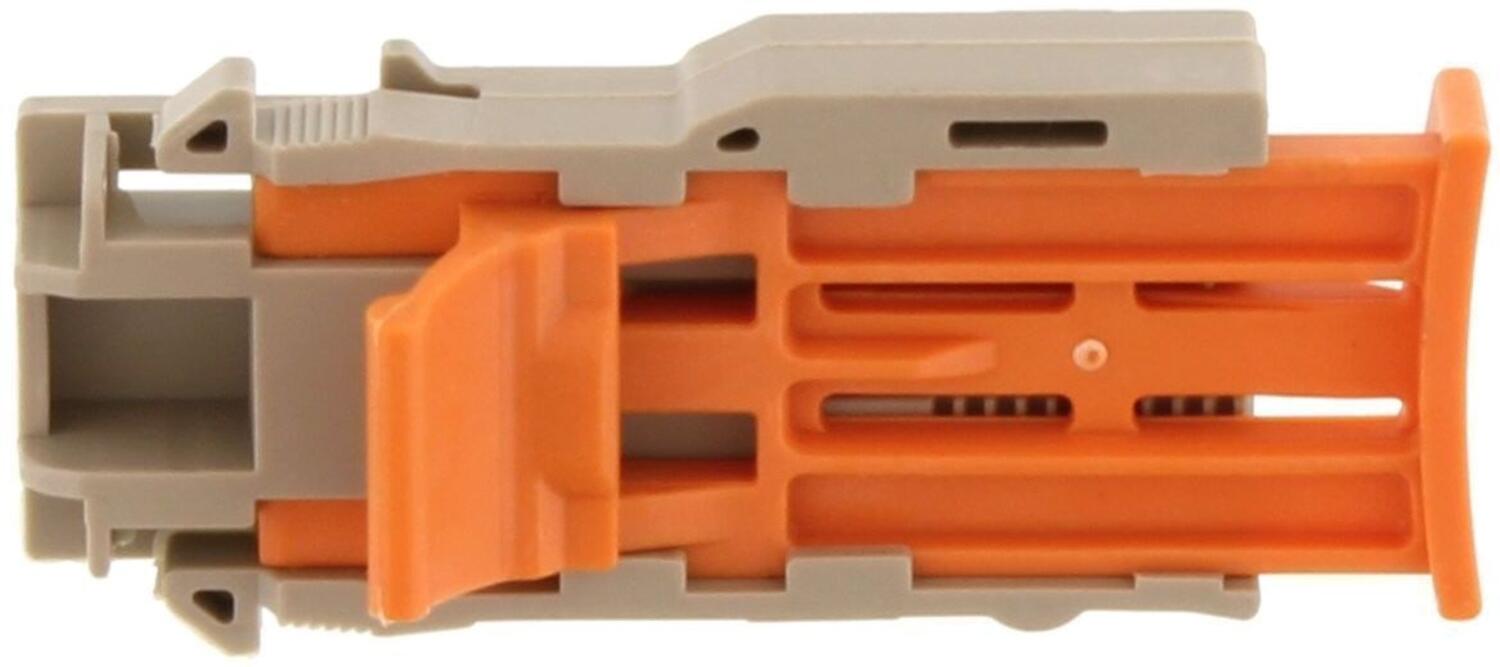

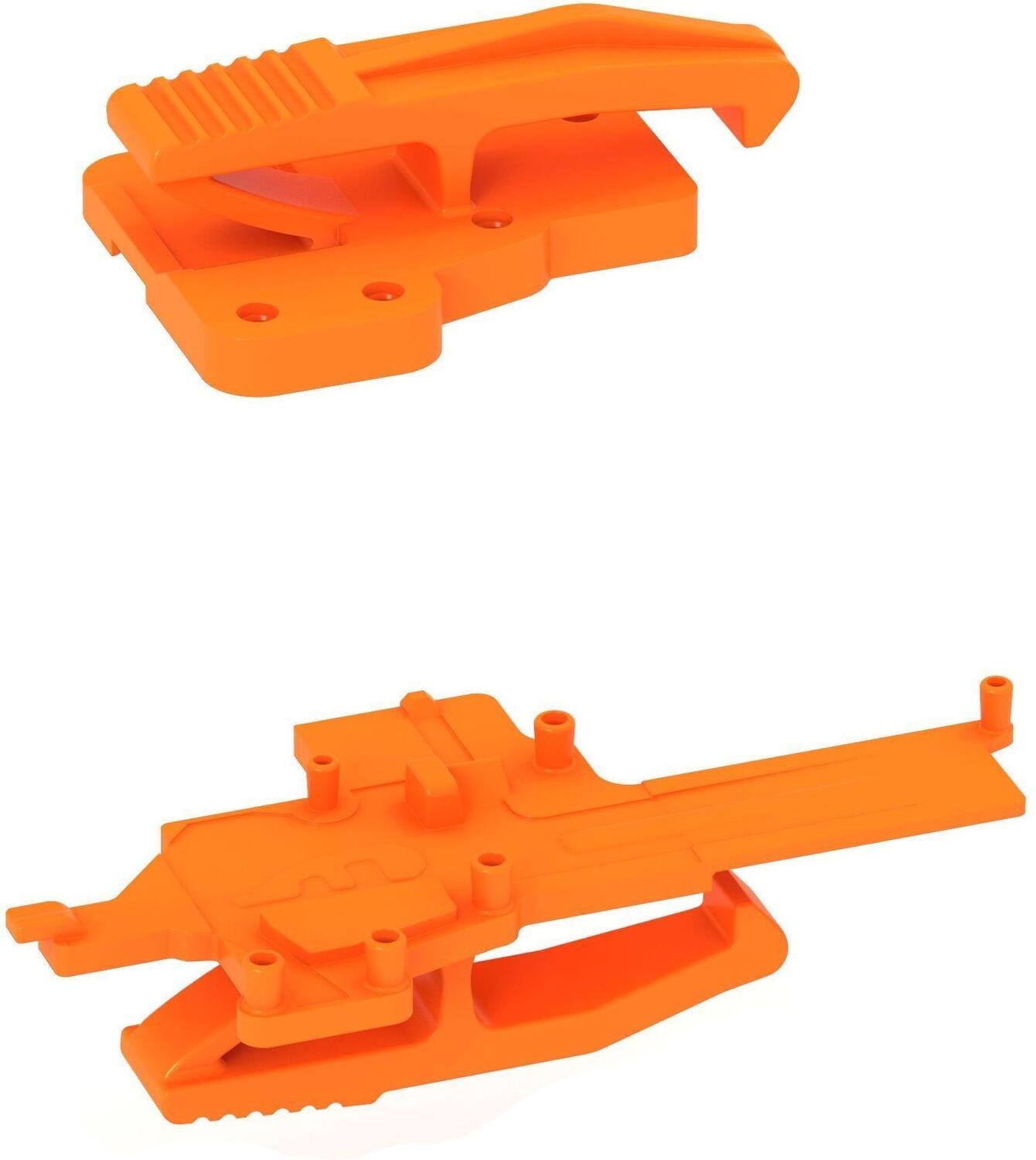

Effective panel feed-through bushings can be constructed simply by snapping the ZST-WA mounting adapter onto the ZSTK 2.5/.../B coupling element. These multi-pole units snap on sideways to the panel; the pressure on the inner slide mechanism ensures a secure attachment to the housing! The outer connector unit can be optionally fitted with locking elements.
Â
Â
Â
- Versatile and easy installation
- Finger-touch safe construction
- Codable
- Freely configurable
Selected variant
Technical data
General data |
|
|---|---|
| Colour | Orange |
| Approvals | EAC |
Materials |
|
| Insulation material | Polyamide 6.6 |
| Flammability class | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
Approvals |
|
|---|---|
| EAC test standard | TR ZU 004/2011 |
Additional data |
|
| Tariff code | 85369010 |
| Country of origin | DE |
| Weight | 1.574 g |
| Pack size | 10 Â |
Product description
Wall bushing for ZST
CONTA-CLIP's modular and flexible ZST connection systems are in high demand wherever off-the-shelf units need to be connected or replaced. Pluggable wiring is thus permitted up to a rated current of 24A and a rated voltage of 500V.
Effective panel feed-through bushings can be constructed simply by snapping the ZST-WA mounting adapter onto the ZSTK 2.5/.../B coupling element. These multi-pole units snap on sideways to the panel; the pressure on the inner slide mechanism ensures a secure attachment to the housing! The outer connector unit can be optionally fitted with locking elements.
Â
Â
Â
