Cross connectors ZQI insulated plug in cut down ZRK ZST

General data
Rated wire cross section	2.5 mm²
Colour	Yellow
Max voltage with partition	800 V
Max voltage without partition	800 V
Rated current IEC	24 A
Mounting	Push in
Contamination degree	3
Dimensions
Length	4.5 mm
Width	9.1 mm
Pitch	5 mm
Connection data
Number of poles	2

Materials
Material	Copper alloy
Insulation material	Polyamide 6.6
Flammability class	UL94-V2
Operating temperature from	-40 °C
Operating temperature to	105 °C
Additional data
Tariff code	85369010
Country of origin	DE
Weight	1.09 g
Pack size	50

Parts	Rated wire cross section	Colour	Max voltage with partition	Max voltage without partition	Rated current IEC	Length	Width	Pitch	Number of poles	Material	Weight	Pack size

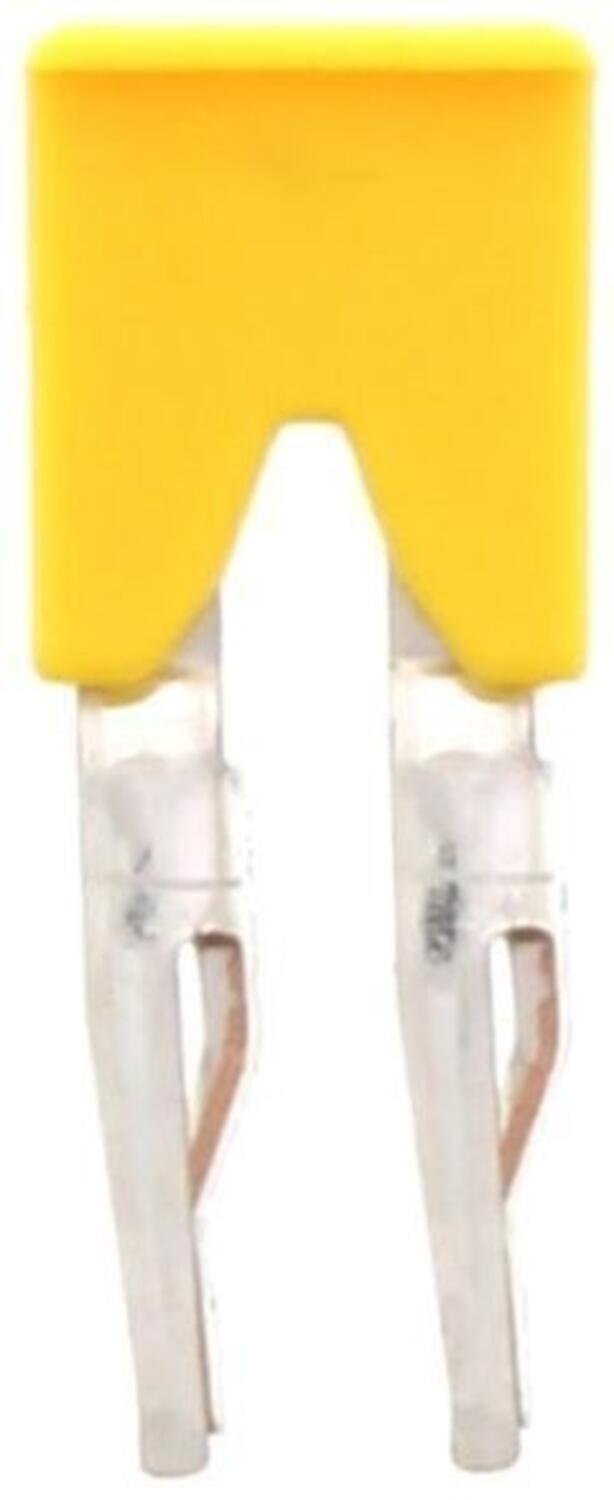

ZQI 2.5/2 YE, 2 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3710.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	9.1 mm	5 mm	2	Copper alloy	1.09 g	50

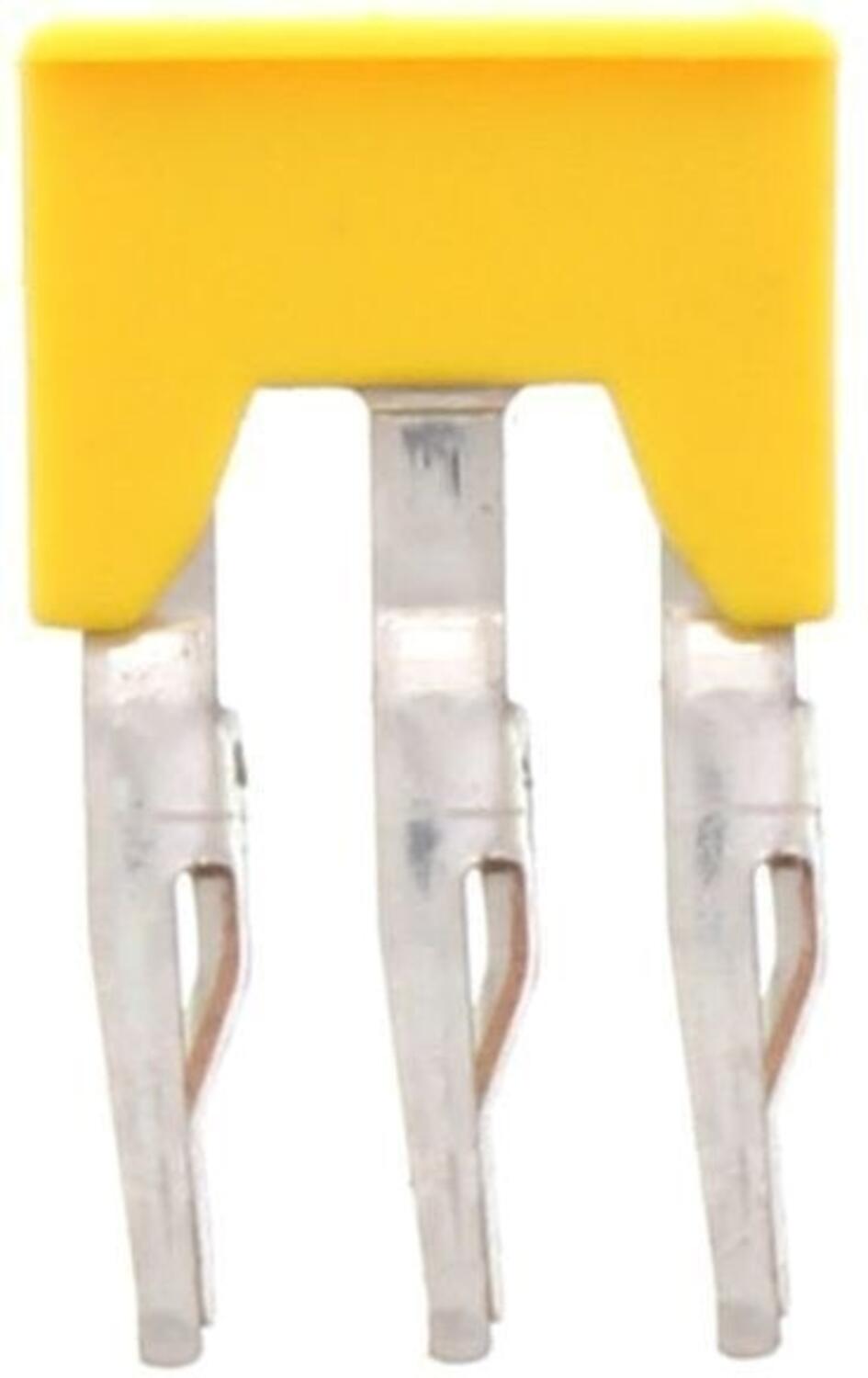

ZQI 2.5/3 YE, 3 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3711.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	14.2 mm	5 mm	3	Copper alloy	1.68 g	50

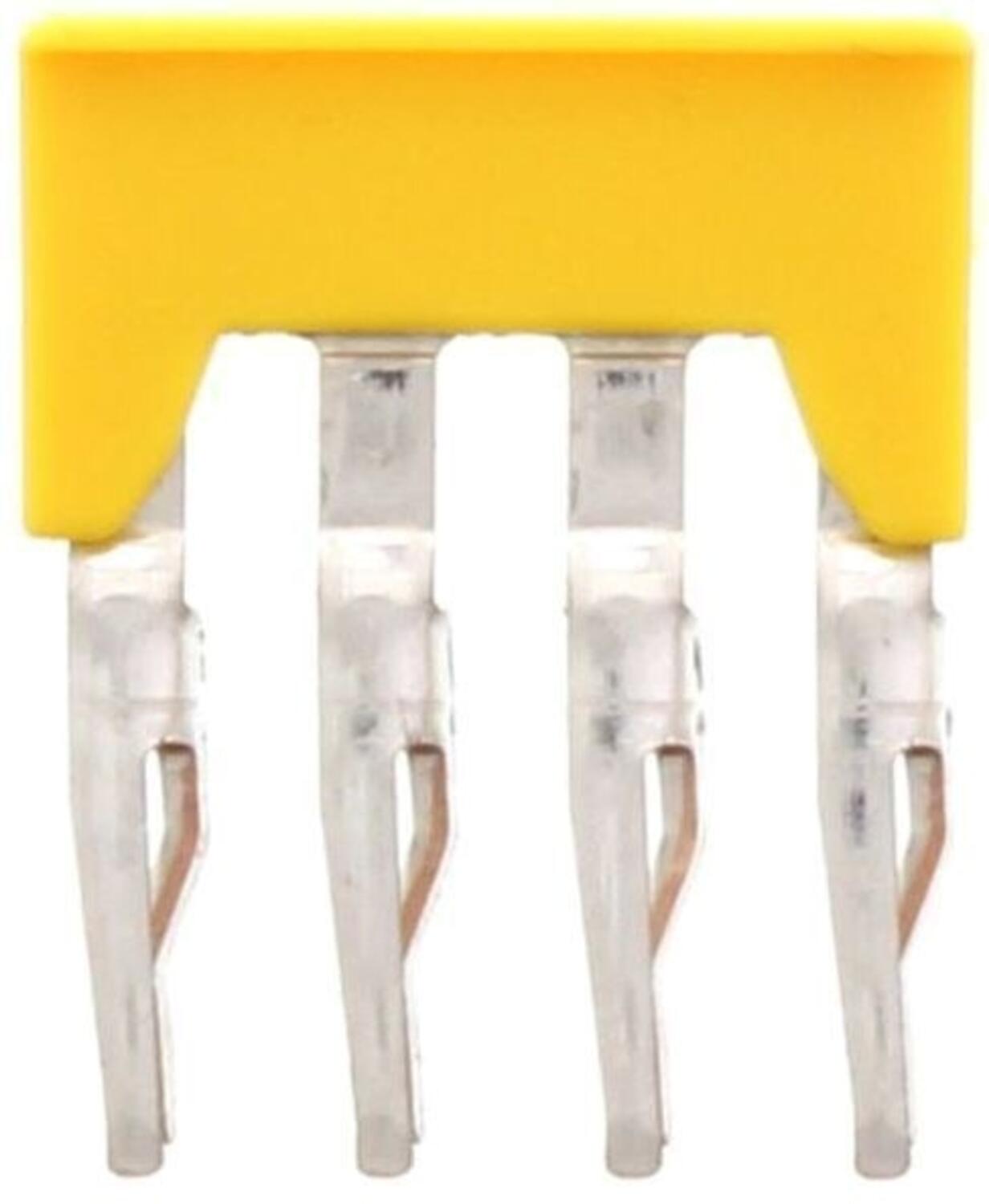

ZQI 2.5/4 YE, 4 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3712.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	19.3 mm	5 mm	4	Copper alloy	2.26 g	20

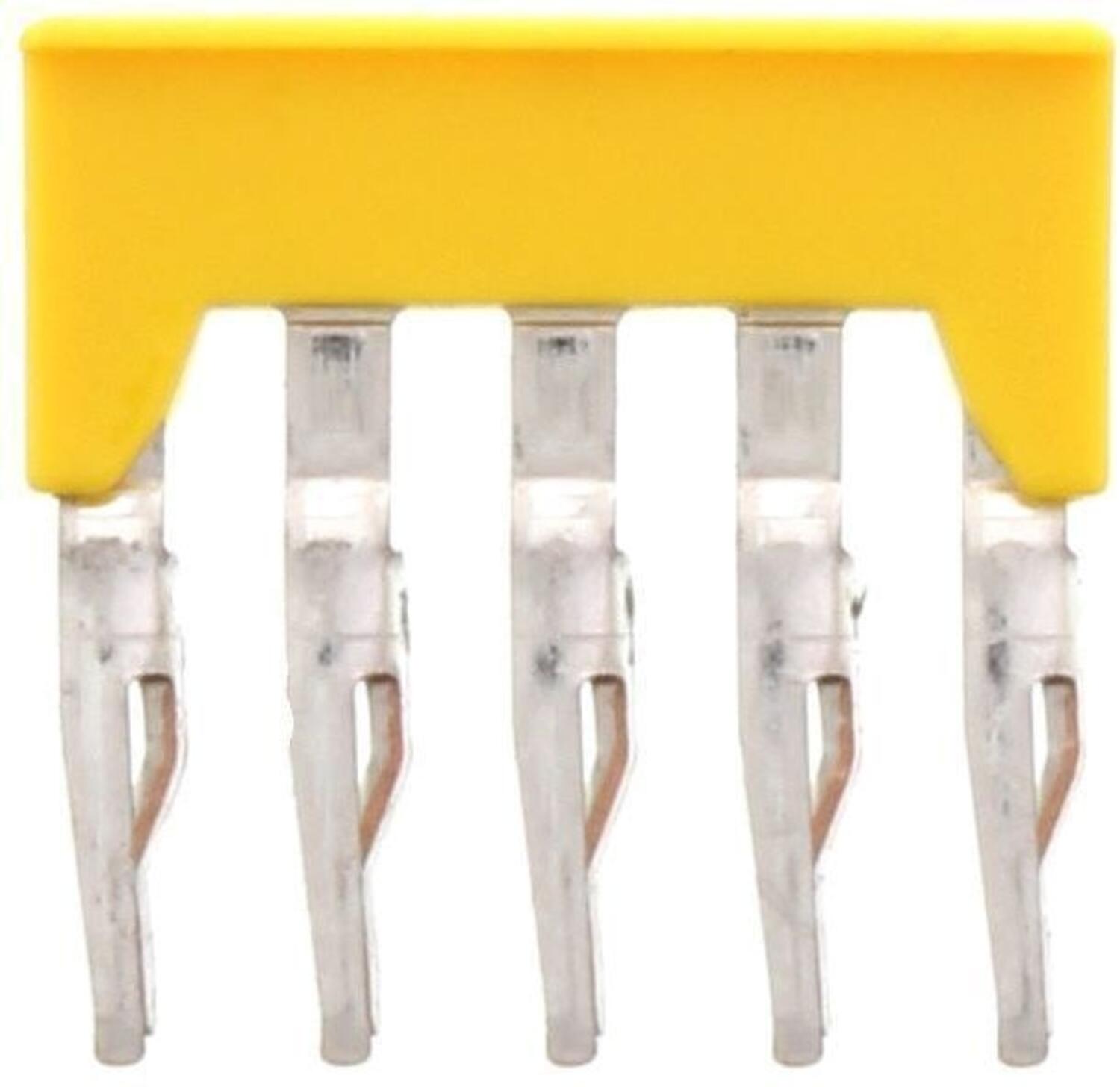

ZQI 2.5/5 YE, 5 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3713.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	24.4 mm	5 mm	5	Copper alloy	2.8 g	20

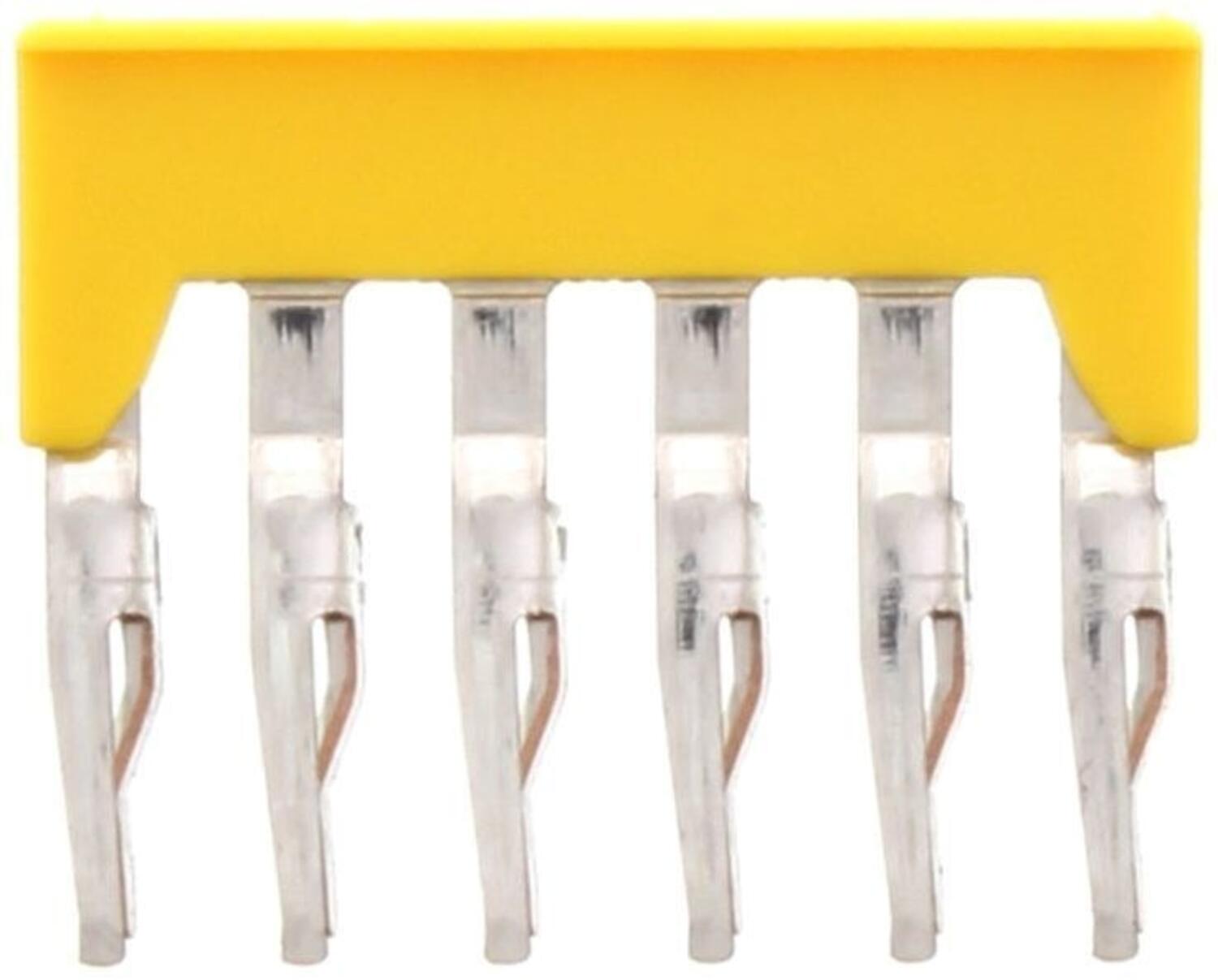

ZQI 2.5/6 YE, 6 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3714.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	29.5 mm	5 mm	6	Copper alloy	3.4 g	20

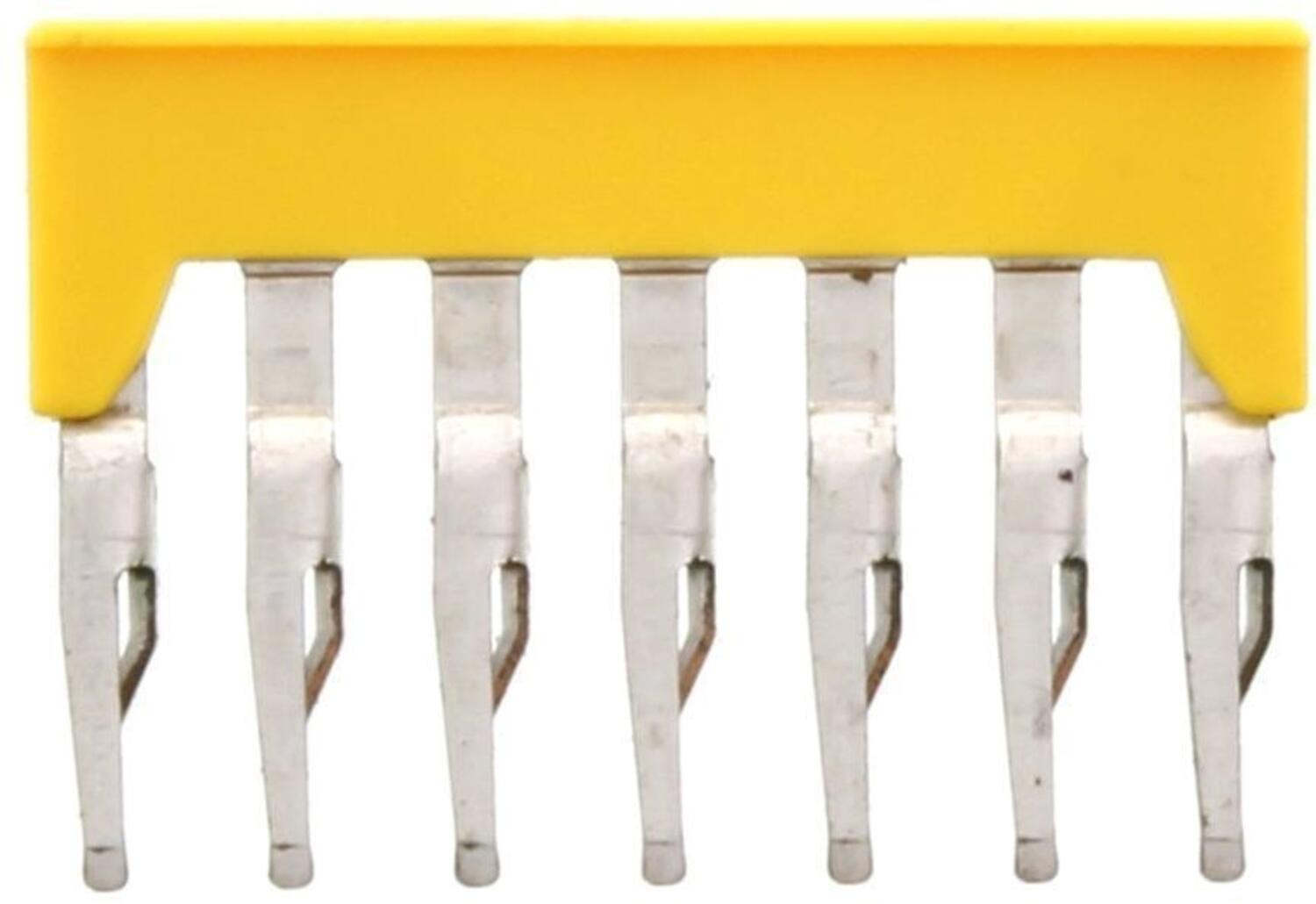

ZQI 2.5/7 YE, 7 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3715.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	34.6 mm	5 mm	7	Copper alloy	4 g	20

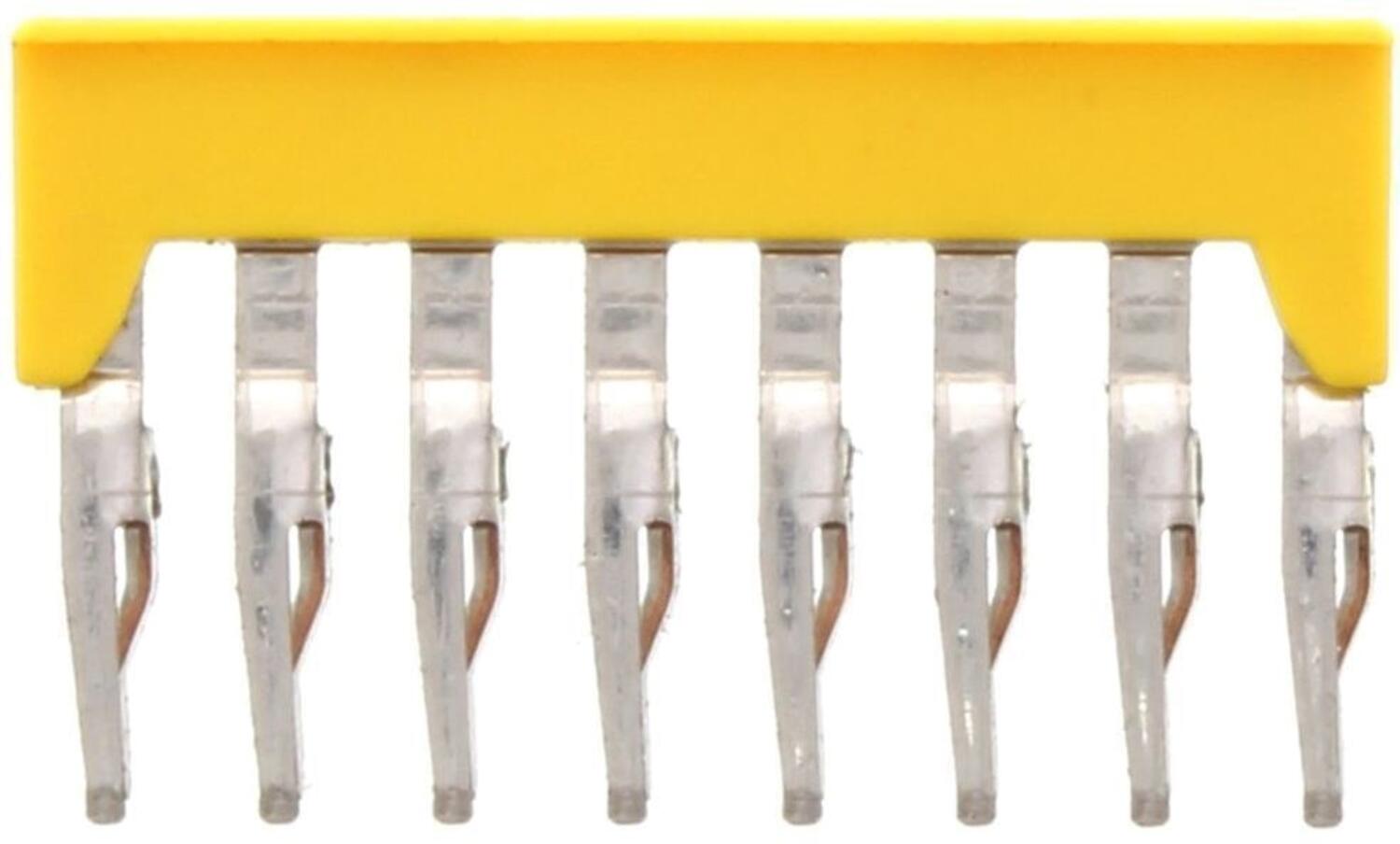

ZQI 2.5/8 YE, 8 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3716.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	39.7 mm	5 mm	8	Copper alloy	4.58 g	10

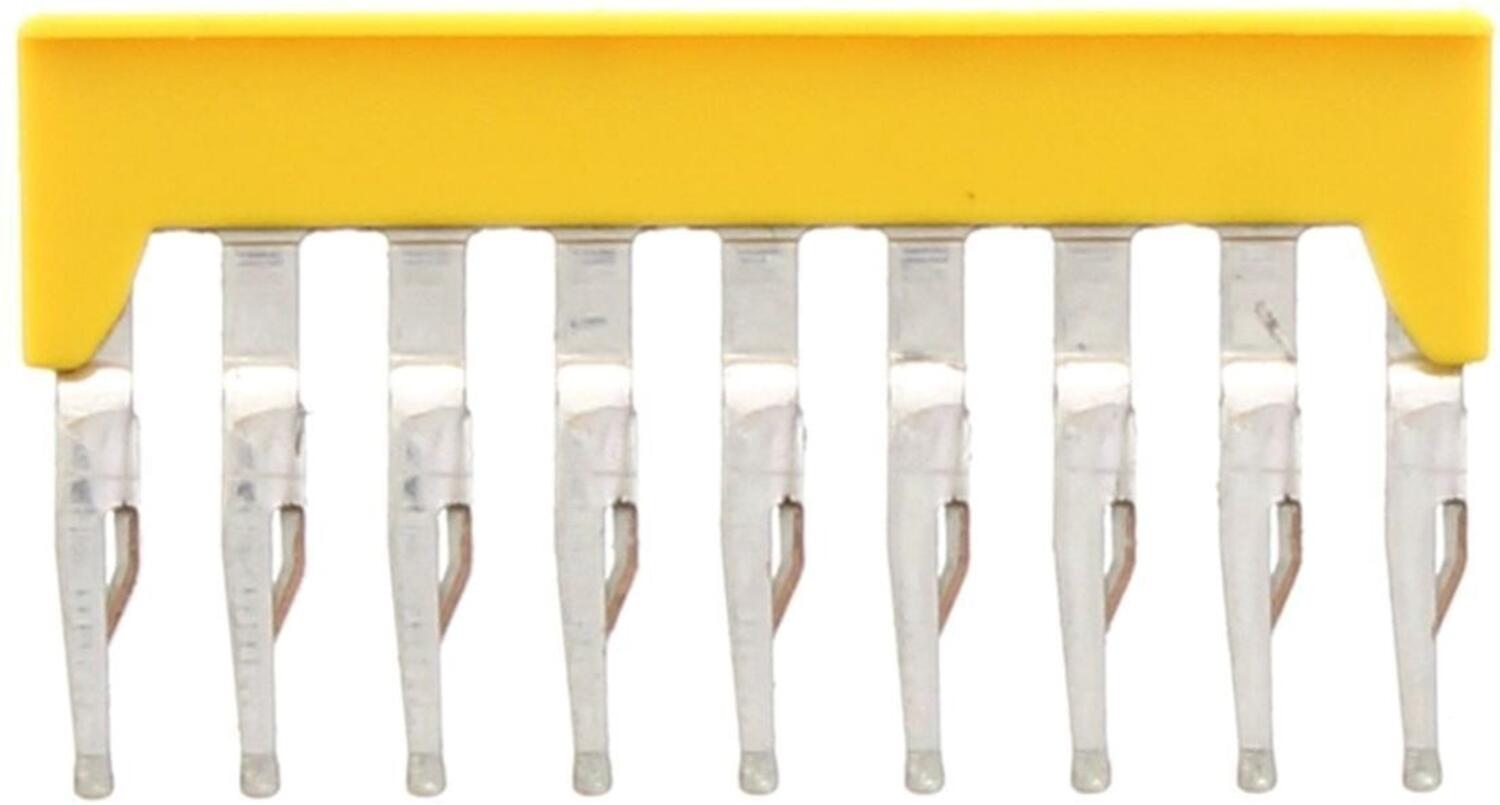

ZQI 2.5/9 YE, 9 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3717.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	44.8 mm	5 mm	9	Copper alloy	5.2 g	10

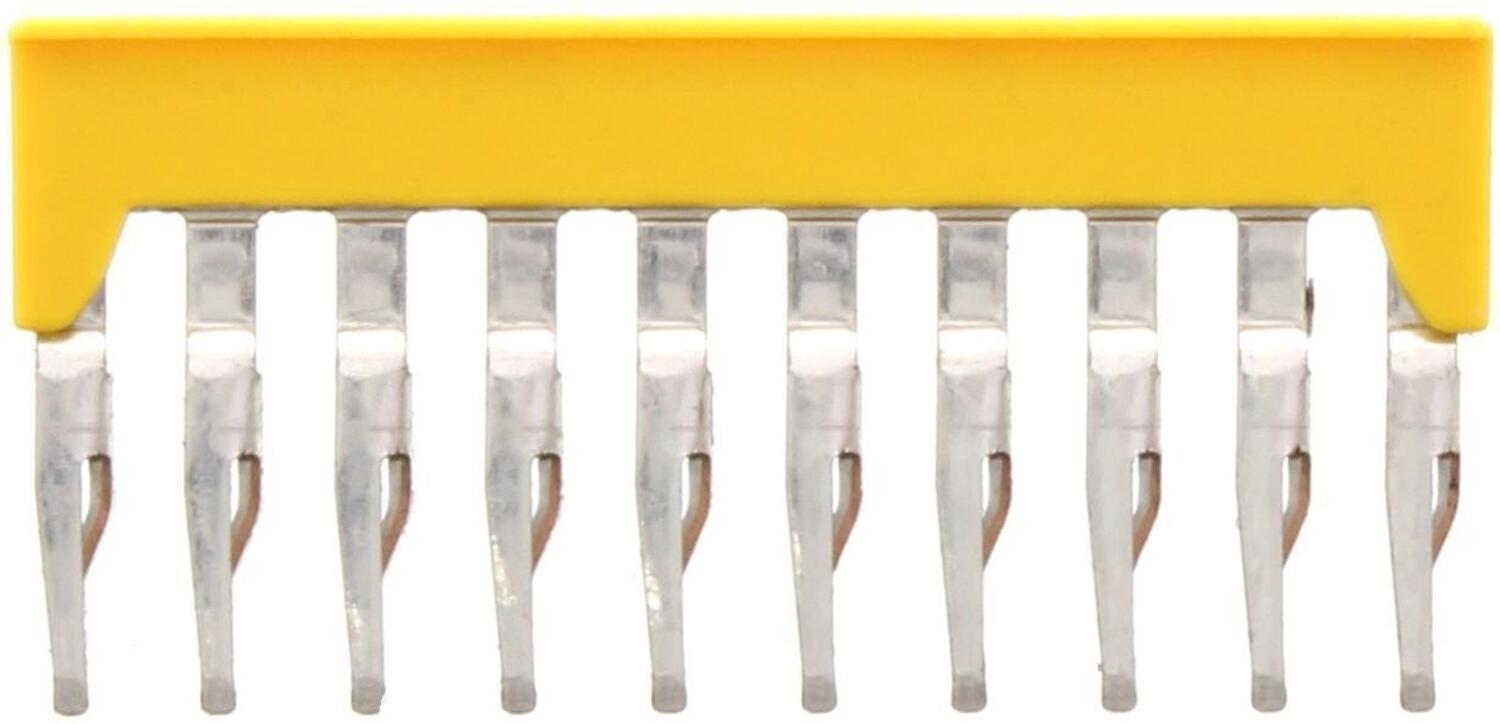

ZQI 2.5/10 YE, 10 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3718.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	49.9 mm	5 mm	10	Copper alloy	5.71 g	10

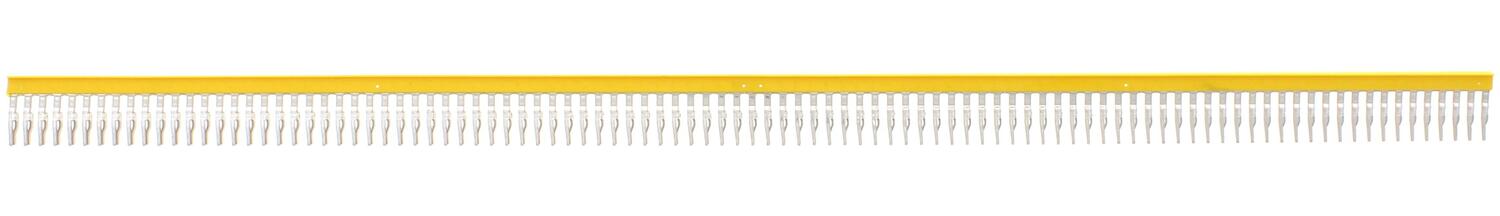

ZQI 2.5/0.5 m YE, 99 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Yellow Art: 3719.8 Copied	2.5 mm²	Yellow	800 V	800 V	24 A	4.5 mm	500 mm	5 mm	99	Copper alloy	56.47 g	2

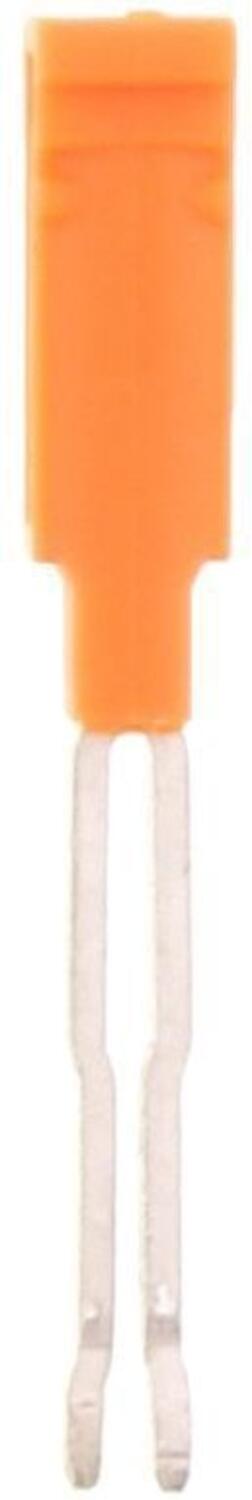

ZVQI 2.5 OG, 2 Way Vertical Cross Connector for 2.5mm ZRKD/ZIKD - Orange Art: 3744.2 Copied	2.5 mm²	Orange	800 V	800 V	24 A	4.3 mm	5.2 mm		1	Bronze	1.1 g	20

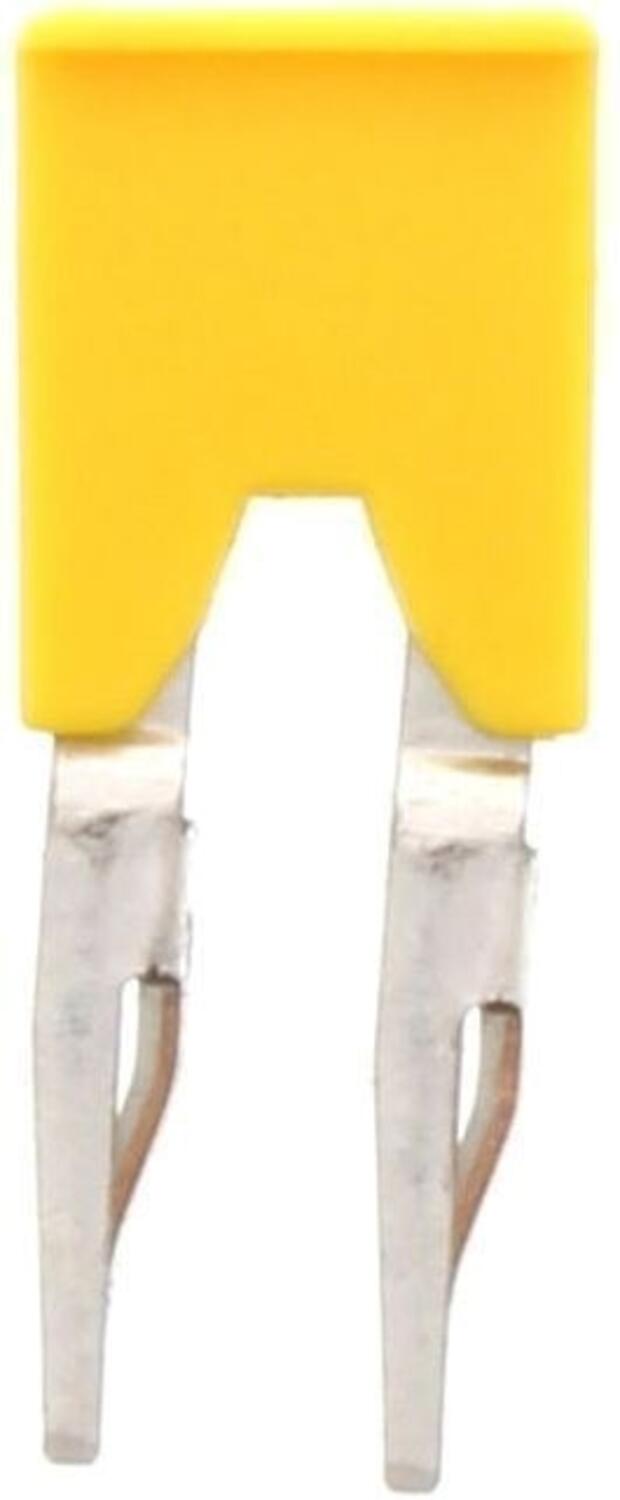

ZQI 4/2 YE, 2 Way Cross Connector for 4mm ZSRK/ZRK/ZSL Art: 3720.8 Copied	4 mm²	Yellow	800 V	800 V	32 A	4.5 mm	10.1 mm	6 mm	2	Copper alloy	1.32 g	50

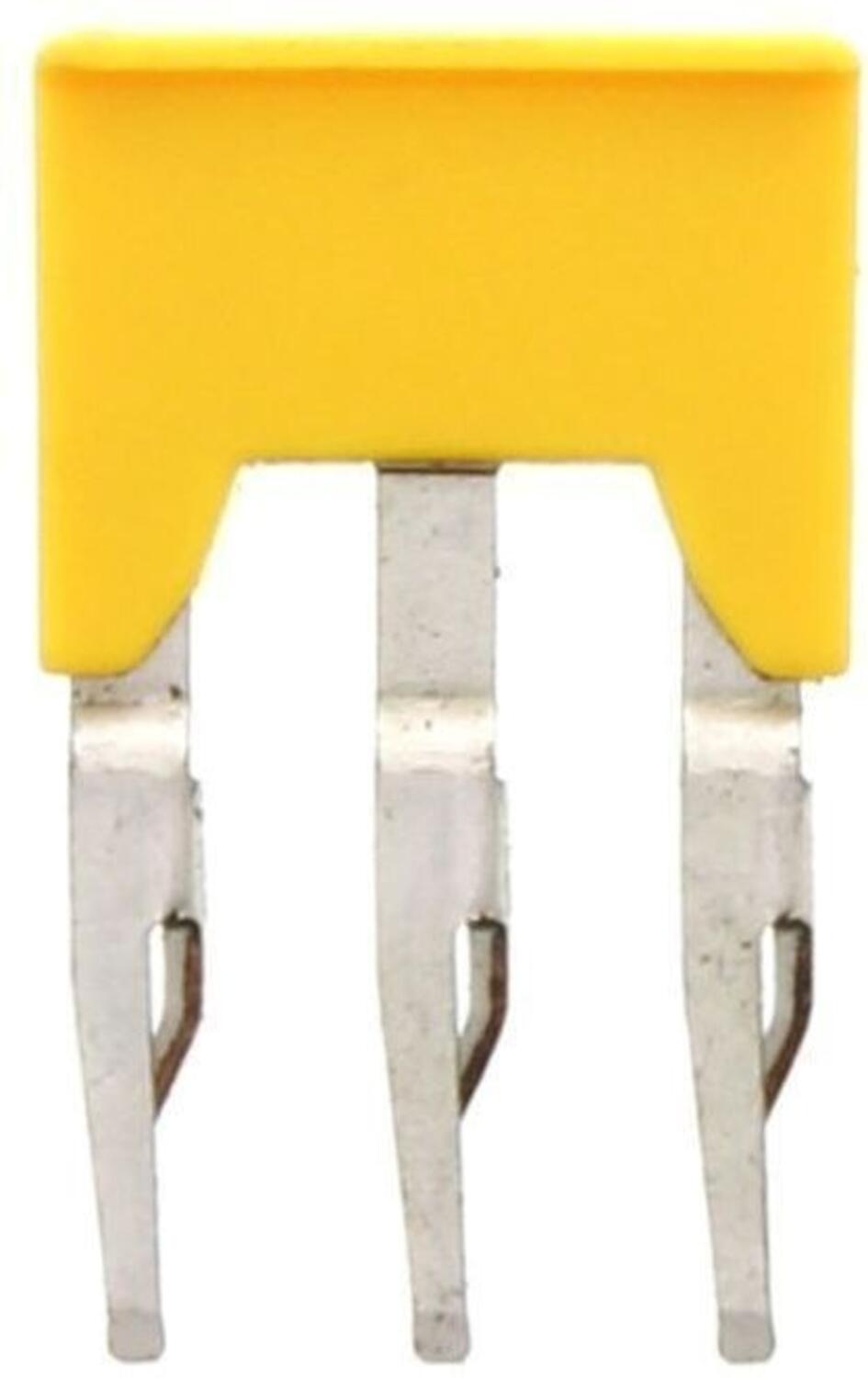

ZQI 4/3 YE, 3 Way Cross Connector for 4mm ZSRK/ZRK/ZSL Art: 3721.8 Copied	4 mm²	Yellow	800 V	800 V	32 A	4.5 mm	16.2 mm	6 mm	3	Copper alloy	2.04 g	50

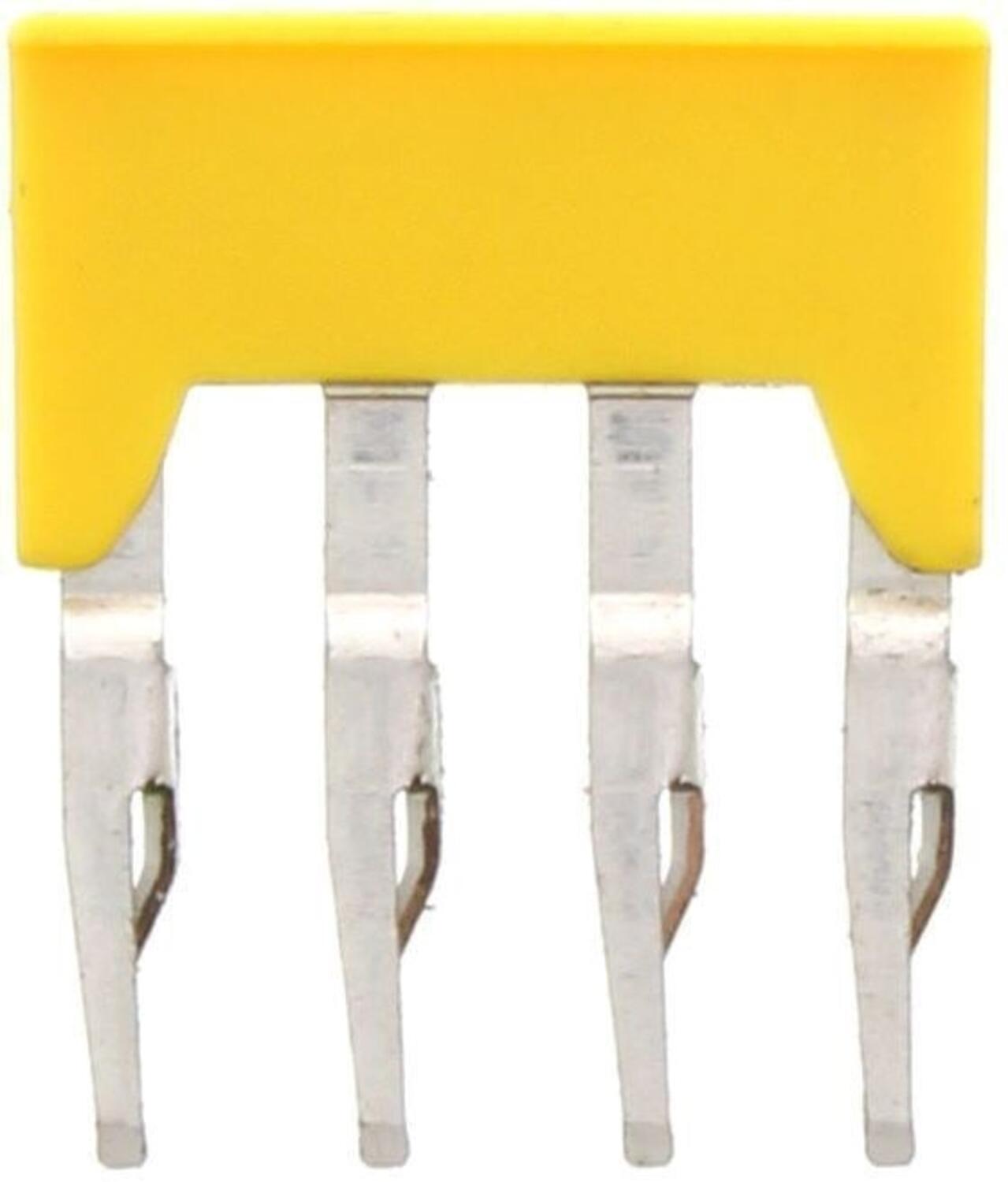

ZQI 4/4 YE, 4 Way Cross Connector for 4mm ZSRK/ZRK/ZSL Art: 3722.8 Copied	4 mm²	Yellow	800 V	800 V	32 A	4.5 mm	22.3 mm	6 mm	4	Copper alloy	2.79 g	20

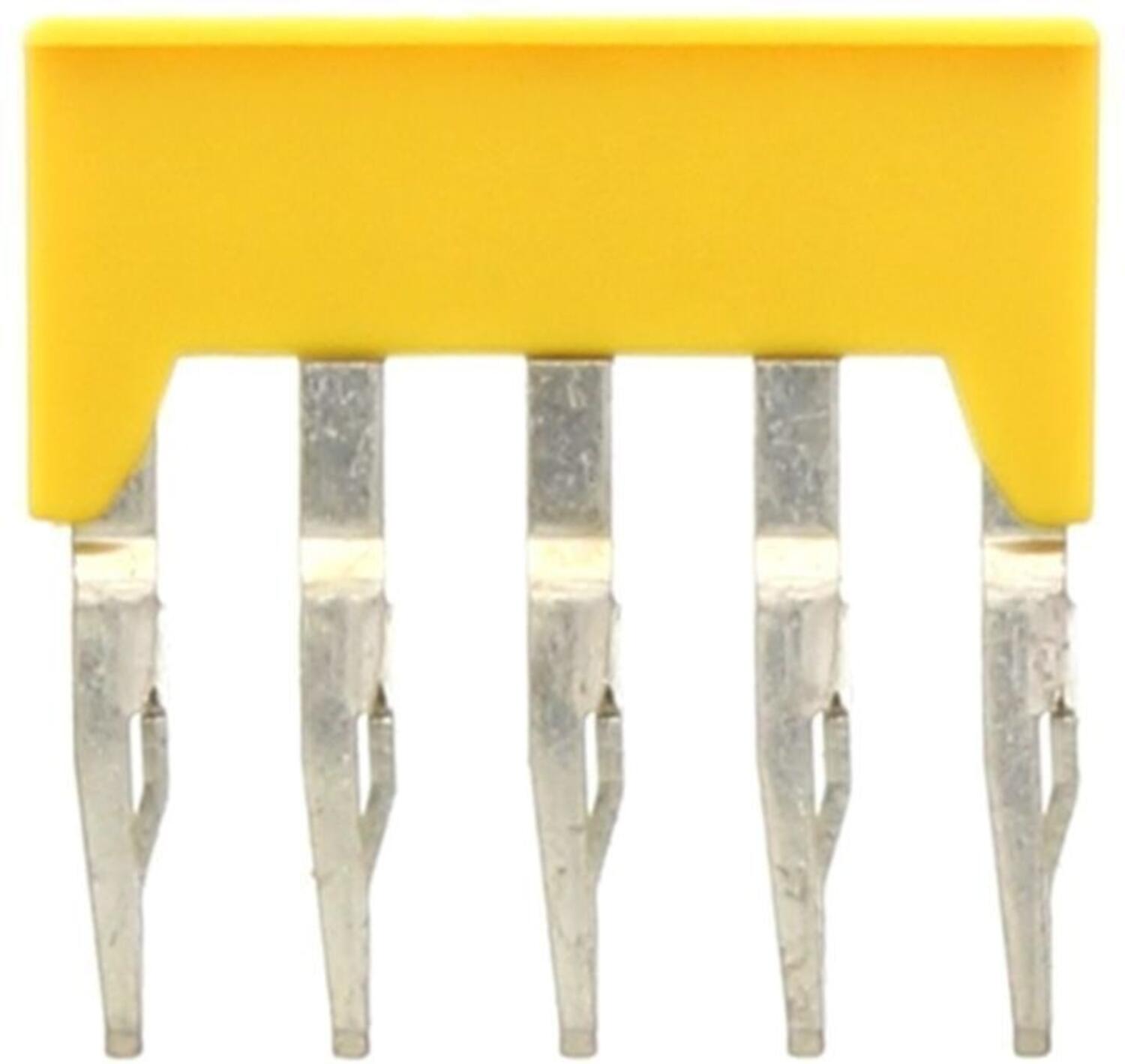

ZQI 4/5 YE, 5 Way Cross Connector for 4mm ZSRK/ZRK/ZSL Art: 3723.8 Copied	4 mm²	Yellow	800 V	800 V	32 A	4.5 mm	28.4 mm	6 mm	5	Copper alloy	3.6 g	20

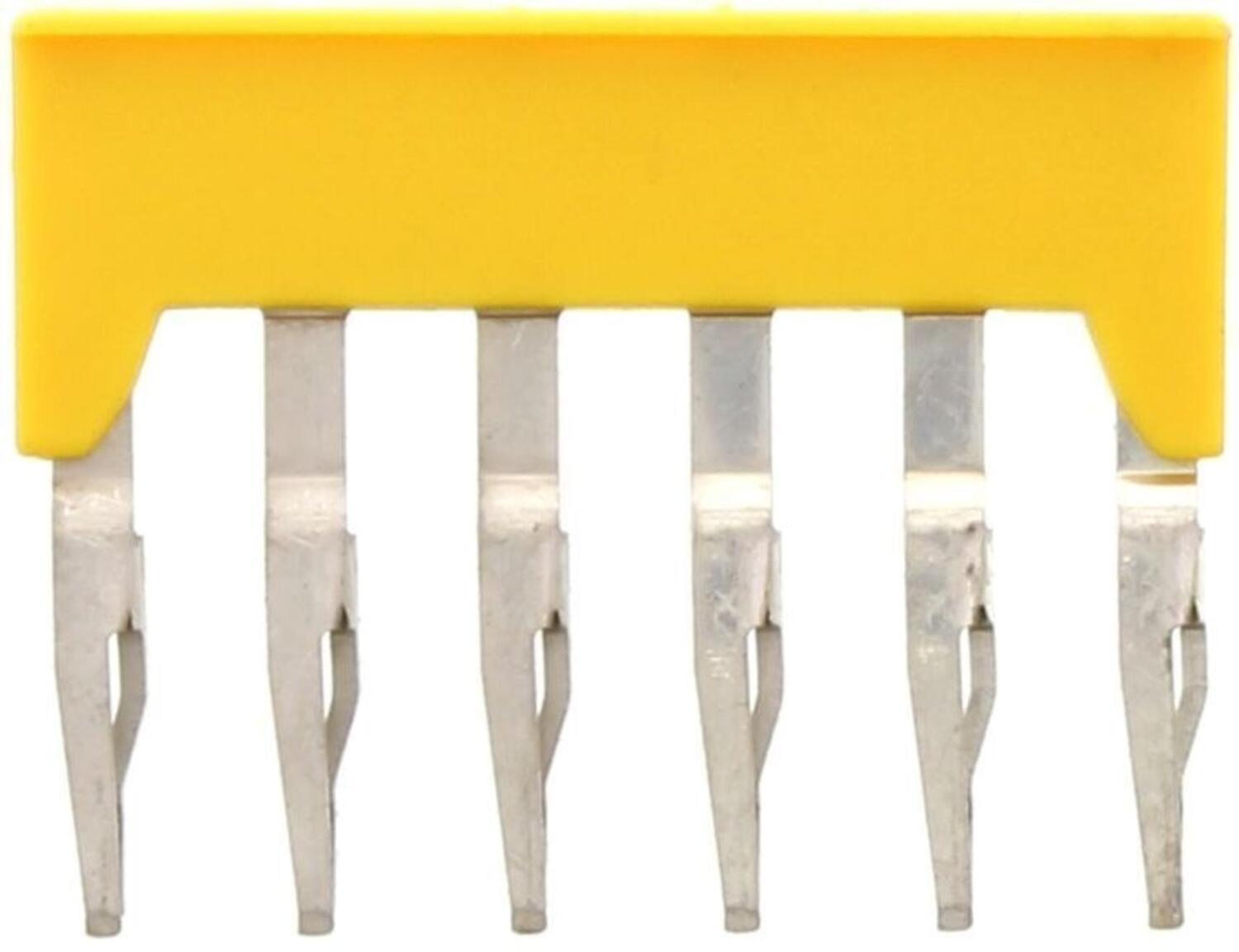

ZQI 4/6 YE, 6 Way Cross Connector for 4mm ZSRK/ZRK/ZSL Art: 3724.8 Copied	4 mm²	Yellow	800 V	800 V	32 A	4.5 mm	34.5 mm	6 mm	6	Copper alloy	4.3 g	20

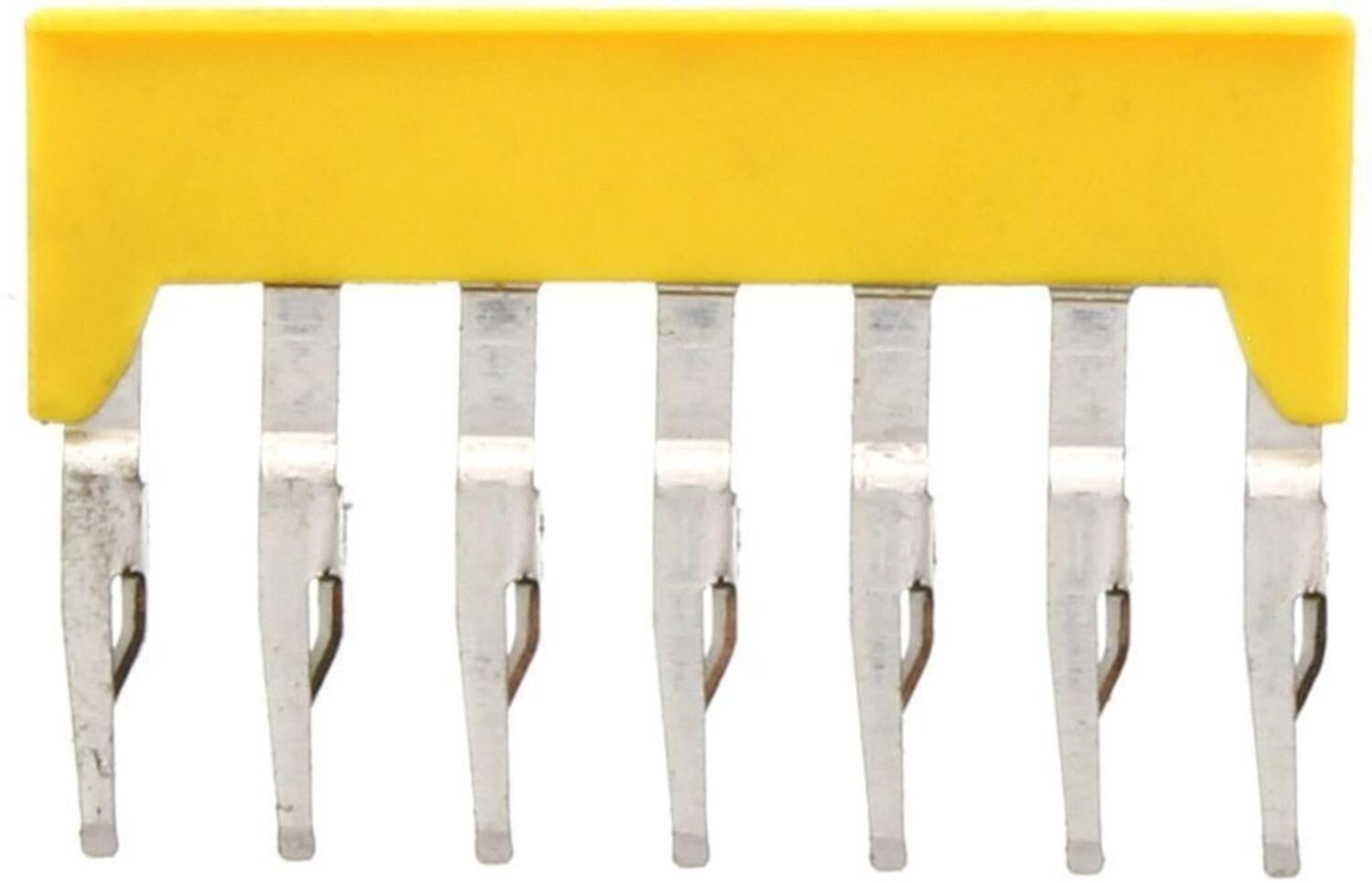

ZQI 4/7 YE, 7 Way Cross Connector for 4mm ZSRK/ZRK/ZSL Art: 3725.8 Copied	4 mm²	Yellow	800 V	800 V	32 A	4.5 mm	40.6 mm	6 mm	7	Copper alloy	5 g	20

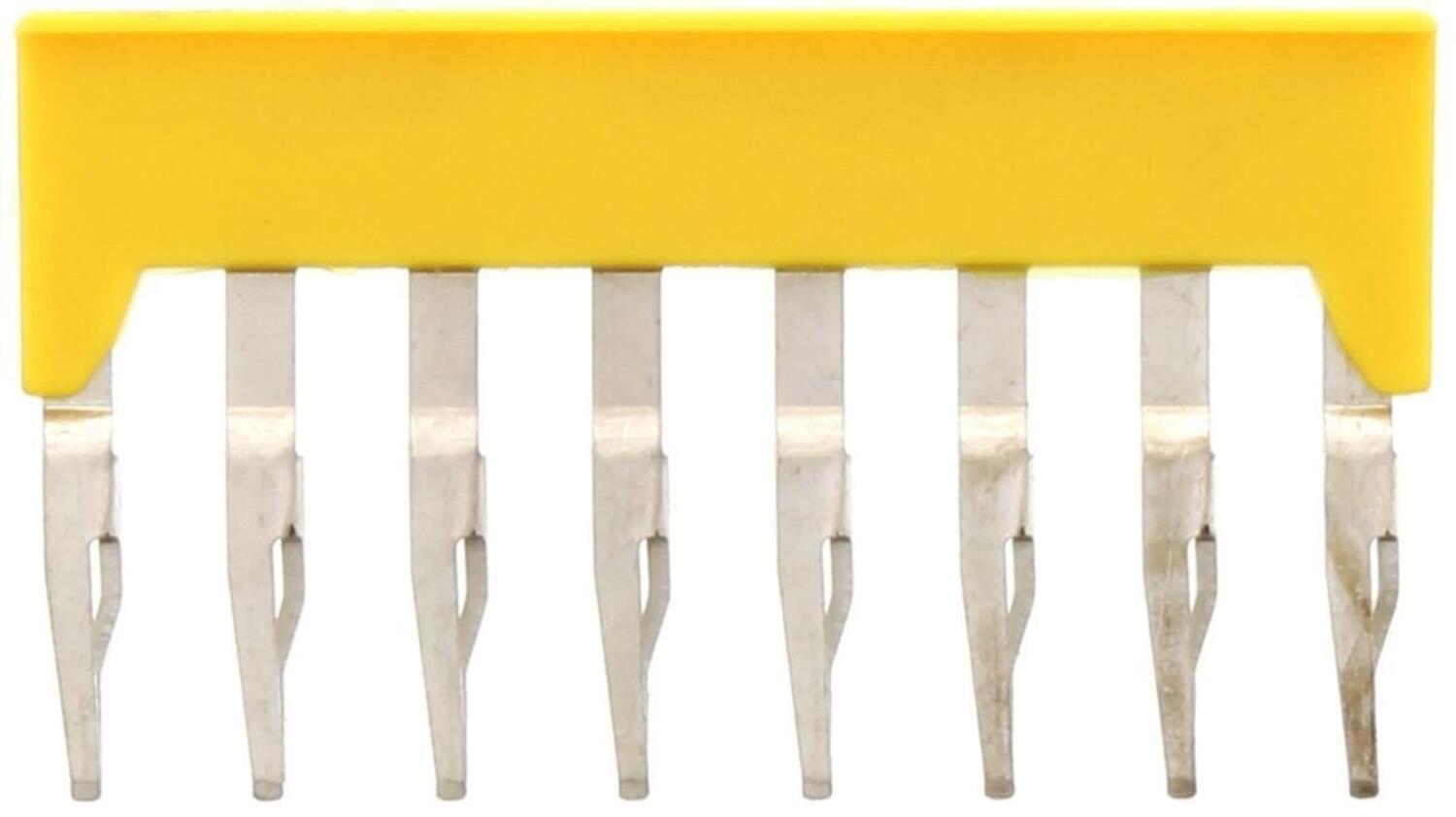

ZQI 4/8 YE, 8 Way Cross Connector for 4mm ZSRK/ZRK/ZSL Art: 3726.8 Copied	4 mm²	Yellow	800 V	800 V	32 A	4.5 mm	46.7 mm	6 mm	8	Copper alloy	5.83 g	10

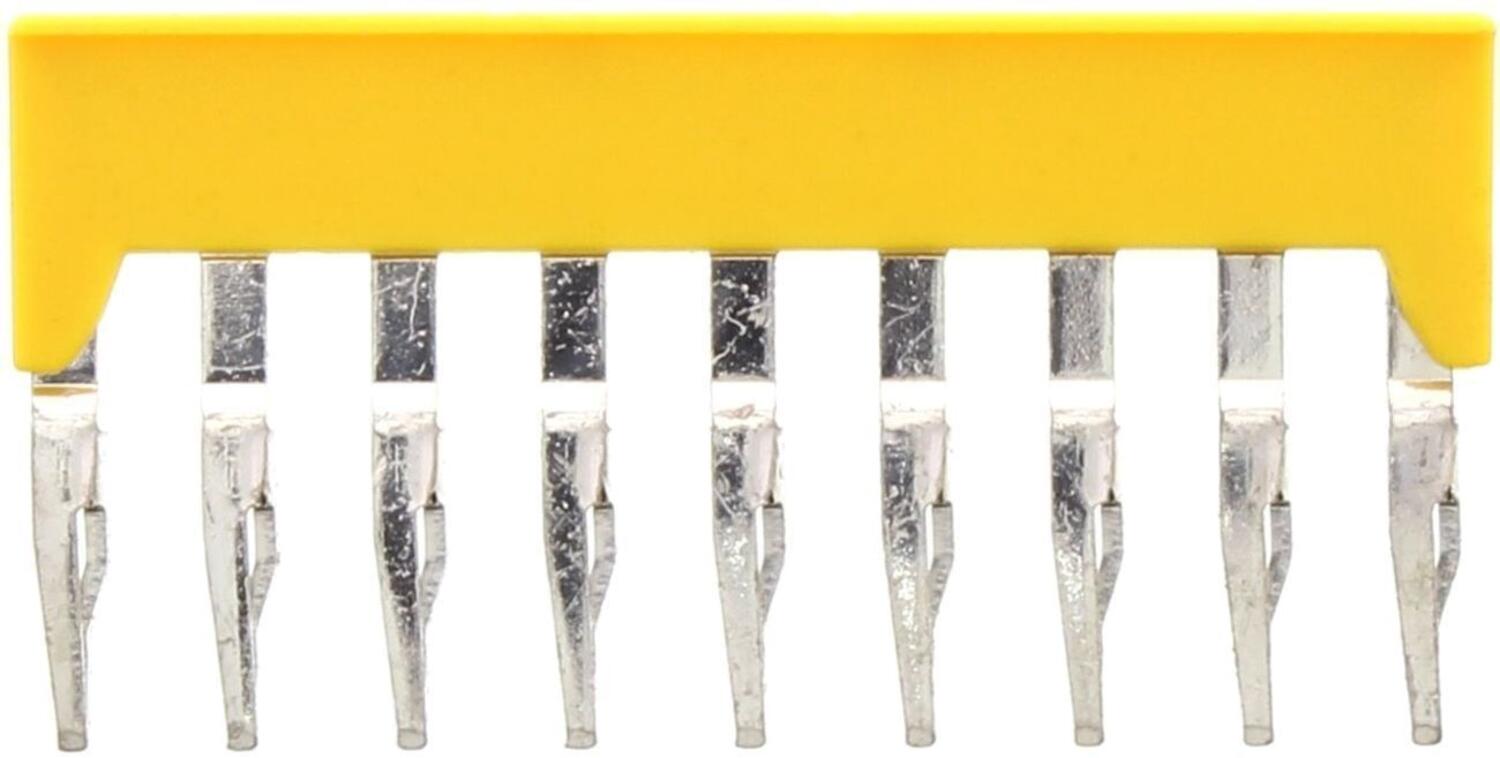

ZQI 4/9 YE, 9 Way Cross Connector for 4mm ZSRK/ZRK/ZSL Art: 3727.8 Copied	4 mm²	Yellow	800 V	800 V	32 A	4.5 mm	52.8 mm	6 mm	9	Copper alloy	6.54 g	10

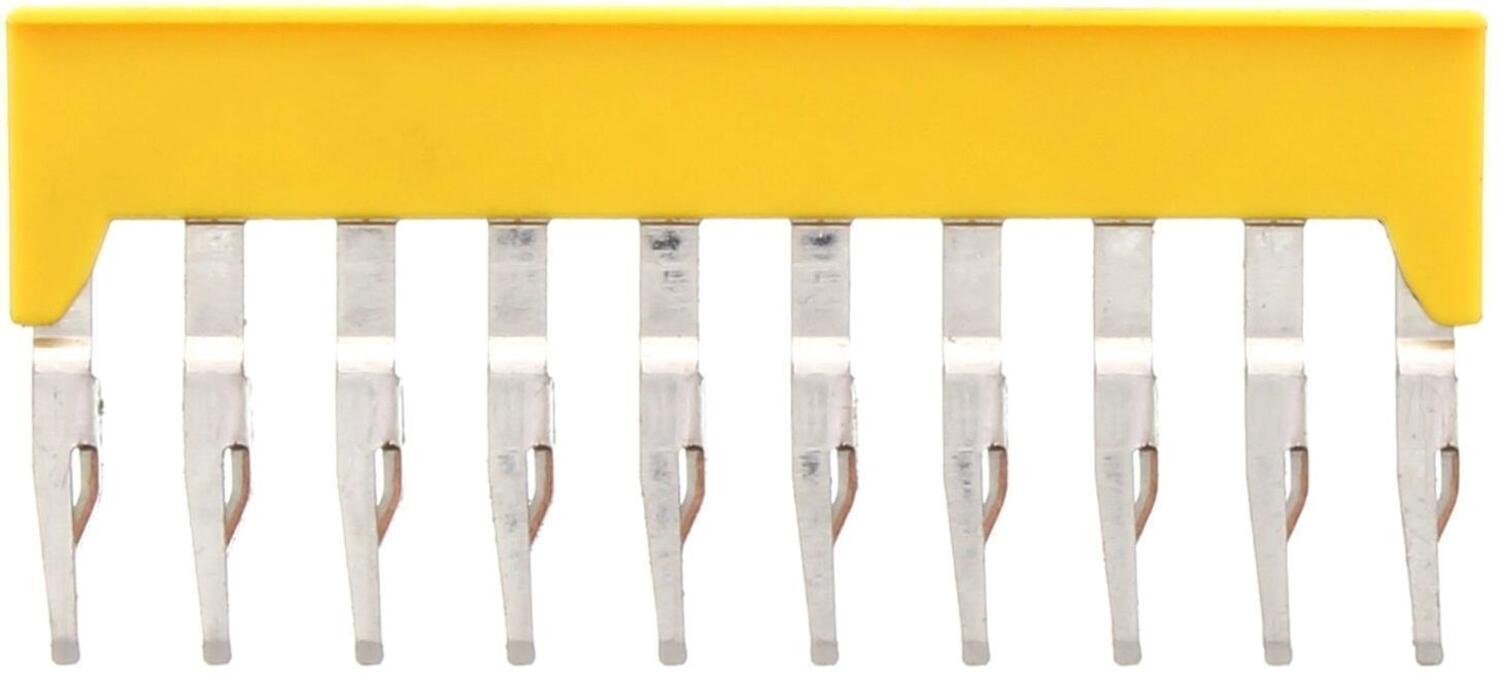

ZQI 4/10 YE, 10 Way Cross Connector for 4mm ZSRK/ZRK/ZSL Art: 3728.8 Copied	4 mm²	Yellow	800 V	800 V	32 A	4.5 mm	58.9 mm	6 mm	10	Copper alloy	7.28 g	10

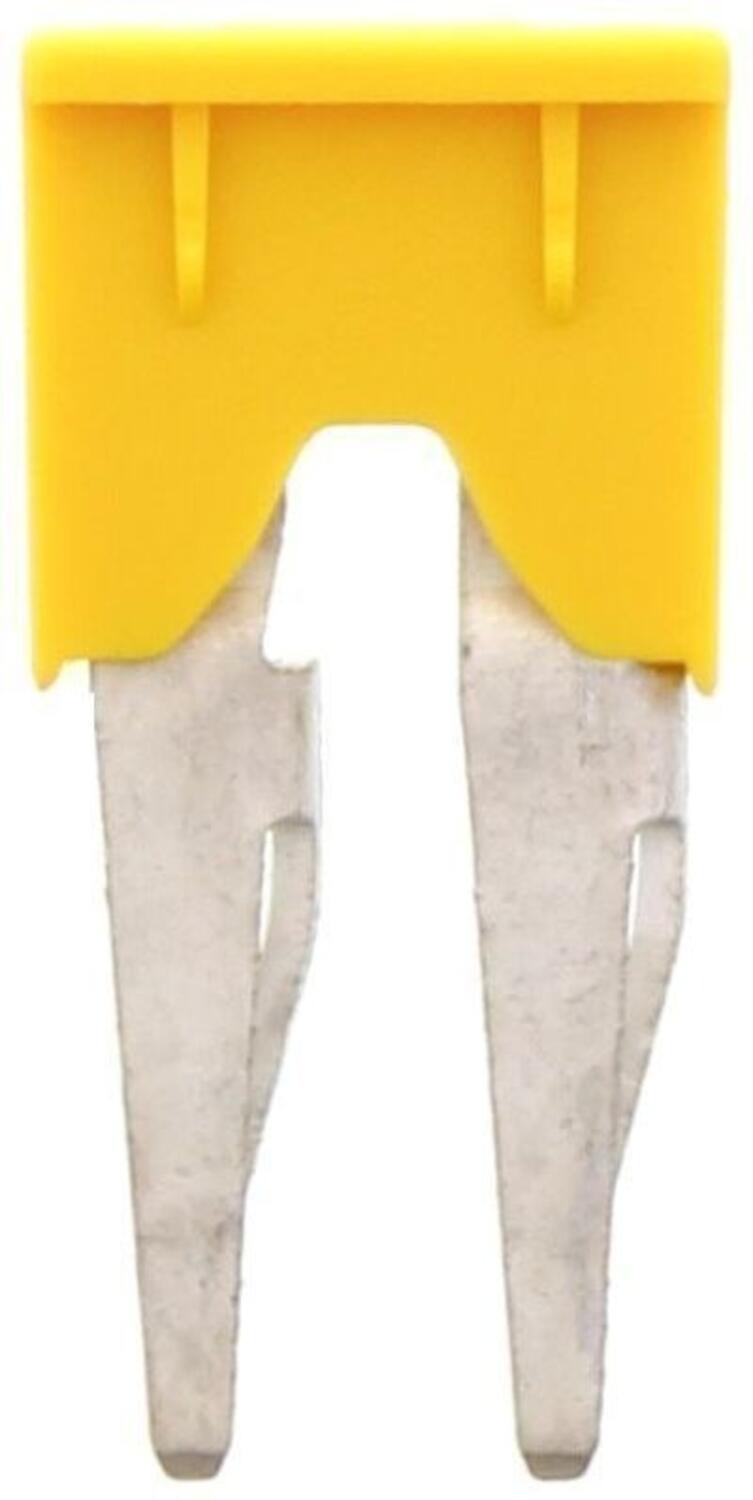

ZQI 6/2 YE, 2 Way Cross Connector for 6mm ZSRK/ZRK/ZSL Art: 3763.8 Copied	6 mm²	Yellow	800 V	800 V	41 A	7 mm	15.7 mm	8 mm	2	Copper alloy	3.4 g	50

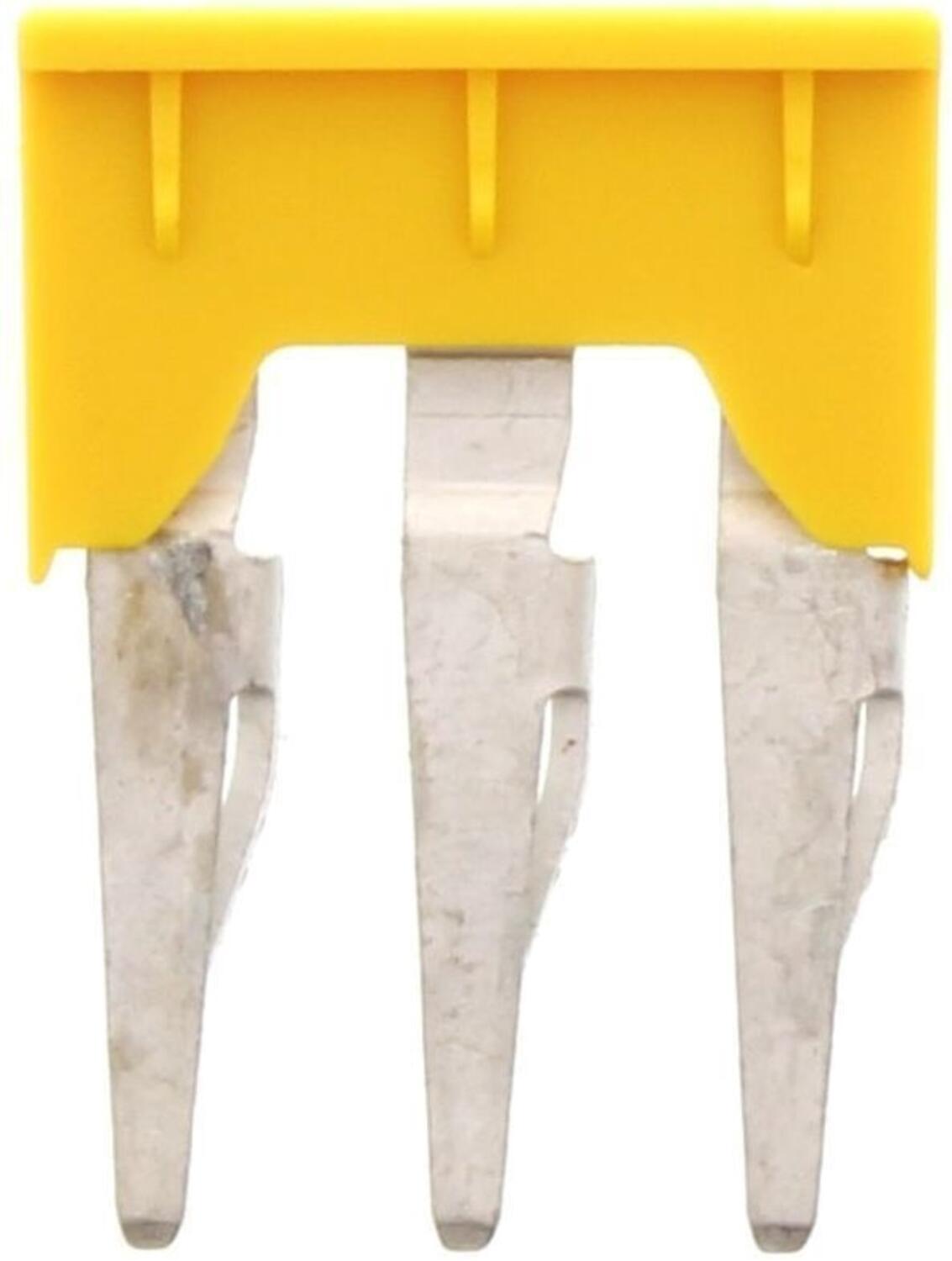

ZQI 6/3 YE, 3 Way Cross Connector for 6mm ZSRK/ZRK/ZSL Art: 3764.8 Copied	6 mm²	Yellow	800 V	800 V	41 A	7 mm	23.8 mm	8 mm	3	Copper alloy	5 g	50

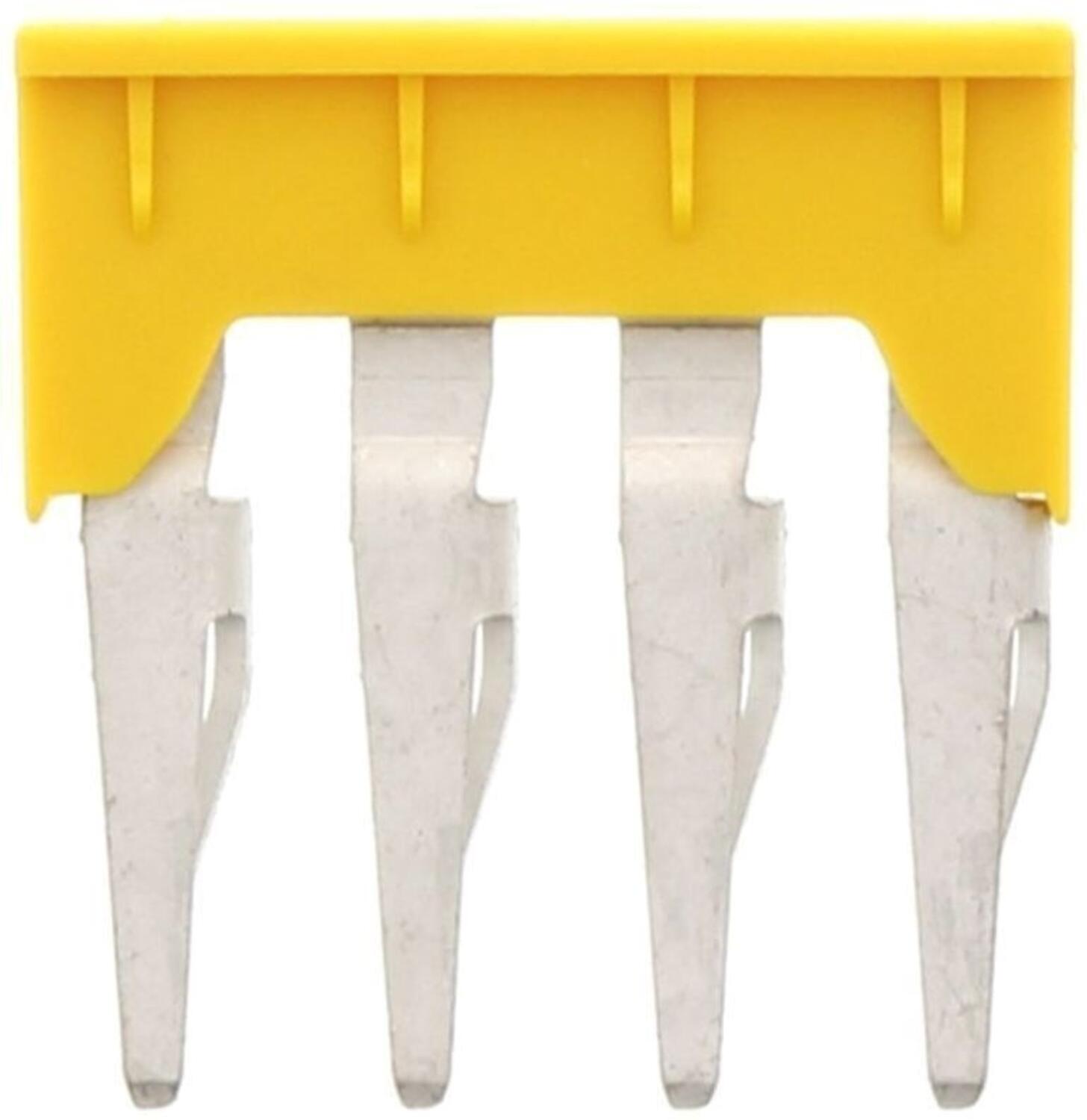

ZQI 6/4 YE, 4 Way Cross Connector for 6mm ZSRK/ZRK/ZSL Art: 3765.8 Copied	6 mm²	Yellow	800 V	800 V	41 A	7 mm	31.9 mm	8 mm	4	Copper alloy	6.8 g	20

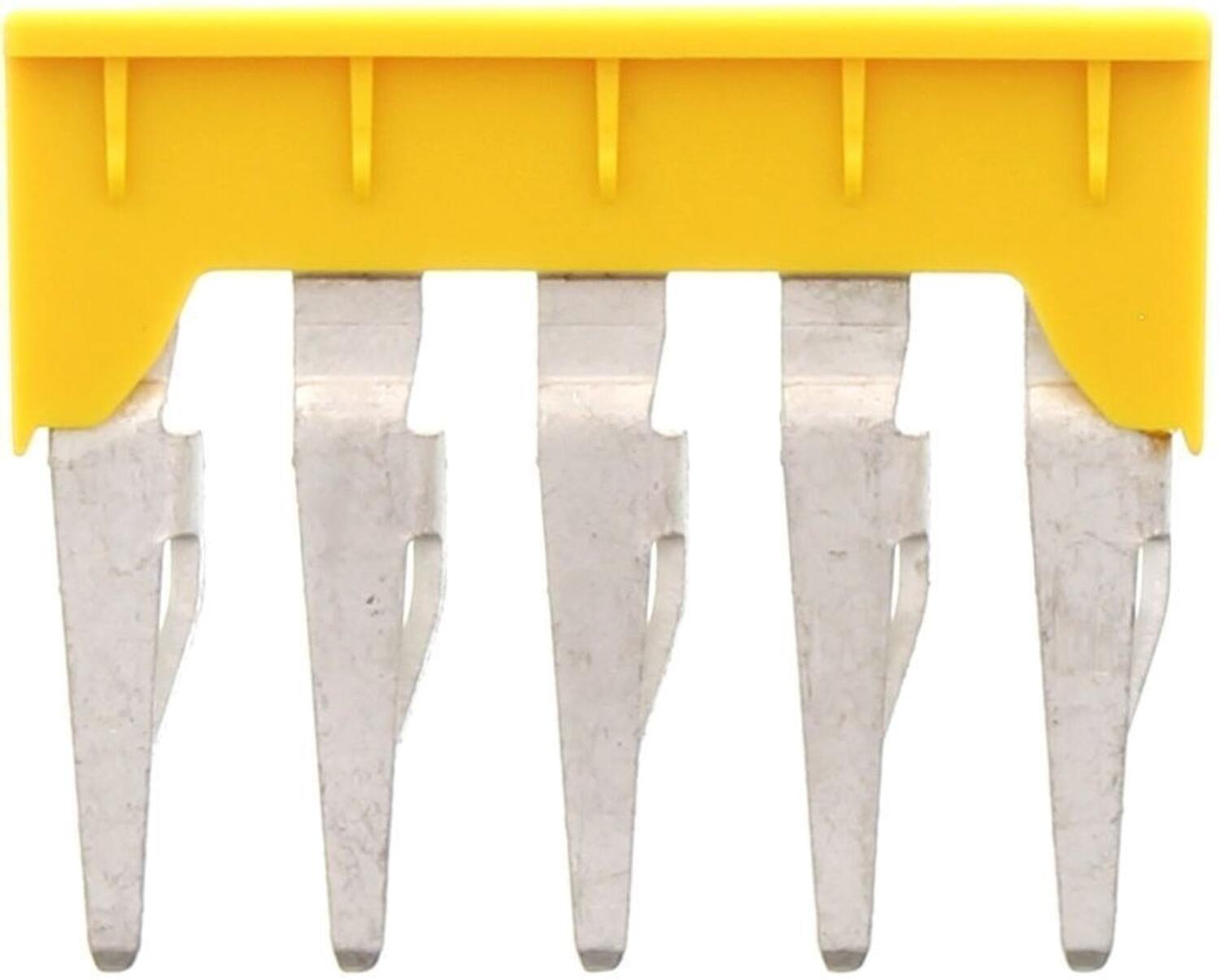

ZQI 6/5 YE, 5 Way Cross Connector for 6mm ZSRK/ZRK/ZSL Art: 3766.8 Copied	6 mm²	Yellow	800 V	800 V	41 A	7 mm	31.9 mm	8 mm	5	Copper alloy	8.6 g	20

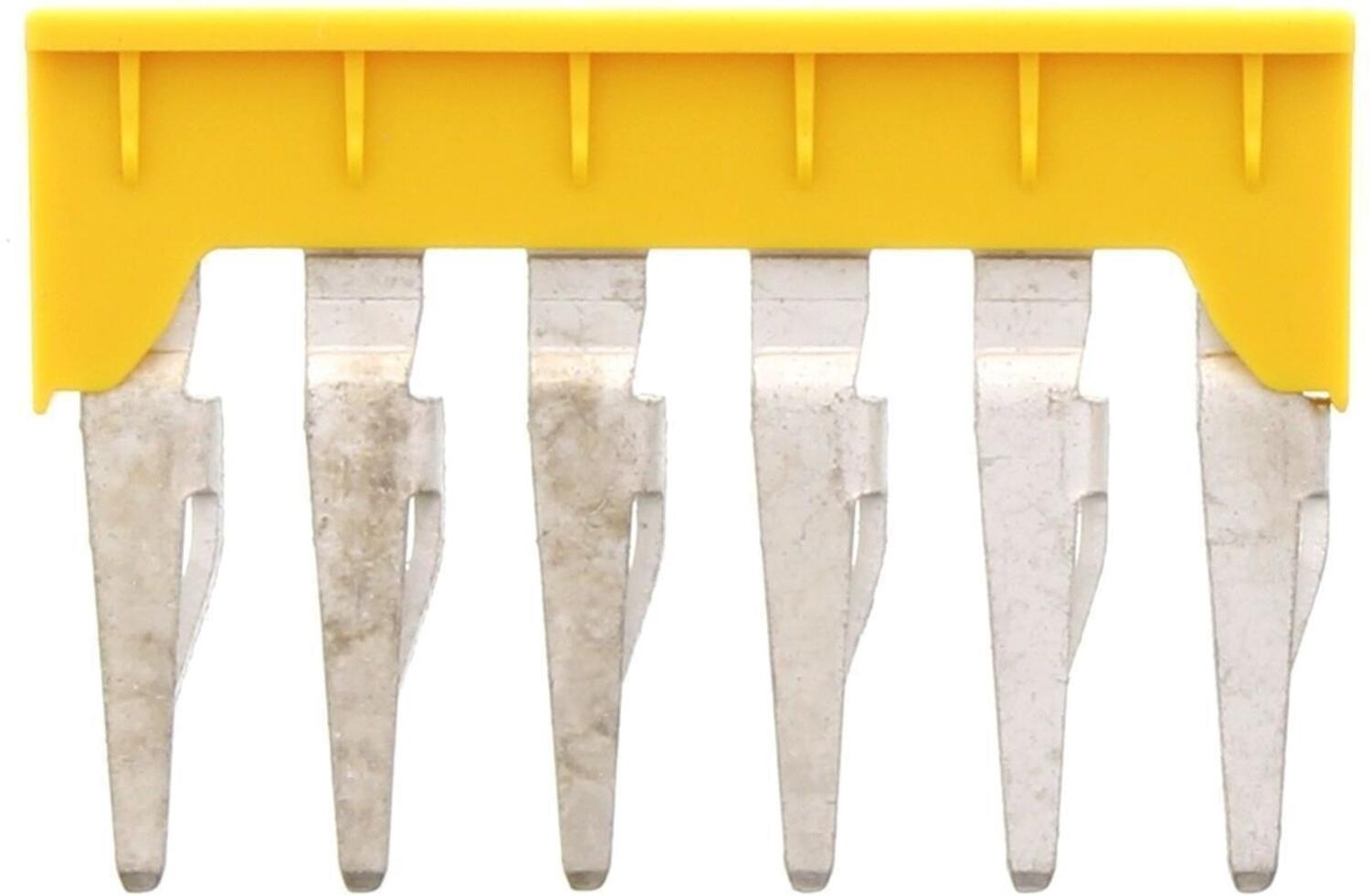

ZQI 6/6 YE, 6 Way Cross Connector for 6mm ZSRK/ZRK/ZSL Art: 3767.8 Copied	6 mm²	Yellow	800 V	800 V	41 A	7 mm	48.1 mm	8 mm	6	Copper alloy	10.2 g	20
ZQI 6/7 YE, 7 Way Cross Connector for 6mm ZSRK/ZRK/ZSL Art: 3768.8 Copied	6 mm²	Yellow	800 V	800 V	41 A	7 mm	56.2 mm	8 mm	7	Copper alloy	12 g	20
ZQI 6/8 YE, 8 Way Cross Connector for 6mm ZSRK/ZRK/ZSL Art: 3769.8 Copied	6 mm²	Yellow	800 V	800 V	41 A	7 mm	64.3 mm	8 mm	8	Copper alloy	13.6 g	10
ZQI 6/9 YE, 9 Way Cross Connector for 6mm ZSRK/ZRK/ZSL - Yellow Art: 3770.8 Copied	6 mm²	Yellow	800 V	800 V	41 A	7 mm	72.4 mm	8 mm	9	Copper alloy	15.2 g	10

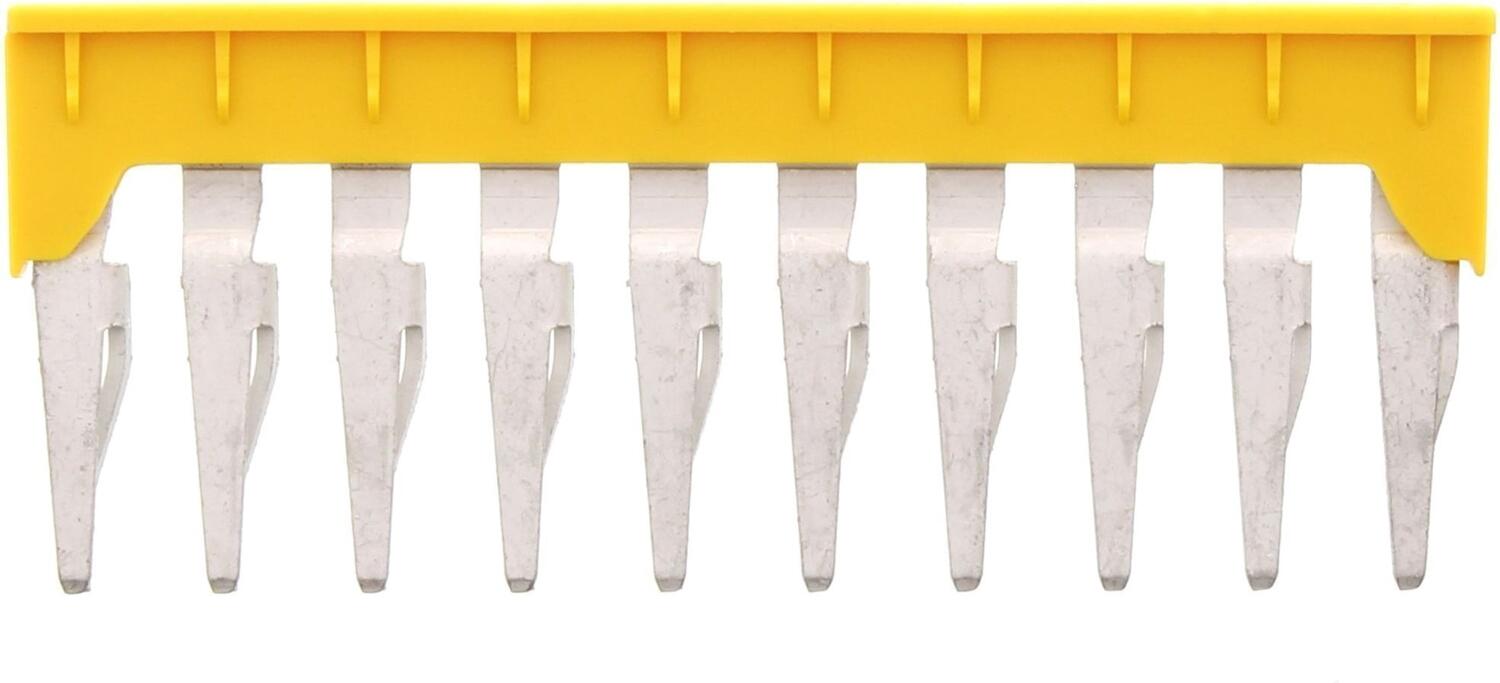

ZQI 6/10 YE, 10 Way Cross Connector for 6mm ZSRK/ZRK/ZSL - Yellow Art: 3771.8 Copied	6 mm²	Yellow	800 V	800 V	41 A	7 mm	80.5 mm	8 mm	10	Copper alloy	17.2 g	10

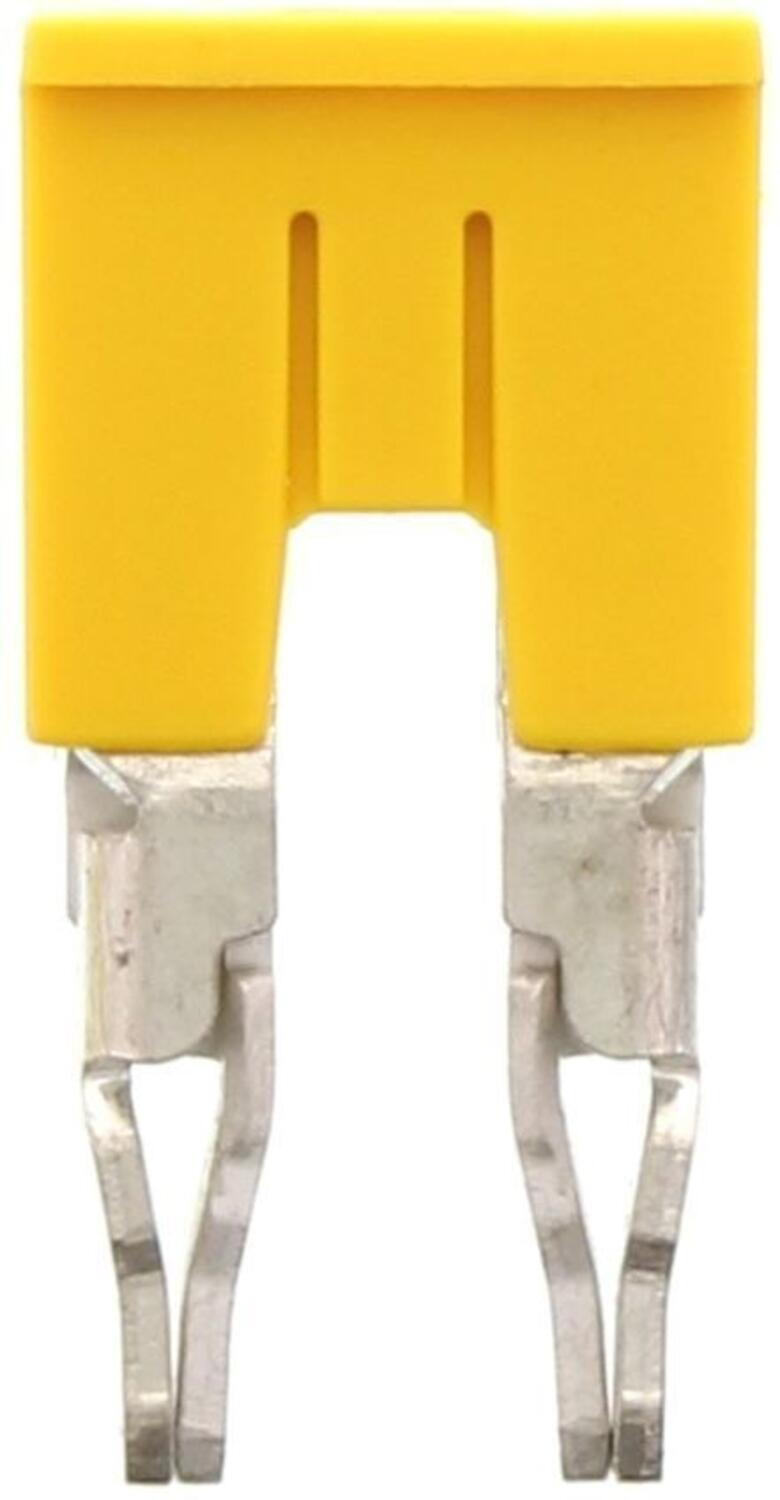

ZQI 10/2 YE, 2 Way Cross Connector for 10mm ZSRK/ZRK/ZSL Art: 3789.8 Copied	10 mm²	Yellow	1000 V	1000 V	57 A	7.6 mm	17.4 mm	10 mm	2	Bronze	7.4 g	20

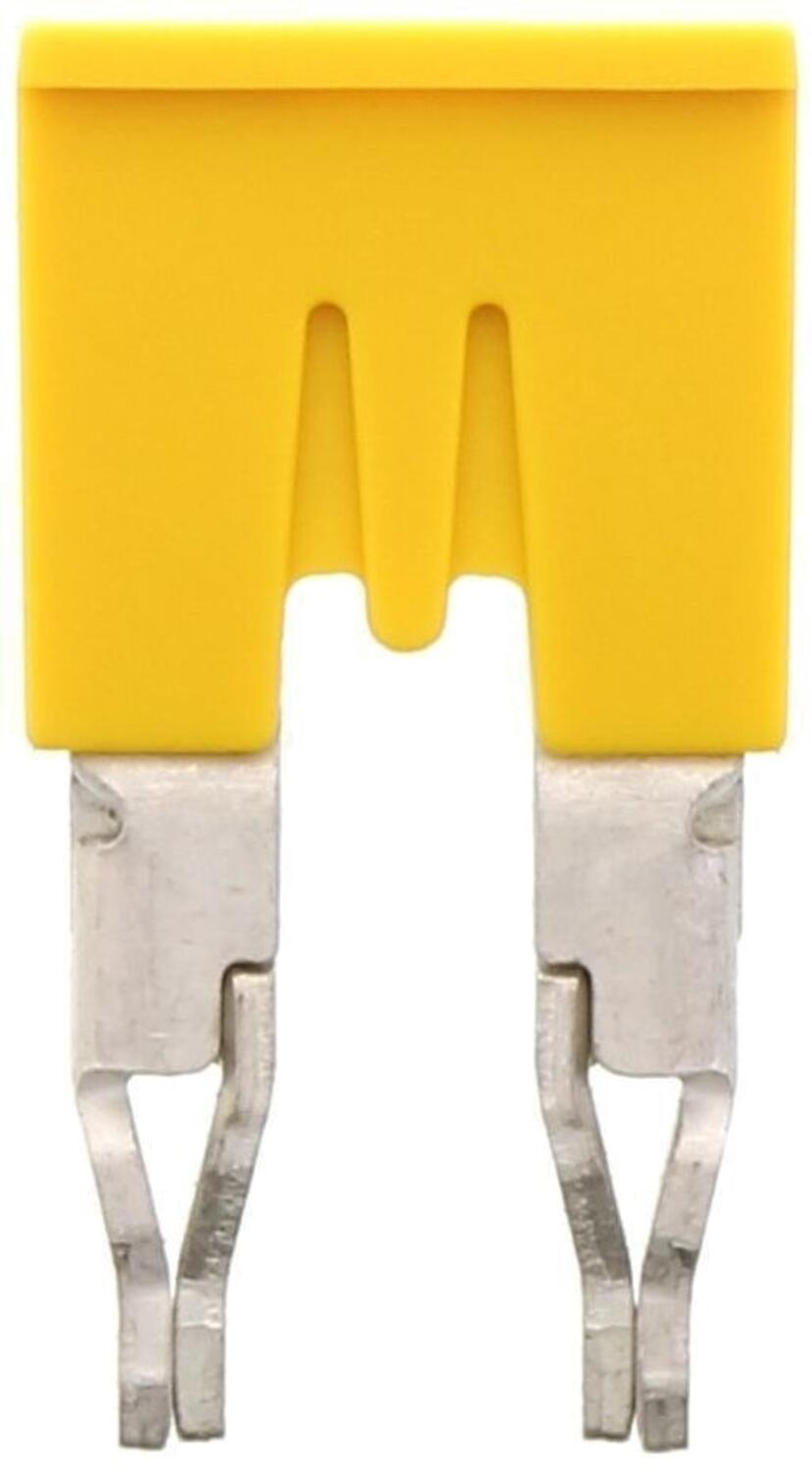

ZQI 16/2 YE, 2 Way Cross Connector for 16mm ZSRK/ZRK/ZSL Art: 3800.8 Copied	16 mm²	Yellow	1000 V	1000 V	75 A	7 mm	20.4 mm	12 mm	2	Bronze	10.8 g	20

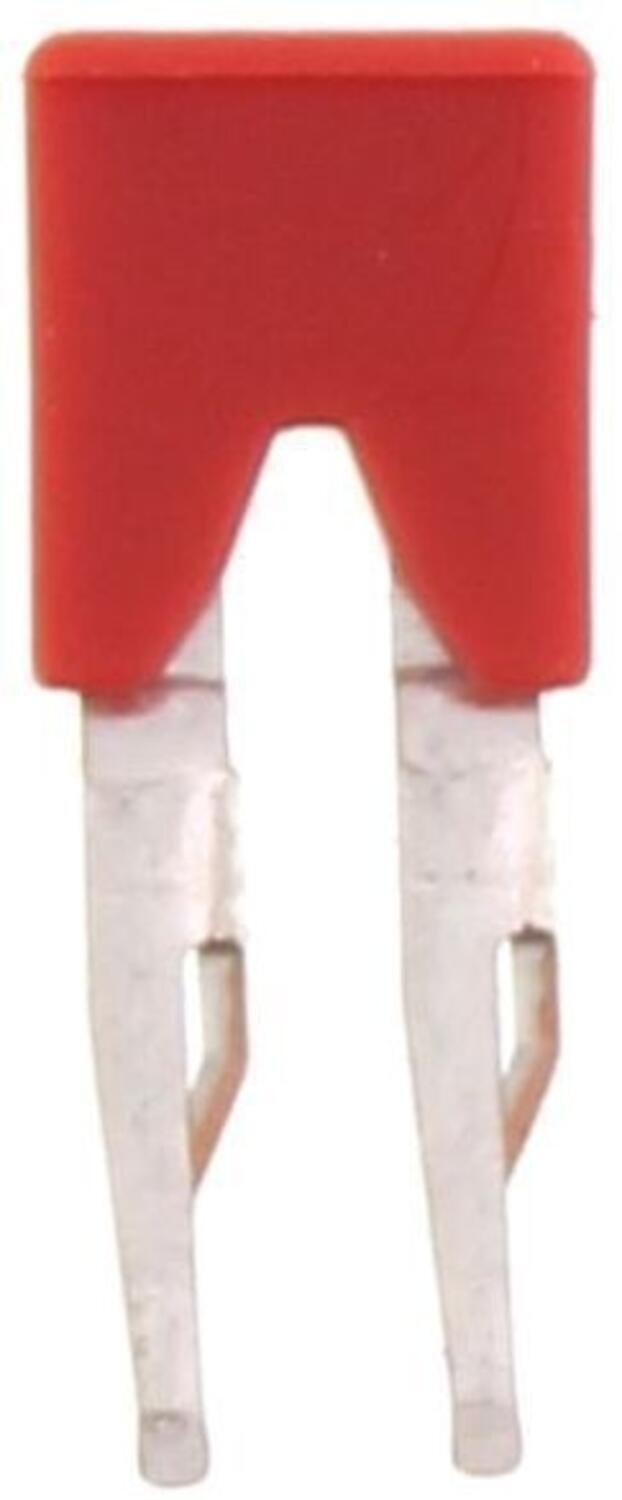

ZQI 2.5/2 RD, 2 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3710.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	9.1 mm	5 mm	2	Copper alloy	1.09 g	50

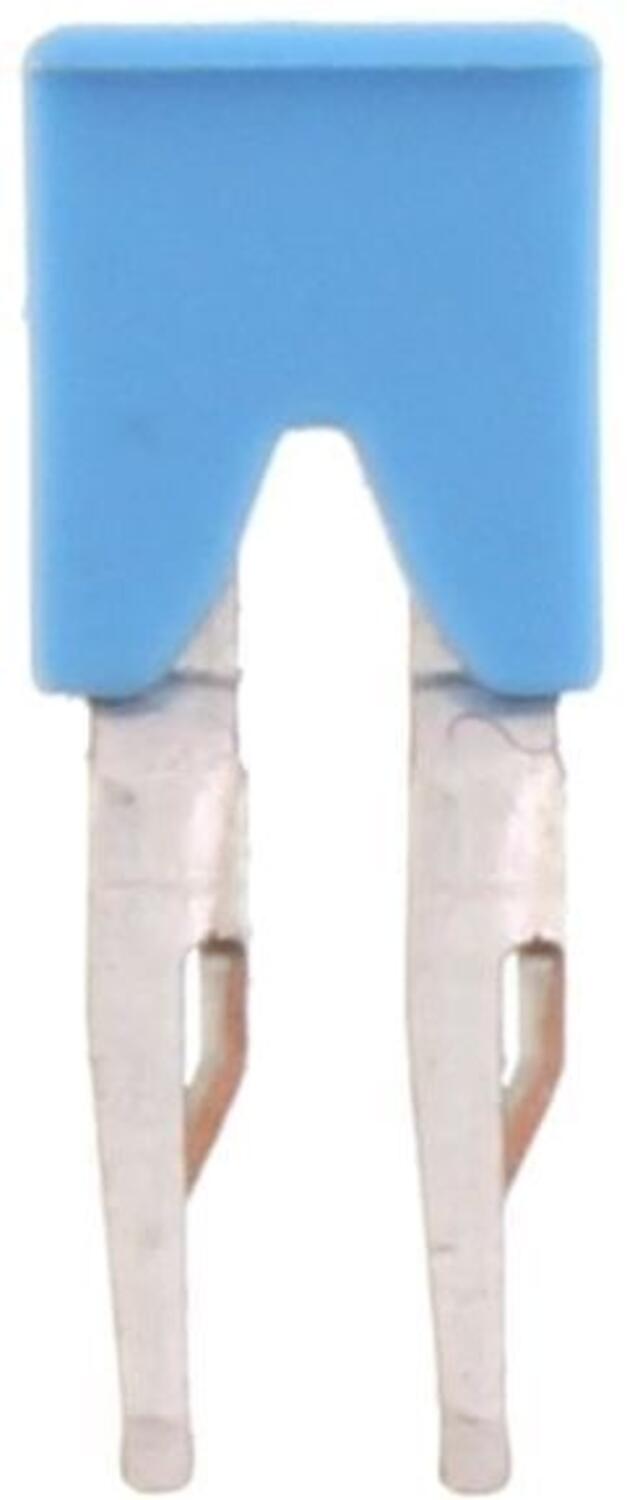

ZQI 2.5/2 BU, 2 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3710.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	9.1 mm	5 mm	2	Copper alloy	1.09 g	50

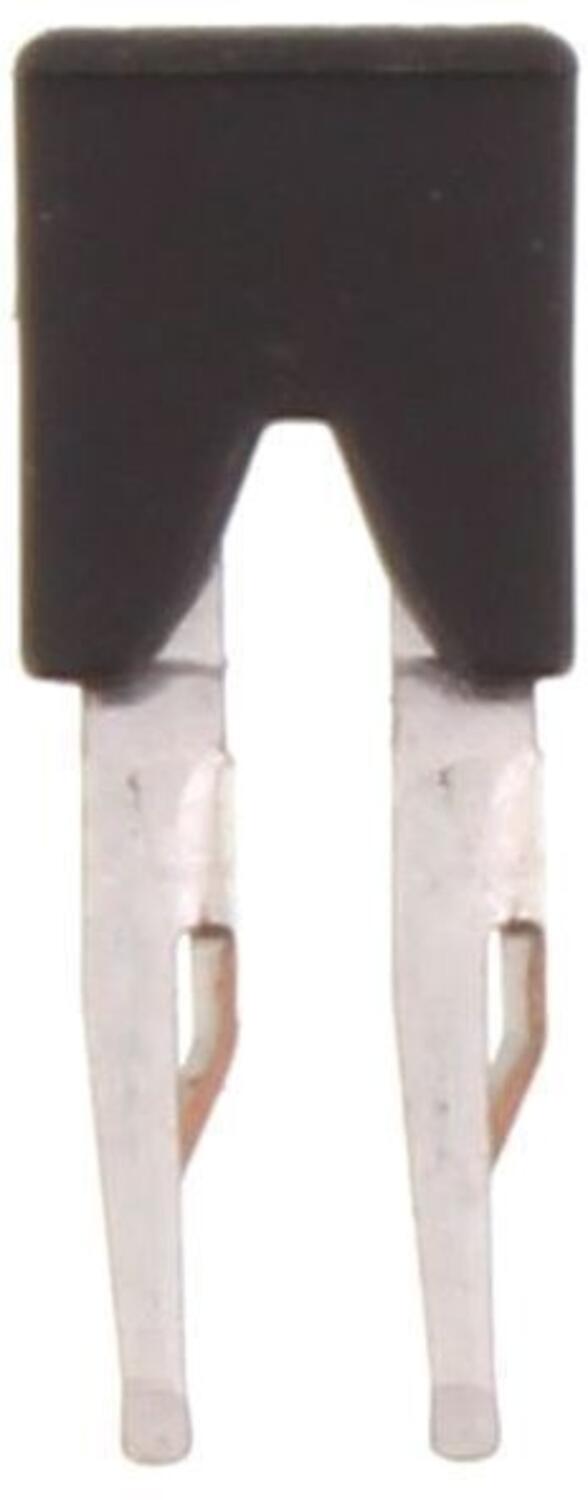

ZQI 2.5/2 BK, 2 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3710.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	9.1 mm	5 mm	2	Copper alloy	1.09 g	50

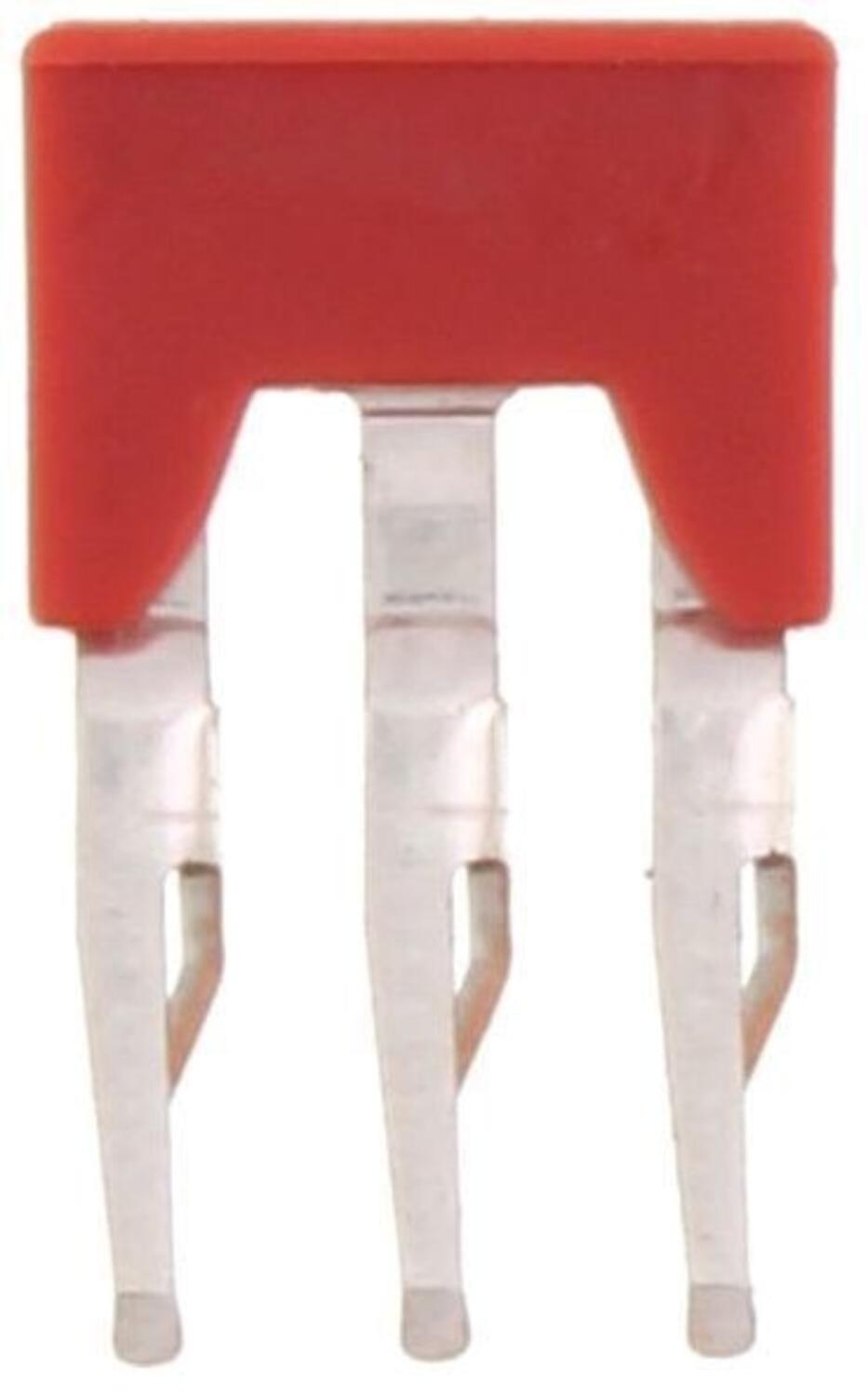

ZQI 2.5/3 RD, 3 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3711.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	14.2 mm	5 mm	3	Copper alloy	1.68 g	50

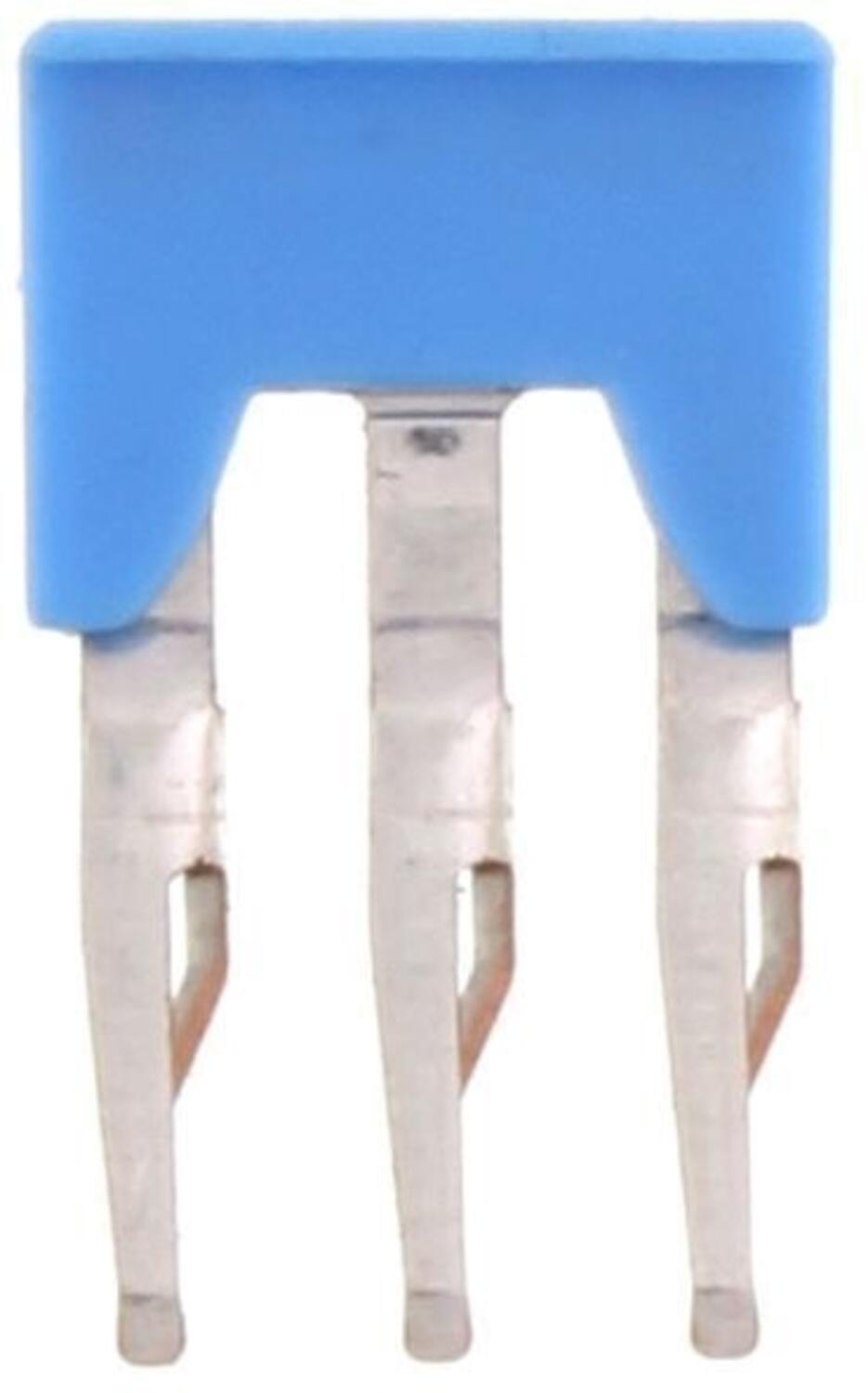

ZQI 2.5/3 BU, 3 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3711.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	14.2 mm	5 mm	3	Copper alloy	1.68 g	50

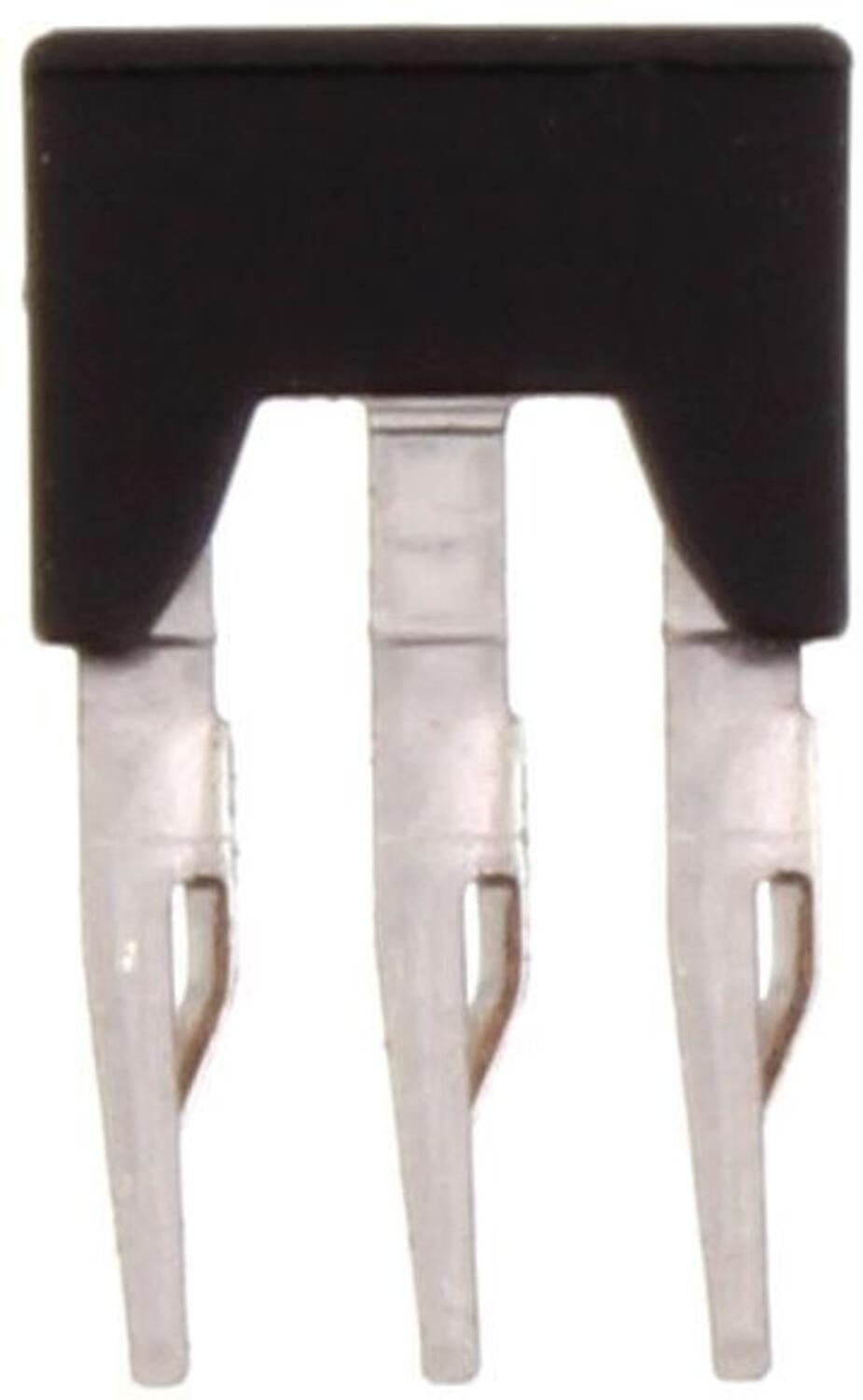

ZQI 2.5/3 BK, 3 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3711.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	14.2 mm	5 mm	3	Copper alloy	1.68 g	50

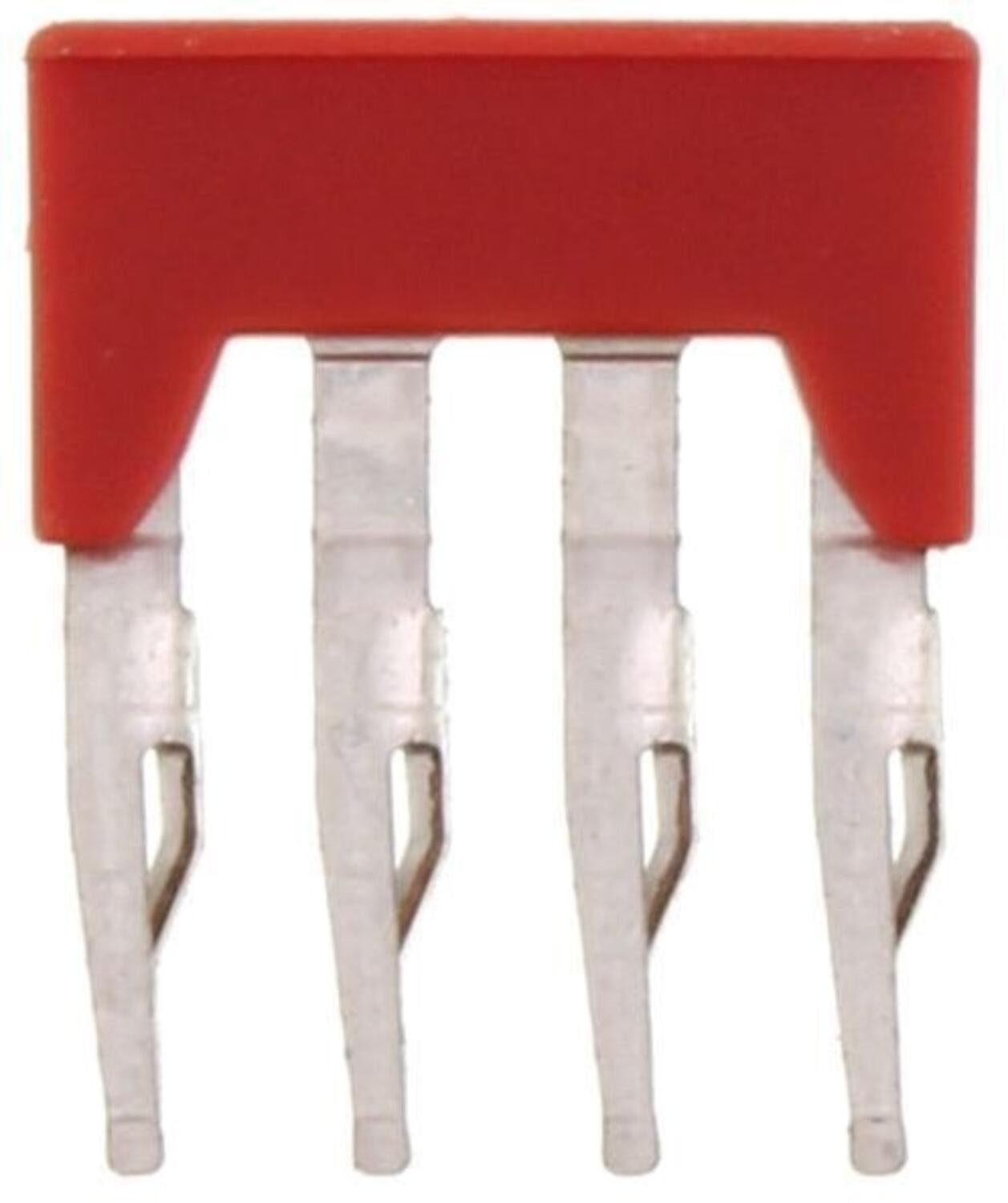

ZQI 2.5/4 RD, 4 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3712.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	19.3 mm	5 mm	4	Copper alloy	2.26 g	20

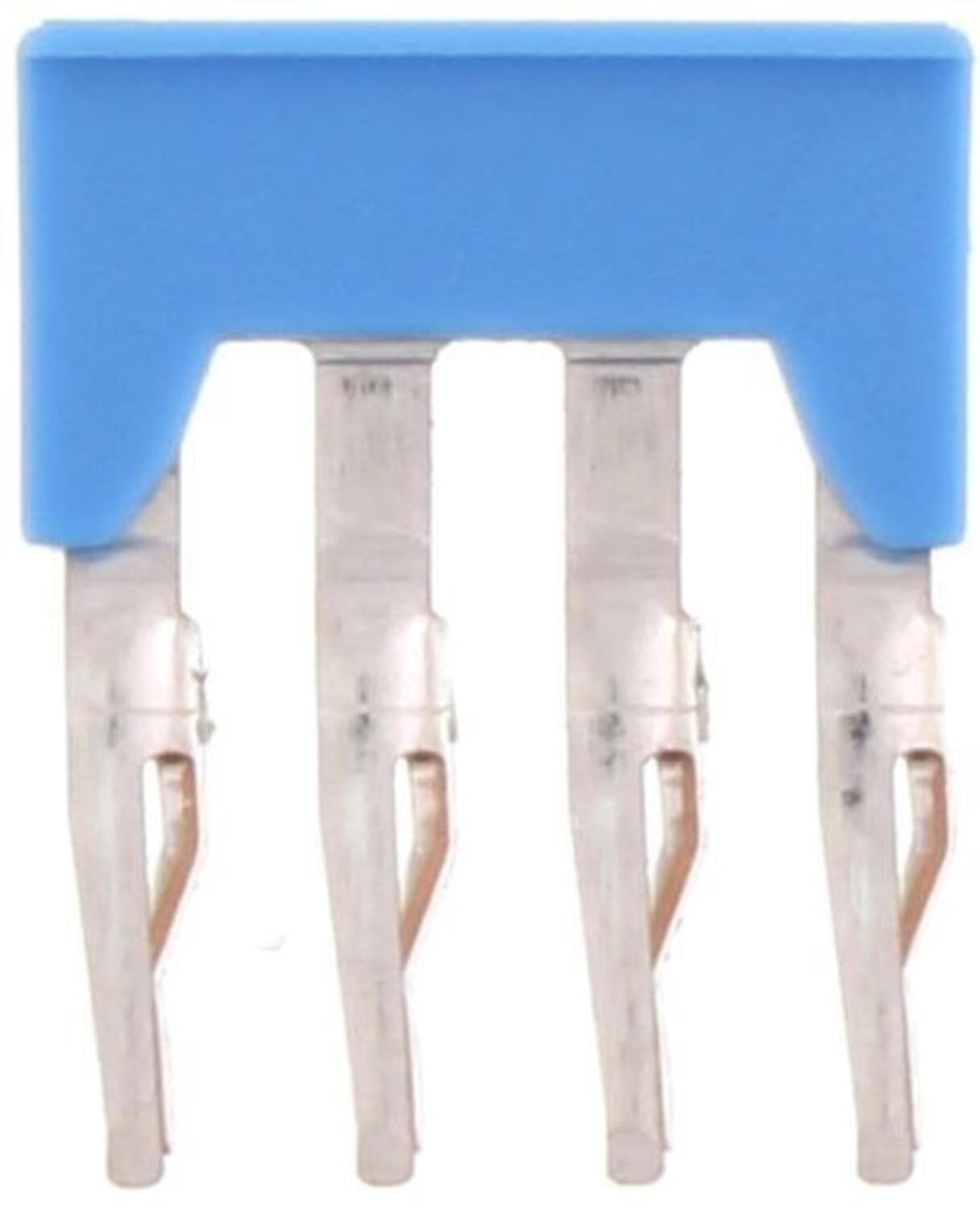

ZQI 2.5/4 BU, 4 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3712.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	19.3 mm	5 mm	4	Copper alloy	2.26 g	20

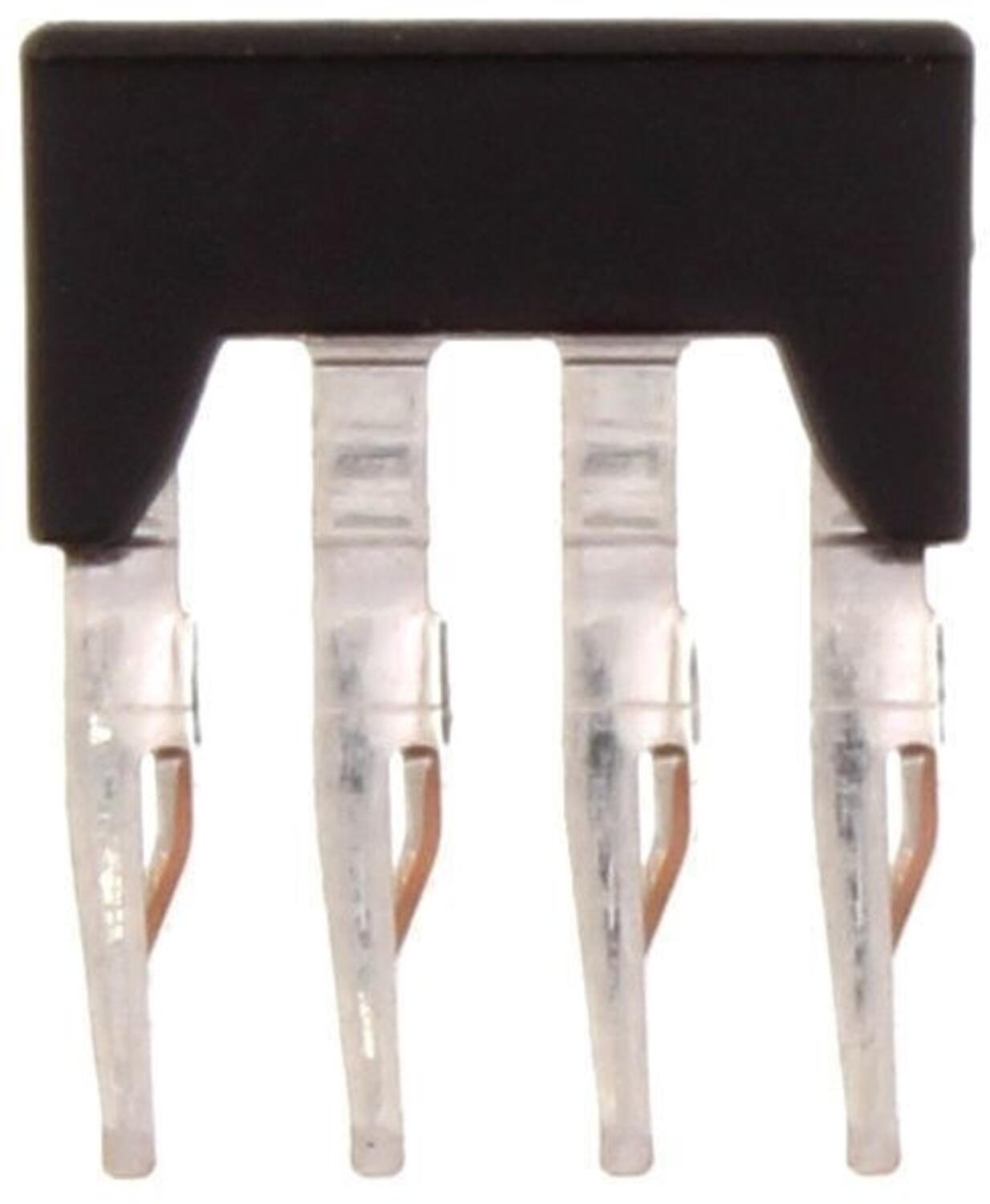

ZQI 2.5/4 BK, 4 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3712.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	19.3 mm	5 mm	4	Copper alloy	2.26 g	20

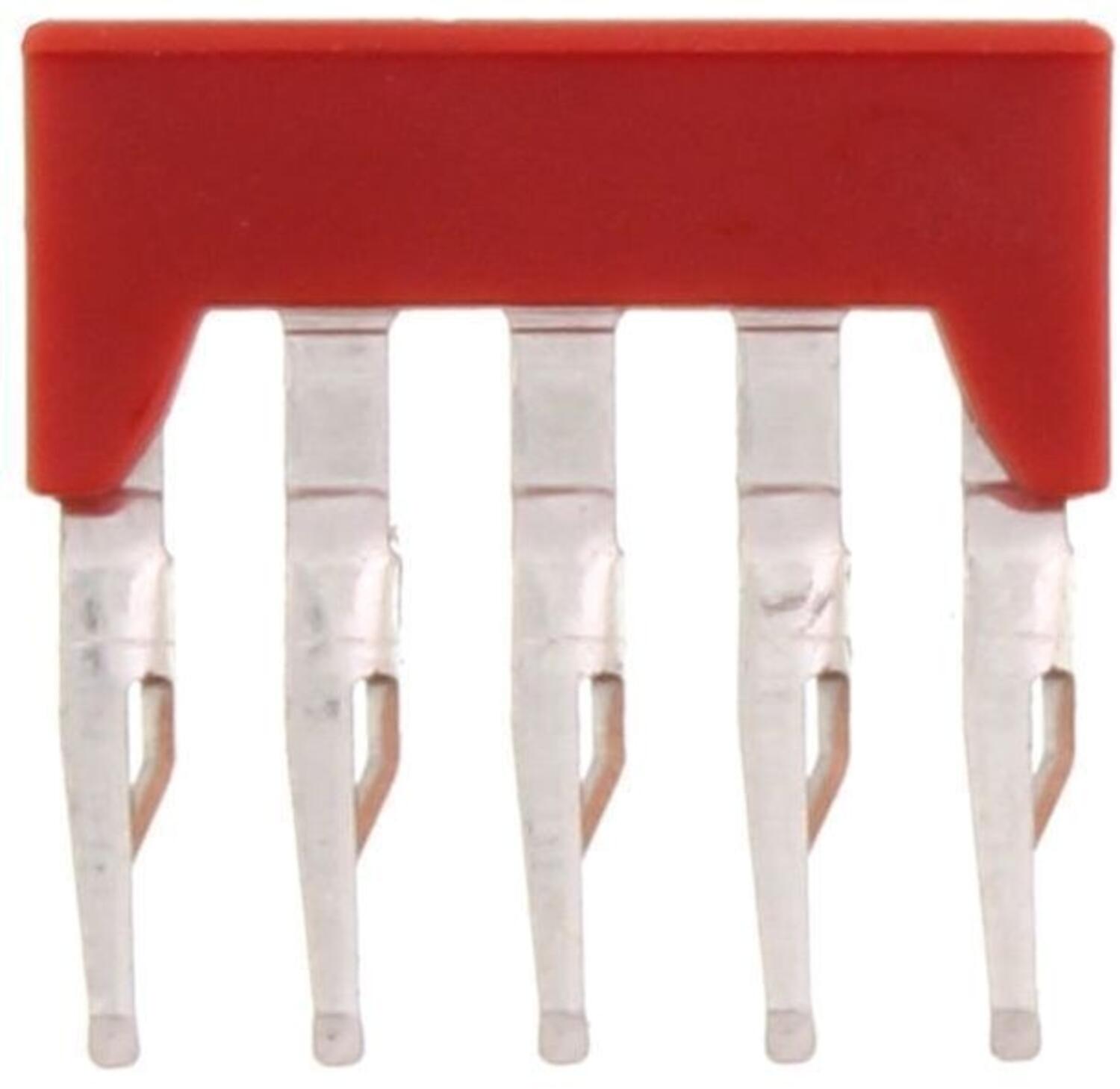

ZQI 2.5/5 RD, 5 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3713.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	24.4 mm	5 mm	5	Copper alloy	2.8 g	20

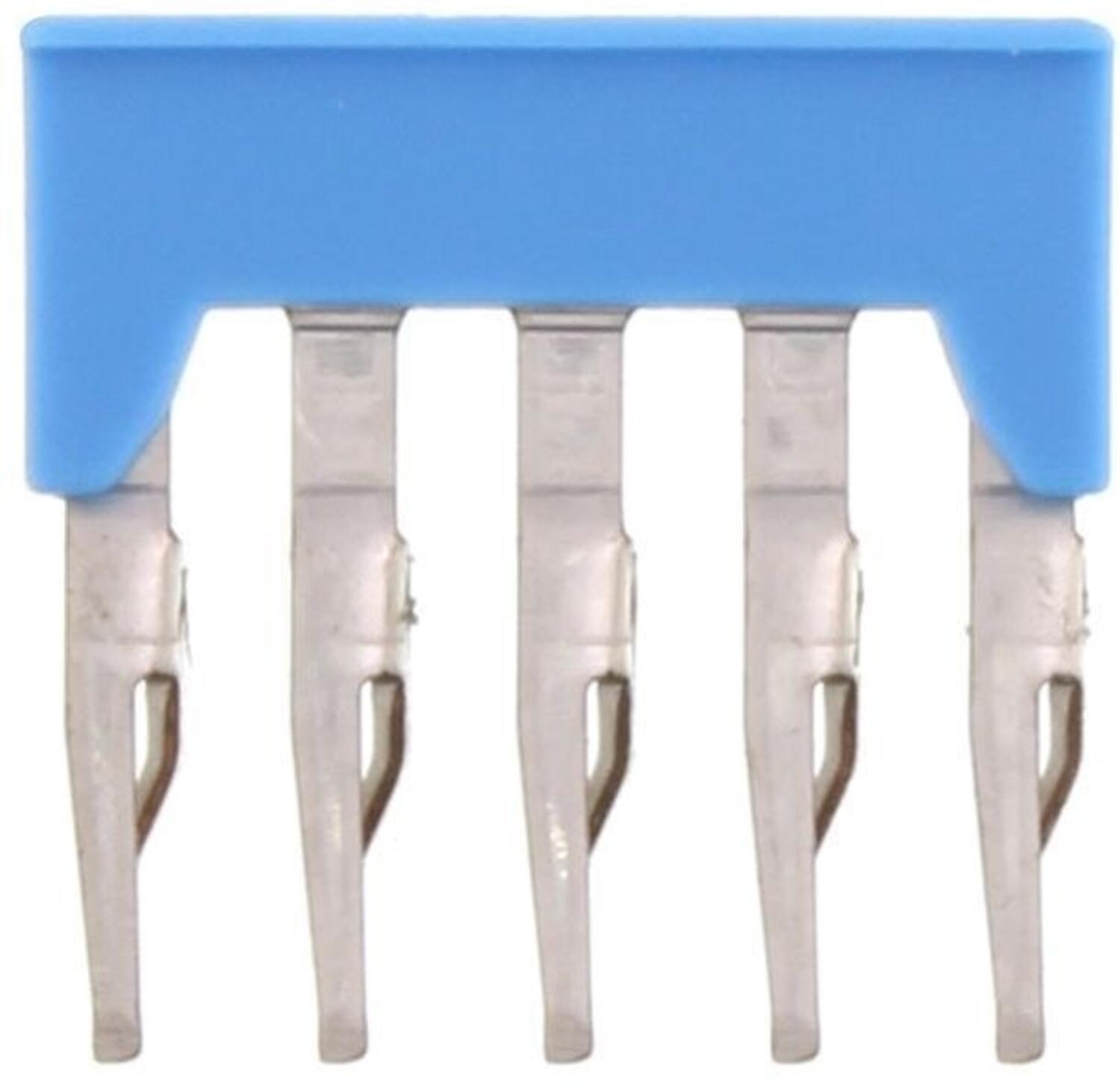

ZQI 2.5/5 BU, 5 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3713.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	24.4 mm	5 mm	5	Copper alloy	2.8 g	20

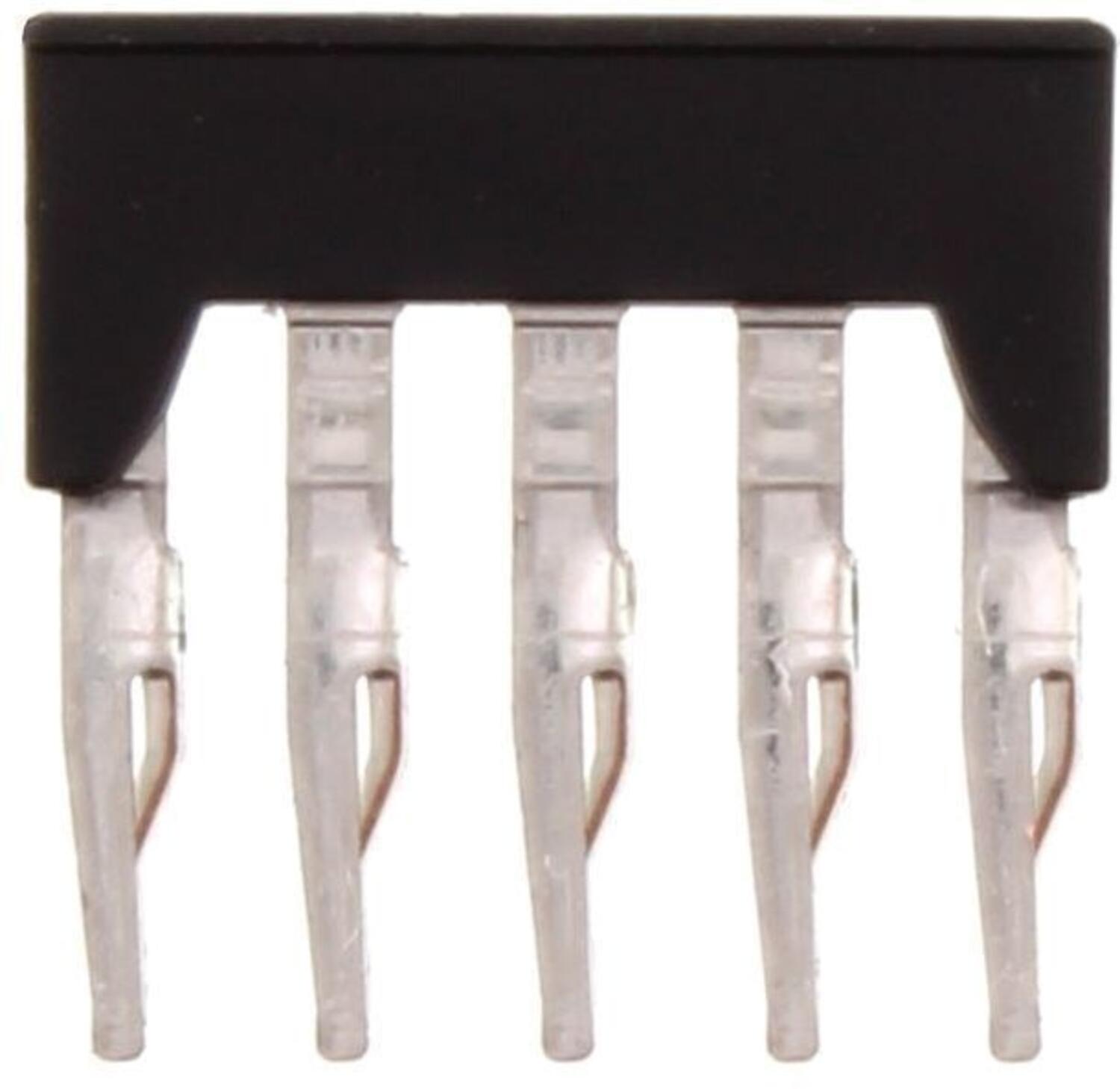

ZQI 2.5/5 BK, 5 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3713.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	24.4 mm	5 mm	5	Copper alloy	2.8 g	20

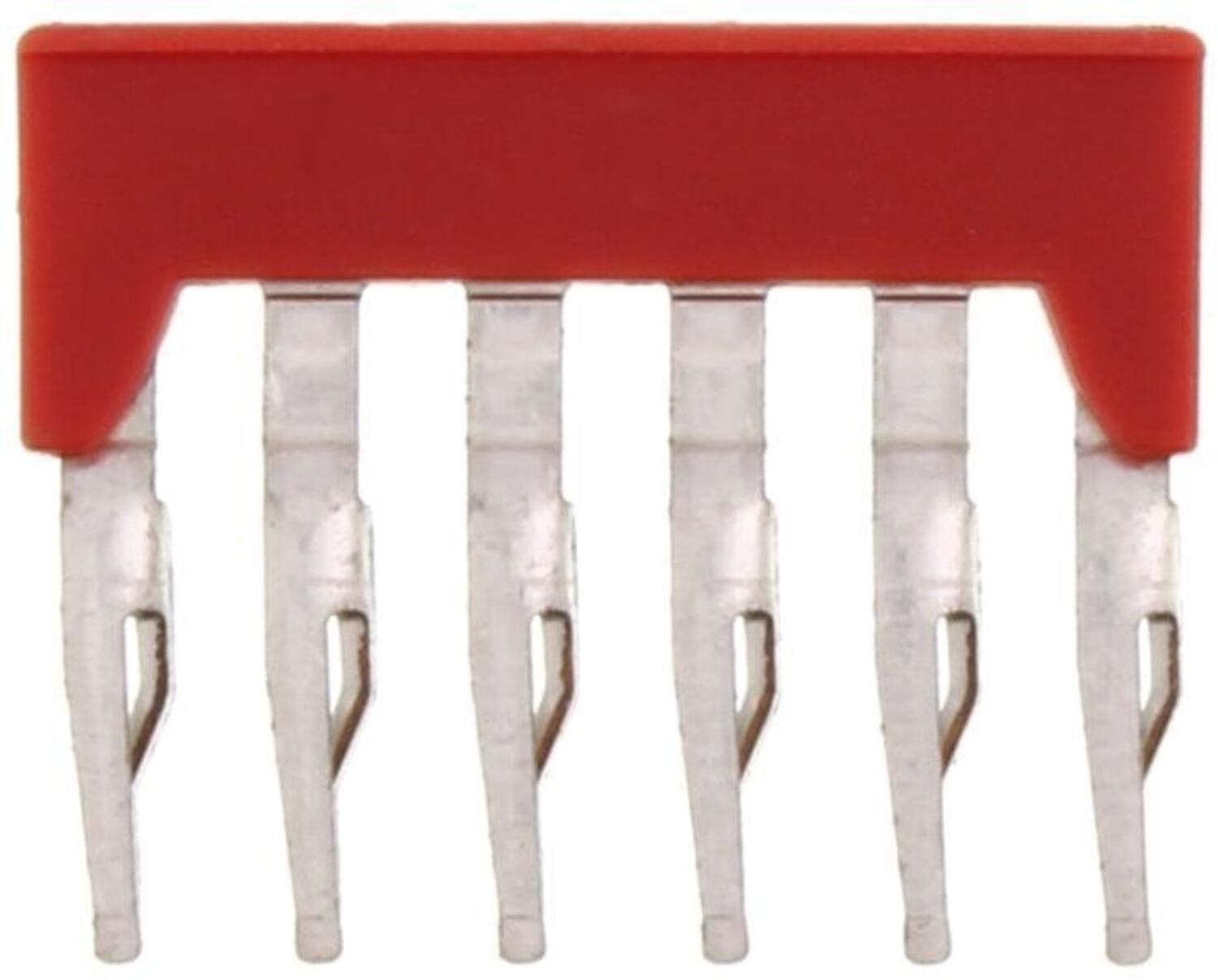

ZQI 2.5/6 RD, 6 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3714.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	29.5 mm	5 mm	6	Copper alloy	3.4 g	20

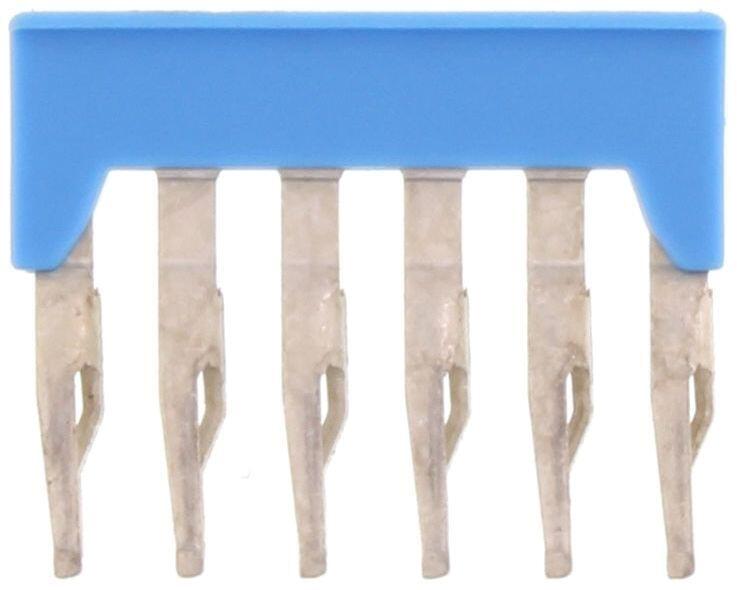

ZQI 2.5/6 BU, 6 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3714.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	29.5 mm	5 mm	6	Copper alloy	3.4 g	20

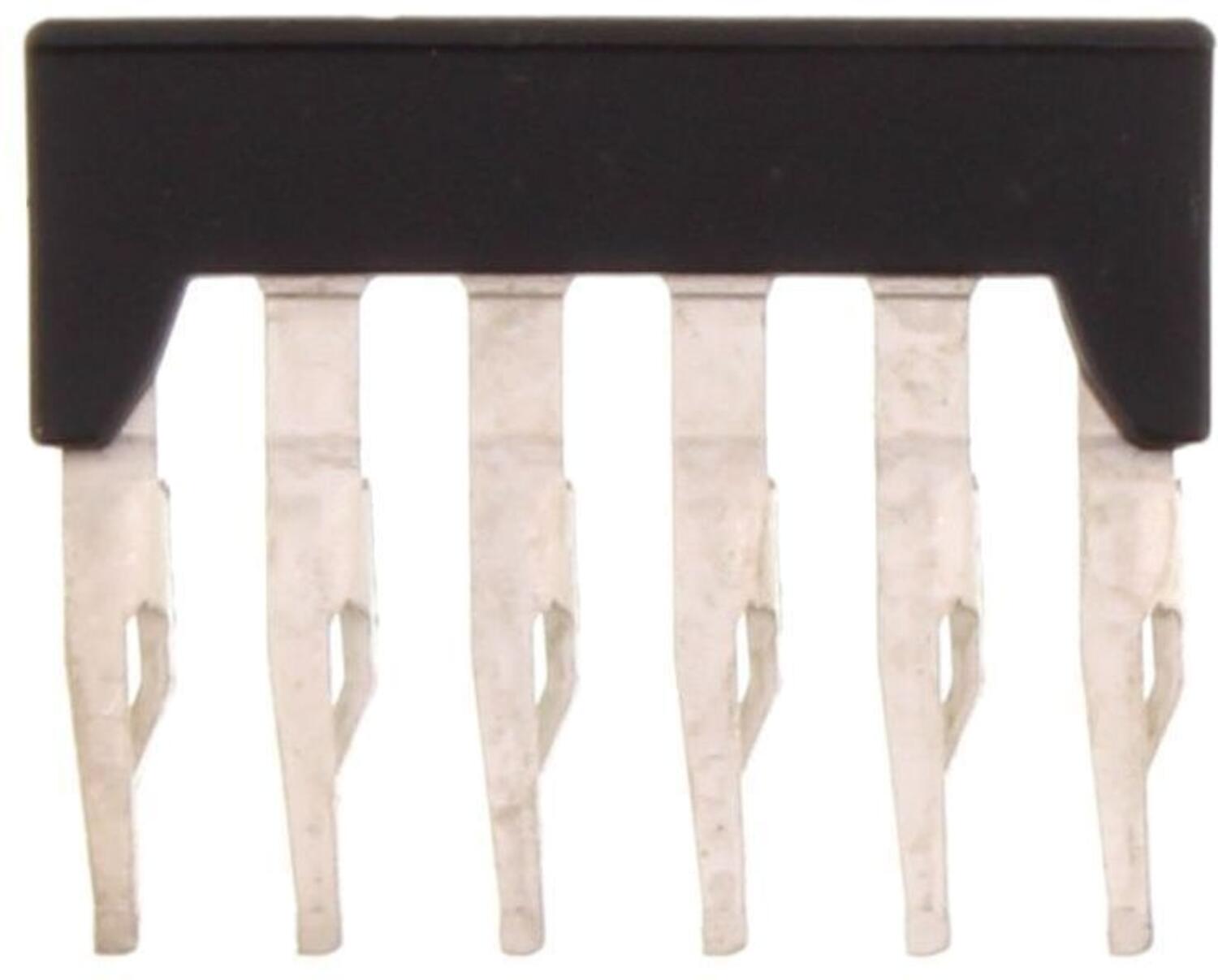

ZQI 2.5/6 BK, 6 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3714.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	29.5 mm	5 mm	6	Copper alloy	3.4 g	20

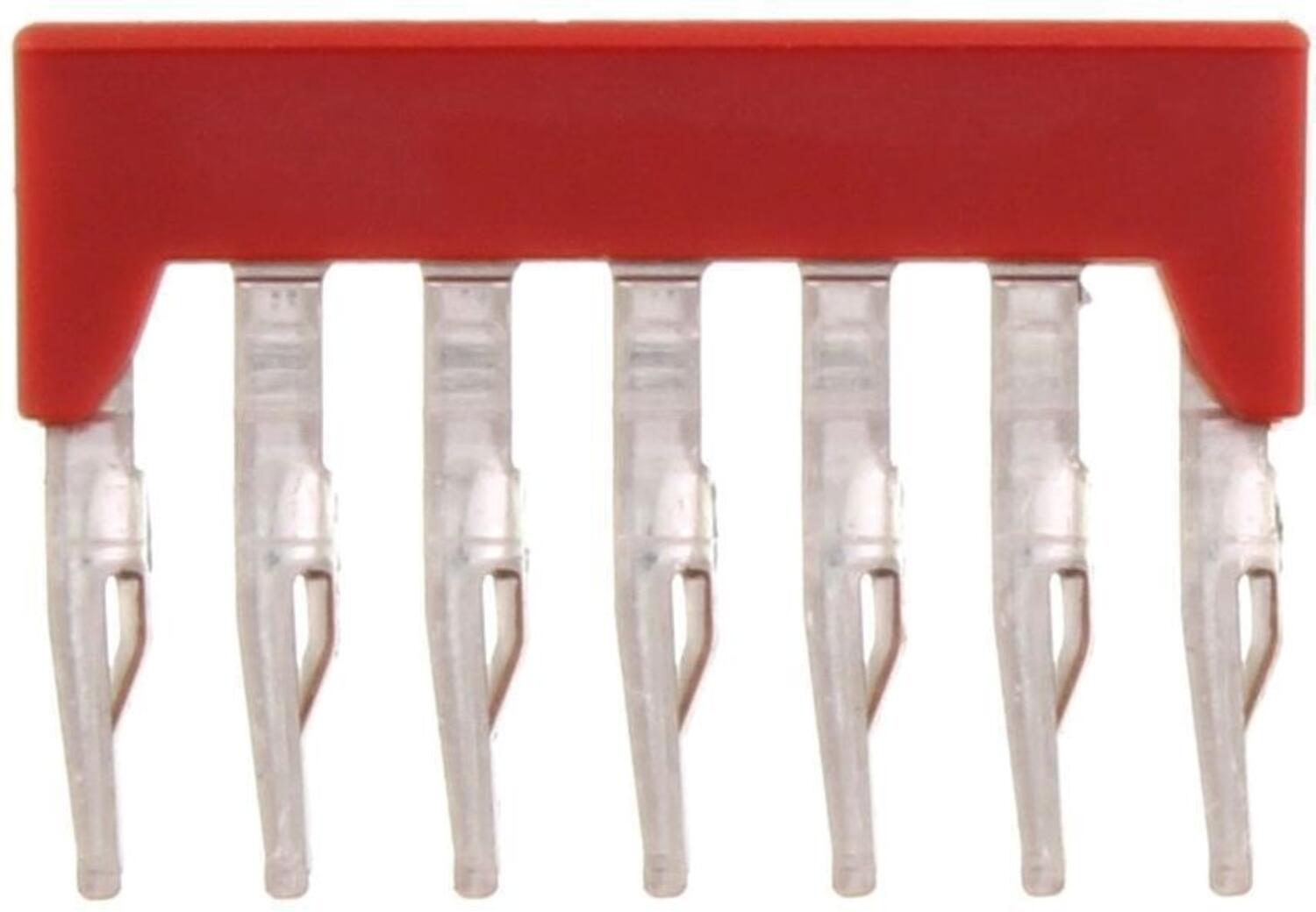

ZQI 2.5/7 RD, 7 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3715.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	34.6 mm	5 mm	7	Copper alloy	4 g	20

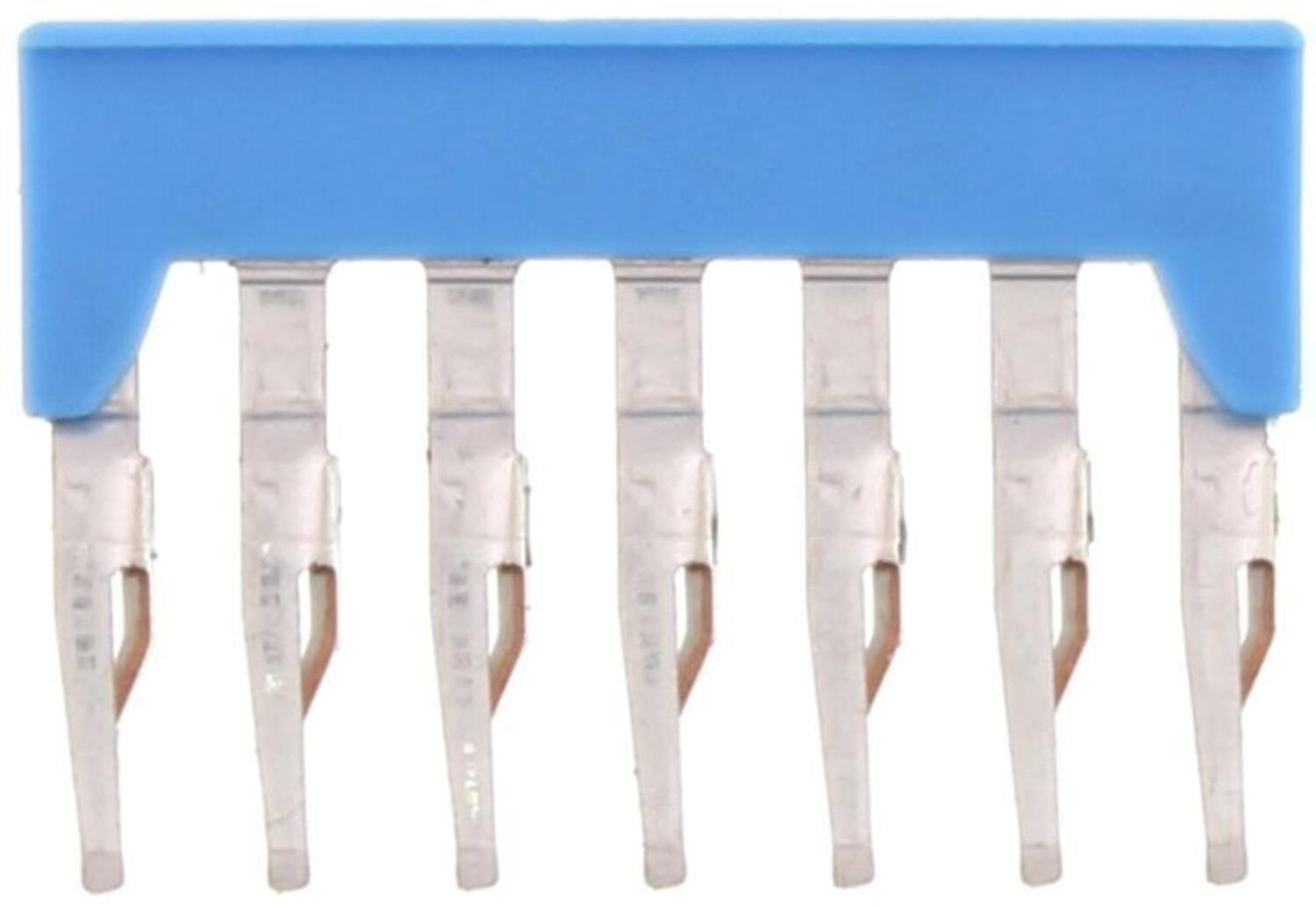

ZQI 2.5/7 BU, 7 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3715.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	34.6 mm	5 mm	7	Copper alloy	4 g	20
ZQI 2.5/7 BK, 7 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3715.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	34.6 mm	5 mm	7	Copper alloy	4 g	20

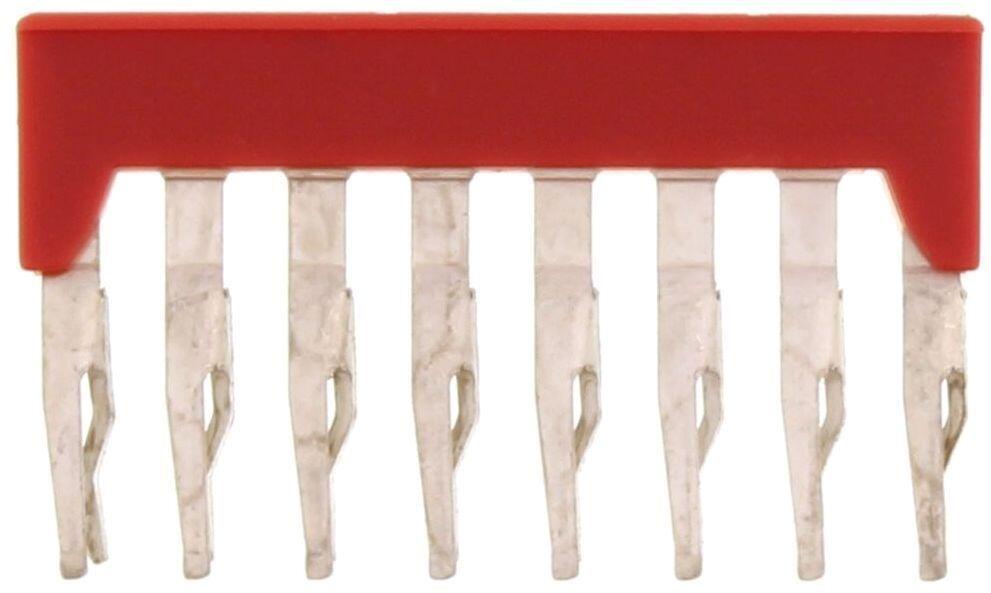

ZQI 2.5/8 RD, 8 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3716.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	39.7 mm	5 mm	8	Copper alloy	4.58 g	10
ZQI 2.5/8 BU, 8 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3716.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	39.7 mm	5 mm	8	Copper alloy	4.58 g	10
ZQI 2.5/8 BK, 8 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3716.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	39.7 mm	5 mm	8	Copper alloy	4.58 g	10

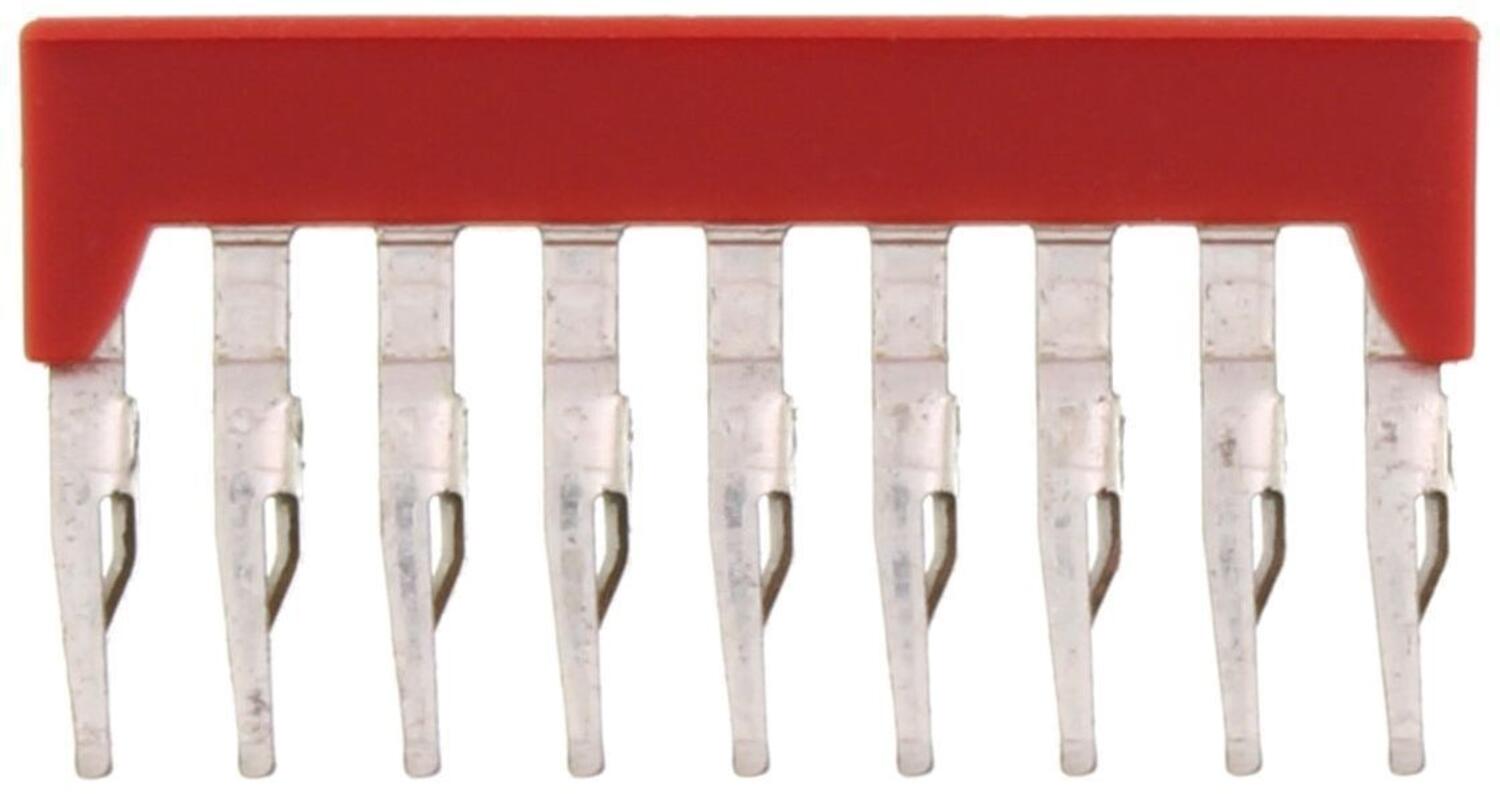

ZQI 2.5/9 RD, 9 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3717.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	44.8 mm	5 mm	9	Copper alloy	5.2 g	10
ZQI 2.5/9 BU, 9 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3717.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	44.8 mm	5 mm	9	Copper alloy	5.2 g	10
ZQI 2.5/9 BK, 9 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3717.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	44.8 mm	5 mm	9	Copper alloy	5.2 g	10
ZQI 2.5/10 RD, 10 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3718.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	49.9 mm	5 mm	10	Copper alloy	5.71 g	10

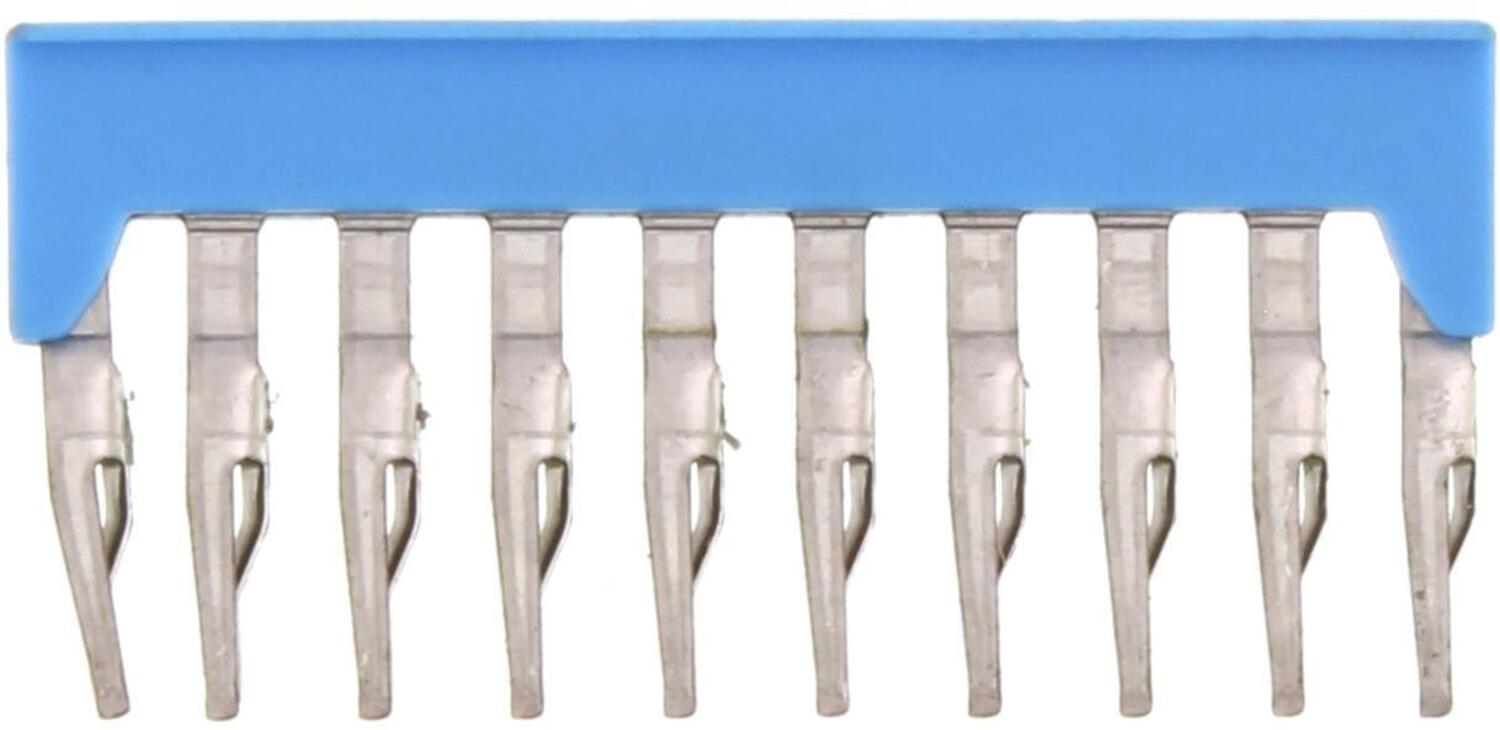

ZQI 2.5/10 BU, 10 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3718.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	49.9 mm	5 mm	10	Copper alloy	5.71 g	10

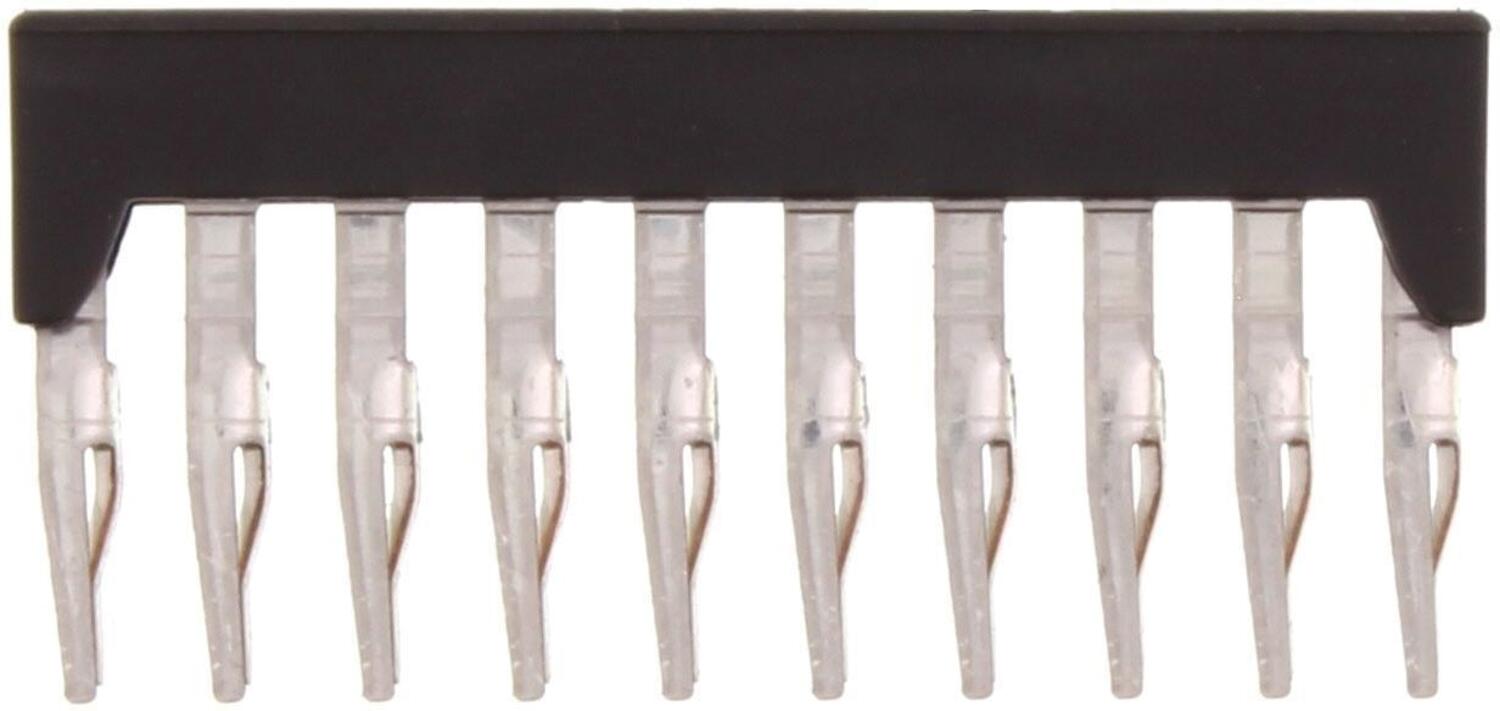

ZQI 2.5/10 BK, 10 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3718.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	49.9 mm	5 mm	10	Copper alloy	5.71 g	10

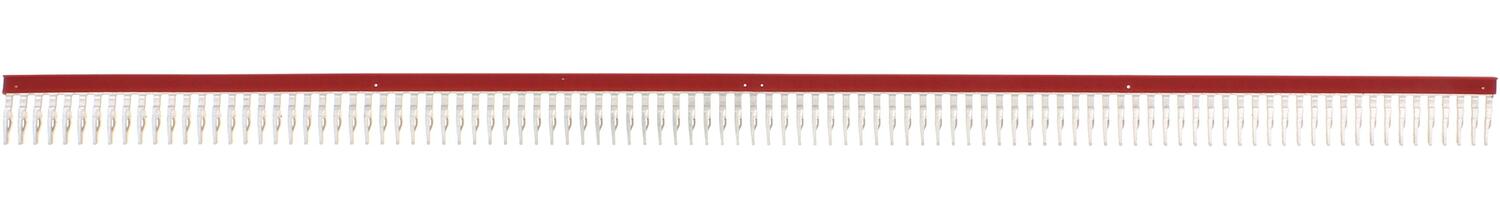

ZQI 2.5/0.5 m RD, 99 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Red Art: 3719.9 Copied	2.5 mm²	Red	800 V	800 V	24 A	4.5 mm	500 mm	5 mm	99	Copper alloy	56.47 g	2

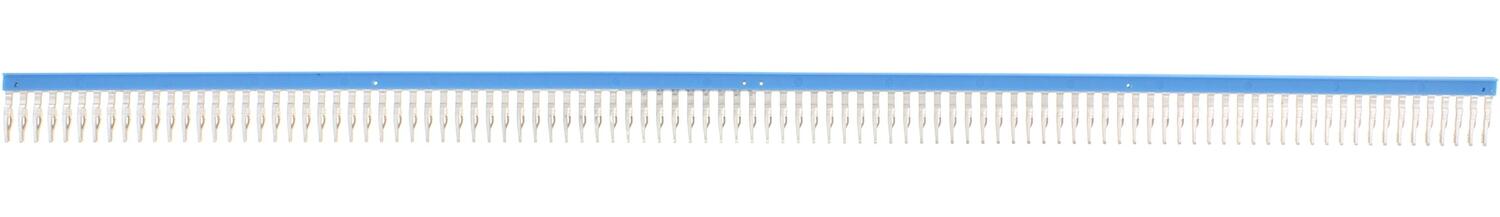

ZQI 2.5/0.5 m BU, 99 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Blue Art: 3719.5 Copied	2.5 mm²	Blue	800 V	800 V	24 A	4.5 mm	500 mm	5 mm	99	Copper alloy	56.47 g	2

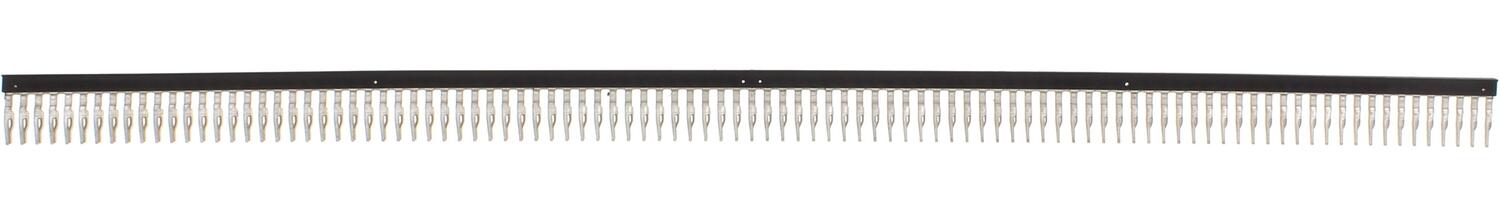

ZQI 2.5/0.5 m BK, 99 Way Cross Connector for 2.5mm ZSRK/ZRK/ZSL/ZST/ZIZA - Black Art: 3719.4 Copied	2.5 mm²	Black	800 V	800 V	24 A	4.5 mm	500 mm	5 mm	99	Copper alloy	56.47 g	2

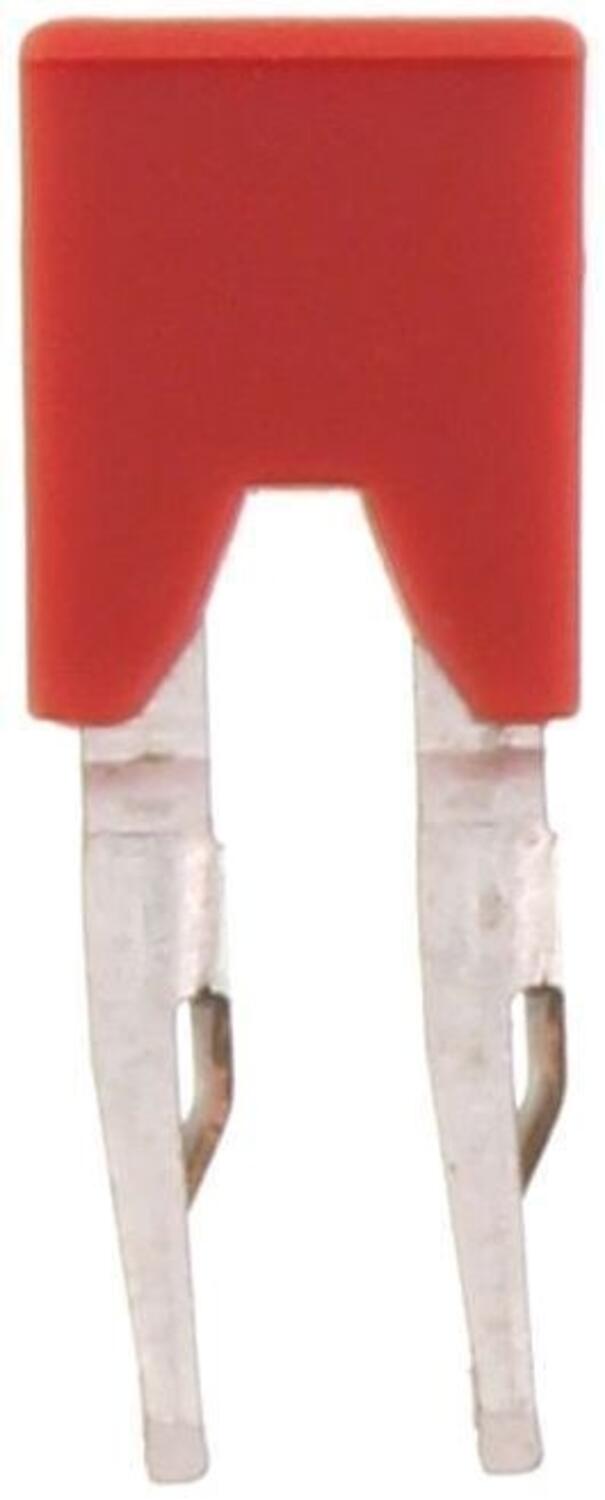

ZQI 4/2 RD, 2 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Red Art: 3720.9 Copied	4 mm²	Red	800 V	800 V	32 A	4.5 mm	10.1 mm	6 mm	2	Copper alloy	1.32 g	50

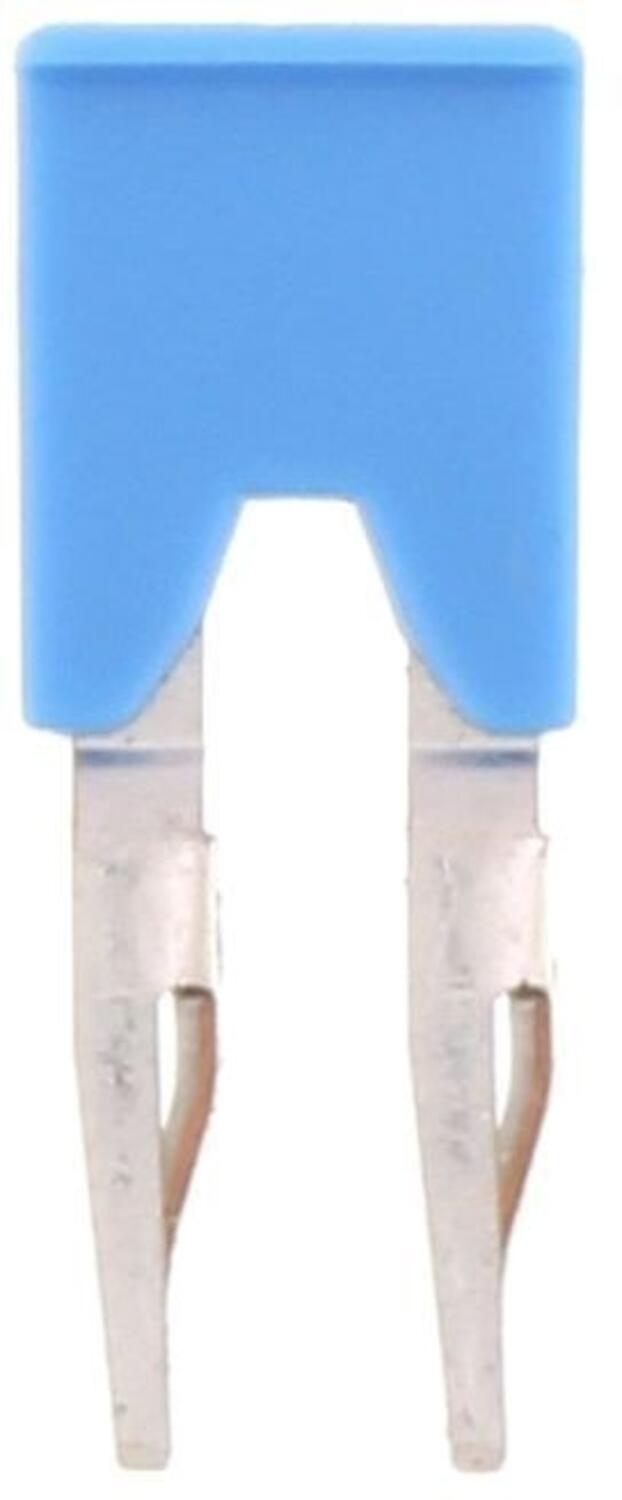

ZQI 4/2 BU, 2 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Blue Art: 3720.5 Copied	4 mm²	Blue	800 V	800 V	32 A	4.5 mm	10.1 mm	6 mm	2	Copper alloy	1.32 g	50
ZQI 4/2 BK, 2 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Black Art: 3720.4 Copied	4 mm²	Black	800 V	800 V	32 A	4.5 mm	10.1 mm	6 mm	2	Copper alloy	1.32 g	50

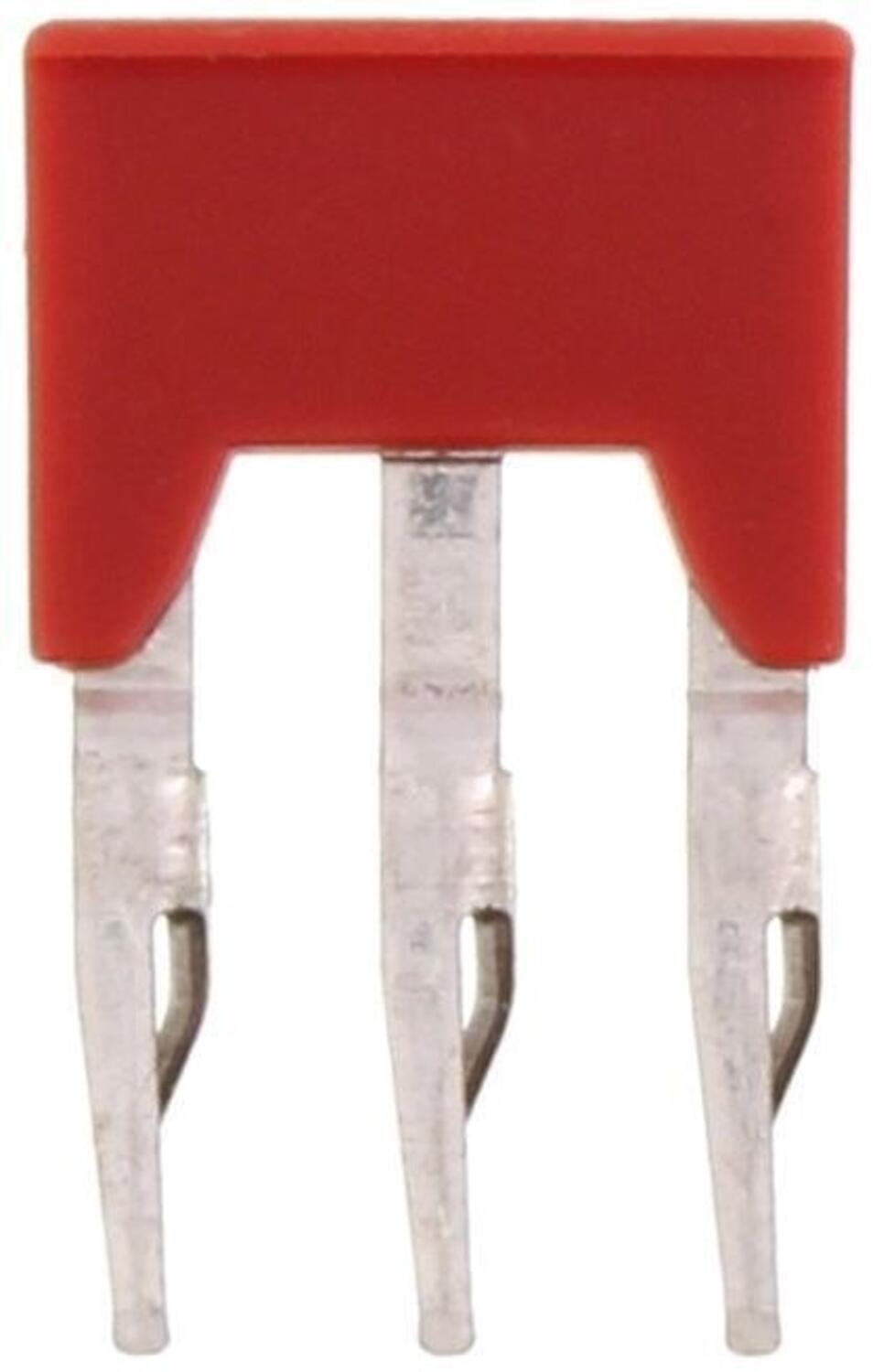

ZQI 4/3 RD, 3 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Red Art: 3721.9 Copied	4 mm²	Red	800 V	800 V	32 A	4.5 mm	16.2 mm	6 mm	3	Copper alloy	2.04 g	50

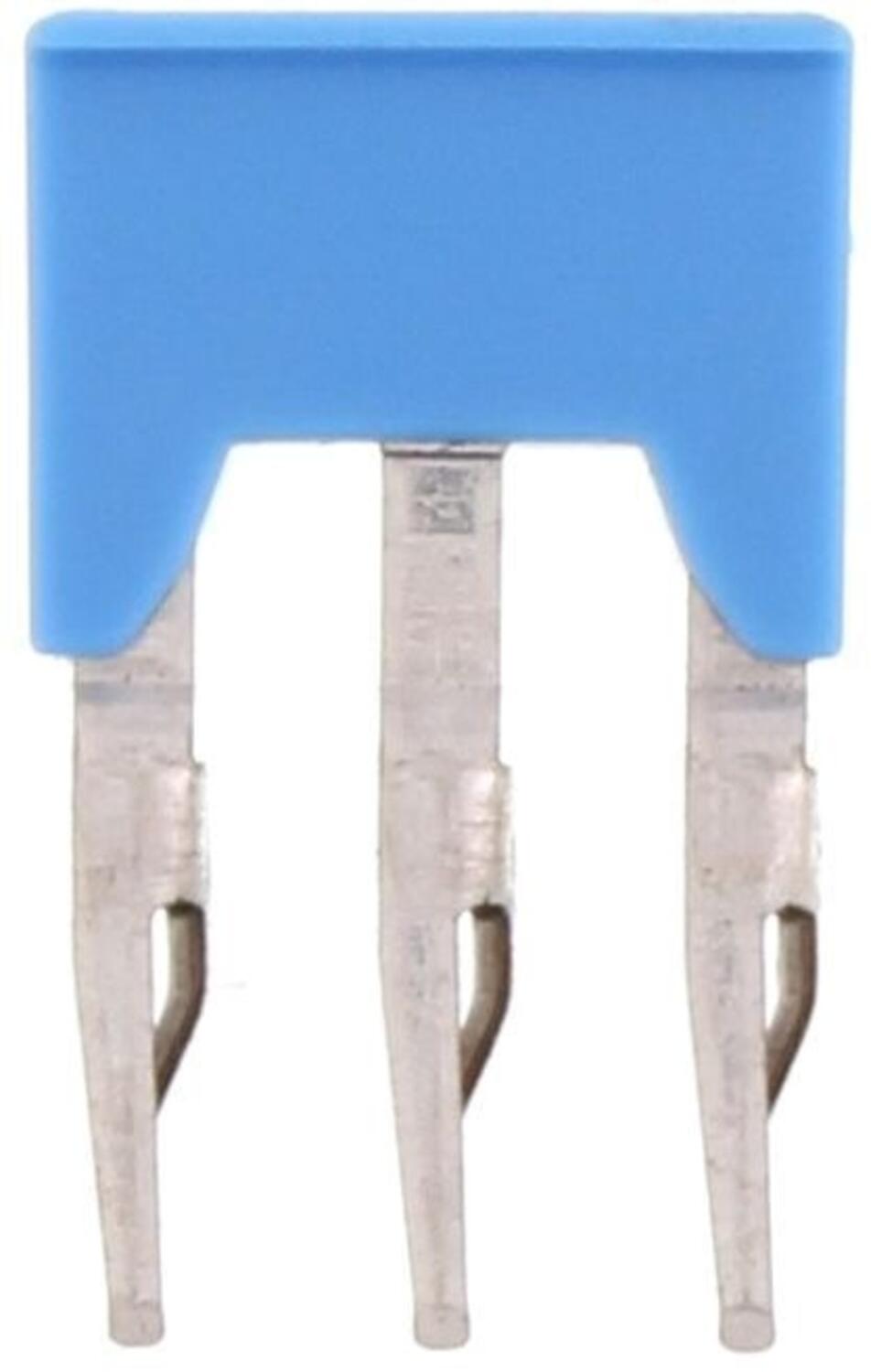

ZQI 4/3 BU, 3 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Blue Art: 3721.5 Copied	4 mm²	Blue	800 V	800 V	32 A	4.5 mm	16.2 mm	6 mm	3	Copper alloy	2.04 g	50
ZQI 4/3 BK, 3 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Black Art: 3721.4 Copied	4 mm²	Black	800 V	800 V	32 A	4.5 mm	16.2 mm	6 mm	3	Copper alloy	2.04 g	50
ZQI 4/4 RD, 4 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Red Art: 3722.9 Copied	4 mm²	Red	800 V	800 V	32 A	4.5 mm	22.3 mm	6 mm	4	Copper alloy	2.79 g	20

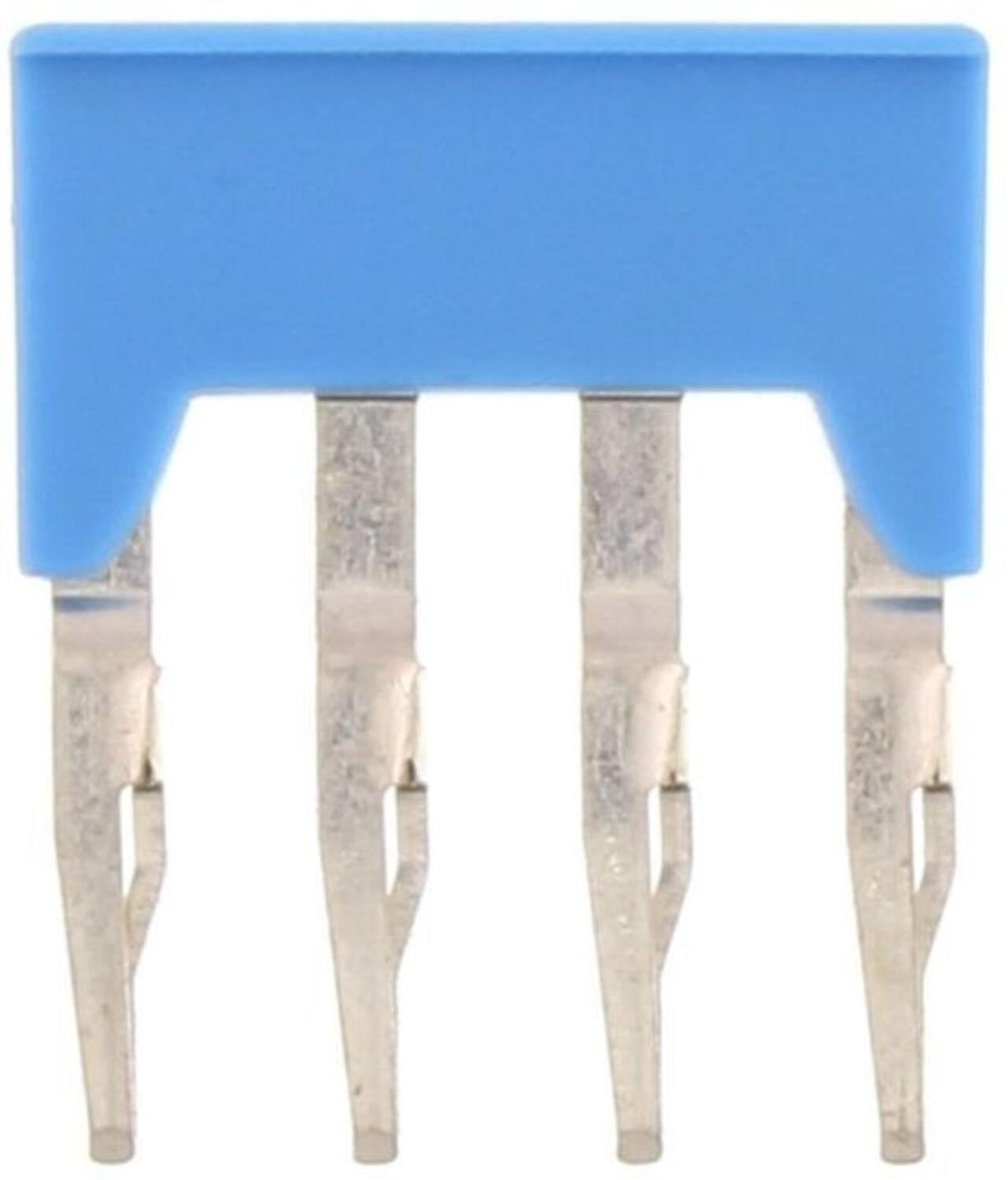

ZQI 4/4 BU, 4 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Blue Art: 3722.5 Copied	4 mm²	Blue	800 V	800 V	32 A	4.5 mm	22.3 mm	6 mm	4	Copper alloy	2.79 g	20

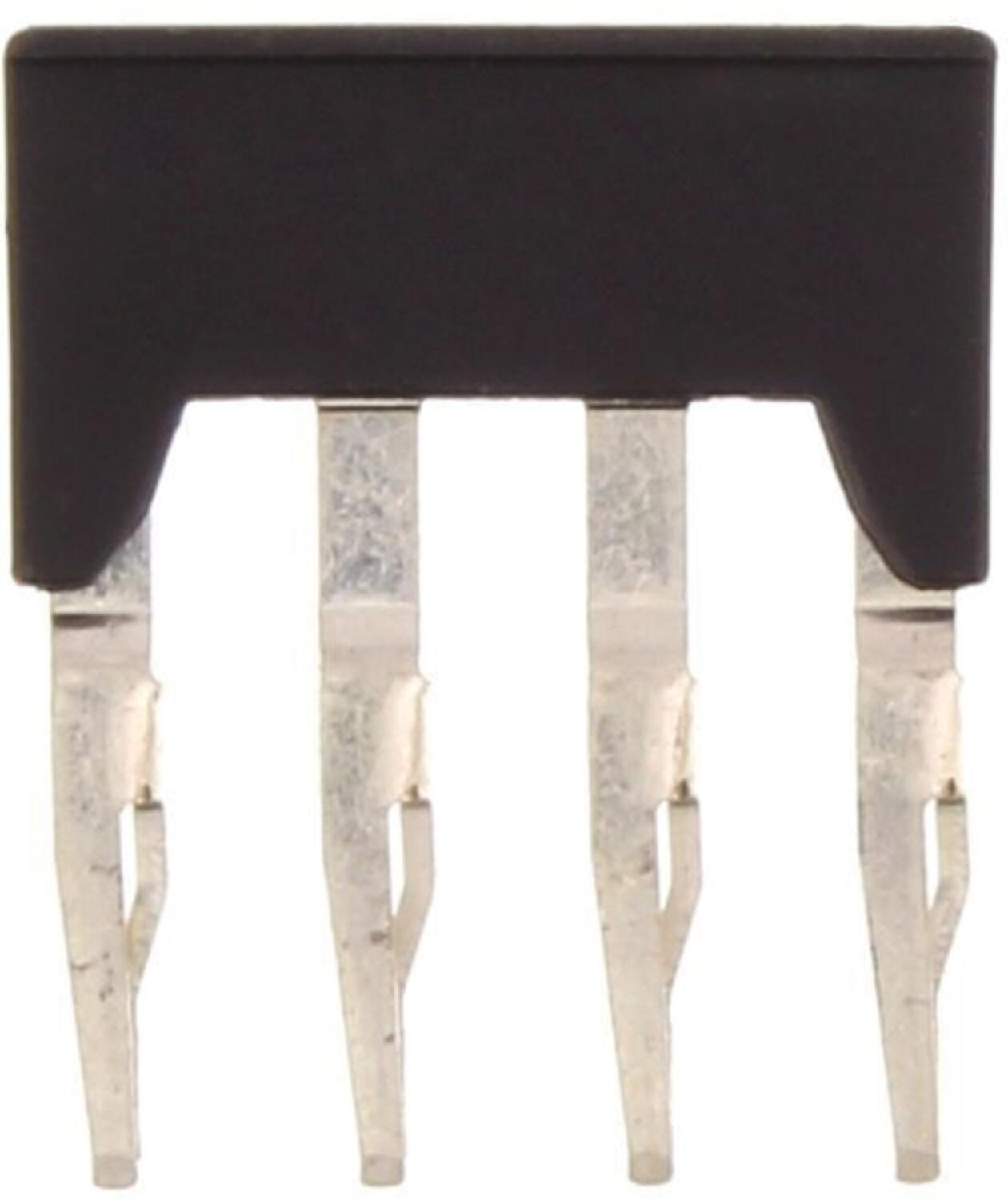

ZQI 4/4 BK, 4 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Black Art: 3722.4 Copied	4 mm²	Black	800 V	800 V	32 A	4.5 mm	22.3 mm	6 mm	4	Copper alloy	2.79 g	20
ZQI 4/5 RD, 5 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Red Art: 3723.9 Copied	4 mm²	Red	800 V	800 V	32 A	4.5 mm	28.4 mm	6 mm	5	Copper alloy	3.6 g	20

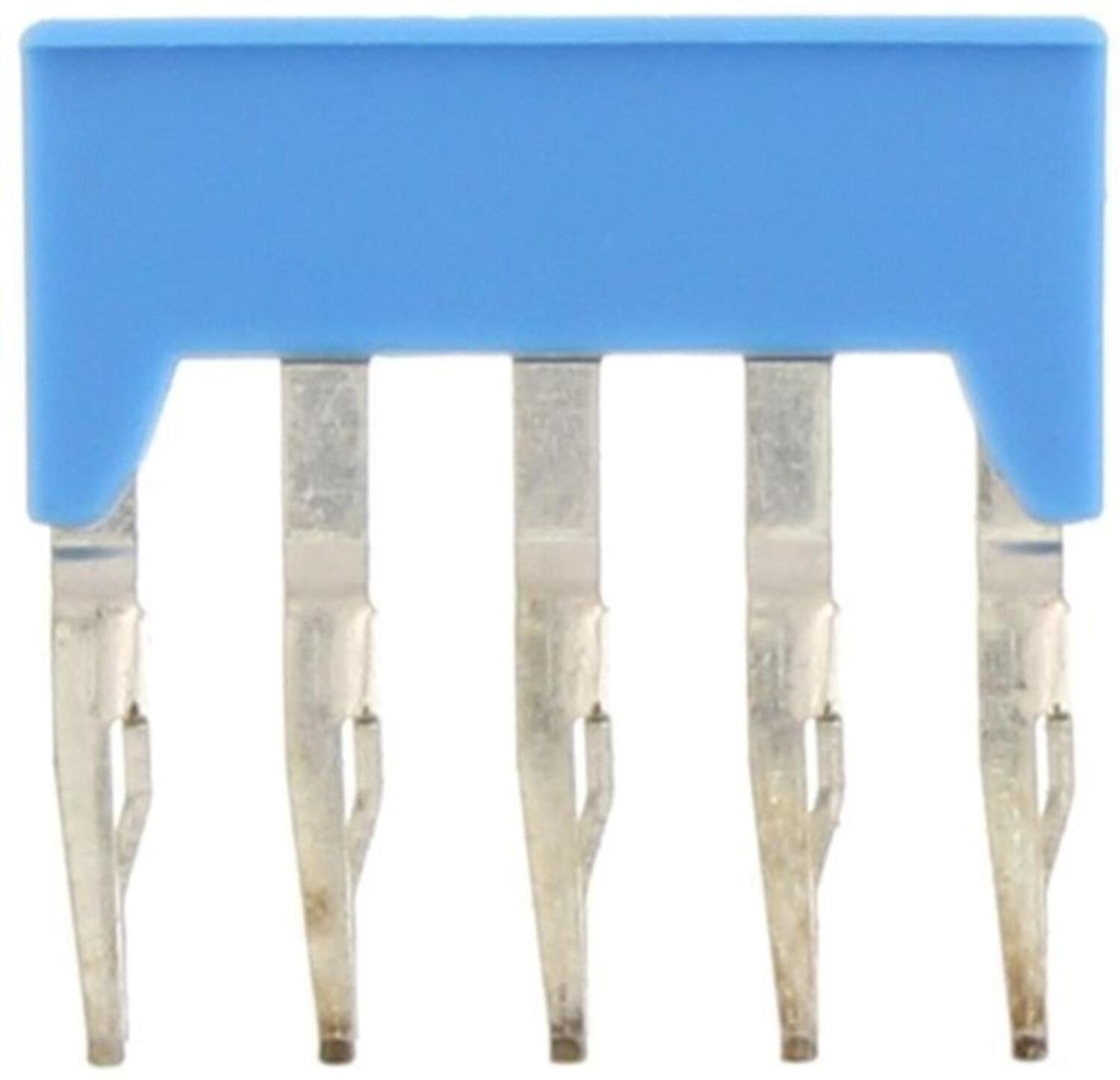

ZQI 4/5 BU, 5 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Blue Art: 3723.5 Copied	4 mm²	Blue	800 V	800 V	32 A	4.5 mm	28.4 mm	6 mm	5	Copper alloy	3.6 g	20

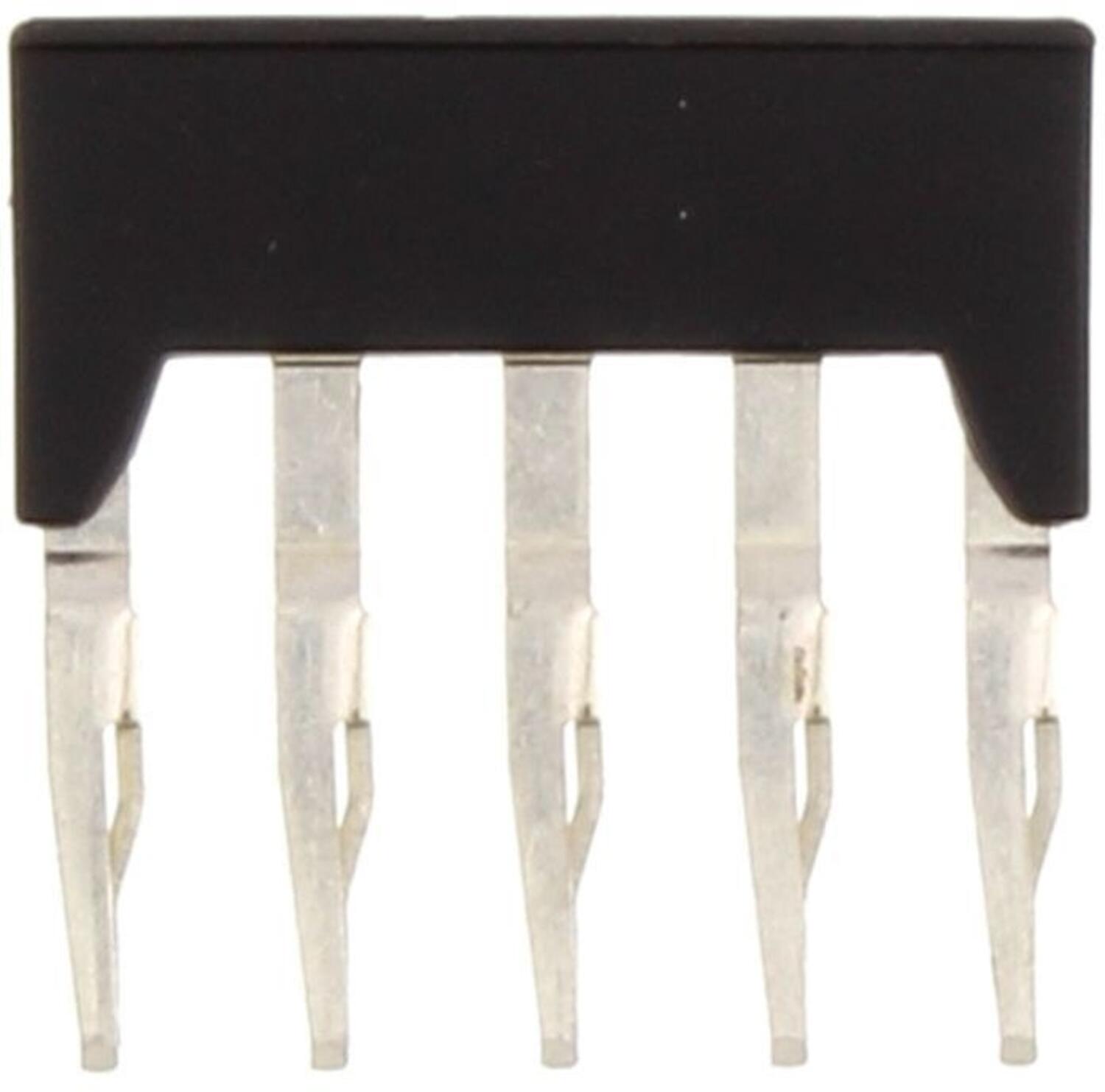

ZQI 4/5 BK, 5 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Black Art: 3723.4 Copied	4 mm²	Black	800 V	800 V	32 A	4.5 mm	28.4 mm	6 mm	5	Copper alloy	3.6 g	20
ZQI 4/6 RD, 6 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Red Art: 3724.9 Copied	4 mm²	Red	800 V	800 V	32 A	4.5 mm	34.5 mm	6 mm	6	Copper alloy	4.3 g	20

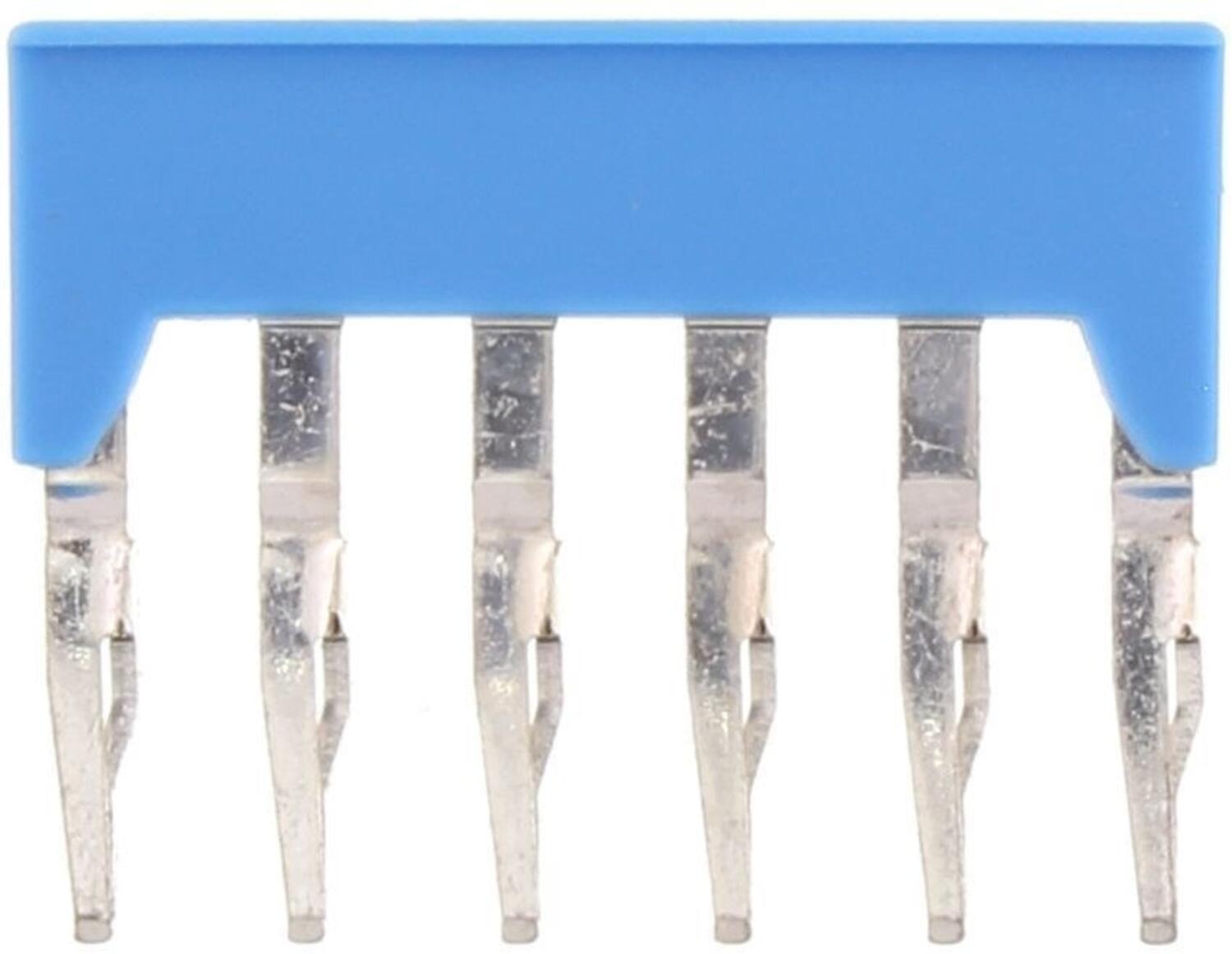

ZQI 4/6 BU, 6 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Blue Art: 3724.5 Copied	4 mm²	Blue	800 V	800 V	32 A	4.5 mm	34.5 mm	6 mm	6	Copper alloy	4.3 g	20
ZQI 4/6 BK, 6 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Black Art: 3724.4 Copied	4 mm²	Black	800 V	800 V	32 A	4.5 mm	34.5 mm	6 mm	6	Copper alloy	4.3 g	20
ZQI 4/7 RD, 7 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Red Art: 3725.9 Copied	4 mm²	Red	800 V	800 V	32 A	4.5 mm	40.6 mm	6 mm	7	Copper alloy	5 g	20
ZQI 4/7 BU, 7 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Blue Art: 3725.5 Copied	4 mm²	Blue	800 V	800 V	32 A	4.5 mm	40.6 mm	6 mm	7	Copper alloy	5 g	20
ZQI 4/7 BK, 7 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Black Art: 3725.4 Copied	4 mm²	Black	800 V	800 V	32 A	4.5 mm	40.6 mm	6 mm	7	Copper alloy	5 g	20
ZQI 4/8 BU, 2 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Blue Art: 3726.5 Copied	4 mm²	Blue	800 V	800 V	32 A	4.5 mm	46.7 mm	6 mm	8	Copper alloy	5.83 g	10
ZQI 4/8 BK, 8 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Black Art: 3726.4 Copied	4 mm²	Black	800 V	800 V	32 A	4.5 mm	46.7 mm	6 mm	8	Copper alloy	5.83 g	10
ZQI 4/8 RD, 8 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Red Art: 3726.9 Copied	4 mm²	Red	800 V	800 V	32 A	4.5 mm	46.7 mm	6 mm	8	Copper alloy	5.83 g	10
ZQI 4/9 RD, 9 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Red Art: 3727.9 Copied	4 mm²	Red	800 V	800 V	32 A	4.5 mm	52.8 mm	6 mm	9	Copper alloy	6.54 g	10
ZQI 4/9 BU, 2 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Blue Art: 3727.5 Copied	4 mm²	Blue	800 V	800 V	32 A	4.5 mm	52.8 mm	6 mm	9	Copper alloy	6.54 g	10
ZQI 4/9 BK, 9 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Black Art: 3727.4 Copied	4 mm²	Black	800 V	800 V	32 A	4.5 mm	52.8 mm	6 mm	9	Copper alloy	6.54 g	10
ZQI 4/10 RD, 10 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Red Art: 3728.9 Copied	4 mm²	Red	800 V	800 V	32 A	4.5 mm	58.9 mm	6 mm	10	Copper alloy	7.28 g	10
ZQI 4/10 BU, 10 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Blue Art: 3728.5 Copied	4 mm²	Blue	800 V	800 V	32 A	4.5 mm	58.9 mm	6 mm	10	Copper alloy	7.28 g	10

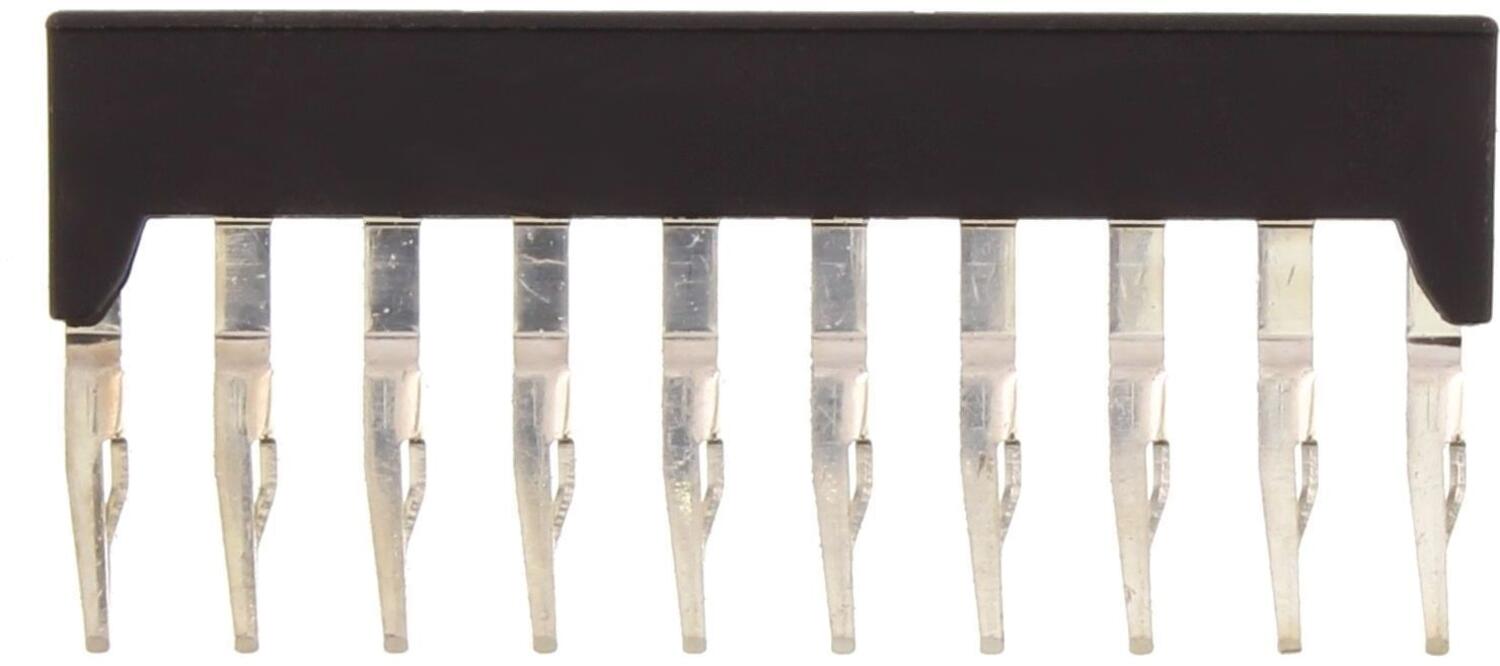

ZQI 4/10 BK, 10 Way Cross Connector for 4mm ZSRK/ZRK/ZSL - Black Art: 3728.4 Copied	4 mm²	Black	800 V	800 V	32 A	4.5 mm	58.9 mm	6 mm	10	Copper alloy	7.28 g	10
ZQI 6/2 RD, 2 Way Cross Connector for 6mm ZSRK/ZRK/ZSL - Red Art: 3763.9 Copied	6 mm²	Red	800 V	800 V	41 A	7 mm	15.7 mm	8 mm	2	Copper alloy	3.4 g	50
ZQI 6/2 BU, 2 Way Cross Connector for 6mm ZSRK/ZRK/ZSL - Blue Art: 3763.5 Copied	6 mm²	Blue	800 V	800 V	41 A	7 mm	15.7 mm	8 mm	2	Copper alloy	3.4 g	50
ZQI 6/3 RD, 3 Way Cross Connector for 6mm ZSRK/ZRK/ZSL - Red Art: 3764.9 Copied	6 mm²	Red	800 V	800 V	41 A	7 mm	23.8 mm	8 mm	3	Copper alloy	5 g	50
ZQI 6/3 BU, 3 Way Cross Connector for 6mm ZSRK/ZRK/ZSL - Blue Art: 3764.5 Copied	6 mm²	Blue	800 V	800 V	41 A	7 mm	23.8 mm	8 mm	3	Copper alloy	5 g	50
