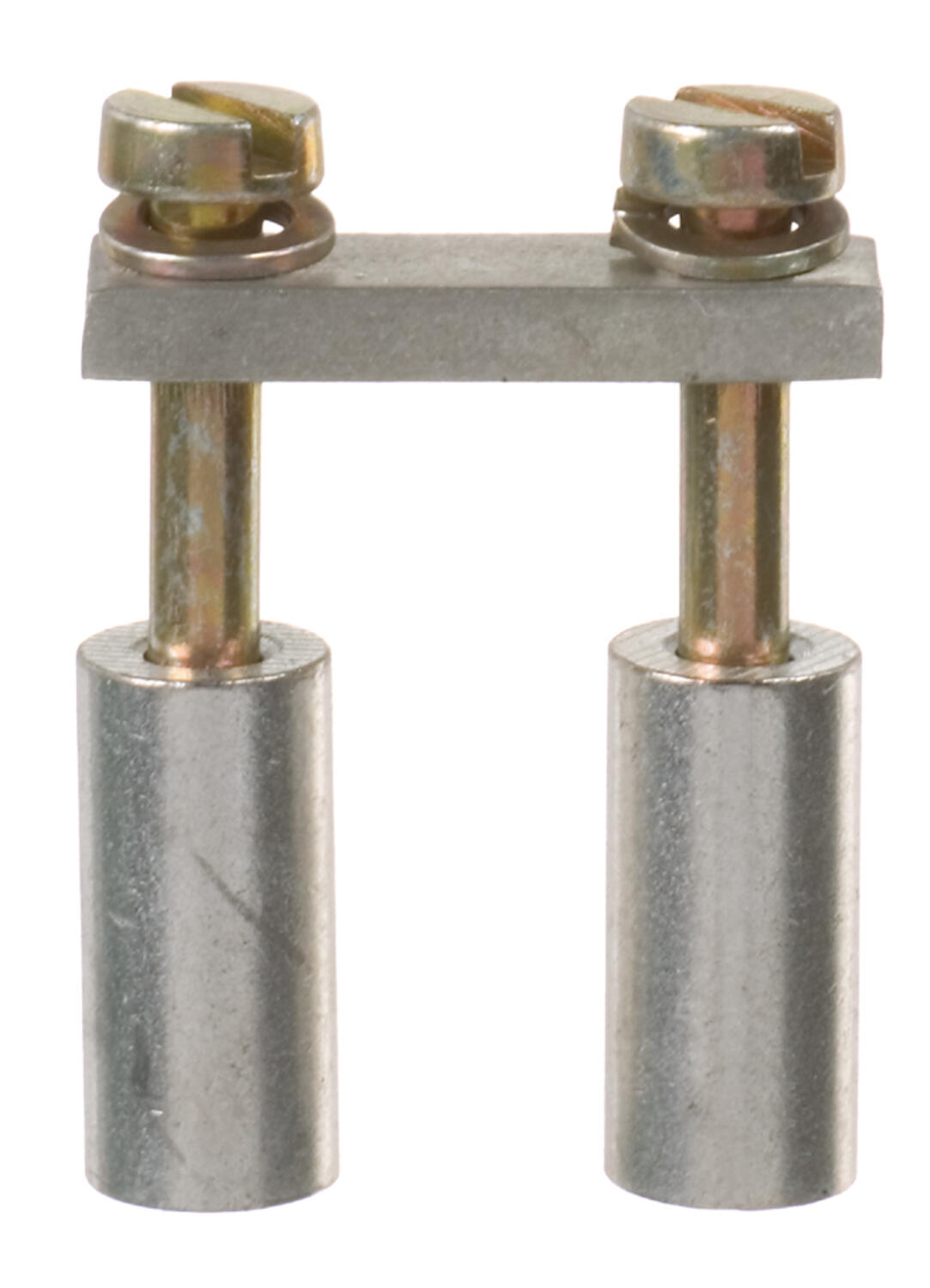

The Q/QI screwable cross-connector system allows you to quickly link terminal blocls of the same size.
The QI range is touch-safe and are generally available in 2, 3, 4 or 10 poles, some variants have up to 98 poles, which can be cut down as required.
With both ranges it is possible to 'skip' over terminals by breaking out the conductor (QI) or removing the screw and sleeve (Q).
General data |
|
|---|---|
| Rated wire cross section | 2.5 mm² |
| Max voltage with partition | 800 V |
| Max voltage without partition | 400 V |
| Rated current IEC | 20 A |
| Mounting | Screw in |
| Contamination degree | 3 |
| Additional information | for RK 2,5 | KBL 2,5 | RKD 2,5 | KBLD 2,5 |
Dimensions |
|
| Length | 4 mm |
| Width | 9.1 mm |
| Distance to hole centres | 5.1 mm |
| Pitch | 5 mm |
| Hole diameter | 2.8 mm |
Connection data |
|
|---|---|
| Number of poles | 2 |
| Screw size | M 2,5 |
| Screw type | Slotted |
| Torque min | 0.4 |
| Torque max | 0.8 |
Materials |
|
| Material | Copper |
Additional data |
|
| Tariff code | 85369010 |
| Country of origin | DE |
| Weight | 2.2 g |
| Pack size | 50 |
The Q/QI screwable cross-connector system allows you to quickly link terminal blocls of the same size.
The QI range is touch-safe and are generally available in 2, 3, 4 or 10 poles, some variants have up to 98 poles, which can be cut down as required.
With both ranges it is possible to 'skip' over terminals by breaking out the conductor (QI) or removing the screw and sleeve (Q).
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Rated wire cross section | Colour | Max voltage with partition | Max voltage without partition | Rated current IEC | Mounting | Contamination degree | Additional information | Length | Width | Height | Distance to hole centres | Pitch | Hole diameter | Number of poles | Screw size | Screw type | Torque min | Torque max | Material | Insulation material | Flammability class | Operating temperature from | Operating temperature to | Tariff code | Country of origin | Weight | Pack size | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

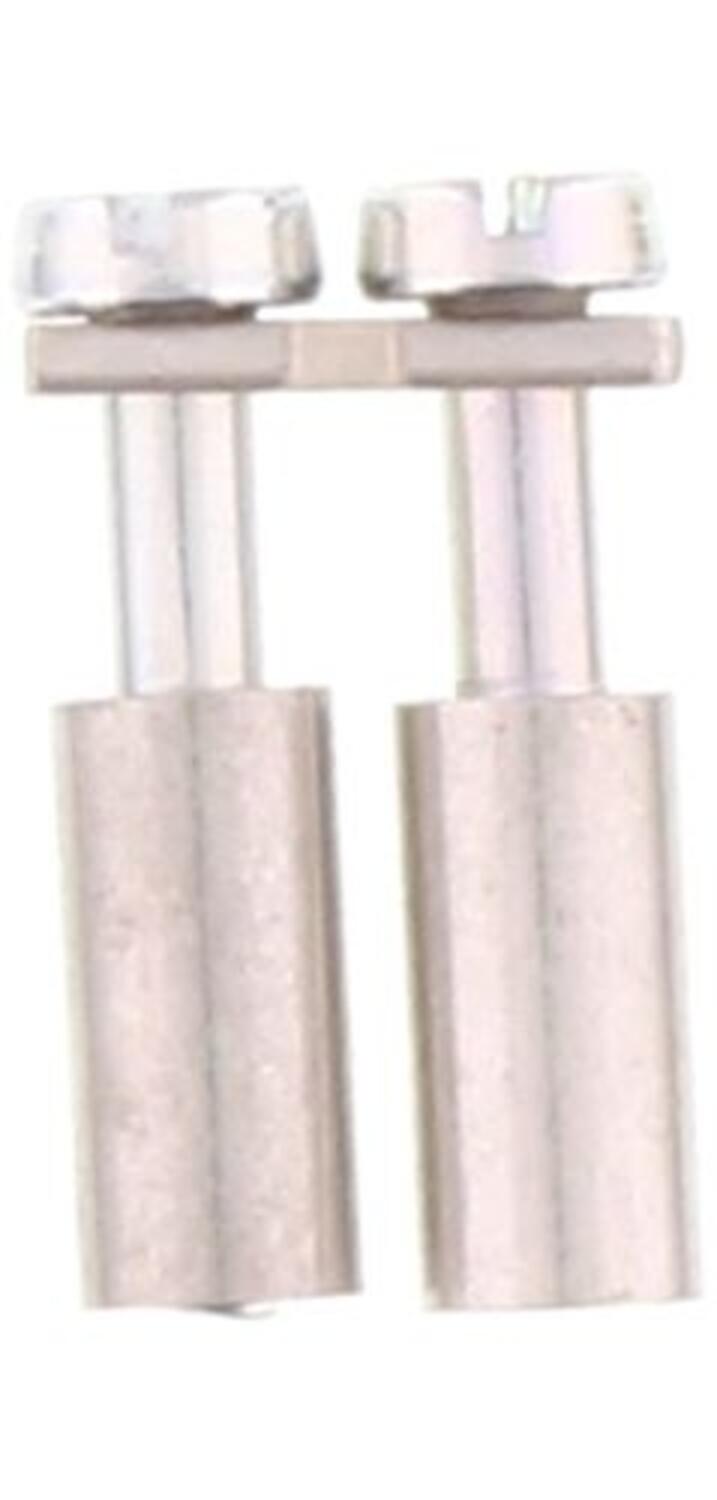

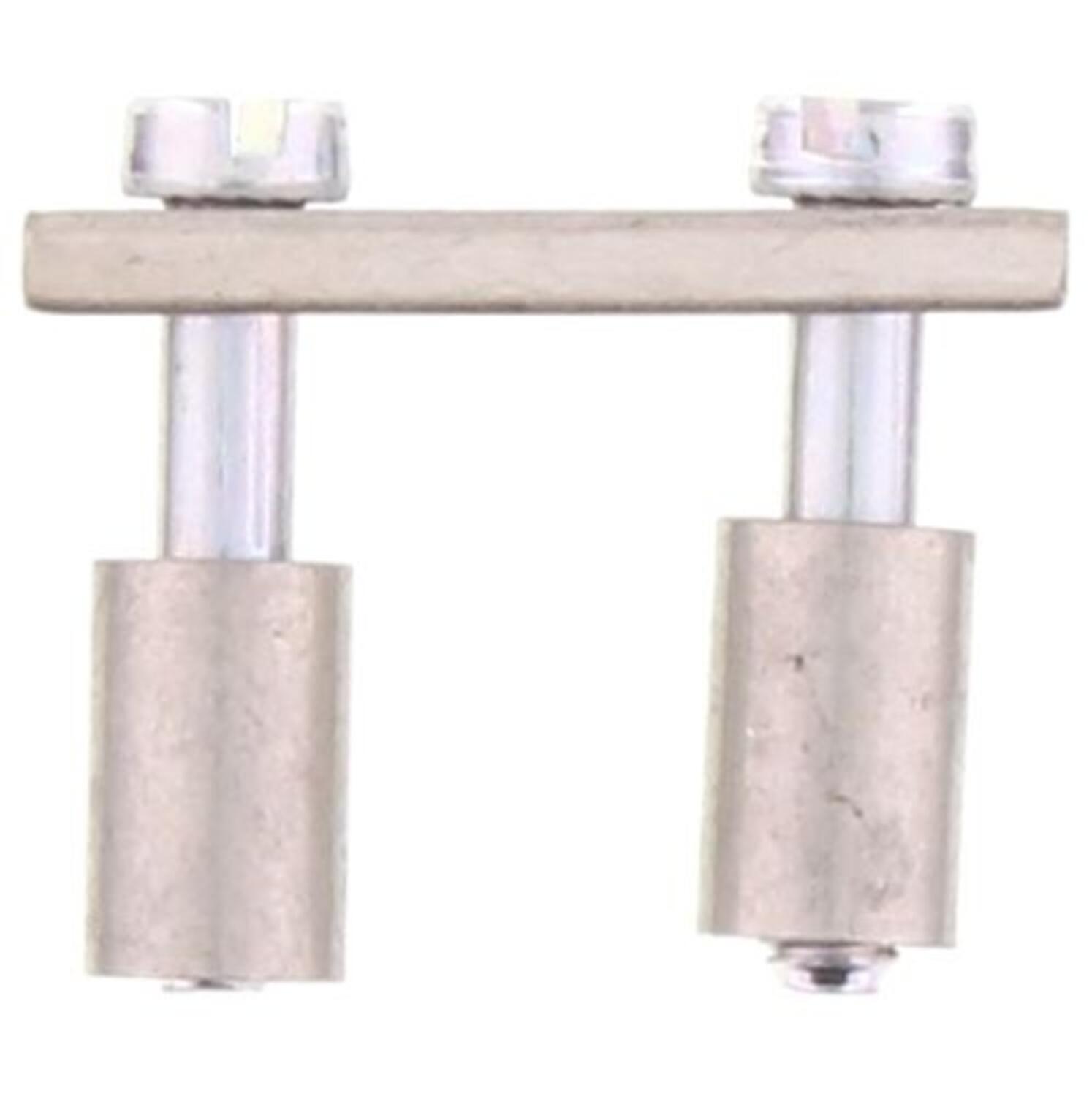

Q 2 - 2 pole cross connector for RK/RKD 2.5
Art:
2567.0
Copied
|
2.5 mm²
|
|
800 V
|
400 V
|
20 A
|
Screw in
|
3
|
for RK 2,5 | KBL 2,5 | RKD 2,5 | KBLD 2,5
|
4 mm
|
9.1 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
2
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
2.2 g
|
50
|
|
||

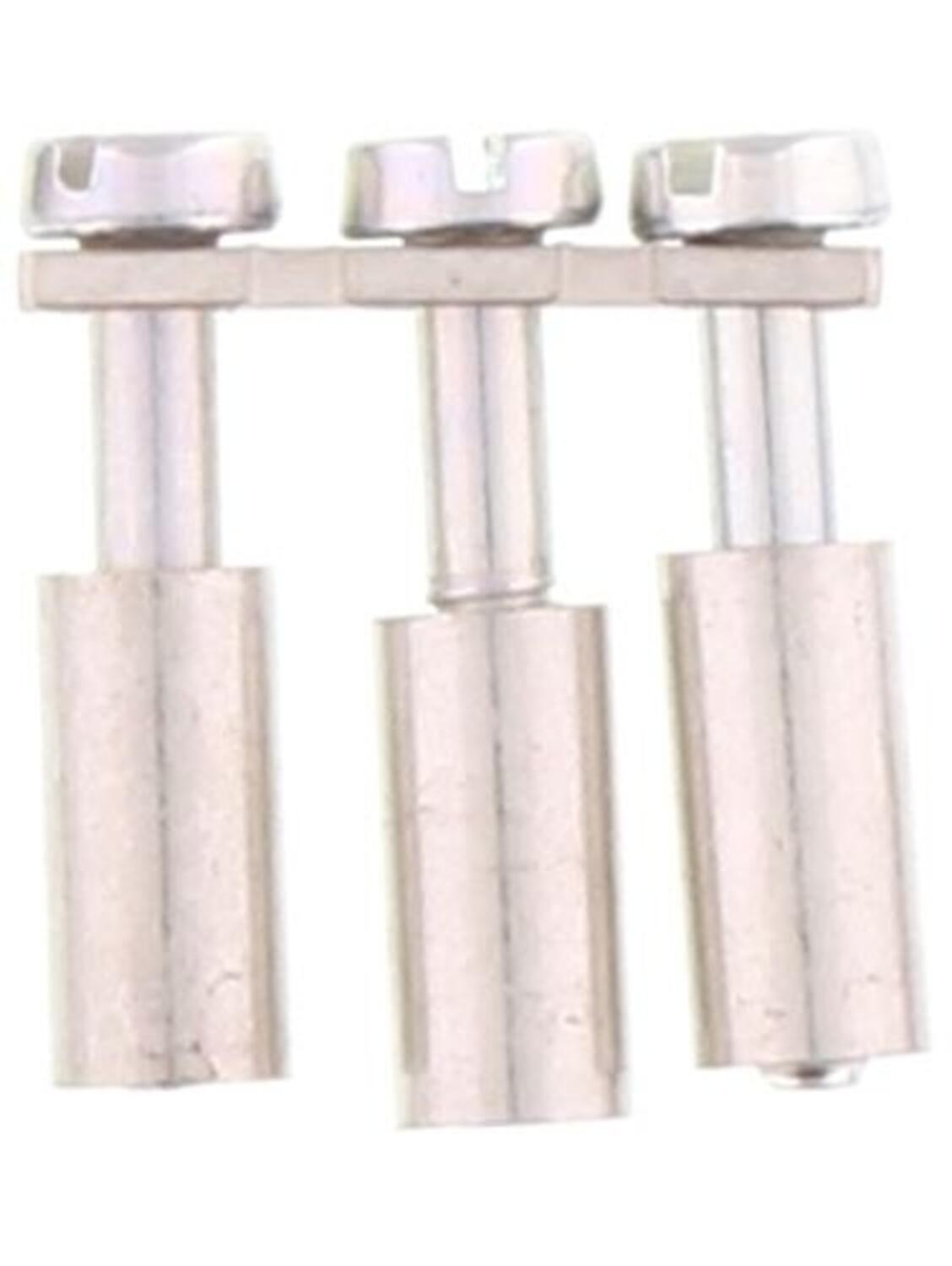

Q 3 - 3 pole cross connector for RK/RKD 2.5
Art:
2568.0
Copied
|
2.5 mm²
|
|
800 V
|
400 V
|
20 A
|
Screw in
|
3
|
for RK 2,5 | KBL 2,5 | RKD 2,5 | KBLD 2,5
|
4 mm
|
14.2 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
3
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
3.36 g
|
50
|
|
||

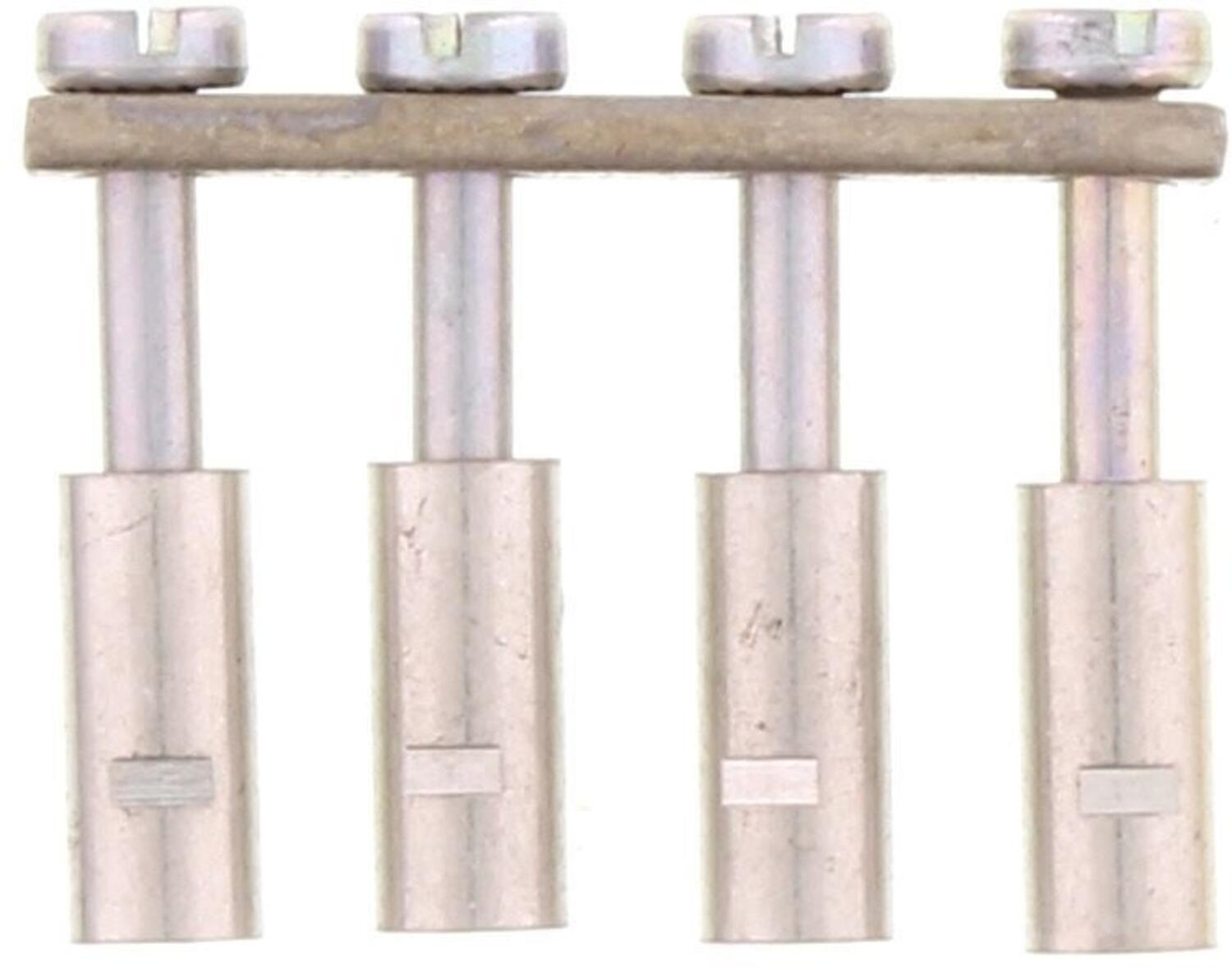

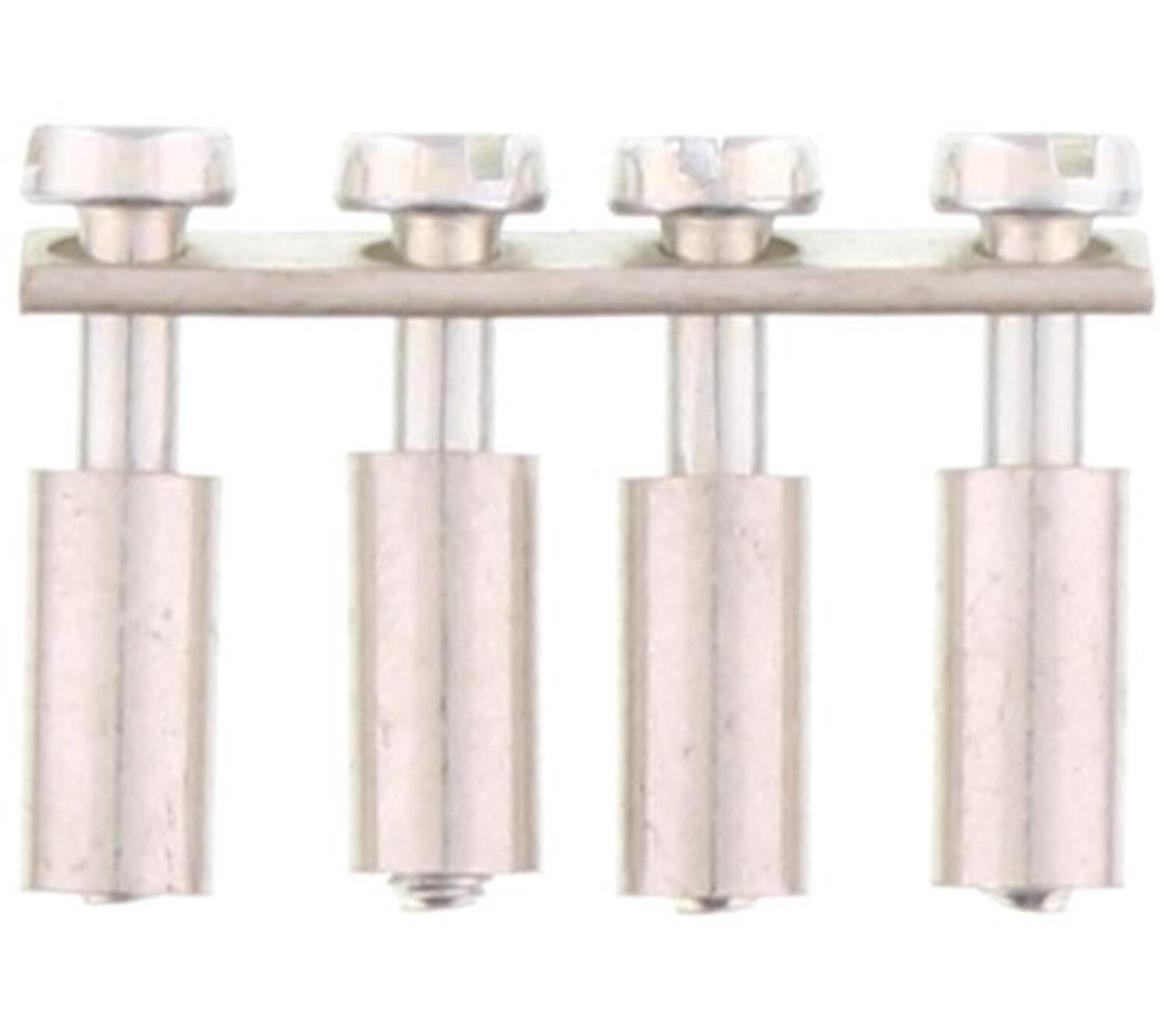

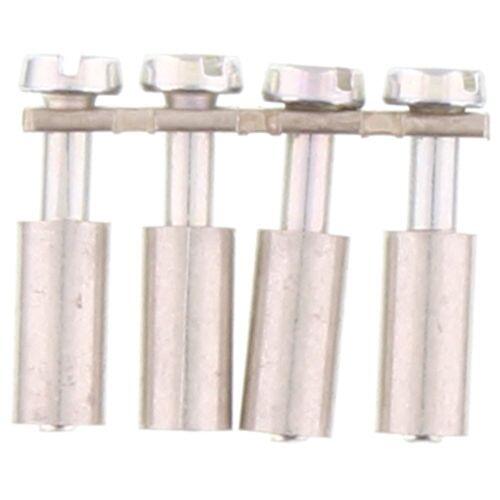

Q 4 - 4 pole cross connector for RK/RKD 2.5
Art:
2569.0
Copied
|
2.5 mm²
|
|
800 V
|
400 V
|
20 A
|
Screw in
|
3
|
for RK 2,5 | KBL 2,5 | RKD 2,5 | KBLD 2,5
|
4 mm
|
19.3 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
4
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
4.4 g
|
20
|
|
||

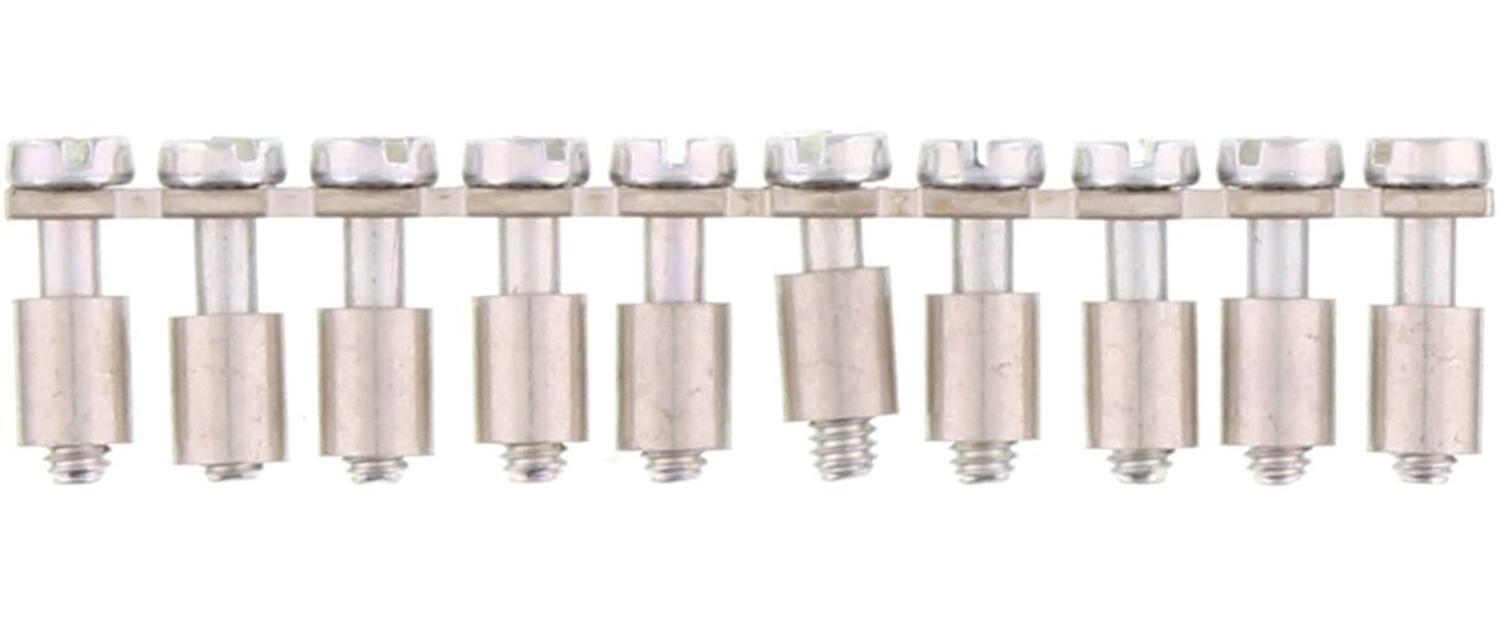

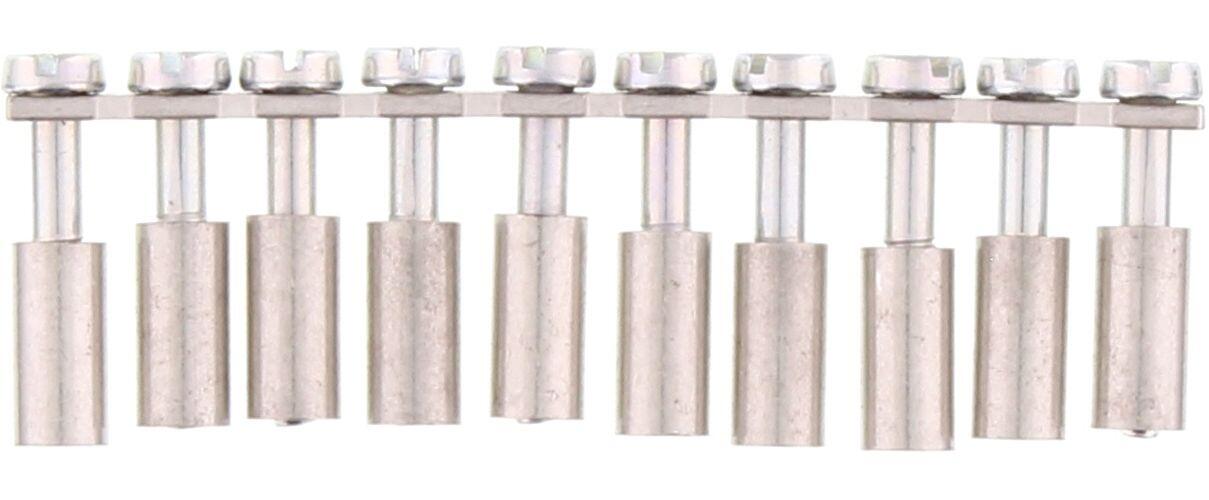

Q 10 - 10 pole cross connector for RK/RKD 2.5
Art:
2570.0
Copied
|
2.5 mm²
|
|
800 V
|
400 V
|
20 A
|
Screw in
|
3
|
for RK 2,5 | KBL 2,5 | RKD 2,5 | KBLD 2,5
|
4 mm
|
49.9 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
10
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
11 g
|
10
|
|
||

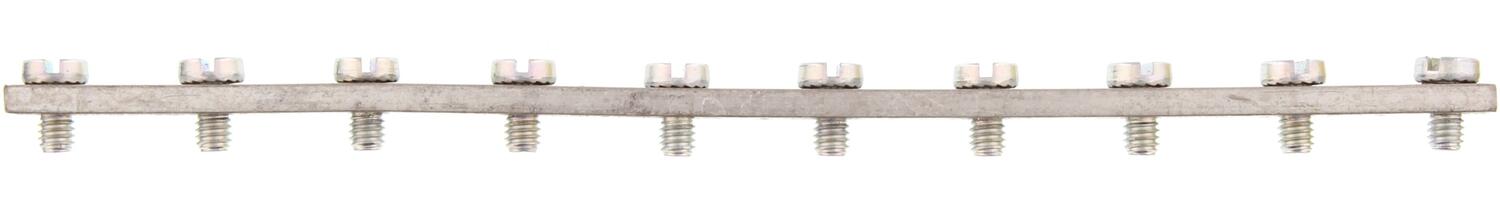

Q 0.5 m - 98 pole cross connector for RK/RKD 2.5
Art:
2152.0
Copied
|
2.5 mm²
|
|
800 V
|
400 V
|
20 A
|
|
3
|
for RK 2,5 | KBL 2,5 | RKD 2,5 | KBLD 2,5
|
4 mm
|
500 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
98
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
111.26 g
|
1
|
|
||

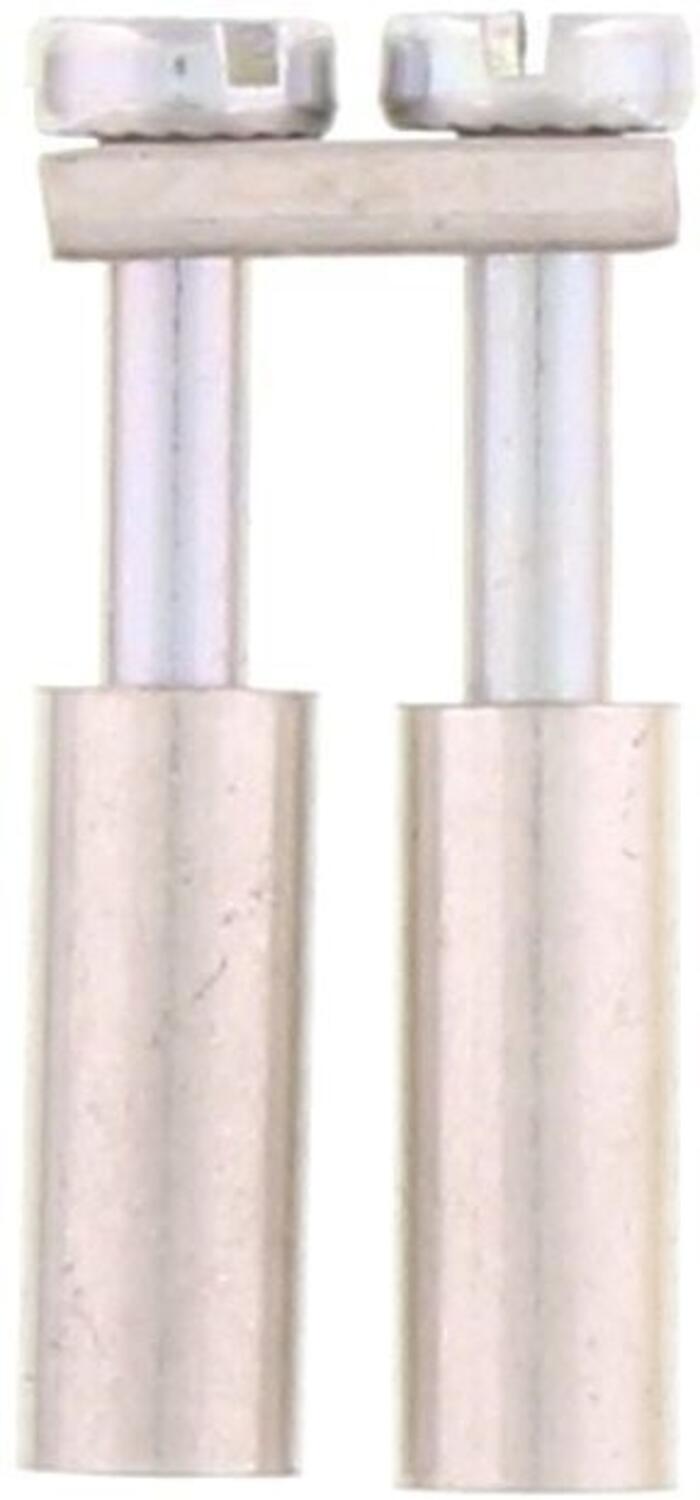

Q 2 - 2 pole cross connector for RK 2.5 - 4
Art:
2019.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
27 A
|
Screw in
|
3
|
for RK 2,5-4…| KBL 2,5-4 | FF 2,5 | SF 2,5
|
6 mm
|
10.9 mm
|
|
6.1 mm
|
6 mm
|
3.4 mm
|
2
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
|
|
|
|
85369010
|
DE
|
5.41 g
|
50
|
|
||

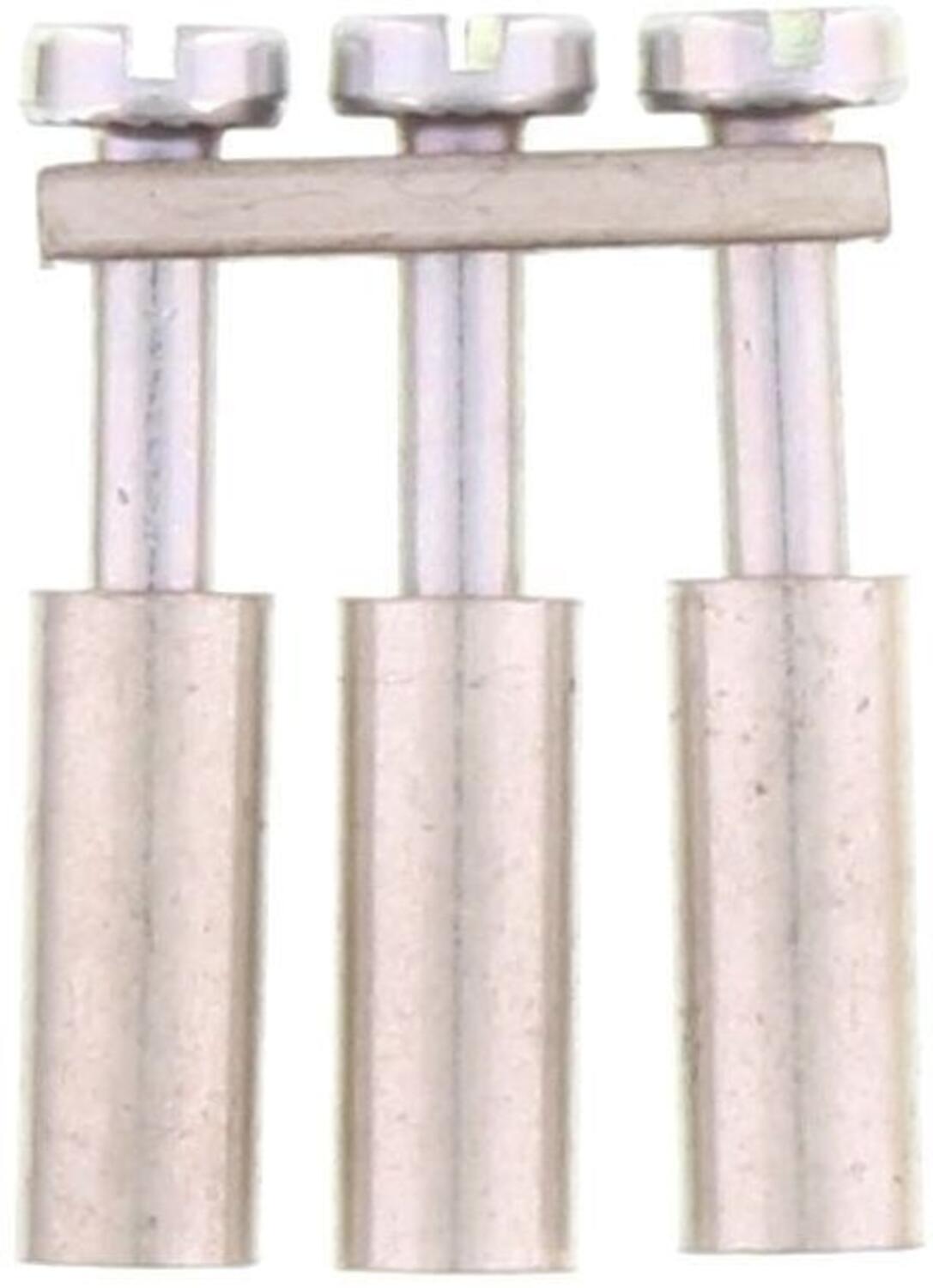

Q 3 - 3 pole cross connector for RK 2.5 - 4
Art:
2020.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
27 A
|
Screw in
|
3
|
for RK 2,5-4…| KBL 2,5-4 | FF 2,5 | SF 2,5
|
6 mm
|
17 mm
|
|
6.1 mm
|
6 mm
|
3.4 mm
|
3
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
|
|
|
|
85369010
|
DE
|
8.26 g
|
50
|
|
||

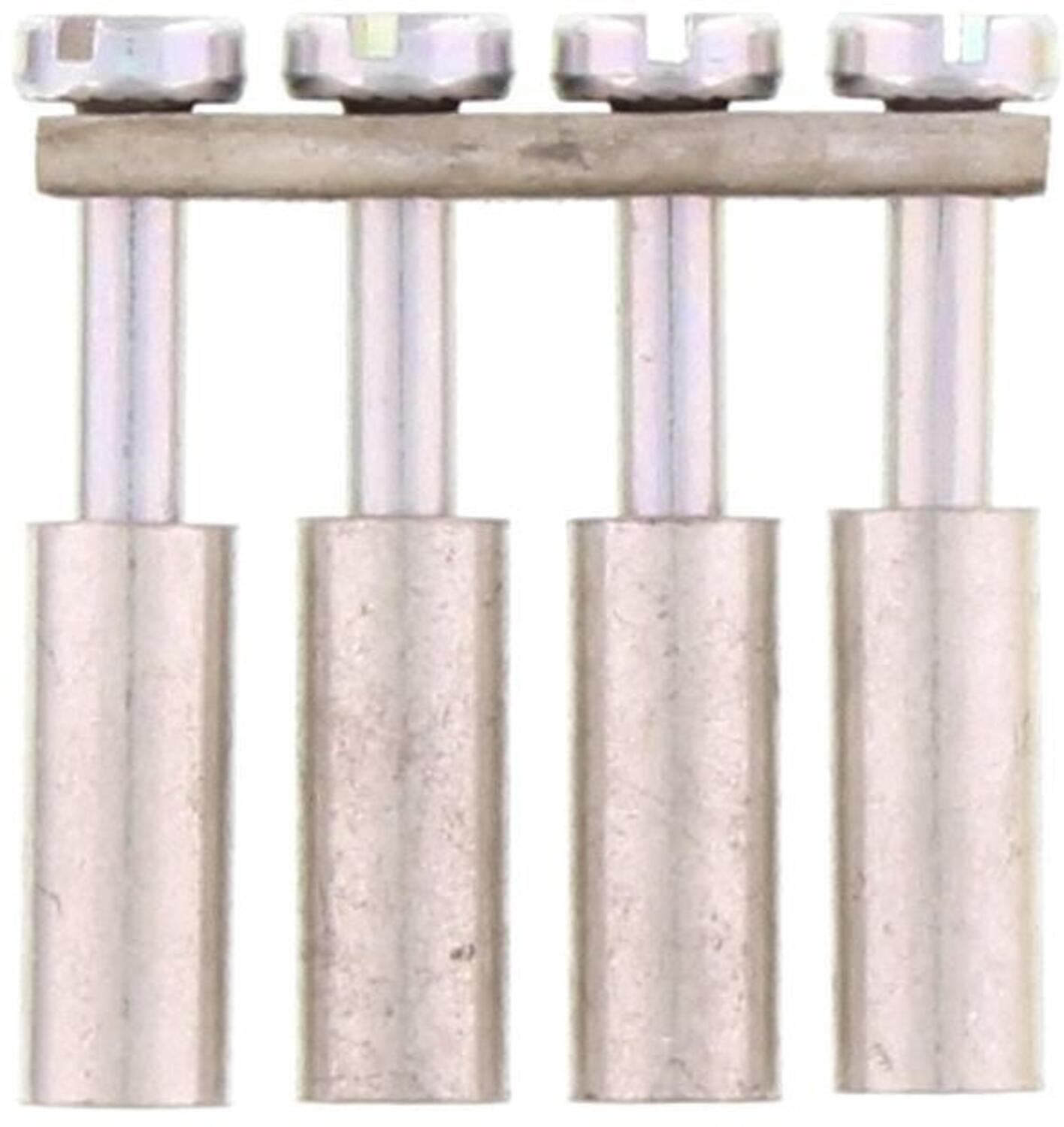

Q 4 - 4 pole cross connector for RK 2.5 - 4
Art:
2021.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
27 A
|
Screw in
|
3
|
for RK 2,5-4…| KBL 2,5-4 | FF 2,5 | SF 2,5
|
6 mm
|
23.1 mm
|
|
6.1 mm
|
6 mm
|
3.4 mm
|
4
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
|
|
|
|
85369010
|
DE
|
11.16 g
|
20
|
|
||

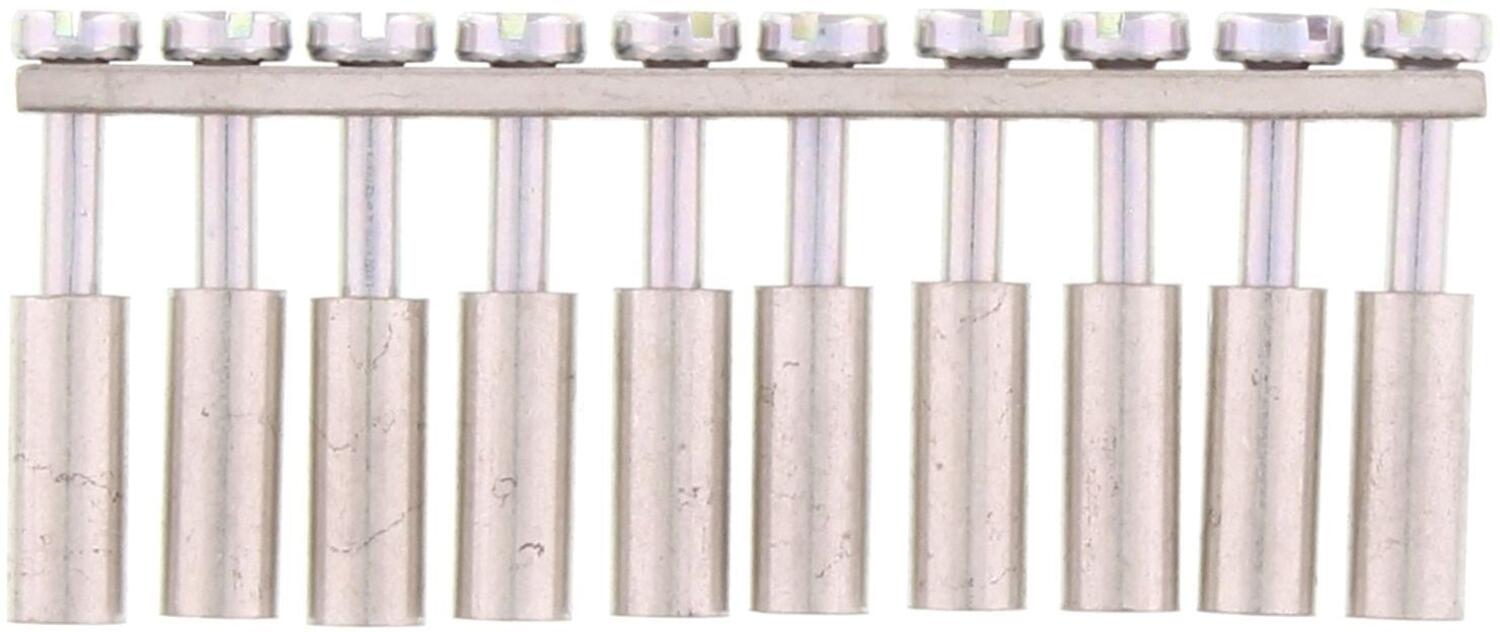

Q 10 - 10 pole cross connector for RK 2.5 - 4
Art:
2022.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
27 A
|
Screw in
|
3
|
for RK 2,5-4…| KBL 2,5-4 | FF 2,5 | SF 2,5
|
6 mm
|
59.7 mm
|
|
6.1 mm
|
6 mm
|
3.4 mm
|
10
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
|
|
|
|
85369010
|
DE
|
28.01 g
|
10
|
|
||

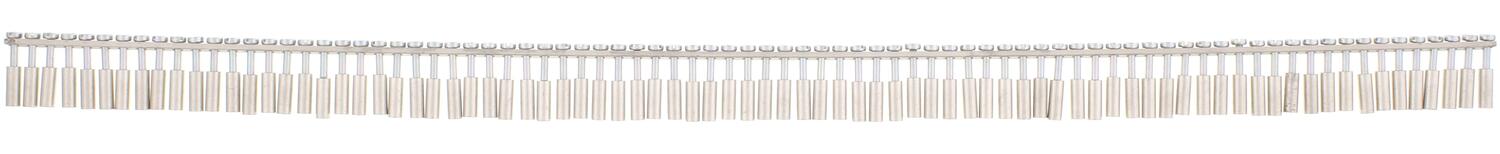

Q 0.5 m - 82 pole cross connector for RK 2.5 - 4
Art:
2153.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
27 A
|
|
3
|
for RK 2,5-4…| KBL 2,5-4 | FF 2,5 | SF 2,5
|
6 mm
|
500 mm
|
|
6.1 mm
|
6 mm
|
3.4 mm
|
82
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
|
|
|
|
85369010
|
DE
|
227 g
|
1
|
|
||

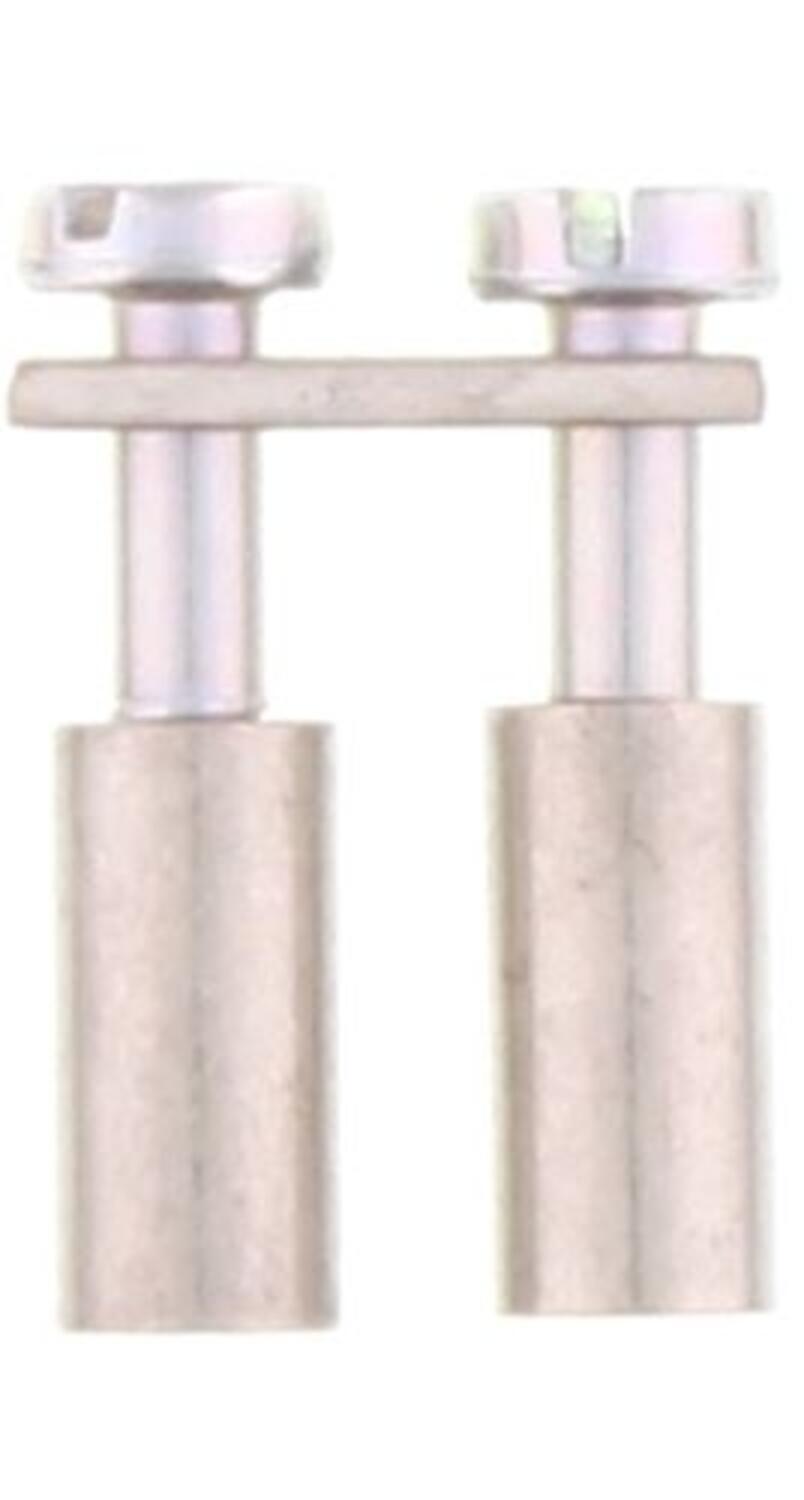

Q 2 - 2 pole cross connector for RK 1.5 - 4/RKD4/RKDG
Art:
2087.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
20 A
|
Screw in
|
3
|
for RK 1,5-4… | KBL 1,5-4… | RKD 4
|
4 mm
|
10.5 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
2
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
2.3 g
|
50
|
|
||

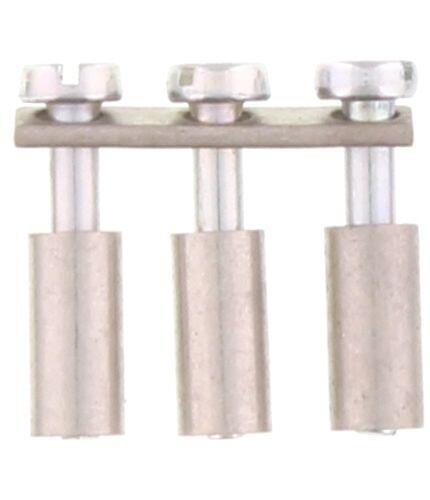

Q 3 - 3 pole cross connector for RK 1.5 - 4/RKD4/RKDG
Art:
2088.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
20 A
|
Screw in
|
3
|
for RK 1,5-4… | KBL 1,5-4… | RKD 4
|
4 mm
|
16.6 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
3
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
3.45 g
|
50
|
|
||
Q 4 - 4 pole cross connector for RK 1.5 - 4/RKD4/RKDG
Art:
2089.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
20 A
|
Screw in
|
3
|
for RK 1,5-4… | KBL 1,5-4… | RKD 4
|
4 mm
|
22.7 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
4
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
4.65 g
|
20
|
|
||

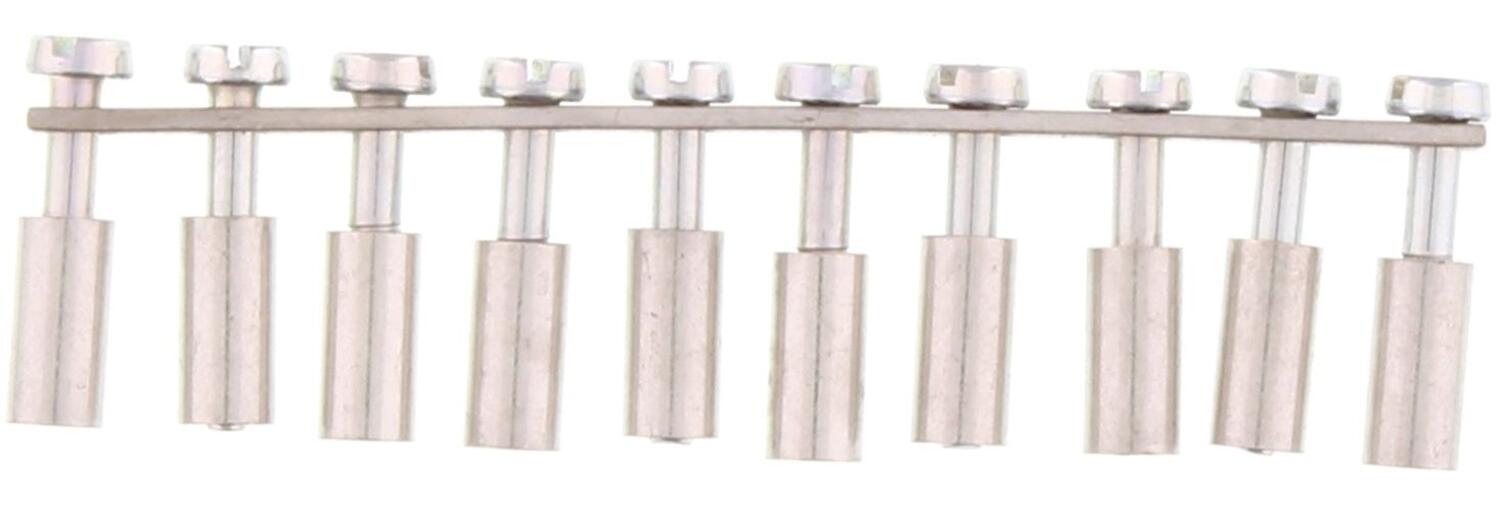

Q 10 - 10 pole cross connector for RK 1.5 - 4/RKD4/RKDG
Art:
2090.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
20 A
|
Screw in
|
3
|
für RK 1,5-4 | KBL 1,5-4 | RKD 4
|
4 mm
|
59.3 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
10
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
11.8 g
|
10
|
|
||
|
Q 0.5 m - 82 pole cross connector for RK 1.5 - 4/RKD4/RKDG
Art:
2150.0
Copied
|
4 mm²
|
|
800 V
|
400 V
|
20 A
|
|
3
|
for RK 1,5-4… | KBL 1,5-4… | RKD 4
|
4 mm
|
500 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
82
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
97 g
|
1
|
|
||

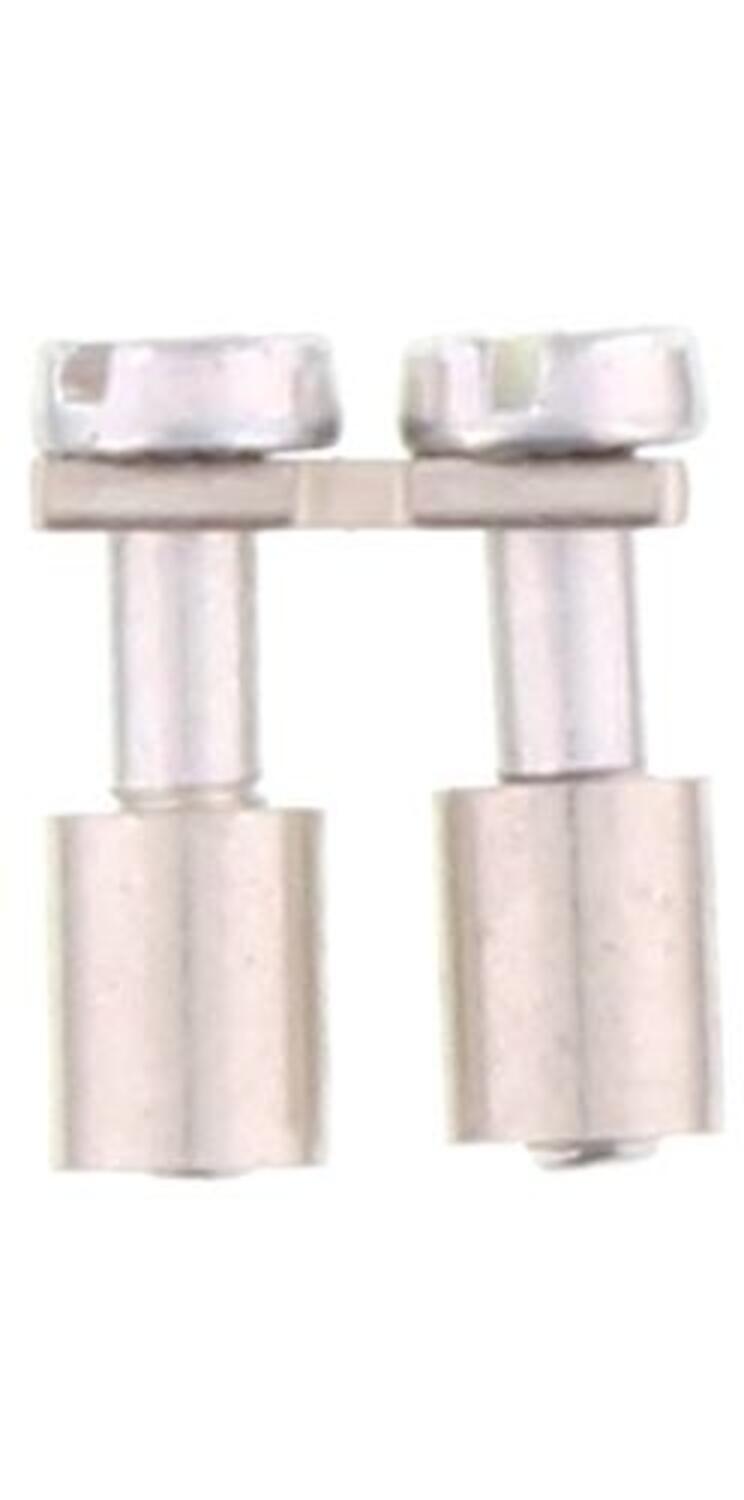

Q 2 - 2 pole cross connector for SRK/IK/IKD 2.5
Art:
2422.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for SRK 2,5 (1.gen.) | IK 2,5 | IKD 2,5
|
4 mm
|
9.1 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
2
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
1.6 g
|
50
|
|
||

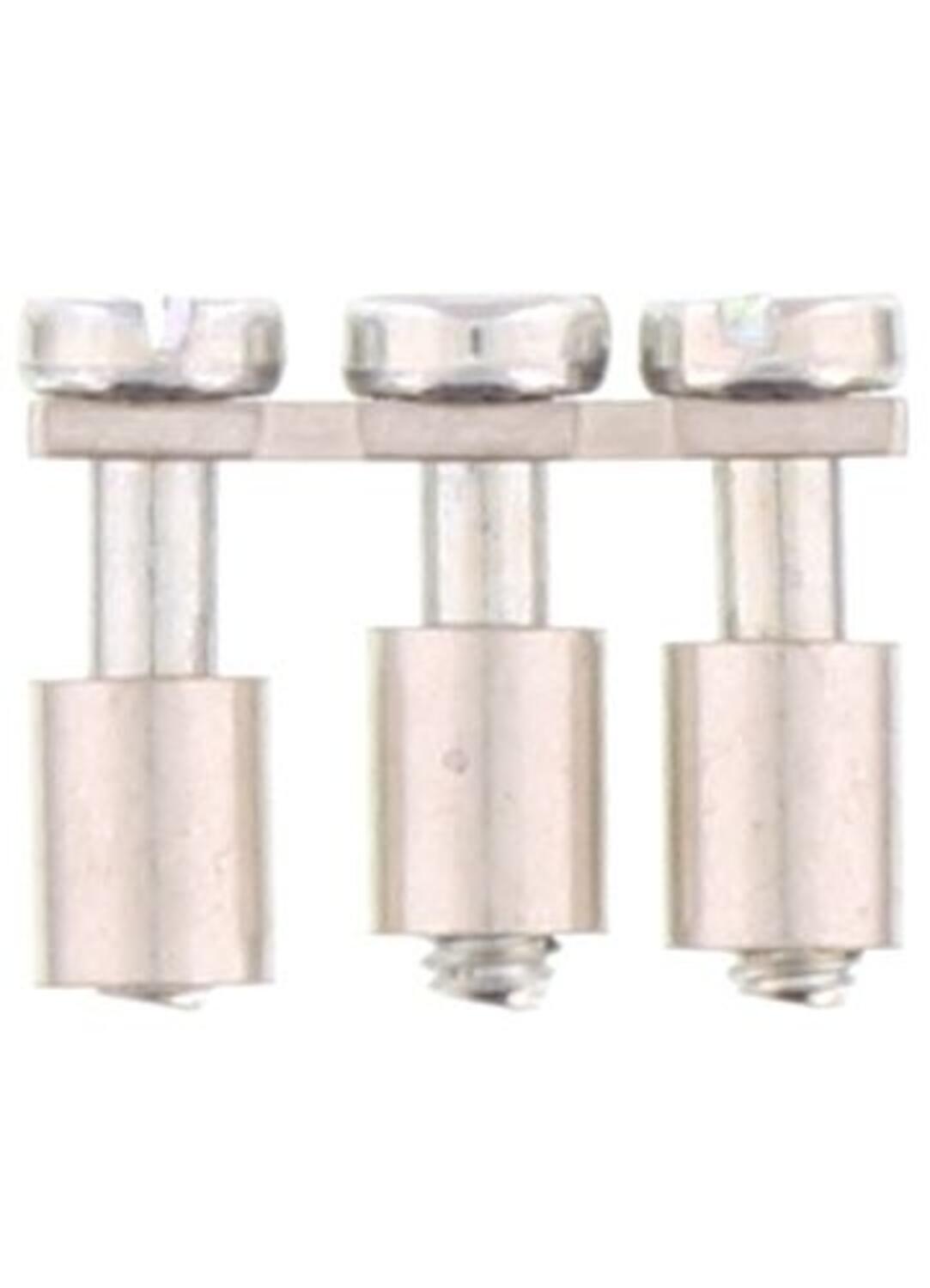

Q 3 - 3 pole cross connector for SRK/IK/IKD 2.5
Art:
2423.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for SRK 2,5 (1.gen.) | IK 2,5 | IKD 2,5
|
4 mm
|
14.2 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
3
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
2.42 g
|
50
|
|
||

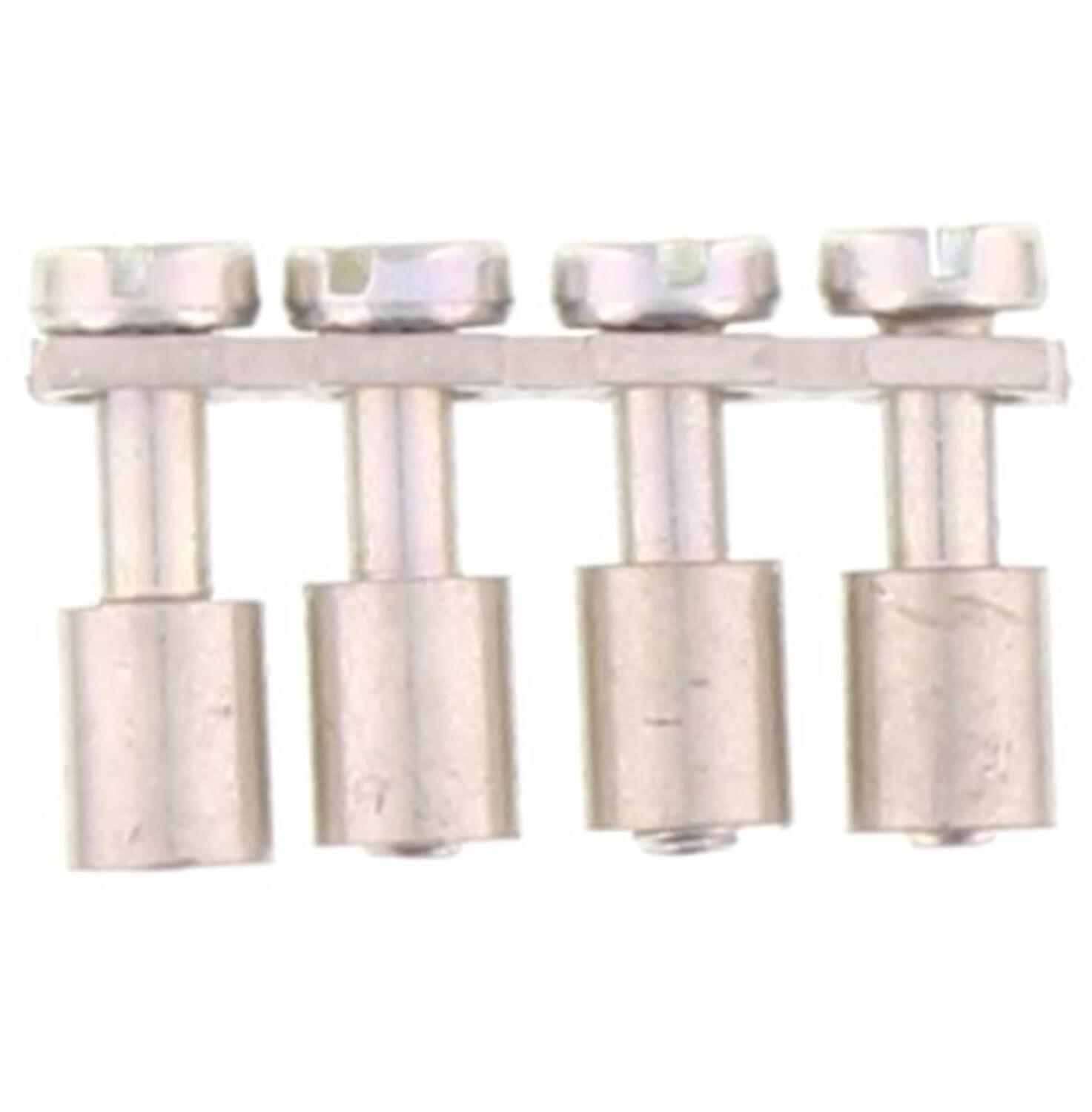

Q 4 - 4 pole cross connector for SRK/IK/IKD 2.5
Art:
2424.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for SRK 2,5 (1.gen.) | IK 2,5 | IKD 2,5
|
4 mm
|
19.3 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
4
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
3.3 g
|
20
|
|
||
Q 10 - 10 pole cross connector for SRK/IK/IKD 2.5
Art:
2425.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for SRK 2,5 (1.gen.) | IK 2,5 | IKD 2,5
|
4 mm
|
49.9 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
10
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
8.16 g
|
10
|
|
||

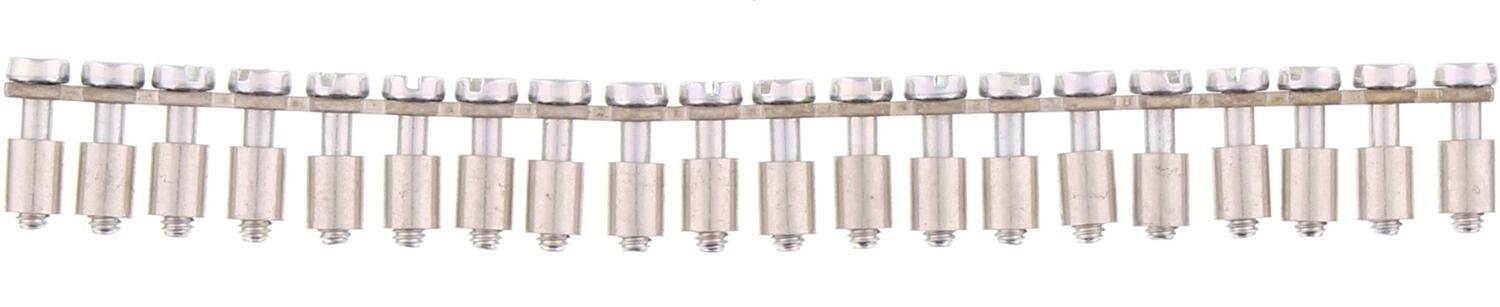

Q 20 - 20 pole cross connector for SRK/IK/IKD 2.5
Art:
2700.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for SRK 2,5 (1.Gen.) | IK 2,5 | IKD 2,5
|
4 mm
|
100.9 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
20
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
16.35 g
|
10
|
|
||
|
Q 0.5 m - 98 pole cross connector for SRK/IK/IKD 2.5
Art:
2151.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
|
3
|
for SRK 2,5... (1.Gen.) | IK 2,5 | IKD 2,5
|
4 mm
|
500 mm
|
|
5.1 mm
|
5 mm
|
2.8 mm
|
98
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
80 g
|
1
|
|
||

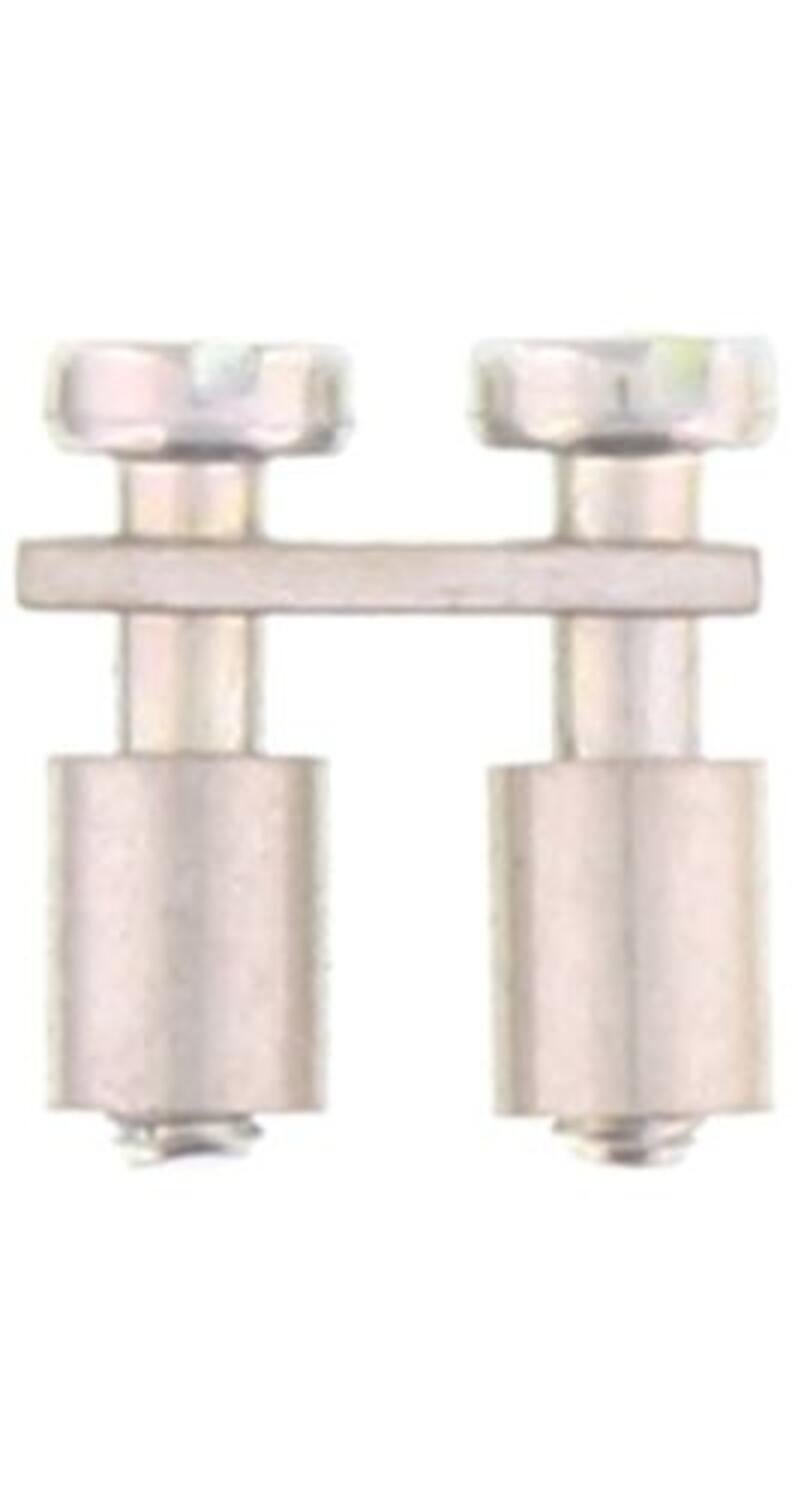

Q 2 - 2 pole cross connector for DLI/DLIS 2.5
Art:
2832.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for DLI 2,5/ | DLIS 2,5/
|
4 mm
|
10.5 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
2
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
1.68 g
|
50
|
|
||

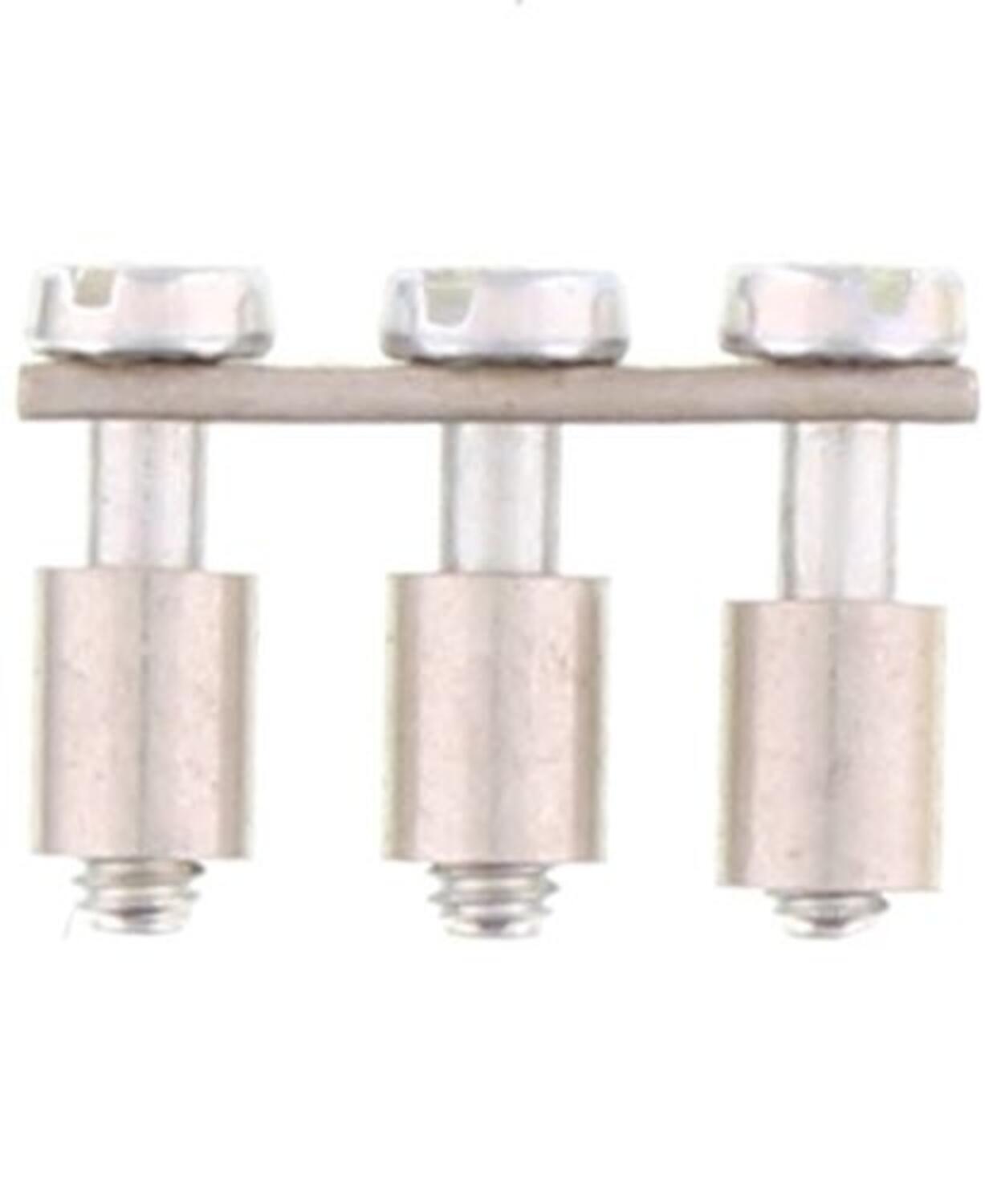

Q 3 - 3 pole cross connector for DLI/DLIS 2.5
Art:
2833.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for DLI 2,5/ | DLIS 2,5/
|
4 mm
|
16.6 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
3
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
2.54 g
|
50
|
|
||

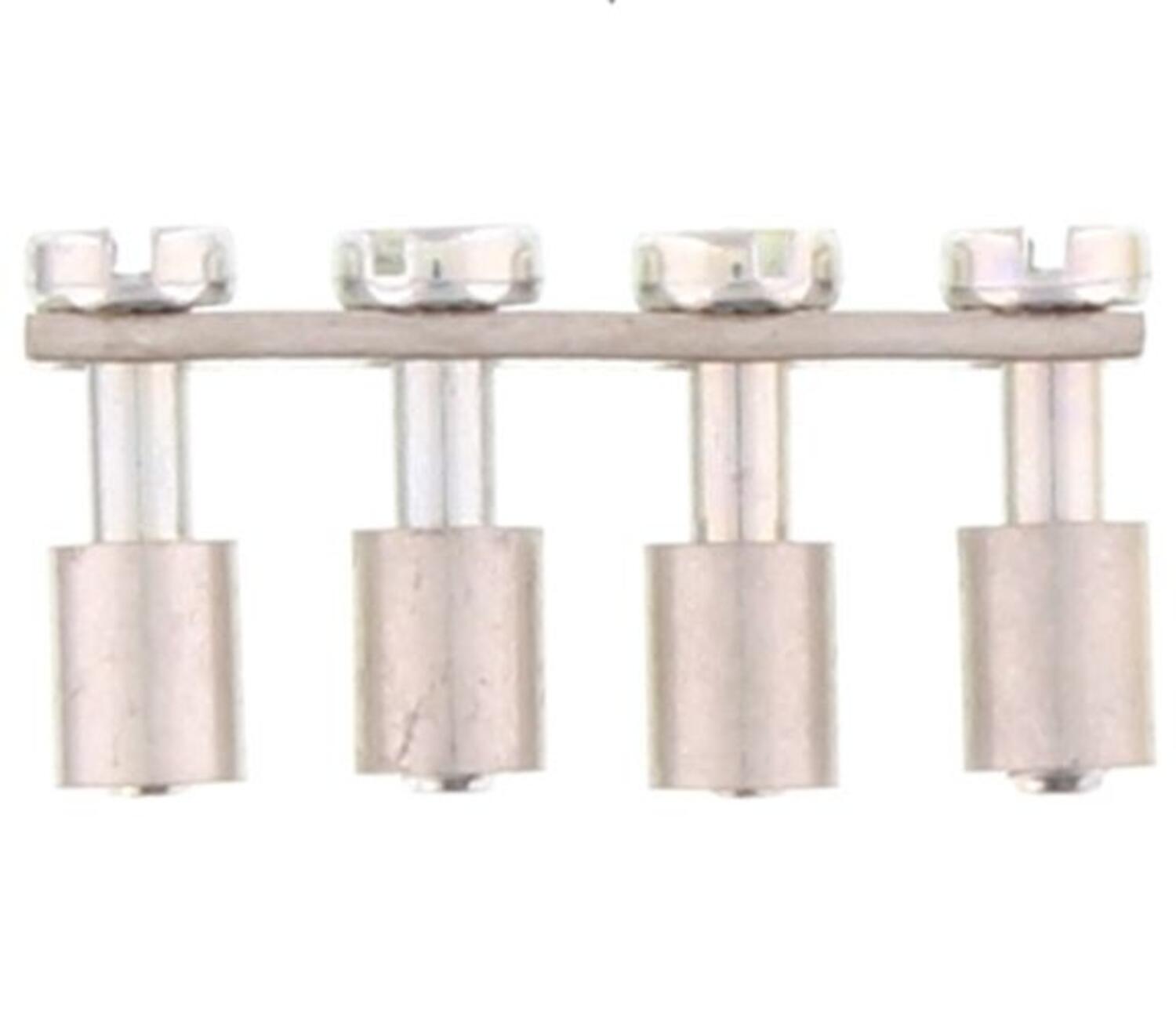

Q 4 - 4 pole cross connector for DLI/DLIS 2.5
Art:
2834.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for DLI 2,5/ | DLIS 2,5/
|
4 mm
|
22.7 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
4
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
3.5 g
|
20
|
|
||

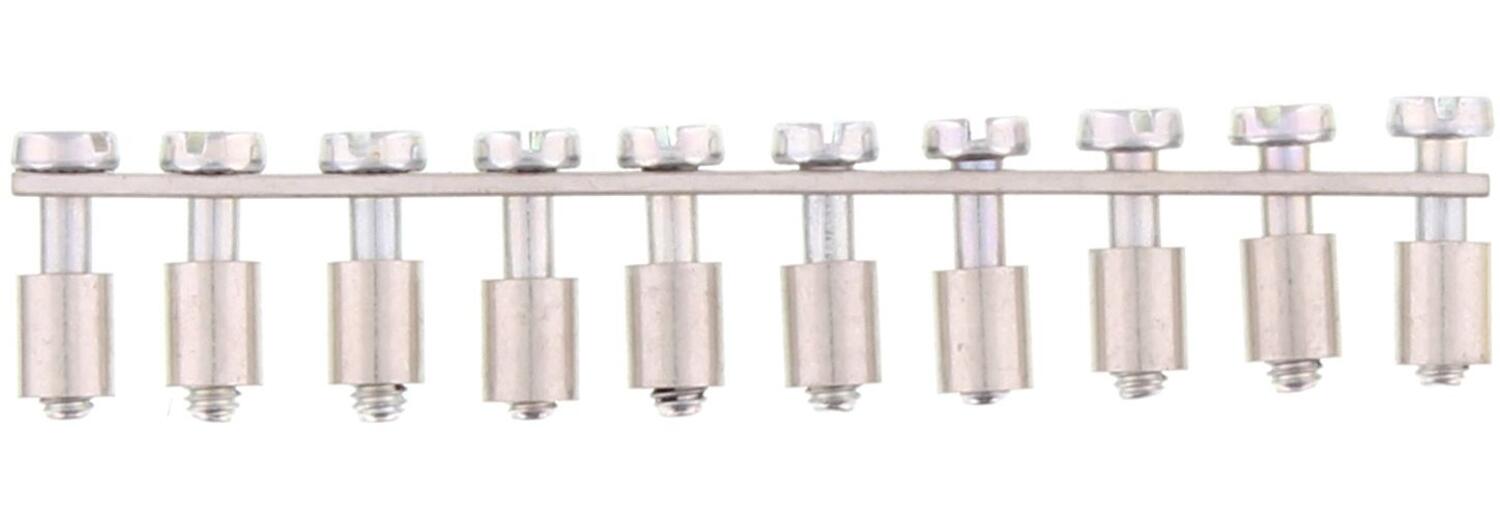

Q 10 - 10 pole cross connector for DLI/DLIS 2.5
Art:
2835.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for DLI 2,5/ | DLIS 2,5/
|
4 mm
|
59.3 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
10
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
8.7 g
|
10
|
|
||
|
Q 0.5 m - 82 pole cross connector for DLI/DLIS 2.5
Art:
2154.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
|
3
|
for DLI 2,5/… | DLIS 2,5/…
|
4 mm
|
500 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
82
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
71.87 g
|
1
|
|
||

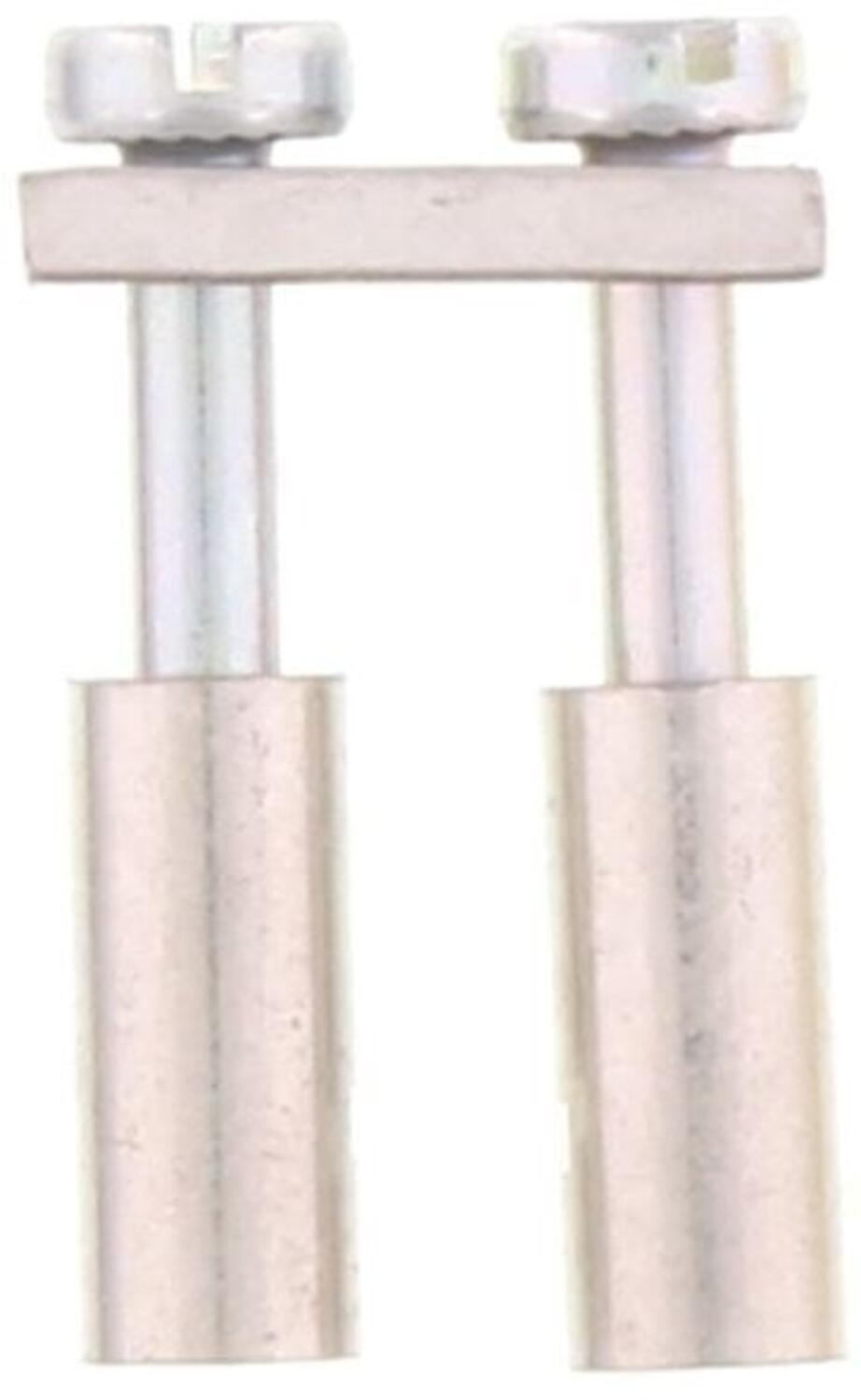

Q 2 - 2 pole cross connector for RK6 - 10
Art:
2060.0
Copied
|
10 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 6-10 | KBL 6-10
|
6 mm
|
14.1 mm
|
|
8.1 mm
|
8 mm
|
3.4 mm
|
2
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
5.48 g
|
50
|
|
||
|
Q 3 - 3 pole cross connector for RK6 - 10
Art:
2061.0
Copied
|
10 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 6-10 | KBL 6-10
|
6 mm
|
22.2 mm
|
|
8.1 mm
|
8 mm
|
3.4 mm
|
3
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
8.41 g
|
50
|
|
||
Q 4 - 4 pole cross connector for RK6 - 10
Art:
2062.0
Copied
|
10 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 6-10 | KBL 6-10
|
6 mm
|
30.3 mm
|
|
8.1 mm
|
8 mm
|
3.4 mm
|
4
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
11.25 g
|
20
|
|
||

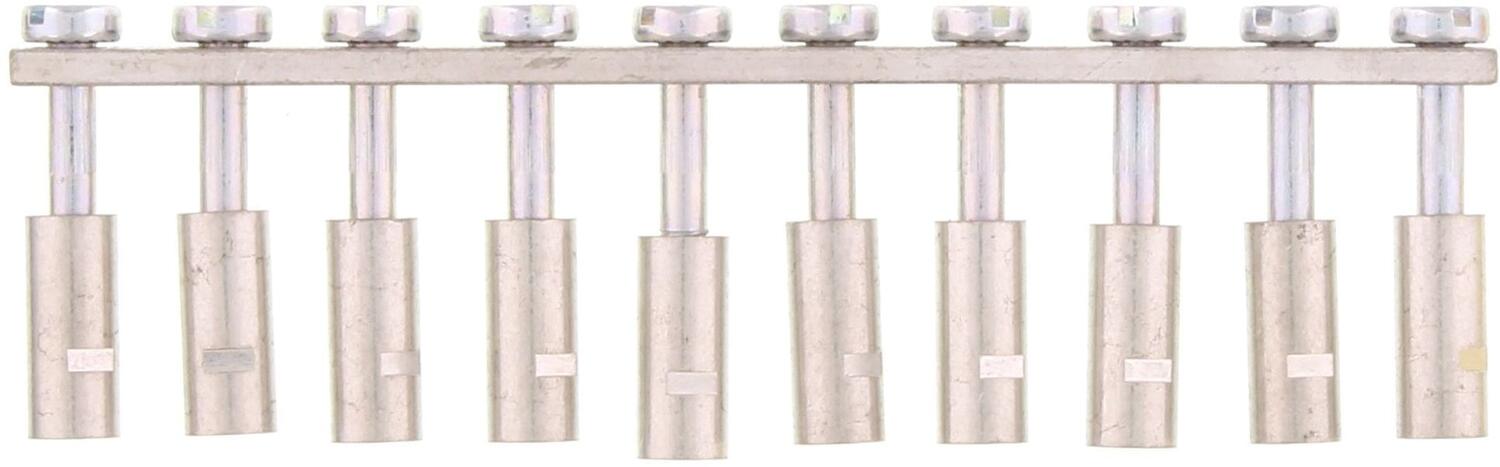

Q 10 - 10 pole cross connector for RK6 - 10
Art:
2063.0
Copied
|
10 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 6-10 | KBL 6-10
|
6 mm
|
78.9 mm
|
|
8.1 mm
|
8 mm
|
3.4 mm
|
10
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
28.2 g
|
10
|
|
||

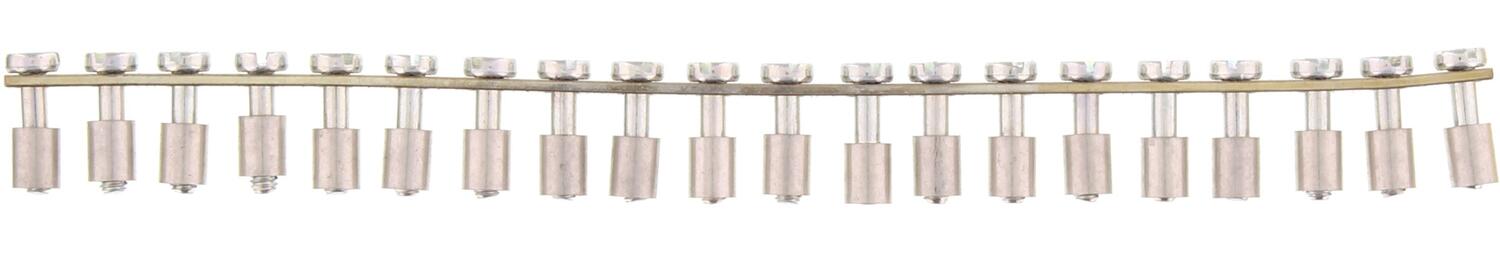

Q 20 - 20 pole cross connector for RK6 - 10
Art:
2836.0
Copied
|
2.5 mm²
|
|
400 V
|
400 V
|
20 A
|
Screw in
|
3
|
for DLI 2,5/ | DLIS 2,5/
|
4 mm
|
120.3 mm
|
|
6.1 mm
|
6 mm
|
2.8 mm
|
20
|
M 2,5
|
Slotted
|
0.4
|
0.8
|
Copper
|
|
|
|
|
85369010
|
DE
|
17.6 g
|
10
|
|
||

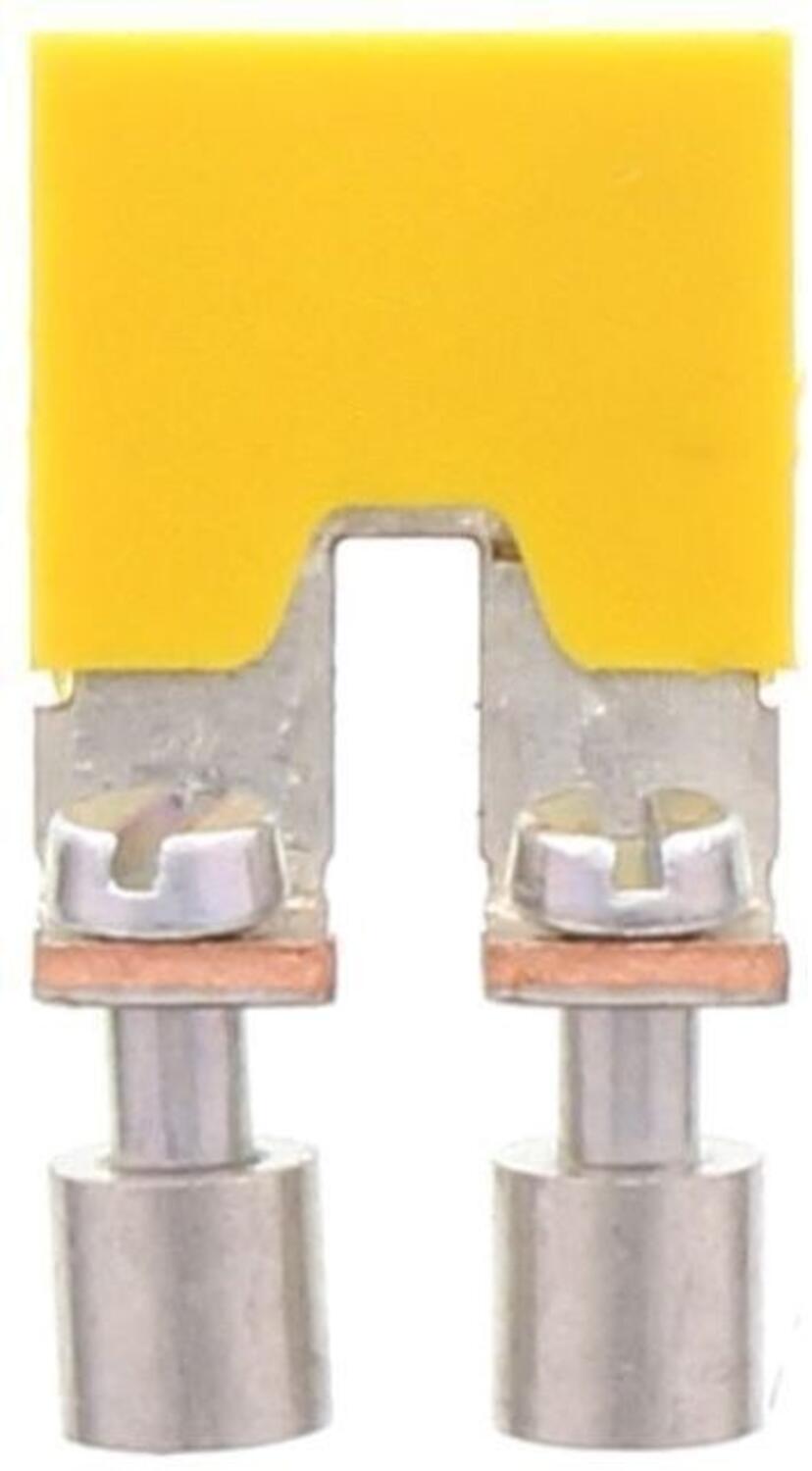

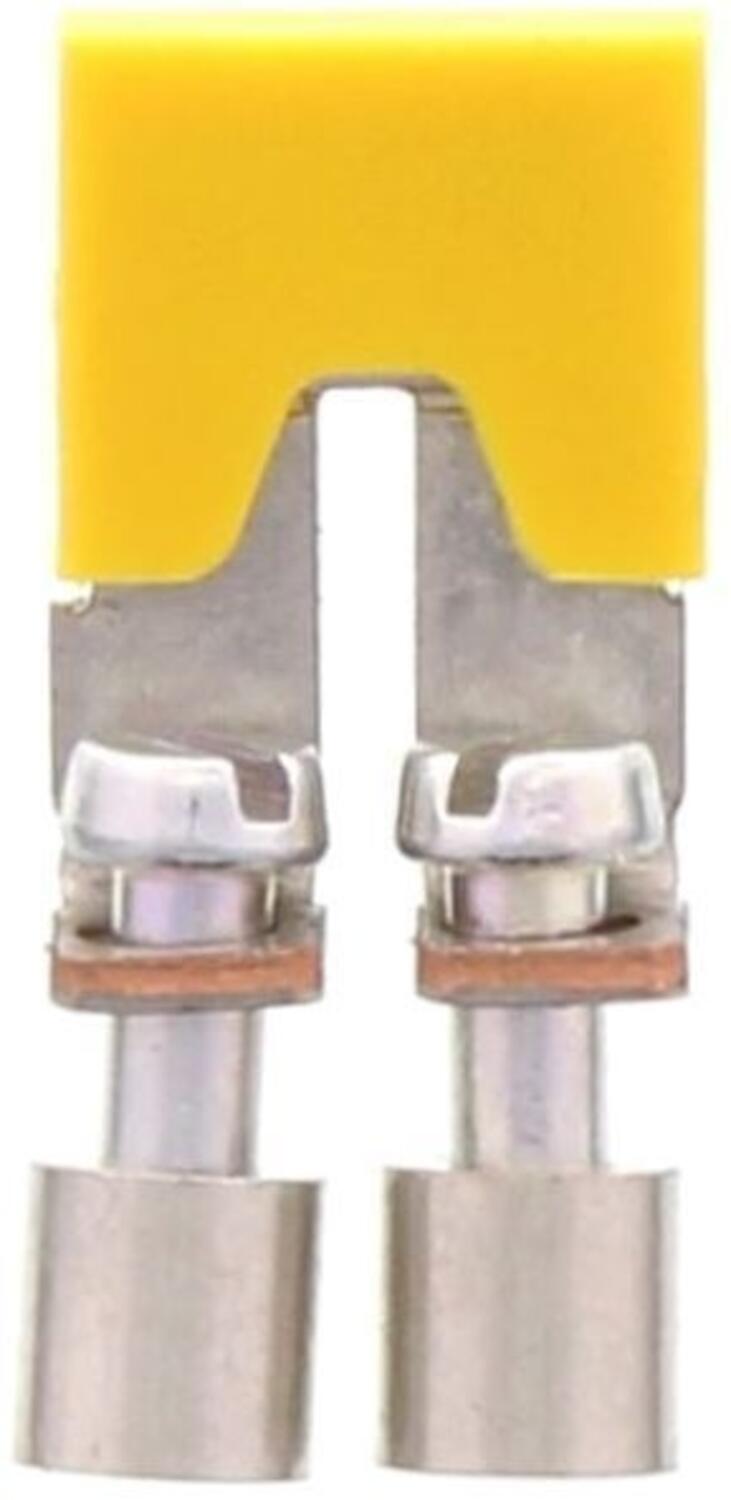

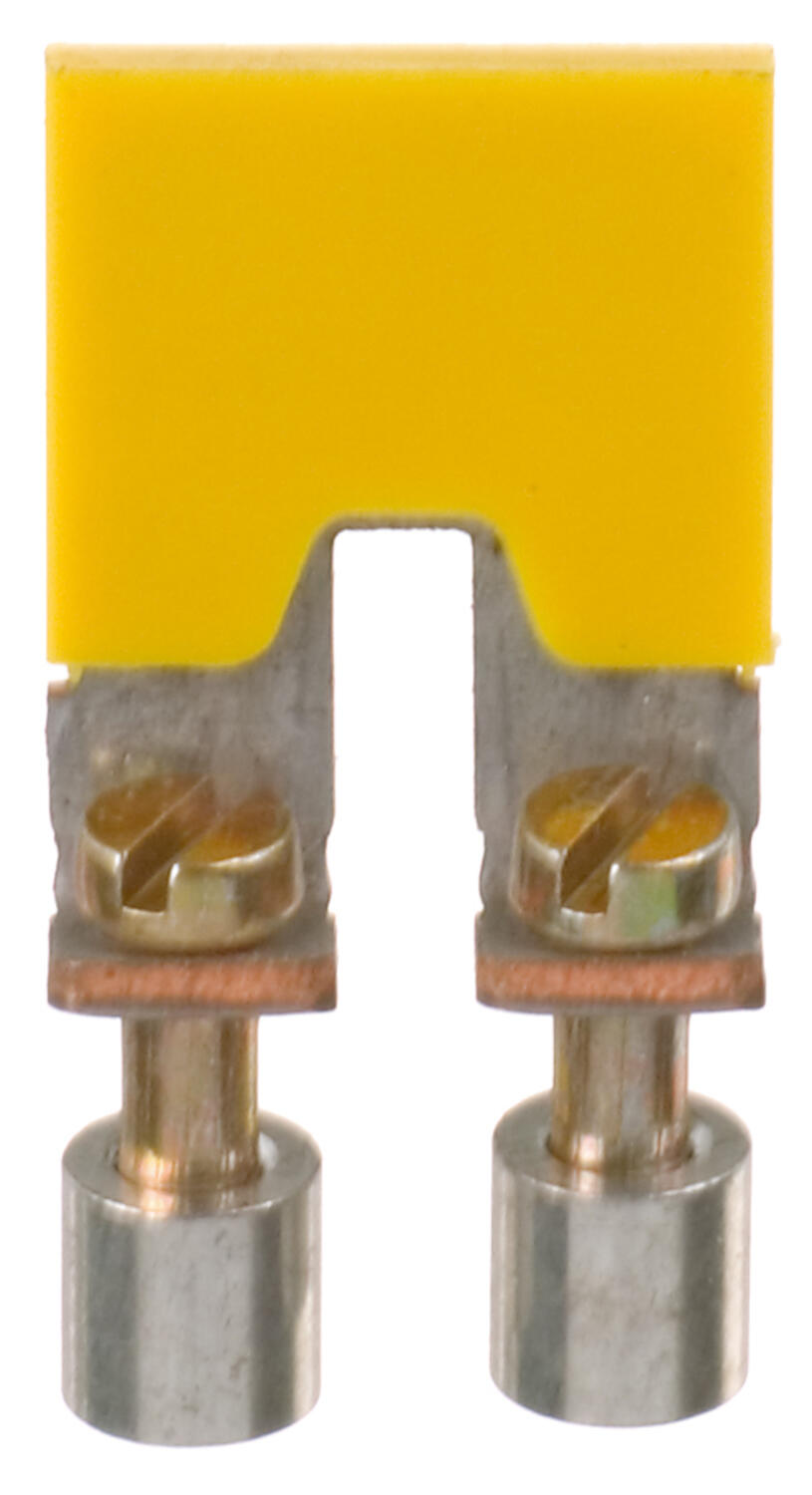

QI 2 - 2 pole insulated cross connector for RK 2.5 - 4
Art:
2740.2
Copied
|
|
Yellow
|
800 V
|
400 V
|
32 A
|
Screw in
|
3
|
for RK 2,5-4 | KBL 2,5-4 | FF 2,5 | SF 2,5
|
2.3 mm
|
10.4 mm
|
|
|
6 mm
|
|
2
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
Polyamide 6.6
|
UL94-V2
|
-40 °C
|
105 °C
|
85369010
|
DE
|
3.46 g
|
50
|
|
||

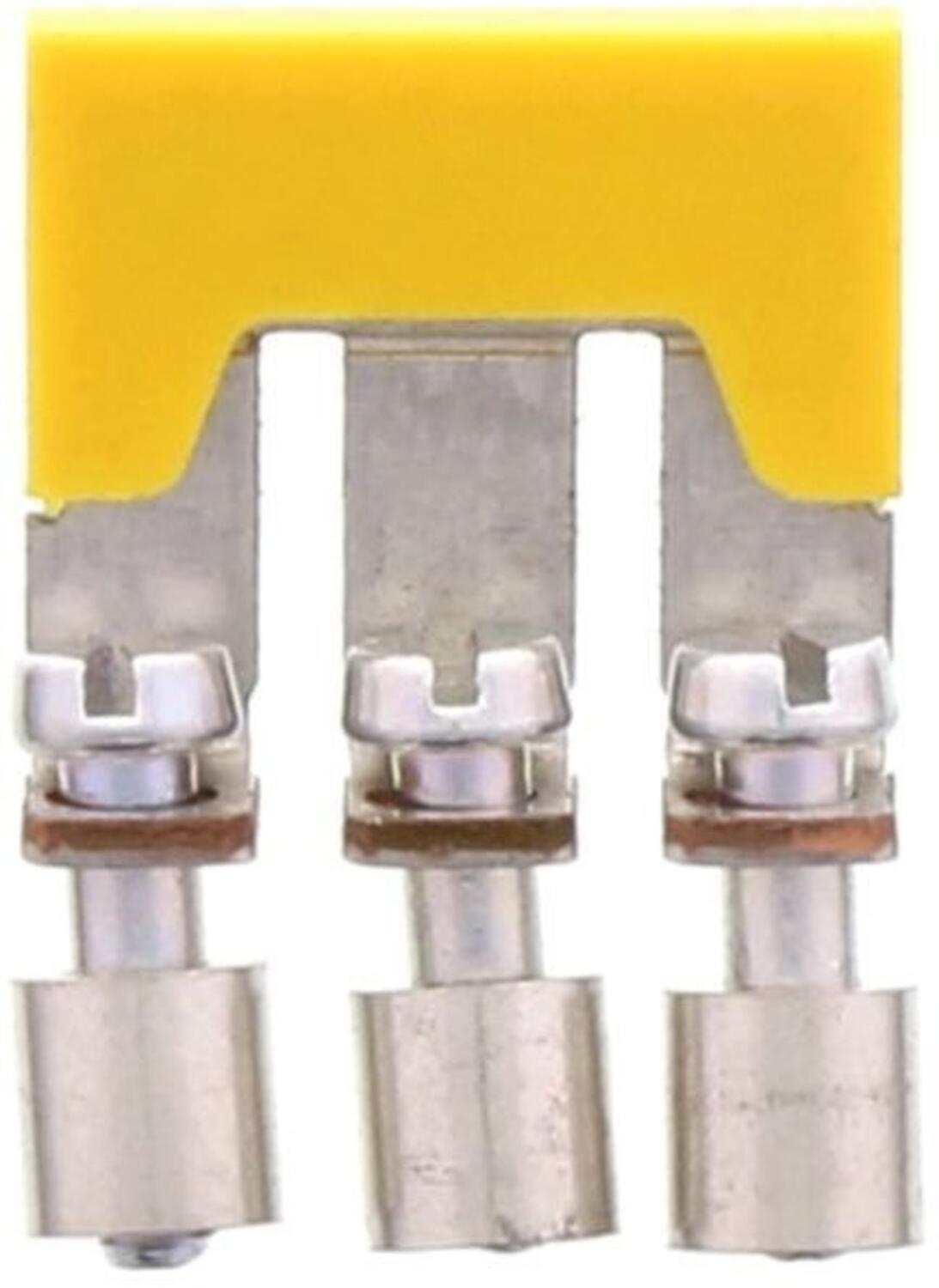

QI 3 - 3 pole insulated cross connector for RK 2.5 - 4
Art:
2741.2
Copied
|
|
Yellow
|
800 V
|
400 V
|
32 A
|
Screw in
|
3
|
for RK 2,5-4 | KBL 2,5-4 | FF 2,5 | SF 2,5
|
2.3 mm
|
16.5 mm
|
|
|
6 mm
|
|
3
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
Polyamide 6.6
|
UL94-V2
|
-40 °C
|
105 °C
|
85369010
|
DE
|
5.22 g
|
50
|
|
||

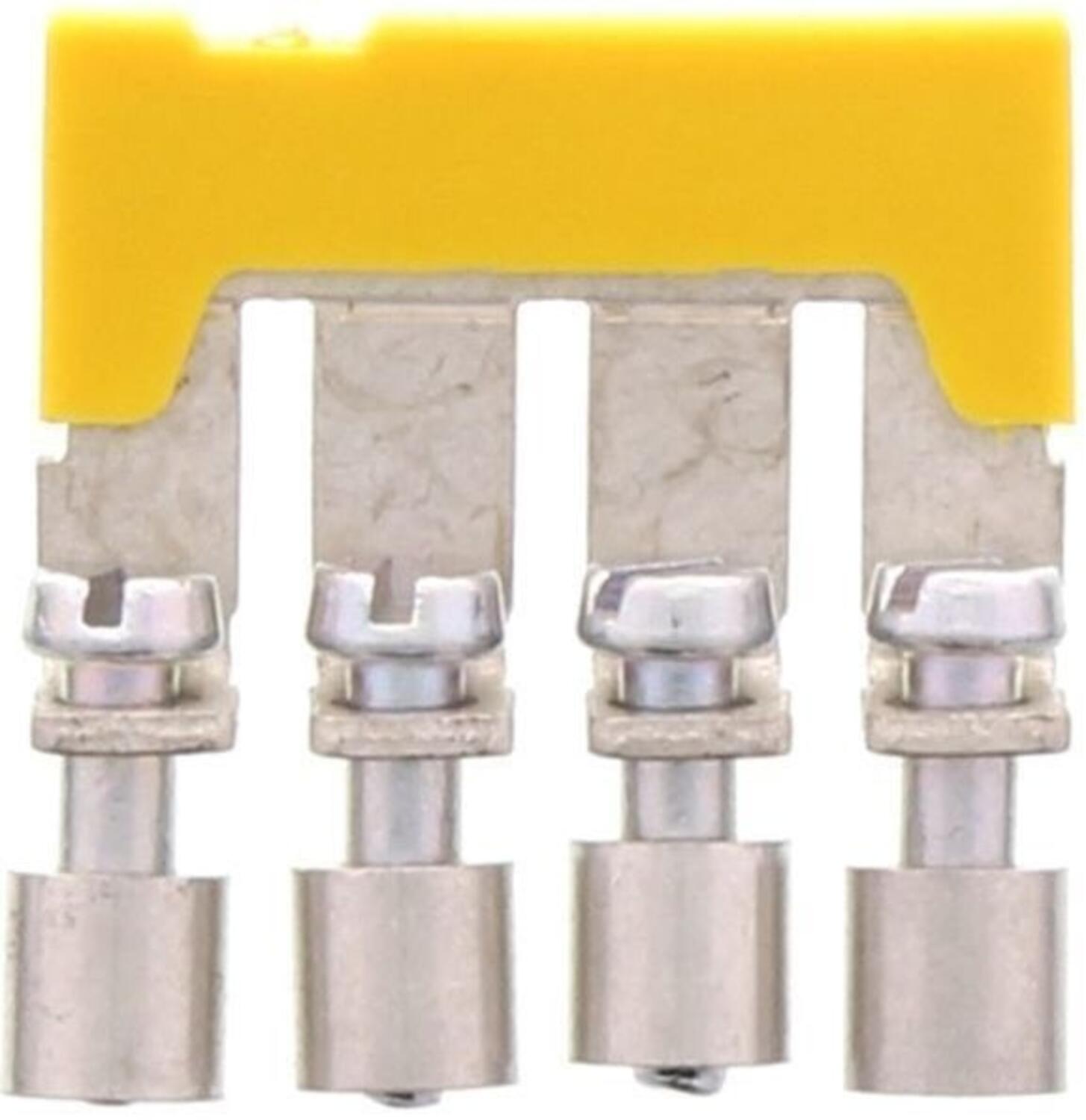

QI 4 - 4 pole insulated cross connector for RK 2.5 - 4
Art:
2742.2
Copied
|
|
Yellow
|
800 V
|
400 V
|
32 A
|
Screw in
|
3
|
for RK 2,5-4 | KBL 2,5-4 | FF 2,5 | SF 2,5
|
2.3 mm
|
21.9 mm
|
|
|
6 mm
|
|
4
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
Polyamide 6.6
|
UL94-V2
|
-40 °C
|
105 °C
|
85369010
|
DE
|
7.05 g
|
20
|
|
||

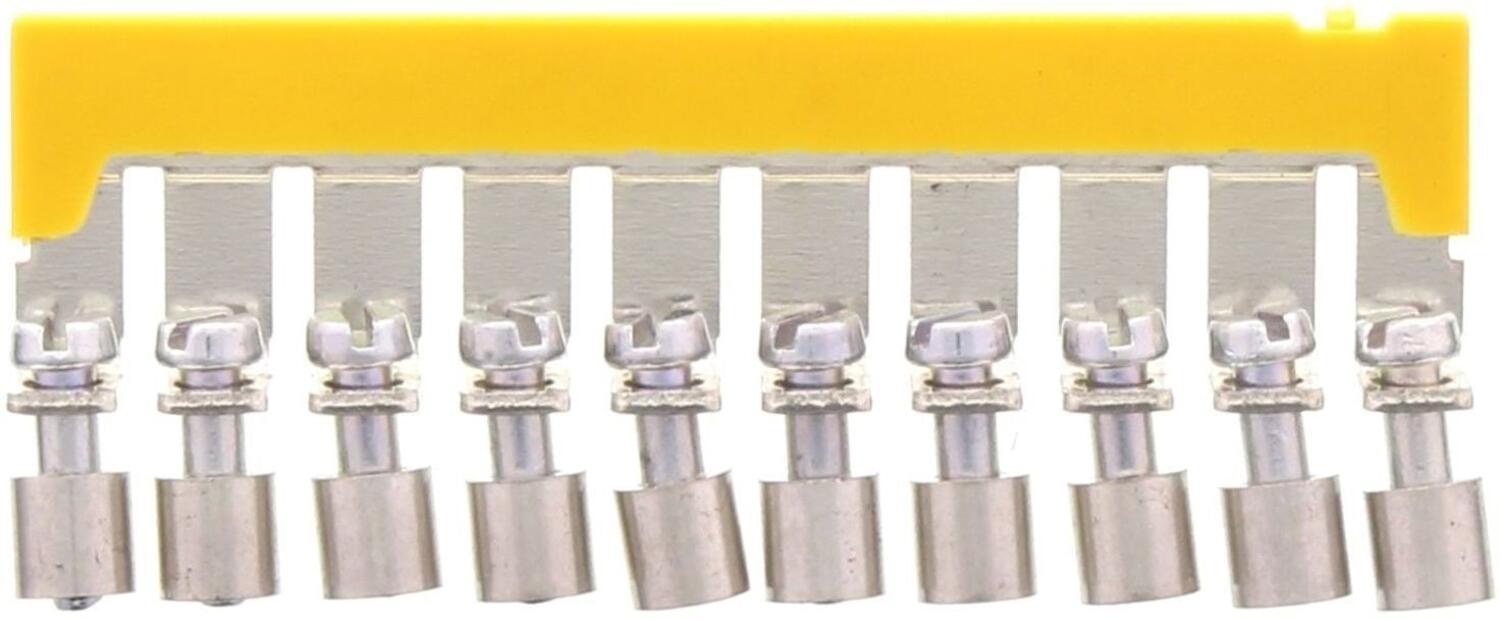

QI 10 - 10 pole insulated cross connector for RK 2.5 - 4
Art:
2743.2
Copied
|
|
Yellow
|
800 V
|
400 V
|
32 A
|
Screw in
|
3
|
for RK 2,5-4 | KBL 2,5-4 | FF 2,5 | SF 2,5
|
2.3 mm
|
59.7 mm
|
|
|
6 mm
|
|
10
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
Polyamide 6.6
|
UL94-V2
|
-40 °C
|
105 °C
|
85369010
|
DE
|
17.8 g
|
10
|
|
||

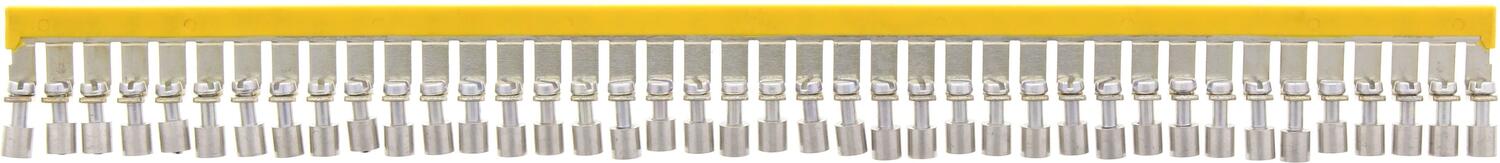

QI 40 - 40 pole insulated cross connector for RK 2.5 - 4
Art:
2746.2
Copied
|
|
Yellow
|
800 V
|
400 V
|
32 A
|
Screw in
|
3
|
for RK 2,5-4 | KBL 2,5-4 | FF 2,5 | SF 2,5
|
2.3 mm
|
|
|
|
6 mm
|
|
40
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
Polyamide 6.6
|
UL94-V2
|
-40 °C
|
105 °C
|
85369010
|
DE
|
71.2 g
|
5
|
|
||
QI 2 - 2 pole insulated cross connector for RK6 - 10
Art:
2750.2
Copied
|
|
Yellow
|
800 V
|
400 V
|
57 A
|
Screw in
|
3
|
for RK 6-10 | KBL 6-10 | PTK/LT | PTK/QT | PTK/DU
|
2.4 mm
|
13.6 mm
|
|
|
8 mm
|
|
2
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
Polyamide 6.6
|
UL94-V2
|
-40 °C
|
105 °C
|
85369010
|
DE
|
4.52 g
|
50
|
|
||

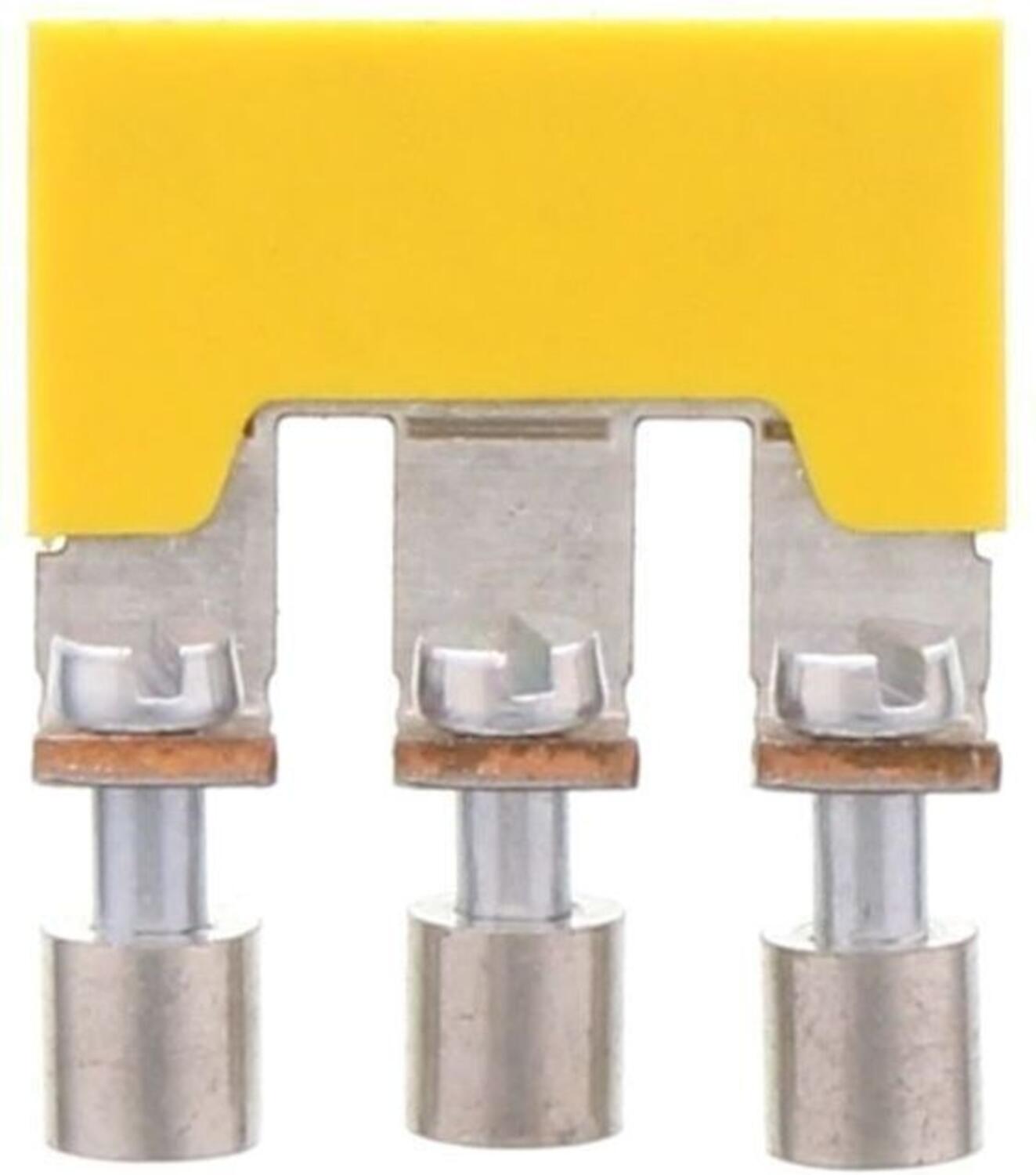

QI 3 - 3 pole insulated cross connector for RK6 - 10
Art:
2751.2
Copied
|
|
Yellow
|
800 V
|
400 V
|
57 A
|
Screw in
|
3
|
for RK 6-10 | KBL 6-10 | PTK/LT | PTK/QT | PTK/DU
|
2.4 mm
|
21.7 mm
|
|
|
8 mm
|
|
3
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
Polyamide 6.6
|
UL94-V2
|
-40 °C
|
105 °C
|
85369010
|
DE
|
6.96 g
|
50
|
|
||

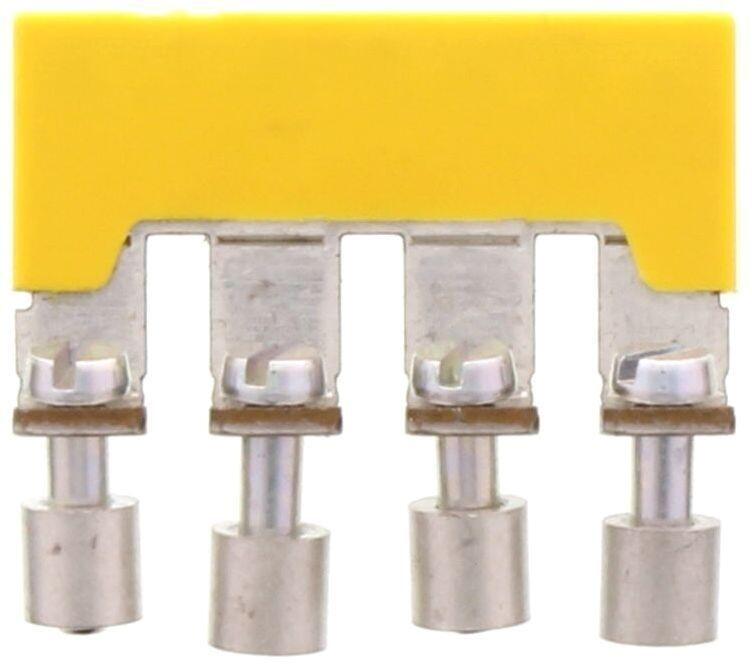

QI 4 - 4 pole insulated cross connector for RK6 - 10
Art:
2752.2
Copied
|
|
Yellow
|
800 V
|
400 V
|
57 A
|
Screw in
|
3
|
for RK 6-10 | KBL 6-10 | PTK/LT | PTK/QT | PTK/DU
|
2.4 mm
|
28.8 mm
|
|
|
8 mm
|
|
4
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
Polyamide 6.6
|
UL94-V2
|
-40 °C
|
105 °C
|
85369010
|
DE
|
9.4 g
|
20
|
|
||

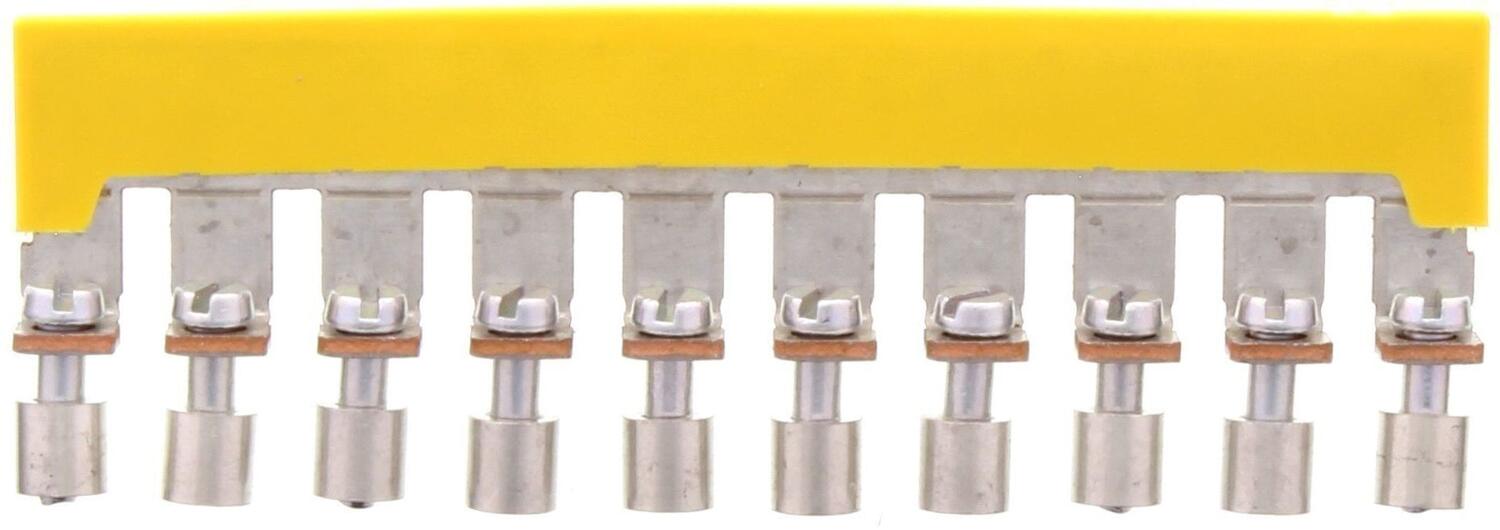

QI 10 - 10 pole insulated cross connector for RK6 - 10
Art:
2753.2
Copied
|
|
Yellow
|
800 V
|
400 V
|
57 A
|
Screw in
|
3
|
for RK 6-10 | KBL 6-10 | PTK/LT | PTK/QT | PTK/DU
|
2.4 mm
|
78.4 mm
|
|
|
8 mm
|
|
10
|
M 3
|
Slotted
|
0.5
|
1
|
Copper
|
Polyamide 6.6
|
UL94-V2
|
-40 °C
|
105 °C
|
85369010
|
DE
|
24.1 g
|
10
|
|
||
Q 2 - 2 pole cross connector for RK 16/35N
Art:
2257.0
Copied
|
16 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 16/35 N
|
6 mm
|
20.1 mm
|
|
11.9 mm
|
12 mm
|
3.4 mm
|
2
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
4.75 g
|
20
|
|
||

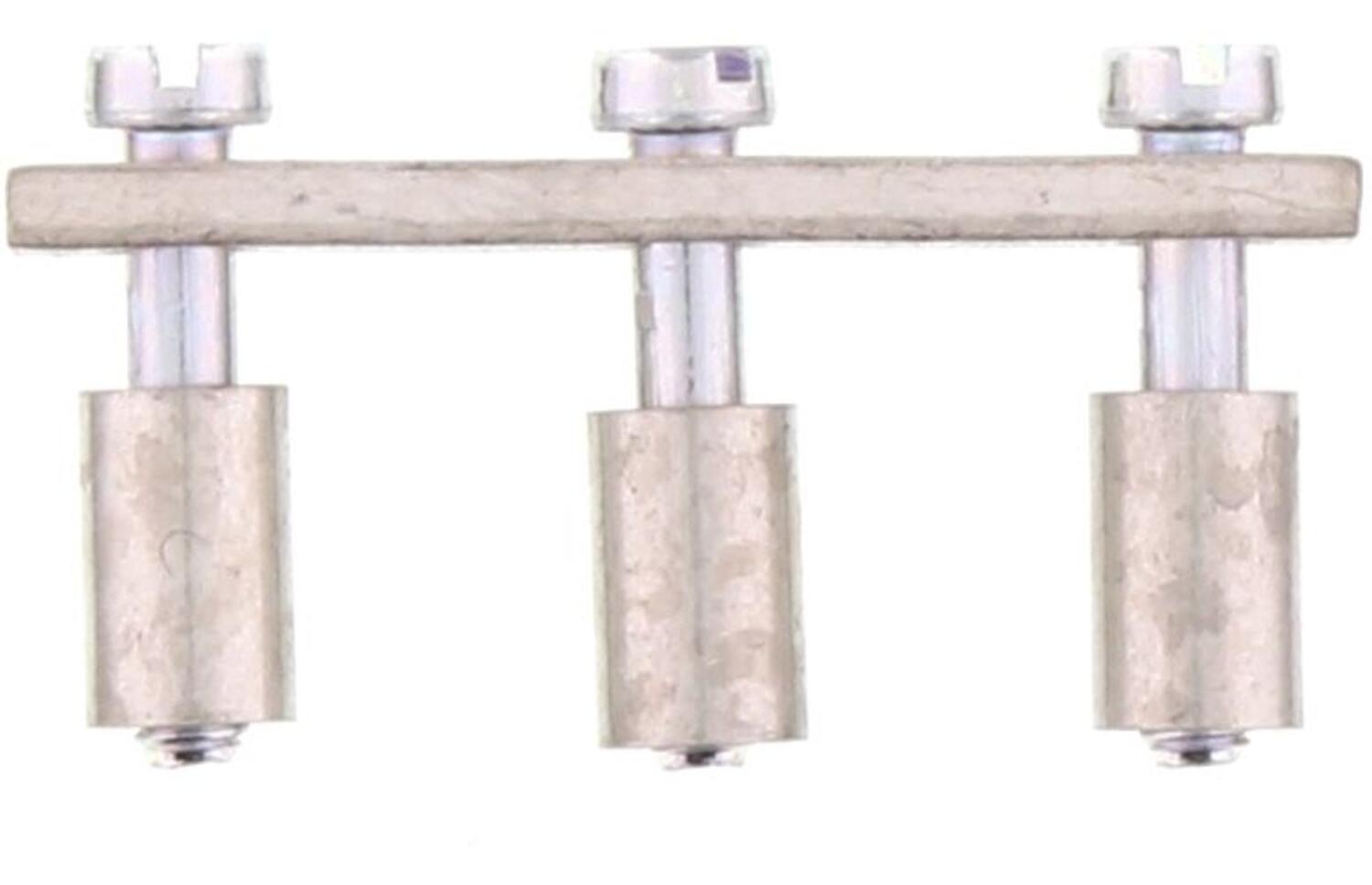

Q 3 - 3 pole cross connector for RK 16/35N
Art:
2258.0
Copied
|
16 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 16/35 N
|
6 mm
|
32 mm
|
|
11.9 mm
|
12 mm
|
3.4 mm
|
3
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
7.25 g
|
20
|
|
||

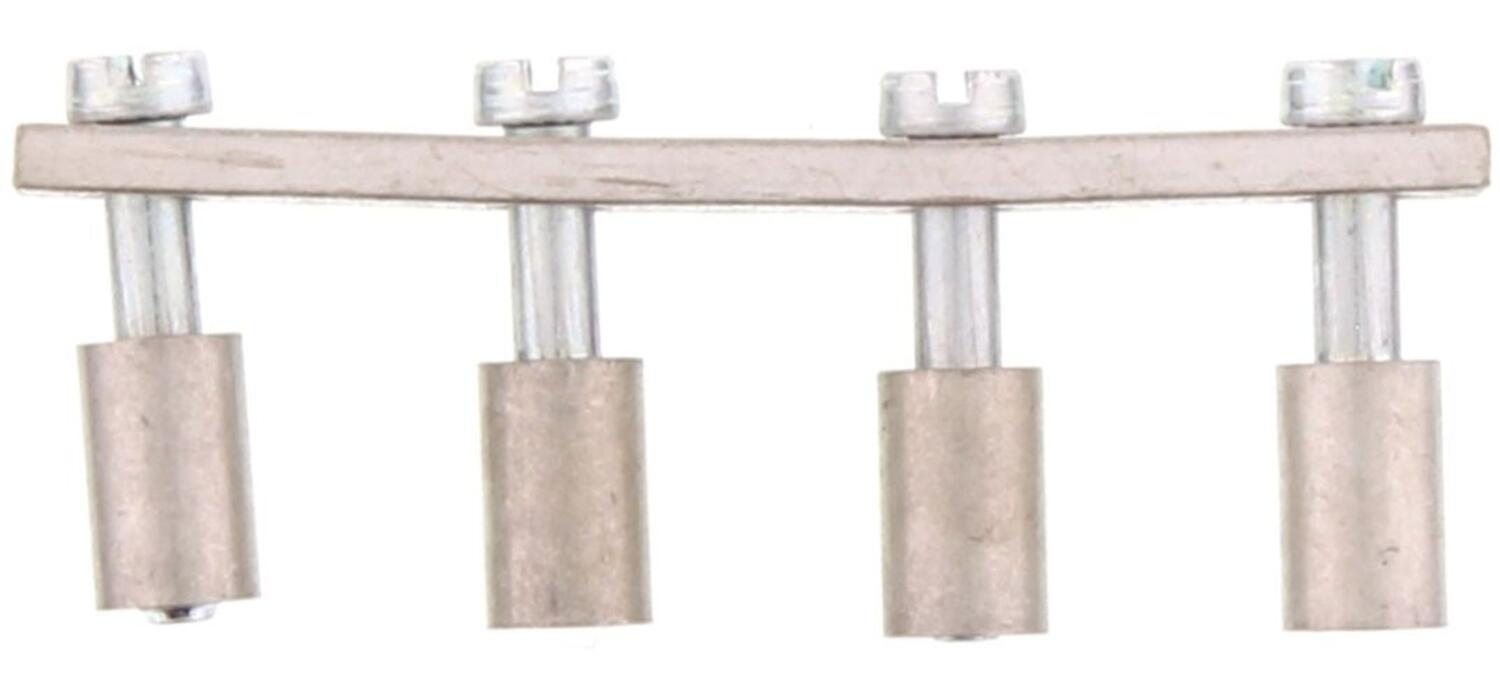

Q 4 - 4 pole cross connector for RK 16/35N
Art:
2265.0
Copied
|
16 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 16/35 N
|
6 mm
|
43.9 mm
|
|
11.9 mm
|
12 mm
|
3.4 mm
|
4
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
9.6 g
|
10
|
|
||

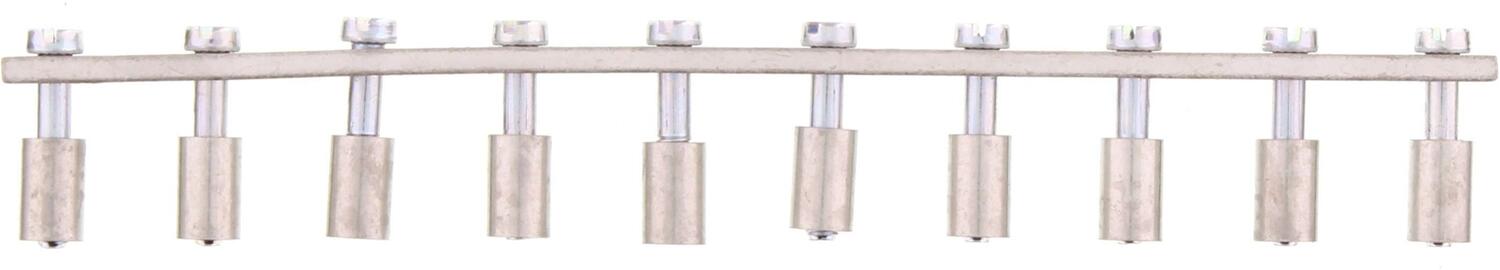

Q 10 - 10 pole cross connector for RK 16/35N
Art:
2266.0
Copied
|
16 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 16/35 N
|
6 mm
|
115.3 mm
|
|
11.9 mm
|
12 mm
|
3.4 mm
|
10
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
25.4 g
|
10
|
|
||

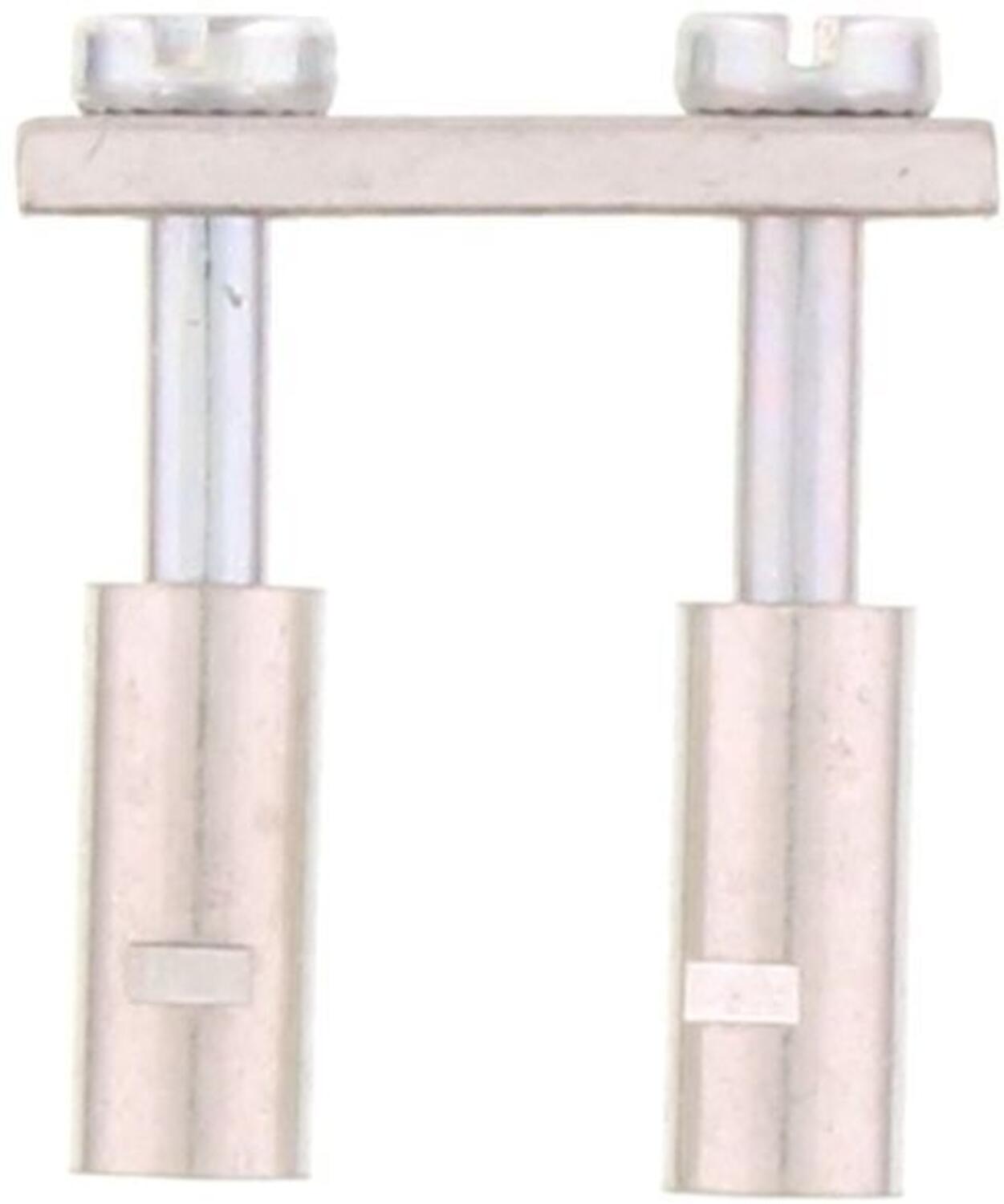

Q 2 - 2 pole cross connector for RK 16
Art:
2112.0
Copied
|
16 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 16
|
6 mm
|
20.1 mm
|
|
11.9 mm
|
12 mm
|
3.4 mm
|
2
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
6 g
|
20
|
|
||

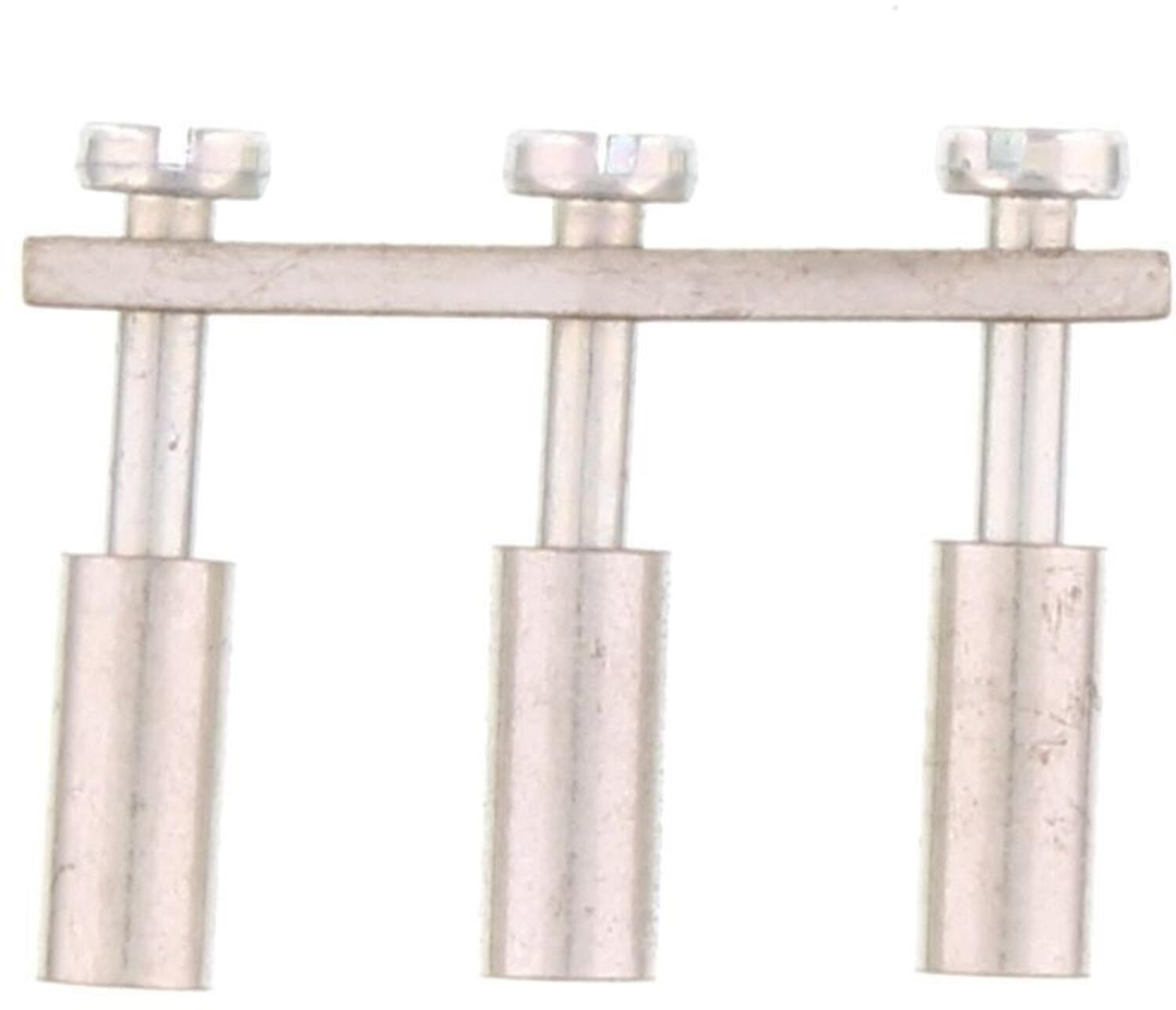

Q 3 - 3 pole cross connector for RK 16
Art:
2113.0
Copied
|
16 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 16
|
6 mm
|
32 mm
|
|
11.9 mm
|
12 mm
|
3.4 mm
|
3
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
9.05 g
|
20
|
|
||

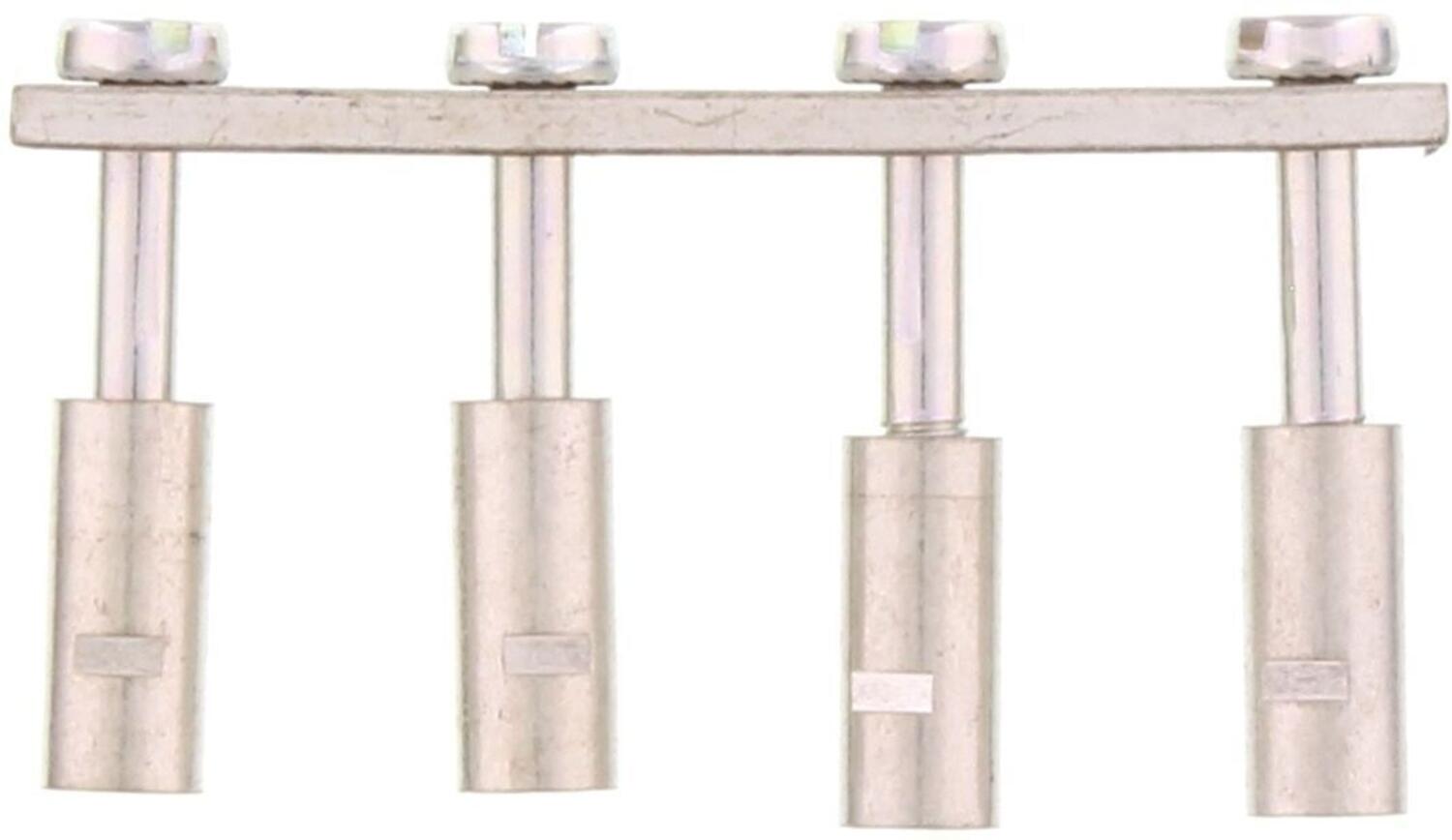

Q 4 - 4 pole cross connector for RK 16
Art:
2114.0
Copied
|
16 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 16
|
6 mm
|
43.9 mm
|
|
11.9 mm
|
12 mm
|
3.4 mm
|
4
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
12.1 g
|
10
|
|
||

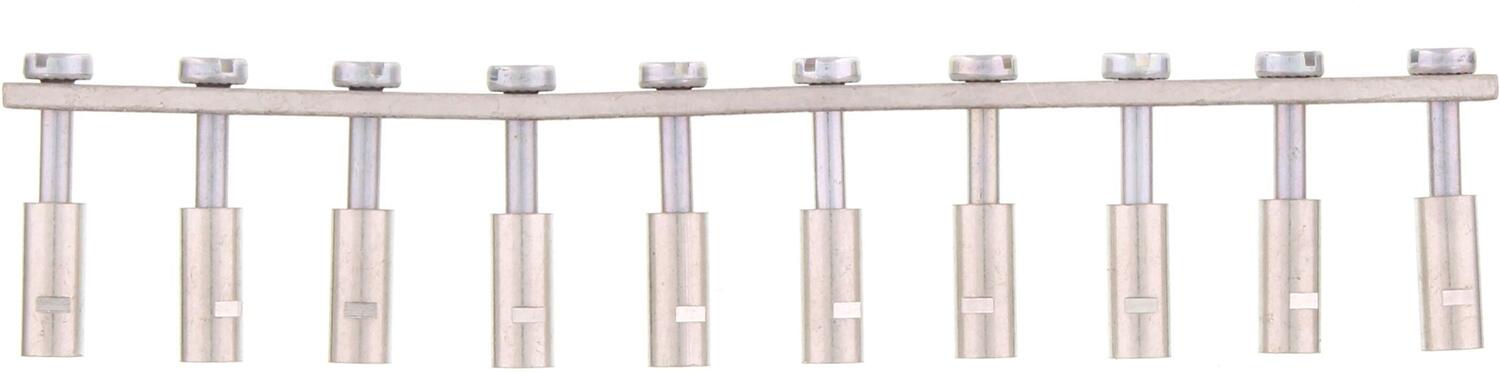

Q 10 - 10 pole cross connector for RK 16
Art:
2115.0
Copied
|
16 mm²
|
|
800 V
|
400 V
|
47 A
|
Screw in
|
3
|
for RK 16
|
6 mm
|
115.3 mm
|
|
11.9 mm
|
12 mm
|
3.4 mm
|
10
|
M 3
|
Slotted
|
0.5
|
1
|
Brass
|
|
|
|
|
85369010
|
DE
|
31.4 g
|
10
|
|
||

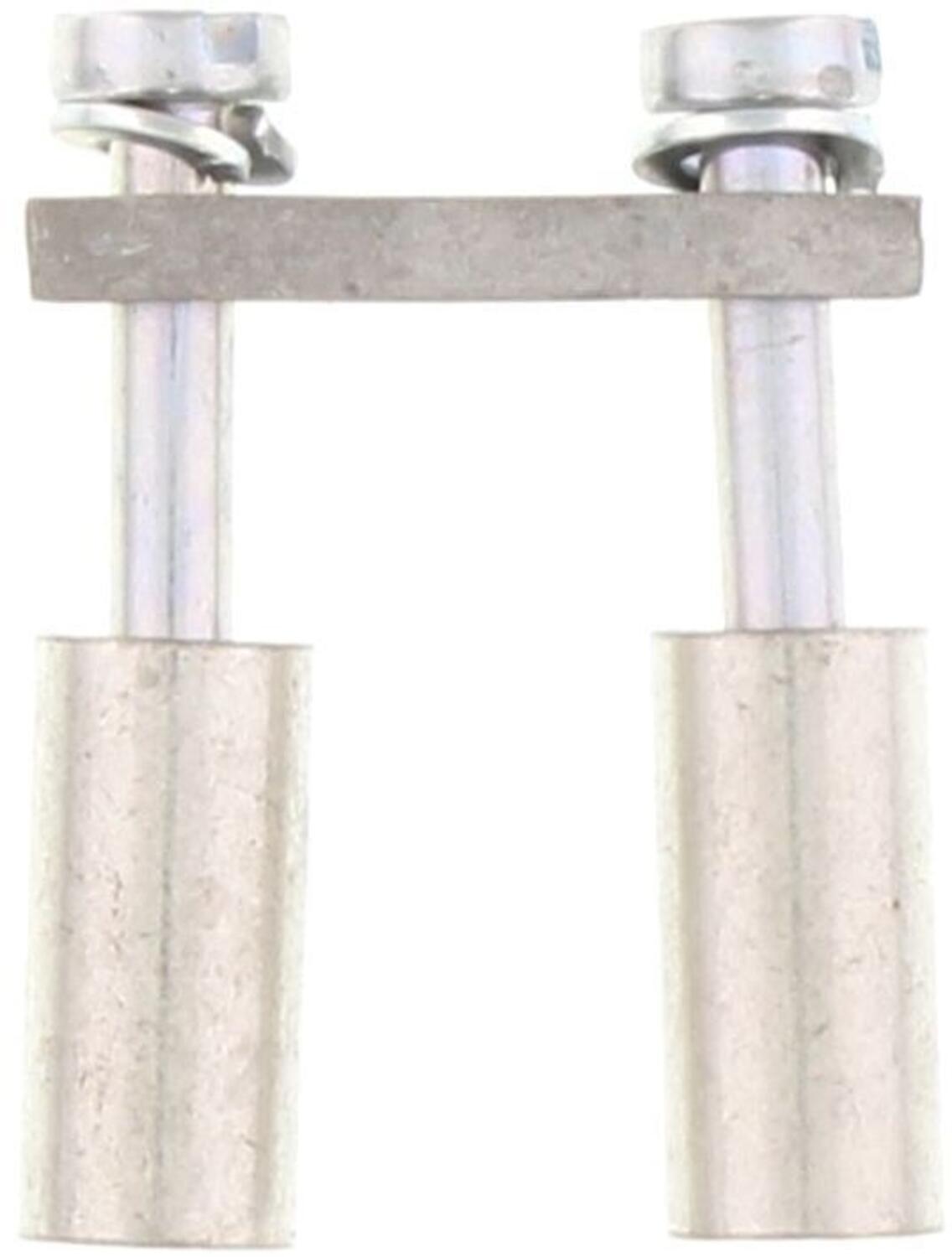

Q 2 - 2 pole cross connector for RK 35, (RK 35N Old Type)
Art:
2164.0
Copied
|
35 mm²
|
|
800 V
|
400 V
|
65 A
|
Screw in
|
3
|
for RK 35…
|
8 mm
|
25 mm
|
|
16 mm
|
16 mm
|
4.6 mm
|
2
|
M 4
|
Slotted
|
1.2
|
2
|
Brass
|
|
|
|
|
85369010
|
DE
|
18.3 g
|
20
|
|
||

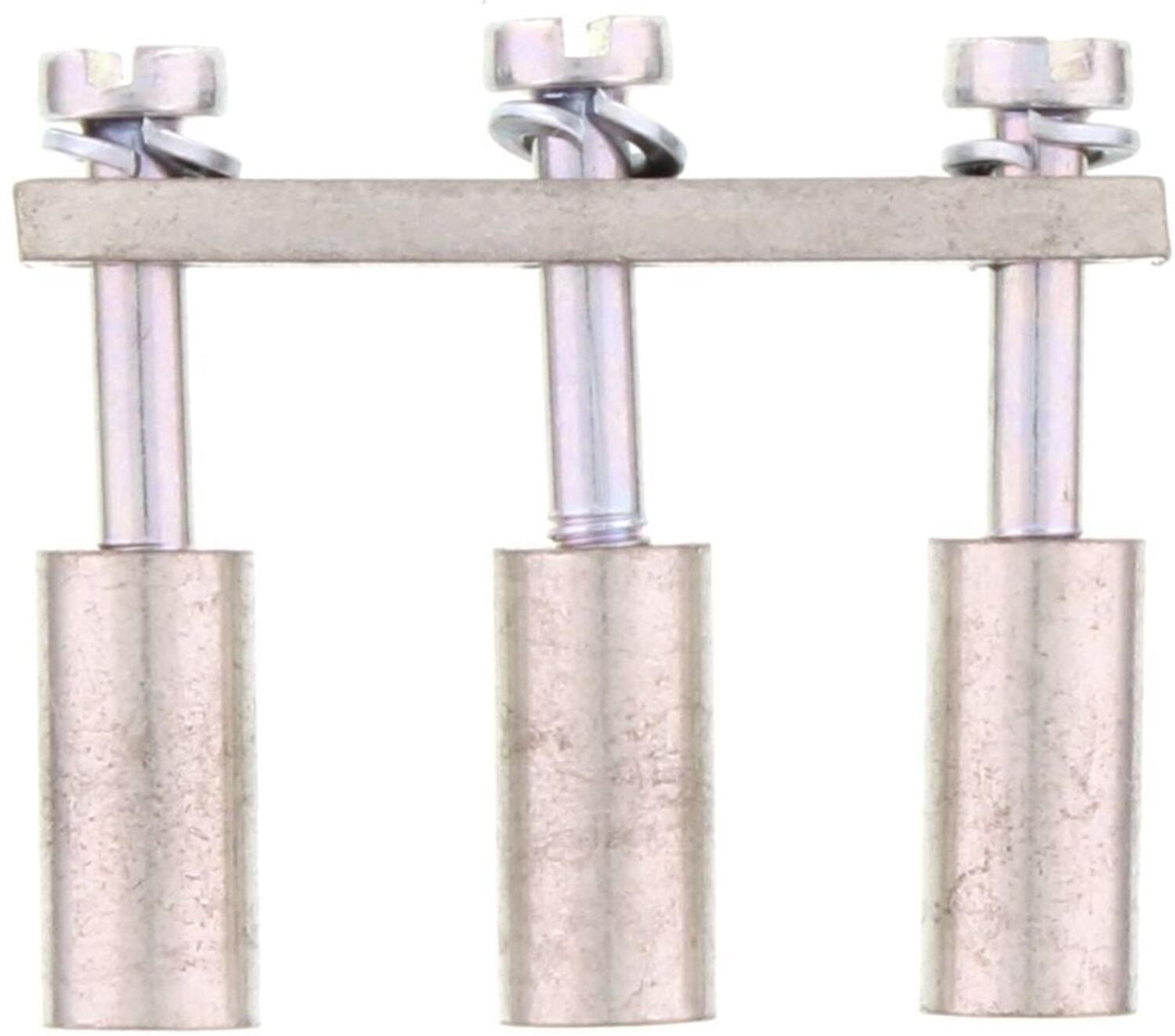

Q 3 - 3 pole cross connector for RK 35, (RK 35N Old Type)
Art:
2165.0
Copied
|
35 mm²
|
|
800 V
|
400 V
|
65 A
|
Screw in
|
3
|
for RK 35…
|
8 mm
|
41 mm
|
|
16 mm
|
16 mm
|
4.6 mm
|
3
|
M 4
|
Slotted
|
1.2
|
2
|
Brass
|
|
|
|
|
85369010
|
DE
|
28.2 g
|
20
|
|
||

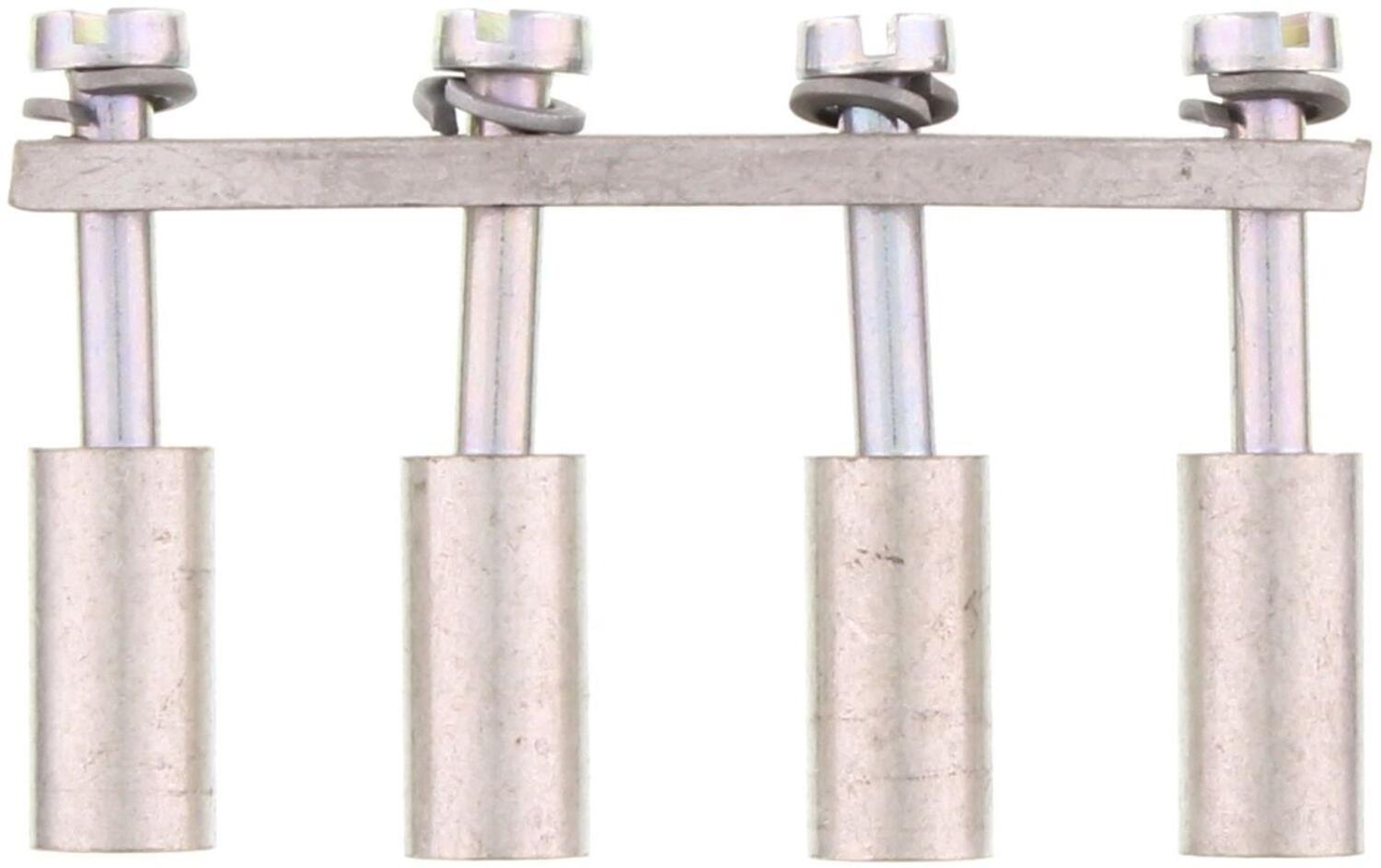

Q 4 - 4 pole cross connector for RK 35, (RK 35N Old Type)
Art:
2166.0
Copied
|
35 mm²
|
|
800 V
|
400 V
|
65 A
|
Screw in
|
3
|
for RK 35…
|
8 mm
|
57 mm
|
|
16 mm
|
16 mm
|
4.6 mm
|
4
|
M 4
|
Slotted
|
1.2
|
2
|
Brass
|
|
|
|
|
85369010
|
DE
|
38.2 g
|
10
|
|
||

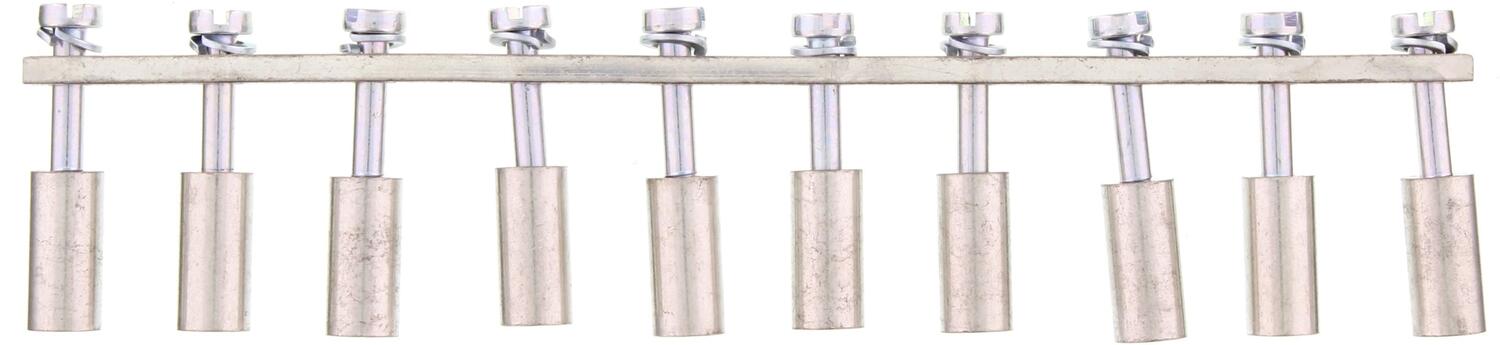

Q 10 - 10 pole cross connector for RK 35, (RK 35N Old Type)
Art:
2167.0
Copied
|
35 mm²
|
|
800 V
|
400 V
|
65 A
|
Screw in
|
3
|
for RK 35…
|
8 mm
|
153 mm
|
|
16 mm
|
16 mm
|
4.6 mm
|
10
|
M 4
|
Slotted
|
1.2
|
2
|
Brass
|
|
|
|
|
85369010
|
DE
|
97.6 g
|
10
|
|
||

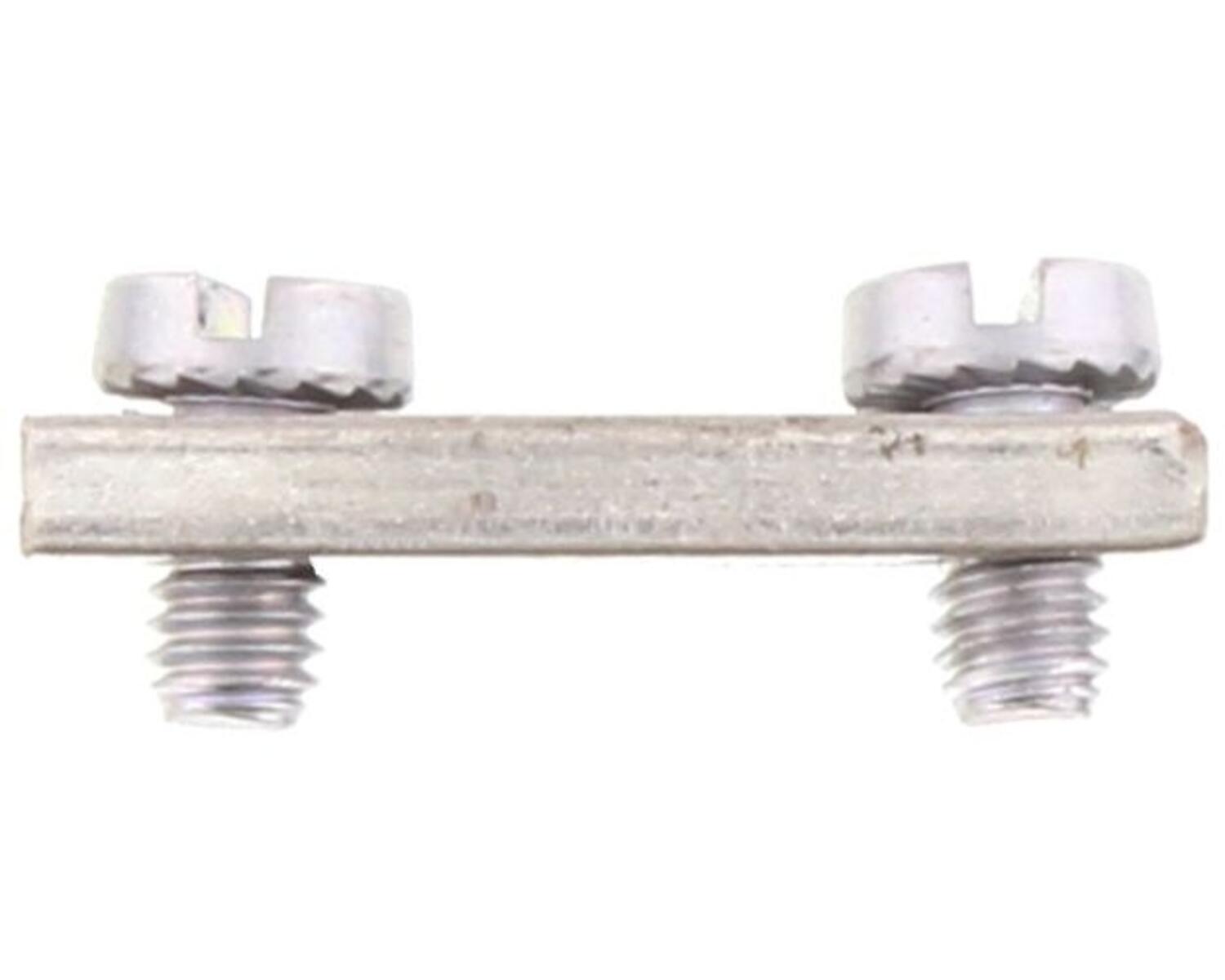

Q 2 - 2 pole cross connector for RK 35/35N New Type
Art:
17253.0
Copied
|
35 mm²
|
|
|
|
|
Screw in
|
|
for RK 35/35 N
|
8 mm
|
25 mm
|
|
16 mm
|
16 mm
|
4.1 mm
|
2
|
M 4
|
Slotted
|
|
|
Copper
|
|
|
|
|
85369010
|
DE
|
7 g
|
20
|
|
||

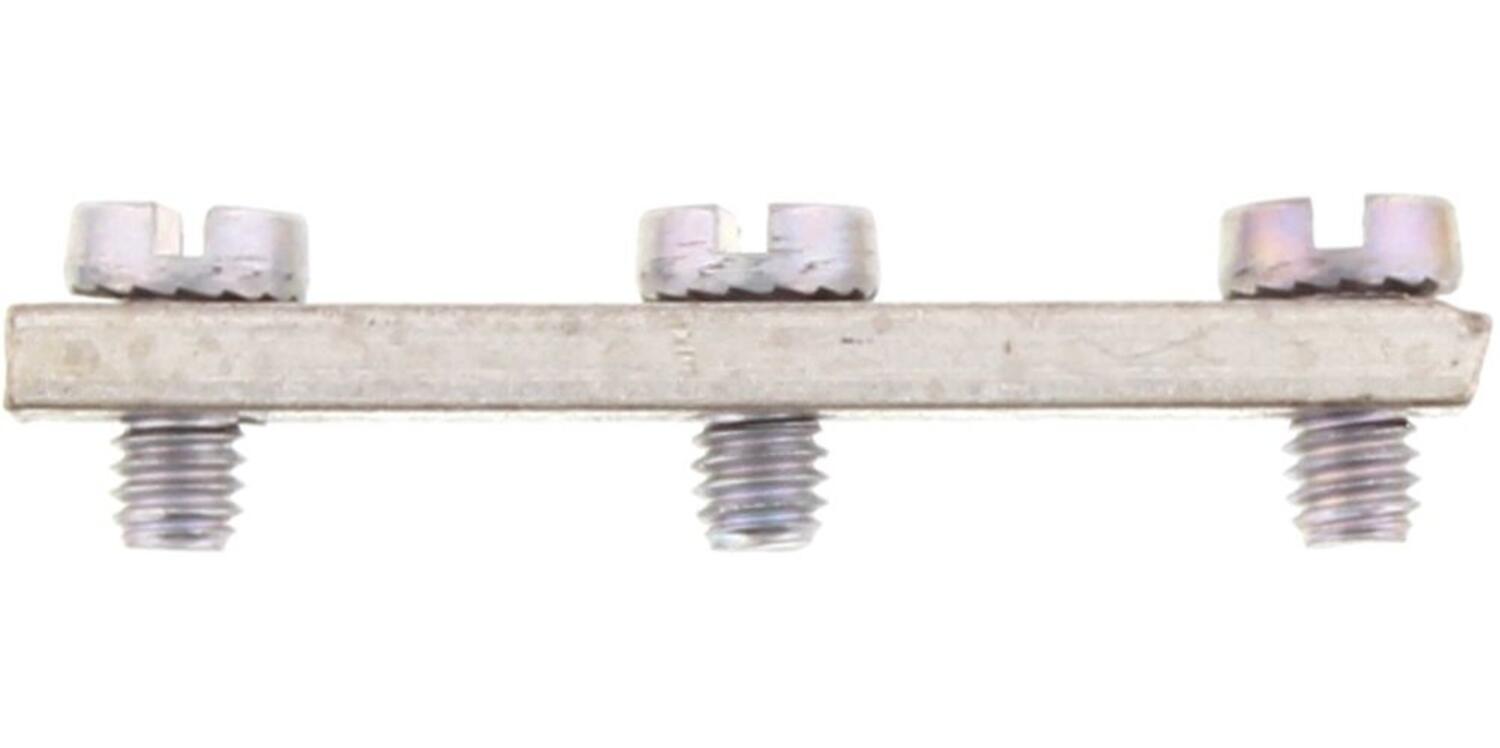

Q 3 - 3 pole cross connector for RK 35/35N New Type
Art:
17287.0
Copied
|
35 mm²
|
|
|
|
|
Screw in
|
|
for RK 35/35 N
|
8 mm
|
41 mm
|
|
16 mm
|
16 mm
|
4.1 mm
|
3
|
M 4
|
Slotted
|
|
|
Copper
|
|
|
|
|
85369010
|
DE
|
16.02 g
|
20
|
|
||

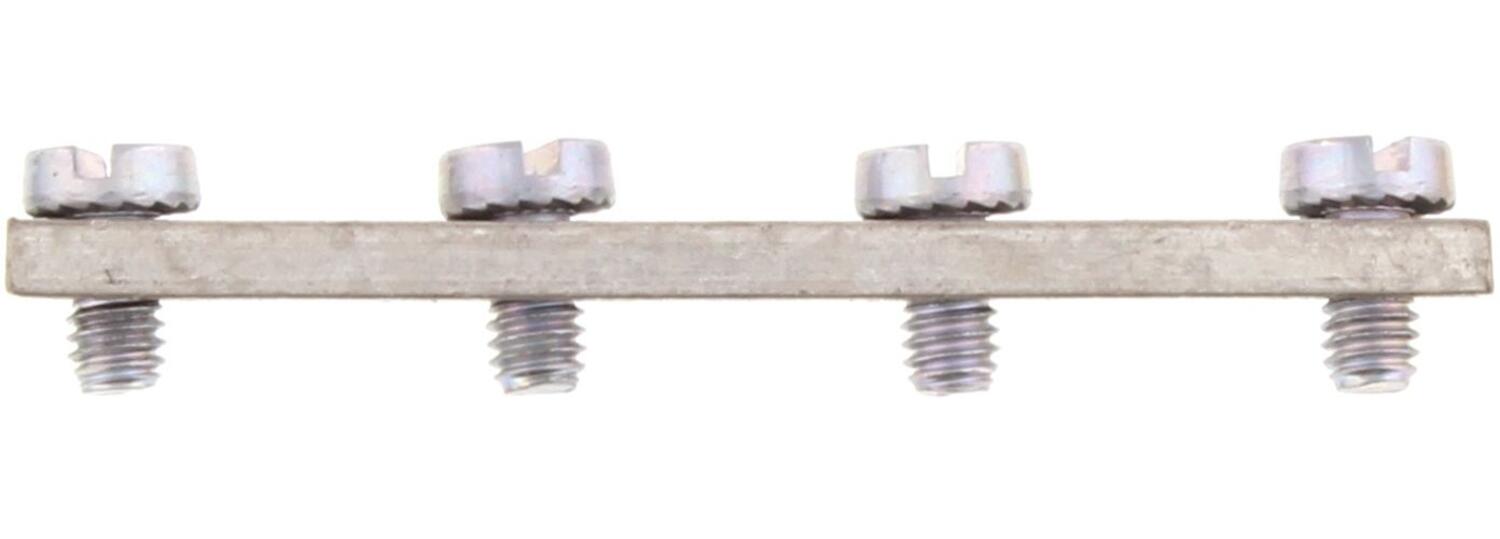

Q 4 - 4 pole cross connector for RK 35/35N New Type
Art:
17288.0
Copied
|
35 mm²
|
|
|
|
|
Screw in
|
|
for RK 35/35 N
|
8 mm
|
57 mm
|
|
16 mm
|
16 mm
|
4.1 mm
|
4
|
M 4
|
Slotted
|
|
|
Copper
|
|
|
|
|
85369010
|
DE
|
21.86 g
|
10
|
|
||
Q 10 - 10 pole cross connector fo RK 35/35N New Type
Art:
17289.0
Copied
|
35 mm²
|
|
|
|
|
Screw in
|
|
for RK 35/35 N
|
8 mm
|
153 mm
|
|
16 mm
|
16 mm
|
4.1 mm
|
10
|
M 4
|
Slotted
|
|
|
Copper
|
|
|
|
|
85369010
|
DE
|
57.03 g
|
10
|
|
||

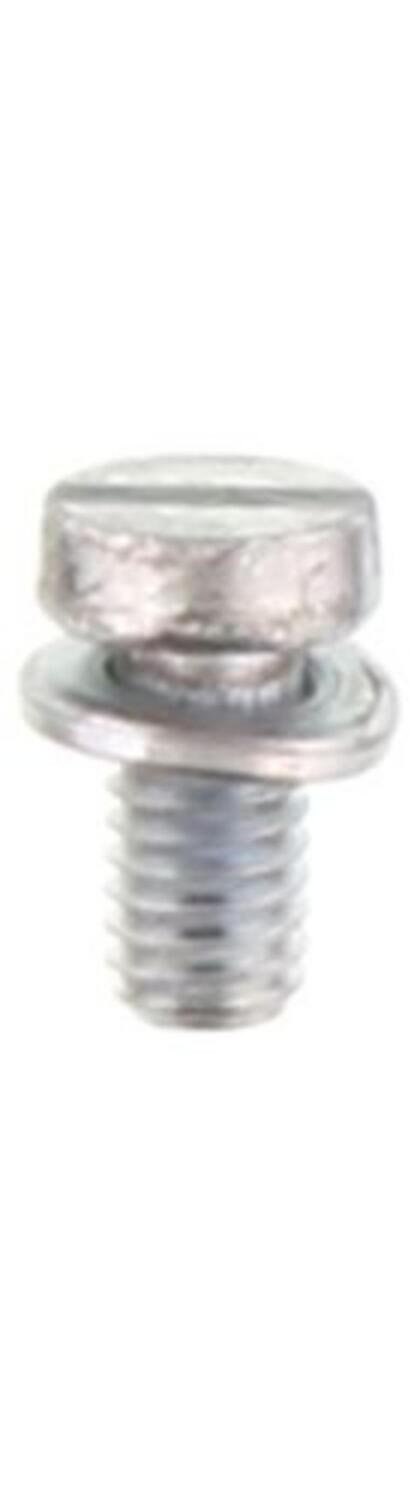

BS M 3x6, Screws for QS Cross connect bars SK 1 Fuse Holder range
Art:
2365.0
Copied
|
|
|
|
|
|
|
|
for SK 1/32 KRG | SK 1/35 KRG
|
6 mm
|
|
|
|
|
|
|
M 3
|
Slotted
|
|
|
|
|
|
|
|
73181558
|
EEC
|
0.54 g
|
100
|
|
||

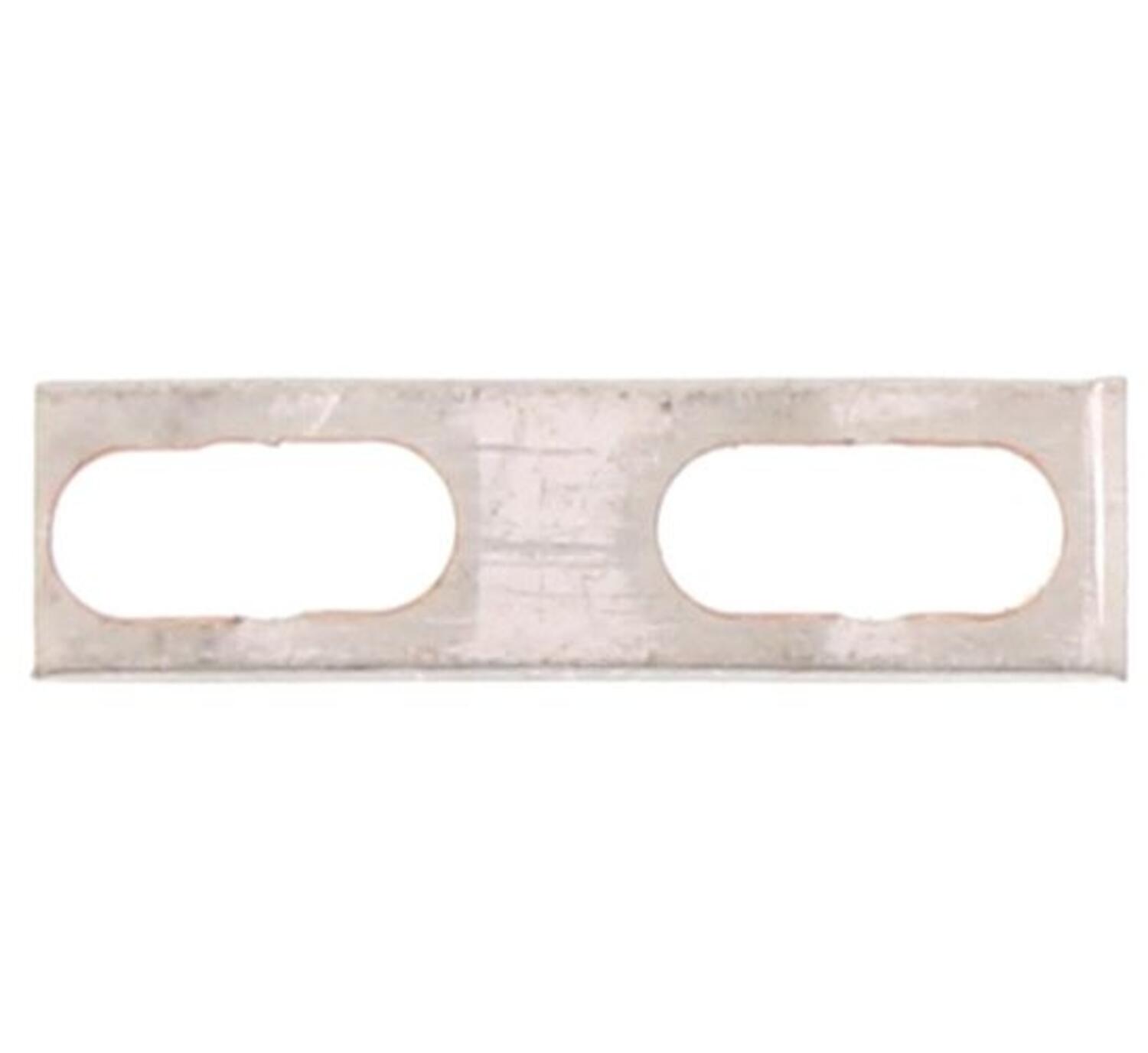

QS 2, 2 way cross connect bar for SK 1 Fuse terminals, use with 2365.0 BS Screws
Art:
2366.0
Copied
|
|
|
|
|
|
Screw in
|
|
for SK 1/32 KRG | SK 1/35 KRG
|
6 mm
|
20.1 mm
|
2 mm
|
11.9 mm
|
12 mm
|
3.4 mm
|
2
|
|
|
|
|
Brass
|
|
|
|
|
85369010
|
DE
|
1.8 g
|
50
|
|
||

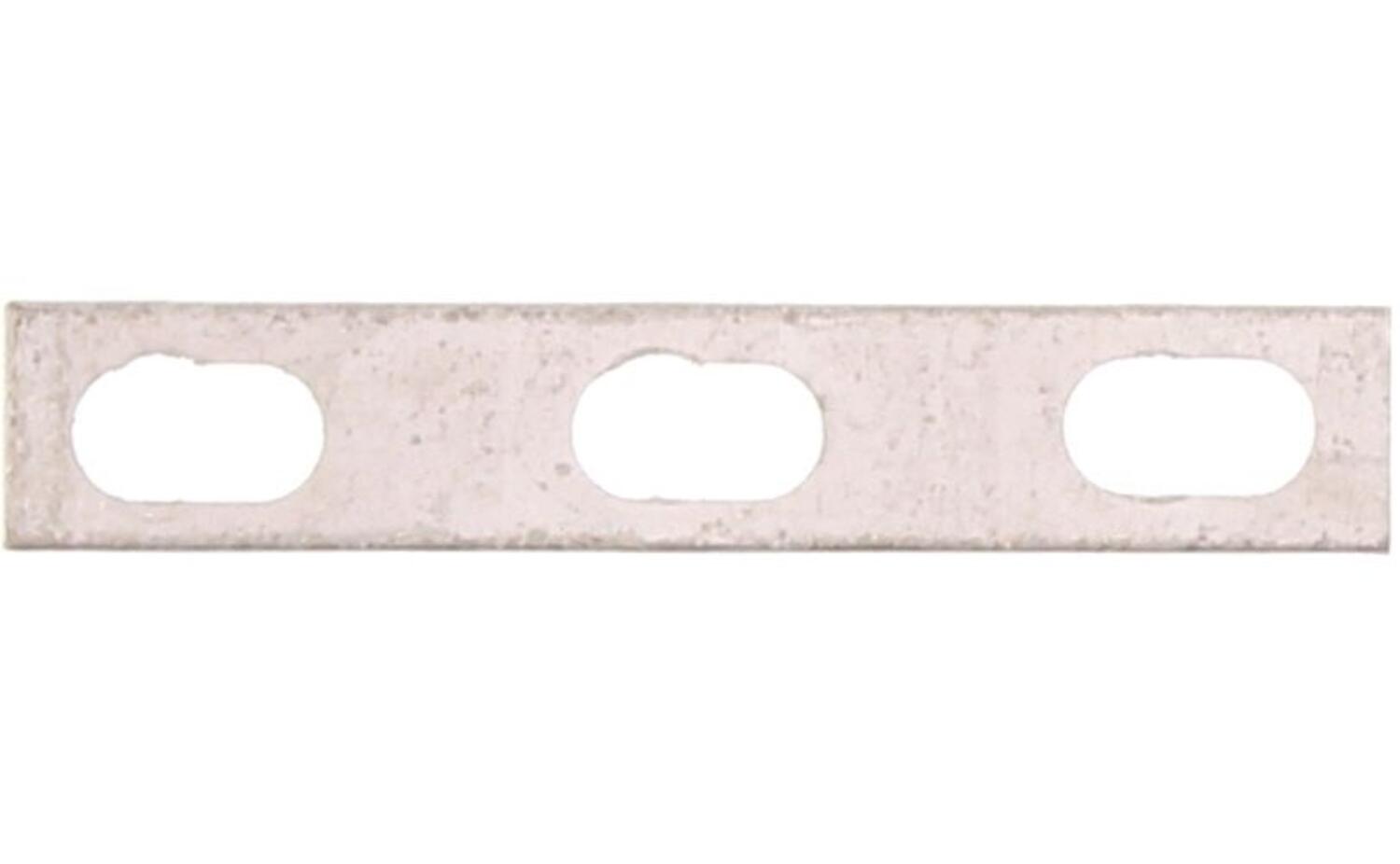

QS 3, 3 way cross connect bar for SK 1 Fuse terminals, use with 2365.0 BS Screws
Art:
2367.0
Copied
|
|
|
|
|
|
Screw in
|
|
for SK 1/32 KRG | SK 1/35 KRG
|
6 mm
|
32 mm
|
2 mm
|
11.9 mm
|
12 mm
|
3.4 mm
|
3
|
|
|
|
|
Brass
|
|
|
|
|
85369010
|
DE
|
2.4 g
|
50
|
|
||

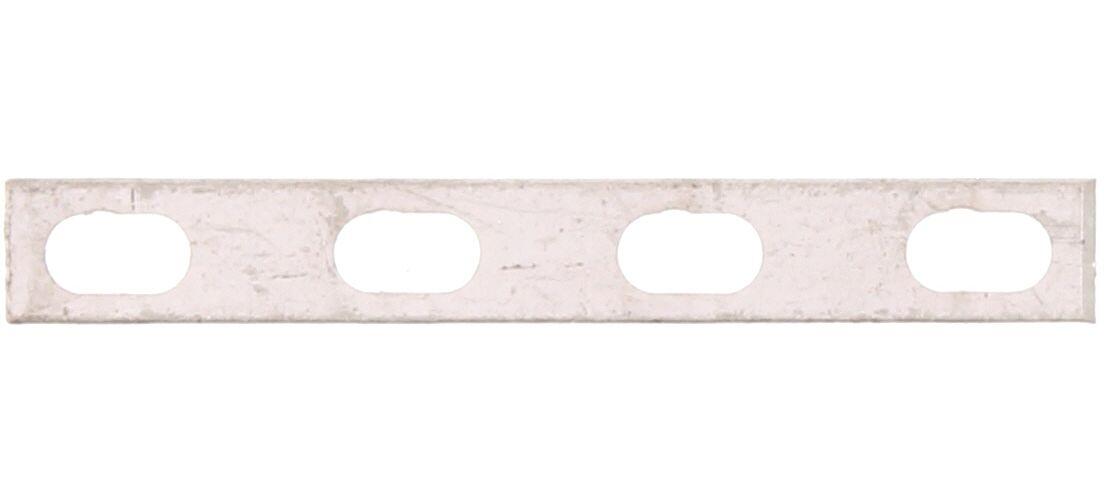

QS 4, 4 way cross connect bar for SK 1 Fuse terminals, use with 2365.0 BS Screws
Art:
2368.0
Copied
|
|
|
|
|
|
Screw in
|
|
for SK 1/32 KRG | SK 1/35 KRG
|
6 mm
|
43.9 mm
|
2 mm
|
11.9 mm
|
12 mm
|
3.4 mm
|
4
|
|
|
|
|
Brass
|
|
|
|
|
85369010
|
DE
|
3.4 g
|
20
|
|
Select a variant in the list
