CONTA-CLIP

Cross Connectors for PRK, PSL, PRKD, PTKS Range

  • Fully rated for the matching terminal
  • Plug in for fast and easy connection
  • Pins can be removed for jumping terminals

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General data
Colour Red
Mounting Plug in

Dimensions
Length 3.2 mm
Width 6.1 mm
Height 14.5 mm
Pitch 3.5 mm

Connection data
Number of poles 2

Materials
Insulation material Polyamide 6.6
Flammability class UL94-V0

*Invisible Heading*
Operating temperature from -40 °C
Operating temperature to 120 °C

Additional data
Tariff code 85389099
Country of origin DE
Weight 1 g
Pack size 50
Number of poles 2

Downloads

Accessories

Related products

Related

cable port
Product news

We now offer cable

What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Parts Colour Rated cross section Rated current Voltage max Load current max Mounting Contamination degree Length Width Height Pitch Number of poles Material Insulation material Flammability class Operating temperature from Operating temperature to Tariff code Country of origin Weight Pack size Number of poles Price

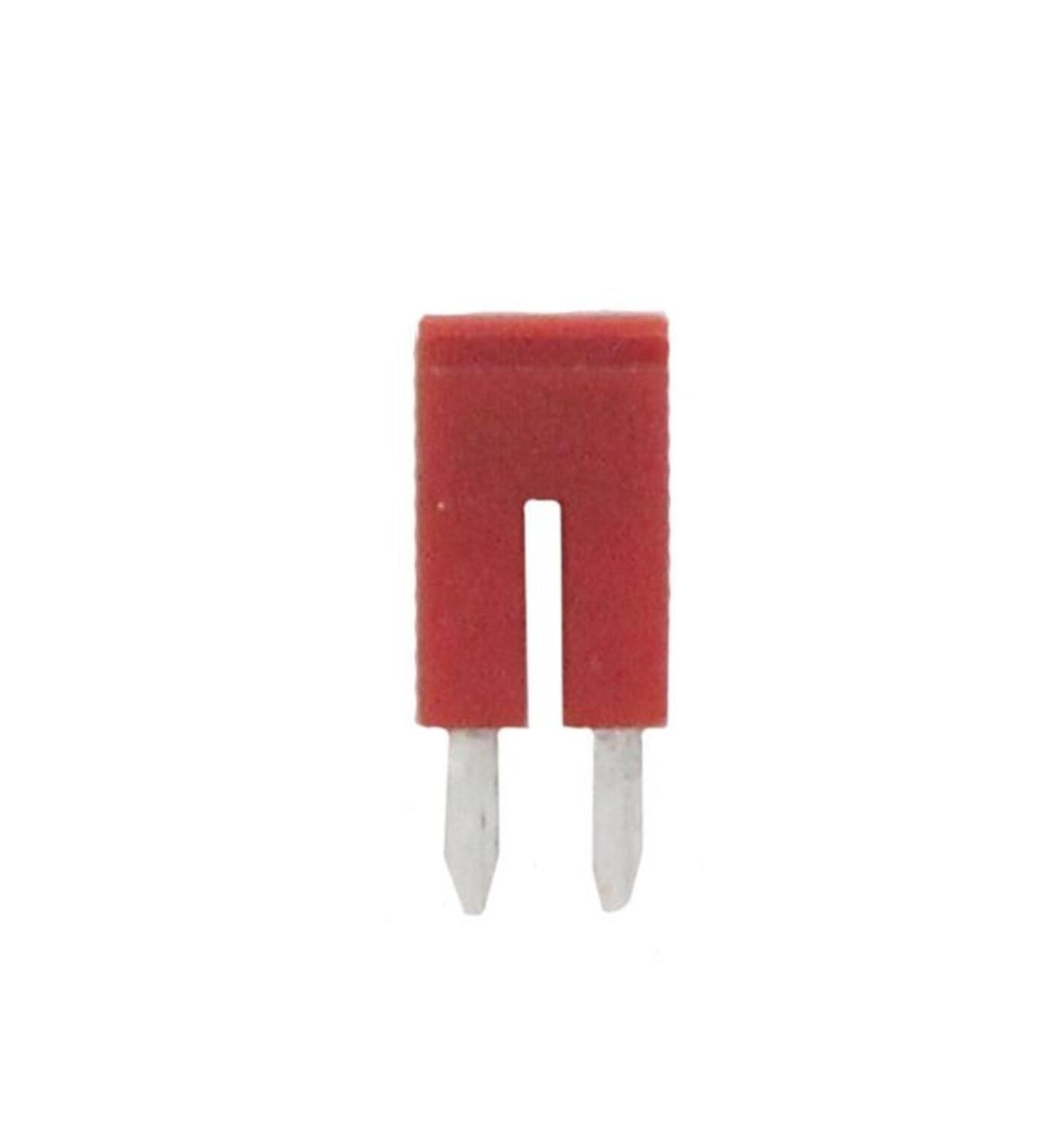

PQI 1.5/2, 2 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27122.9 Copied
Red
Plug in
3.2 mm
6.1 mm
14.5 mm
3.5 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
50
2

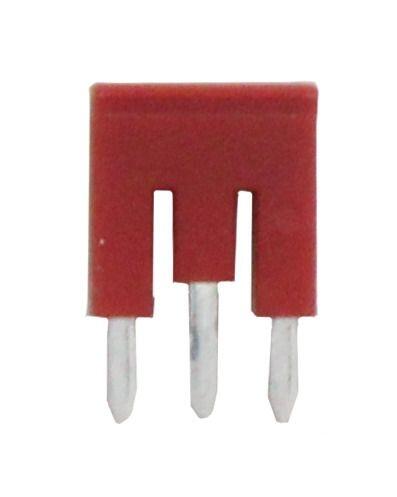

PQI 1.5/3, 3 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27123.9 Copied
Red
Plug in
3.2 mm
9.6 mm
14.5 mm
3.5 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
50
3
PRK_crossconnector.tif
PQI 1.5/4, 4 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27124.9 Copied
Red
Plug in
3.2 mm
13.1 mm
14.5 mm
3.5 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
20
4

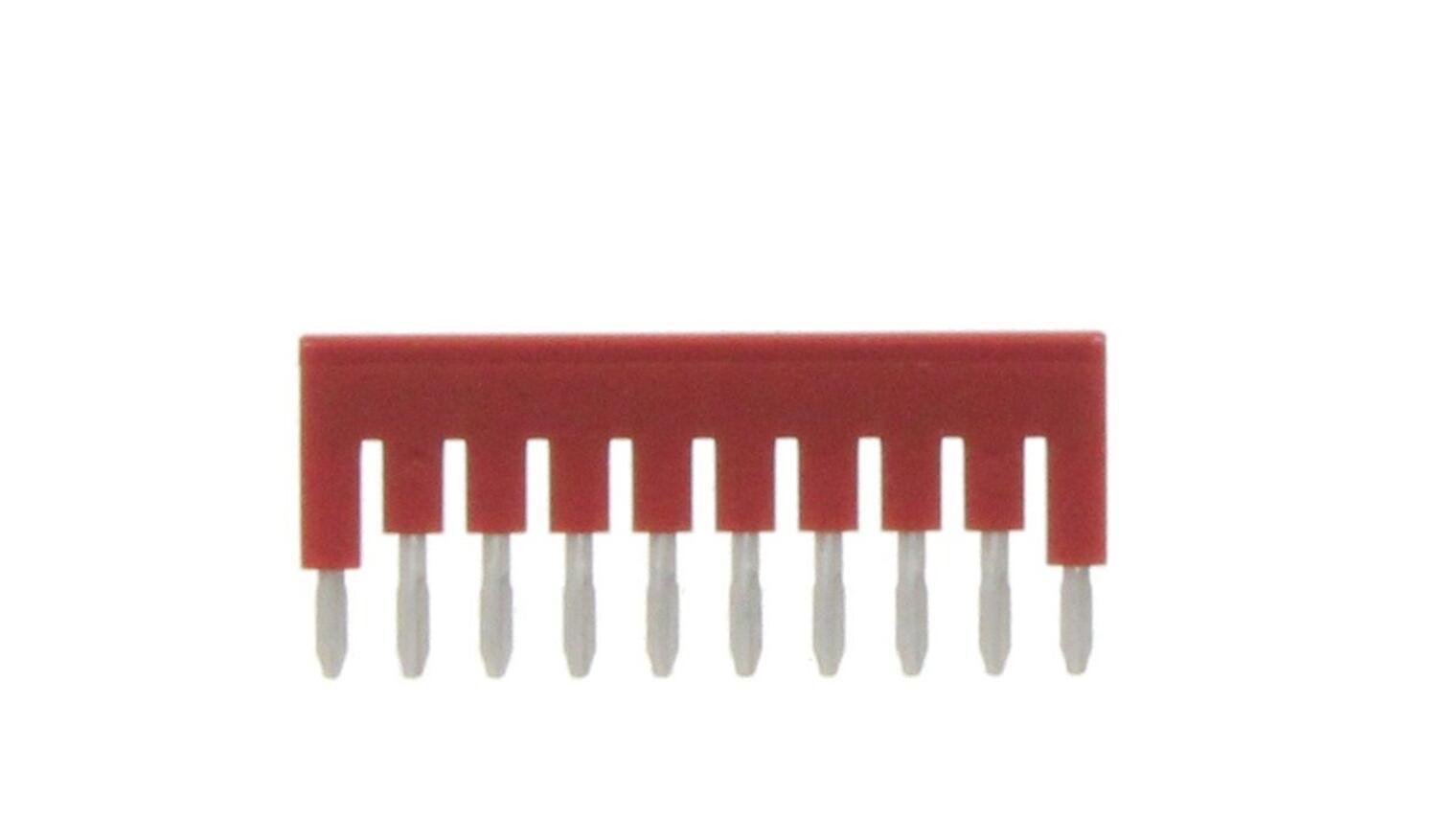

PQI 1.5/10, 10 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27130.9 Copied
Red
Plug in
3.2 mm
34.1 mm
14.5 mm
3.5 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
10
10
PRK_crossconnector.tif
PQI 1.5/20, 20 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27131.9 Copied
Red
Plug in
3.2 mm
69.1 mm
14.5 mm
3.5 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
5
20

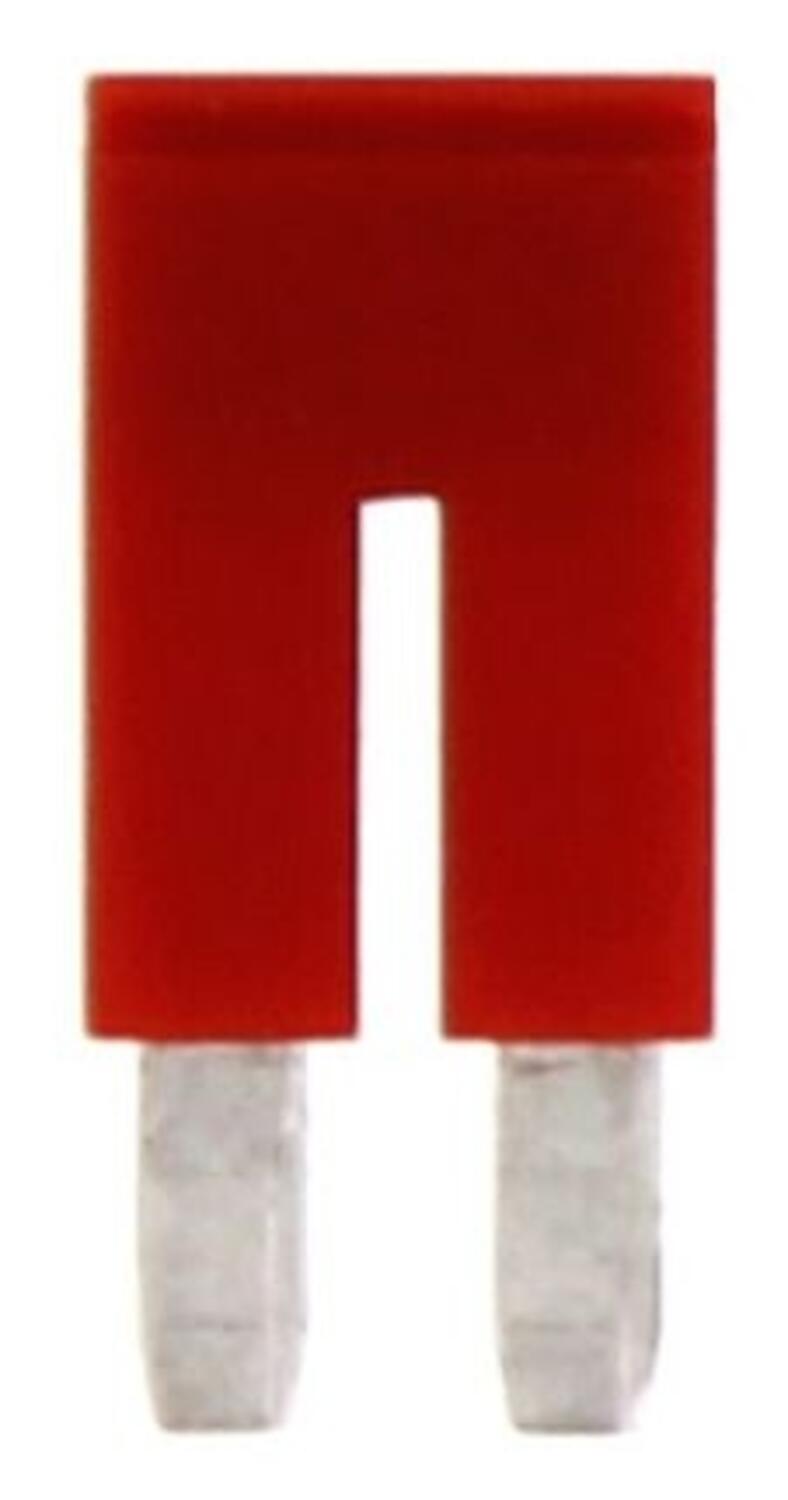

PQI 2.5/2, 2 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27132.9 Copied
Red
Plug in
4 mm
9.1 mm
19.4 mm
5.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1.69 g
50
2

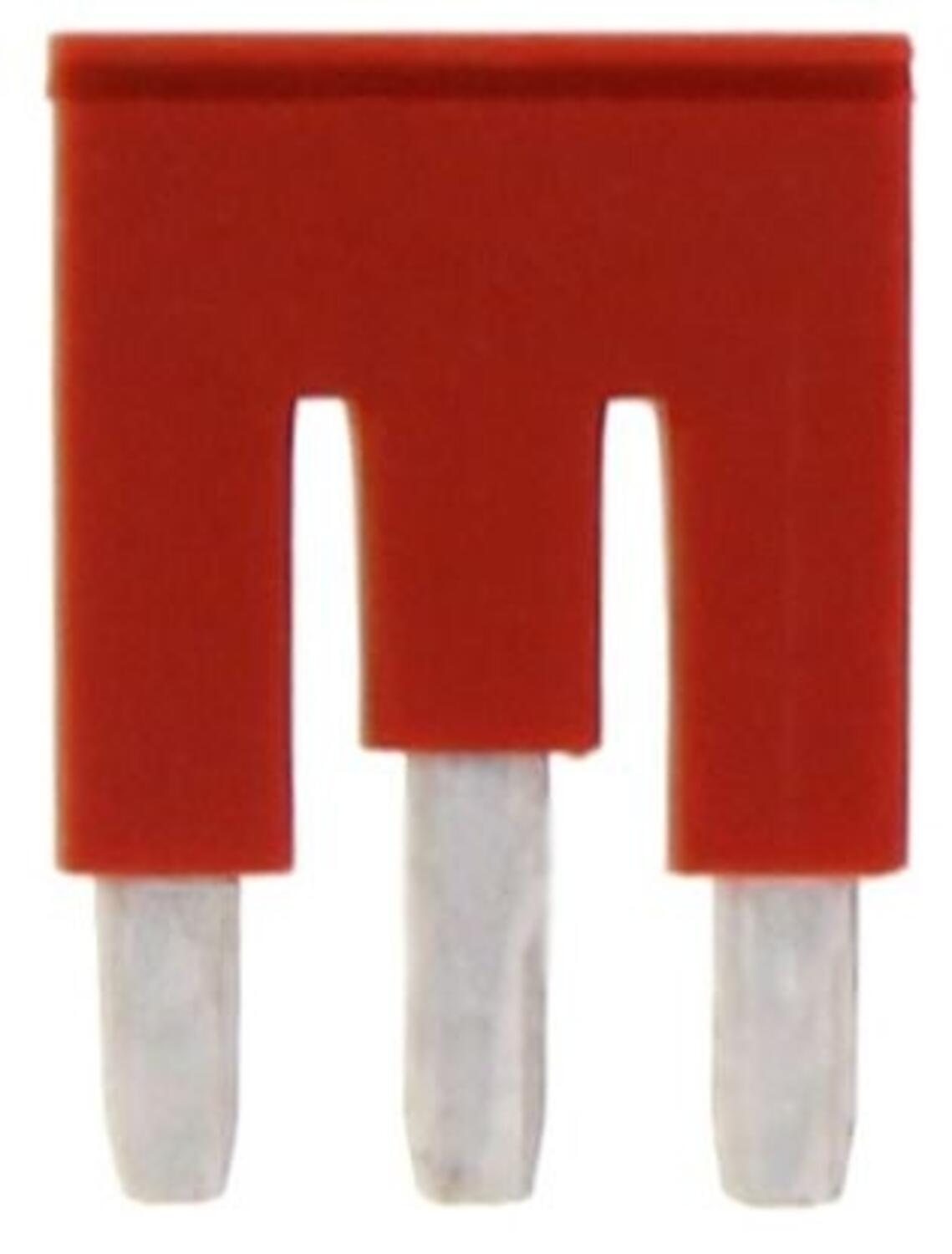

PQI 2.5/3, 3 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27133.9 Copied
Red
Plug in
4 mm
14.2 mm
19.4 mm
5.1 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
2.6 g
50
3

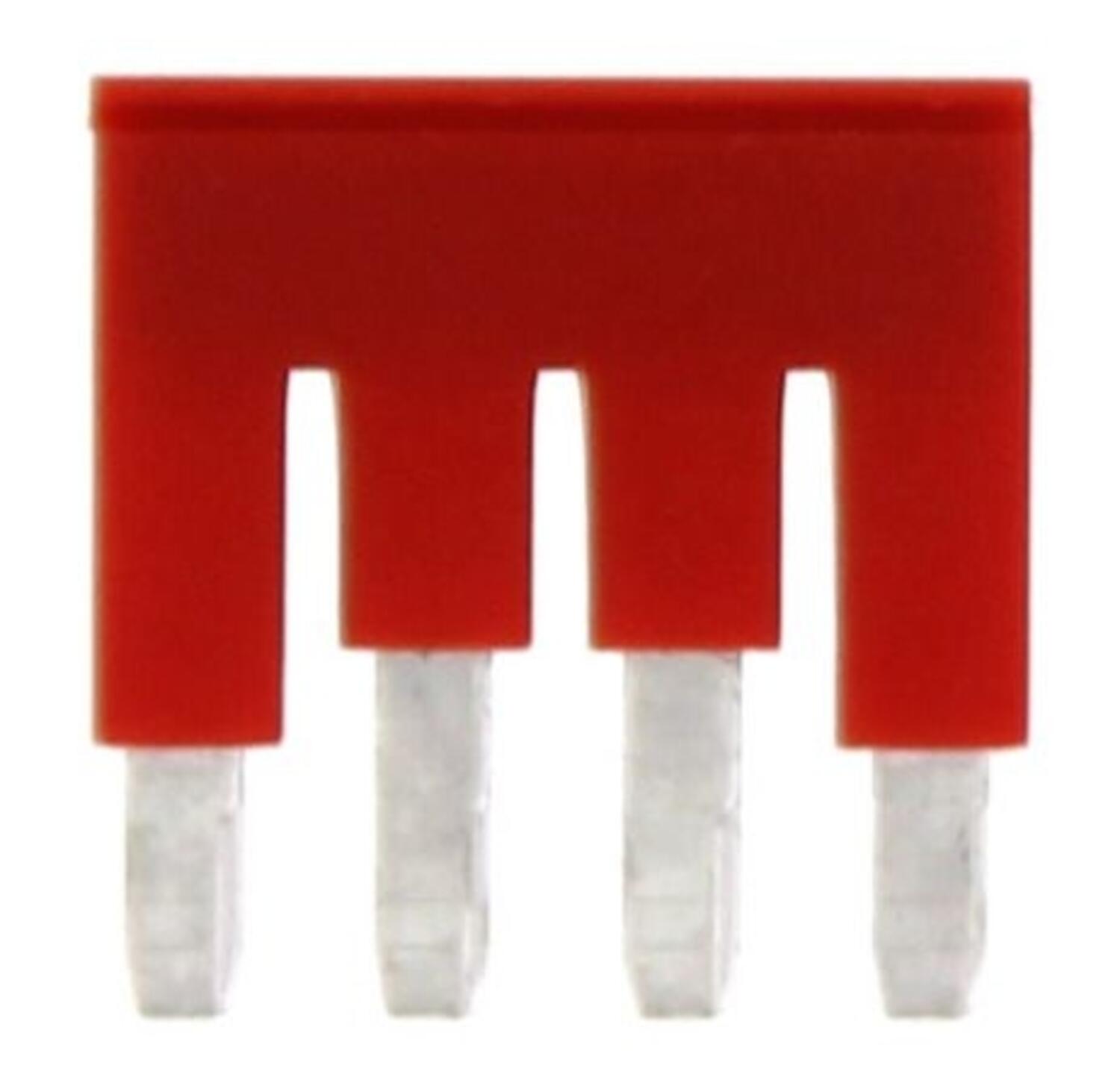

PQI 2.5/4, 4 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27134.9 Copied
Red
Plug in
4 mm
19.3 mm
19.4 mm
5.1 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
3.52 g
20
4

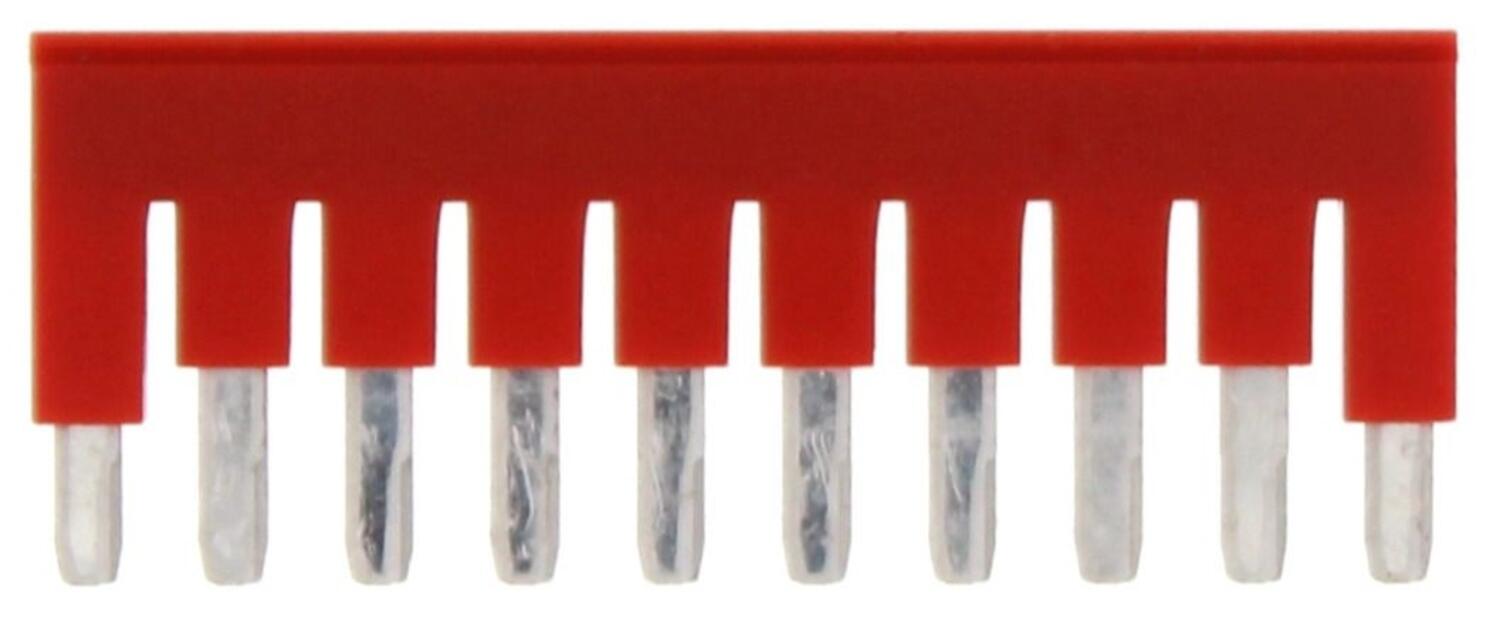

PQI 2.5/10, 10 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27140.9 Copied
Red
Plug in
4 mm
49.9 mm
19.4 mm
5.1 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
8.73 g
10
10

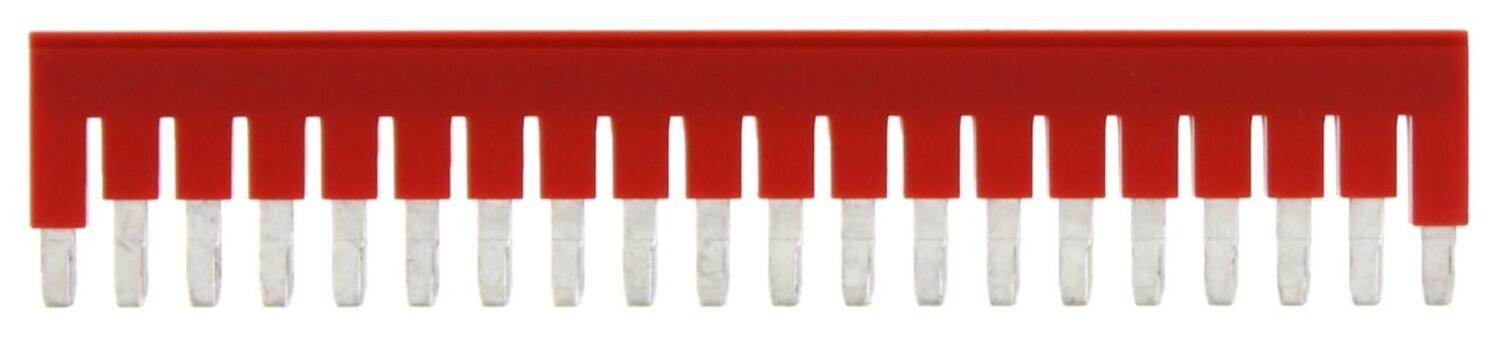

PQI 2.5/20, 20 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27141.9 Copied
Red
Plug in
4 mm
100.9 mm
19.4 mm
5.1 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
21.58 g
5
20

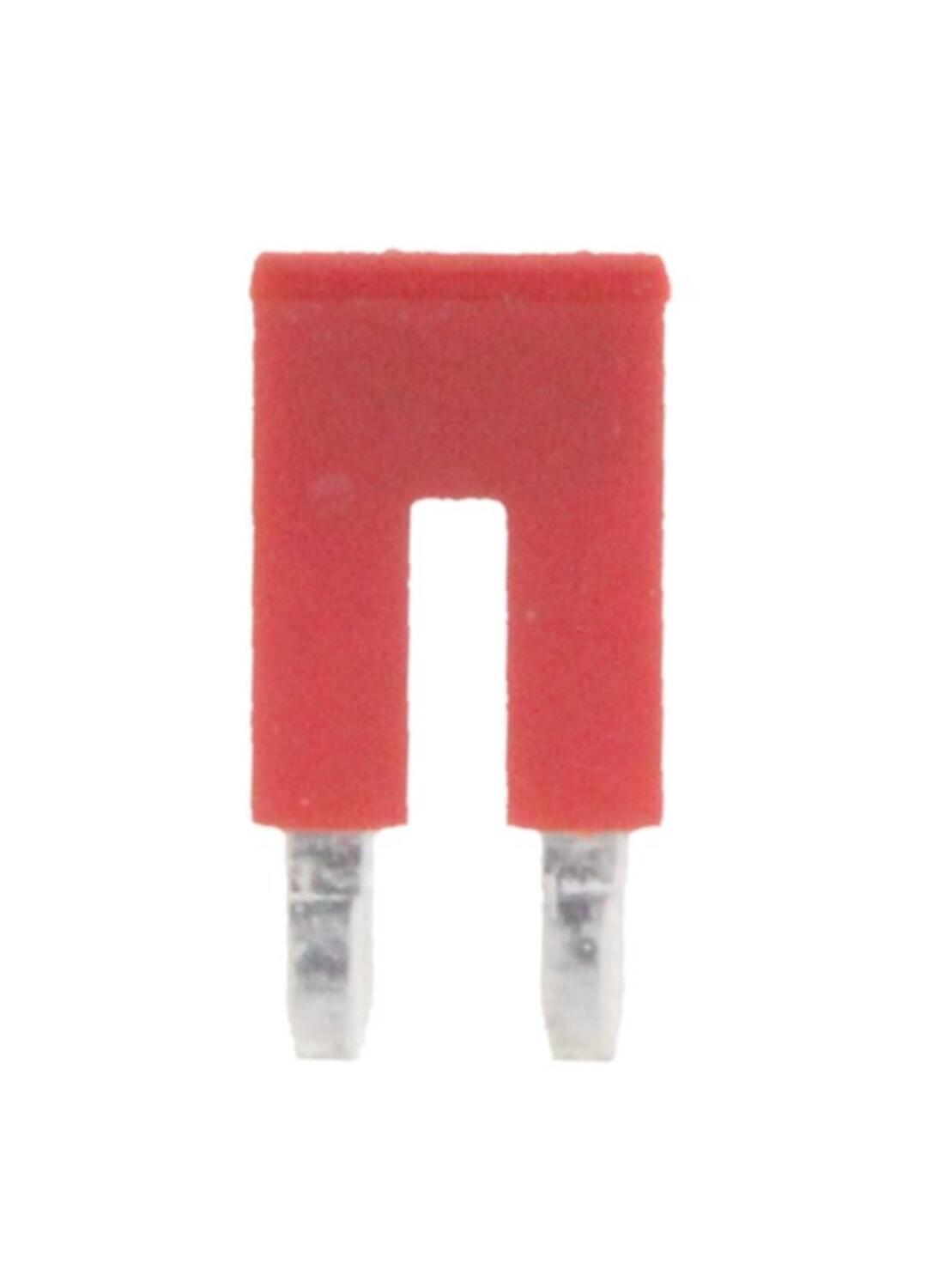

PQI 4/2, 2 way Cross connector for PRK/PSL 4mm² - Red
Art:
27142.9 Copied
Red
Plug in
4 mm
10.1 mm
19.4 mm
6.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1.75 g
50
2

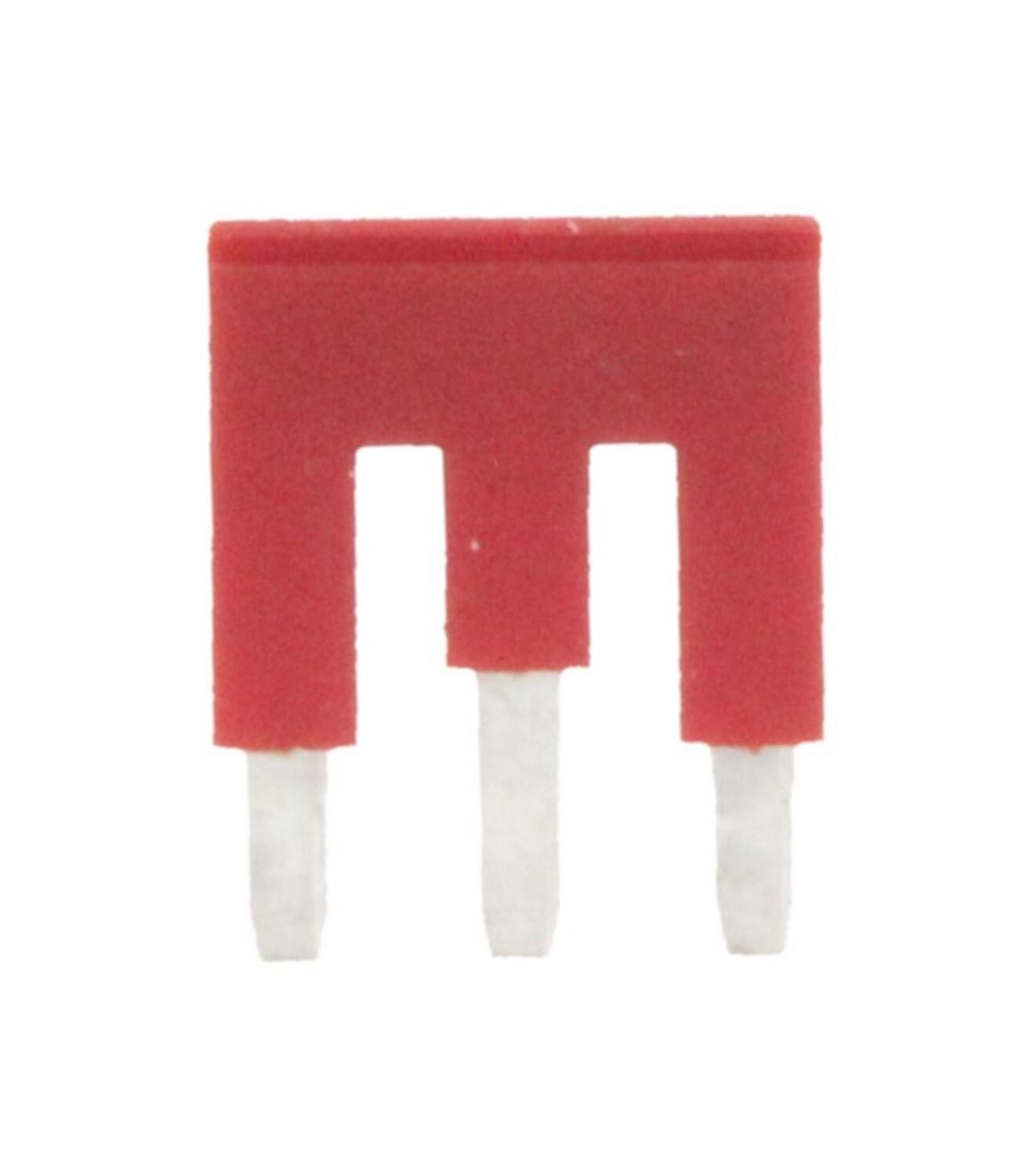

PQI 4/3, 3 way Cross connector for PRK/PSL 4mm² - Red
Art:
27143.9 Copied
Red
Plug in
4 mm
16.2 mm
19.4 mm
6.1 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
2.78 g
50
3

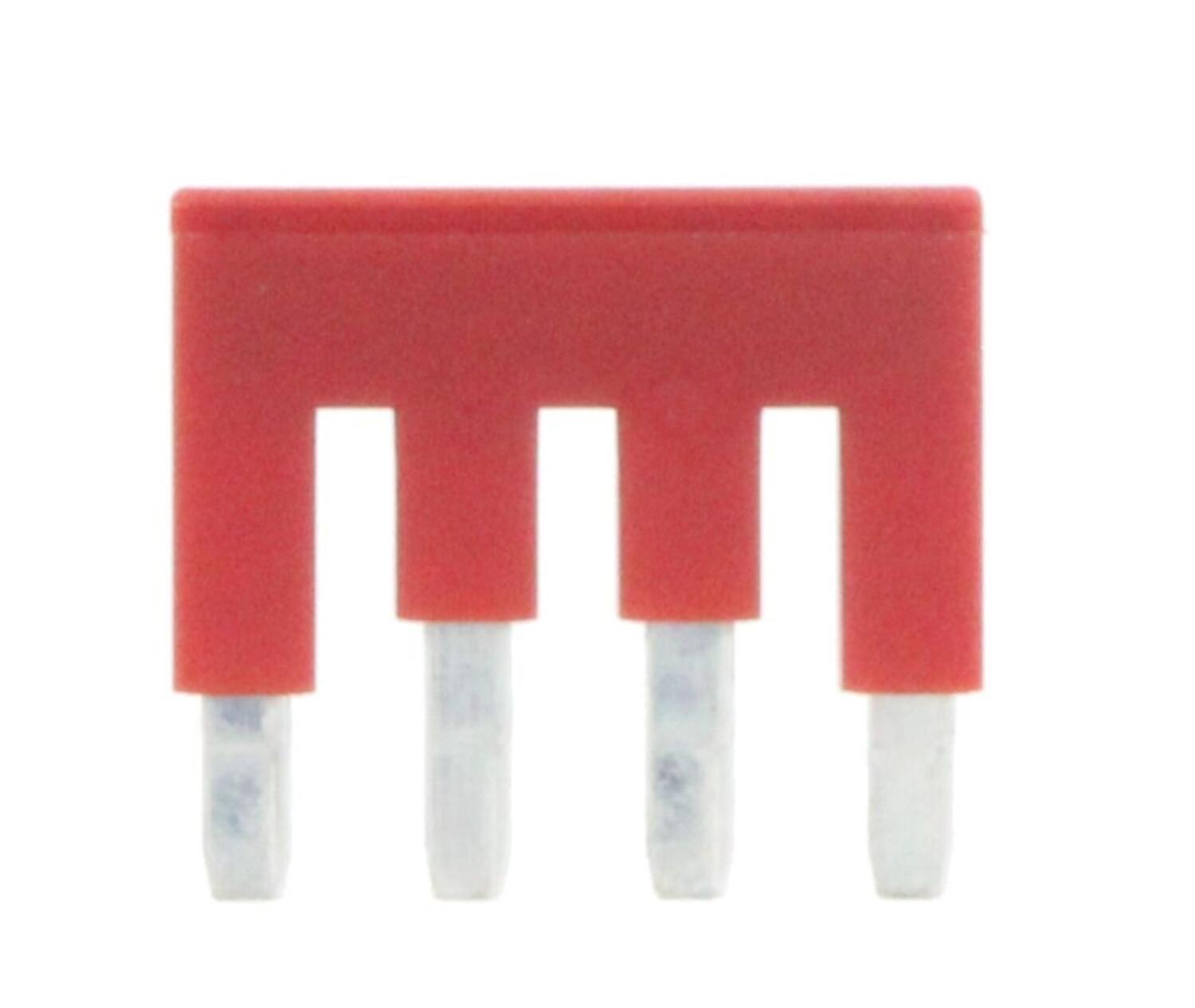

PQI 4/4, 4 way Cross connector for PRK/PSL 4mm² - Red
Art:
27144.9 Copied
Red
Plug in
4 mm
22.3 mm
19.4 mm
6.1 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
4.68 g
20
4

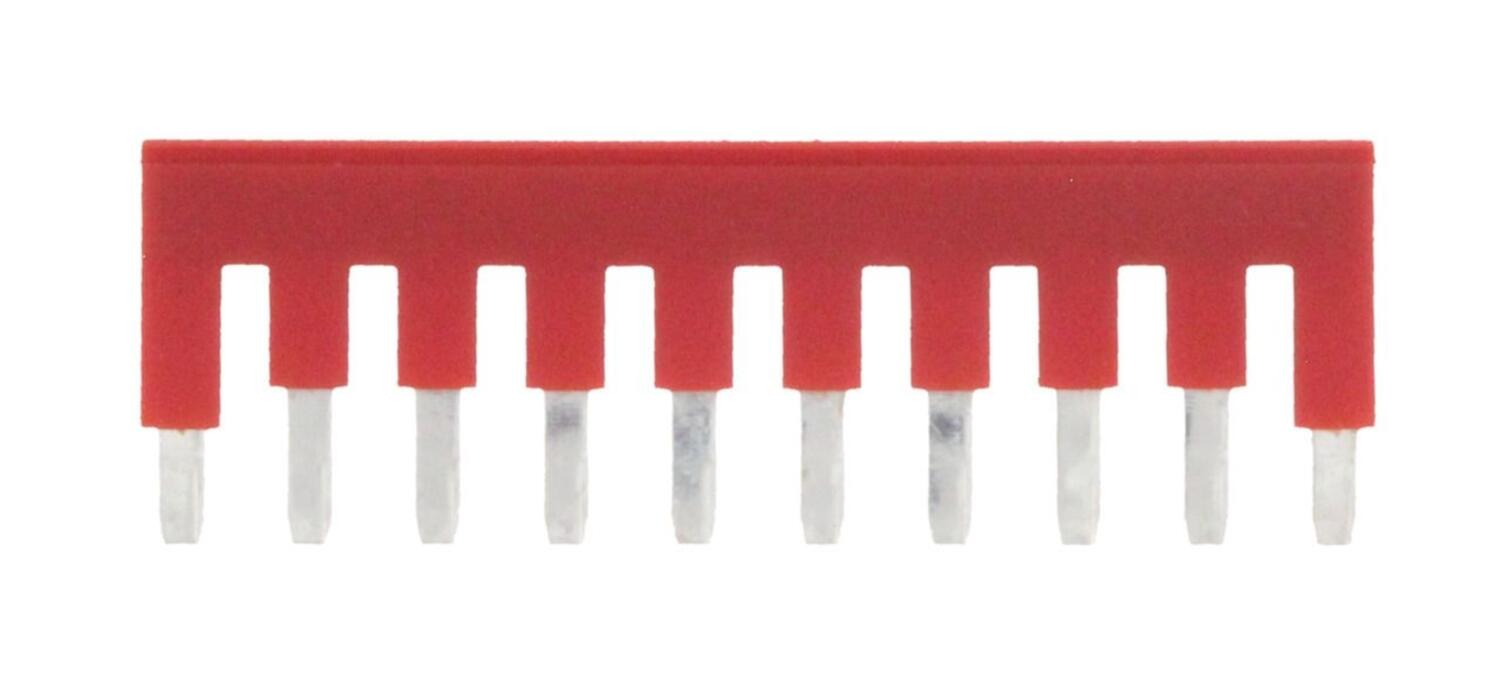

PQI 4/10, 10 way Cross connector for PRK/PSL 4mm² - Red
Art:
27150.9 Copied
Red
Plug in
4 mm
58.9 mm
19.4 mm
6.1 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
10.66 g
10
10

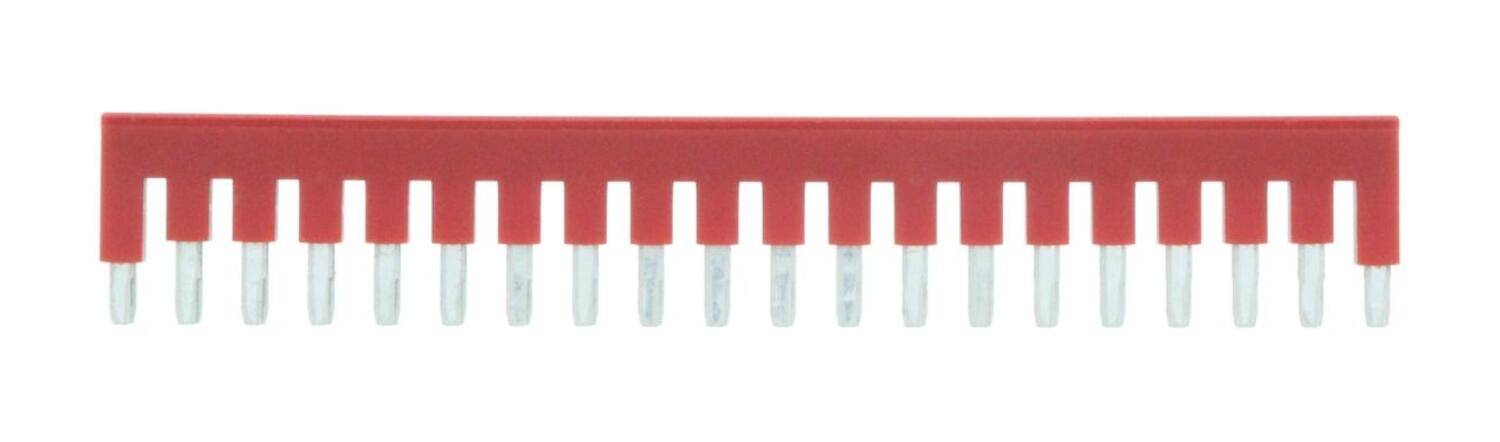

PQI 4/20, 20 way Cross connector for PRK/PSL 4mm² - Red
Art:
27151.9 Copied
Red
Plug in
4 mm
119.9 mm
19.4 mm
6.1 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
19.2 g
5
20

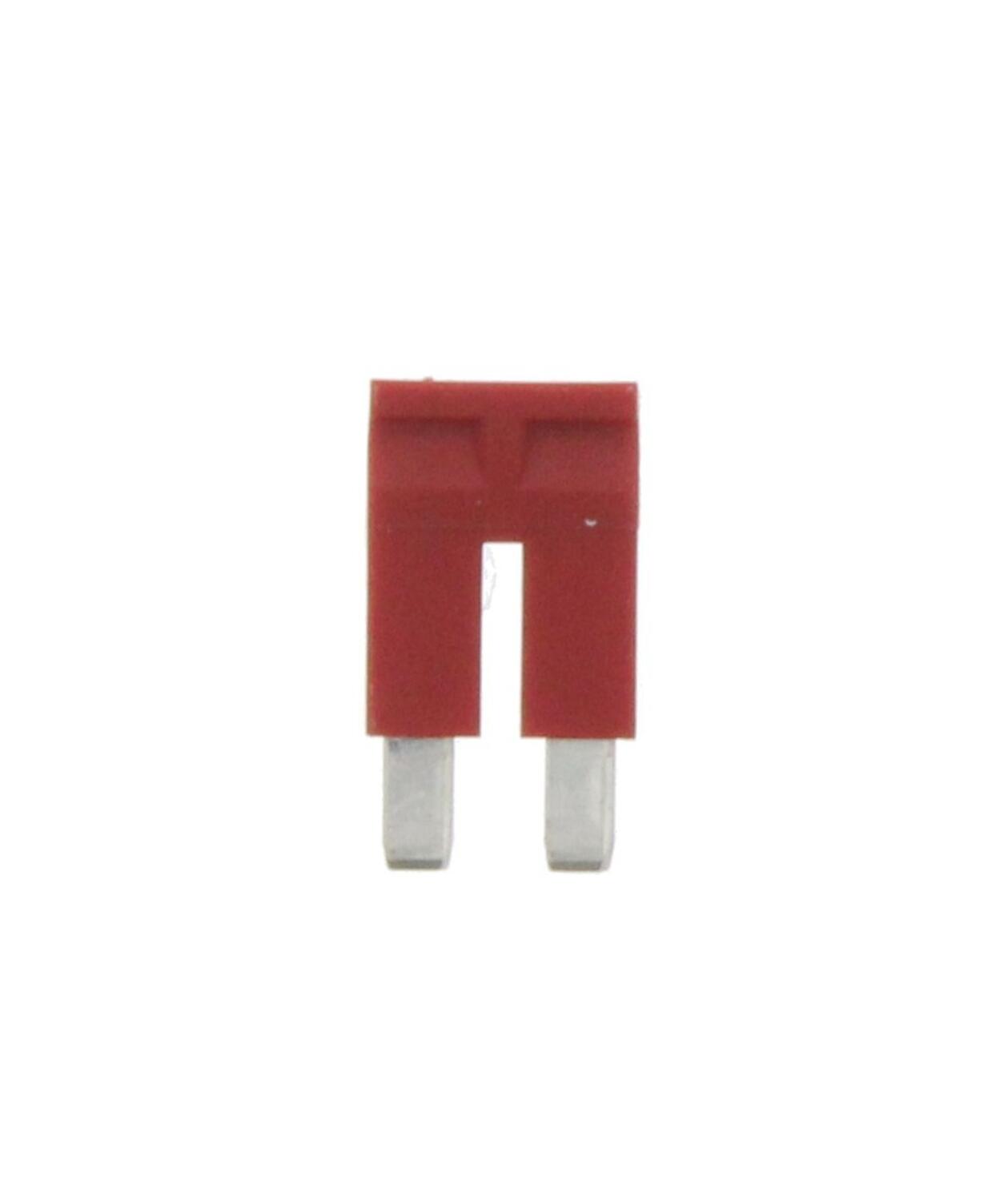

PQI 6/2, 2 way Cross connector for PRK/PSL 6mm² - Red
Art:
27152.9 Copied
Red
Plug in
4 mm
13.6 mm
22.5 mm
8.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
3 g
50
2

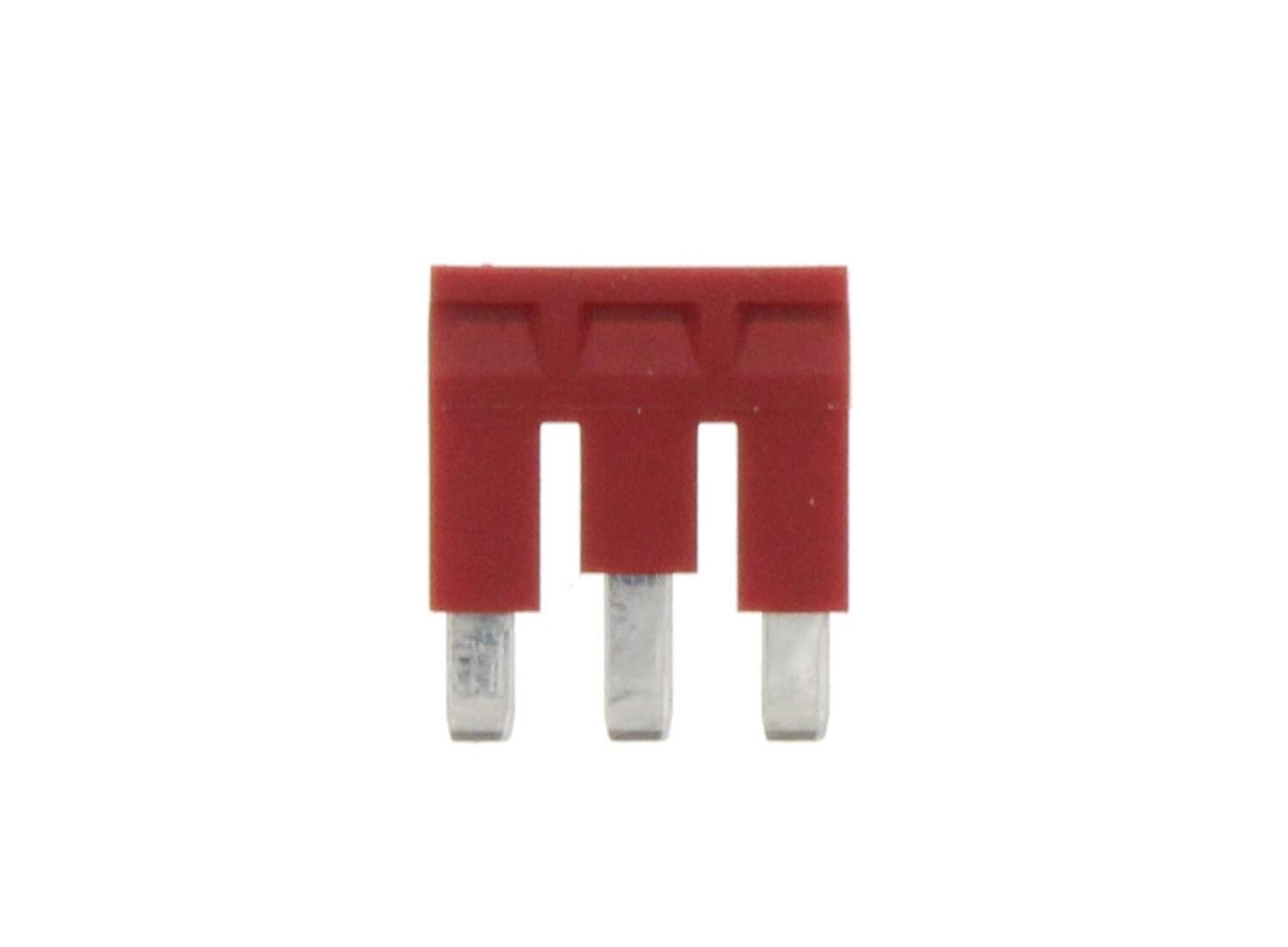

PQI 6/3, 3 way Cross connector for PRK/PSL 6mm² - Red
Art:
27153.9 Copied
Red
Plug in
4 mm
21.7 mm
22.5 mm
8.1 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
4.48 g
50
3
PRK_crossconnector.tif
PQI 6/4, 4 way Cross connector for PRK/PSL 6mm² - Red
Art:
27154.9 Copied
Red
Plug in
4 mm
29.8 mm
22.5 mm
8.1 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
6.14 g
20
4
PRK_crossconnector.tif
PQI 6/10, 10 way Cross connector for PRK/PSL 6mm² - Red
Art:
27160.9 Copied
Red
Plug in
4 mm
78.4 mm
22.5 mm
8.1 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
17.23 g
10
10

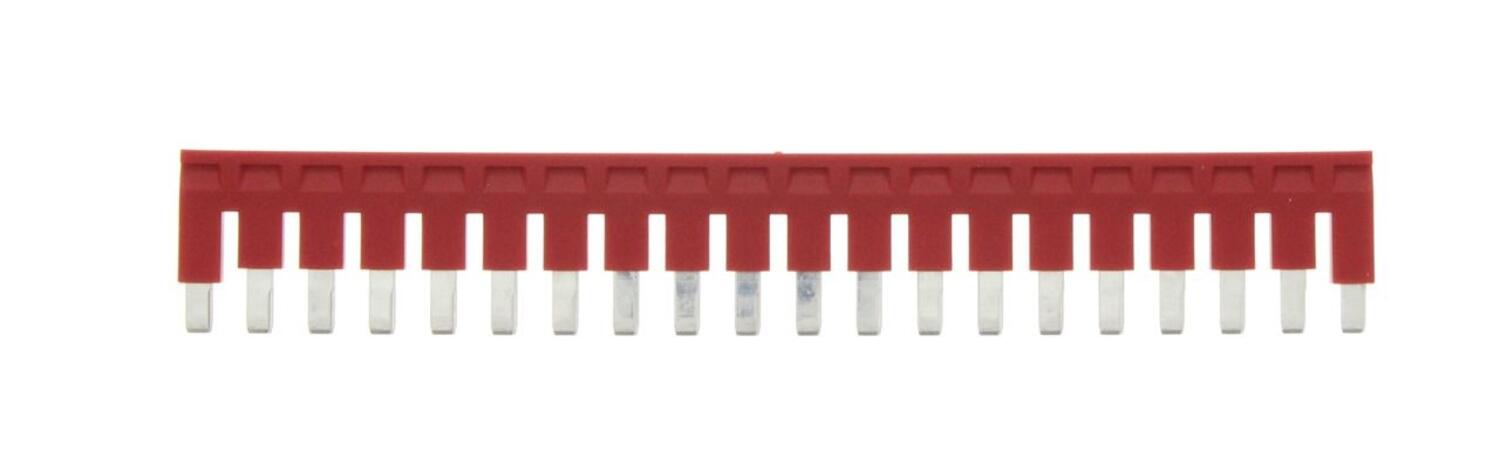

PQI 6/20, 20 way Cross connector for PRK/PSL 6mm² - Red
Art:
27161.9 Copied
Red
Plug in
4 mm
159.4 mm
22.5 mm
8.1 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
33.34 g
50
20
PRK_crossconnector.tif
PQI 10/2, 2 way Cross connector for PRK/PSL 10mm² - Red
Art:
27162.9 Copied
Red
Plug in
5.5 mm
17.1 mm
27.5 mm
10.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
50
2

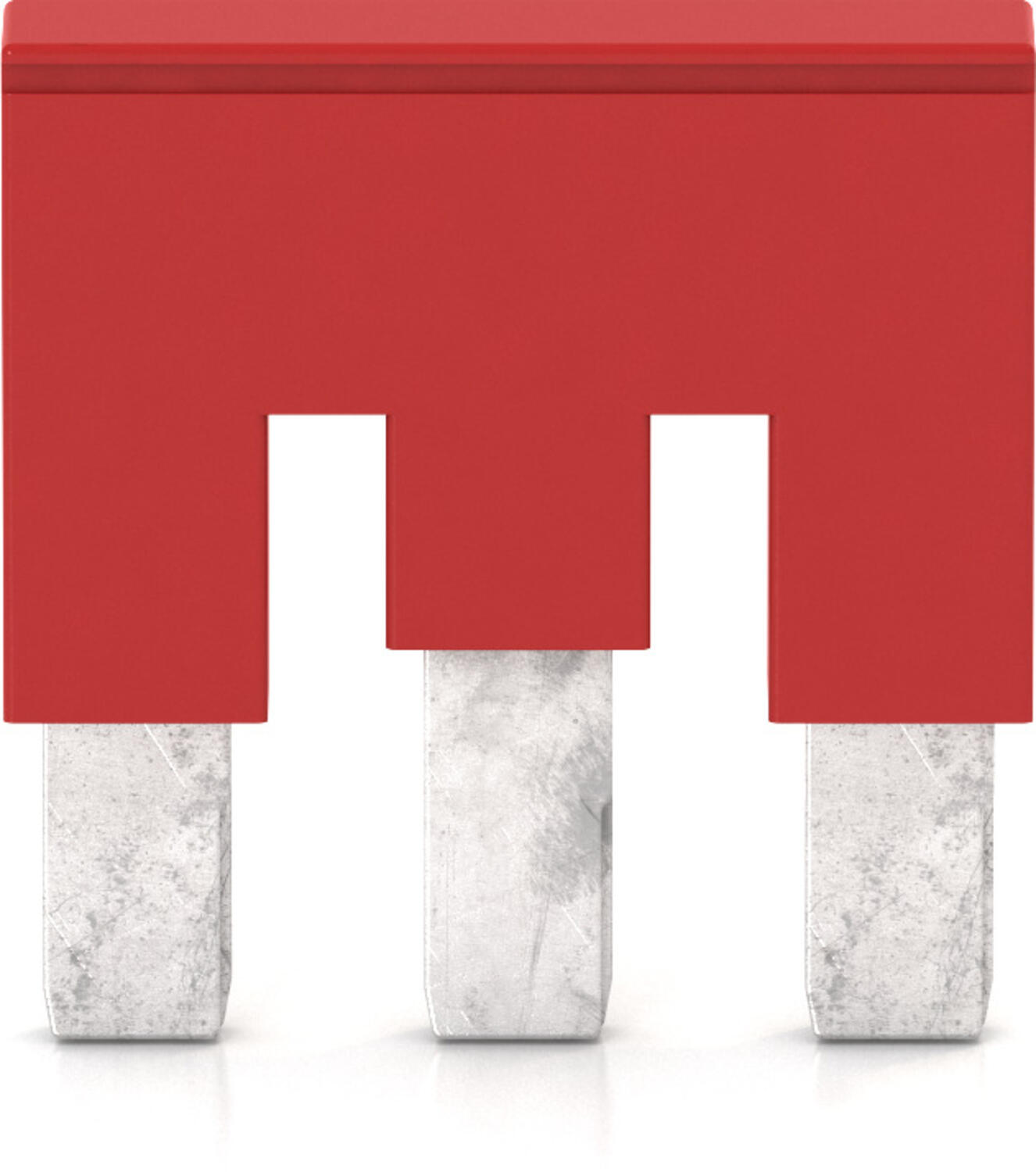

PQI 10/3, 3 way Cross connector for PRK/PSL 10mm - Red
Art:
27163.9 Copied
Red
Plug in
5.5 mm
27.2 mm
27.5 mm
10.1 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
50
3

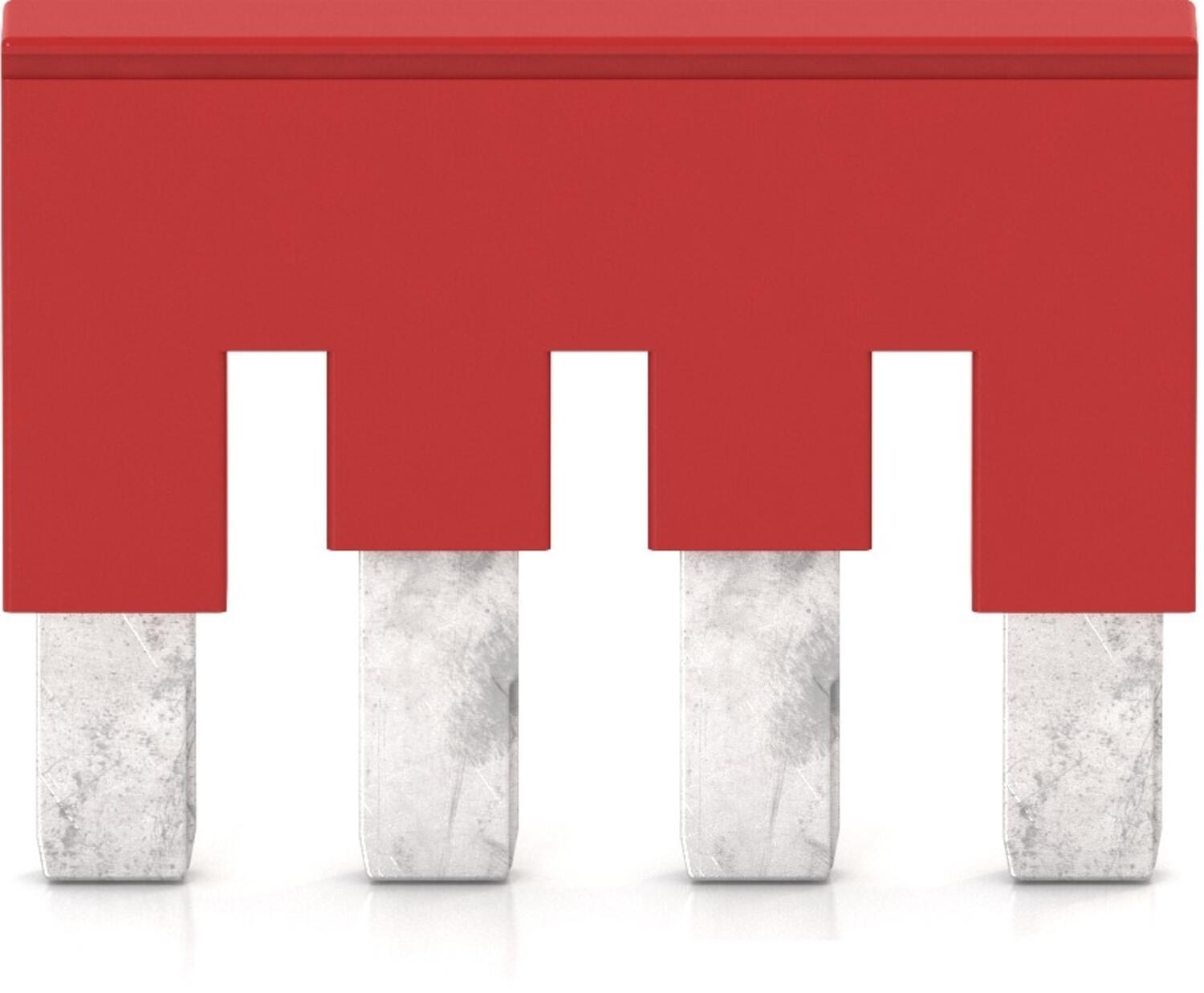

PQI 10/4, 4 way Cross connector for PRK/PSL 10mm - Red
Art:
27164.9 Copied
Red
Plug in
5.5 mm
37.3 mm
27.5 mm
10.1 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
20
4

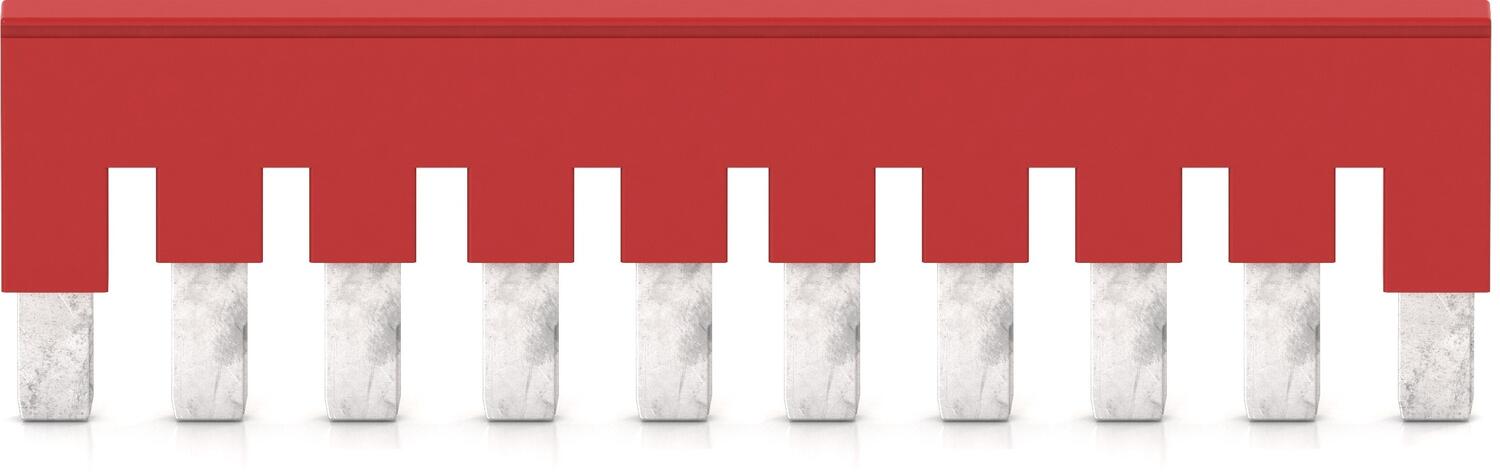

PQI 10/10, 10 way Cross connector for PRK/PSL 10mm - Red
Art:
27170.9 Copied
Red
Plug in
5.5 mm
97.9 mm
27.5 mm
10.1 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
10
10

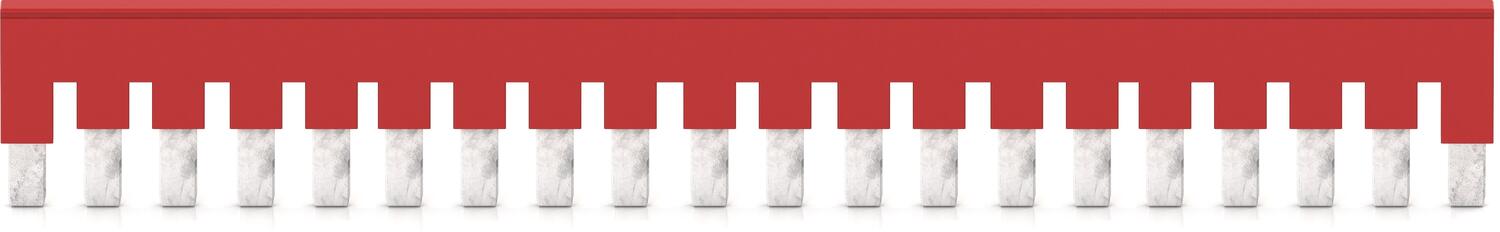

PQI 10/20, 20 way Cross connector for PRK/PSL 10mm - Red
Art:
27171.9 Copied
Red
Plug in
5.5 mm
198.9 mm
27.5 mm
10.1 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
5
20
PRK_crossconnector.tif
PQI 16/2, 2 way Cross connector for PRK/PSL 16mm - Red
Art:
27172.9 Copied
Red
Plug in
5.5 mm
20.6 mm
27.4 mm
10.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
20
2

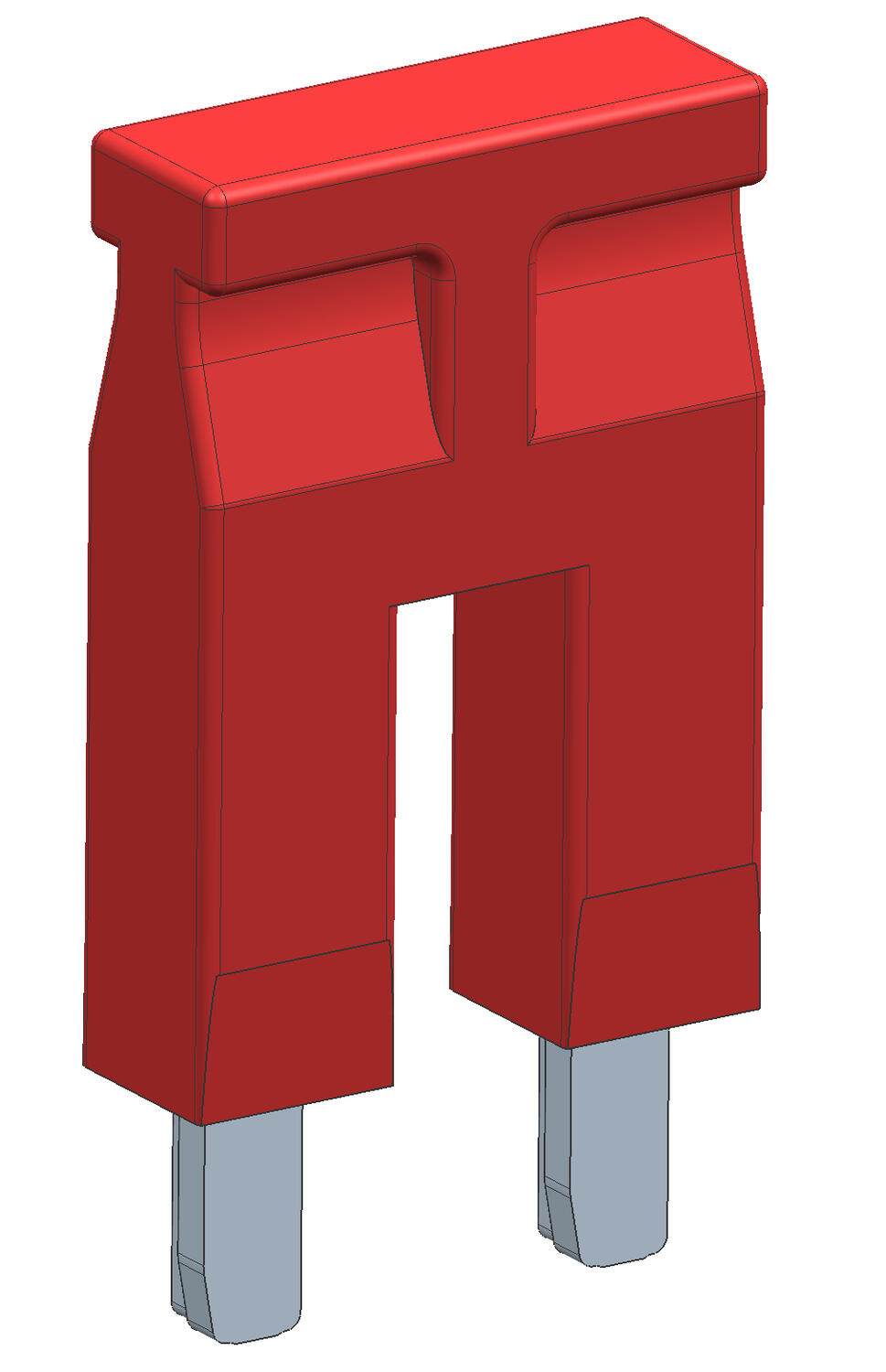

PQI 4/2/PTKS Red, 2 Way Cross Coonector for PTKS 4
Art:
27084.9 Copied
Red
4 mm²
32 A
800 V
32 A
3
2
Polyamide 6.6
Polyamide 6.6
V-0
-40 °C
120 °C
85369010
DE
50

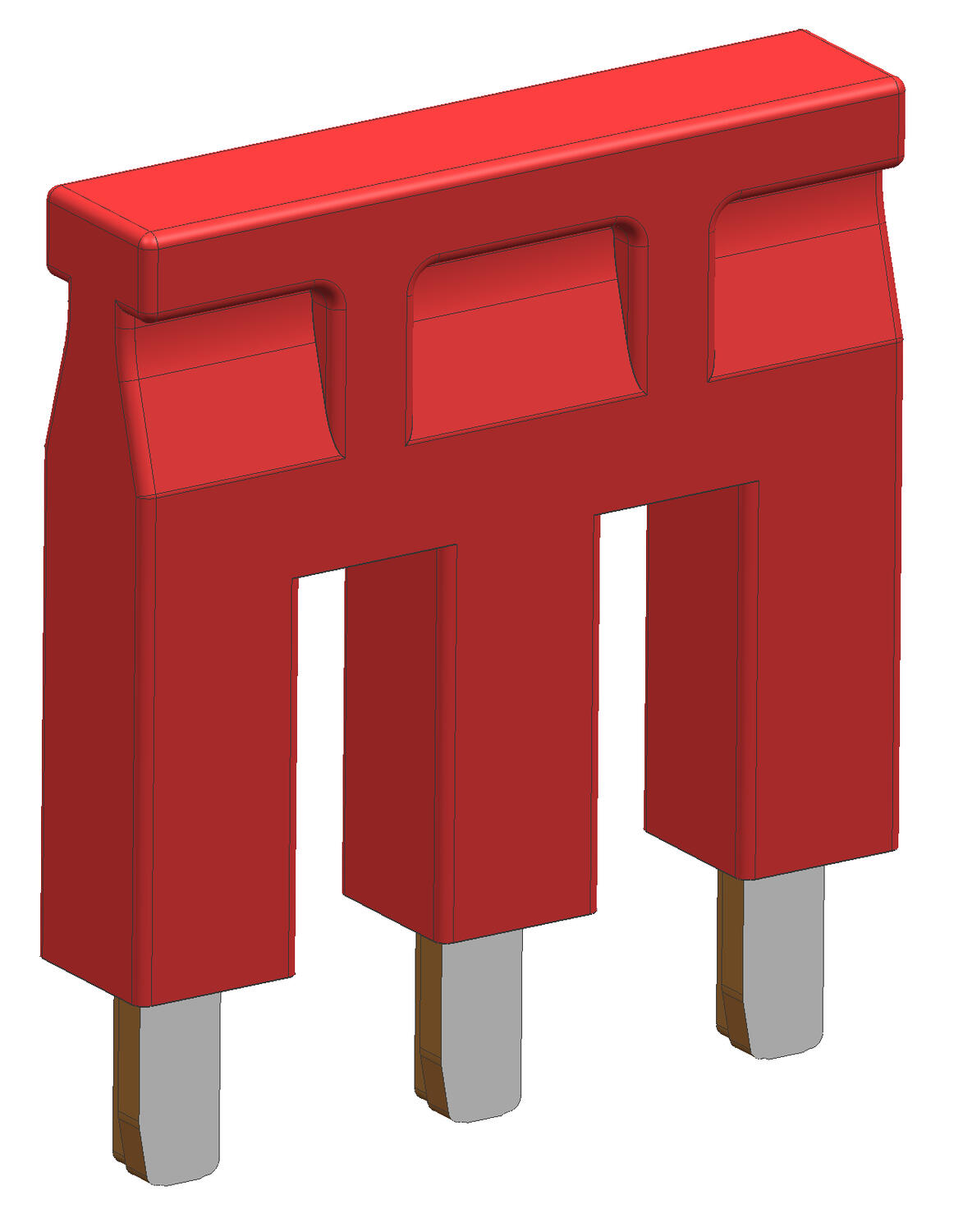

PQI 4/3/PTKS Red, 3 Way Cross Coonector for PTKS 4
Art:
27085.9 Copied
Red
4 mm²
32 A
800 V
32 A
3
3
Polyamide 6.6
Polyamide 6.6
V-0
-40 °C
120 °C
85369010
DE
50
Cross connector PRK.JPG
PQI 4/5/PTKS Red, 5 Way Cross Coonector for PTKS 4
Art:
27086.9 Copied
Red
4 mm²
32 A
800 V
32 A
3
5
Polyamide 6.6
Polyamide 6.6
V-0
-40 °C
120 °C
85369010
DE
50
Cross connector PRK.JPG
PQI 16/2, 2 way Cross connector for PRK/PSL 16mm - Blue
Art:
27172.5 Copied
