Cross Connectors for PRK, PSL, PRKD, PPVK, PTKS Range

Push In Terminal Cross Connectors - PQI

The PQI pluggable cross-connectors helps you to save time while distributing potentials over terminal blocks of similar or different cross-section ranges.

The pluggable design of the PQI offers the advantage that it can carry the full rated current even while operating at the fully rated voltage.

The PQI is insulated to protect against accidental touch and is available in the cross-section range from 1.5 mm² to 10 mm² in 2-, 3-, 4-, 10- and 20-pole versions and 2 way for 16mm² terminals.

Standard colour is Red, but Blue & Black are also available.

Read more
  • Fully rated for the matching terminal
  • Plug in for fast and easy connection
  • Pins can be removed for jumping terminals

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General data
Colour Red
Mounting Plug in

Dimensions
Length 3.2 mm
Width 6.1 mm
Height 14.5 mm
Pitch 3.5 mm

Connection data
Number of poles 2

Materials
Insulation material Polyamide 6.6
Flammability class UL94-V0

*Invisible Heading*
Operating temperature from -40 °C
Operating temperature to 120 °C

Additional data
Tariff code 85389099
Country of origin DE
Weight 1 g
Pack size 50
Number of poles 2

Downloads

Technical illustrations

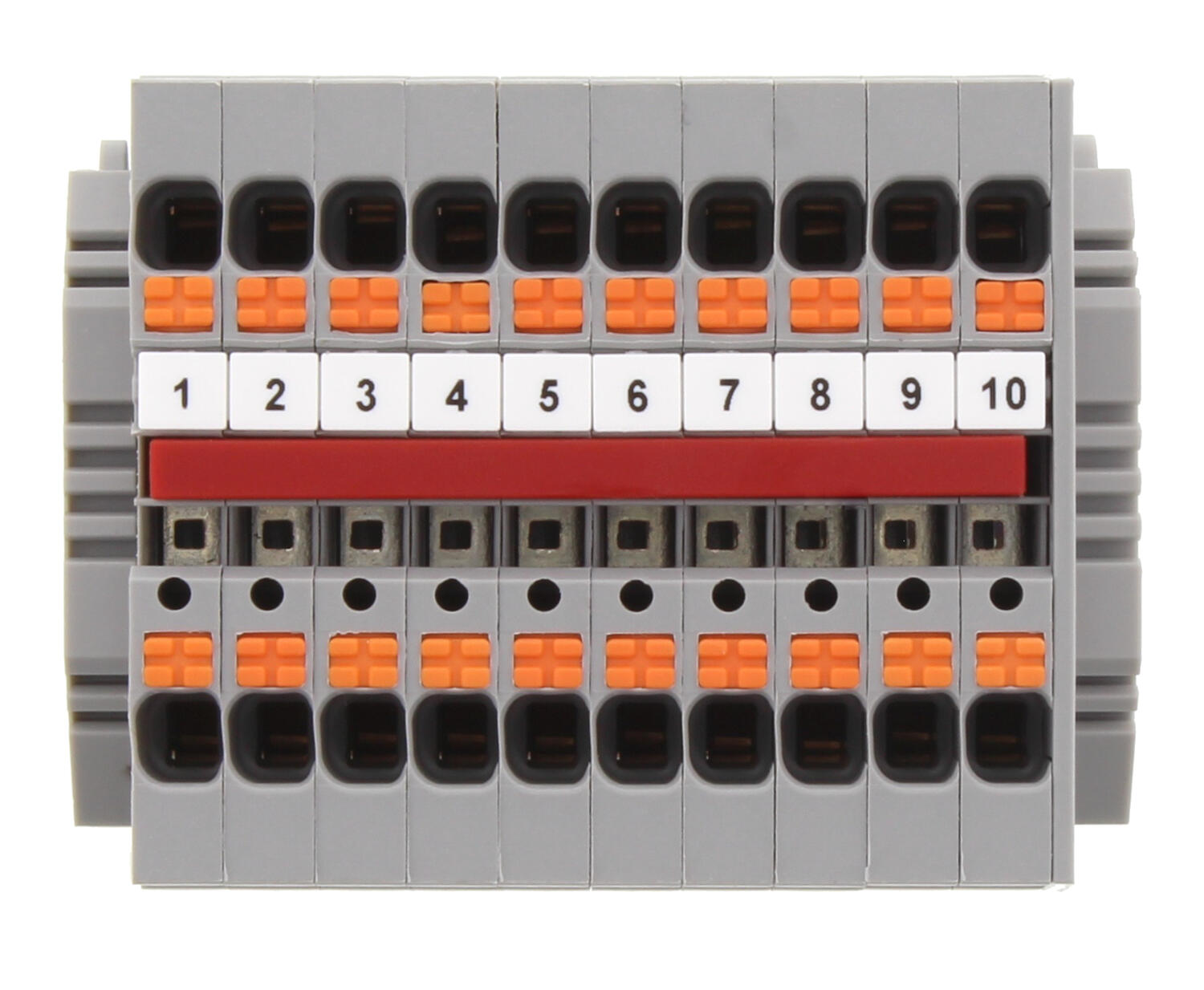

Individual Links

Individual Links

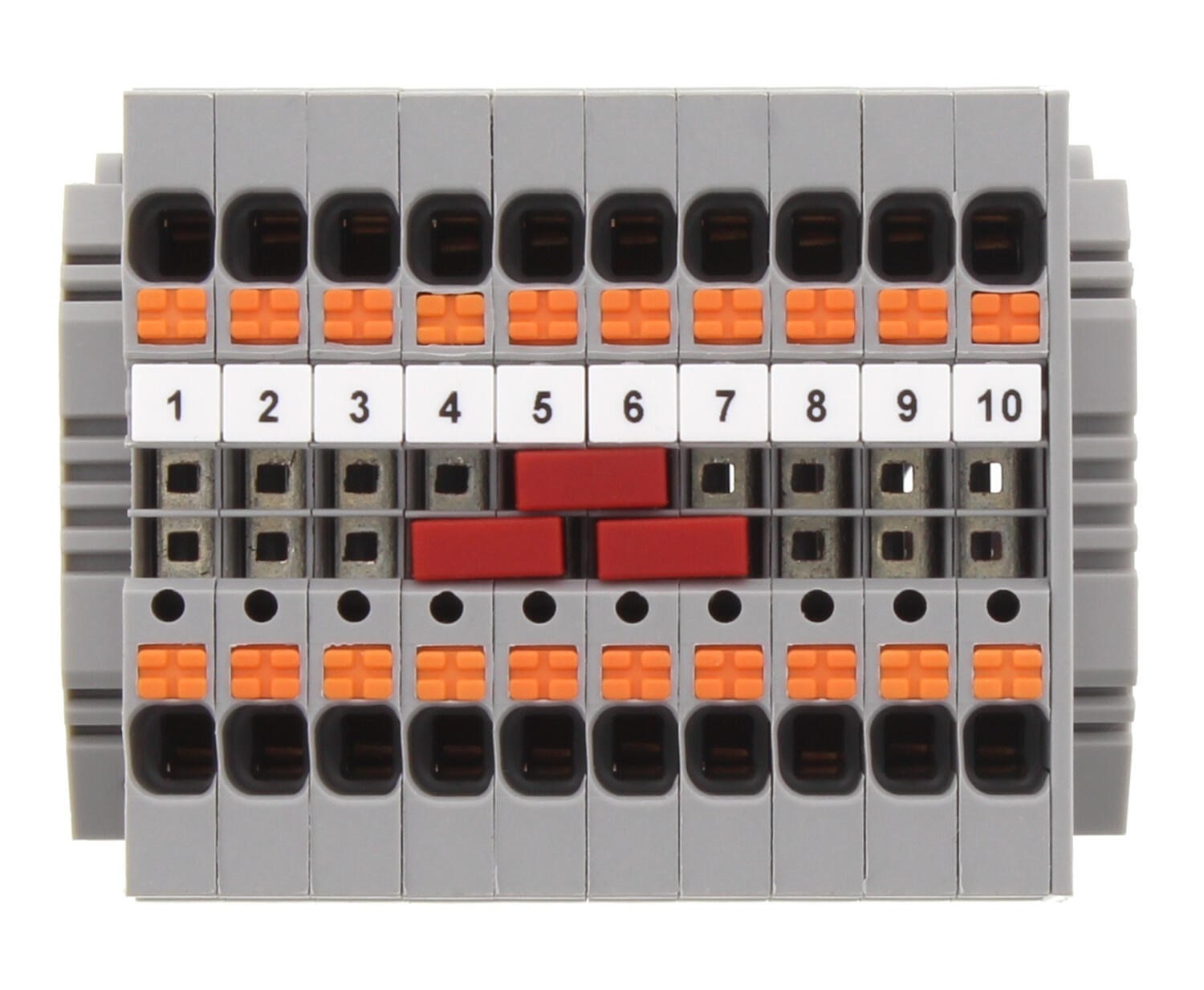

Chain Linked

Chain Linked

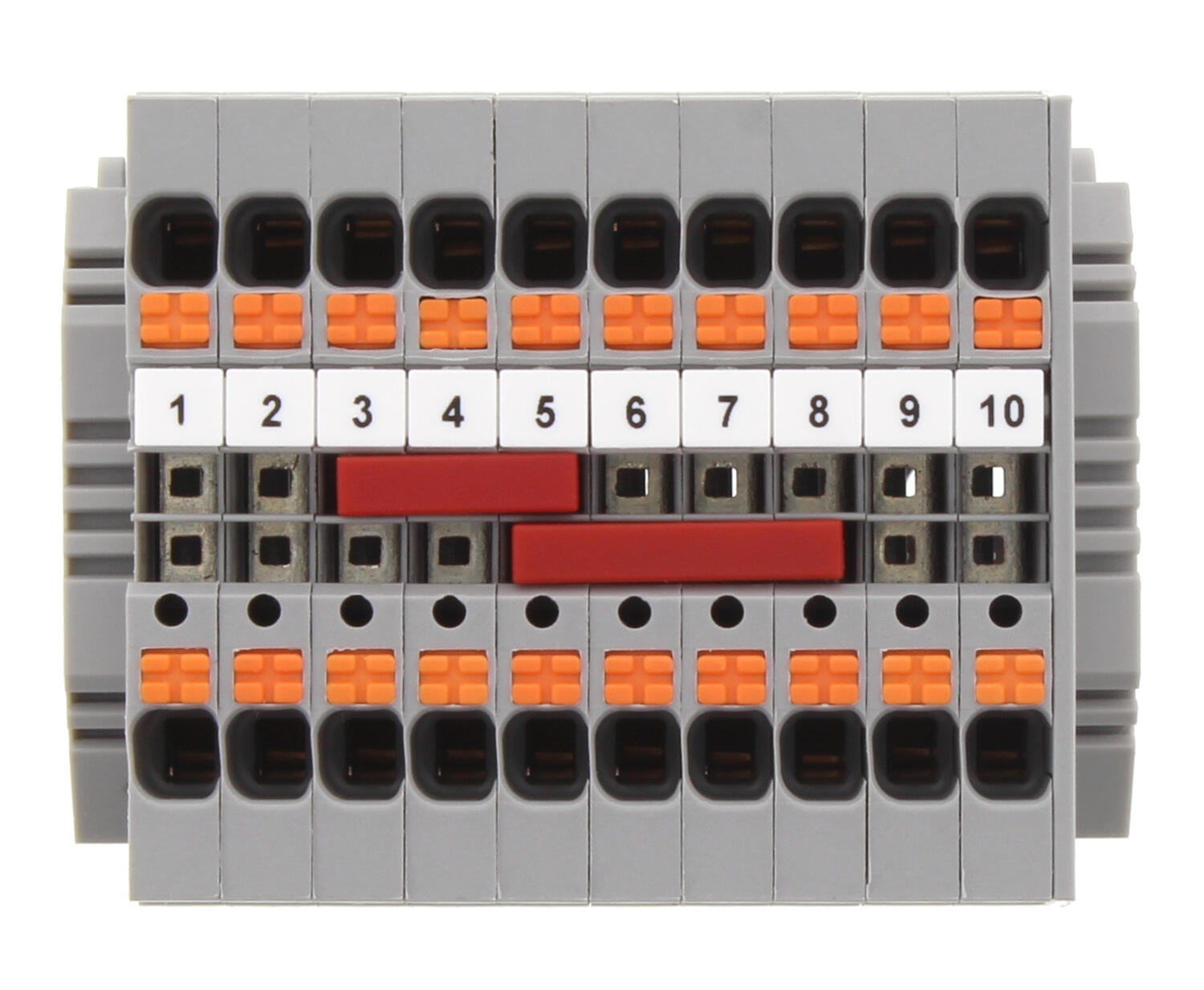

Parallel Extending

Parallel Extending

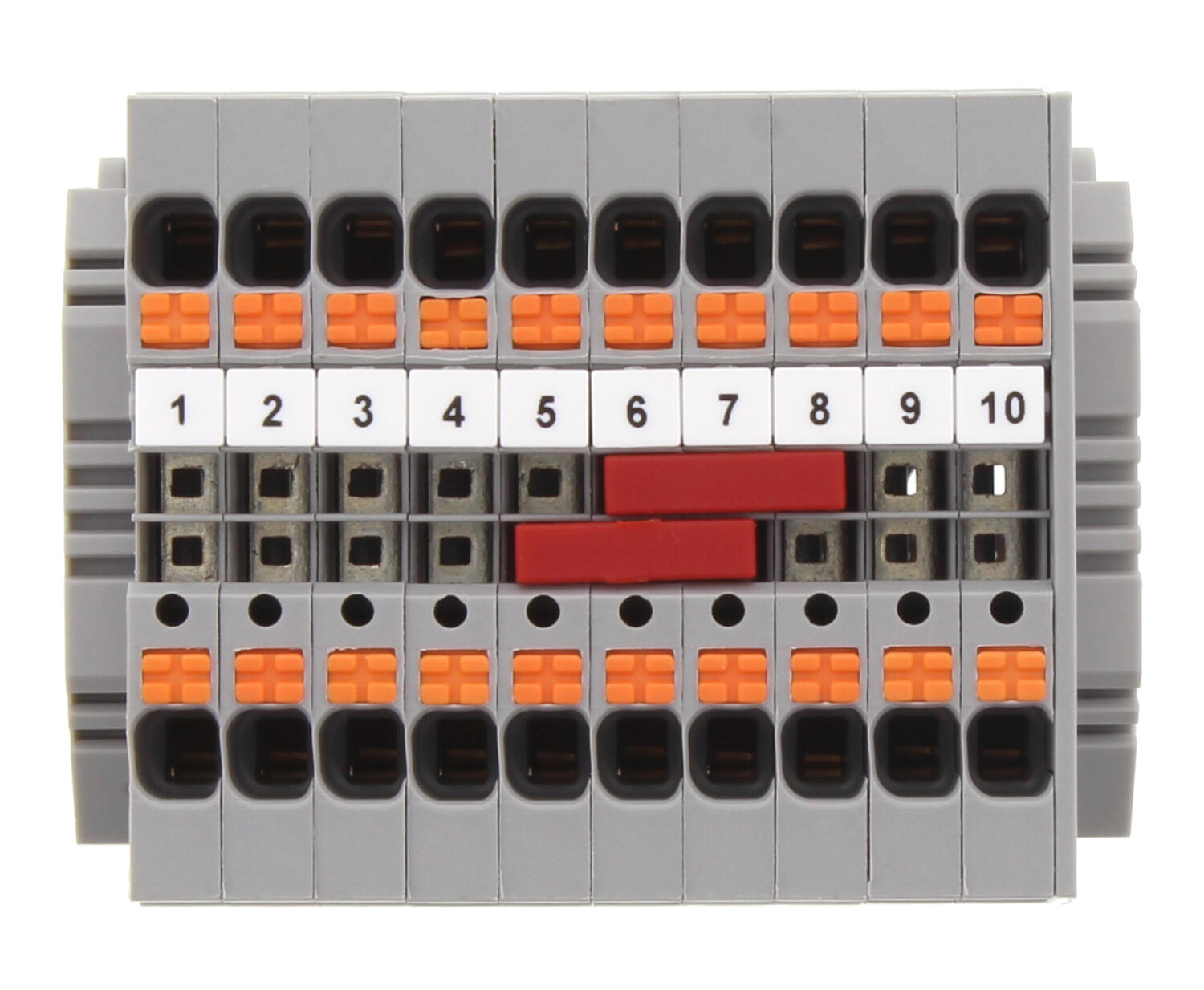

Parallel Alternating (Pins Removed)

Parallel Alternating (Centre Pins Removed)

Product description

The PQI pluggable cross-connectors helps you to save time while distributing potentials over terminal blocks of similar or different cross-section ranges.

The pluggable design of the PQI offers the advantage that it can carry the full rated current even while operating at the fully rated voltage.

The PQI is insulated to protect against accidental touch and is available in the cross-section range from 1.5 mm² to 10 mm² in 2-, 3-, 4-, 10- and 20-pole versions and 2 way for 16mm² terminals.

Standard colour is Red, but Blue & Black are also available.

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

Robotics - An OEM Automatic Solution
Blog

Robotics solutions

Robotics has revolutionised industry, enabling efficiency, higher production capacity and increased safety. For a robot solution to function optimally, the right components are required.

Why Colour Brilliance Matters in Industrial Signalling - Auer smart dot 50 beacons illuminated red, yellow and green
Blog

Why Colour Brilliance Matters in Industrial Signalling

Discover why colour brilliance matters in industrial signalling. Improve safety, reduce misinterpretation and ensure clear machine status in any environment.

Advantages of Cable Coils - OEM Automatic & RCT
Learning hub

Advantages of Cable Coils

Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.

cable port
Product news

We now offer cable

What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Parts Colour Rated cross section Rated current Voltage max Load current max Mounting Contamination degree Length Width Height Pitch Number of poles Material Insulation material Flammability class Operating temperature from Operating temperature to Tariff code Country of origin Weight Pack size Number of poles Price
PQI 1.5/2, 2 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27122.9 Copied
Red
Plug in
3.2 mm
6.1 mm
14.5 mm
3.5 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
50
2
PQI 1.5/3, 3 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27123.9 Copied
Red
Plug in
3.2 mm
9.6 mm
14.5 mm
3.5 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
50
3

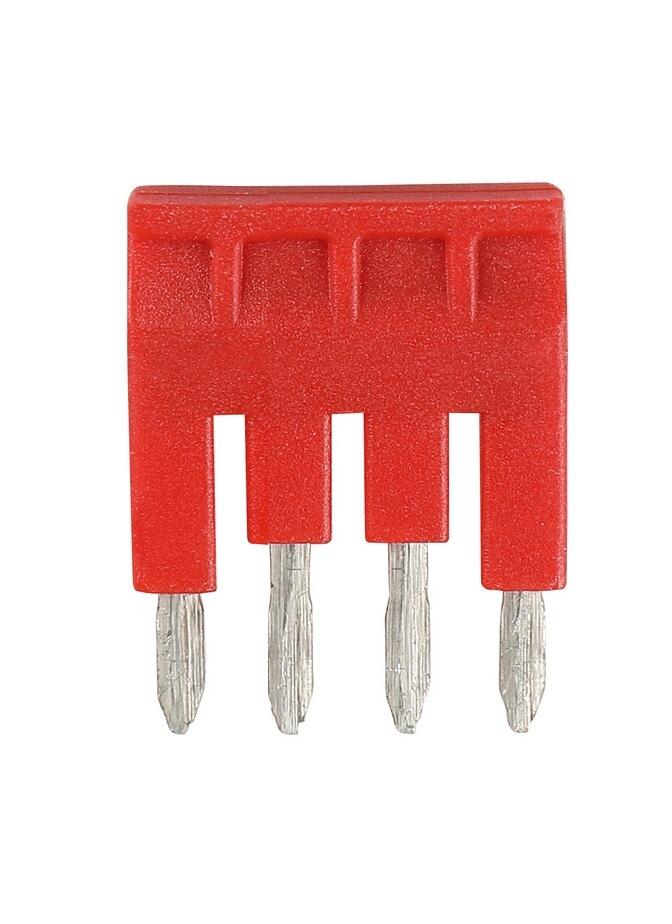

PQI 1.5/4, 4 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27124.9 Copied
Red
Plug in
3.2 mm
13.1 mm
14.5 mm
3.5 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
20
4
PQI 1.5/10, 10 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27130.9 Copied
Red
Plug in
3.2 mm
34.1 mm
14.5 mm
3.5 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
10
10

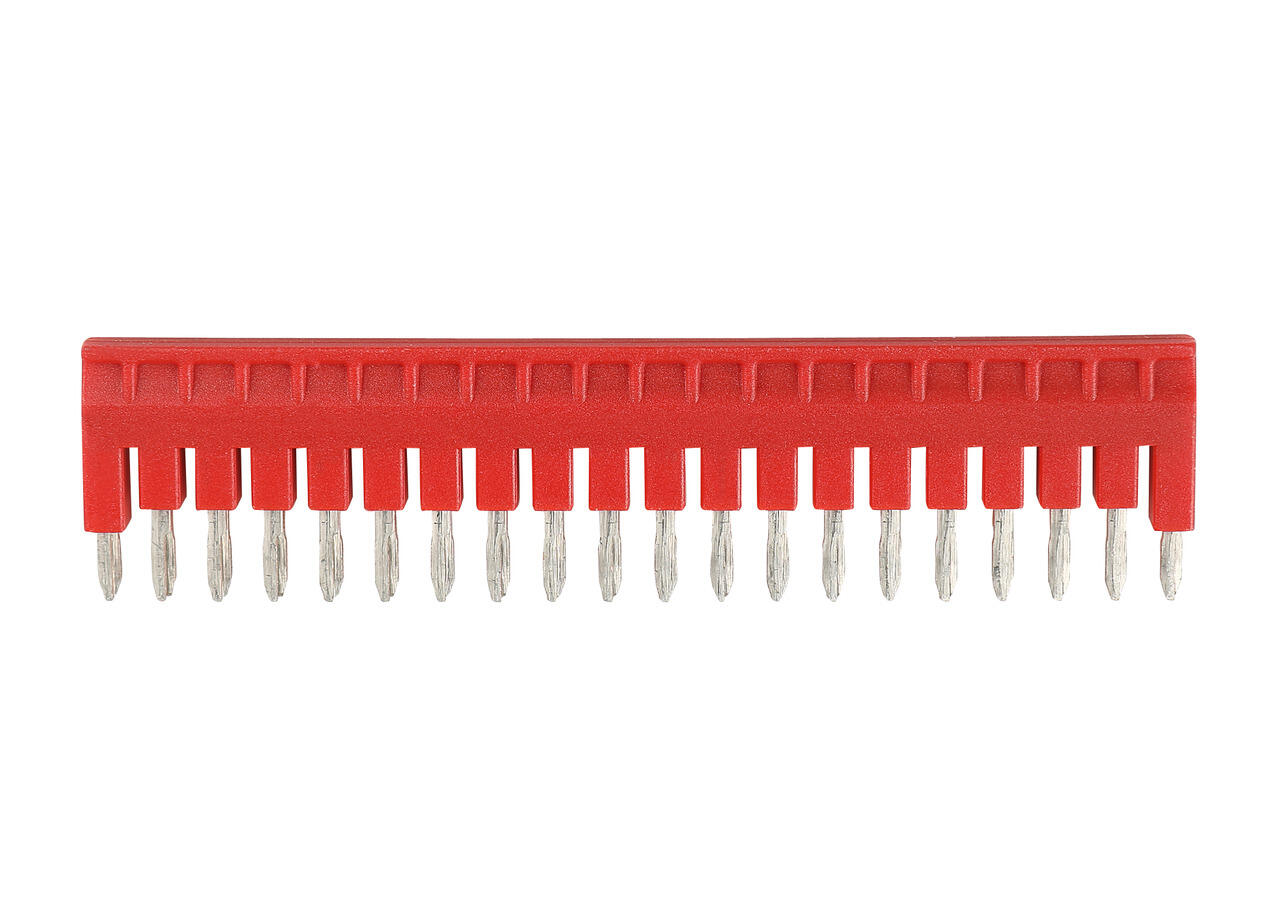

PQI 1.5/20, 20 way Cross connector for PRK/PSL 1.5mm² - Red
Art:
27131.9 Copied
Red
Plug in
3.2 mm
69.1 mm
14.5 mm
3.5 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
5
20
PQI 2.5/2, 2 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27132.9 Copied
Red
Plug in
4 mm
9.1 mm
19.4 mm
5.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1.69 g
50
2
PQI 2.5/3, 3 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27133.9 Copied
Red
Plug in
4 mm
14.2 mm
19.4 mm
5.1 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
2.6 g
50
3
PQI 2.5/4, 4 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27134.9 Copied
Red
Plug in
4 mm
19.3 mm
19.4 mm
5.1 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
3.52 g
20
4
PQI 2.5/10, 10 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27140.9 Copied
Red
Plug in
4 mm
49.9 mm
19.4 mm
5.1 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
8.73 g
10
10
PQI 2.5/20, 20 way Cross connector for PRK/PSL 2.5mm² - Red
Art:
27141.9 Copied
Red
Plug in
4 mm
100.9 mm
19.4 mm
5.1 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
21.58 g
5
20
PQI 4/2, 2 way Cross connector for PRK/PSL 4mm² - Red
Art:
27142.9 Copied
Red
Plug in
4 mm
10.1 mm
19.4 mm
6.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1.75 g
50
2
PQI 4/3, 3 way Cross connector for PRK/PSL 4mm² - Red
Art:
27143.9 Copied
Red
Plug in
4 mm
16.2 mm
19.4 mm
6.1 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
2.78 g
50
3
PQI 4/4, 4 way Cross connector for PRK/PSL 4mm² - Red
Art:
27144.9 Copied
Red
Plug in
4 mm
22.3 mm
19.4 mm
6.1 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
4.68 g
20
4
PQI 4/10, 10 way Cross connector for PRK/PSL 4mm² - Red
Art:
27150.9 Copied
Red
Plug in
4 mm
58.9 mm
19.4 mm
6.1 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
10.66 g
10
10
PQI 4/20, 20 way Cross connector for PRK/PSL 4mm² - Red
Art:
27151.9 Copied
Red
Plug in
4 mm
119.9 mm
19.4 mm
6.1 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
19.2 g
5
20
PQI 6/2, 2 way Cross connector for PRK/PSL 6mm² - Red
Art:
27152.9 Copied
Red
Plug in
4 mm
13.6 mm
22.5 mm
8.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
3 g
50
2
PQI 6/3, 3 way Cross connector for PRK/PSL 6mm² - Red
Art:
27153.9 Copied
Red
Plug in
4 mm
21.7 mm
22.5 mm
8.1 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
4.48 g
50
3
PRK_crossconnector.tif
PQI 6/4, 4 way Cross connector for PRK/PSL 6mm² - Red
Art:
27154.9 Copied
Red
Plug in
4 mm
29.8 mm
22.5 mm
8.1 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
6.14 g
20
4
PRK_crossconnector.tif
PQI 6/10, 10 way Cross connector for PRK/PSL 6mm² - Red
Art:
27160.9 Copied
Red
Plug in
4 mm
78.4 mm
22.5 mm
8.1 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
17.23 g
10
10
PQI 6/20, 20 way Cross connector for PRK/PSL 6mm² - Red
Art:
27161.9 Copied
Red
Plug in
4 mm
159.4 mm
22.5 mm
8.1 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
33.34 g
50
20

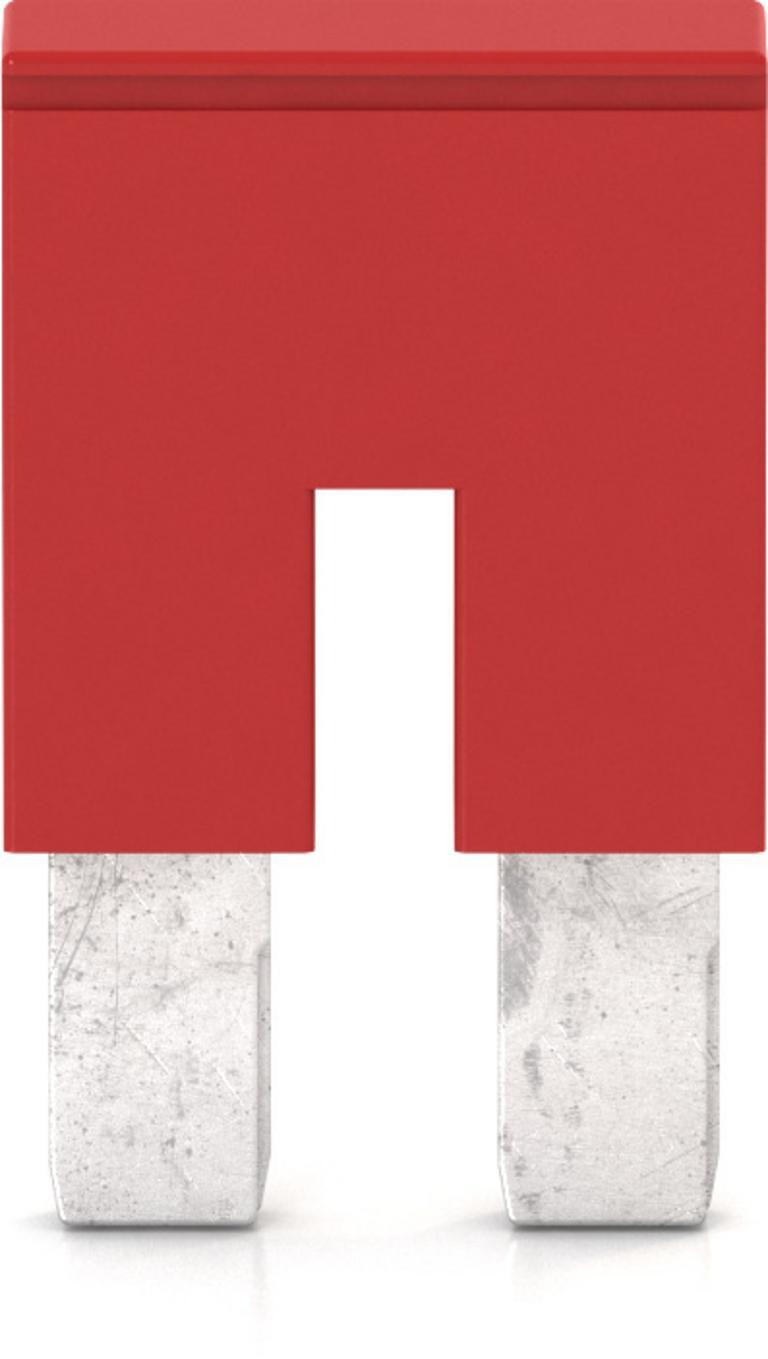

PQI 10/2, 2 way Cross connector for PRK/PSL 10mm² - Red
Art:
27162.9 Copied
Red
Plug in
5.5 mm
17.1 mm
27.5 mm
10.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
50
2
PQI 10/3, 3 way Cross connector for PRK/PSL 10mm - Red
Art:
27163.9 Copied
Red
Plug in
5.5 mm
27.2 mm
27.5 mm
10.1 mm
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
50
3
PQI 10/4, 4 way Cross connector for PRK/PSL 10mm - Red
Art:
27164.9 Copied
Red
Plug in
5.5 mm
37.3 mm
27.5 mm
10.1 mm
4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
20
4
PQI 10/10, 10 way Cross connector for PRK/PSL 10mm - Red
Art:
27170.9 Copied
Red
Plug in
5.5 mm
97.9 mm
27.5 mm
10.1 mm
10
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
10
10
PQI 10/20, 20 way Cross connector for PRK/PSL 10mm - Red
Art:
27171.9 Copied
Red
Plug in
5.5 mm
198.9 mm
27.5 mm
10.1 mm
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
5
20
PRK_crossconnector.tif
PQI 16/2, 2 way Cross connector for PRK/PSL 16mm - Red
Art:
27172.9 Copied
Red
Plug in
5.5 mm
20.6 mm
27.4 mm
10.1 mm
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
85389099
DE
1 g
20
2
PQI 4/2/PTKS Red, 2 Way Cross Coonector for PTKS 4
Art:
27084.9 Copied
Red
4 mm²
32 A
800 V
32 A
3
2
Polyamide 6.6
Polyamide 6.6
V-0
-40 °C
120 °C
85369010
DE
50
PQI 4/3/PTKS Red, 3 Way Cross Coonector for PTKS 4
Art:
27085.9 Copied
Red
4 mm²
32 A
800 V
32 A
3
3
Polyamide 6.6
Polyamide 6.6
V-0
-40 °C
120 °C
85369010
DE
50
Cross connector PRK.JPG
PQI 4/5/PTKS Red, 5 Way Cross Coonector for PTKS 4
Art:
27086.9 Copied
Red
4 mm²
32 A
800 V
32 A
3
5
Polyamide 6.6
Polyamide 6.6
V-0
-40 °C
120 °C
85369010
DE
50

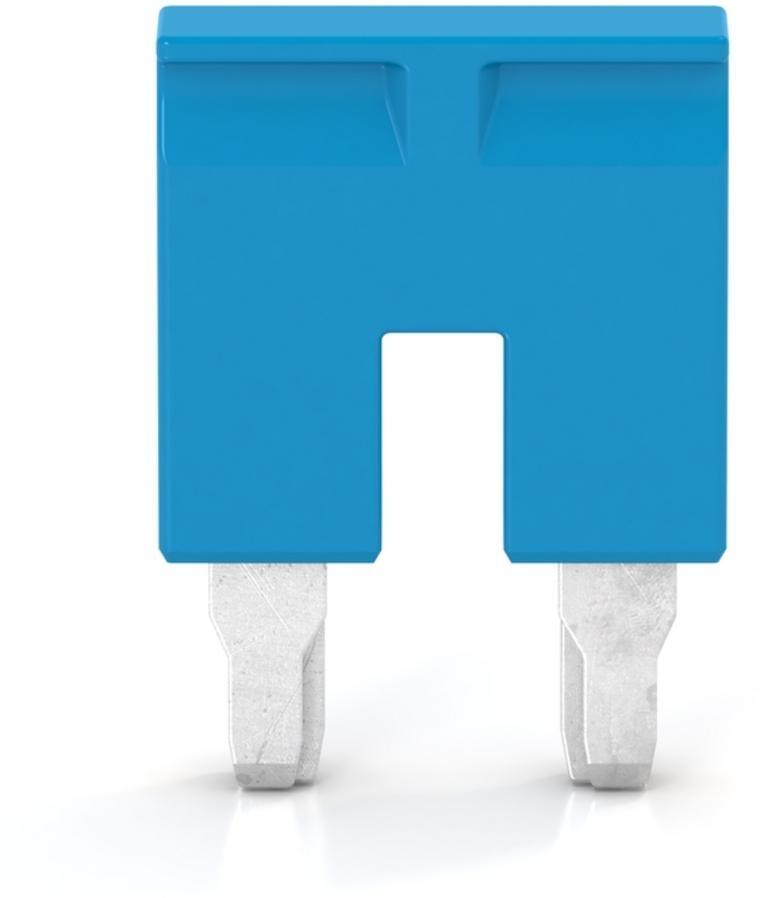

PQI 16/2, 2 way Cross connector for PRK/PSL 16mm - Blue
