WEST

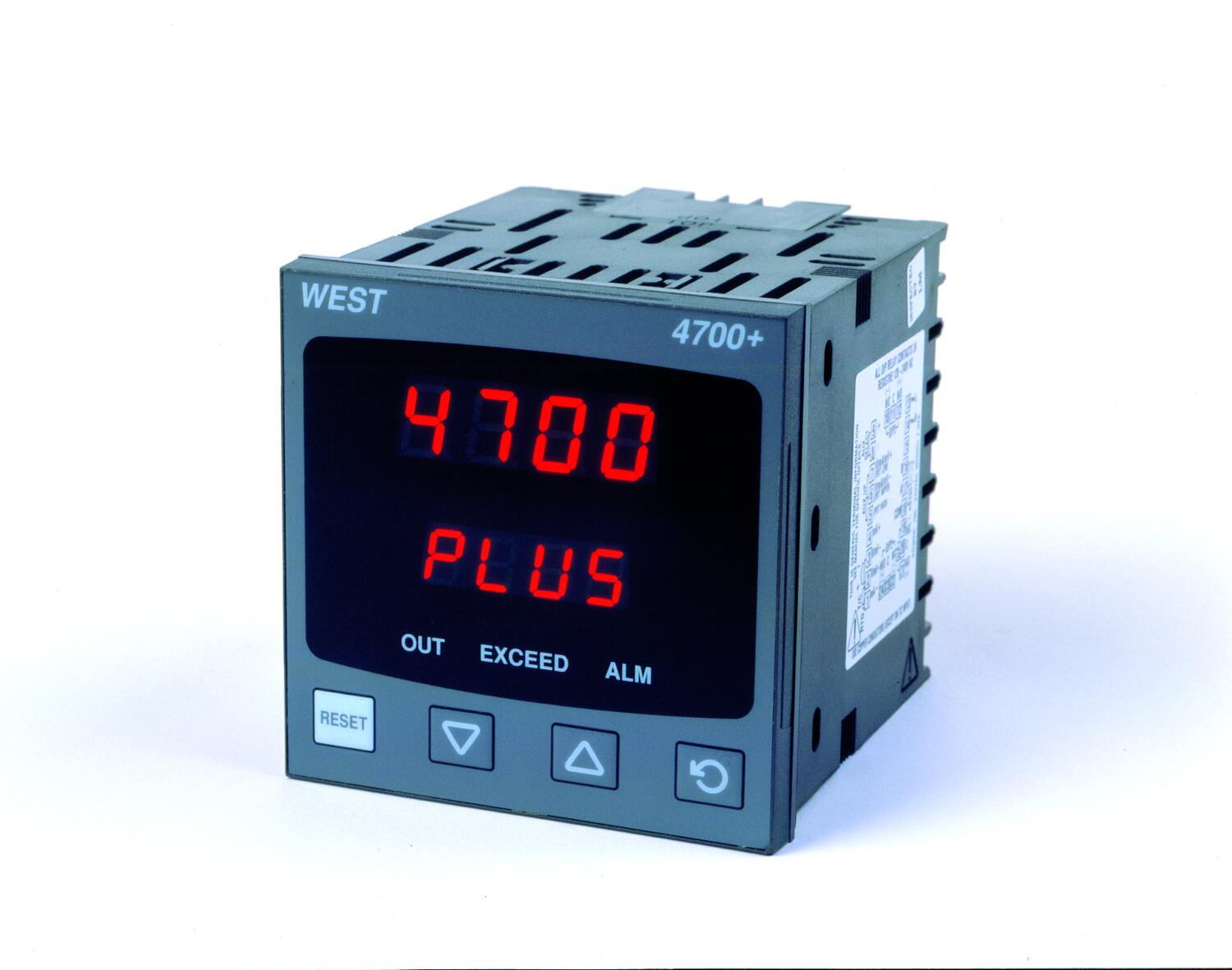

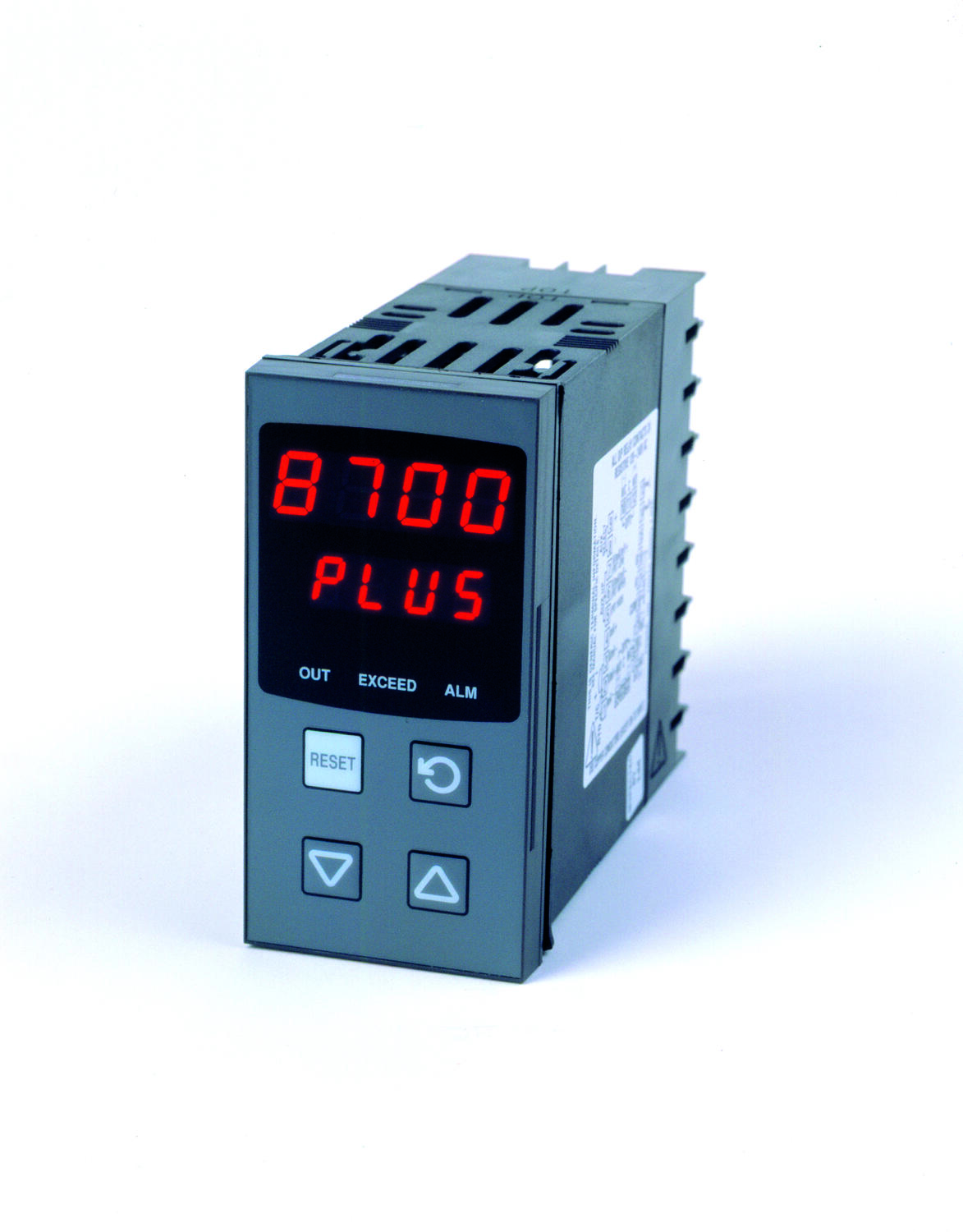

The West range of 6700, 4700 and 8700 have a programmable safety cut out with optional outputs for annunciators and alarms. A latched relay cuts power to your process if safe values are exceeded. These units must be reset before the process can continue. They have the improved Plus Series hardware and user interface for optimal ease of use.
Technical Data |
|
---|---|

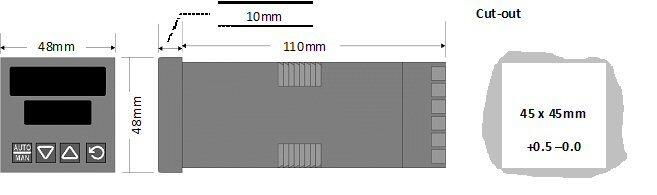

Dimensions | 48x48 |
Input type | Universal (TC, RTD, DC linear mA/mV) |
Output 1 | Relay |
Supply voltage | 100-240 V AC |
Communication | N/A |
Additional features | N/A |
*Invisible Heading* |
|
---|---|
Display colour | Red / red |
Control type | High/Low Limit, Alarm |
IP class front | IP66 |
IP class | IP20 |
The West range of 6700, 4700 and 8700 have a programmable safety cut out with optional outputs for annunciators and alarms. A latched relay cuts power to your process if safe values are exceeded. These units must be reset before the process can continue. They have the improved Plus Series hardware and user interface for optimal ease of use.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Dimensions | Output 2 | Output 3 | Supply voltage | Communication | Additional features | Display colour | Price | ||
---|---|---|---|---|---|---|---|---|---|---|
![]()
WEST 48x48 LIMIT RTD 1R 230V
Art:
P6700110000010
Copied
|
48x48
|
|
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT RTD 1R 24V
Art:
P6700110002010
Copied
|
48x48
|
|
|
24-48 V AC/DC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT RTD 1R 24V R/G
Art:
P6700110002210
Copied
|
48x48
|
|
|
24-48 V AC/DC
|
N/A
|
N/A
|
Red / green
|
| ||
![]()
WEST 48x48 LIMIT RTD 1R COM 230V
Art:
P6700110010010
Copied
|
48x48
|
|
|
100-240 V AC
|
RS-485
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT RTD 1R COM 24V
Art:
P6700110012010
Copied
|
48x48
|
|
|
24-48 V AC/DC
|
RS-485
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT RTD 1R 1A 230V
Art:
P6700117000010
Copied
|
48x48
|
Analog
|
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT TC 1R 230V
Art:
P6700210000010
Copied
|
48x48
|
|
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT TC 1R 230V R/G
Art:
P6700210000210
Copied
|
48x48
|
|
|
100-240 V AC
|
N/A
|
N/A
|
Red / green
|
| ||
![]()
WEST 48x48 LIMIT TC 1R 230V
Art:
P6700210000310
Copied
|
48x48
|
|
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT TC 1R 24V
Art:
P6700210002010
Copied
|
48x48
|
|
|
24-48 V AC/DC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT TC 1R 1DI 230V
Art:
P6700210030010
Copied
|
48x48
|
|
|
100-240 V AC
|
N/A
|
Digital Input
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT TC 2R 230V
Art:
P6700211000010
Copied
|
48x48
|
Relay
|
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT TC 2R 24V
Art:
P6700211002010
Copied
|
48x48
|
Relay
|
|
24-48 V AC/DC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT TC 2R 24V G/G
Art:
P6700211002110
Copied
|
48x48
|
Relay
|
|
24-48 V AC/DC
|
N/A
|
N/A
|
Green / green
|
| ||
![]()
WEST 48x48 LIMIT TC 1R 1S 230V
Art:
P6700212000010
Copied
|
48x48
|
Logic (SSR)
|
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x48 LIMIT DC 3R 230V
Art:
P6700311100010
Copied
|
48x48
|
Relay
|
Relay
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x96 LIMIT TC 1R 230V
Art:
P87001100000010
Copied
|
48x96
|
Relay
|
Relay
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x96 LIMIT TC 1R 24V
Art:
P87001100020010
Copied
|
48x96
|
|
|
24-48 V AC/DC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 48x96 LIMIT DC 2R 1A 230V
Art:
P87003171000010
Copied
|
48x96
|
Analog
|
Relay
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 96x96 LIMIT 1R COMM 230V
Art:
P47001100100010
Copied
|
96x96
|
|
|
100-240 V AC
|
RS-485
|
N/A
|
Red / red
|
| ||
![]()
WEST 96x96 LIMIT 1R 230V
Art:
P47002100000010
Copied
|
96x96
|
|
|
100-240 V AC
|
N/A
|
N/A
|
Red / red
|
| ||
![]()
WEST 96x96 LIMIT 2R 230V R/G
Art:
P47002110002010
Copied
|
96x96
|
Relay
|
|
100-240 V AC
|
N/A
|
N/A
|
Red / green
|
|
Select a variant in the list
