CAL EDT2411,EDT2412, EDT2423 defrost thermostats

The EDT defrost thermostats have additional features to ensure optimum control and performance of a refrigeration system such as compressor protection, defrost control, real-time clock, communications and fast CAL-Key memory programming



  •  35 x 77mm
  •  On-Off control
  •  Relay output for cooling or heating control
  •  Single NTC probe input
  •  Offset value can be entered for NTC input
  •  Compressor protection parameters
  •  On probe failure, output status can be set to ON, OFF or periodic
  •  Upper and lower limits of the setpoint adjustment
  •  Defrost duration and interval can be adjusted
  •  6 different warning tones
  •  Deviation high and low alarm values
  •  Temperature unit can be selected °C or °F
  •  Digital input (Optional)
  •  External alarm
  •  Initiate defrost



Read more
  • Compressor, defrost and fan control
  • Up to 2 NTC inputs
  • RS485 communications option
  • Real-time clock option
EDT2411LHS_ir.tif

CAL Defrost thermostats

Selected variant

Available in several variants
CALCONTROLS.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Approvals CE, RoHS
Communication N/A
Control mode ON/OFF
Depth 61 mm
Digit height 12.5 mm
Frequency 50-60Hz
Input 1 x NTC
Input type 1 x NTC
IP class IP65
LED indication Red status LEDs
Number of digits 4
Output Relay
Output relay N/O
Panel size 35x77 mm
Power consumption 5 VA max
Storage temperature max 80 °C
Storage temperature min -25 °C
Supply voltage 115 V AC
Weight 190 g

Downloads

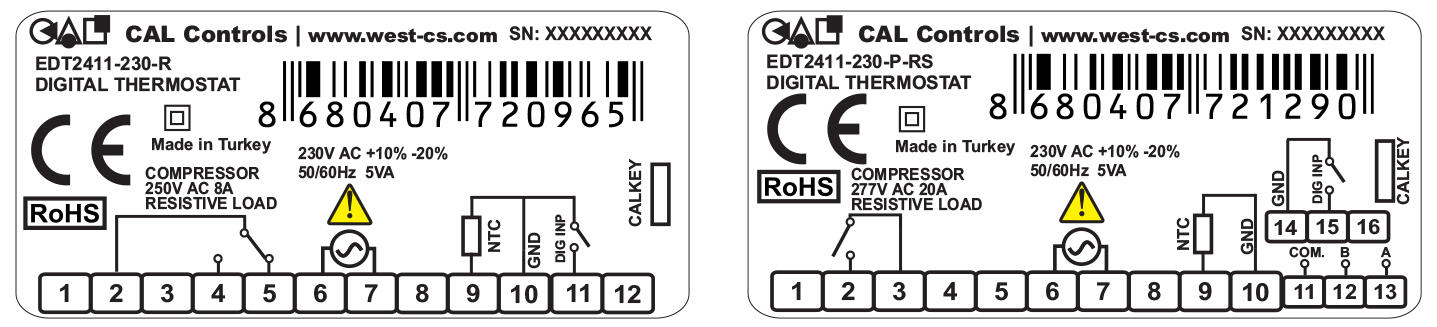

Measurements and connections

Product description

The EDT defrost thermostats have additional features to ensure optimum control and performance of a refrigeration system such as compressor protection, defrost control, real-time clock, communications and fast CAL-Key memory programming



  •  35 x 77mm
  •  On-Off control
  •  Relay output for cooling or heating control
  •  Single NTC probe input
  •  Offset value can be entered for NTC input
  •  Compressor protection parameters
  •  On probe failure, output status can be set to ON, OFF or periodic
  •  Upper and lower limits of the setpoint adjustment
  •  Defrost duration and interval can be adjusted
  •  6 different warning tones
  •  Deviation high and low alarm values
  •  Temperature unit can be selected °C or °F
  •  Digital input (Optional)
  •  External alarm
  •  Initiate defrost



Accessories

Related

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Parts Communication Input Input type Output Output relay Storage temperature max Supply voltage Price
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 20A Relay, 110V
Art:
EDT2411-110-P Copied
N/A
1 x NTC
1 x NTC
Relay
N/O
80 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 20A Relay, RS485, 110V
Art:
EDT2411-110-P-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
N/O
80 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, 110V
Art:
EDT2411-110-R Copied
N/A
1 x NTC
1 x NTC
Relay
C/O
80 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, RS485, 110V
Art:
EDT2411-110-R-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
C/O
80 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, Clock, 110V
Art:
EDT2411-110-R-RTC Copied
N/A
1 x NTC
1 x NTC
Relay
C/O
80 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, Clock, RS485, 110V
Art:
EDT2411-110-R-RTC-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
C/O
80 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 20A Relay, 12V
Art:
EDT2411-12-P Copied
N/A
1 x NTC
1 x NTC
Relay
N/O
80 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 20A Relay, RS485, 12V
Art:
EDT2411-12-P-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
N/O
80 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, 12V
Art:
EDT2411-12-R Copied
N/A
1 x NTC
1 x NTC
Relay
C/O
80 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, RS485, 12V
Art:
EDT2411-12-R-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
C/O
80 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, Clock, 12V
Art:
EDT2411-12-R-RTC Copied
N/A
1 x NTC
1 x NTC
Relay
C/O
80 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, Clock, RS485, 12V
Art:
EDT2411-12-R-RTC-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
C/O
80 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 20A Relay, 230V
Art:
EDT2411-230-P Copied
N/A
1 x NTC
1 x NTC
Relay
N/O
80 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 20A Relay, RS485, 230V
Art:
EDT2411-230-P-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
N/O
80 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, 230V
Art:
EDT2411-230-R Copied
N/A
1 x NTC
1 x NTC
Relay
C/O
80 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, RS485, 230V
Art:
EDT2411-230-R-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
C/O
80 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, Clock, 230V
Art:
EDT2411-230-R-RTC Copied
N/A
1 x NTC
1 x NTC
Relay
C/O
80 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, Clock, RS485, 230V
Art:
EDT2411-230-R-RTC-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
C/O
80 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 20A Relay, 24V
Art:
EDT2411-24-P Copied
N/A
1 x NTC
1 x NTC
Relay
N/O
80 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 20A Relay, RS485, 24V
Art:
EDT2411-24-P-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
N/O
80 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, 24V
Art:
EDT2411-24-R Copied
N/A
1 x NTC
1 x NTC
Relay
C/O
80 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, RS485, 24V
Art:
EDT2411-24-R-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
C/O
80 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, Clock, 24V
Art:
EDT2411-24-R-RTC Copied
N/A
1 x NTC
1 x NTC
Relay
C/O
80 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 8A Relay, Clock, RS485, 24V
Art:
EDT2411-24-R-RTC-RS Copied
RS-485
1 x NTC
1 x NTC
Relay
C/O
80 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 20A Relay, 110V
Art:
EDT2412-110-P Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 20A Relay, RS485, 110V
Art:
EDT2412-110-P-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, 110V
Art:
EDT2412-110-R Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, RS485, 110V
Art:
EDT2412-110-R-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, Clock, 110V
Art:
EDT2412-110-R-RTC Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, Clock, RS485, 110V
Art:
EDT2412-110-R-RTC-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 20A Relay, 12V
Art:
EDT2412-12-P Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 20A Relay, RS485, 12V
Art:
EDT2412-12-P-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, 12V
Art:
EDT2412-12-R Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, RS485, 12V
Art:
EDT2412-12-R-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, Clock, 12V
Art:
EDT2412-12-R-RTC Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, Clock, RS485, 12V
Art:
EDT2412-12-R-RTC-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 20A Relay, 230V
Art:
EDT2412-230-P Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 20A Relay, RS485, 230V
Art:
EDT2412-230-P-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, 230V
Art:
EDT2412-230-R Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, RS485, 230V
Art:
EDT2412-230-R-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, Clock, 230V
Art:
EDT2412-230-R-RTC Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, Clock, RS485, 230V
Art:
EDT2412-230-R-RTC-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 20A Relay, 24V
Art:
EDT2412-24-P Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 20A Relay, RS485, 24V
Art:
EDT2412-24-P-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, 24V
Art:
EDT2412-24-R Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, RS485, 24V
Art:
EDT2412-24-R-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, Clock, 24V
Art:
EDT2412-24-R-RTC Copied
N/A
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, NTC, 2 x 8A Relay, Clock, RS485, 24V
Art:
EDT2412-24-R-RTC-RS Copied
RS-485
1 x NTC
1 x NTC
2x Relay
1x C/O, 1x N/O
70 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, 110V
Art:
EDT2423-110-R Copied
N/A
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, RS485, 110V
Art:
EDT2423-110-R-RS Copied
RS-485
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, Clock, 110V
Art:
EDT2423-110-R-RTC Copied
N/A
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, Clock, RS485 110V
Art:
EDT2423-110-R-RTC-RS Copied
RS-485
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
115 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, 12V
Art:
EDT2423-12-R Copied
N/A
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, RS485, 12V
Art:
EDT2423-12-R-RS Copied
RS-485
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, Clock, 12V
Art:
EDT2423-12-R-RTC Copied
N/A
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, Clock, RS485, 12V
Art:
EDT2423-12-R-RTC-RS Copied
RS-485
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
12 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, 230V
Art:
EDT2423-230-R Copied
N/A
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, RS485, 230V
Art:
EDT2423-230-R-RS Copied
RS-485
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, Clock, 230V
Art:
EDT2423-230-R-RTC Copied
N/A
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, Clock, RS485 230V
Art:
EDT2423-230-R-RTC-RS Copied
RS-485
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
230 V AC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, 24V
Art:
EDT2423-24-R Copied
N/A
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, RS485, 24V
Art:
EDT2423-24-R-RS Copied
RS-485
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, Clock, 24V
Art:
EDT2423-24-R-RTC Copied
N/A
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
24 V AC/DC
EDT2411LHS_ir.tif
Defrost Thermostat, 2 x NTC, 3 x 8A Relay, Clock, RS485, 24V
Art:
EDT2423-24-R-RTC-RS Copied
RS-485
2 x NTC
2 x NTC
3x Relay
1x C/O, 2x N/O
70 °C
24 V AC/DC

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
