CAL CONTROLS

MaxVu Rail

MaxVu Rail fills the gap for behind panel process devices. Based on a popular MaxVu panel mount controller the new DIN rail version is an affordable controller, limiter or transmitter suitable for many industrial and laboratory applications. A high contrast OLED display gives you clear character definition and a wide viewing angle for setup. It is incredibly easy to read whether it is located in strong sunlight or a dark control panel.

MaxVu Rail provides a wide range of options within the single family: a controller for temperature regulation, a transmitter for process monitoring and a limiter for machine protection. The devices can be used as standalone or integrated within a wider system via communications.

MaxVu Rail is the ideal temperature device for both OEM and end user applications.

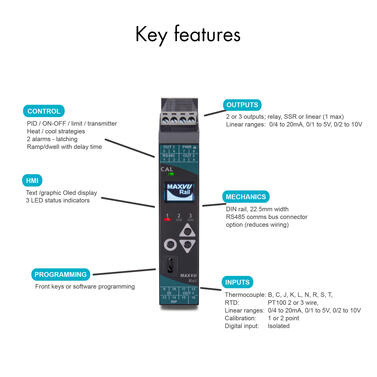

MaxVu key features.tif



MaxVu Rail provides an affordable solution for applications needing essential temperature control.

Heated Enclosures - Kilns, Warming / Chilled Cabinets, Ovens, Incubators...

Plastic & Rubber Extrusion - Barrel Heating, Die Heating...

Food and Beverage - Temepring, Micro Brewing, Food Processing...

General Heat Processes - Fluid Baths, Heated Blocks, Trace Heating, Heat Presses, Thermal Bonding and many more.

MaxVu Rail is designed to save you installation time. It enables quick and easy set up with minimal steps via the short user menu. To simplify further, setup can also be carried out from a PC using MaxVu software connected via easy access configuration port. Logical tab driven interface offers a set up wizard for fast and simple configuration in multiple languages.



MaxVu rail graphic dispays.tif

MaxVu setup wizard.tif

MaxVu Parameters.tif

MaxVu side tabs.tif



Read more
  • Text / icon matrix display
  • Universal input
  • Up to 3 outputs - relay, SSR or linear
  • Limit alarm plus warning, high/low or deviation
  • RS485 Modbus RTU communications

Selected variant

Available in several variants
CALCONTROLS.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Alarms High/Low, Deviation, Band
Approvals CE, EMC, UL
Calibration ±0,25 % of full scale ±1 °C
Control mode PID or on/off
Digital signal in Yes
Frequency 50-60
Galvanic isolation Between supply and input/output
Indication Red LED for output status
Input J, K, C, R, S, T, B, L, N thermocouple, PT100, Linear 4-20 mA, 0-10 V
IP class IP20
Logic output 10 VDC max. 20 mA
Moisture resistance 20-80% Rh, non condensing
Mounting DIN rail
Number of digits 4
Output Logic (SSR), 1x relay
Power consumption 9 VA
Relay function 1x C/O
Relay output 2 A, 250 VAC, resistive load
Sampling 4/second
Storage temperature max 80 °C
Storage temperature min -10 °C
Supply voltage 110-240 V AC
Temperature resistance housing to 55 °C
Weight 200 g

Downloads

Measurements and connections

Technical illustrations

Product description

MaxVu Rail fills the gap for behind panel process devices. Based on a popular MaxVu panel mount controller the new DIN rail version is an affordable controller, limiter or transmitter suitable for many industrial and laboratory applications. A high contrast OLED display gives you clear character definition and a wide viewing angle for setup. It is incredibly easy to read whether it is located in strong sunlight or a dark control panel.

MaxVu Rail provides a wide range of options within the single family: a controller for temperature regulation, a transmitter for process monitoring and a limiter for machine protection. The devices can be used as standalone or integrated within a wider system via communications.

MaxVu Rail is the ideal temperature device for both OEM and end user applications.



MaxVu key features.tif



MaxVu Rail provides an affordable solution for applications needing essential temperature control.

Heated Enclosures - Kilns, Warming / Chilled Cabinets, Ovens, Incubators...

Plastic & Rubber Extrusion - Barrel Heating, Die Heating...

Food and Beverage - Temepring, Micro Brewing, Food Processing...

General Heat Processes - Fluid Baths, Heated Blocks, Trace Heating, Heat Presses, Thermal Bonding and many more.

MaxVu Rail is designed to save you installation time. It enables quick and easy set up with minimal steps via the short user menu. To simplify further, setup can also be carried out from a PC using MaxVu software connected via easy access configuration port. Logical tab driven interface offers a set up wizard for fast and simple configuration in multiple languages.



MaxVu rail graphic dispays.tif

MaxVu setup wizard.tif

MaxVu Parameters.tif

MaxVu side tabs.tif



Accessories

Related

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Parts Analogue output Communication Frequency Output Power consumption Relay function Supply voltage Temperature operational max Temperature operational min Temperature resistance housing to Price
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, Relay, SSR, 100-240V ac
Art:
MVR-10M-ZAO-051U0 Copied
50-60
Logic (SSR), 1x relay
9 VA
1x C/O
110-240 V AC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 2 x Relay, 100-240V ac
Art:
MVR-10M-ZRO-051U0 Copied
50-60
2x Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 2 x Relay, SSR, 100-240V ac
Art:
MVR-10M-ZAR-051U0 Copied
50-60
Logic (SSR), 2x Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 3 x Relay, 100-240V ac
Art:
MVR-10M-ZRR-051U0 Copied
50-60
3x Relay
9 VA
1x C/O, 2x NO
110-240 V AC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 2 x Relay, Linear, 100-240V ac
Art:
MVR-10M-ZRL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60
Analog, 2x Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, Relay, SSR, Linear, 100-240V ac
Art:
MVR-10M-ZAL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60
Analog, Logic (SSR), 1x relay
9 VA
1x C/O
110-240 V AC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, Relay, SSR, RS-485, 100-240V ac
Art:
MVR-10M-ZAO-C51U0 Copied
RS485 Modbus RTU
50-60
Logic (SSR), 1x relay
9 VA
1x C/O
110-240 V AC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, Relay, SSR, Linear, RS-485, 100-240V ac
Art:
MVR-10M-ZAL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60
Analog, Logic (SSR), 1x relay
9 VA
1x C/O
110-240 V AC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 2 x Relay, Linear, RS-485, 100-240V ac
Art:
MVR-10M-ZRL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60
Analog, 2x Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, Relay, SSR, 24V ac/dc
Art:
MVR-10L-ZAO-051U0 Copied
50-60
Logic (SSR), 1x relay
9 VA / 5 W
1x C/O
24 V AC/DC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 2 x Relay, 24V ac/dc
Art:
MVR-10L-ZRO-051U0 Copied
50-60
2x Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 2 x Relay, SSR, 24V ac/dc
Art:
MVR-10L-ZAR-051U0 Copied
50-60
Logic (SSR), 2x Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 3 x Relay, 24V ac/dc
Art:
MVR-10L-ZRR-051U0 Copied
50-60
3x Relay
9 VA / 5 W
1x C/O, 2x NO
24 V AC/DC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 2 x Relay, Linear, 24V ac/dc
Art:
MVR-10L-ZRL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60
Analog, 2x Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, Relay, SSR, RS-485, 24V ac/dc
Art:
MVR-10L-ZAO-C51U0 Copied
RS485 Modbus RTU
50-60
Logic (SSR), 1x relay
9 VA / 5 W
1x C/O
24 V AC/DC
55 °C
Standard_RH_view_200SP_lower.tif
Controller DIN Rail, 2 x Relay, Linear, RS-485, 24V ac/dc
Art:
MVR-10L-ZRL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60
Analog, 2x Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
Limiter_NEW_Front_view_LV200.tif
Limiter DIN Rail, 2 x Relay, 100-240V ac
Art:
MVR-1TM-ZRO-051U0 Copied
50-60
2x Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
Limiter_NEW_Front_view_LV200.tif
Limiter DIN Rail, 3 x Relay, 100-240V ac
Art:
MVR-1TM-ZRR-051U0 Copied
50-60
3x Relay
9 VA
1x C/O, 2x NO
110-240 V AC
55 °C
Limiter_NEW_Front_view_LV200.tif
Limiter DIN Rail, 2 x Relay, 24V ac/dc
Art:
MVR-1TL-ZRO-051U0 Copied
50-60
2x Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
Limiter_NEW_Front_view_LV200.tif
Limiter DIN Rail, 3 x Relay, 24V ac/dc
Art:
MVR-1TL-ZRR-051U0 Copied
50-60
3x Relay
9 VA / 5 W
1x C/O, 2x NO
24 V AC/DC
55 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, Linear, 24V ac/dc
Art:
MVR-10L-AAL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60 Hz
2x Logic (SSR), Analog
9 VA / 5 W
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, Linear, RS-485, 24V ac/dc
Art:
MVR-10L-AAL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60 Hz
2x Logic (SSR), Analog
9 VA / 5 W
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, 24V ac/dc
Art:
MVR-10L-AAO-051U0 Copied
50-60 Hz
2x Logic (SSR)
9 VA / 5 W
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, RS-485, 24V ac/dc
Art:
MVR-10L-AAO-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
2x Logic (SSR)
9 VA / 5 W
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, Relay, 24V ac/dc
Art:
MVR-10L-AAR-051U0 Copied
50-60 Hz
2x Logic (SSR), Relay
9 VA / 5 W
1x NO
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, Relay, RS-485, 24V ac/dc
Art:
MVR-10L-AAR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
2x Logic (SSR), Relay
9 VA / 5 W
1x NO
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, Relay, SSR, Linear, 24V ac/dc
Art:
MVR-10L-ZAL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60 Hz
C/O Relay, Relay, Analog
9 VA / 5 W
1x C/O
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, Relay, SSR, Linear, RS-485, 24V ac/dc
Art:
MVR-10L-ZAL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60 Hz
C/O Relay, Relay, Analog
9 VA / 5 W
1x C/O
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x Relay, SSR, RS-485, 24V ac/dc
Art:
MVR-10L-ZAR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
Logic (SSR), 2x Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x Relay, RS-485, 24V ac/dc
Art:
MVR-10L-ZRO-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 3 x Relay, RS-485, 24V ac/dc
Art:
MVR-10L-ZRR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, 2x Relay
9 VA / 5 W
1x C/O, 2x NO
24 V AC/DC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, Linear, 100-240V ac
Art:
MVR-10M-AAL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60 Hz
2x Logic (SSR), Analog
9 VA
110-240 V AC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, Linear, RS-485, 100-240V ac
Art:
MVR-10M-AAL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60 Hz
2x Logic (SSR), Analog
9 VA
110-240 V AC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, 100-240V ac
Art:
MVR-10M-AAO-051U0 Copied
50-60 Hz
2x Logic (SSR)
9 VA
110-240 V AC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, RS-485, 100-240V ac
Art:
MVR-10M-AAO-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
2x Logic (SSR)
9 VA
110-240 V AC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, Relay, 100-240V ac
Art:
MVR-10M-AAR-051U0 Copied
50-60 Hz
2x Logic (SSR), Relay
9 VA
1x NO
110-240 V AC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x SSR, Relay, RS-485, 100-240V ac
Art:
MVR-10M-AAR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
2x Logic (SSR), Relay
9 VA
1x NO
110-240 V AC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x Relay, SSR, RS-485, 100-240V ac
Art:
MVR-10M-ZAR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, Logic (SSR), Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 2 x Relay, RS-485, 100-240V ac
Art:
MVR-10M-ZRO-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
0 °C
Standard_Front_view_200SP_rail_lower.tif
Controller DIN Rail, 3 x Relay, RS-485, 100-240V ac
Art:
MVR-10M-ZRR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, 2x Relay
9 VA
1x C/O, 2x NO
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, Relay, 24V ac/dc
Art:
MVR-1TL-ZAL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60 Hz
C/O Relay, Relay, Analog
9 VA / 5 W
1x C/O
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, Relay, SSR, Linear, RS-485, 24V ac/dc
Art:
MVR-1TL-ZAL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60 Hz
C/O Relay, Relay, Analog
9 VA / 5 W
1x C/O
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, Relay, SSR, 24V ac/dc
Art:
MVR-1TL-ZAO-051U0 Copied
50-60 Hz
C/O Relay, Logic (SSR)
9 VA / 5 W
1x C/O
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, Relay, SSR, RS-485, 24V ac/dc
Art:
MVR-1TL-ZAO-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, Logic (SSR)
9 VA / 5 W
1x C/O
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, SSR, 24V ac/dc
Art:
MVR-1TL-ZAR-051U0 Copied
50-60 Hz
C/O Relay, Logic (SSR), Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, SSR, RS-485, 24V ac/dc
Art:
MVR-1TL-ZAR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, Logic (SSR), Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, Linear, 24V ac/dc
Art:
MVR-1TL-ZRL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60 Hz
C/O Relay, Relay, Analog
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, Linear, RS-485, 24V ac/dc
Art:
MVR-1TL-ZRL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60 Hz
C/O Relay, Relay, Analog
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, RS-485, 24V ac/dc
Art:
MVR-1TL-ZRO-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, Relay
9 VA / 5 W
1x C/O, 1x NO
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 3 x Relay, RS-485, 24V ac/dc
Art:
MVR-1TL-ZRR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, 2x Relay
9 VA / 5 W
1x C/O, 2x NO
24 V AC/DC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, Relay, SSR, Linear, 100-240V ac
Art:
MVR-1TM-ZAL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60 Hz
C/O Relay, Relay, Analog
9 VA
1x C/O
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, Relay, SSR, Linear, RS-485, 100-240V ac
Art:
MVR-1TM-ZAL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60 Hz
C/O Relay, Relay, Analog
9 VA
1x C/O
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, Relay, SSR, 100-240V ac
Art:
MVR-1TM-ZAO-051U0 Copied
50-60 Hz
C/O Relay, Logic (SSR)
9 VA
1x C/O
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, Relay, SSR, RS-485, 100-240V ac
Art:
MVR-1TM-ZAO-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, Logic (SSR)
9 VA
1x C/O
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, SSR, 100-240V ac
Art:
MVR-1TM-ZAR-051U0 Copied
50-60 Hz
C/O Relay, Logic (SSR), Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, SSR, RS-485, 100-240V ac
Art:
MVR-1TM-ZAR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, Logic (SSR), Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, Linear, 100-240V ac
Art:
MVR-1TM-ZRL-051U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
50-60 Hz
C/O Relay, Relay, Analog
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, Linear, RS-485, 100-240V ac
Art:
MVR-1TM-ZRL-C51U0 Copied
0/4-20mA, 0/1-5V, 0/2-10V
RS485 Modbus RTU
50-60 Hz
C/O Relay, Relay, Analog
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 2 x Relay, RS-485, 100-240V ac
Art:
MVR-1TM-ZRO-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, Relay
9 VA
1x C/O, 1x NO
110-240 V AC
55 °C
0 °C
Limiter_NEW_Front_view_LV200_rail.tif
Limiter DIN Rail, 3 x Relay, RS-485, 100-240V ac
Art:
MVR-1TM-ZRR-C51U0 Copied
RS485 Modbus RTU
50-60 Hz
C/O Relay, 2x Relay
9 VA
1x C/O, 2x NO
110-240 V AC
55 °C
0 °C

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
