63-125A Switch Disconnectors

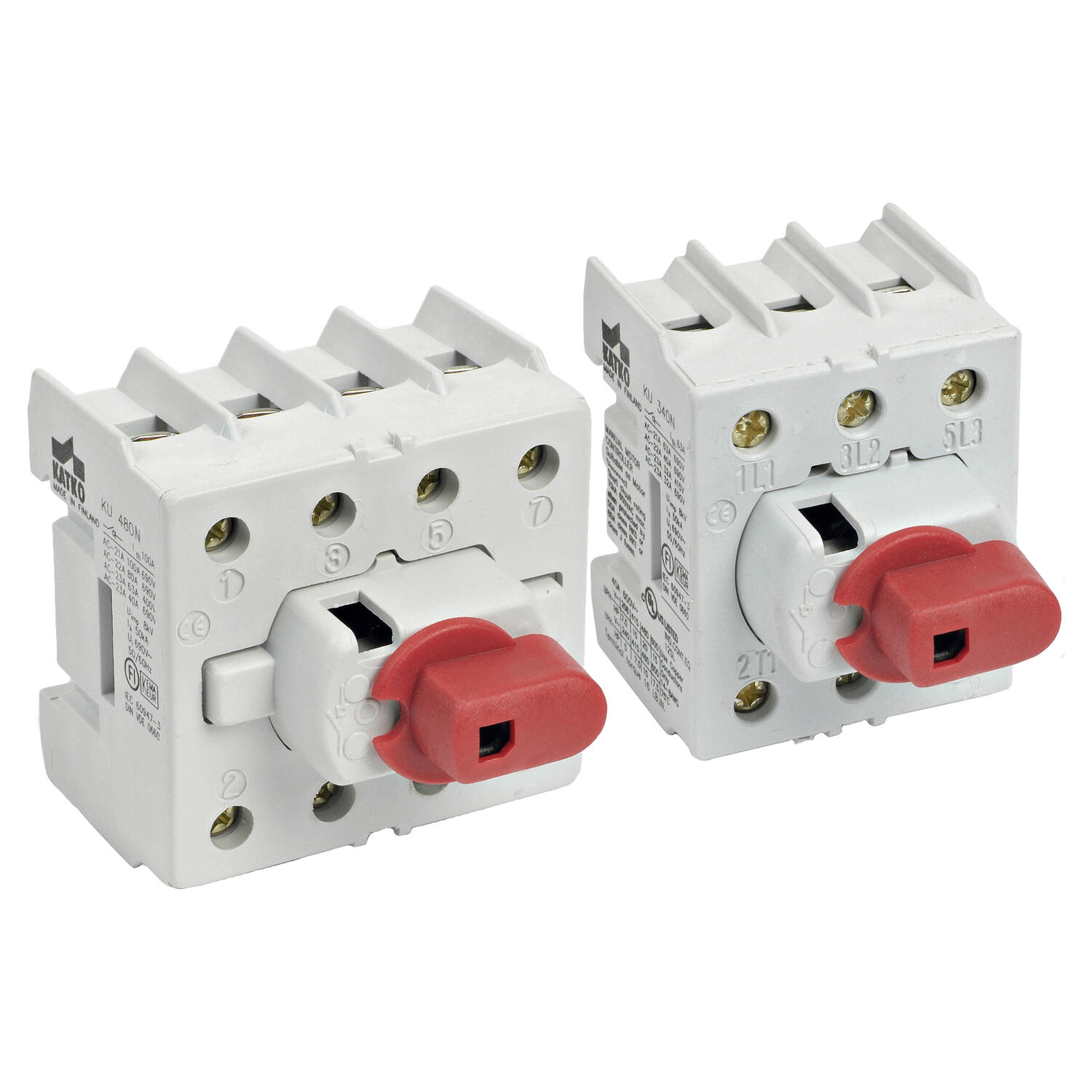

Katko 63-125A switch disconnectors are DIN-rail or screw mounted (KU).

3-pole and 4-pole KU-switches as standard. Other configurations on request.

6-pole and 8-pole versions consist of two 3-pole or 4-pole KU-switches connected by a parallel kit



Switch technology by means of silver contacts ensures safe and durable operation

Compatible with handles LK10 and LK11 (load break switches) and LK12 (change-over switches)

Shafts L=100/200/300 AD11 and L=100/200/300 AD11/VT (load break switches) and L=100/200/300 AD12/VT (change-over switches).



Tested according to IEC 60947-3

Available with CCC certificate, mention when ordering

Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector.

Read more
  • Din rail/screw mounting
  • 3 and 4 pole as standard, other configurations on request
  • Silver contacts ensures safe and durable operation
  • Tested to IEC 60947-3

Selected variant

Available in several variants
Katko_logo_out_cmyk.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
Number of poles 3
Rated insulation voltage Ui 800 V
Rated thermal current, Ith 80 A
Type Screw-mounted
Terminals / Bolt size Cu 2.5-35
Nominal values with cable size 25
Weight 0.2 kg

Rated operational current, Ie
Operational current - AC-21A - 400/415V 80 A
Operational current - AC-21A - 500V 80 A
Operational current - AC-21A - 690V 80 A
Operational current - AC-22A - 400/415V 63 A
Operational current - AC-22A - 500V 63 A
Operational current - AC-22A - 690V 63 A
Operational current - AC-23A - 400/415V 40 A
Operational current - AC-23A - 500V 40 A
Operational current - AC-23A - 690V 40 A

Rated operational power for 3-phase (1500 r.p.m.) squirrel cage induction motors (kW)
Operational power - AC-23A - 400/415V 22 kW

*Invisible Heading*
Operational power - AC-23A - 500V 30 kW
Operational power - AC-23A - 690V 37 kW

Rated fused short circuit current
Back-up fuse 80 A
R.M.S value, IK 50
Peak value 8.7 kA
Rated impulse withstand voltage Uimp 12 kV
Rated short circuit making capacity at 690V, lcm 3.1
Rated short time withstand current at 690V (1 s), lcw 2

Rated breaking capacity, Icn
Breaking capacity - AC-23A - 400/415V 320 A
Breaking capacity - AC-23A - 500V 320 A
Breaking capacity - AC-23A - 690V 320 A

Additional Details
Electrical endurance 3000 operations
Mechanical endurance 50000 operations
Max terminal torque 2.5
Tariff code 85365080
Country of origin FI

Downloads

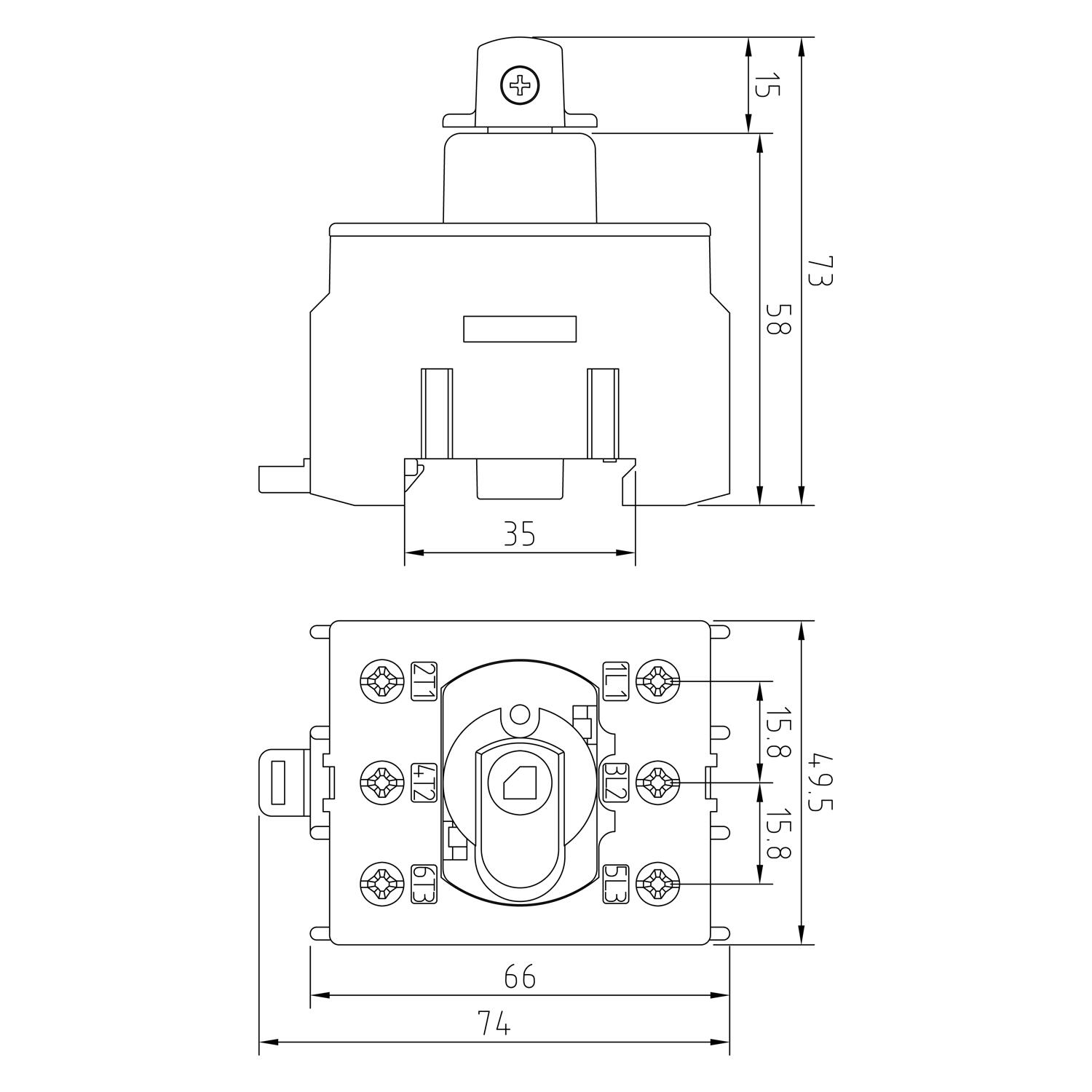

Measurements and connections

Product description

Katko 63-125A switch disconnectors are DIN-rail or screw mounted (KU).

3-pole and 4-pole KU-switches as standard. Other configurations on request.

6-pole and 8-pole versions consist of two 3-pole or 4-pole KU-switches connected by a parallel kit



Switch technology by means of silver contacts ensures safe and durable operation

Compatible with handles LK10 and LK11 (load break switches) and LK12 (change-over switches)

Shafts L=100/200/300 AD11 and L=100/200/300 AD11/VT (load break switches) and L=100/200/300 AD12/VT (change-over switches).



Tested according to IEC 60947-3

Available with CCC certificate, mention when ordering

Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector.

Accessories

Related

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Parts Number of poles Rated thermal current, Ith Nominal values with cable size Weight Operational current - AC-21A - 400/415V Operational current - AC-21A - 500V Operational current - AC-21A - 690V Operational current - AC-22A - 400/415V Operational current - AC-22A - 500V Operational current - AC-22A - 690V Operational current - AC-23A - 400/415V Operational power - AC-23A - 400/415V Back-up fuse R.M.S value, IK Peak value Rated impulse withstand voltage Uimp Breaking capacity - AC-23A - 400/415V Electrical endurance Mechanical endurance Price

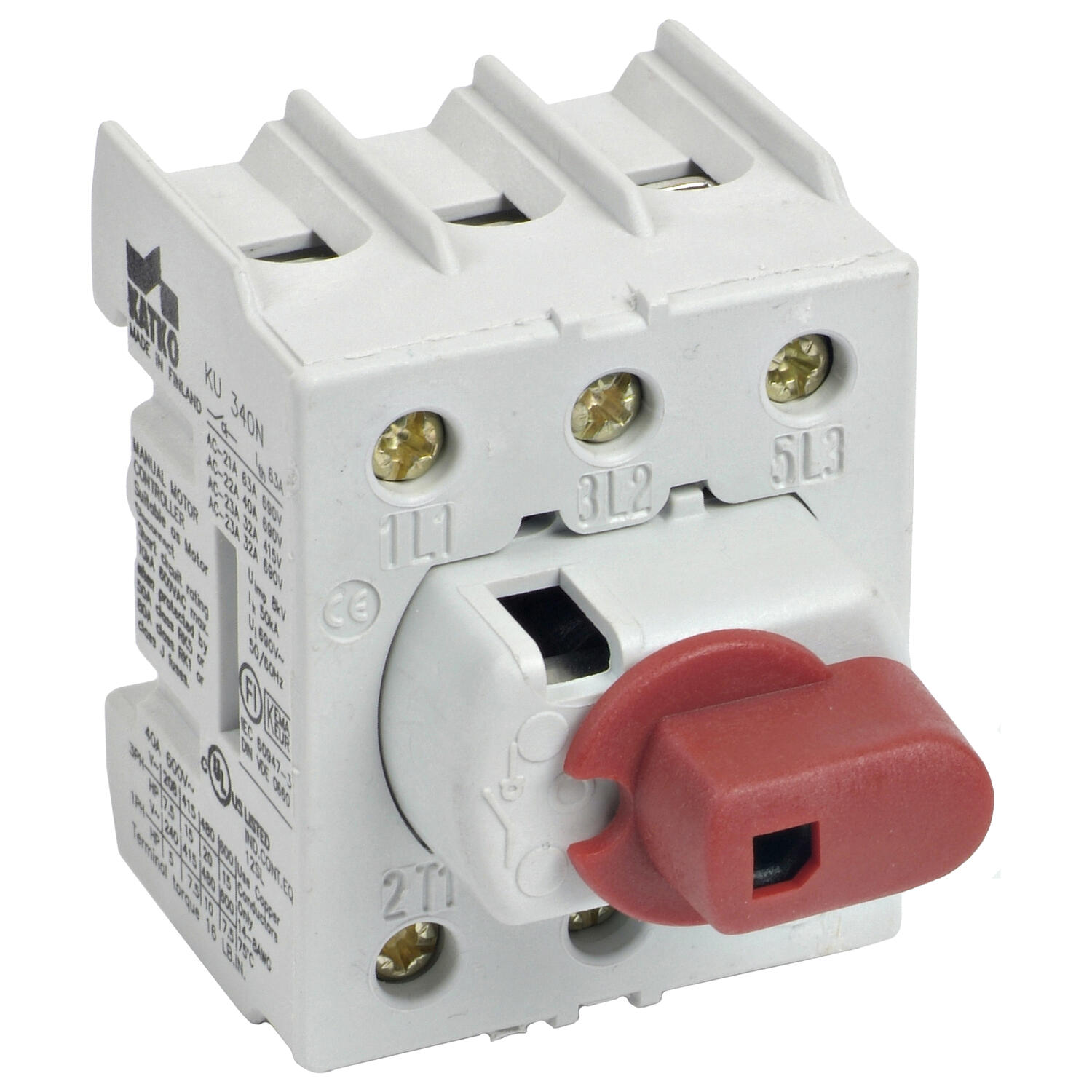

KU 363N, Screw Mounted, 3-pole, 63A (N)
Art:
21460 Copied
3
80 A
25
0.2 kg
80 A
80 A
80 A
63 A
63 A
63 A
40 A
22 kW
80 A
50
8.7 kA
12 kV
320 A
3000 operations
50000 operations
KU 380N, Screw Mounted, 3-pole, 80A (N)
Art:
21470 Copied
3
100 A
35
0.2 kg
100 A
100 A
100 A
80 A
80 A
80 A
63 A
30 kW
80 A
50
8.7 kA
8 kV
504 A
3000 operations
50000 operations
KU 3125N, Screw Mounted, 3-pole, 125A (N)
Art:
21482 Copied
3
125 A
70
0.2 kg
125 A
125 A
125 A
125 A
80 A
80 A
63 A
30 kW
125 A
30
10 kA
8 kV
504 A
3000 operations
50000 operations
KU 463N, Screw Mounted, 4-pole, 63A (N)
Art:
21590 Copied
4
80 A
25
0.25 kg
80 A
80 A
80 A
63 A
63 A
63 A
40 A
22 kW
80 A
50
8.7 kA
8 kV
320 A
3000 operations
50000 operations
KU 480N, Screw Mounted, 4-pole, 80A (N)
Art:
21600 Copied
4
100 A
35
0.25 kg
100 A
100 A
100 A
80 A
80 A
80 A
63 A
30 kW
80 A
50
8.7 kA
8 kV
504 A
3000 operations
50000 operations
KU 4125N, Screw Mounted, 4-pole, 125A (N)
Art:
21612 Copied
4
125 A
70
0.25 kg
125 A
125 A
125 A
125 A
80 A
80 A
63 A
30 kW
125 A
30
10 kA
8 kV
504 A
2000 operations
16000 operations
