DEHN
Technical Data |
|
|---|---|
| Earthing arrangement | 35mm DIN rails |
| Nominal voltage | 24 V |
Dimensions |
|
| Length | 76.4 mm |
| Width | 6 mm |
| Height | 89.7 mm |
| Number of modules | 1 |
Connection Data |
|
| Cross section single wire from | 2.5 mm² |
| Cross section single wire to | 0.2 mm² |
| Connection type | Push-in |
Additional Data |
|
|---|---|
| Approvals | SIL |
| Tariff code | 85363010 |
| Weight | 0.032 kg |
| Max Continuous Operating Voltage (AC) | 23 V |
| Max Continuous Operating Voltage (DC) | 33 V |
| SPD Class | Type 3 |
| Test standard | IEC 61643-21 / EN 61643-2 |
| SIL | Up to SIL3 |
| IP class | IP20 |
The Blitzductor connect compact series, such as the BCO CL2 B‑180, are ultra‑slim surge arresters (just 6 mm wide) designed to protect up to two single‑line circuits (e.g., shielded data or equipotential bonding lines). They feature tool‑free push‑in connections for fast installation, built‑in LifeCheck and visual status LEDs, and optional remote signalling ensuring maintenance teams always know whether the unit is operational. These Type 1 SPDs meet EN/IEC 61643‑21 and 22 standards, support impulse categories C2, C3, B2, and D1, and handle continuous operating voltages up to 180 V DC/127 V AC. In the event of surges, they can divert up to 5 kA (8/20 µs) per line, 10 kA total, and lightning impulses up to 1.5 kA per line (3 kA total).
These surge arresters safeguard sensitive control, I / O, or communication lines in industrial and automation environments, particularly where space is limited and system uptime is critical. Their vibration‑ and shock‑resistant polyamide housing and approvals for intrinsically safe (ATEX/IECEx) zones make them ideal for harsh or hazardous sites. Other versions in the series protect balanced or high‑frequency pairs, DC supplies, or intrinsically safe circuits—ensuring tailored protection across measurement, fieldbuses, PoE links, or unbalanced analog cabling. Remote‑monitor integration means fault status can be centrally tracked, minimizing downtime and maintenance costs.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Earthing arrangement | Nominal voltage | Length | Width | Height | Number of modules | Cross section single wire from | Cross section single wire to | Connection type | Approvals | Weight | Max Continuous Operating Voltage (AC) | Max Continuous Operating Voltage (DC) | SPD Class | Test standard | SIL | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

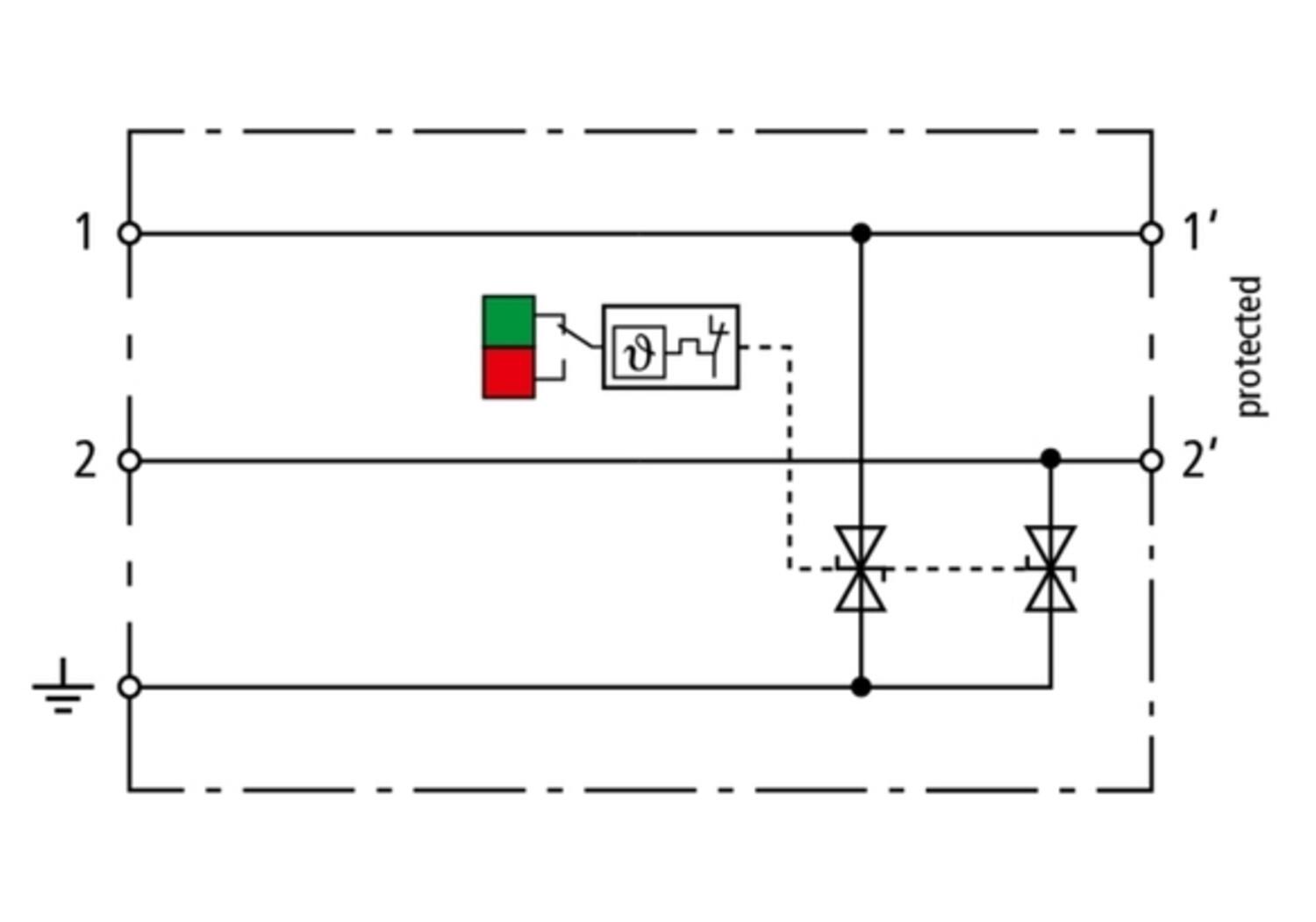

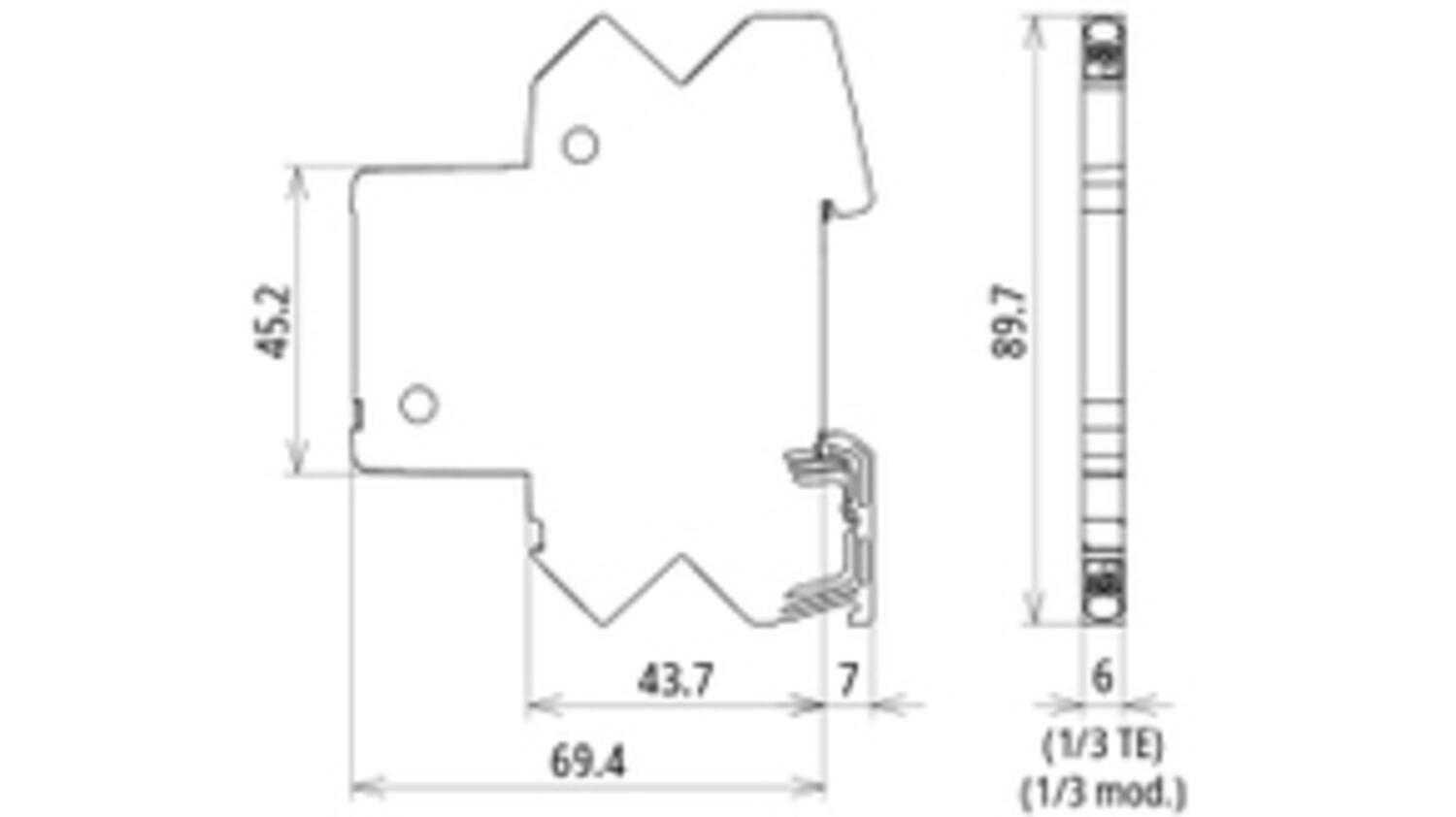

BLITZDUCTORconnect CL2 E 24, Compact, single-stage surge protection
with powerful diodes for protecting 24V DC power lines up to 10A
Art:
927988
Copied
|
35mm DIN rails
|
24 V
|
76.4 mm
|
6 mm
|
89.7 mm
|
1
|
2.5 mm²
|
0.2 mm²
|
Push-in
|
SIL
|
0.032 kg
|
23 V
|
33 V
|
Type 3
|
IEC 61643-21 / EN 61643-2
|
Up to SIL3
|
|
||

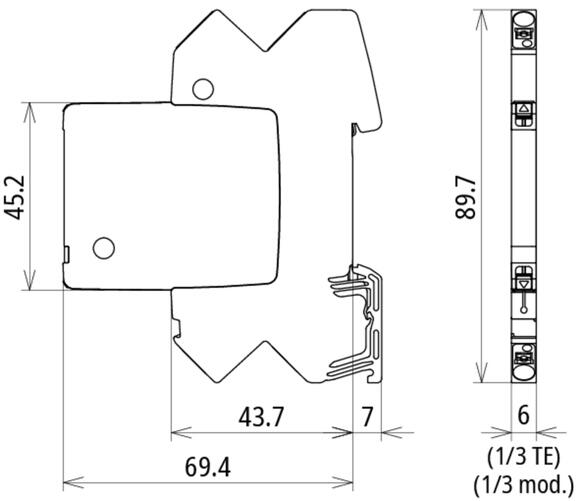

Combined arrester BLITZDUCTORconnect ML2 BE 24, Modular, pluggable combined arrester for protecting
digital and analogue PLC IO signals
Art:
927224
Copied
|
35 mm DIN rails
|
24 V
|
76.4 mm
|
6 mm
|
89.7 mm
|
1
|
0.2 mm²
|
2.5 mm²
|
Push-in
|
CSA, ATEX, IECEx, CCC, SIL
|
0.034 kg
|
23.3 V
|
33 V
|
Type 1
|
IEC 61643-21 / EN 61643-21
|
Up to SIL3
|
|
||

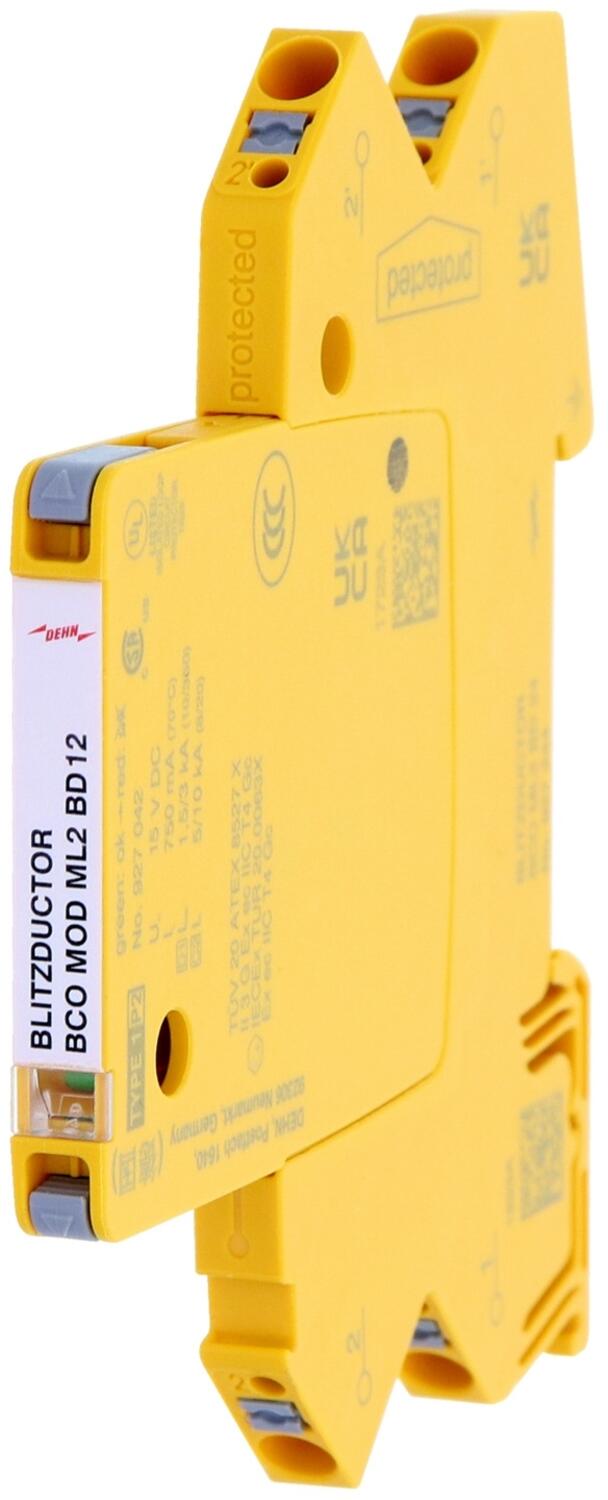

BLITZDUCTORconnect ML2 BD 12, Modular, pluggable combined arrester for protecting thermocouple and PT100 type signals.
Art:
927242
Copied
|
35mm DIN rails
|
12 V
|
76.4 mm
|
6 mm
|
89.7 mm
|
1
|
0.2 mm²
|
2.5 mm²
|
Push-in
|
CSA, ATEX, IECEx, CCC, SIL
|
0.034 kg
|
10.6 V
|
15 V
|
Type 1
|
IEC 61643-21 / EN 61643-21
|
Up to SIL3
|
|
||

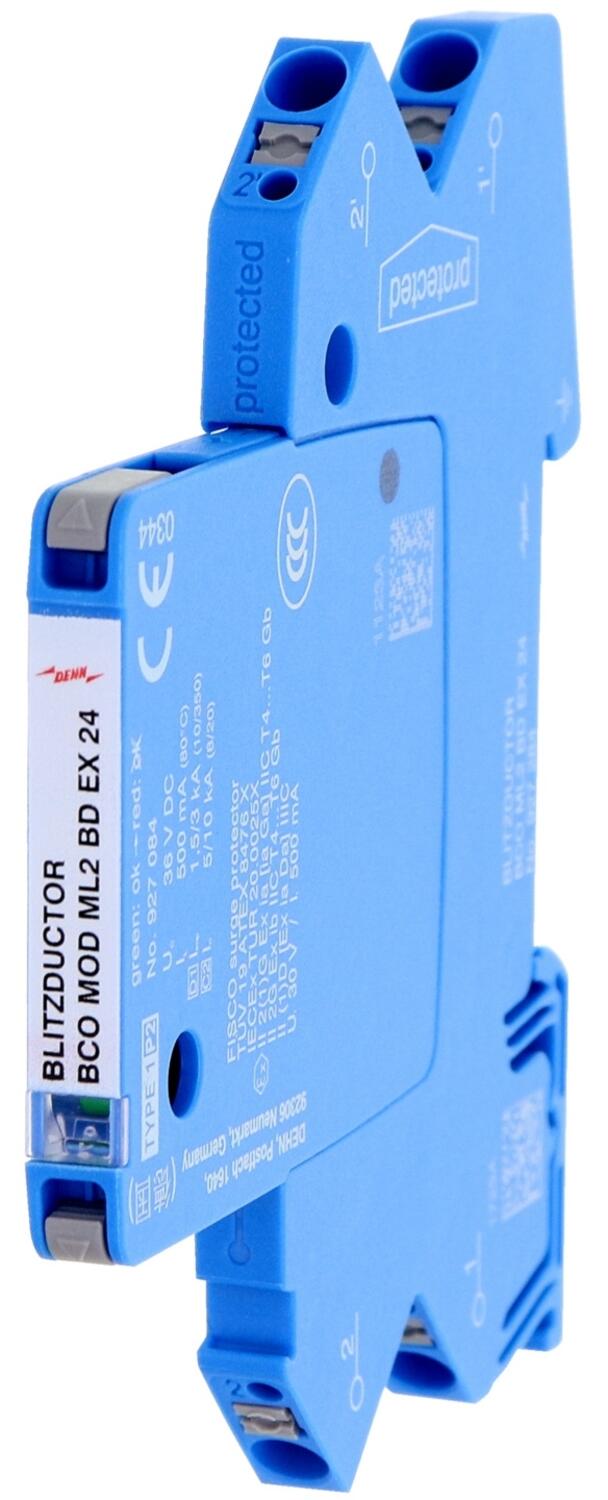

BLITZDUCTORconnect ML2 BE Ex 24, Modular, pluggable combined arrester for protecting digital and analogue PLC IO signals in Ex/IS environment
Art:
927284
Copied
|
35mm DIN rails
|
24 V
|
76.4 mm
|
6 mm
|
89.7 mm
|
1
|
0.2 mm²
|
2.5 mm²
|
Push-in
|
ATEX, IECEx, CCC, SIL
|
0.035 kg
|
25.4 V
|
36 V
|
Type 1
|
IEC 61643-21 / EN 61643-21
|
Up to SIL3
|
|
||
|
BLITZDUCTORconnect + Fault Ind 1 pair
Art:
927244
Copied
|
35mm DIN rails
|
24 V
|
76.4 mm
|
6 mm
|
89.7 mm
|
1
|
0.2 mm²
|
2.5 mm²
|
Push-in
|
CSA, ATEX, IECEx, CCC, SIL
|
0.034 kg
|
25.4 V
|
36 V
|
Type 1
|
IEC 61643-21 / EN 61643-21
|
Up to SIL3
|
|
||

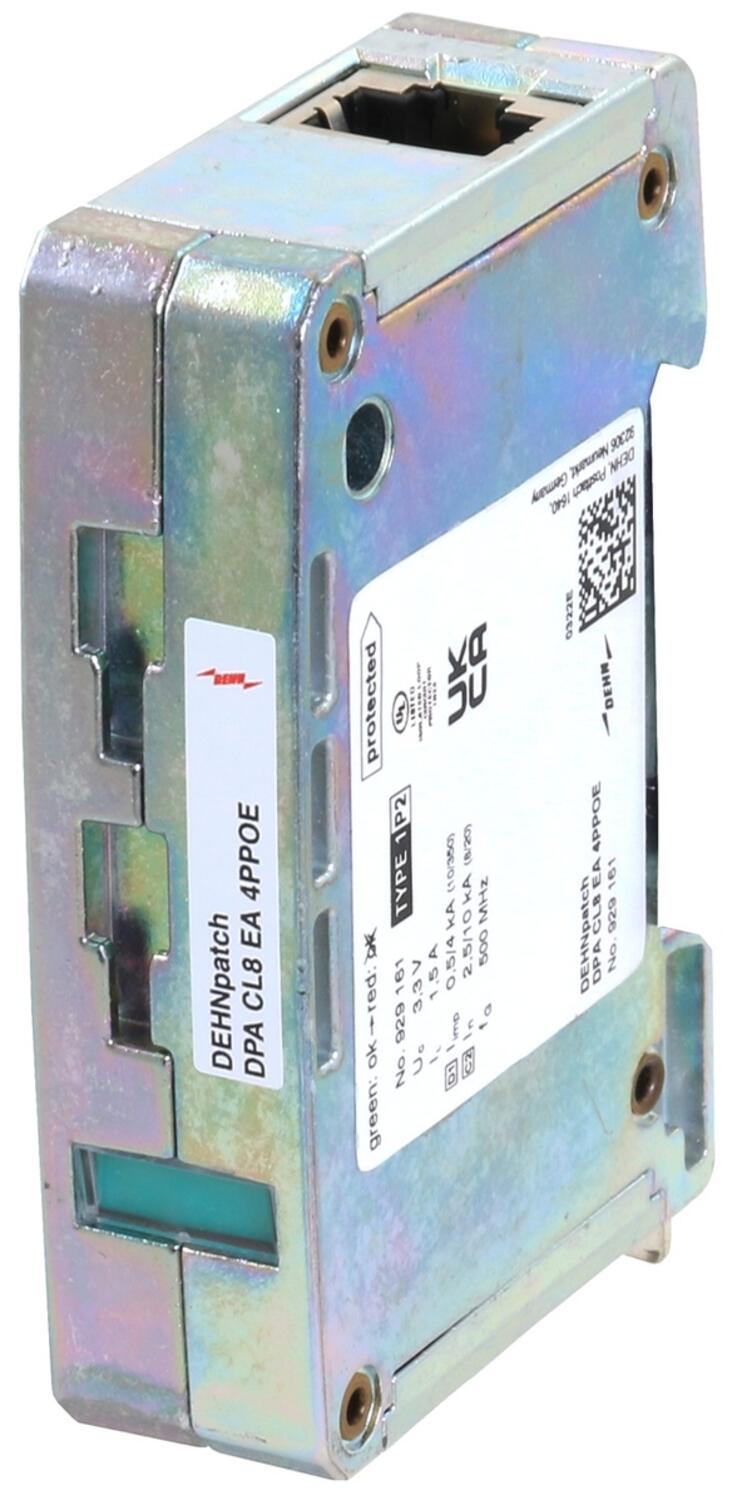

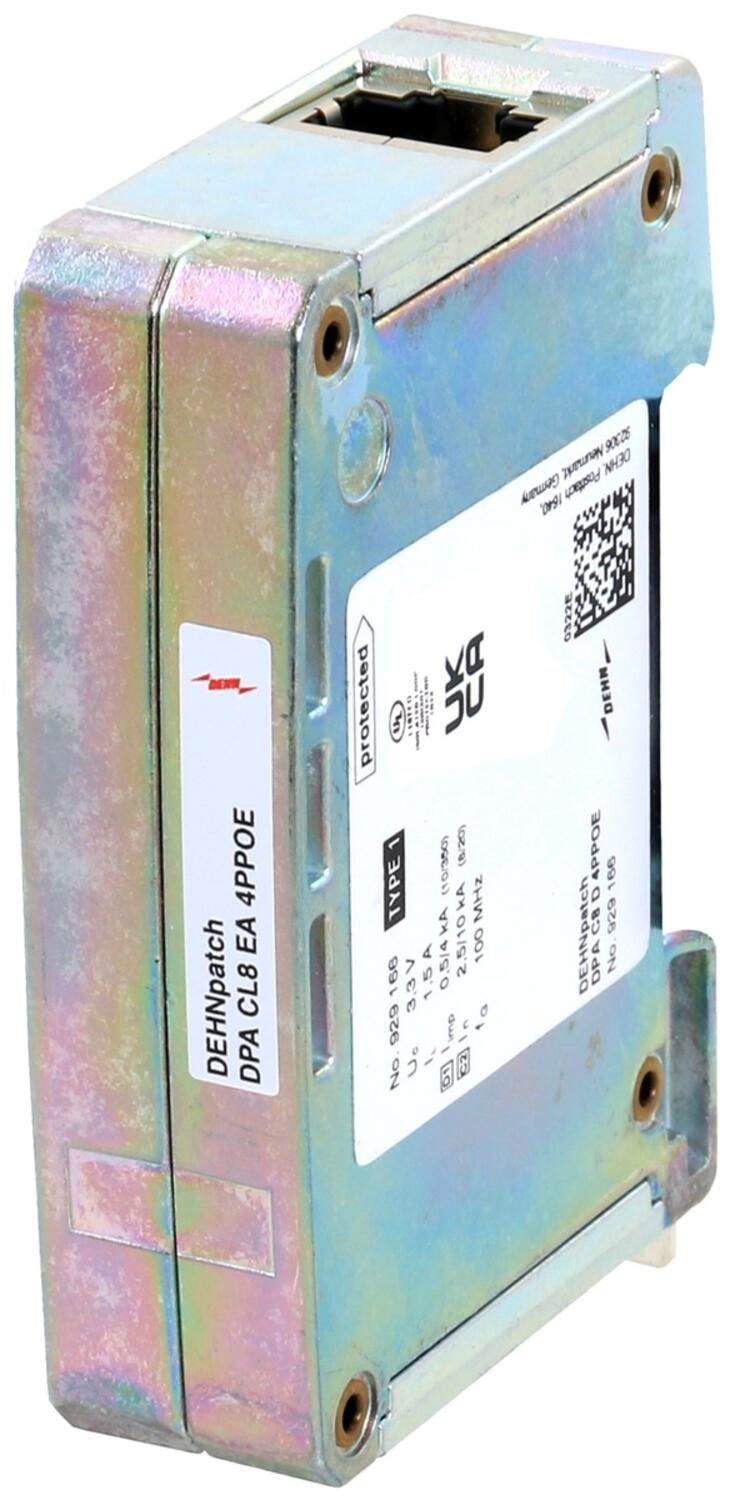

DEHNpatch - Compact combined arrester for Ethernet applications up to 1GBit and Power over Ethernet (up to 4PPoE)
Art:
929166
Copied
|
35mm DIN rails
|
3.3V
|
51 mm
|
19 mm
|
75 mm
|
|
|
|
|
|
0.167 kg
|
|
3.3 V
|
Type 1
|
IEC 61643-21 / EN 61643-21
|
|
|
Select a variant in the list
