Selected variant
Technical data
| Approvals | CE, CSA 22.2, IEC 60068-2-3, IEC 60068-2-30, IEC 60068-2-52, IEC 60068-2-6, IEC 60529, IEC 60947-1, IEC 60947-5-1, IEC 62262, UL, UL 508 |
|---|---|

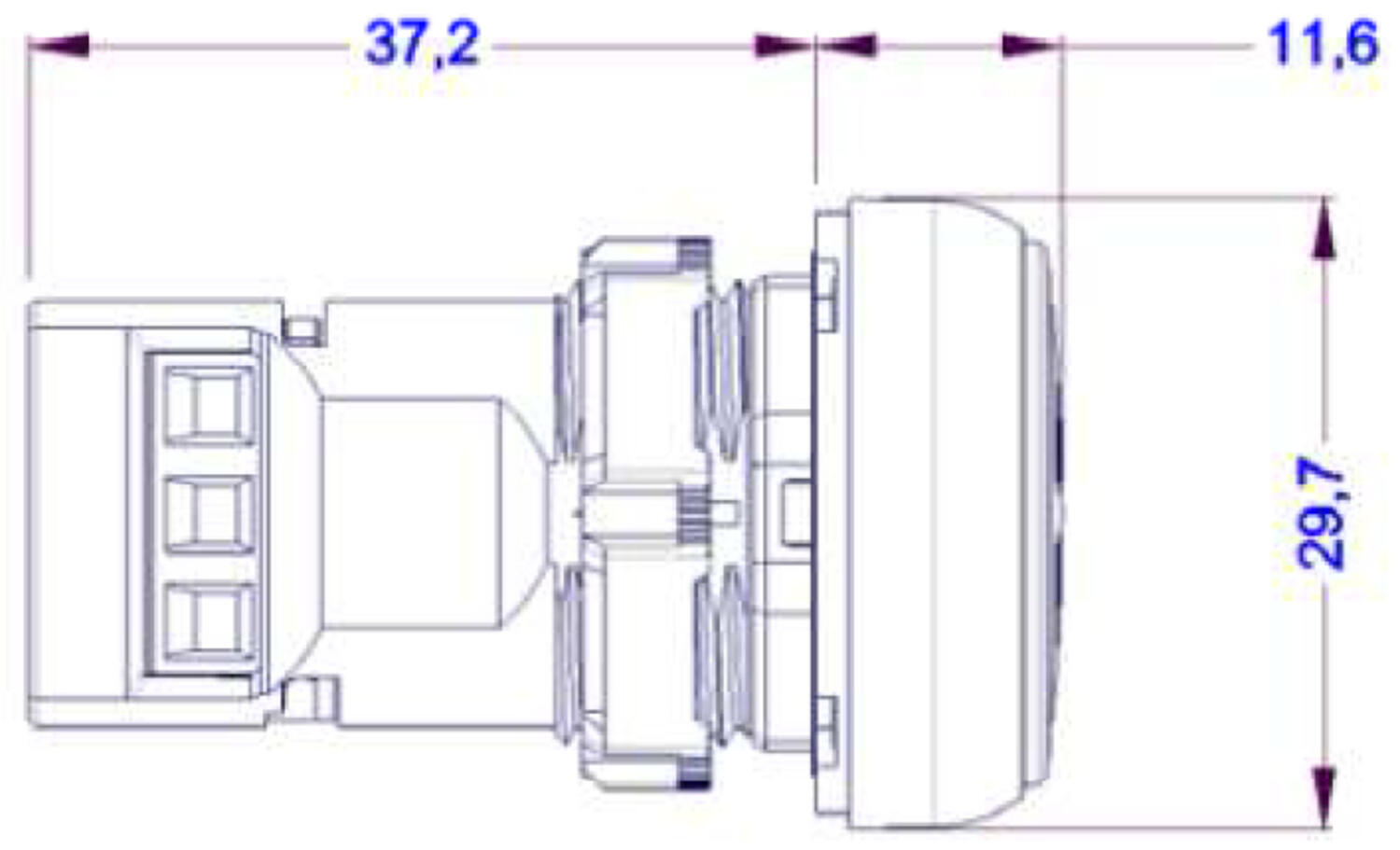

| Behind panel depth | 37.2 mm |
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Colour | Black |
| Electrical lifetime | 30.000 h |
| Frequency | 50/60 Hz |
| Height | 29.7 mm |
| Insulation voltage | 4 kV |
| IP class | IP20, IP66, IP69, IP69K, NEMA Type 1, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 3S, NEMA Type 4, NEMA Type 4X, NEMA Type 12 |
| Length | 48.8 mm |
| Operating voltage ac/dc max | 30 V |
|---|---|
| Operating voltage ac/dc min | 18 V |
| Protection class | II |
| Recommended tightening torque | 3 |
| Sound level | 80 dB |
| Storage temperature max | 85 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -25 °C |
| Weight | 0.02 g |
