SENSATA CRYDOM

Series 1 120 VAC

Crydom's signature family of solid state relays. Ratings from 10A to 40A @ 24-140 VAC, 12A to 90A @ 80-530 VAC and 10A to 125A @ 24-280 VAC - SCR output for heavy industrial loads - AC or DC control - zero voltage (resistive loads) or random-fire (inductive loads) output - LED input status indicator optional.



  • Ratings from 10A to 40A @ 24-140 VAC
  • SCR output for heavy industrial loads
  • Zero voltage or instantaneous turn-on outputs
  • UL/CSA/VDE Approved, CE Compliant to EN60950-1
  • Improved SEMS screw and washer
  • Redesigned housing with anti-rotation barriers
  • AC or DC control
  • Direct bond copper substrate
  • EMC compliant to Level 3
  • Direct power lead frame
  • Epoxy free design
Read more
  • Load current 10, 25 and 40A
  • Operating voltage 24-140 VAC
  • Control voltage 90-280 VAC, 3-32 VDC and 18-36 VAC

Selected variant

Available in several variants
Sensata Crydom.jpg

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Overview
Output current 10 A
Output voltage 24-140V ac
Control voltage 90-280V ac
Type of control Zero voltage turn on
Output voltage 24-140V ac

Output Specification
Number of poles 1
Control voltage 90-280V ac

General Specification
Temperature operational min -40 °C
Temperature operational max 80 °C
Storage temperature max 125 °C
Storage temperature min -40 °C
Weight 74,9 g
Height 57,3 mm
Width 44,5 mm
Depth 22,6 mm

Downloads

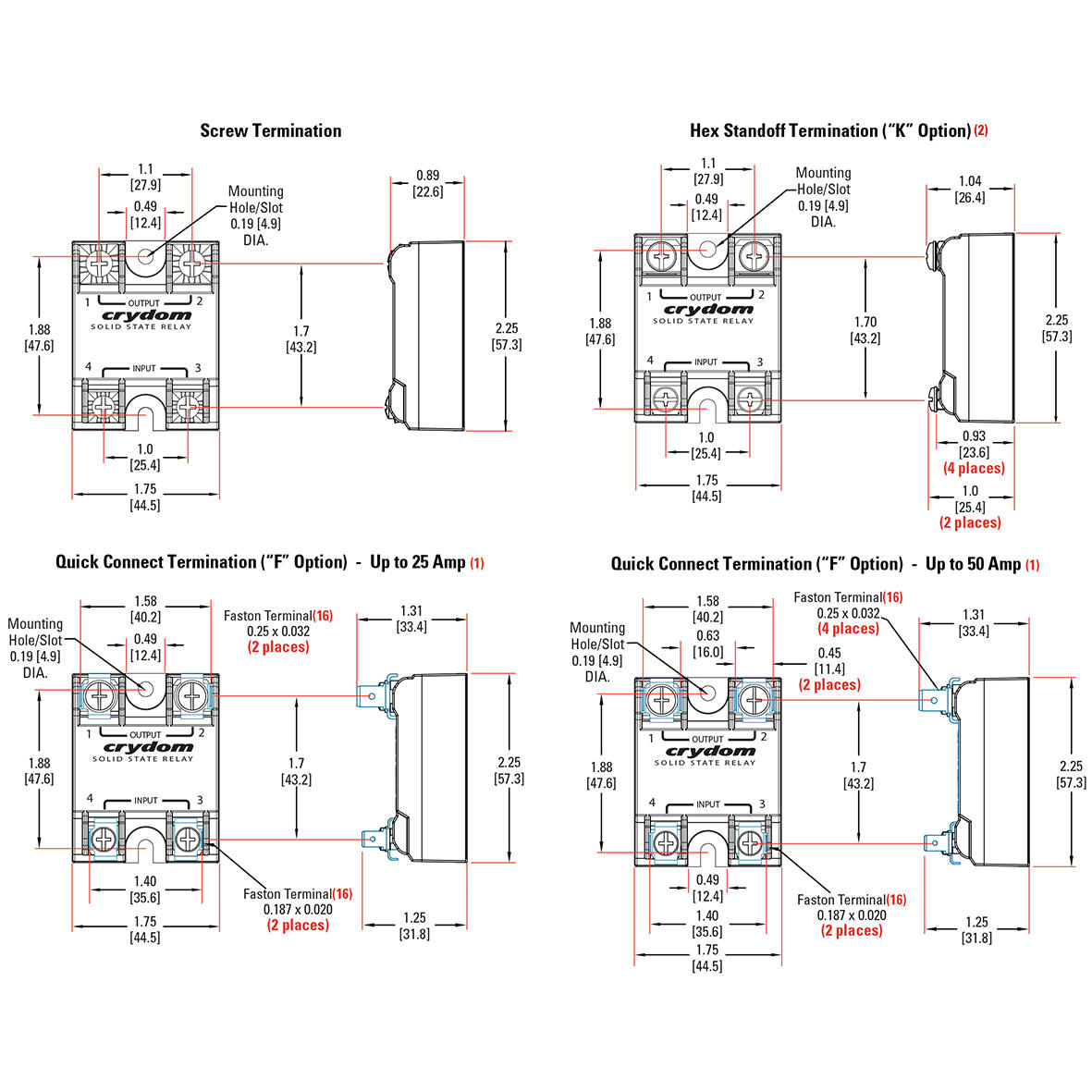

Measurements and connections

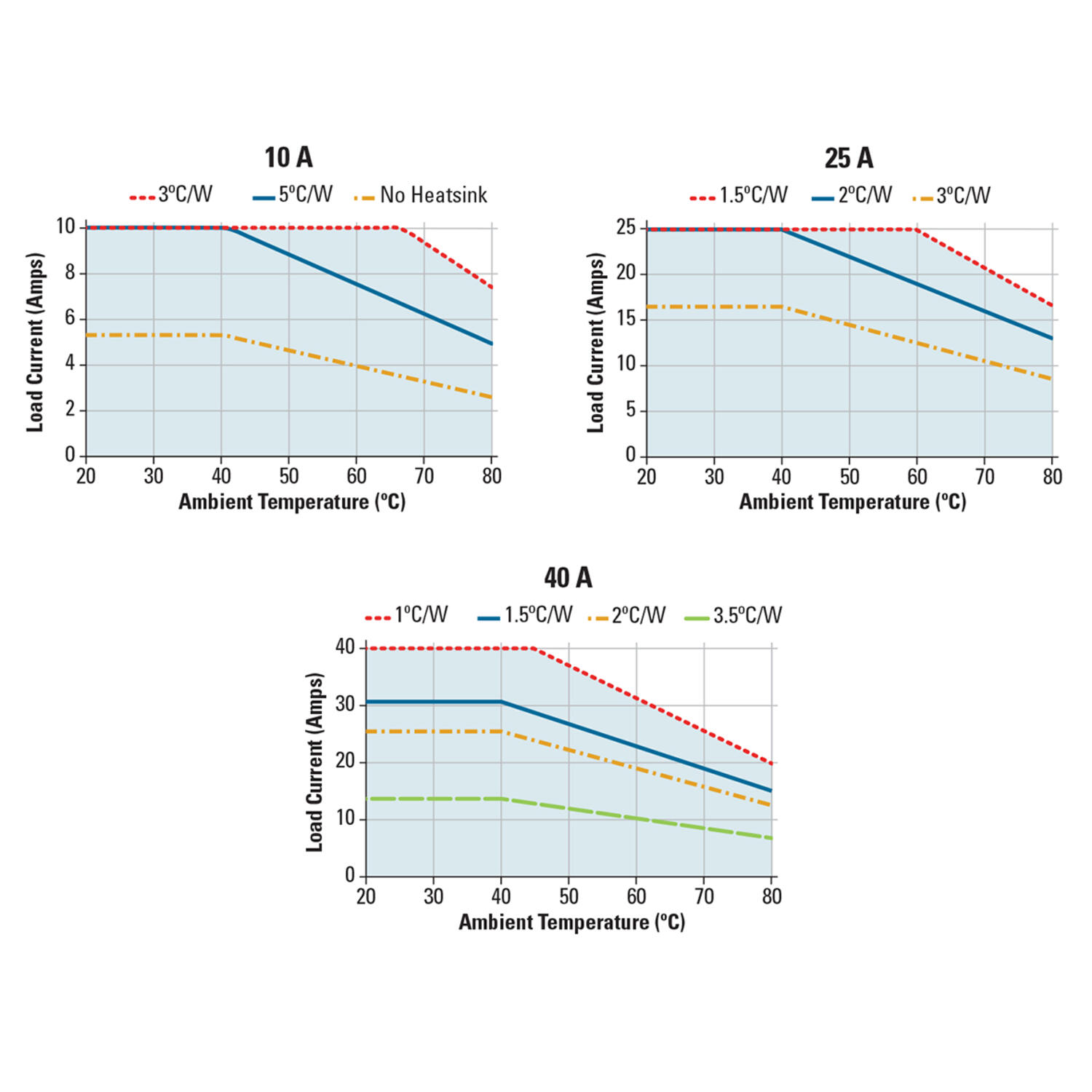

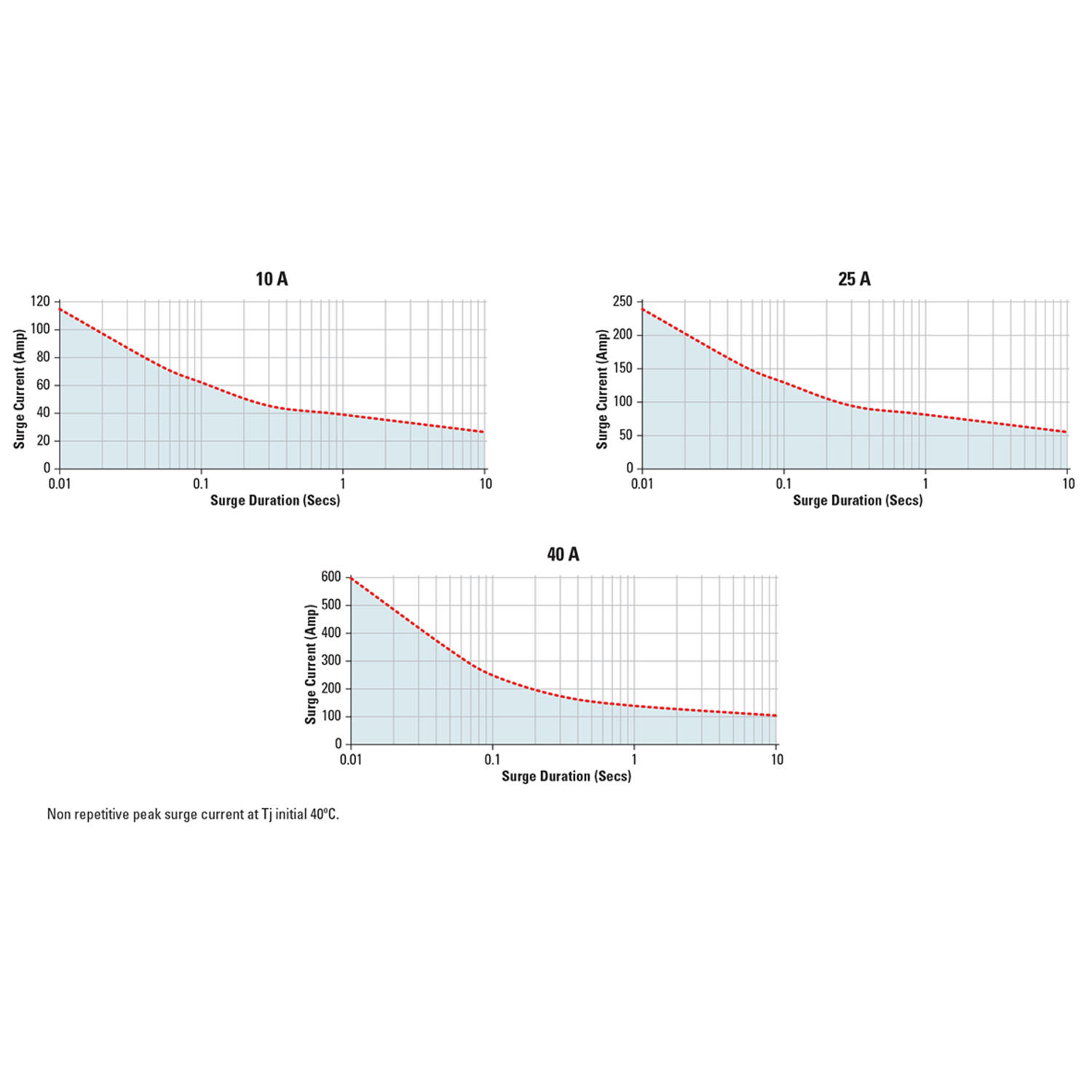

Technical illustrations

Product description

Crydom's signature family of solid state relays. Ratings from 10A to 40A @ 24-140 VAC, 12A to 90A @ 80-530 VAC and 10A to 125A @ 24-280 VAC - SCR output for heavy industrial loads - AC or DC control - zero voltage (resistive loads) or random-fire (inductive loads) output - LED input status indicator optional.



  • Ratings from 10A to 40A @ 24-140 VAC
  • SCR output for heavy industrial loads
  • Zero voltage or instantaneous turn-on outputs
  • UL/CSA/VDE Approved, CE Compliant to EN60950-1
  • Improved SEMS screw and washer
  • Redesigned housing with anti-rotation barriers
  • AC or DC control
  • Direct bond copper substrate
  • EMC compliant to Level 3
  • Direct power lead frame
  • Epoxy free design

Accessories

Parts Output current Type of control Control voltage Depth Price
Series1.tif
Panel Mount SSR 140V ac 10A, 90-280V ac In, ZC
Art:
A1210 Copied
10 A
Zero voltage turn on
90-280V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 10A, 90-280V ac In, Inst.
Art:
A1210-10 Copied
10 A
Instantaneous turn on
90-280V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 10A18-36V ac ZC
Art:
A1210E Copied
10 A
Zero voltage turn on
18-36V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 10A18-36V ac Inst.
Art:
A1210E-10 Copied
10 A
Instantaneous turn on
18-36V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 25A, 90-280V ac In, ZC
Art:
A1225 Copied
25 A
Zero voltage turn on
90-280V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 25A, 90-280V ac In, Inst.
Art:
A1225-10 Copied
25 A
Instantaneous turn on
90-280V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 25A, 18-36V ac ZC
Art:
A1225E Copied
25 A
Zero voltage turn on
18-36V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 25A, 90-280V ac In, ZC
Art:
A1225K Copied
25 A
Zero voltage turn on
90-280V ac
26,4 mm
Series1.tif
Panel Mount SSR 140V ac 40A, 90-280V ac In, ZC
Art:
A1240 Copied
40 A
Zero voltage turn on
90-280V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 40A, 90-280V ac In, Inst.
Art:
A1240-10 Copied
40 A
Instantaneous turn on
90-280V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 40A18-36V ac ZC
Art:
A1240E Copied
40 A
Zero voltage turn on
18-36V ac
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 40A, 3-32V dc In, ZC
Art:
D1240 Copied
40 A
Zero voltage turn on
3-32V dc
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 10A, 3-32V dc In, ZC
Art:
D1210 Copied
10 A
Zero voltage turn on
3-32V dc
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 10A, 3-32V dc In, Inst.
Art:
D1210-10 Copied
10 A
Instantaneous turn on
3-32V dc
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 10A, 3-32V dc In, ZC
Art:
D1210K Copied
10 A
Zero voltage turn on
3-32V dc
26,4 mm
Series1.tif
Panel Mount SSR 140V ac 25A, 3-32V dc In, ZC
Art:
D1225 Copied
25 A
Zero voltage turn on
3-32V dc
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 25A, 3-32V dc In, Inst.
Art:
D1225-10 Copied
25 A
Instantaneous turn on
3-32V dc
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 25A, 3-32V dc In, ZC
Art:
D1225K Copied
25 A
Zero voltage turn on
3-32V dc
26,4 mm
Series1.tif
Panel Mount SSR 140V ac 40A, 3-32V dc In, Inst.
Art:
D1240-10 Copied
40 A
Instantaneous turn on
3-32V dc
22,6 mm
Series1.tif
Panel Mount SSR 140V ac 40A, 3-32V dc In, ZC
Art:
D1240K Copied
40 A
Zero voltage turn on
3-32V dc
26,4 mm
