Overview |
|
---|---|
Output current | 10 A |
Output voltage | 5-200V dc |
Control voltage | 4-32V dc |
Mounting | Panel mount |
Type of control | DC Switching |
Output voltage | 5-200V dc |
Output Specification |
|
Maximum Load Current | 10 A rms |
Minimum Load Current | 5 mA rms |
Transient Voltage | 200 V pk |
Maximum off-state leakage current | 3 mA rms |
Maximum on-state voltage drop | 0.97V pk |
Thermal resistance junction to case | 0.66 °C/W |

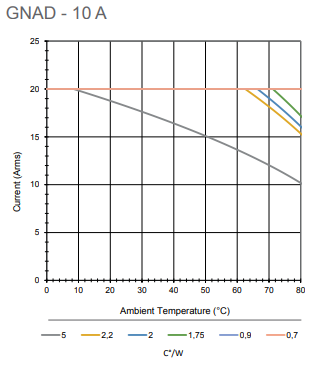

Minimum heat sink for rated current @ 40 °C | 3.1 °C/W |
Number of poles | 1 |
Control voltage | 4-32V dc |
Input Specification |
|
Maximum reverse voltage | -32V dc |
Minimum turn-on voltage | 3.5V dc |
*Invisible Heading* |
|
---|---|
Must turn-off voltage | 1V dc |

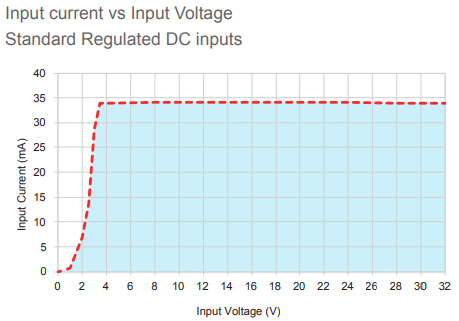

Input current min | 34 mA |
Input Current Max | 35 mA |
Maximum turn-on time (ms) | 0.02 |
Maximum turn-off time (ms) | 0.02 |
General Specification |
|
Ambient operating temperature | -25 ... +90°C |
Ambient storage temperature | -40 ... +100°C |
Weight | 80 g |

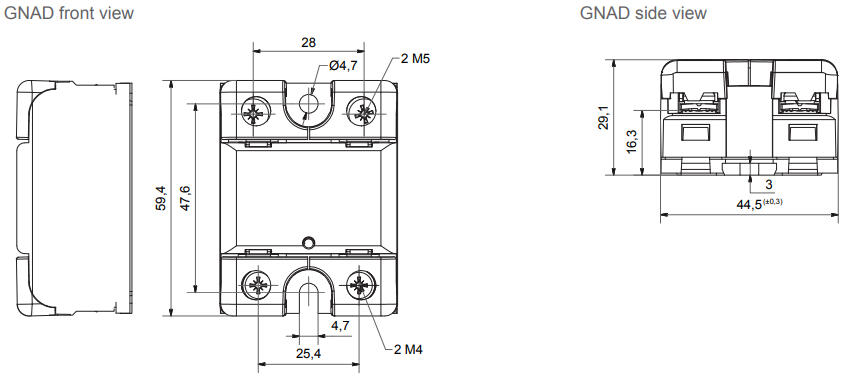

Height | 59.4 mm |
Width | 44.5 mm |
Depth | 29.1 mm |
Housing material | UL94 V-0 |
Material base | Aluminium |
LED input status indicator | Green |
Approvals | CE, cRUus |
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Output current | Output voltage | Maximum Load Current | Transient Voltage | Maximum on-state voltage drop | Thermal resistance junction to case | Minimum heat sink for rated current @ 40 °C | Price | ||
---|---|---|---|---|---|---|---|---|---|---|
![]()
SSR 10A 5-200 VDC Out 4-32 VDC In
Art:
84137650N
Copied
|
10 A
|
5-200V dc
|
10 A rms
|
200 V pk
|
0.97V pk
|
0.66 °C/W
|
3.1 °C/W
|
| ||
![]()
SSR 20A 5-100 VDC Out 4-32 VDC In
Art:
84137660N
Copied
|
20 A
|
5-100V dc
|
20 A rms
|
100 V pk
|
0.98V pk
|
1.4 °C/W
|
3 °C/W
|
| ||
![]()
SSR 40A 5-55 VDC Out 4-32 VDC In
Art:
84137670N
Copied
|
40 A
|
5-55V dc
|
40 A rms
|
55 V pk
|
0.42V pk
|
0.9 °C/W
|
3.6 °C/W
|
|
Select a variant in the list
