CROUZET CONTROL

Crouzet - GN series solid state relay

Panel Mount - AC Output Single Phase

  • Zero cross or instantaneous switching
  • Output current: 10 - 125 Amps
  • Built-in over voltage protection (zero cross only)
  • LED input status indicator

Selected variant

Available in several variants
Crouzet_Control_logo.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Overview
Output current 10 A
Output voltage 24-280V ac
Control voltage 4-32V dc
Mounting Panel mount
Type of control Zero voltage turn on
Output voltage 24-280V ac

Output Specification
Maximum Load Current 10 A rms
Minimum Load Current 5 mA rms
Transient Voltage 600 V pk
Maximum off-state leakage current 1 mA rms

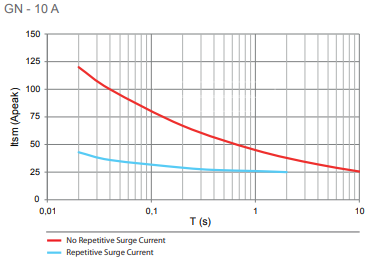

1 Second surge current 45 A
Maximum 1 cycle surge current 120/126 (min) 160 (typ)
Maximum on-state voltage drop 1.2V
Thermal resistance junction to case 2,3 °C/W
Maximum 1/2 Cycle I² t for fusing (A² sec) 78/128
Minimum heat sink for rated current @ 40 °C 5,3 °C/W
Number of poles 1
Control voltage 4-32V dc

Input Specification
Maximum reverse voltage -32V dc

*Invisible Heading*
Minimum turn-on voltage 3V dc
Must turn-off voltage 1V dc

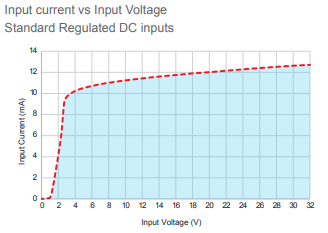

Input current min 10 mA
Input Current Max 14 mA
Maximum turn-on time (ms) 1/2 cycle
Maximum turn-off time (ms) 1/2 cycle

General Specification
Dielectric strength input to output (50/60Hz) 4000 V rms
Ambient operating temperature -40 ... +80°C
Ambient storage temperature -40 ... +100°C
Weight 80 g
Height 59,4 mm
Width 44,5 mm
Depth 29,1 mm
Housing material UL94 V-0
Material base Aluminium
LED input status indicator Green
Approvals CE, cRUus, VDE

Downloads

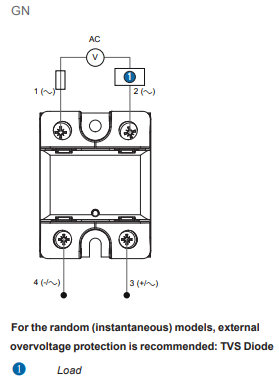

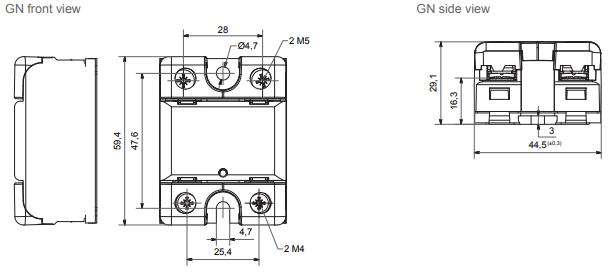

Measurements and connections

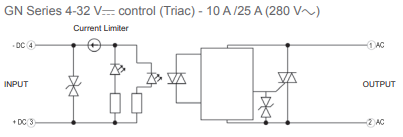

Technical illustrations

Accessories

Parts Output current Type of control Output voltage Maximum Load Current Transient Voltage Maximum off-state leakage current 1 Second surge current Maximum 1 cycle surge current Maximum on-state voltage drop Thermal resistance junction to case Maximum 1/2 Cycle I² t for fusing (A² sec) Minimum heat sink for rated current @ 40 °C Control voltage Maximum reverse voltage Minimum turn-on voltage Must turn-off voltage Input current min Input Current Max Maximum turn-on time (ms) Price
GN series solid state relay.jpg
SSR 10A 24-280 VAC Out 4-32 VDC In ZC
Art:
84137000N Copied
10 A
Zero voltage turn on
24-280V ac
10 A rms
600 V pk
1 mA rms
45 A
120/126 (min) 160 (typ)
1.2V
2,3 °C/W
78/128
5,3 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
GN series solid state relay.jpg
SSR 10A 24-280 VAC Out 20-265 VAC In ZC
Art:
84137001N Copied
10 A
Zero voltage turn on
24-280V ac
10 A rms
600 V pk
1 mA rms
45 A
120/126 (min) 160 (typ)
1.2V
2,3 °C/W
78/128
5,3 °C/W
20-265V ac
18V ac/dc
5V ac/dc
5 mA AC / 4 mA DC
10 mA
1/2 cycle
GN series solid state relay.jpg
SSR 25A 24-280 VAC Out 4-32 VDC In ZC
Art:
84137010N Copied
25 A
Zero voltage turn on
24-280V ac
25 A rms
600 V pk
1 mA rms
100 A
270/284 (min) 340 (typ)
1.23V
1,7 °C/W
487/600
1,3 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
GN series solid state relay.jpg
SSR 25A 24-280 VAC Out 20-265 VAC In ZC
Art:
84137011N Copied
25 A
Zero voltage turn on
24-280V ac
25 A rms
600 V pk
1 mA rms
100 A
270/284 (min) 340 (typ)
1.23V
1,7 °C/W
487/600
1,3 °C/W
20-265V ac
18V ac/dc
5V ac/dc
5 mA AC / 4 mA DC
10 mA
1/2 cycle
GN series solid state relay.jpg
SSR 25A 24-280 VAC Out 18-36V AC/DC In ZC
Art:
84137012N Copied
25 A
Zero voltage turn on
24-280V ac
25 A rms
600 V pk
1 mA rms
100 A
270/284 (min) 340 (typ)
1.23V
1,7 °C/W
487/600
1,3 °C/W
18-36V ac/dc
18V ac/dc
5V ac/dc
5 mA AC / 4 mA DC
10 mA
1/2 cycle
GN series solid state relay.jpg
SSR 25A 48-660 VAC Out 4-32 VDC In ZC
Art:
84137110N Copied
25 A
Zero voltage turn on
48-660V ac
25 A rms
1200 V pk
1 mA rms
125 A
280/_ (min) 750 (typ)
1.25V
0,55 °C/W
720/1250
2,08 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
GN series solid state relay.jpg
SSR 25A 48-660 VAC Out 20-265 VAC In ZC
Art:
84137111N Copied
25 A
Zero voltage turn on
48-660V ac
25 A rms
1200 V pk
1 mA rms
125 A
280/_ (min) 750 (typ)
1.25V
0,55 °C/W
720/1250
2,08 °C/W
20-265V ac
18V ac/dc
5V ac/dc
5 mA AC / 4 mA DC
10 mA
1/2 cycle
GN series solid state relay.jpg
SSR 50A 48-660 VAC Out 4-32 VDC In ZC
Art:
84137120N Copied
50 A
Zero voltage turn on
48-660V ac
50 A rms
1200 V pk
1 mA rms
230 A
700/_ (min) 750 (typ)
1.38V
0,4 °C/W
2450/2800
0,84 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
GN series solid state relay.jpg
SSR 50A 48-660 VAC Out 18-36V AC/DC In ZC
Art:
84137122N Copied
50 A
Zero voltage turn on
48-660V ac
50 A rms
1200 V pk
1 mA rms
230 A
700/_ (min) 750 (typ)
1.38V
0,4 °C/W
2450/2800
0,84 °C/W
18-36V ac/dc
18V ac/dc
5V ac/dc
5 mA AC / 4 mA DC
10 mA
1/2 cycle
GN series solid state relay.jpg
SSR 50A 48-660 VAC Out 20-265 VAC In ZC
Art:
84137121N Copied
50 A
Zero voltage turn on
48-660V ac
50 A rms
1200 V pk
1 mA rms
230 A
700/_ (min) 750 (typ)
1.38V
0,4 °C/W
2450/2800
0,84 °C/W
20-265V ac
18V ac/dc
5V ac/dc
5 mA AC / 4 mA DC
10 mA
1/2 cycle
GN series solid state relay.jpg
SSR 75A 48-660 VAC Out 4-32 VDC In ZC
Art:
84137130N Copied
75 A
Zero voltage turn on
48-660V ac
75 A rms
1200 V pk
1 mA rms
347 A
1100/_ (min) 1200 (typ)
1.34V
0,3 °C/W
6000/7200
0,52 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
GN series solid state relay.jpg
SSR 75A 48-660 VAC Out 20-265 VAC In ZC
Art:
84137131N Copied
75 A
Zero voltage turn on
48-660V ac
75 A rms
1200 V pk
1 mA rms
347 A
1100/_ (min) 1200 (typ)
1.34V
0,3 °C/W
6000/7200
0,52 °C/W
20-265V ac
18V ac/dc
5V ac/dc
5 mA AC / 4 mA DC
10 mA
1/2 cycle
GN series solid state relay.jpg
SSR 100A 48-660 VAC Out 4-32 VDC In ZC
Art:
84137140N Copied
100 A
Zero voltage turn on
48-660V ac
100 A rms
1200 V pk
1 mA rms
347 A
1100/_ (min) 1200 (typ)
1.45V
0,3 °C/W
6000/7200
0,23 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
GN series solid state relay.jpg
SSR 100A 48-660 VAC Out 20-265 VAC In ZC
Art:
84137141N Copied
100 A
Zero voltage turn on
48-660V ac
100 A rms
1200 V pk
1 mA rms
347 A
1100/_ (min) 1200 (typ)
1.45V
0,3 °C/W
6000/7200
0,23 °C/W
20-265V ac
18V ac/dc
5V ac/dc
5 mA AC / 4 mA DC
10 mA
1/2 cycle
GN series solid state relay.jpg
SSR 125A 48-660 VAC Out 4-32 VDC In ZC
Art:
84137180N Copied
125 A
Zero voltage turn on
48-660V ac
125 A rms
1200 V pk
1 mA rms
613 A
2000/_ (min) 2100 (typ)
1.15V
0,25 °C/W
20000/22000
0,29 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
GN series solid state relay.jpg
SSR 125A 48-660 VAC Out 20-265 VAC In ZC
Art:
84137181N Copied
125 A
Zero voltage turn on
48-660V ac
125 A rms
1200 V pk
1 mA rms
613 A
2000/_ (min) 2100 (typ)
1.15V
0,25 °C/W
20000/22000
0,29 °C/W
20-265V ac
18V ac/dc
5V ac/dc
5 mA AC / 4 mA DC
10 mA
1/2 cycle
GN series solid state relay.jpg
SSR 25A 24-280 VAC Out 4-32 VDC In Ins
Art:
84137210N Copied
25 A
Instantaneous turn on
24-280V ac
25 A rms
600 V pk
5 mA rms
100 A
270/284 (min) 340 (typ)
1.08V
0,7 °C/W
512/882
2,6 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
GN series solid state relay.jpg
SSR 25A 24-280 VAC Out 90-260 VAC In Ins
Art:
84137211N Copied
25 A
Instantaneous turn on
24-280V ac
25 A rms
600 V pk
5 mA rms
100 A
270/284 (min) 340 (typ)
1.08V
0,7 °C/W
512/882
2,6 °C/W
90-260V ac
90V ac
5V ac
6.5 mA
10 mA
<0.1
GN series solid state relay.jpg
SSR 50A 48-660 VAC Out 4-32 VDC In Ins
Art:
84137320N Copied
50 A
Instantaneous turn on
48-660V ac
50 A rms
1600 V pk
5 mA rms
230 A
700/_ (min) 750 (typ)
1.37V
0,4 °C/W
2450/2500
0,84 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
GN series solid state relay.jpg
SSR 50A 48-660 VAC Out 90-260 VAC In Ins
Art:
84137321N Copied
50 A
Instantaneous turn on
48-660V ac
50 A rms
1600 V pk
5 mA rms
230 A
700/_ (min) 750 (typ)
1.37V
0,4 °C/W
2450/2500
0,84 °C/W
90-260V ac
90V ac
5V ac
6.5 mA
10 mA
<0.1
GN series solid state relay.jpg
SSR 75A 48-660 VAC Out 4-32 VDC In Ins
Art:
84137330N Copied
75 A
Instantaneous turn on
48-660V ac
75 A rms
1600 V pk
5 mA rms
347 A
1100/_ (min) 1200 (typ)
1.34V
0,3 °C/W
6000/7200
0,52 °C/W
4-32V dc
-32V dc
3V dc
1V dc
10 mA
14 mA
1/2 cycle
