SENSATA CRYDOM
1-DC Series 60-100A Relay
With MOSFET output, this 1-DC Series Panel Mount DC Solid State Relay offers reliable fast switching of DC loads through low On-State resistance. Power ratings for this DC output SSR range up to 100 Amps at 100 VDC and 10 Amps at 500 VDC.
The 1-DC Series panel mount DC SSR also features:
- DC control input: 3.5-32 VDC
- Epoxy-free design which reduces internal stress
- EMC compliant to Level 3
- High PWM switching capability (up to 5 kHz on selected models)
- UL approved, CE compliant to EN60950-1
- Low-impedance MOSFET output minimizes total power dissipation
- Easily paralleled for high-current applicationsÂ
- Load current 60A, 80A and 100A
- Operating voltage 1-100 VDC
- Control voltage 3.5-32 VDC
Selected variant
Technical data
Overview |
|
|---|---|
| Output current | 60 A |
| Output voltage | 1-100V dc |
| Control voltage | 3-32V dc |
| Connection | Screw connection |
| Additional features | N/A |
| Output voltage | 1-100V dc |
Output Specification |
|
| Number of poles | 1 |
| Control voltage | 3-32V dc |

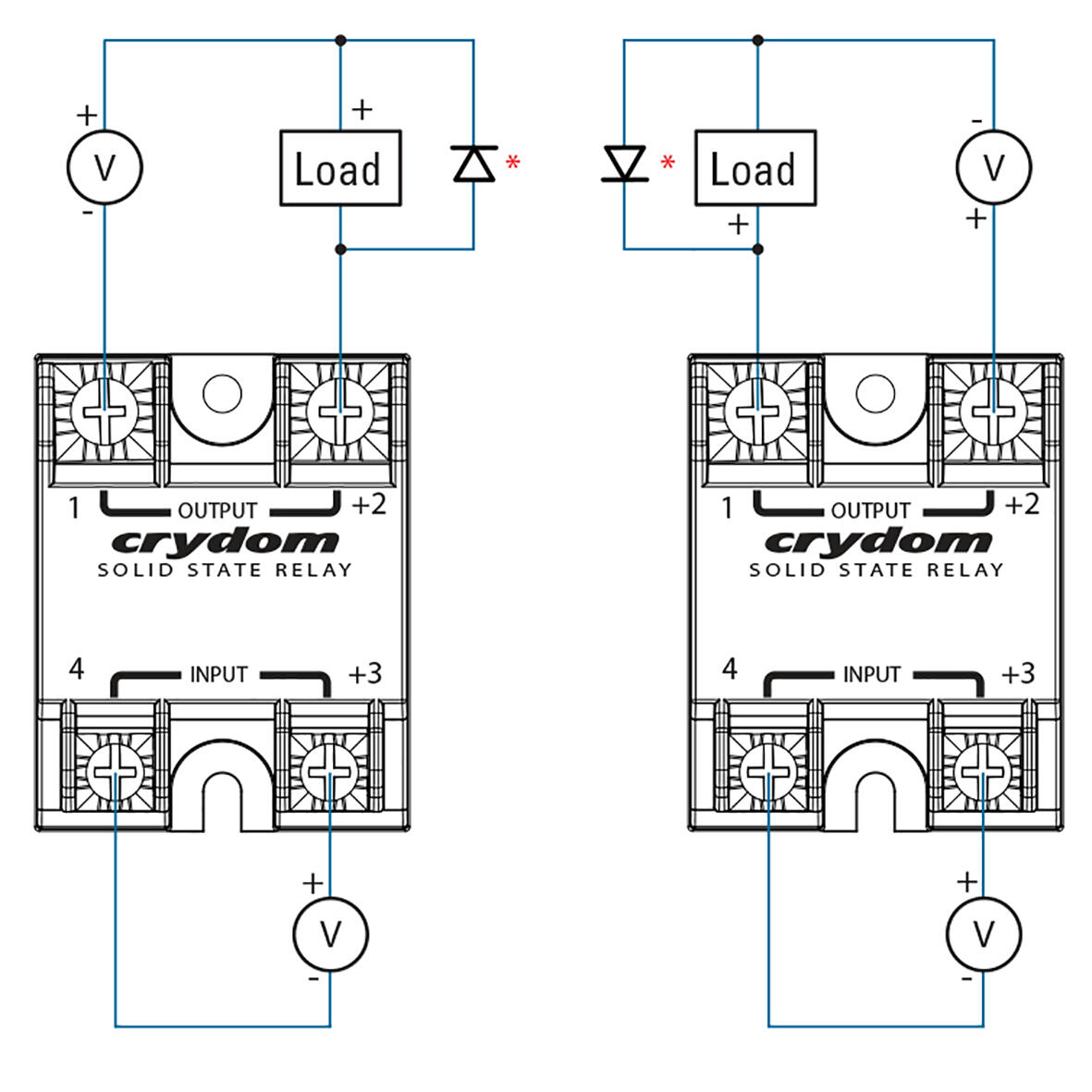

Input Specification |
|

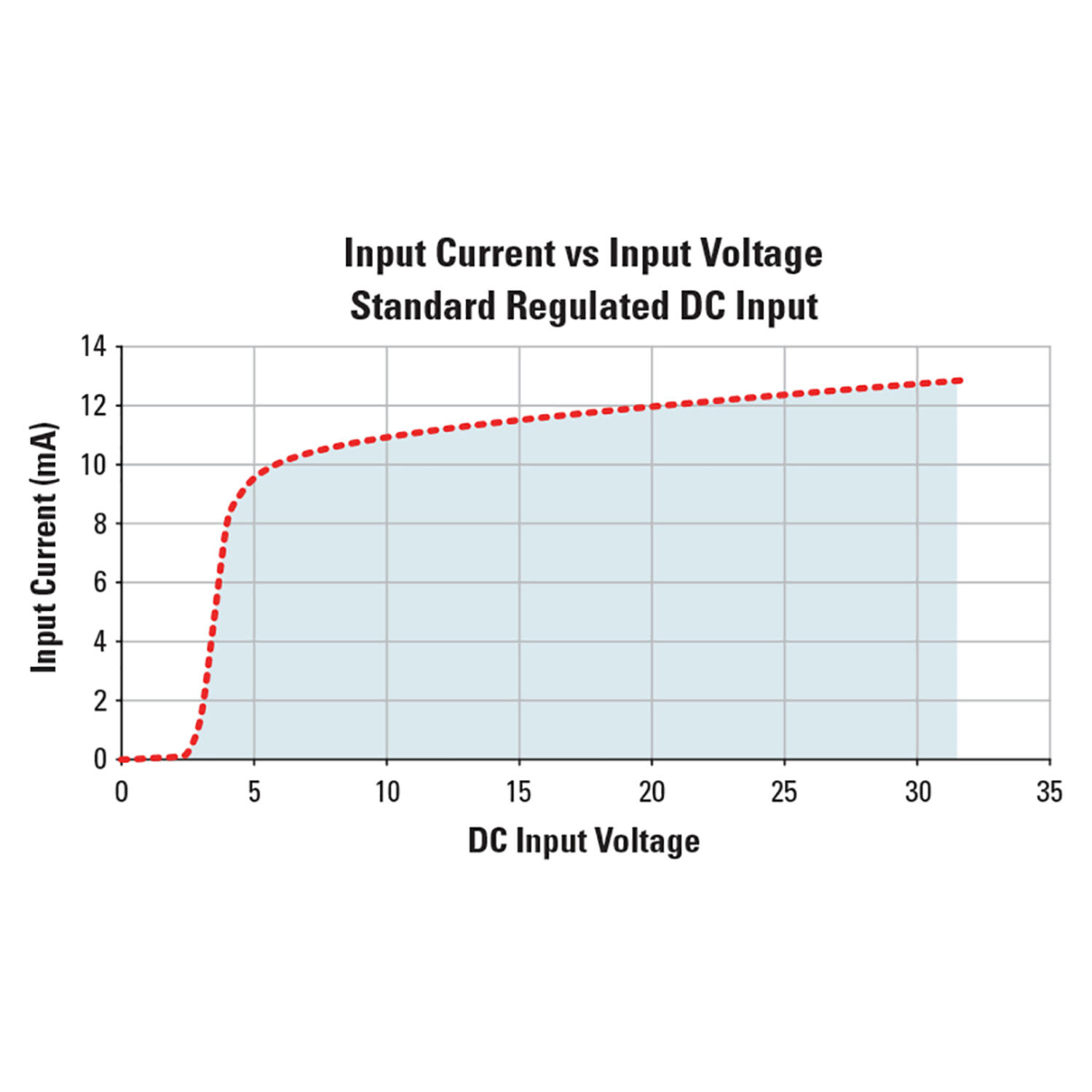

| Input current min | 10 mA |
| Input current max | 15 mA |

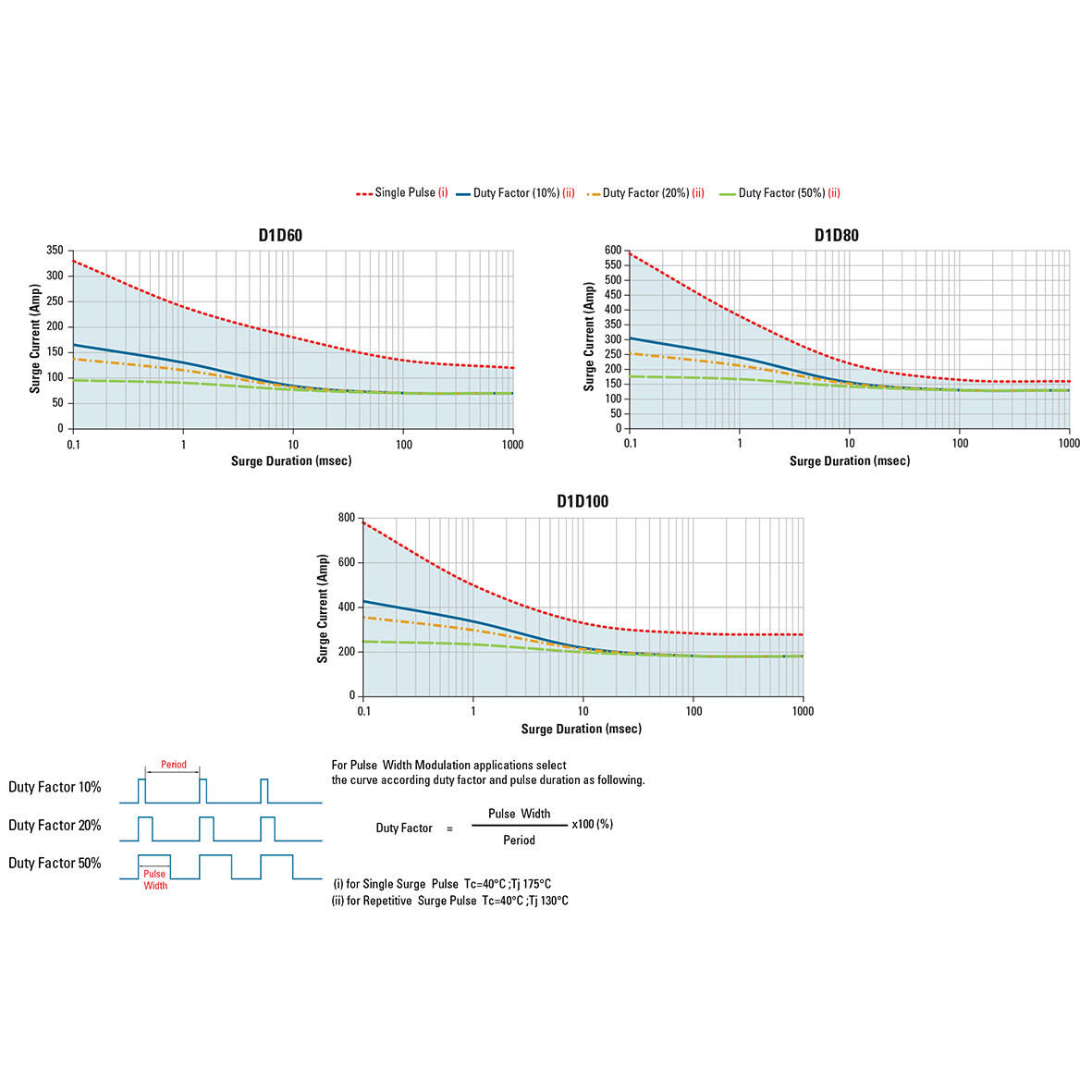

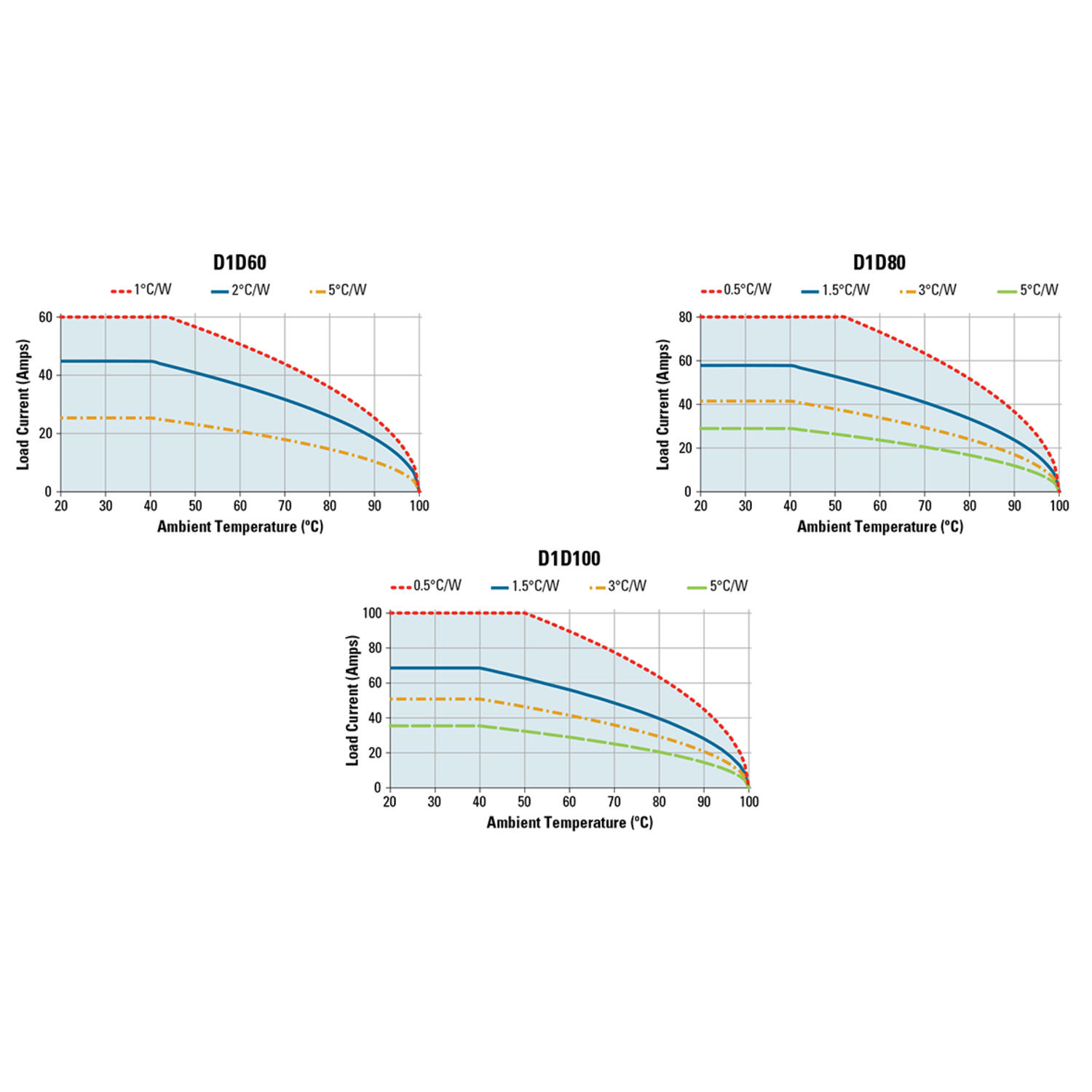

General Specification |
|
|---|---|
| Temperature operational min | -40 °C |
| Temperature operational max | 10 °C |
| Storage temperature max | 125 °C |
| Storage temperature min | -40 °C |

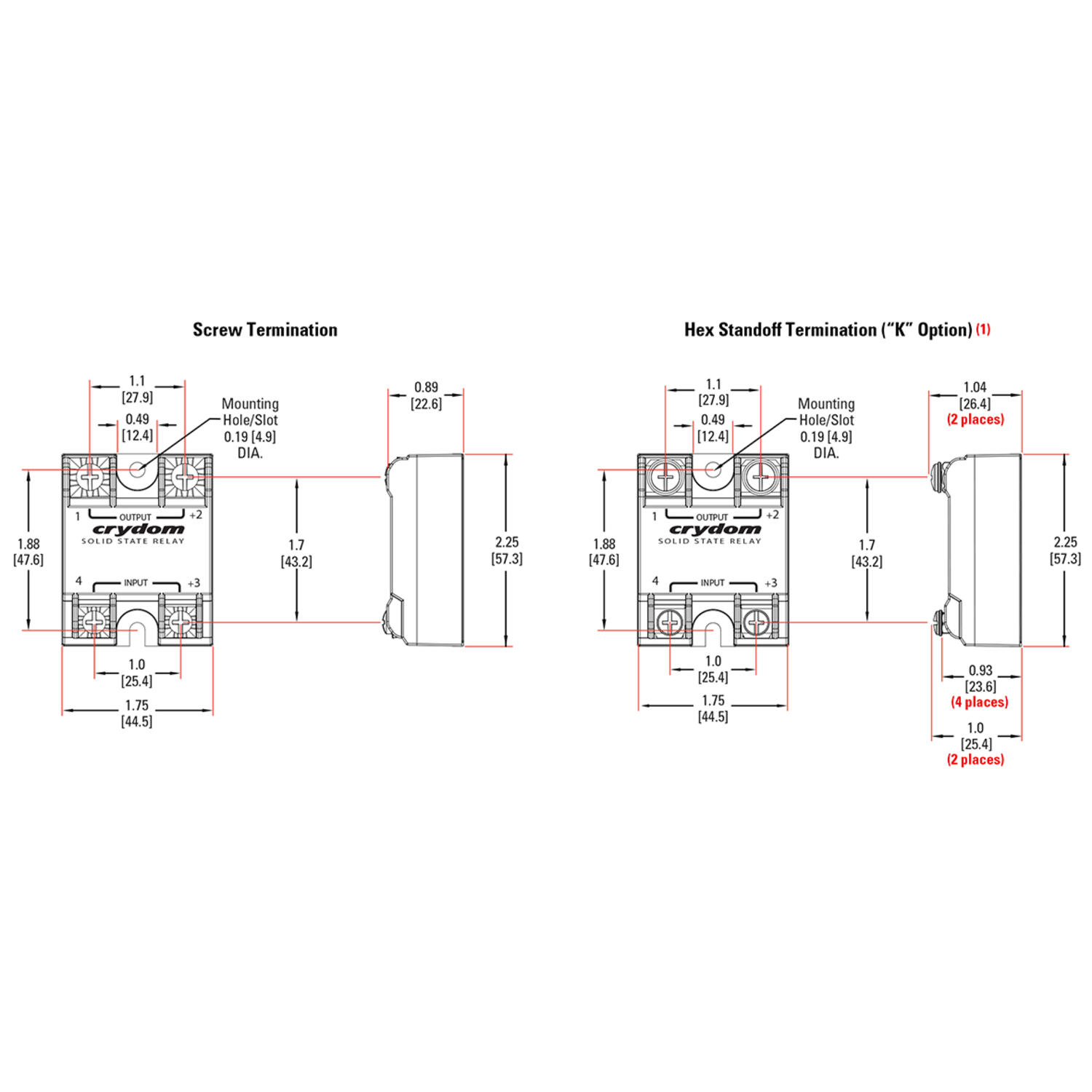

| Weight | 75.5 g |
| Height | 57.3 mm |
| Width | 44.5 mm |
| Depth | 22.6 mm |
Product description
With MOSFET output, this 1-DC Series Panel Mount DC Solid State Relay offers reliable fast switching of DC loads through low On-State resistance. Power ratings for this DC output SSR range up to 100 Amps at 100 VDC and 10 Amps at 500 VDC.
The 1-DC Series panel mount DC SSR also features:
- DC control input: 3.5-32 VDC
- Epoxy-free design which reduces internal stress
- EMC compliant to Level 3
- High PWM switching capability (up to 5 kHz on selected models)
- UL approved, CE compliant to EN60950-1
- Low-impedance MOSFET output minimizes total power dissipation
- Easily paralleled for high-current applicationsÂ
